Page 61 of 286
If your f uel cap is loose or missing, a
‘‘CHECK FUEL CAP’’ message
appears as text in the odometer/
outside temperature display af ter
you start the engine. Turn the
engine of f and conf irm the f uel cap is
installed. If it is, loosen the cap, then
retighten it at least 3 clicks. When
you restart the engine, the message
appears again. To clear, press and
hold the Trip/Reset button until the
message is replaced by the
odometer/outside temperature
display.
This indicator normally comes on
when you turn the ignition to ON (II)
and goes off after the engine starts.
If it comes on at any other time,
there is a problem in the Electric
Power Steering system. If this
happens, stop the vehicle in a saf e
place and turn of f the engine. Reset
the system by restarting the engine.
The indicator will not turn of f
immediately. If it does not go of f
after driving a short distance, or
comes back on again while driving,
take the vehicle to your dealer to
have it checked. With the indicator
on, the EPS may be turned of f ,
making the vehicle harder to steer.
If the power steering system
overheats while driving, the assisting
power is reduced and steering may
f eel slightly harder.
If you drive with the system overheated continuously or
repeatedly, this can damage the
power steering system.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II). If it comes
on at any other time, it indicates a
problem in the Integrated Motor
Assist (IMA) system. With the IMA
indicator on, the vehicle may not
accelerate as it normally does. Have
the vehicle checked by the dealer as
soon as possible.
See page .
174 Check Fuel Cap Display
Electric Power Steering
(EPS) Indicator
IMA System Indicator
A uto Idle Stop Indicator
Instrument Panel Indicators
60
—
— y
y
(' y y
Page 64 of 286

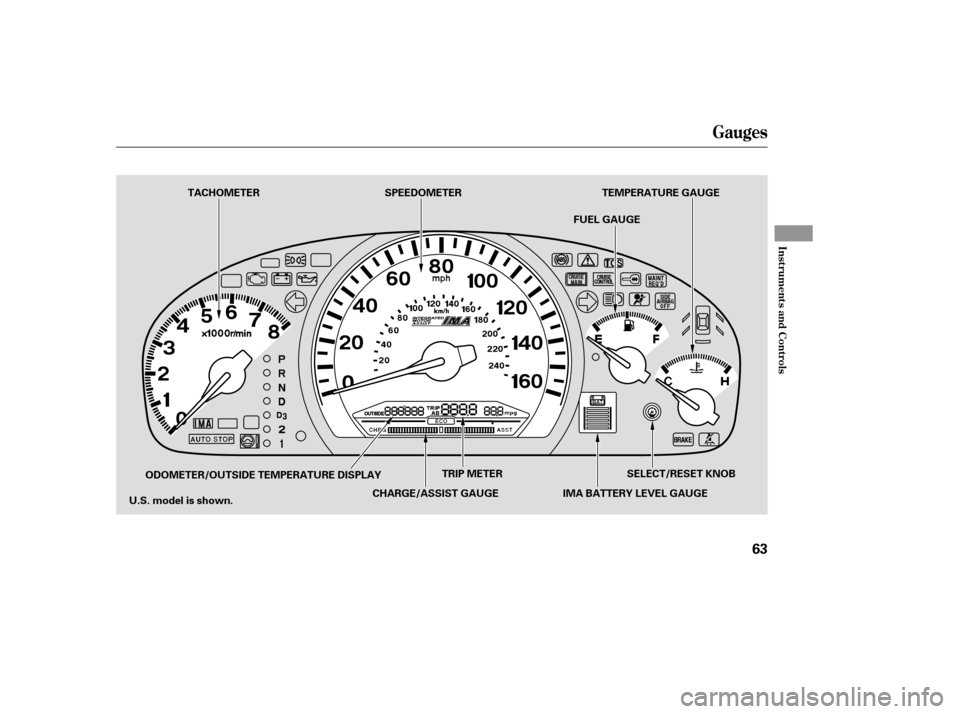

Gauges
Inst rument s and Cont rols
63
IMA BATTERY LEVEL GAUGESELECT/RESET KNOB
TRIP METER
U.S. model is shown. TEMPERATURE GAUGE
CHARGE/ASSIST GAUGE FUEL GAUGE
SPEEDOMETER
TACHOMETER
ODOMETER/OUTSIDE TEMPERATURE DISPLAY
—
— y y
(' y y
Page 65 of 286
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.This display shows the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models). To see the outside
temperature, press and release the
Select/Reset knob until the
temperature is displayed.
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
Gauges
Odometer
Outside T emperature Display
64
—
— y
y
(' y y
Page 66 of 286
¶¶µµµµ
µ µµµ This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer/outside
temperature display by pressing the
Select/Reset knob repeatedly. Each
trip meter works independently, so
you can keep track of two dif f erent
distances.
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F ( 3°C) warmer or
cooler.
NOTE: The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then press the Select/Reset
knob f or 10 seconds. The f ollowing
sequences appear, 1 second at a
time:0,1,2,3,4,5, 5, 4, 3, 2,
1, 0, 1 (0, 1, 2, 3, 3, 2, 1, 0, 1).
When the temperature reaches the
desired value, release the Select/
Reset knob. You should see the new
outside temperature displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace. When you turn the ignition switch to
ON (II), what you last selected is
displayed.
To reset a trip meter, display it and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0.’’
Both trip meters will reset if the
vehicle’s battery goes dead or is
disconnected.
Trip Meter
Gauges
Inst rument s and Cont rols
65
—
—
yy
(' y y
Page 67 of 286
When a trip meter is displayed, the
average fuel mileage you have been
getting during that trip is shown in
the Fuel Mileage display. This
number is updated once every ten
seconds.
When you reset a trip meter, the
average fuel mileage for that trip
meter also resets.You can temporarily turn of f the Trip
Mileage display.
Turn the ignition switch to ON (II)
and make sure the transmission is
in Park and the parking brake is
set.
Use the Select/Reset button to
select the odometer display.
Press and hold the Select/Reset
button for about 5 to 10 seconds,
then release it. The Trip Mileage
display will turn of f . The display will turn back on when
you repeat the same procedure in
step 3.
It shows the number of mpg (U.S.)
or l/100 km (Canada).
1.
2.
3.
Inst rument s and Cont rols
Gauges
T rip Mileage T urning Of f the T rip Mileage
Display
66
TRIP METER
—
— y y
(' y y
Page 281 of 286
....................
IMA System Indicator .60
........................
Immobilizer System .78
.........
Important Safety Precautions .8
.........
Indicators, Instrument Panel .54
...............................
Inf ant Restraint .36
......................................
Inf ant Seats .36
..........
Tether Anchorage Points .44
...................
Inf lation, Proper Tire .219
...................................
Inside Mirror .89
.............................
Inspection, Tire .221
....................
Installing a Child Seat .40
..........
Tether Anchorage Points .44
.............................
Using LATCH .40
............................
Instrument Panel .53
........
Instrument Panel Brightness .74
........................................
Introduction . i
.................
Jacking up the Vehicle .238
.......................................
Jack, Tire .237
................................
Jump Starting .242
..................................................
Keys .77 .......................
Label, Certif ication .258
.................
Lane Change, Signaling .72
........................
Lap/Shoulder Belts .20
Lights
....................
Bulb Replacement .210
.......................................
Indicator .57
.......................................
Parking .213
..................................
Turn Signal .57
....................................
Load Limits .161
......
LOCK (Ignition Key Position) .79
Locks
.......
Anti-thef t Steering Column .79
............................
Fuel Fill Door .153
....................................
Glove Box .98
....................
Lockout Prevention .80
.................................
Power Door .80
...........................................
Trunk .84
........................
Low Coolant Level .156
...
Lower Gear, Downshif ting to a . 168
...........
Low Oil Pressure Indicator . 54
...
Lubricant Specif ications Chart . 260
.........................................
Luggage .160 ..................................
Maintenance .189
...
Owner Maintenance Checks . 193
........................................
Record .196
......................
Required Indicator .61
..........................................
Saf ety .190
.............................
Schedule .194-195
.......
Malf unction Indicator Lamp . 247
...............................
Meters, Gauges .63
..........................
Mirrors, Adjusting .89
.................................
Modif ications .159
...................
Neutral Gear Position . 169
..................
New Vehicle Break-in . 152
.....................
Normal Shif t Speeds .168
...................
NOTICE, Explanation of . i
...............
Numbers, Identif ication . 258
...
Octane Requirement, Gasoline . 152
.........................................
Odometer .64
