Take your vehicle to an
authorized dealer as soon as
possible. If you ignore this
indication, your airbags may not
operate properly.
Your airbag systems are virtually
maintenance f ree, and there are no
parts you can saf ely service.
However, you must have your
vehicle serviced if:
Do not try to remove or replace
anyairbagbyyourself.Thismust
be done by an authorized dealer or
a knowledgeable body shop.Any airbag
that has deployed must be
replaced along with the control
unit and other related parts. Any
seat belt tensioner that activates
must also be replaced.
Even if your
airbags do not inflate, your dealer
should inspect the driver’s seat
position sensor, the f ront
passenger’s weight sensors, the
f ront seat belt tensioners, and all
seat belts worn during the crash to
make sure they are operating
properly.
T he SRS indicat or alert s you t o a
problem.
An airbag ever inf lates.
If your vehicle has a moderat e t osevere impact .Airbag Service
Additional Inf ormation About Your Airbags
34
06/08/08 14:20:43 31SDR620_039

Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury. Improperly replacing
or covering f ront seat-back covers
can prevent your side airbags f rom
inf lating during a side impact.
If water or
another liquid soaks into the seat-
back, it can prevent the side airbag
cutof f system f rom working
properly. This could make the
driver’s seat position sensor or the
f ront passenger’s weight sensors
inef f ective. If it is necessary to
remove or modif y a f ront seat to
accommodate a person with
disabilities, f irst contact Honda
Automobile Customer Service at
(800) 999-1009.
Additional Saf ety Precautions
Donotattempttodeactivateyour
airbags.
Do not t amper wit h airbagcomponent s or wiring f or anyreason. Do not cover or replace f ront seat -
back covers wit hout consult ingyour dealer.
Do not expose the f ront passenger’sseat-back to liquid. Do not remove or modif y a f ront
seat without consulting yourdealer.
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
35
06/08/08 14:20:50 31SDR620_040

If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals. For more
inf ormation, see page .This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position, and when the ignition
switch is turned to the START (III)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this on, your vehicle still has normal
braking ability but no anti-lock
brakes. For more inf ormation, see
page . This indicator comes on when you
turn the ignition switch to the ON
(II) position. If it comes on at any
other time, it indicates that the
passenger’s side airbag has
automatically shut off. For more
inf ormation, see page .
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
potential problem with your f ront
airbags. This indicator will also alert
you to a potential problem with your
side airbags, passenger’s side airbag
automatic cutoff system, side curtain
airbags, automatic seat belt
tensioners, driver’s seat position
sensor, or the f ront passenger’s
weight sensors. For more
inf ormation, see page .
20
3132
181
Instrument Panel Indicators
Supplemental Restraint
System Indicator Anti-lock Brake System
(A BS) IndicatorSide Airbag Of f
Indicator
Inst rument s and Cont rols
61
U.S. Canada
06/08/08 14:26:13 31SDR620_066

This display shows the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models). To see the outside
temperature, press and release the
Select/Reset knob until the
temperature is displayed.
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
The inf ormation display provides
various inf ormation; odometer,
outside temperature, trip meter, trip
mileage, engine oil lif e, and
maintenance service items. To
switch the display, press the Select/
Reset knob repeatedly. When you
turn the ignition switch to the ON
(II) position, what you last selected is
shownintheinformationdisplay. Outside Temperature Display
Odometer
Inf ormation Display
Gauges
68
06/08/08 14:27:34 31SDR620_073

µ
See pages f or important saf ety
inf ormation and warnings about how toproperly position seats and seat-backs. 13
15
The controls f or the adjustable
driver’s power seat are on the
outside edge of the seat bottom. You
can adjust the power seat with the
ignition switch in any position. Make
all seat adjustments bef ore you start
driving.
Moving the long horizontal switch
adjusts the seat bottom in several
directions. The seat bottom adjusts
in the direction you move the switch.
The short vertical switch adjusts the
seat back angle.
Both f ront seats are equipped with
seat heaters. The driver’s seat has
heaters in both the seat-back and
seat cushion, but because of the
sensors f or the side airbag system,
there is no heater in the passenger’s
seat-back. The ignition switch must
be in the ON (II) position to use the
heaters.
If the engine is lef t idling f or an
extended period, do not use the
seat heaters even on the LO
setting. It can weaken the battery,
causing hard starting. Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current f rom the
battery.
Follow these precautions whenever
you use the seat heaters: In the LO setting, the heater runs
continuously. It does not cycle with
temperature changes. In the HI setting, the heater turns off
when the seat gets warm, and turns
back on after the seat’s temperature
drops. After the seat reaches a comfortable
temperature, select LO by pushing
the back of the switch. This will keep
the seat warm.
Adjusting the Driver’s Seat
Seat Heaters
Seat Heaters, Seats
90
06/08/08 14:31:22 31SDR620_095

Your heating and air conditioning
system provides a comf ortable
environment in all weather
conditions.
The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The security system helps prevent
your vehicle f rom being broken into
or being stolen.
...............Climate Control System . 106
..........Dual Temperature Control . 115
..............Climate Control Sensors . 117
..........Playing the AM/FM Radio . 118
...............Voice Control System . 119
.....................To Play the Radio . 119
....................To Select a Station . 119
.................Adjusting the Sound . 122
....................Radio Frequencies . 123
........................Radio Reception . 123
..................................Playing a CD . 125
..........Playing a CD, CD Changer . 126
.............................To Play a CD . 126
...............To Stop Playing a CD . 130
Removing CDs from the
.................................Changer. 130
.........CD Player Error Messages . 131
....................Protecting Your CDs. 132
.................General Inf ormation . 132
..........................Protecting CDs. 132
...............................Playing a Tape. 133
..........................To Play a Tape. 134
............To Stop Playing a Tape . 134
............Tape Search Functions . 135
Caring f or the Tape and
.....................................Player. 136
Playing the XMSatellite
......................................Radio. 137
...............Satellite Digital Radio . 137
....To Play XMSatellite Radio . 138
..................To Select a Channel . 138
..............Satellite Radio Signals . 140
Receiving Satellite Radio
....................................Service. 141
................Remote Audio Controls . 143
.................Radio Thef t Protection . 144
..........................Setting the Clock. 145
............................Security System. 146
...............................Cruise Control. 147
HomeLink Universal
................................Transceiver. 150
Features
Features
105
06/08/08 14:33:51 31SDR620_110

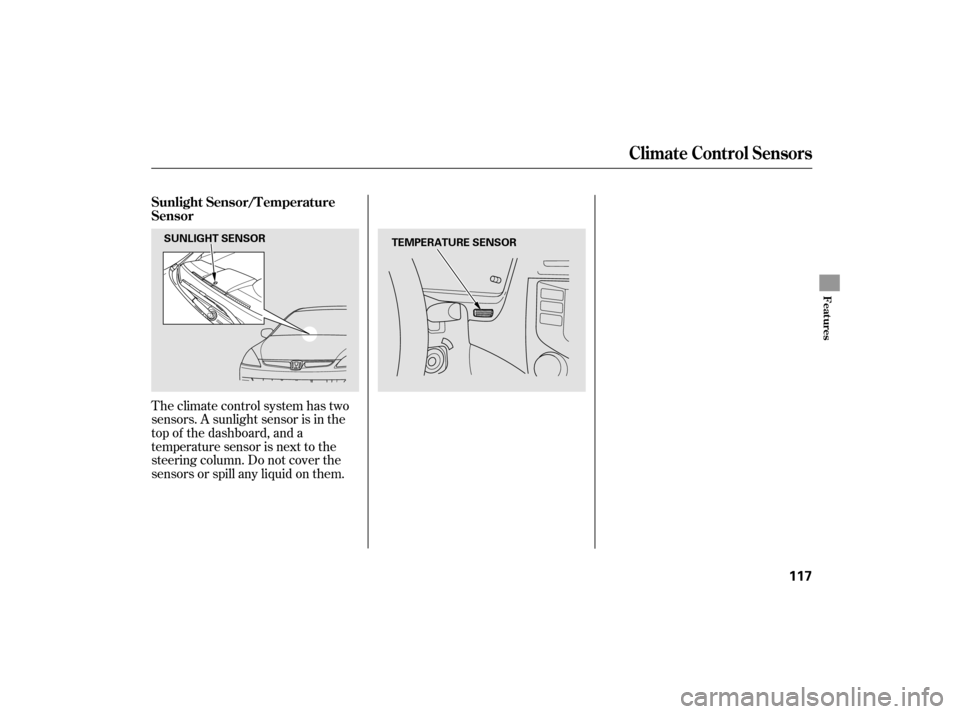

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them. Sunlight Sensor/T emperature
Sensor
Climat e Cont rol Sensors
Features
117
SUNLIGHT SENSORTEMPERATURE SENSOR
06/08/08 14:35:56 31SDR620_122

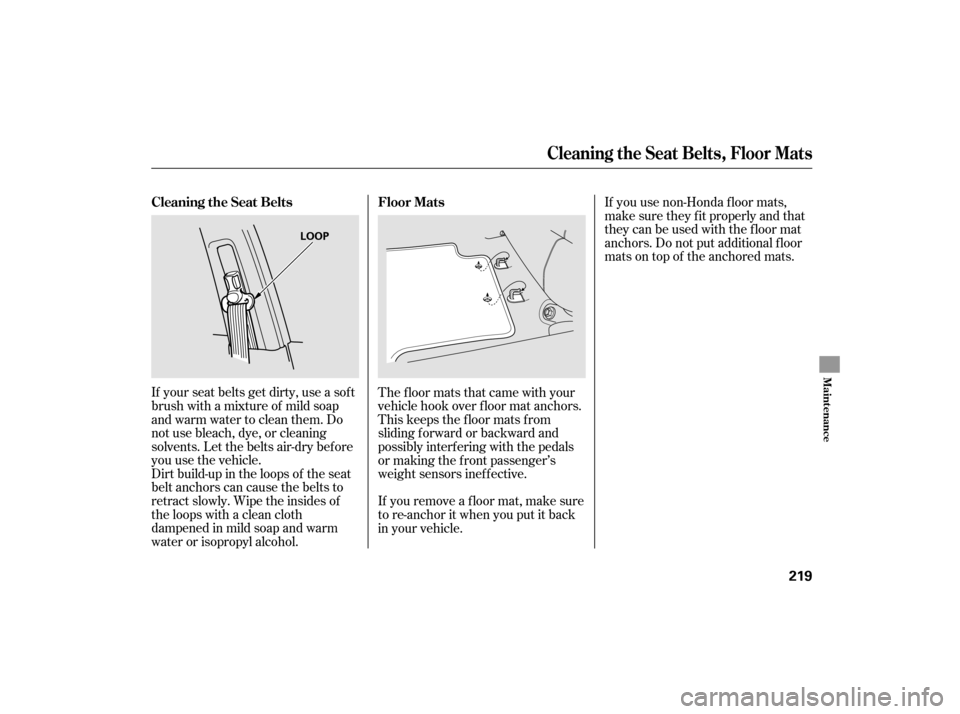

Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.If you use non-Honda f loor mats,
make sure they f it properly and that
theycanbeusedwiththefloormat
anchors. Do not put additional f loor
mats on top of the anchored mats.
If your seat belts get dirty, use a sof t
brush with a mixture of mild soap
and warm water to clean them. Do
not use bleach, dye, or cleaning
solvents. Let the belts air-dry bef ore
you use the vehicle. The floor mats that came with your
vehicle hook over f loor mat anchors.
This keeps the f loor mats f rom
sliding f orward or backward and
possibly interf ering with the pedals
or making the f ront passenger’s
weight sensors inef f ective.
If you remove a f loor mat, make sure
tore-anchoritwhenyouputitback
in your vehicle.
Cleaning the Seat Belts Floor Mats
Cleaning the Seat Belts, Floor Mats
Maint enance
219
LOOP
06/08/08 14:51:44 31SDR620_224

The exhaust emissions controls
include f our systems: PGM-FI,
ignition timing control, exhaust gas
recirculation, and three way catalytic
converter. These f our systems work
together to control the engine’s
combustion and minimize the
amount of HC, CO, and NOx that
come out the tailpipe. The exhaust
emissions control systems are
separate f rom the crankcase and
evaporative emissions control
systems.The emissions control systems are
designed and certif ied to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent f or repairs. Using lower
quality parts may increase the
emissions f rom your vehicle.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual for more informa-
tion.
The PGM-FI system uses sequential
multiport f uel injection.
It has three subsystems: air intake,
engine control, and f uel control. The
powertrain control module (PCM)
uses various sensors to determine
how much air is going into the
engine. It then controls how much
f uel to inject under all operating
conditions. This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
The exhaust gas recirculation (EGR)
system takes some of the exhaust
gas and routes it back into the intake
manif old. Adding exhaust gas to the
air/f uel mixture reduces the amount
of NOx produced when the f uel is
burned.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor.
2
2
Exhaust Emissions Controls Replacement Parts
PGM-FI SystemIgnit ion T iming Cont rol Syst em
Exhaust Gas Recirculat ion (EGR)Syst em
Three Way Catalytic Converter
Emissions Cont rols
266
06/08/08 14:58:55 31SDR620_271

............Checklist, Before Driving . 170
..................Childproof Door Locks . 85
............................Child Seats . 36, 43-49
...........Lower Anchorage Points . 45
..........Tether Anchorage Points . 49
..............Climate Control Sensors . 117
.........................Clock, Setting the . 145
......................................Coat Hook . 103
..................CO in the Exhaust . 54, 265
............Cold Weather, Starting in . 171
..............................Compact Spare . 234
.................Console Compartment . 101
.................Consumer Inf ormation . 272
.............Controls, Instruments and . 57
Coolant
........................................Adding. 207
....................................Checking. 160
.........................Proper Solution. 207
...................Temperature Gauge . 72
Crankcase Emissions Control
........................................System. 265
............Cruise Control Operation . 147
.............Customer Service Of f ice . 272
...............DANGER, Explanation of .iii
...................................Dashboard . 4, 58
................Daytime Running Lights . 78
............Defects, Reporting Safety . 274
................Def ogger, Rear Window . 79
....................................Dimensions. 260
...............Dimming the Headlights . 76
Dipstick
..........Automatic Transmission . 210
..................................Engine Oil. 159
..........................Directional Signals. 76
........Disc Brake Wear Indicators . 180
.....................Disposal of Used Oil. 206
Doors
..............Locking and Unlocking . 84
..........DOT Tire Quality Grading . 262
...........Driver and Passenger Safety . 7
...........................................Driving. 169
....................................Economy. 161
..........Dual Temperature Control . 115
..............................Economy, Fuel. 161
Electric Power Steering (EPS)
.......................................Indicator. 66
............Emergencies on the Road . 233
.............Battery, Jump Starting . 241
...........Brake System Indicator . 247
................Changing a Flat Tire . 235
.....Charging System Indicator . 245
..................Checking the Fuses . 249
.....Low Oil Pressure Indicator . 245
...Malf unction Indicator Lamp . 246
..................Overheated Engine . 243
...........................Emergency Brake. 98
......................Emergency Flashers. 79
......................Emergency Towing. 255
.......................Emissions Controls. 265
Engine
....Coolant Temperature Gauge . 72
Malf unction Indicator
................................Lamp . 60, 246
..............Oil Pressure Indicator . 245
..............Oil, What Kind to Use . 203
...............................Overheating. 243
............................Specif ications. 261
............................Speed Limiter. 174
................................Starting . 83, 171
...................Engine Speed Limiter . 174
Index
D
E
II
06/08/08 15:00:22 31SDR620_283
