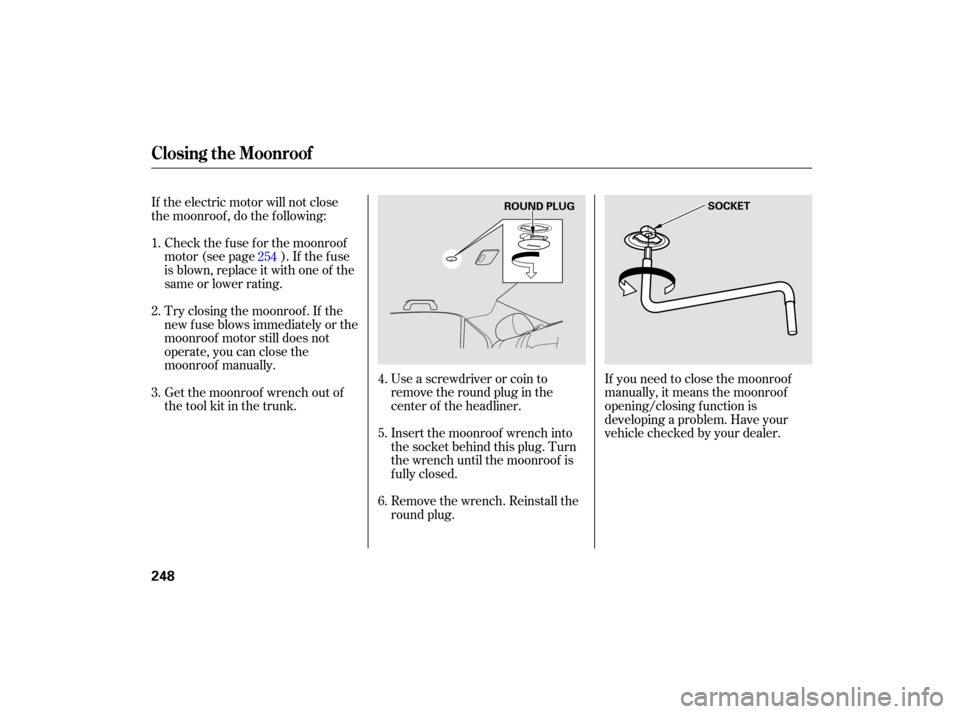

Use a screwdriver or coin to
remove the round plug in the
center of the headliner.
Insert the moonroof wrench into
the socket behind this plug. Turn
the wrench until the moonroof is
f ully closed.
Remove the wrench. Reinstall the
round plug.If you need to close the moonroof
manually, it means the moonroof
opening/closing f unction is
developing a problem. Have your
vehicle checked by your dealer.
If the electric motor will not close
the moonroof , do the f ollowing:
Check the f use f or the moonroof
motor (see page ). If the f use
is blown, replace it with one of the
same or lower rating.
Try closing the moonroof . If the
new f use blows immediately or the
moonroof motor still does not
operate, you can close the
moonroof manually.
Get the moonroof wrench out of
the tool kit in the trunk. 5.
6.4.
3. 1.
2. 254
Closing t he Moonroof
248
ROUND PLUG
SOCKET
06/08/08 14:56:06 31SDR620_253

µ
The interior f use box is on the
driver’s lower lef t side. To remove
the f use box lid, pull it toward you
and take it out of its hinges. The vehicle’s f uses are located in
four fuse boxes.There are three under-hood f use
boxes. The primary f use box and one
of the secondary f use boxes are
located in the back of the engine
compartment on the lef t side.
Another secondary f use box is
located in the f ront of the engine
compartmentontherightside.To
open them, push the tabs as shown.
Fuses
T aking Care of t he Unexpect ed
249
INTERIOR
UNDER-HOOD
TAB
TAB UNDER HOOD
TAB
06/08/08 14:56:15 31SDR620_254

Check each of the large f uses in
the under-hood f use box by
looking at the wire inside.
Removing these f uses requires a
Phillips-head screwdriver.
If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pages
and , or the diagram on the
fuse box lid, which fuse or fuses
control that component. Check those
f uses f irst, but check all the f uses
bef ore deciding that a blown f use is
not the cause. Replace any blown
f uses and check if the device works.
Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are of f .
Remove the cover f rom the f use
box. 3.
1.
2. 253 254
Fuses
Checking and Replacing Fuses
250
BLOWN
BLOWN
06/08/08 14:56:23 31SDR620_255

Look f or a burned wire inside the
f use. If it is burned out, replace it
withoneof thesparefusesof the
same rating or lower.If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
Check the smaller f uses in the
under-hood f use boxes and all the
fuses in the interior fuse box by
pulling out each one with the f use
puller provided in the primary
under-hood f use box.
4. 5.
CONT INUED
Fuses
T aking Care of t he Unexpect ed
251
FUSE PULLER
BLOWN
06/08/08 14:56:31 31SDR620_256

If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualif ied technician.If the radio f use is removed, the
audio system will disable itself . The
nexttimeyouturnontheradioyou
will see ‘‘CODE’’ in the f requency
display. Use the preset bars to enter
thecode(seepage ).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can. 6.
144
Fuses
252
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
06/08/08 14:56:37 31SDR620_257

µ
´No.No.
Amps. Circuits Protected No.
Amps. Amps. Circuits Protected
Circuits Protected
1
2
3
4
5 6
7
8
9
10
10 A
30 A
10 A
15 A
10 A Left Headlight Low
Rear Defroster Coil
Left Headlight Hi
Small Light
Right Headlight Hi 11
12
13
14
15
16
17
18
19
20
21
22
23
10 A
7.5 A 15 A
20 A 30 A
7.5 A 15 A
40 A
40 A
15 A
30 A
40 A
40 A
40 A
40 A
120 A 70 A
50 A
50 A Cooling Fan
MG. Clutch
Horn, Stop
Rear Defroster
Back Up, ACC
Hazard
VSA Motor
VSA
Option
Option
Heater Motor
Battery
EPS
BIG1Main
Power Window Main
Right Headlight Low
Back Up
FI ECU
Condenser Fan
Not Used
Fuse Locations
T aking Care of t he Unexpect ed
253
UNDER-HOOD FUSE/RELAY BOX
06/08/08 14:56:46 31SDR620_258

µ
µµ
µ
µ
No.
No. Amps.
Amps.
No. Circuits Protected Amps. Circuits Protected
Circuits Protected
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
10
11
12
13
14
15
16
7.5 A
30 A
20 A
20 A
20 A
15 A
15 A
10 A
15 A
10 A
7.5 A 10 A
20 A
20 A
1
2
3
4
5
6
7
8
9 OPDS
Wiper
Not Used
Not Used
Driver’s Power Seat (Slide)
Heated Seat
Driver’s Power Seat
(Recline)15 A
15 A
10 A
7.5 A 10 A
7.5 A 20 A
20 A
20 A
20 A
20 A
7.5 A
7.5 A
7.5 A
20 A
7.5 A 15 A
10 A Not Used
ACG
Fuel Pump
Washer
Meter
SRS
IGP
Power Window (Left Rear)
Power Window (Right Rear)
Power Window (Passenger)
Power Window (Driver)
Moonroof
Hybrid A/C
A/C
Not Used
ACC
Not Used
Rear Accessory Socket
STS
ACM
IMA
DrivebyWire
Ignition Coil
Day Light
LAF Heater
Radio
Interior Light
Back-Up Lights
Door Lock
Front Accessory Socket
Fuse Locations
254
INTERIOR FUSE BOX
06/08/08 14:56:55 31SDR620_259

µµ
