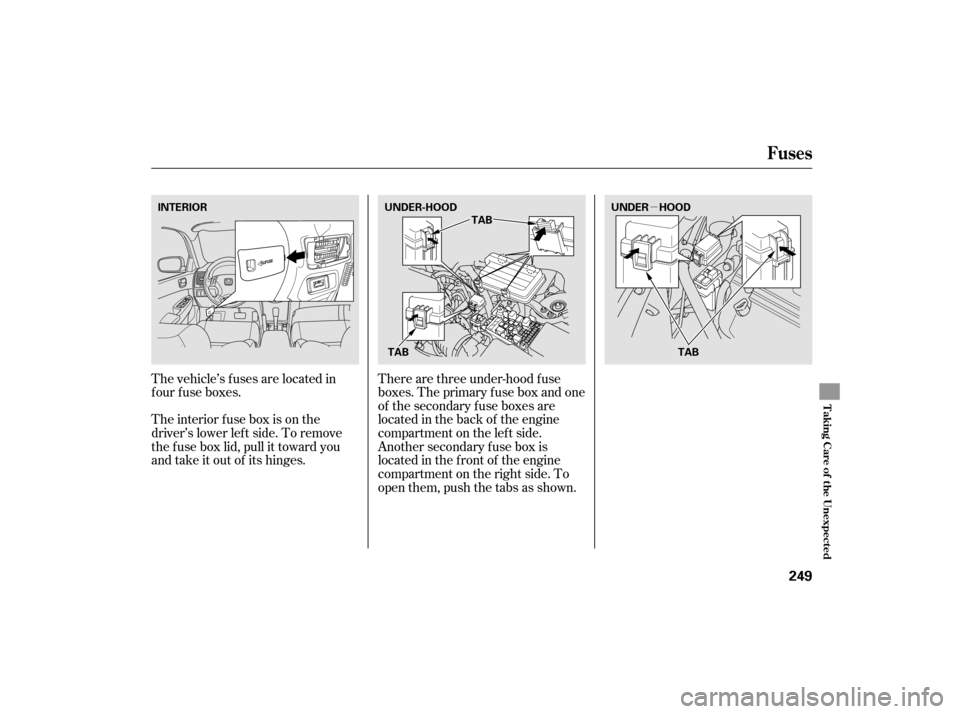

The interior f use box is on the
driver’s lower lef t side. To remove
the f use box lid, pull it toward you
and take it out of its hinges. The vehicle’s f uses are located in
four fuse boxes.There are three under-hood f use
boxes. The primary f use box and one
of the secondary f use boxes are
located in the back of the engine
compartment on the lef t side.
Another secondary f use box is
located in the f ront of the engine
compartmentontherightside.To
open them, push the tabs as shown.
Fuses
T aking Care of t he Unexpect ed
249
INTERIOR
UNDER-HOOD
TAB
TAB UNDER HOOD
TAB
06/08/08 14:56:15 31SDR620_254

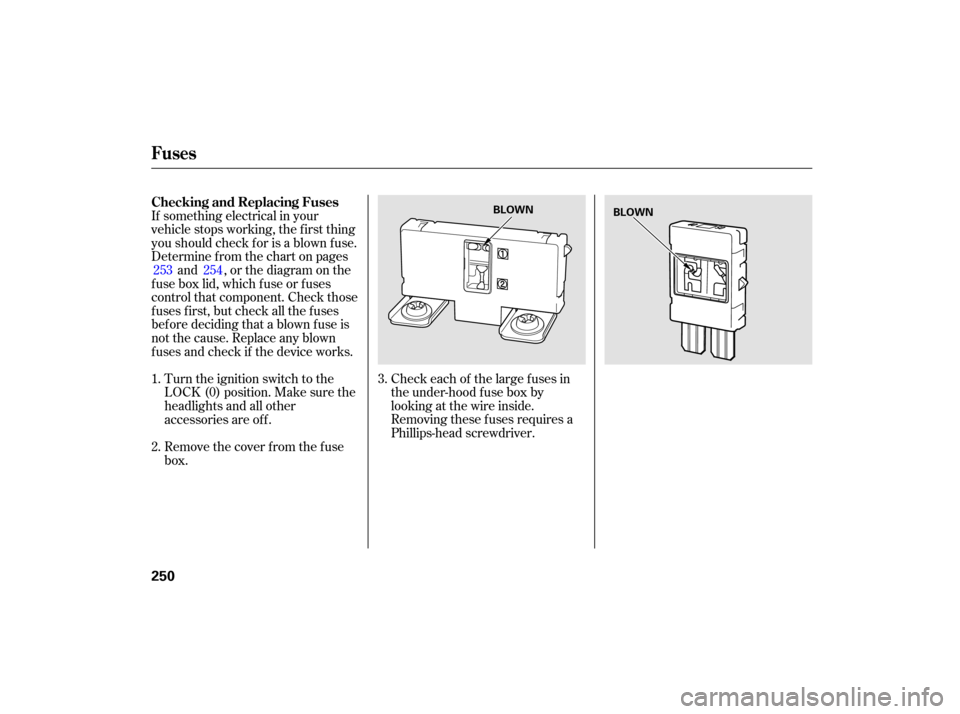

Check each of the large f uses in
the under-hood f use box by
looking at the wire inside.
Removing these f uses requires a
Phillips-head screwdriver.
If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pages
and , or the diagram on the
fuse box lid, which fuse or fuses
control that component. Check those
f uses f irst, but check all the f uses
bef ore deciding that a blown f use is
not the cause. Replace any blown
f uses and check if the device works.
Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are of f .
Remove the cover f rom the f use
box. 3.
1.
2. 253 254
Fuses
Checking and Replacing Fuses
250
BLOWN
BLOWN
06/08/08 14:56:23 31SDR620_255

Look f or a burned wire inside the
f use. If it is burned out, replace it
withoneof thesparefusesof the
same rating or lower.If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).

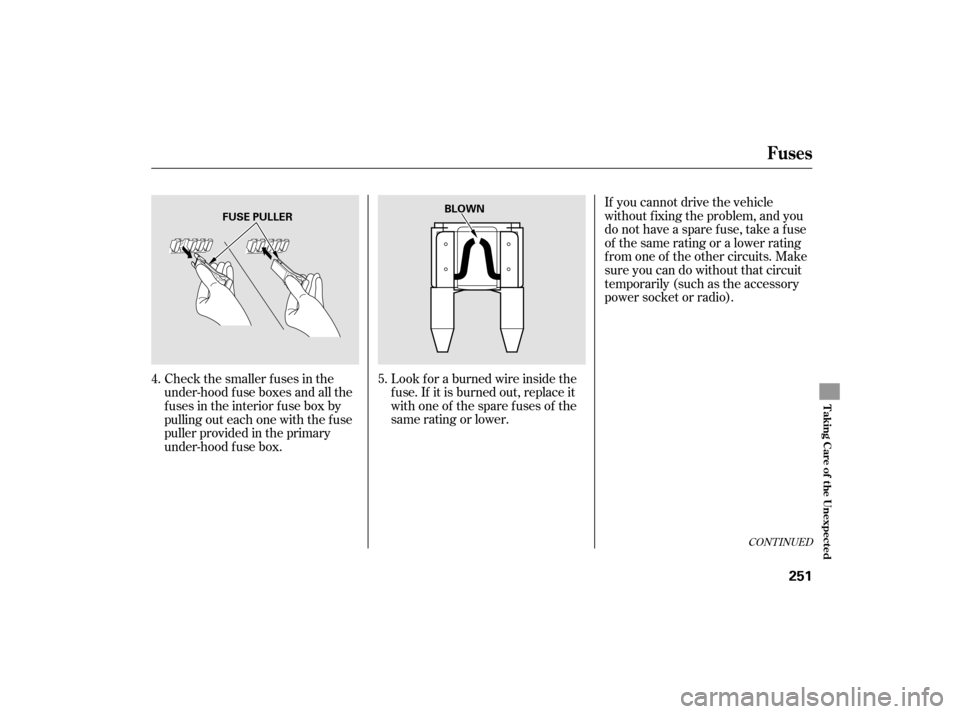

Check the smaller f uses in the
under-hood f use boxes and all the
fuses in the interior fuse box by
pulling out each one with the f use
puller provided in the primary
under-hood f use box.
4. 5.
CONT INUED
Fuses
T aking Care of t he Unexpect ed
251
FUSE PULLER
BLOWN
06/08/08 14:56:31 31SDR620_256

If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualif ied technician.If the radio f use is removed, the
audio system will disable itself . The
nexttimeyouturnontheradioyou
will see ‘‘CODE’’ in the f requency
display. Use the preset bars to enter
thecode(seepage ).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can. 6.
144
Fuses
252
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
06/08/08 14:56:37 31SDR620_257

µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
