set clock HONDA ACCORD HYBRID 2007 CL7 / 7.G Owners Manual

Your heating and air conditioning
system provides a comf ortable
environment in all weather
conditions.
The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The security system helps prevent
your vehicle f rom being broken into
or being stolen.
...............Climate Control System . 106
..........Dual Temperature Control . 115
..............Climate Control Sensors . 117
..........Playing the AM/FM Radio . 118
...............Voice Control System . 119
.....................To Play the Radio . 119
....................To Select a Station . 119
.................Adjusting the Sound . 122
....................Radio Frequencies . 123
........................Radio Reception . 123
..................................Playing a CD . 125
..........Playing a CD, CD Changer . 126
.............................To Play a CD . 126
...............To Stop Playing a CD . 130
Removing CDs from the
.................................Changer. 130
.........CD Player Error Messages . 131
....................Protecting Your CDs. 132
.................General Inf ormation . 132
..........................Protecting CDs. 132
...............................Playing a Tape. 133
..........................To Play a Tape. 134
............To Stop Playing a Tape . 134
............Tape Search Functions . 135
Caring f or the Tape and
.....................................Player. 136
Playing the XMSatellite
......................................Radio. 137
...............Satellite Digital Radio . 137
....To Play XMSatellite Radio . 138
..................To Select a Channel . 138
..............Satellite Radio Signals . 140
Receiving Satellite Radio
....................................Service. 141
................Remote Audio Controls . 143
.................Radio Thef t Protection . 144
..........................Setting the Clock. 145
............................Security System. 146
...............................Cruise Control. 147
HomeLink Universal
................................Transceiver. 150
Features
Features
105
06/08/08 14:33:51 31SDR620_110

If your vehicle’s battery is
disconnected or goes dead, you may
need to set the clock.You can quickly set the time to the
nearest hour. Pressing and holding
the SOUND button, then pressing
theR(Preset6)sideof thebarsets
the clock back to the previous hour.
If the displayed time is after the half
hour, the clock sets the clock
f orward to the beginning of the next
hour.For example:
1:06 would RESET to 1:00.
1:52 would RESET to 2:00.
Refer to the navigation system
owner’s manual to set up the time.
Press and hold the SOUND button
until you hear a beep. The displayed
time begins to blink. Press on the H
(Preset 4) side of the bar until the
numbers advance to the desired time.
Change the minutes by pressing the
M (Preset 5) side of the bar until the
numbers advance to the desired time.
When you are f inished, press the
SOUND button again to set the time.
On vehicles with navigation system
On vehicles without navigation system
Setting the Clock
Features
145

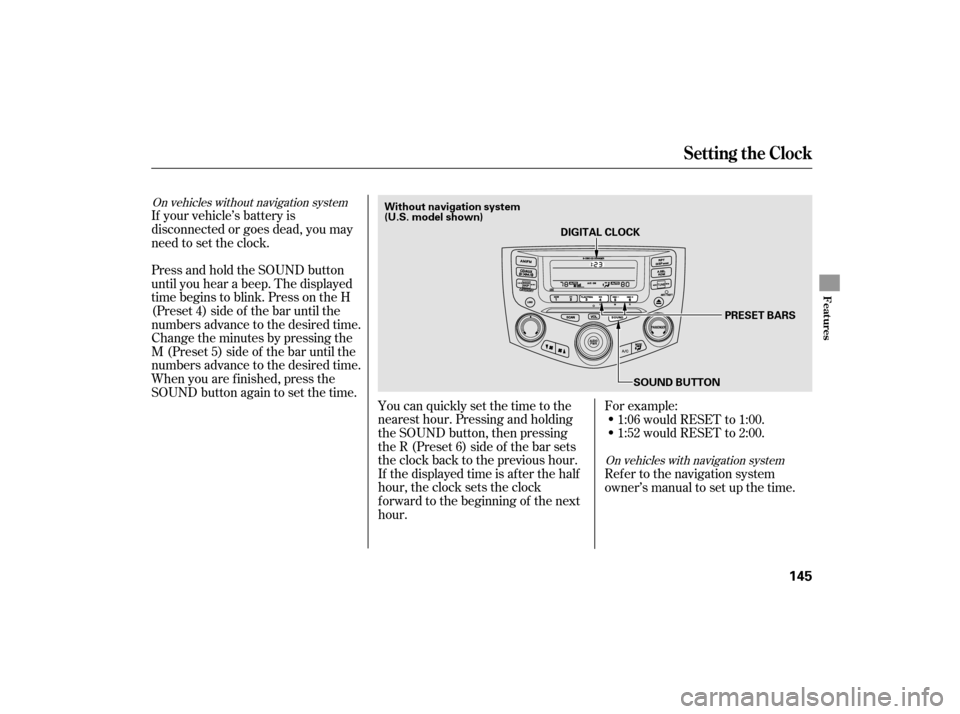

DIGITAL CLOCK
SOUND BUTTON PRESET BARS
(U.S. model shown) Without navigation system
06/08/08 14:40:15 31SDR620_150

Open the trunk.
Remove the holding clips f rom the
lining by using a f lat-tipped
screwdriver.Remove the socket by turning it
one-quarter turn counterclockwise,
and pull the bulb straight out of its
socket.Push a new bulb straight into the
socket until it bottoms, and
reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Test the new bulb to make sure it
works.
Set the lining back.
2. 1. 4.
3. 5.
6.

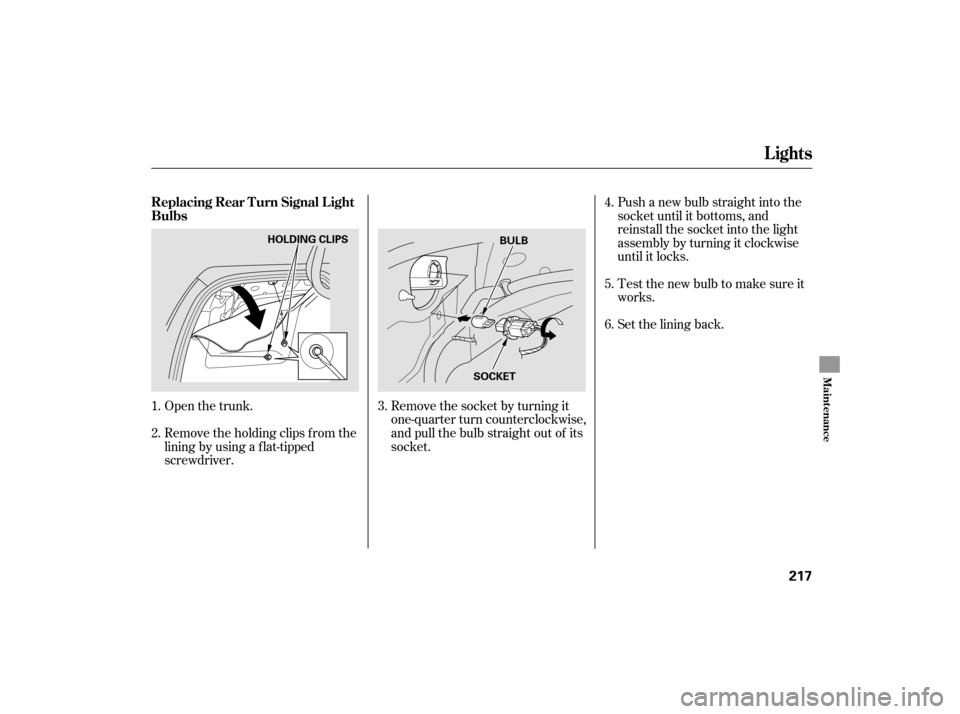

Replacing Rear T urn Signal L ight
Bulbs
Lights
Maint enance
217
HOLDING CLIPS
BULB
SOCKET
06/08/08 14:51:23 31SDR620_222

Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the f irst stop. Af ter the
pressure releases, push down on
the cap, and turn it until it comes
off.Put the radiator cap back on
tightly. Run the engine, and check
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see
on page ).
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
If you do not f ind an obvious leak,
check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark.
If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the pointer
reaches the middle of the tempera-
ture gauge, or lower, bef ore check-
ing the radiator.
Start the engine, and set the
temperature to maximum heat
(climate control to AUTO at
‘‘ ’’). Add coolant to the
radiator up to the base of the f iller
neck. If you do not have the
proper coolant mixture available,
you can add plain water.
Remember to have the cooling
system drained and ref illed with
the proper mixture as soon as you
can.
7. 6. 8.
9.10.
11.
255
Emergency
Towing
If theEngineOverheats
244
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
06/08/08 14:55:29 31SDR620_249

............Checklist, Before Driving . 170
..................Childproof Door Locks . 85
............................Child Seats . 36, 43-49
...........Lower Anchorage Points . 45
..........Tether Anchorage Points . 49
..............Climate Control Sensors . 117
.........................Clock, Setting the . 145
......................................Coat Hook . 103
..................CO in the Exhaust . 54, 265
............Cold Weather, Starting in . 171
..............................Compact Spare . 234
.................Console Compartment . 101
.................Consumer Inf ormation . 272
.............Controls, Instruments and . 57
Coolant
........................................Adding. 207
....................................Checking. 160
.........................Proper Solution. 207
...................Temperature Gauge . 72
Crankcase Emissions Control
........................................System. 265
............Cruise Control Operation . 147
.............Customer Service Of f ice . 272
...............DANGER, Explanation of .iii
...................................Dashboard . 4, 58
................Daytime Running Lights . 78
............Defects, Reporting Safety . 274
................Def ogger, Rear Window . 79
....................................Dimensions. 260
...............Dimming the Headlights . 76
Dipstick
..........Automatic Transmission . 210
..................................Engine Oil. 159
..........................Directional Signals. 76
........Disc Brake Wear Indicators . 180
.....................Disposal of Used Oil. 206
Doors
..............Locking and Unlocking . 84
..........DOT Tire Quality Grading . 262
...........Driver and Passenger Safety . 7
...........................................Driving. 169
....................................Economy. 161
..........Dual Temperature Control . 115
..............................Economy, Fuel. 161
Electric Power Steering (EPS)
.......................................Indicator. 66
............Emergencies on the Road . 233
.............Battery, Jump Starting . 241
...........Brake System Indicator . 247
................Changing a Flat Tire . 235
.....Charging System Indicator . 245
..................Checking the Fuses . 249
.....Low Oil Pressure Indicator . 245
...Malf unction Indicator Lamp . 246
..................Overheated Engine . 243
...........................Emergency Brake. 98
......................Emergency Flashers. 79
......................Emergency Towing. 255
.......................Emissions Controls. 265
Engine
....Coolant Temperature Gauge . 72
Malf unction Indicator
................................Lamp . 60, 246
..............Oil Pressure Indicator . 245
..............Oil, What Kind to Use . 203
...............................Overheating. 243
............................Specif ications. 261
............................Speed Limiter. 174
................................Starting . 83, 171
...................Engine Speed Limiter . 174
Index
D
E
II
06/08/08 15:00:22 31SDR620_283

.Taking Care of the Unexpected . 233
Technical Descriptions
......DOT Tire Quality Grading . 262
.....Emissions Control Systems . 265
Three Way Catalytic
...............................Converter . 267
.......................Temperature Gauge . 72
..............Tether Anchorage Points . 49
..Three Way Catalytic Converter . 267
..........................Time, Setting the . 145
....................................Timing Belt . 212
....................................Tire Chains . 228
.........Tire, How to Change a Flat . 235
.................................Tire Labeling . 264
...............................................Tires . 223
..............................Air Pressure . 224
.........................Checking Wear . 225
..........................Compact Spare . 234
......DOT Tire Quality Grading . 262
......................................Inf lation . 223
..................................Inspection . 225
...................................Replacing . 226
......................................Rotating . 226
...........................................Snow . 227
.........................Select/Reset Knob . 78
...............................Serial Number . 258
....................Service Intervals . 193-199
.............................Service Manual. 275
...........Service Station Procedure . 157
..........................Setting the Clock. 145
.....Shif t Lever Position Indicator . 172
........................Shif t Lock Release. 175
..............................Side Airbags . 11, 29
...How Your Side Airbags Work . 29
How the Side Airbag Of f
......................Indicator Works. 32
................Side Curtain Airbags . 11, 31
How Your Side Curtain
..........................Airbags Work. 31
...............................Signaling Turns. 76
.....................................Snow Tires. 227
................................Sound System. 118
Spare Tire
......................................Inf lating. 234
............................Specif ications. 261
....................Specif ications Charts . 260
................................Speed Control. 147
................................Speed Limiter. 174
..........SRS, Additional Inf ormation . 24
...Additional Safety Precautions . 35
.............................Airbag Service. 34
How the SRS Indicator
.......................................Works. 31
How Your Front Airbags
.......................................Works. 26
How Your Side Airbags
.......................................Works. 29
........................SRS Components. 24
.............................SRS Indicator. 31, 61
....START (Ignition Key Position) . 83
.......................Starting the Engine. 171
................With a Dead Battery . 241
........Steam Coming f rom Engine . 243
Steering Wheel
..................................Adjustment. 80
.............Anti-theft Column Lock . 83
...................Stereo Sound System . 118
..........................................Sun Visor. 99
........................Sunglasses Holder. 102
Supplemental Restraint
................................System . 11, 24
......................................Servicing. 34
.........................SRS Indicator . 31, 61
...................System Components . 24
..................................Synthetic Oil. 204
Index
T
VI
06/08/08 15:00:50 31SDR620_287
