HONDA ACCORD HYBRID 2014 9.G Owners Manual

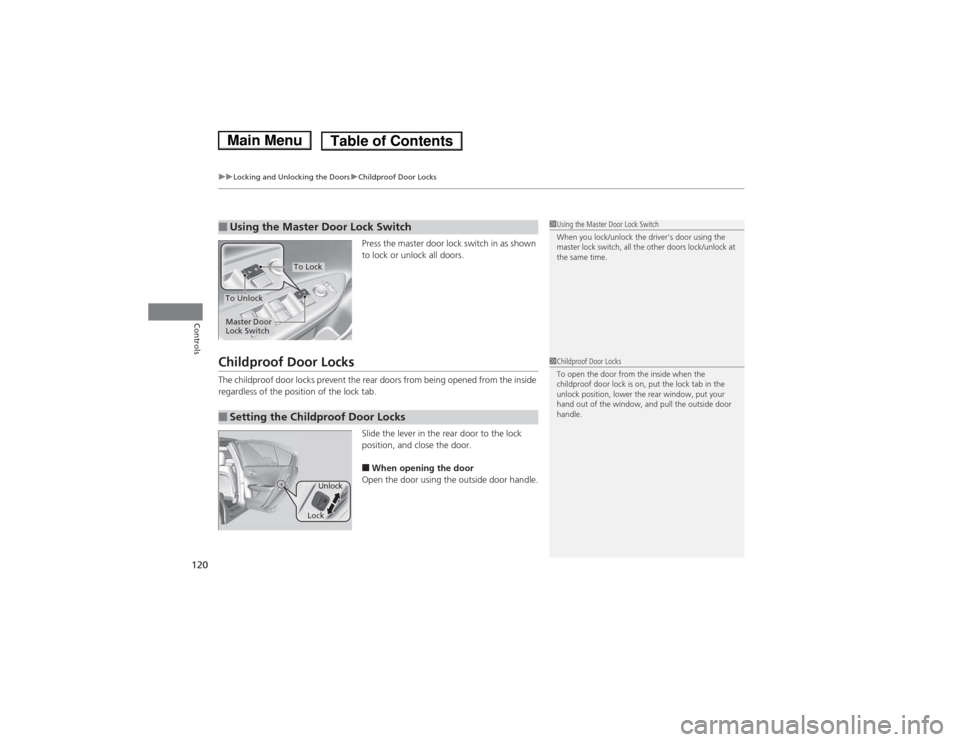

uuLocking and Unlocking the DoorsuChildproof Door Locks
120
Controls
Press the master door lock switch in as shown
to lock or unlock all doors.
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab. Slide the lever in the rear door to the lock
position, and close the door. ■When opening the door
Open the door using the outside door handle.
■Using the Master Door Lock Switch1Using the Master Door Lock Switch
When you lock/unlock the driver's door using the
master lock switch, all the other doors lock/unlock at the same time.
To Unlock
Master Door
Lock Switch
To Lock
■Setting the Childproof Door Locks
1Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door handle.
Unlock
Lock
Main MenuTable of Contents

121

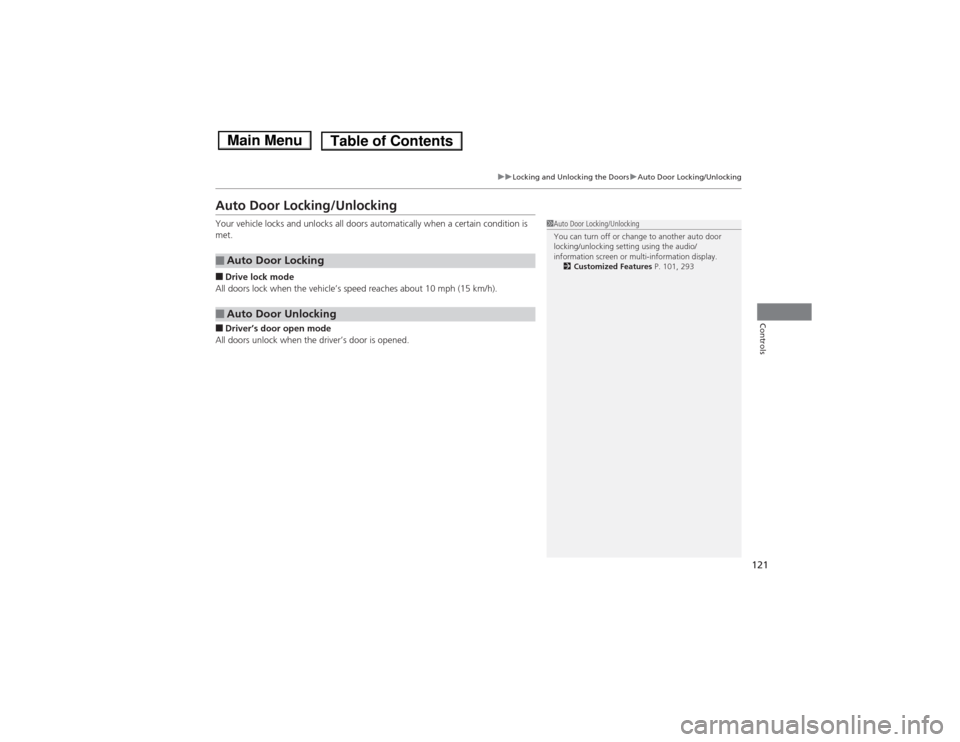

uuLocking and Unlocking the DoorsuAuto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking
Your vehicle locks and unlocks all doors automatically when a certain condition is
met. ■Drive lock mode
All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h). ■ Driver’s door open mode
All doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1Auto Door Locking/Unlocking
You can turn off or change to another auto door
locking/unlocking setting using the audio/
information screen or multi-information display. 2 Customized Features P. 101, 293
Main MenuTable of Contents

122

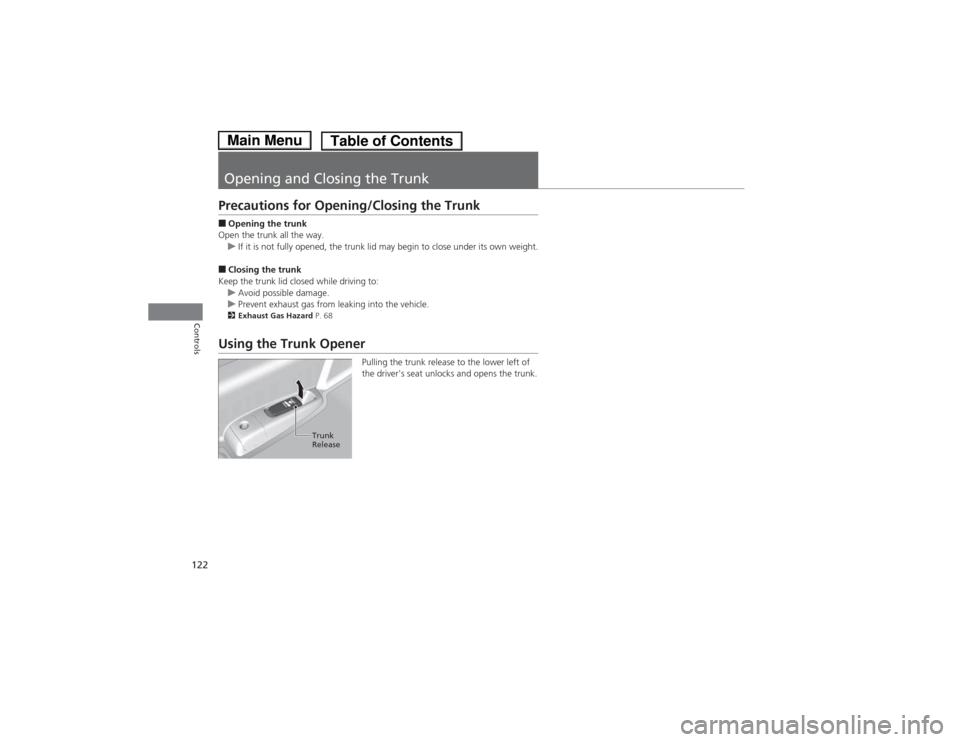

Controls
Opening and Closing the Trunk
Precautions for Opening/Closing the Trunk ■Opening the trunk
Open the trunk all the way.
uIf it is not fully opened, the trunk lid may begin to close under its own weight.
■ Closing the trunk
Keep the trunk lid closed while driving to:
uAvoid possible damage.uPrevent exhaust gas from leaking into the vehicle.
2 Exhaust Gas Hazard P. 68
Using the Trunk Opener
Pulling the trunk release to the lower left of
the driver's seat unlocks and opens the trunk.
Trunk
Release
Main MenuTable of Contents

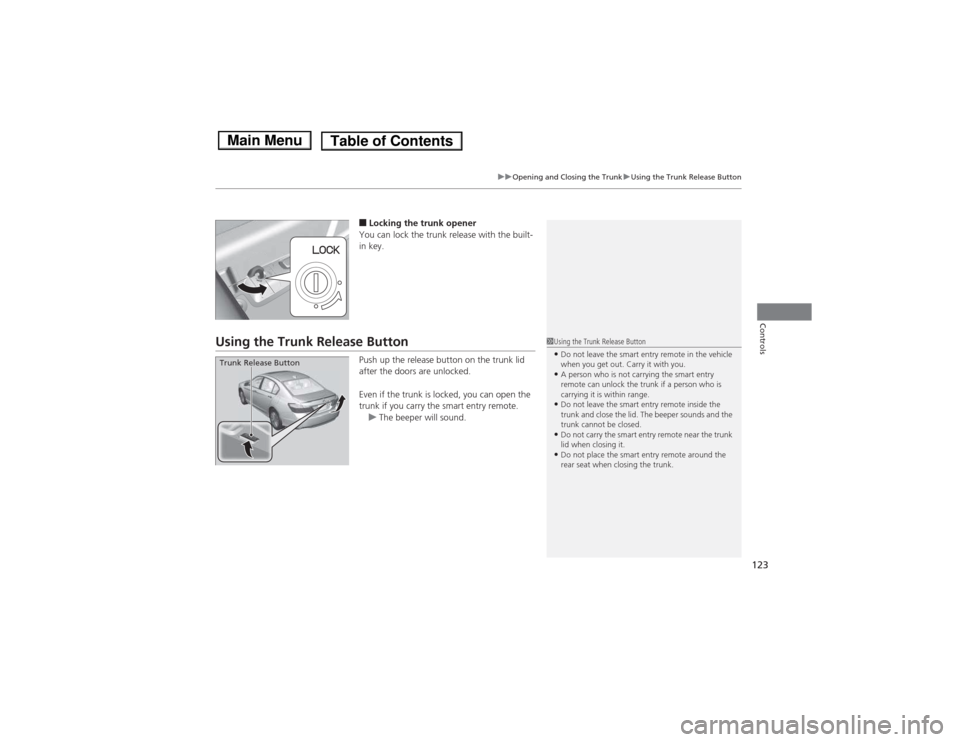

123
uuOpening and Closing the TrunkuUsing the Trunk Release Button
Controls
■Locking the trunk opener
You can lock the trunk release with the built-
in key.
Using the Trunk Release Button
Push up the release button on the trunk lid
after the doors are unlocked.
Even if the trunk is locked, you can open the
trunk if you carry the smart entry remote.
uThe beeper will sound.
1Using the Trunk Release Button •Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
• A person who is not carrying the smart entry
remote can unlock the trunk if a person who is
carrying it is within range.
• Do not leave the smart entry remote inside the
trunk and close the lid. The beeper sounds and the
trunk cannot be closed.
• Do not carry the smart entry remote near the trunk
lid when closing it.
• Do not place the smart entry remote around the
rear seat when closing the trunk.
Trunk Release Button
Main MenuTable of Contents

124

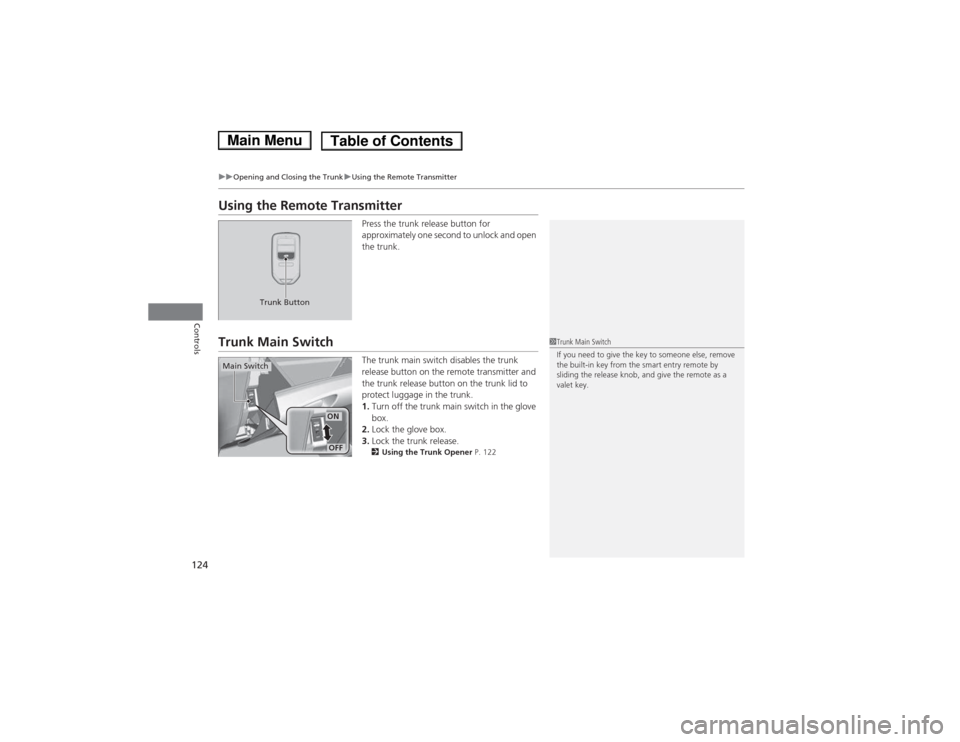

uuOpening and Closing the TrunkuUsing the Remote Transmitter
Controls
Using the Remote TransmitterPress the trunk release button for
approximately one second to unlock and open the trunk.
Trunk Main SwitchThe trunk main switch disables the trunk
release button on the remote transmitter and
the trunk release button on the trunk lid to
protect luggage in the trunk. 1.Turn off the trunk main switch in the glove
box.
2. Lock the glove box.
3. Lock the trunk release.
2 Using the Trunk Opener P. 122
Trunk Button
1Trunk Main Switch
If you need to give the key to someone else, remove
the built-in key from the smart entry remote by
sliding the release knob, and give the remote as a valet key.
ON
OFF
Main Switch
Main MenuTable of Contents

125

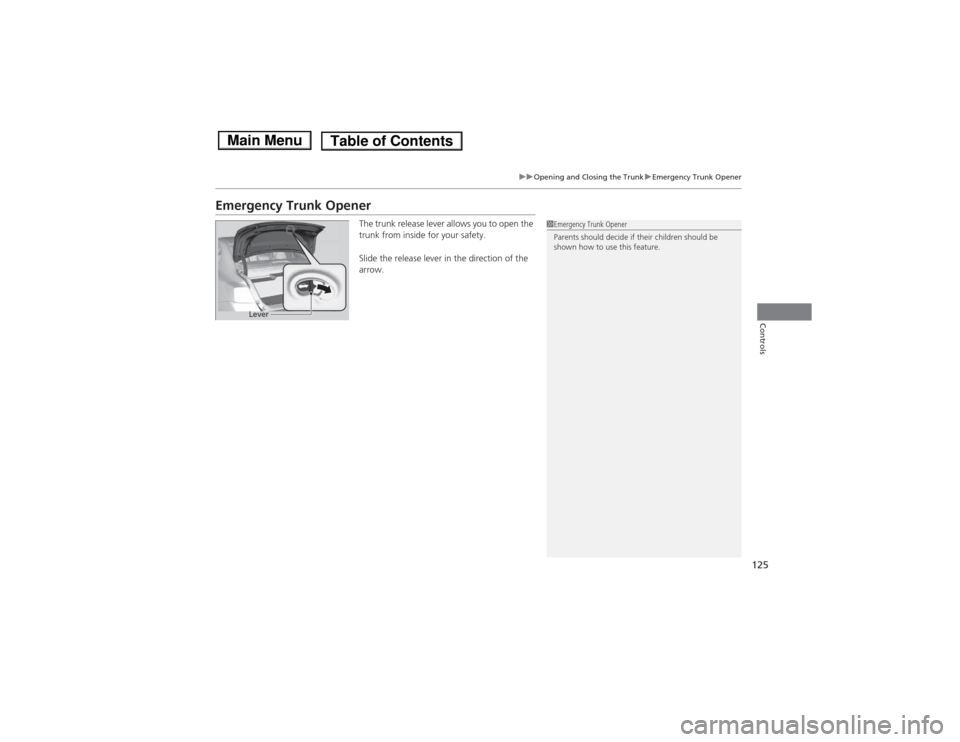

uuOpening and Closing the TrunkuEmergency Trunk Opener
Controls
Emergency Trunk OpenerThe trunk release lever allows you to open the
trunk from inside for your safety.
Slide the release lever in the direction of the arrow.
1Emergency Trunk Opener
Parents should decide if their children should be
shown how to use this feature.
Lever
Main MenuTable of Contents

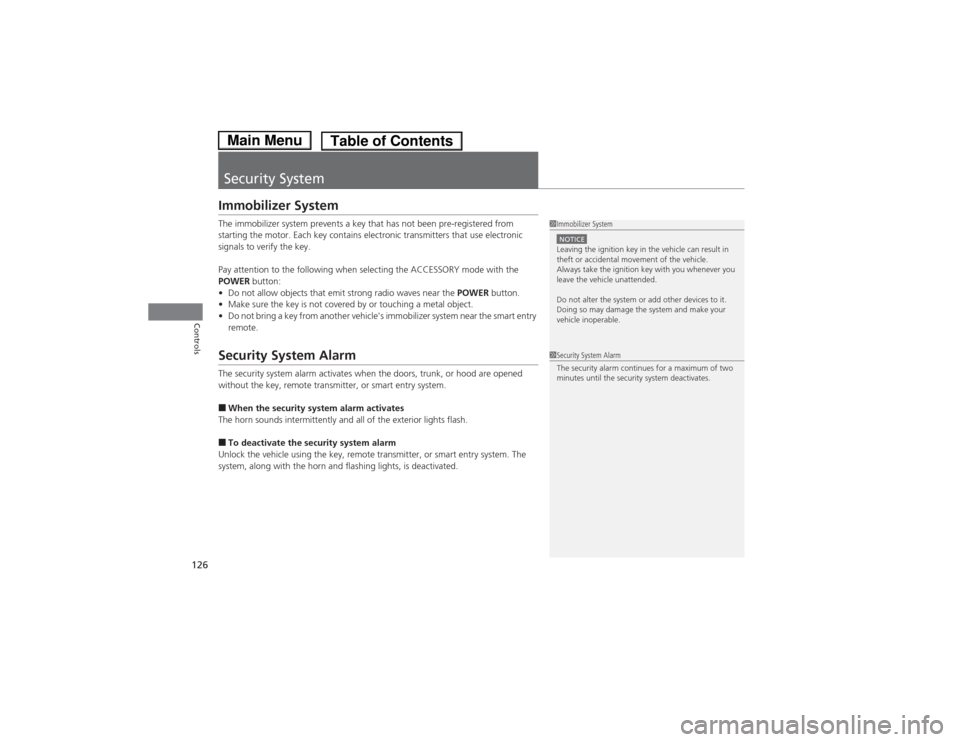

126
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the motor. Each key contains electronic transmitters that use electronic
signals to verify the key.
Pay attention to the following when selecting the ACCESSORY mode with the
POWER button:
• Do not allow objects that emit strong radio waves near the POWER button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle's immobilizer system near the smart entry
remote.
Security System Alarm
The security system alarm activates when the doors, trunk, or hood are opened
without the key, remote transmitter, or smart entry system. ■When the security system alarm activates
The horn sounds intermittently and all of the exterior lights flash.■ To deactivate the security system alarm
Unlock the vehicle using the key, remote transmitter, or smart entry system. The
system, along with the horn and flashing lights, is deactivated.
1Immobilizer System
NOTICELeaving the ignition key in the vehicle can result in
theft or accidental movement of the vehicle.
Always take the ignition key with you whenever you
leave the vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1Security System Alarm
The security alarm continues for a maximum of two
minutes until the security system deactivates.
Main MenuTable of Contents

Continued127

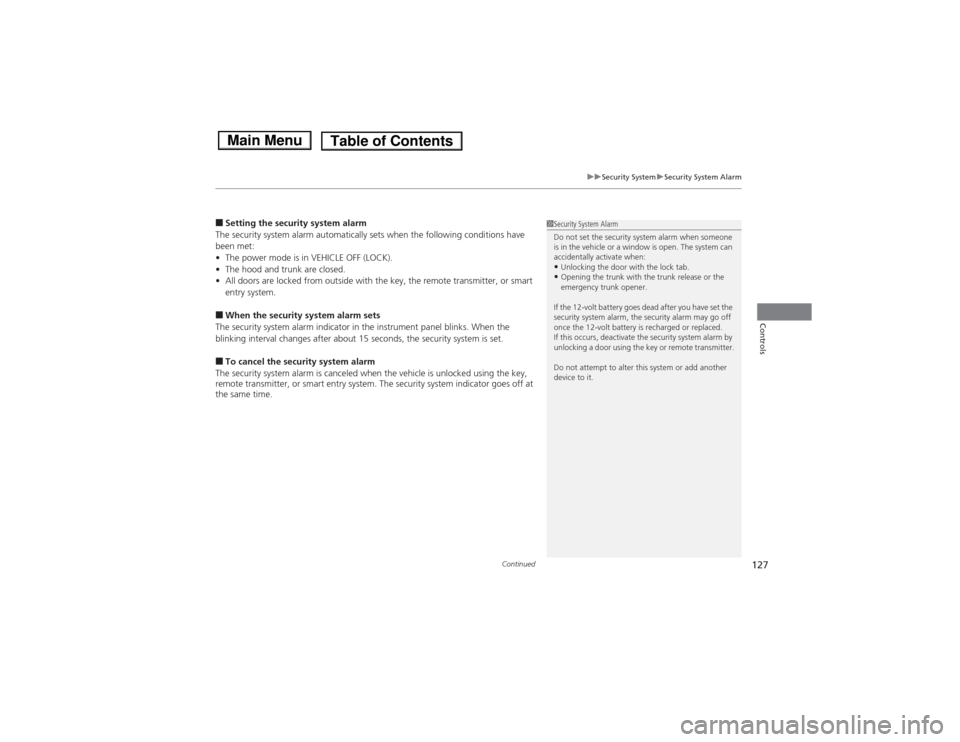

uuSecurity SystemuSecurity System Alarm
Controls
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met: • The power mode is in VEHICLE OFF (LOCK).
• The hood and trunk are closed.
• All doors are locked from outside with the key, the remote transmitter, or smart entry system.
■ When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 seconds, the security system is set. ■ To cancel the security system alarm
The security system alarm is canceled when the vehicle is unlocked using the key,
remote transmitter, or smart entry system. The security system indicator goes off at
the same time.1Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:• Unlocking the door with the lock tab.
• Opening the trunk with the trunk release or the
emergency trunk opener.
If the 12-volt battery goes dead after you have set the
security system alarm, the security alarm may go off
once the 12-volt battery is recharged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the key or remote transmitter.
Do not attempt to alter this system or add another device to it.
Main MenuTable of Contents

128

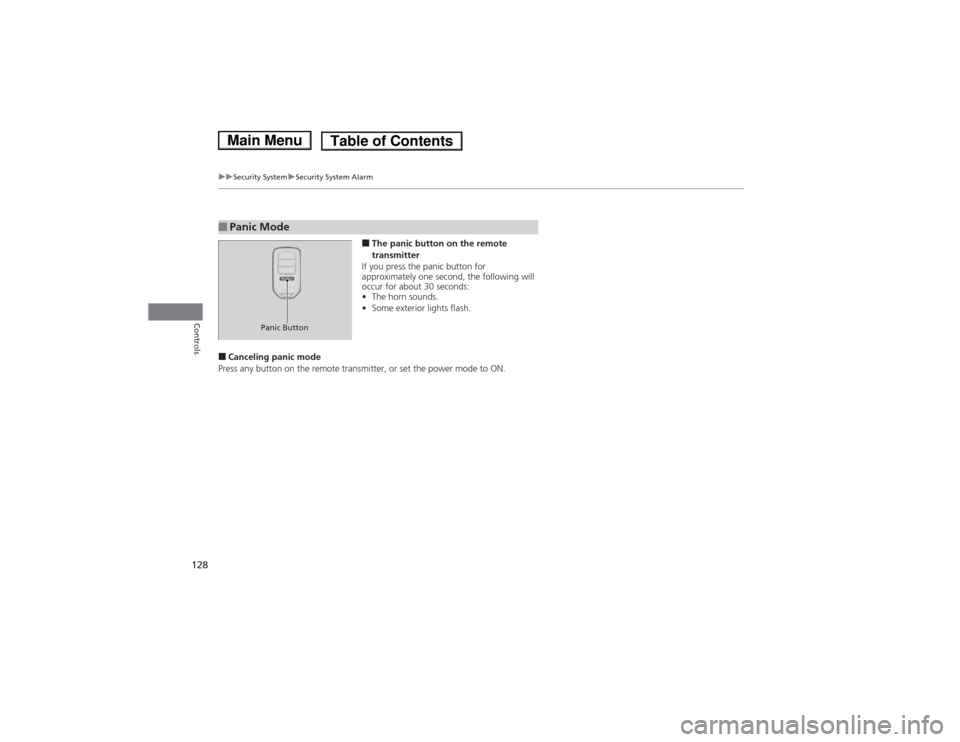

uuSecurity SystemuSecurity System Alarm
Controls
■The panic button on the remote
transmitter
If you press the panic button for
approximately one second, the following will
occur for about 30 seconds: • The horn sounds.
• Some exterior lights flash.
■ Canceling panic mode
Press any button on the remote transmitter, or set the power mode to ON.
■Panic Mode
Panic Button
Main MenuTable of Contents

129
Continued

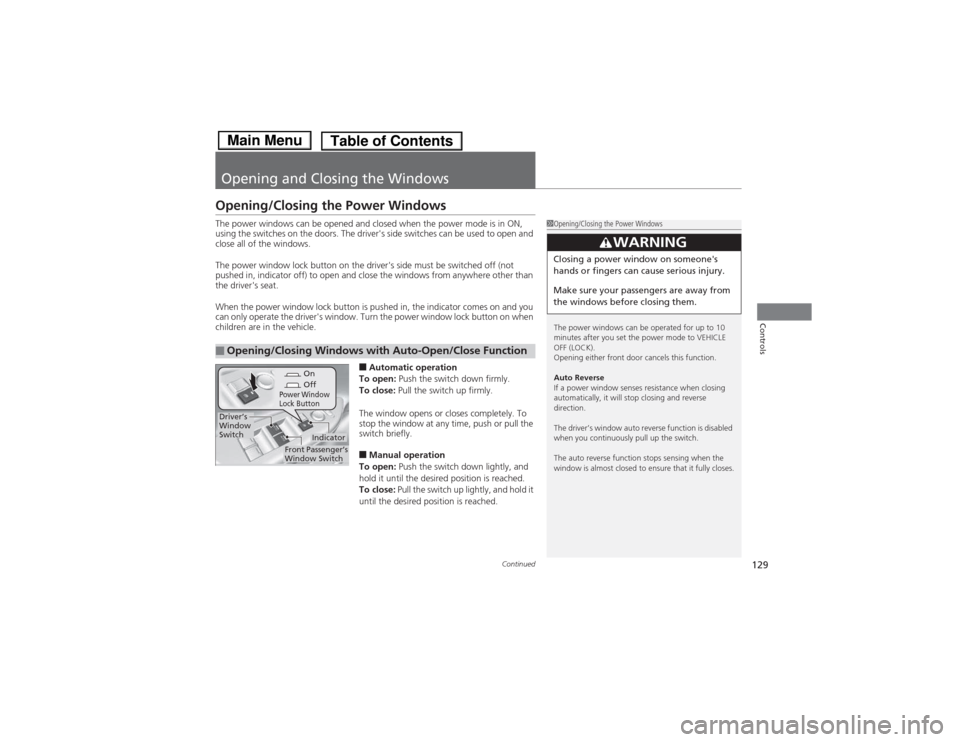

Controls
Opening and Closing the Windows
Opening/Closing the Power Windows
The power windows can be opened and closed when the power mode is in ON,
using the switches on the doors. The driver's side switches can be used to open and
close all of the windows.
The power window lock button on the driver's side must be switched off (not
pushed in, indicator off) to open and close the windows from anywhere other than
the driver's seat.
When the power window lock button is pushed in, the indicator comes on and you
can only operate the driver's window. Turn the power window lock button on when
children are in the vehicle.
■Automatic operation
To open: Push the switch down firmly.
To close: Pull the switch up firmly.
The window opens or closes completely. To
stop the window at any time, push or pull the
switch briefly. ■ Manual operation
To open: Push the switch down lightly, and
hold it until the desired position is reached.
To close: Pull the switch up lightly, and hold it
until the desired position is reached.
■Opening/Closing Windows with Auto-Open/Close Function
1Opening/Closing the Power Windows
The power windows can be operated for up to 10
minutes after you set the power mode to VEHICLE
OFF (LOCK).
Opening either front door cancels this function. Auto Reverse
If a power window senses resistance when closing
automatically, it will stop closing and reverse direction.
The driver’s window auto reverse function is disabled
when you continuously pull up the switch.
The auto reverse function stops sensing when the
window is almost closed to ensure that it fully closes.
3WARNING
Closing a power window on someone's
hands or fingers can cause serious injury.
Make sure your passengers are away from
the windows before closing them.
On
Off
Power Window
Lock Button
Indicator
Driver’s
Window
Switch
Front Passenger’s
Window Switch
