69
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U.S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
Sun Visor
U.S. models Canadian models
Radiator Cap Doorjambs
U.S. models
U.S. models only
Dashboard
Canadian models
High Voltage System Components U.S. models Canadian models
Table of ContentsMain Menu

471
Maintenance

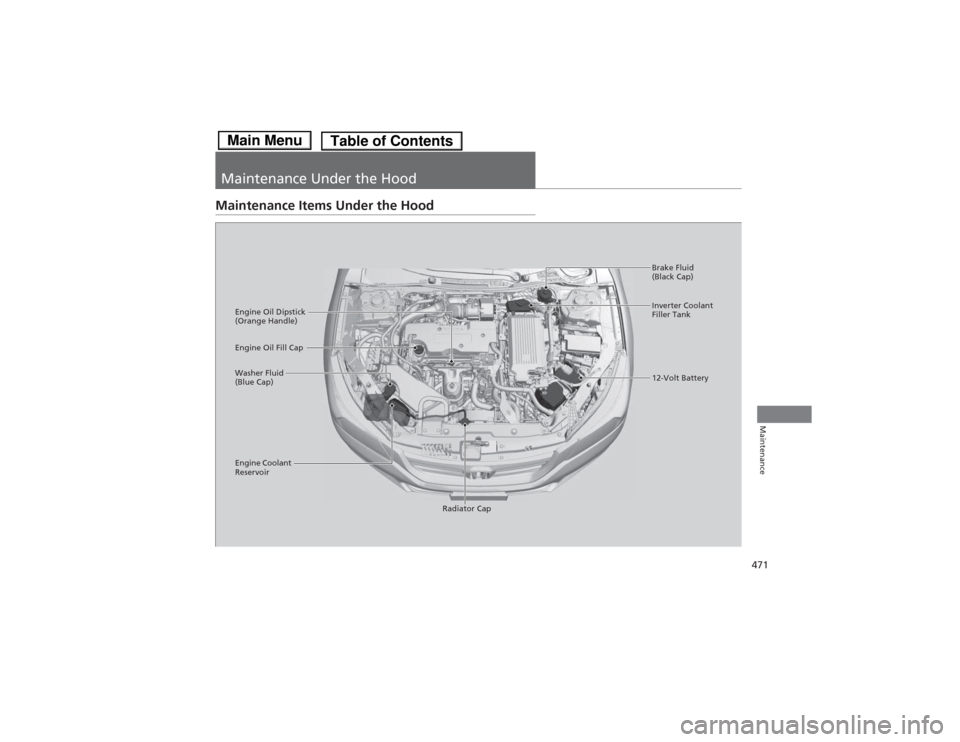

Maintenance Under the Hood
Maintenance Items Under the Hood
Brake Fluid
(Black Cap)
Engine Coolant
Reservoir Radiator Cap
Washer Fluid
(Blue Cap)
Engine Oil Dipstick
(Orange Handle)
Engine Oil Fill Cap
12-Volt Battery
Inverter Coolant
Filler Tank
Main MenuTable of Contents

479
uuMaintenance Under the HooduCoolant System
Maintenance
1. Make sure the engine and radiator are cool.
2. Turn the radiator cap counterclockwise and
relieve any pressure in the coolant system.
Do not push the cap down when turning.
3. Push down and turn the radiator cap
counterclockwise to remove it.
4. The coolant level should be up to the base
of the filler neck. Add coolant if it is low.
5. Put the radiator cap back on, and tighten it fully.
6. Pour coolant into the engine coolant
reservoir until it reaches the MAX mark. Put
the cap back on the engine coolant reservoir.
■Radiator1Radiator
NOTICEPour the fluid slowly and carefully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Radiator Cap
Main MenuTable of Contents

527
uuOverheatinguHow to Handle Overheating
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
turn the power system off once the Engine
Temperature Too Hot message
disappears.
uIf the cooling fan is not operating,
immediately turn the power system off.
2. Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.
uIf the coolant level in the engine coolant
reservoir is low, add coolant until it reaches the MAX mark.
uIf there is no coolant in the engine coolant reservoir, check that the radiator
is cool. Cover the radiator cap with a
heavy cloth and open the cap. If
necessary, add coolant up to the base of
the filler neck, and put the cap back on.
■ Last thing to do
Once the engine has cooled sufficiently, turn the power system on.If the Engine Temperature Too Hot message does not appear, resume driving. If
it appears again, contact a dealer for repairs.
1The Engine Temperature Too Hot Message Appears on the Multi-Information Display
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Engine
Coolant
Reservoir
MAX
MIN
Main MenuTable of Contents

554
Index
Doors......................................................... 112
Auto Door Locking .................................. 121
Auto Door Unlocking ............................... 121
Door and Trunk Open Message ................. 35
Keys ........................................................ 112
Locking/Unlocking the Doors from the Inside ............................................... 118
Locking/Unlocking the Doors from the Outside ............................................ 114
Lockout Prevention System ...................... 117
DOT Tire Quality Grading ........................ 496
Driving ....................................................... 409
Adaptive Cruise Control (ACC) ................ 427
Braking .................................................... 452
Cruise Control ......................................... 424
Shifting.................................................... 420
Transmission ............................................ 419
Turning on the Power .............................. 416
Driving Position Memory System ............. 143
Dust and Pollen Filter ............................... 504
E
Eco Assist System ........................................ 13
Eco Drive Display ........................................ 14
ECON Button ............................................. 422
Elapsed Time ............................................... 96
Electric Power Steering (EPS) System Indicator ............................................ 78, 530
Electronic Stability Control (ESC) ............. 443
Emergency ................................................. 535 Emergency Trunk Opener
........................ 125
Emissions Testing (Readiness Codes) ....... 543
Engine ....................................................... 540
Coolant ................................................... 478
Jump Starting .......................................... 522
Oil ........................................................... 473
Engine Coolant
Adding to the Engine Coolant Reservoir ............................................... 478
Adding to the Radiator ......... ............... .... 479
Overheating ............................................ 525
Engine Oil ................................................. 473
Adding .................................................... 475
Checking................................................. 474
Displaying Oil Life .................................... 467
Low Oil Pressure Indicator ................. 74, 528
Recommended Engine Oil ....................... 473
EPS (Electric Power Steering)
System ............................................... 78, 530
EV Button .................................................... 10
EV Indicator ................................................ 73
Exhaust Gas Hazard (Carbon
Monoxide) ................................................. 68
Expanded View Driver’s Mirror ............... 147
Exterior Care (Cleaning) ........................... 507
Exterior Mirrors ........................................ 147
F
Features .................................................... 169 Filters
Dust and Pollen....................................... 504
Oil .......................................................... 476
Flat Tire ..................................................... 510
Floor Mats ................................................ 506
Fluids Brake ...................................................... 482
Engine Coolant ....................................... 478
Inverter Coolant ...................................... 480
Transmission ........................................... 481
Windshield Washer ................................. 483
Foot Brake ................................................ 453
Forward Collision Warning (FCW) .......... 435
Front Airbags (SRS) .................................... 46
Front Seats ................................................ 148
Adjusting ................................................ 148
Fuel ..................................................... 24, 459
Economy................................................. 461
Gauge ...................................................... 92
Instant Fuel Economy ................................ 97
Low Fuel Indicator..................................... 76
Range ....................................................... 96
Recommendation.................................... 459
Refueling ................................................ 459
Fuel Economy ........................................... 461
Fuel Fill Cap ........................................ 24, 460
Message ................................................. 529
Fuel Fill Door ...................................... 24, 460
Fuses ......................................................... 532
Inspecting and Changing ........................ 534
Locations ........................................ 532, 533
