Page 30 of 569
Quick Reference Guide29
Handling the Unexpected
(P 515)
Flat Tire
(P 516)
● Park in a safe location and repair the flat
tire using the tire repair kit in the trunk.
Indicators Come On (P 534)
●Identify the indicator and consult the
owner's manual.
Power System Won't
Start
(P 525)
● If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse
(P 538)
● Check for a blown fuse if an electrical
device does not operate.
Overheating
(P 531)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the power system cool down.
Emergency Towing (P 541)
●Call a professional towing service if you
need to tow your vehicle.

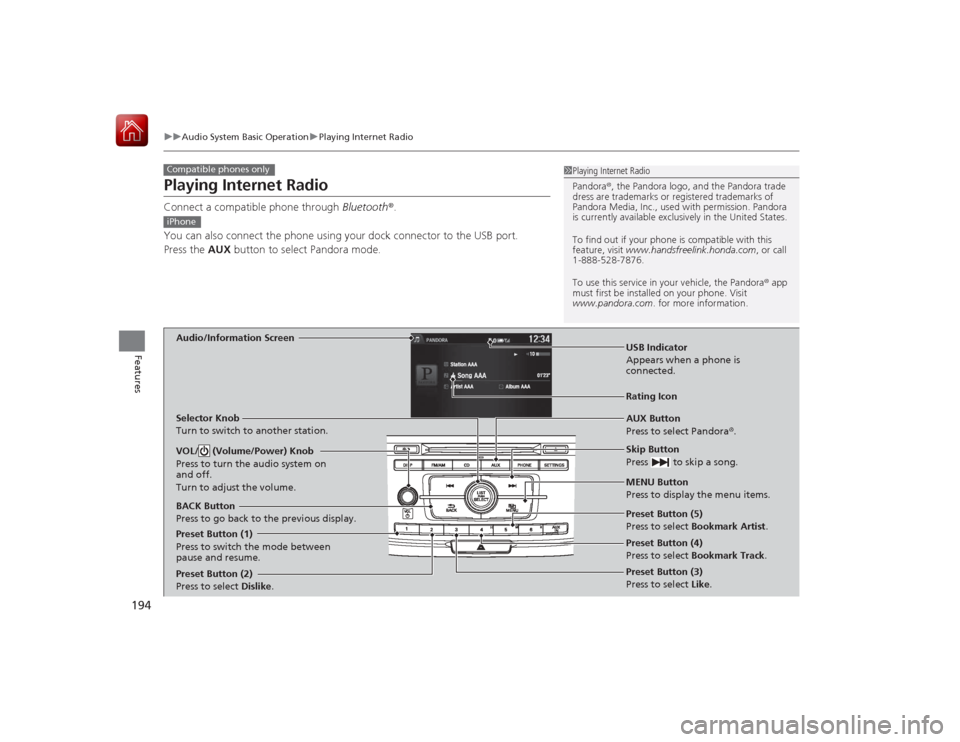

Page 195 of 569
194
uuAudio System Basic Operation uPlaying Internet Radio
Features
Playing Internet RadioConnect a compatible phone through Bluetooth®.
You can also connect the phone using your dock connector to the USB port.
Press the AUX button to select Pandora mode.Compatible phones only
1Playing Internet Radio
Pandora ®, the Pandora logo, and the Pandora trade
dress are trademarks or regi stered trademarks of
Pandora Media, Inc., used with permission. Pandora
is currently available exclusively in the United States.
To find out if your phone is compatible with this
feature, visit www.handsfreelink.honda.com , or call
1-888-528-7876.
To use this service in your vehicle, the Pandora ® app
must first be installed on your phone. Visit
www.pandora.com . for more information.
iPhoneAudio/Information Screen
AUX Button
Press to select Pandora®.
Skip Button
Press to skip a song.
MENU Button
Press to display the menu items.
Selector Knob
Turn to switch to another station.
VOL/ (Volume/Power) Knob
Press to turn the audio system on
and off.
Turn to adjust the volume.BACK Button
Press to go back to the previous display.
USB Indicator
Appears when a phone is
connected.Rating Icon
Preset Button (1)
Press to switch the mode between
pause and resume.
Preset Button (2)
Press to select Dislike.
Preset Button (3)
Press to select Like. Preset Button (4)
Press to select Bookmark Track
.
Preset Button (5)
Press to select Bookmark Artist
.

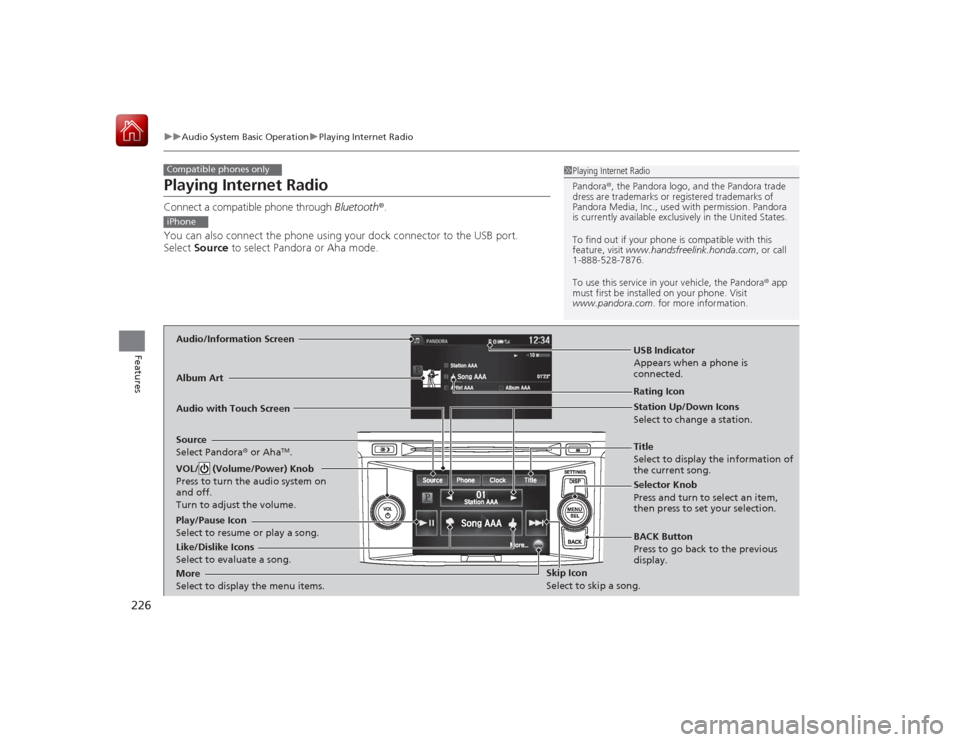

Page 227 of 569
226
uuAudio System Basic Operation uPlaying Internet Radio
Features
Playing Internet RadioConnect a compatible phone through Bluetooth®.
You can also connect the phone using your dock connector to the USB port.
Select Source to select Pandora or Aha mode.Compatible phones only
1Playing Internet Radio
Pandora ®, the Pandora logo, and the Pandora trade
dress are trademarks or regi stered trademarks of
Pandora Media, Inc., used with permission. Pandora
is currently available exclusively in the United States.
To find out if your phone is compatible with this
feature, visit www.handsfreelink.honda.com , or call
1-888-528-7876.
To use this service in your vehicle, the Pandora ® app
must first be installed on your phone. Visit
www.pandora.com . for more information.
iPhoneAudio/Information ScreenAlbum Art
USB Indicator
Appears when a phone is
connected.Rating Icon
Audio with Touch Screen
BACK Button
Press to go back to the previous
display. Selector Knob
Press and turn to select an item,
then press to set your selection.
VOL/ (Volume/Power) Knob
Press to turn the audio system on
and off.
Turn to adjust the volume.
Skip Icon
Select to skip a song.
More
Select to display the menu items.
Station Up/Down Icons
Select to change a station.
Source
Select Pandora ® or Aha
TM.
Like/Dislike Icons
Select to evaluate a song. Play/Pause Icon
Select to resume or play a song.
Title
Select to display the information of
the current song.
Page 280 of 569
279
uuAudio System Basic Operation uPlaying Internet Radio
Continued
Features
Playing Internet RadioConnect a compatible phone through Bluetooth®.
You can also connect the phone using your dock connector to the USB port.
Select Source to select Pandora or Aha mode.Compatible phones only
1Playing Internet Radio
Pandora ®, the Pandora logo, and the Pandora trade
dress are trademarks or regi stered trademarks of
Pandora Media, Inc., used with permission. Pandora
is currently available exclusively in the United States.
To find out if your phone is compatible with this
feature, visit www.handsfreelink.honda.com , or call
1-888-528-7876.
To use this service in your vehicle, the Pandora ® app
must first be installed on your phone. Visit
www.pandora.com . for more information.
iPhoneAudio/Information ScreenAlbum Art
USB Indicator
Appears when a phone is connected.Rating Icon
Audio with Touch Screen
BACK Button
Press to go back to the previous display.
Skip Icon
Select to skip a song.
More
Select to display the menu items. Station Up/Down Icons
Select to change a station.
Source
Select Pandora
® or Aha
TM.
Play/Pause Icon
Select to resume or play a song.
Like/Dislike Icons
Select to evaluate a song.
(Power) Button
Press to turn the audio system on and off.
VOL (Volume) Knob
Turn to adjust the volume.Interface Dial/ENTER Button
Press and turn to select an item, then press to set
your selection. Move up, down, right and left to
select secondary menu.
Title
Select to display the information of the
current song.
Page 464 of 569
463Driving
RefuelingFuel Information■Fuel recommendation
Use of a lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.■Top tier detergent gasoline
Because the level of detergency and additives in gasoline vary in the market, Honda
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.
Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of detergent additives and be free of metallic
additives. The proper level of detergent additives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.
For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit www.hondacars.com. In Canada, visit
www.honda.ca for additional information on gasoline. For more information on top
tier gasoline, visit www.toptiergas.com .■Fuel tank capacity: 15.8 US gal (60 liters)Unleaded gasoline, pump octane number 87 or higher
1Fuel InformationNOTICEWe recommend quality gasoline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly recommend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.
Use of gasoline with these additives may adversely
affect performance, and cause the malfunction
indicator lamp on your instrument panel to come on.
If this happens, contact a dealer for service.
Some gasoline today is blended with oxygenates such
as ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gasoline containing methanol.
If you notice any undesirable operating symptoms, try
another service station or switch to another brand of
gasoline.
Page 468 of 569
467
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 468Safety When Performing Maintenance..... 469Parts and Fluids Used in Maintenance Service ........................................... 470
Maintenance Minder
TM..................... 471
Maintenance Under the Hood
Maintenance Items Under the Hood ..... 475Opening the Hood ........................... 476
Recommended Engine Oil ................ 477
Oil Check ......................................... 478
Adding Engine Oil ............................ 479Changing the Engine Oil and Oil Filter ..... 480
Coolant System................................ 482
Inverter Coolant ............................... 484
Transmission Fluid ............................ 485
Brake Fluid ....................................... 486
Refilling Window Washer Fluid......... 487
Replacing Light Bulbs ....................... 488Checking and Maintaining Wiper
Blades .......................................... 495Checking and Maintaining Tires
Checking Tires ................................. 497Tire and Loading Information Label ...... 498Tire Labeling .................................... 498DOT Tire Quality Grading (U.S. Vehicles)....... 500
Wear Indicators ............................... 502
Tire Service Life ................................ 502
Tire and Wheel Replacement ........... 503
Tire Rotation .................................... 504
Winter Tires ..................................... 505
12-Volt Battery ................................. 506
Remote Transmitter Care Replacing the Button Battery ........... 507
Climate Control System Maintenance ... 508
Cleaning
Interior Care .................................... 509
Exterior Care.................................... 511
Page 473 of 569
472
uuMaintenance Minder
TMuTo Use Maintenance Minder
TM
Maintenance
The system message indicator ( ) comes on along with the Maintenance Minder message.■
Maintenance Minder Messages on the Multi-Information
DisplayMaintenance Message
Oil Life Display
Explanation
Information
Maintenance Due Soon
15 %
The remaining engine oil life is 15 to
6 percent. Once you switch the
display by pressing the
(Information) button, this message
will go off.
The engine oil is approaching the end
of its service life, and the maintenance
items should be inspected and serviced
soon.
Maintenance Due Now
5 %
The remaining engine oil life is 5 to 1
percent. Press the button to
switch to another display.
The engine oil has almost reached the
end of its service life, and the
maintenance items should be inspected
and serviced as soon as possible.
Maintenance Past Due
Negative Distance
The remaining engine oil life has
passed its service life, and a negative
distance appears after driving over
10 miles (U.S. models) or 10 km
(Canadian models). Press the
button to switch to another
display.
The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.
Page 474 of 569
473
uuMaintenance Minder
TMuTo Use Maintenance Minder
TM
Continued
Maintenance
■
Maintenance Service Items
1Maintenance Service Items•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.•Inspect idle speed every 160,000 miles (256,000
km).•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder
Message
System Message
Indicator
Sub Items
Main Item
*1: If a message Service does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.CODE
Maintenance Main Items
A
●Replace engine oil
*1
B
●Replace engine oil
*1 and oil filter
●Inspect front and rear brakes/service as necessary●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lines (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system
#
●Inspect fuel lines and connections
#
●Check expiration date for TRK bottle
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles (75,000 km) or 3 years.CODE
Maintenance Sub Items
1
●Rotate tires
2
●Replace air cleaner element
*2
●Replace dust and pollen filter
*3
3
●Replace transmission fluid
*4
4
●Replace spark plugs●Inspect valve clearance
5●Replace engine coolant
Page 503 of 569
502
uuChecking and Maintaining Tires uWear Indicators
Maintenance
Wear Indicators
The groove where the wear indicator is
located is 1/16 inch (1.6 mm) shallower than
elsewhere on the tire. If the tread has worn so
that the indicator is exposed, replace the tire.
Worn out tires have poor traction on wet
roads.
Tire Service LifeThe life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even when the tires are not in use).
In addition to regular inspections and inflation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach five
years old. All tires should be removed from service after 10 years from the date of
manufacture, regardless of their condition or state of wear.
1 Checking Tires
High speed driving
We recommend that you do not drive faster than the
posted speed limits and conditions allow. If you drive
at sustained high speeds (over 99 mph or 160 km/h),
adjust the cold tire press ures as shown below to
avoid excessive heat build up and sudden tire failure.Tire Size
225/50R17 94V
Pressure 35 psi (240 kPa, 2.4 kgf/cm
2)
Example of a Wear
Indicator mark
Page 560 of 569
559Index
Beverage Holders..................................... 163
Bluetooth ® Audio ..................... 199, 232, 285
Bluetooth ® HandsFreeLink® ............ 337, 374
Booster Seats (For Children) ...................... 69
Brake System ............................................ 456
Anti-lock Brake System (ABS) .................. 458
Brake Assist System................................. 459
Fluid ....................................................... 486
Foot Brake .............................................. 457
Indicator ........................................... 74, 536
Parking Brake.......................................... 456
Brake System Indicator (Amber) ............... 74
Brake System Indicator (Red) .................... 74
Brightness Control (Instrument Panel) ... 145
Bulb Replacement .................................... 488
Brake/Taillights, Rear Turn Signal Lights, and Rear Side Marker Lights......................... 492
Front Turn Signal/Side Marker Lights ....... 491
Headlights .............................................. 488
High-Mount Brake Light.......................... 494
Parking/Daytime Running Lights .............. 491
Rear License Plate Lights ......................... 494
Side Turn Signal/Emergency Indicator Lights .................................................... 491
Taillights and Back-Up Lights................... 493
Bulb Specifications ................................... 544CCarbon Monoxide Gas ............................... 70
Cargo Area ............................................... 166 Cargo Hook
............................................... 165
Carrying Cargo .................................. 415, 417
CD Player ................................... 188, 219, 258
Center Pocket ........................................... 162
Certification Label .................................... 546
Changing Bulbs ......................................... 488
Child Safety ................................................. 58
Childproof Door Locks ............................. 124
Emergency Trunk Opener ........................ 129
Child Seat .................................................... 58
Booster Seats ............................................. 69
Child Seat for Infants ................................. 60
Child Seat for Small Children ..................... 61
Installing a Child Seat with a Lap/Shoulder Seat
Belt.......................................................... 65
Larger Children .......................................... 68
Rear-facing Child Seat ............................... 60
Selecting a Child Seat ................................ 62
Using a Tether ........................................... 67
Childproof Door Locks ............................. 124
Cleaning the Exterior ............................... 511
Cleaning the Interior ................................ 509
Climate Control System ............................ 169
Changing the Mode ................................ 169
Defrosting the Windshield and
Windows ............................................... 170
Dust and Pollen Filter ............................... 508
Recirculation and Fresh Air Mode ............ 169
Sensors .................................................... 172
Synchronized Mode ................................. 171
Using Automatic Climate Control ............ 169 Clock
.......................................................... 114
Coat Hook ................................................. 165
Console Compartment ............................. 161
Controls ..................................................... 113
Coolant (Engine) ...................................... 482
Adding to the Radiator ............................ 483
Adding to the Reserve Tank..................... 482
Overheating ............................................ 531
Coolant (Inverter) ..................................... 484
Coolant System ......................................... 482
Creeping (Transmission) ........................... 423
Cruise Control ........................................... 428
Cup Holders .............................................. 163
Customer Service Information ................. 554
Customized Features ........................ 104, 297
DDaytime Running Lights .......................... 143
Dead Battery (12-Volt) ............................. 528
Defrosting the Windshield and
Windows ................................................. 170
Devices that Emit Radio Waves ............... 547
Dimming
Headlights ............................................... 140
Rearview Mirror....................................... 150
Dipstick (Engine Oil) ................................. 478
Directional Signals (Turn Signal) ............. 140
Display Button .......................... 180, 205, 237
Door Mirrors ............................................. 151
