HONDA ACCORD HYBRID 2019 Owner's Manual

19
Quick Reference Guide

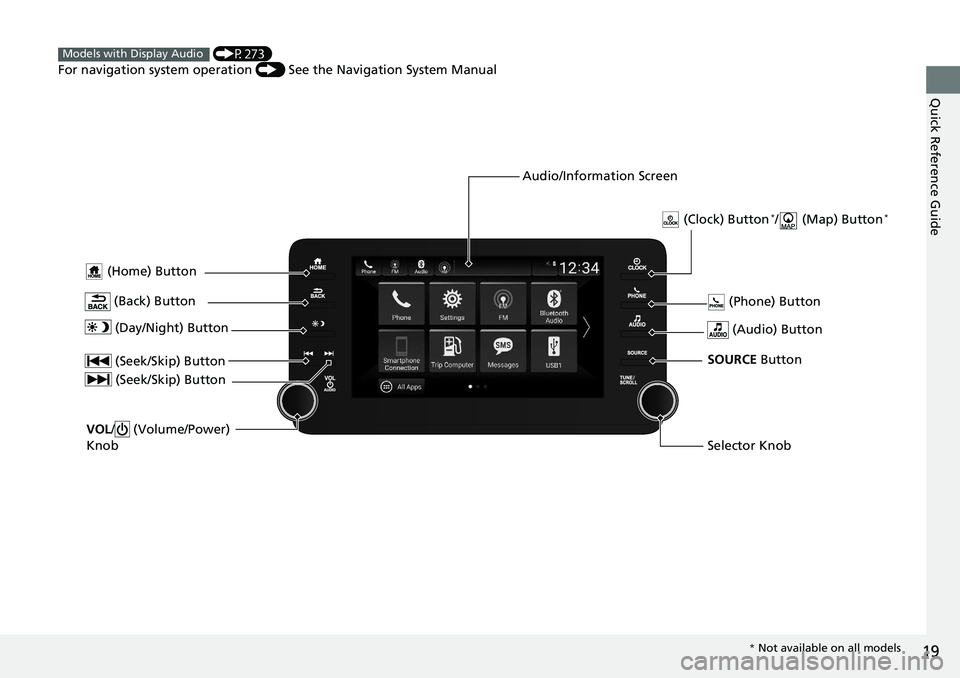

(Home) Button
(Audio) Button (Back) Button Audio/Information Screen (P273)
For navigation system operation () See the Navigation System ManualModels with Display Audio
(Phone) Button
(Day/Night) Button
(Seek/Skip) Button
(Seek/Skip) Button
VOL / (Volume/Power)
Knob
Selector KnobSOURCE Button (Clock) Button *
/ (Map) Button *
* Not available on all models

20

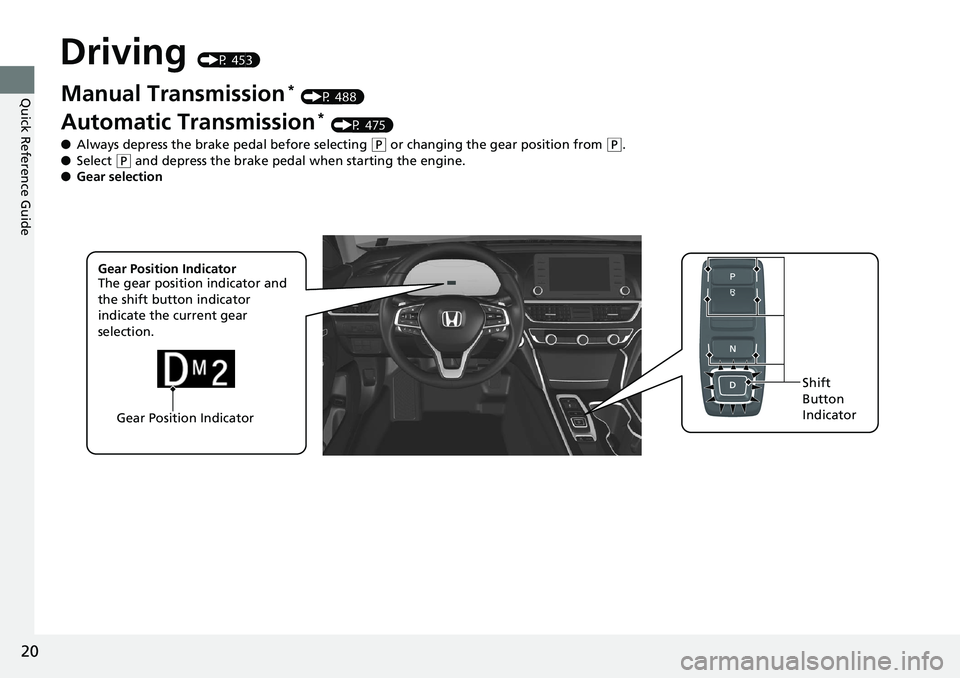

Quick Reference Guide Driving (P 453)
Gear Position Indicator Shift
Button
IndicatorManual Transmission *
(P 488)
Automatic Transmission *
(P 475)
● Always depress the brake pedal before selecting ( P
or changing the gear position from ( P
.
● Select ( P
and depress the brake pedal when starting the engine.
● Gear selection
Gear Position Indicator
The gear position indicator and
the shift button indicator
indicate the current gear
selection.

21
Quick Reference Guide

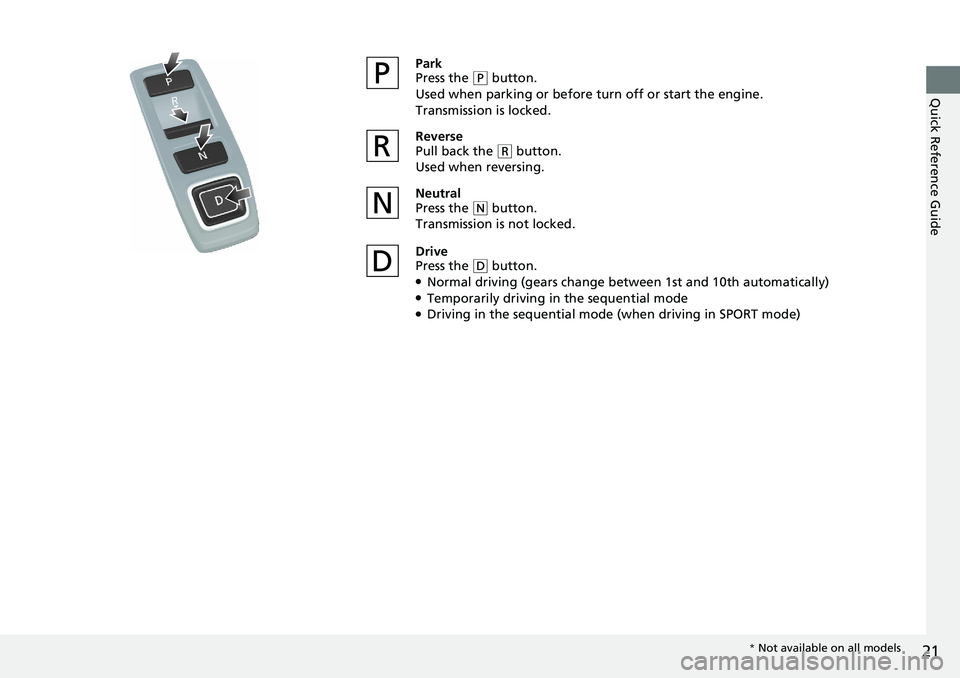

Park
Press the ( P
button.
Used when parking or before turn off or start the engine.
Transmission is locked.
Reverse
Pull back the ( R
button.
Used when reversing.
Neutral
Press the ( N
button.
Transmission is not locked.
Drive
Press the ( D
button. ●
Normal driving (gears change between 1st and 10th automatically) ●
Temporarily driving in the sequential mode ●
Driving in the sequential mode (when driving in SPORT mode)
* Not available on all models

22

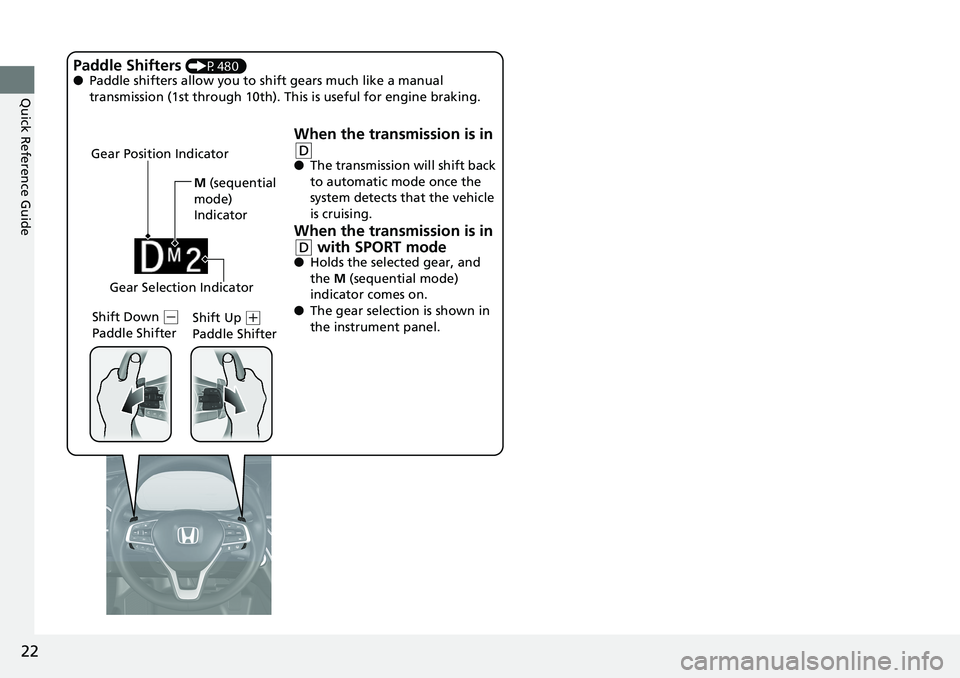

Quick Reference Guide M (sequential
mode)
IndicatorGear Position Indicator
Shift Down ( -

Paddle Shifter Shift Up ( +

Paddle ShifterPaddle Shifters (P480)
● Paddle shifters allow you to sh ift gears much like a manual
transmission (1st through 10th). This is useful for engine braking.
When the transmission is in ( D ● The transmission will shift back
to automatic mode once the
system detects that the vehicle
is cruising.
When the transmission is in ( D
with SPORT mode ● Holds the selected gear, and
the M (sequential mode)
indicator comes on.
● The gear selection is shown in
the instrument panel.Gear Selection Indicator

23
Quick Reference Guide
M Indicator
Gear Selection
Indicator

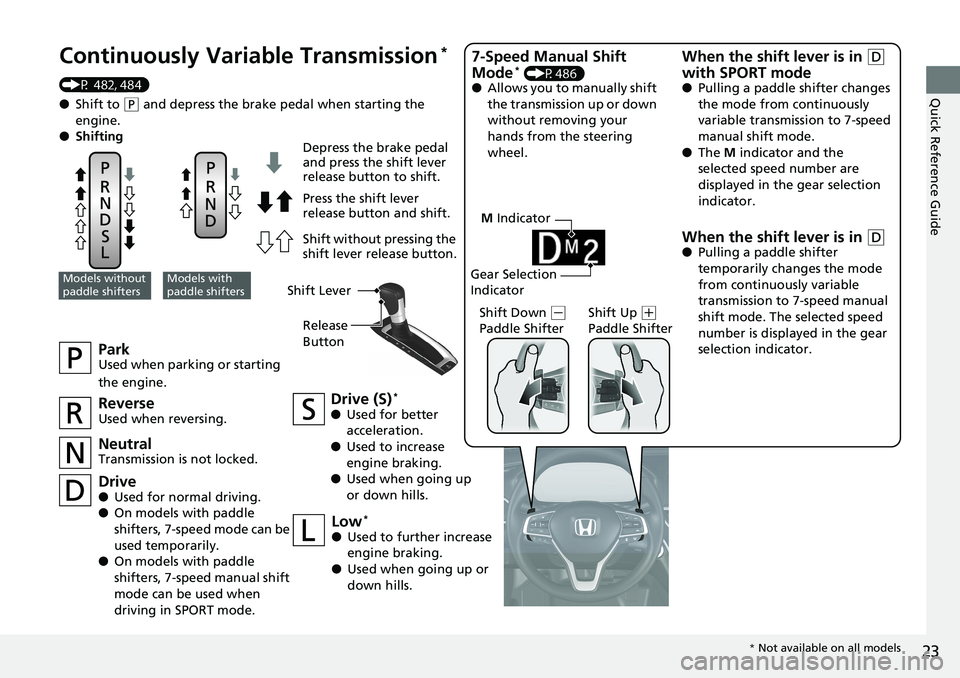

Continuously Variable Transmission *
(P 482, 484)
● Shift to ( P
and depress the brake pedal when starting the
engine.
● Shifting
Park Used when parking or starting
the engine.
Neutral Transmission is not locked. Drive (S) *
● Used for better
acceleration.
● Used to increase
engine braking.
● Used when going up
or down hills.Models without
paddle shifters Models with
paddle shifters Depress the brake pedal
and press the shift lever
release button to shift.
Press the shift lever
release button and shift.
Shift without pressing the
shift lever release button.
Reverse Used when reversing.
Drive ● Used for normal driving.
● On models with paddle
shifters, 7-speed mode can be
used temporarily.
● On models with paddle
shifters, 7-speed manual shift
mode can be used when
driving in SPORT mode. Low *
● Used to further increase
engine braking.
● Used when going up or
down hills. Shift Down ( -

Paddle Shifter Shift Up ( +

Paddle Shifter7-Speed Manual Shift
Mode *
(P486)
● Allows you to manually shift
the transmission up or down
without removing your
hands from the steering
wheel.
When the shift lever is in ( D

with SPORT mode ● Pulling a paddle shifter changes
the mode from continuously
variable transmission to 7-speed
manual shift mode.
● The M indicator and the
selected speed number are
displayed in the gear selection
indicator.
When the shift lever is in ( D● Pulling a paddle shifter
temporarily changes the mode
from continuously variable
transmission to 7-speed manual
shift mode. The selected speed
number is displayed in the gear
selection indicator.Shift Lever
Release
Button
* Not available on all models

24

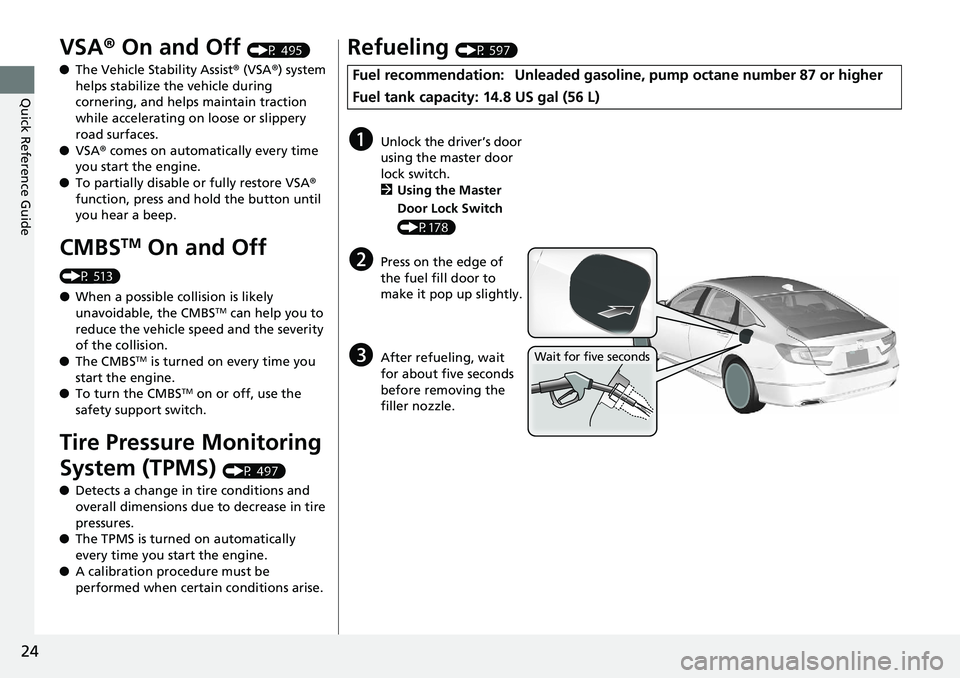

Quick Reference Guide VSA ® On and Off (P 495)
● The Vehicle Stability Assist ® (VSA ® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To partially disable or fully restore VSA ®
function, press and ho ld the button until
you hear a beep.
CMBS TM
On and Off (P 513)
● When a possible collision is likely
unavoidable, the CMBS TM
can help you to
reduce the vehicle sp eed and the severity
of the collision.
● The CMBS TM
is turned on every time you
start the engine.
● To turn the CMBS TM
on or off, use the
safety support switch.
Tire Pressure Monitoring
System (TPMS) (P 497)
● Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
● The TPMS is turned on automatically
every time you start the engine.
● A calibration procedure must be
performed when certain conditions arise. Refueling (P 597)
Fuel recommendation: Unleaded gasoline , pump octane number 87 or higher
Fuel tank capacity: 14.8 US gal (56 L)
a Unlock the driver’s door
using the master door
lock switch.
2 Using the Master
Door Lock Switch
(P178)
b Press on the edge of
the fuel fill door to
make it pop up slightly.
c After refueling, wait
for about five seconds
before removing the
filler nozzle. Wait for five seconds

25
Quick Reference Guide
Honda Sensing ® (P 507)
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located at the lower part of the front
bumper and a front sensor camera mounted
to the interior side of the windshield,
behind the rear view mirror.
Front Sensor
Camera The camera is located
behind the rearview
mirror.
Radar Sensor
The radar sensor is at
the lower part of the
front bumper. Collision Mitigation
Braking System TM

(CMBS TM
) (P 510)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS TM
is designed to alert you when a
potential collision is determined, as well as
to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
Adaptive Cruise Control
(ACC) with Low Speed
Follow (LSF) *
(P519)
Helps maintain a constant vehicle speed and a
set following interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to keep
your foot on the brake or the accelerator. Adaptive Cruise Control
(ACC) *
(P 535)
Helps maintain a constant vehicle speed and
a set following interval behind a vehicle
detected ahead of yours, without you
having to keep your foot on the brake or
the accelerator.
Lane Keeping Assist
System (LKAS) (P 550)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
* Not available on all models

26
Quick Reference Guide Road Departure
Mitigation (RDM) System (P 558)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
Traffic Sign Recognition
System (P562)
Reminds you of road sign information, such as
the current speed limit, your vehicle has just
passed through, showing it on the driver
information interface and the head-up
display *
.

27
Quick Reference Guide

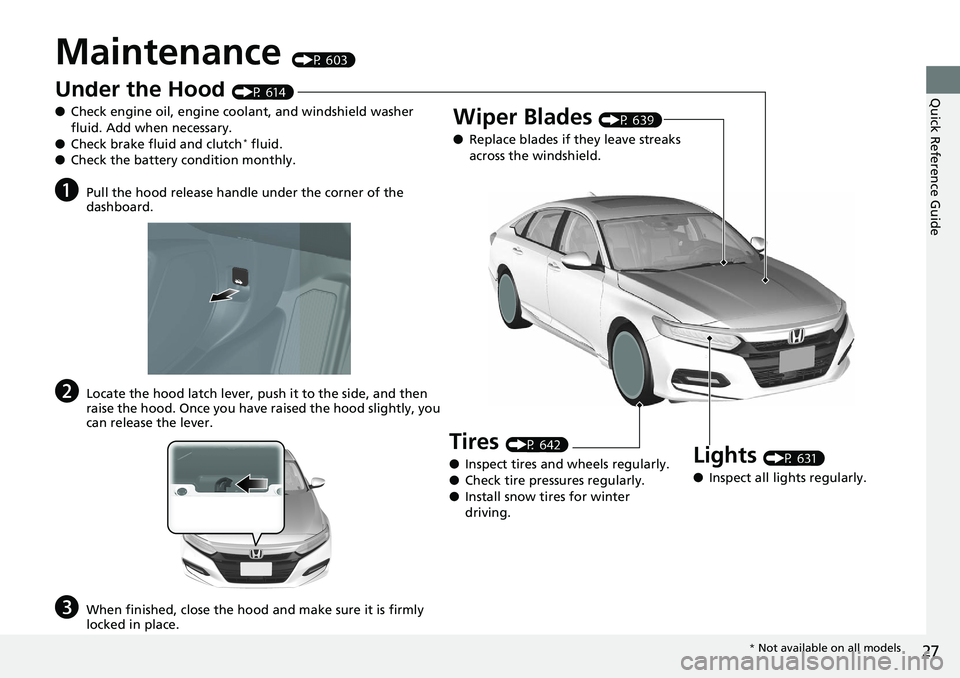

Maintenance (P 603)
Under the Hood (P 614)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid and clutch *
fluid.
● Check the battery condition monthly.
a Pull the hood release handle under the corner of the
dashboard.
b Locate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
c When finished, close the hood and make sure it is firmly
locked in place. Lights (P 631)
● Inspect all lights regularly.Wiper Blades (P 639)
● Replace blades if they leave streaks
across the windshield.
Tires (P 642)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
* Not available on all models

28

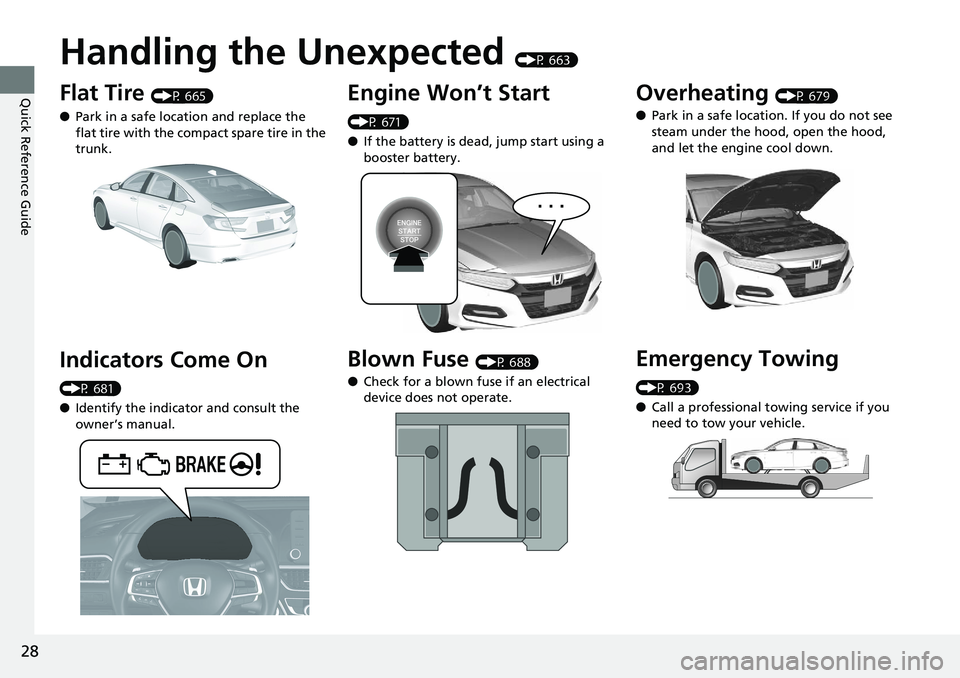

Quick Reference Guide Handling the Unexpected (P 663)
Flat Tire (P 665)
● Park in a safe location and replace the
flat tire with the compact spare tire in the
trunk.
Indicators Come On (P 681)
● Identify the indicator and consult the
owner’s manual. Engine Won’t Start (P 671)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 688)
● Check for a blown fuse if an electrical
device does not operate.Overheating (P 679)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P 693)
● Call a professional towing service if you
need to tow your vehicle.
