uuWhen Driving uTurning on the Power
374
Driving

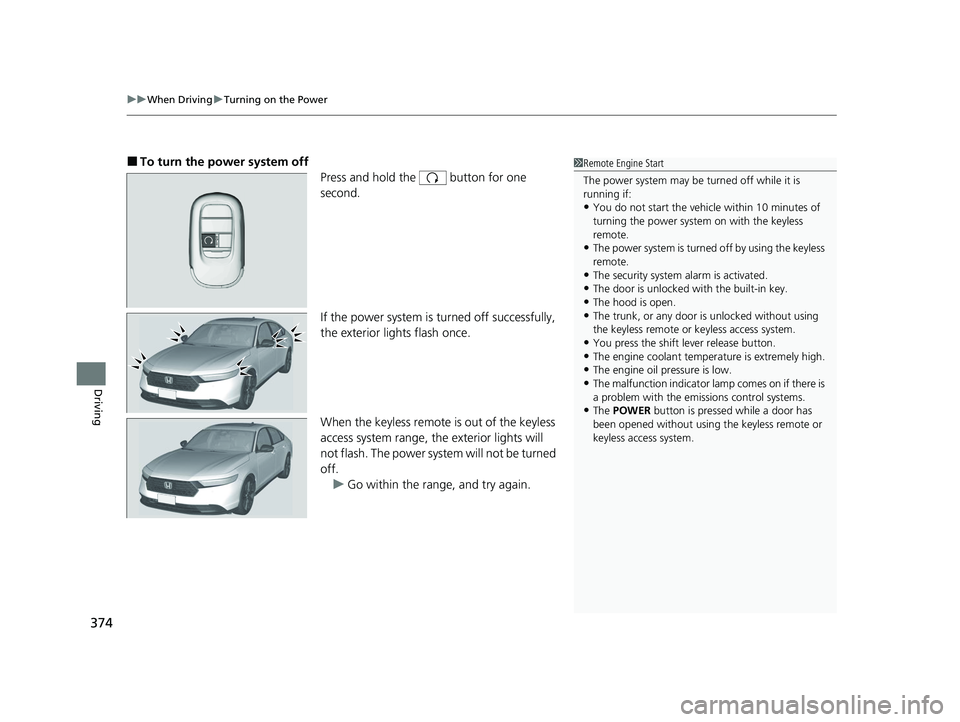

■To turn the power system off
Press and hold the button for one
second.
If the power system is turned off successfully,
the exterior lights flash once.
When the keyless remote is out of the keyless
access system range, the exterior lights will
not flash. The power system will not be turned
off. u Go within the rang e, and try again.1Remote Engine Start
The power system may be turned off while it is
running if:
•You do not start the vehicl e within 10 minutes of
turning the power system on with the keyless
remote.
•The power system is turned off by using the keyless
remote.
•The security system alarm is activated.
•The door is unlocked with the built-in key.
•The hood is open.•The trunk, or any door is unlocked without using
the keyless remote or keyless access system.
•You press the shift lever release button.•The engine coolant temper ature is extremely high.
•The engine oil pressure is low.
•The malfunction indicator la mp comes on if there is
a problem with the emissions control systems.
•The POWER button is pressed while a door has
been opened without using the keyless remote or
keyless access system.
23 ACCORD 4D US HEV MAP-3130B6000.book 374 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

Continued375
uuWhen Driving uTurning on the Power
Driving

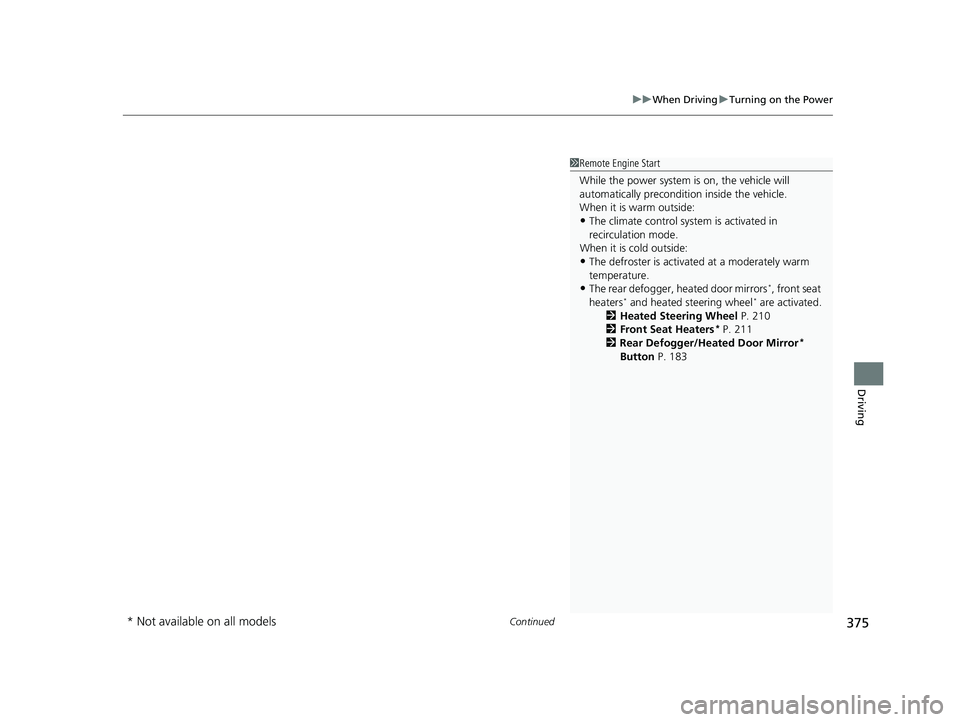

1Remote Engine Start
While the power system is on, the vehicle will
automatically preconditi on inside the vehicle.
When it is warm outside:
•The climate control system is activated in
recirculation mode.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger, heated door mirrors*, front seat
heaters* and heated steering wheel* are activated.
2 Heated Steering Wheel P. 210
2 Front Seat Heaters
* P. 211
2 Rear Defogger/Heated Door Mirror*
Button P. 183
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 375 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

uuWhen Driving uTurning on the Power
376
Driving
1. Depress and hold the brake pedal, then press the POWER button.
2. Keeping your right foot on the brake pedal, check that the READY indicator is on,
then put the tra nsmission into
(D. Select (R when reversing.
3. With the parking brake applied, release the brake pedal and gently depress the
accelerator pedal.
u Make sure the parking brake and brake system indicator (red) goes off.
2 Parking Brake P. 483
■Hill start assist system
Hill start assist keeps the brake engaged br iefly to help prevent the vehicle from
rolling on inclines as you move your fo ot from the brake pedal to the accelerator.
Put the transmission into
(D when facing uphill, or (R when facing downhill, then
release the brake pedal.
You can turn the power system off when the vehicle is completely stopped.
1. Put the transmission into
(P.
2. Press the POWER button.
■Starting to Drive
■Stopping the Power System
1Starting to Drive
You can also release the parking brake by pressing
the electric parking brake sw itch while depressing the
brake pedal.
When facing downhill, you can start your vehicle
more smoothly by manually releasing it with the
electric parking brake switch than by releasing it with
the accelerator pedal.
The power system is taken off when the transmission
is taken out of
( P before the POWER button is
pressed. Follow the step 1 when starting to drive.
As a hybrid vehicle, the sounds and vibrations from
the engine may be absent even though the vehicle is
ready for driving. It also makes you fail to recognize
that you can start.
Make sure to check if the READY indicator is on
before you start to drive.
When the power system is turned on using the
button on the keyless remote
When the power system is turned on using the button on the keyless remote
When the power system is turned on in any case
1 Hill start assist system
Hill start assist may not prevent the vehicle from
rolling downhill on a very steep or slippe ry slope, and
will not operate on small inclines.
Hill start assist will operate even when VSA ® is
switched off.
Hill start assist is not a replacement for the parking
brake.
23 ACCORD 4D US HEV MAP-3130B6000.book 376 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

388
uuWhen Driving uDrive Mode System
Driving

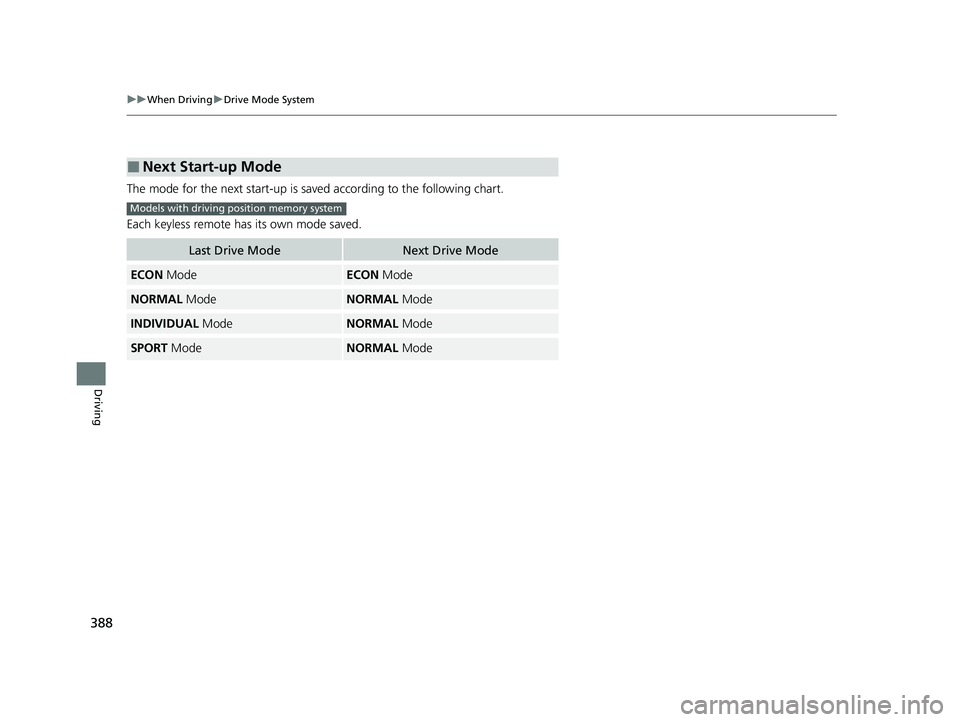

The mode for the next start-up is sa ved according to the following chart.
Each keyless remote has its own mode saved.
■Next Start-up Mode
Last Drive ModeNext Drive Mode
ECON ModeECON Mode
NORMAL ModeNORMAL Mode
INDIVIDUAL ModeNORMAL Mode
SPORT ModeNORMAL Mode
Models with driving position memory system
23 ACCORD 4D US HEV MAP-3130B6000.book 388 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

559
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
Tools.................................................. 560
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 561
Handling of the Jack ......................... 574
Power System Won’t Start Checking the Procedure ................... 575
If the Keyless Remote Battery is Weak.. 576Emergency Power System On ........... 577
Emergency Power System Off........... 578
If the 12-Volt Battery Is Dead .......... 579
Shift Lever Does Not Move .............. 581
Overheating
How to Handle Overheating ............. 582 Indicator Coming On/Blinking
If the Engine oil pressure low Warning Appears ......................................... 585
If the 12-Volt Battery Charging System Indicator Comes On ....................... 586
If the Limited stopping power Warning
Appears ......................................... 586
If the Malfunction Indicator Lamp Comes On or Blinks ..................................... 587
If the Brake System Indicator (Red) Comes On or Blinks ..................................... 588
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .....589
If the Electric Power Steering (EPS) System Indicator Comes On......................... 590
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks
*...................... 591
Fuses .................................................. 592
Emergency Towing ........................... 597
If You Cannot Unlock the Fuel Fill Door.. 598If You Cannot Open the Trunk ........ 599
Refueling
Refueling From a Portable Fuel Container ... 600
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 559 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

575
Handling the Unexpected

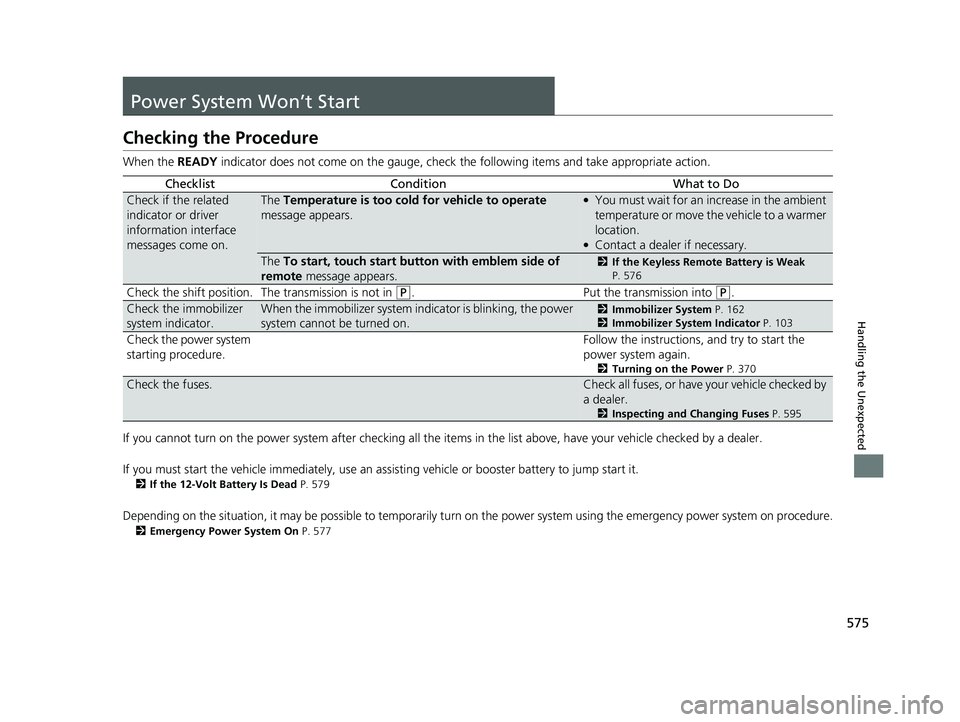

Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on the gauge, check th e following items and take appropriate action.
If you cannot turn on the power system after checking all the it ems in the list above, have your vehicle checked by a dealer.
If you must start the vehicle immediately, use an as sisting vehicle or booster battery to jump start it.
2If the 12-Volt Battery Is Dead P. 579
Depending on the situation, it may be possible to temporarily tu rn on the power system using the emergency power system on proc edure.
2Emergency Power System On P. 577
ChecklistConditionWhat to Do
Check if the related
indicator or driver
information interface
messages come on.The Temperature is too cold for vehicle to operate
message appears.●You must wait for an increase in the ambient
temperature or move the vehicle to a warmer
location.
●Contact a dealer if necessary.
The To start, touch start butt on with emblem side of
remote message appears.2 If the Keyless Remote Battery is Weak
P. 576
Check the shift position. The transmission is not in (P. Put the transmission into (P.
Check the immobilizer
system indicator.When the immobilizer system indicator is blinking, the power
system cannot be turned on.2Immobilizer System P. 162
2 Immobilizer System Indicator P. 103
Check the power system
starting procedure. Follow the instructions, and try to start the
power system again.
2
Turning on the Power P. 370
Check the fuses.Check all fuses, or have your vehicle checked by
a dealer.
2Inspecting and Changing Fuses P. 595
23 ACCORD 4D US HEV MAP-3130B6000.book 575 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

576
uuPower System Won’t Start uIf the Keyless Remote Battery is Weak
Handling the Unexpected

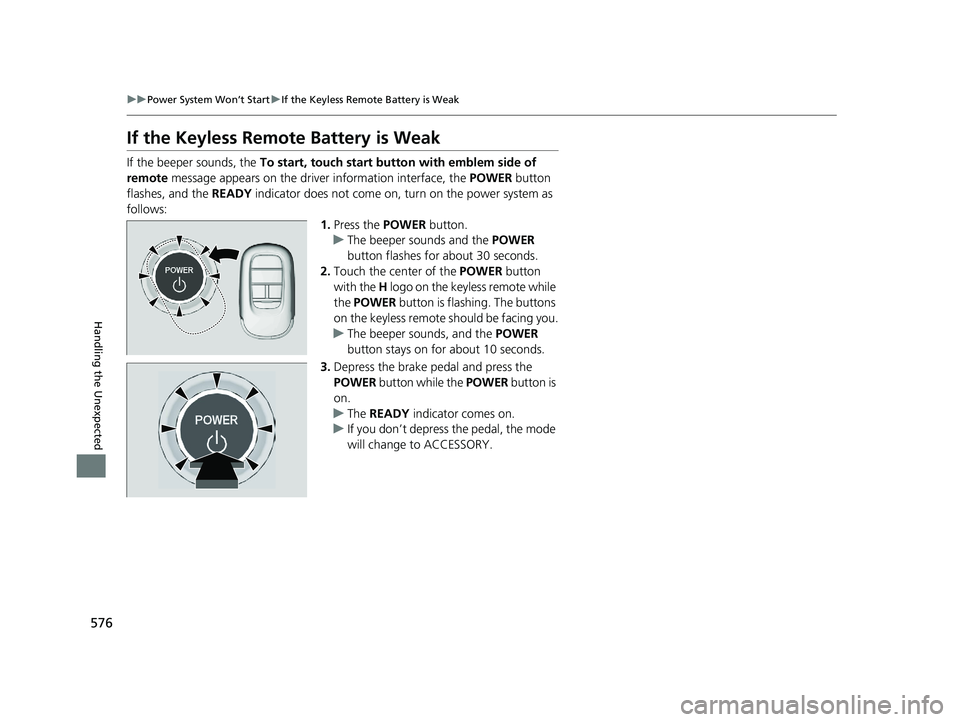

If the Keyless Remote Battery is Weak
If the beeper sounds, the To start, touch start butto n with emblem side of
remote message appears on the driver information interface, the POWER button
flashes, and the READY indicator does not come on, tu rn on the power system as
follows: 1.Press the POWER button.
u The beeper sounds and the POWER
button flashes for about 30 seconds.
2. Touch the center of the POWER button
with the H logo on the keyle ss remote while
the POWER button is flashing. The buttons
on the keyless remote should be facing you.
u The beeper sounds, and the POWER
button stays on for about 10 seconds.
3. Depress the brake pedal and press the
POWER button while the POWER button is
on.
u The READY indicator comes on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
23 ACCORD 4D US HEV MAP-3130B6000.book 576 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

622
Index
Power Flow Monitor................................. 120
POWER Gauge .......................................... 111
Power System Turning on............................................... 370
Won’t Start.............................................. 575
Power Windows ........................................ 165
Precautions While Driving Rain ......................................................... 377
Pregnant Women ....................................... 53
Puncture (Tire) .......................................... 561
R
Radar Sensor............................................. 481
Radiator ..................................................... 529
Radio (AM/FM) .......................................... 252
Radio (FM/AM) .......................................... 252
Radio Data System (RDS) .......................... 254
Range ........................................................ 122
RDS (Radio Data System) .......................... 254
Readiness Codes (Emissions Testing) ....... 607
Rear Defogger/Heated Door Mirror Button ...................................................... 183
Rear Seat (Folding Down) ........................ 192
Rear Seat Heaters ..................................... 213
Rear Seat Reminder .................................. 193
Rearview Mirror ........................................ 187
Refueling ................................................... 504
Fuel Gauge .............................................. 111
Gasoline .................................. 504, 600, 602
Low Fuel Indicator ..................................... 98 Regulations
............................... 396, 540, 605
Remote Transmitter ................................. 152
Replacement Battery .................................................... 548
Bulbs ....................................................... 532
Fuses ............................................... 592, 593
Tires ........................................................ 543
Wiper Blade Rubber ................................ 534
Reporting Safety Defects ......................... 606
Resetting a Trip Meter ............................. 121
Reverse Tilt Door Mirror .......................... 188
Road Departure Mitigation System ........ 465
On and Off.............................................. 468
S
Safe Driving ................................................ 41
Safety Check ............................................... 45
Safety Labels ............................................... 88
Safety Message ............................................. 5
Safety Support .......................................... 129
Seat Belts .................................................... 46
Adjusting the Shoulder Anchor.................. 52
Automatic Seat Belt Tensioners ................. 50
Checking................................................... 54
Fastening .................................................. 51
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 82
Pregnant Women ...................................... 53
Reminder .................................................. 48
Warning Indicator ............................... 48, 97 Seat Heaters
............................. 211, 212, 213
Seat Ventilation ....................................... 212
Seats .......................................................... 189
Adjusting ................................................ 189
Front Seats.............................................. 189
Rear Seats ............................................... 192
Seat Heaters ........................... 211, 212, 213
Seat Ventilation ...................................... 212
Security System ........................................ 162
Security System Alarm Indicator .............. 103
Selecting a Child Seat ................................ 78
Shift Position Indicator .............................. 96
Shifting (Transmission) ............................ 378
Shoulder Anchor ........................................ 52
Side Airbags ............................................... 66
Side Curtain Airbags .................................. 69
Smart Entry with Push Button Start
System ..................................................... 146
Snow Tires ................................................ 545
Sonar Sensors ........................................... 482
Spark Plugs ............................................... 602
Specifications ........................................... 602
Specified Fuel ................................... 504, 602
Speedometer ............................................ 110
SRS Airbags (Airbags) ................................ 58
Steering Wheel Adjusting ................................................ 186
Stopping ................................................... 493
Summer Tires ............................................ 545
Sunglasses Holder .................................... 202
Supplemental Restraint System (SRS) ....... 58
23 ACCORD 4D US HEV MAP-3130B6000.book 622 ページ ２０２２年１０月１３日　木曜日　午後４時５０分
