fuel type HONDA ACCORD HYBRID 2023 Owners Manual

14
Quick Reference Guide
SPORT HYBRID i-MMD (intelligent Multi-Mode
Drive)
Your SPORT HYBRID i-MMD vehicle uses both an electric motor and a gasoline engine as propulsion sources, with the electric motor
receiving electricity from an internal High Voltage battery and/or internal generator. The High Voltage battery is charged from the
generator driven by the engine or regenerative braking.
When driving, your vehicle is propelled exclusively by the elec tric motor, exclusively by the gasoline engine, or by a combination of the two.
The system selects which propulsion source is most appropriate and automatically switches to it. Under certain circumstances, p ressing the e
button can manually enable EV (driven only on electricity) mode.
●Energy efficiency
As with a gasoline-powered vehicle, hybrid vehicle fuel efficiency and driving range is most impacted by your driving style. Aggressive
acceleration and high-speed driving can easily trigger the system to switch the propulsion source to the gasoline-powered engin e.
In addition, heavy climate control system us e negatively affects vehicle range and efficiency. Either of these use patterns wil l more quickly
reduce the High Voltage battery's state of charge.
●Battery types
There are two types of batteries used in this vehicle; a standa rd 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems; and a high voltage battery that is used to power the propulsion motor and recharge the 12-volt battery.
23 ACCORD 4D US HEV MAP-3130B6000.book 14 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

119
uuGauges and Displays uDriver Information Interface (Right Side Area)
Continued
Instrument Panel
Roll the right selector wheel to view different types of content.
■Switching the Display1Switching the Display
You can add or delete the meter contents.
2 Gauge Display Settings P. 132
Right Selector
WheelWarning Messages
P. 134
Range/Fuel/
Trip Meter
P. 121
No Content Driver Attention
Monitor
P. 125
Navigation
P. 124
Speed/Time/
Trip Meter
P. 123
Gauge Display Settings
P. 132
Maintenance
P. 128
Safety Support
P. 129 Seat Belts
P. 128
Head-Up Display
Settings
*
P. 136 Brightness
Setting
P. 131
Vehicle Stability
Assist Mode
P. 131Power Flow
Monitor
P. 120
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 119 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

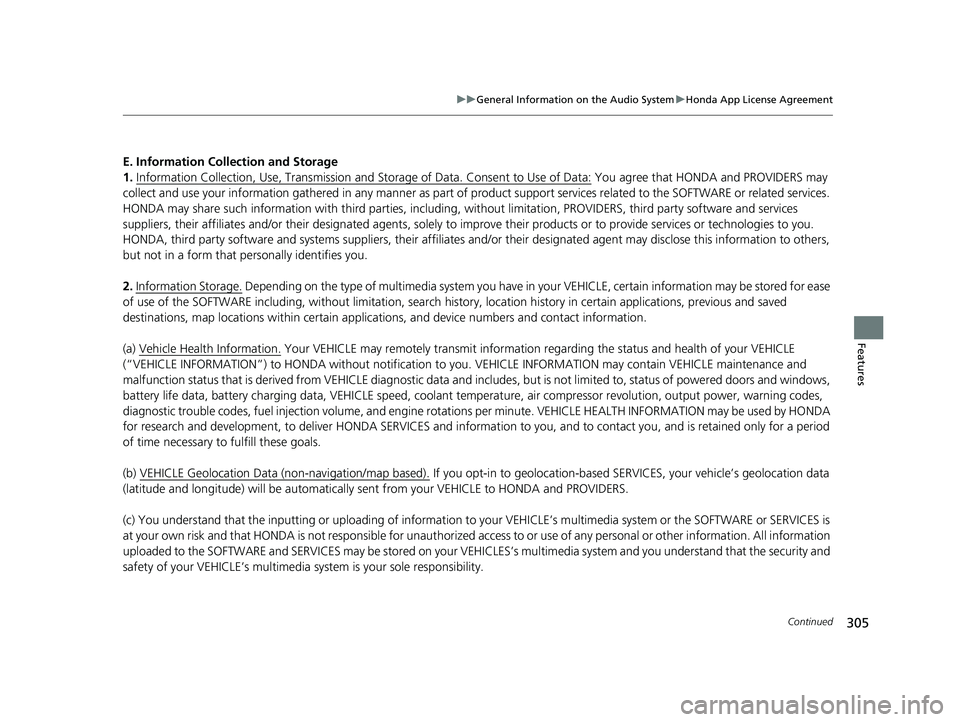

305
uuGeneral Information on the Audio System uHonda App License Agreement
Continued
Features
E. Information Collection and Storage
1. Information Collection , Use, Transmission and Storage of Data. Consent to Use of Data:
You agree that HONDA and PROVIDERS may
collect and use your information gathered in any manner as part of product support services related to the SOFTWARE or related services.
HONDA may share such information with third parties, including, without limitation, PR OVIDERS, third party software and services
suppliers, their affiliates and/or their designated agents, solely to improve their products or to provide services or technolo gies to you.
HONDA, third party software and syst ems suppliers, their affiliates and/or their de signated agent may disclose this information to others,
but not in a form that pe rsonally identifies you.
2. Information Storage.
Depending on the type of mult imedia system you have in your VEHICLE, certain information may be stored for ease
of use of the SOFTWARE including, without limitation, search hi story, location history in certain applications, previous and saved
destinations, map locations within certain applications, and device numbers and contact information.
(a) Vehicle Health Information.
Your VEHICLE may remotely transmit information re garding the status and health of your VEHICLE
(“VEHICLE INFORMATION”) to HONDA without notification to you. VEHICLE INFORMATION may contain VEHICLE maintenance and
malfunction status that is derived from VEHICLE diagnostic data and includes, but is not limited to, status of powered doors and windows,
battery life data, battery charging data, VE HICLE speed, coolant temperature, air comp ressor revolution, output power, warning codes,
diagnostic trouble codes, fuel injection volume, and engine rotati ons per minute. VEHICLE HEALTH INFORMATION may be used by HON DA
for research and development, to deliver HONDA SERVICES and informat ion to you, and to contact you, and is retained only for a period
of time necessary to fulfill these goals.
(b) VEHICLE Geolocation Data (non-navigation/map based).
If you opt-in to geolocation-based SERVICES, your vehicle’s geolocation data
(latitude and longitude) will be automatically sent from your VEHICLE to HONDA and PROVIDERS.
(c) You understand that the inputting or uploading of information to your VEHICLE’s multimedia system or the SOFTWARE or SERVIC ES is
at your own risk and that HONDA is not responsible for unauthori zed access to or use of any personal or other information. All information
uploaded to the SOFTWARE and SERVICES may be stored on your VEHICLES’s multimedia system and you understand that the security and
safety of your VEHICLE’s multimedia system is your sole responsibility.
23 ACCORD 4D US HEV MAP-3130B6000.book 305 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

510
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of an y abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)
■Routine inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
2 Maintenance P. 35
■Periodic inspections
• Check the brake fluid level monthly.
2 Brake Fluid P. 530
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 537
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 532
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 534
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the driver information interface.
2 Maintenance Service Items P. 517
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 612
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenanc e, update the records in
the separate maintenance booklet.
U.S. models
23 ACCORD 4D US HEV MAP-3130B6000.book 510 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

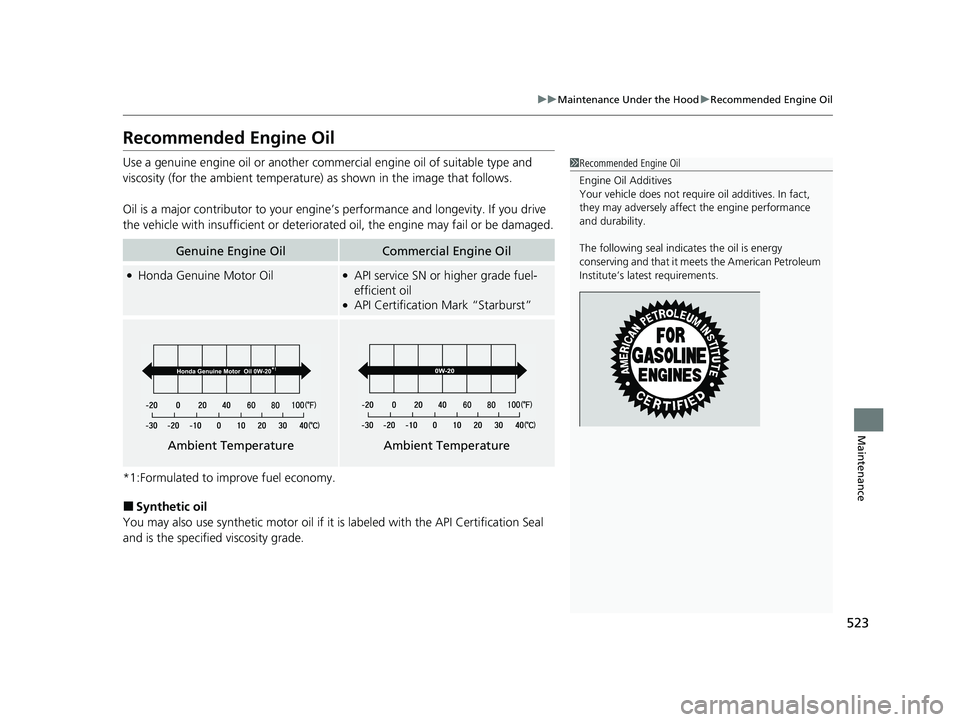

523
uuMaintenance Under the Hood uRecommended Engine Oil
Maintenance
Recommended Engine Oil
Use a genuine engine oil or another commercial engine oil of suitable type and
viscosity (for the ambient temperature) as shown in the image that follows.
Oil is a major contributor to your engine’s performance and longevity. If you drive
the vehicle with insufficient or deteriorated oil, the engine may fail or be damaged.
*1:Formulated to improve fuel economy.
■Synthetic oil
You may also use synthetic motor oil if it is labeled with the API Certification Seal
and is the specified viscosity grade.
Genuine Engine OilCommercial Engine Oil
●Honda Genuine Motor Oil●API service SN or higher grade fuel-
efficient oil
●API Certification Mark “Starburst”
1 Recommended Engine Oil
Engine Oil Additives
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.
The following seal indica tes the oil is energy
conserving and that it meets the American Petroleum
Institute’s late st requirements.
Ambient TemperatureAmbient Temperature
23 ACCORD 4D US HEV MAP-3130B6000.book 523 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

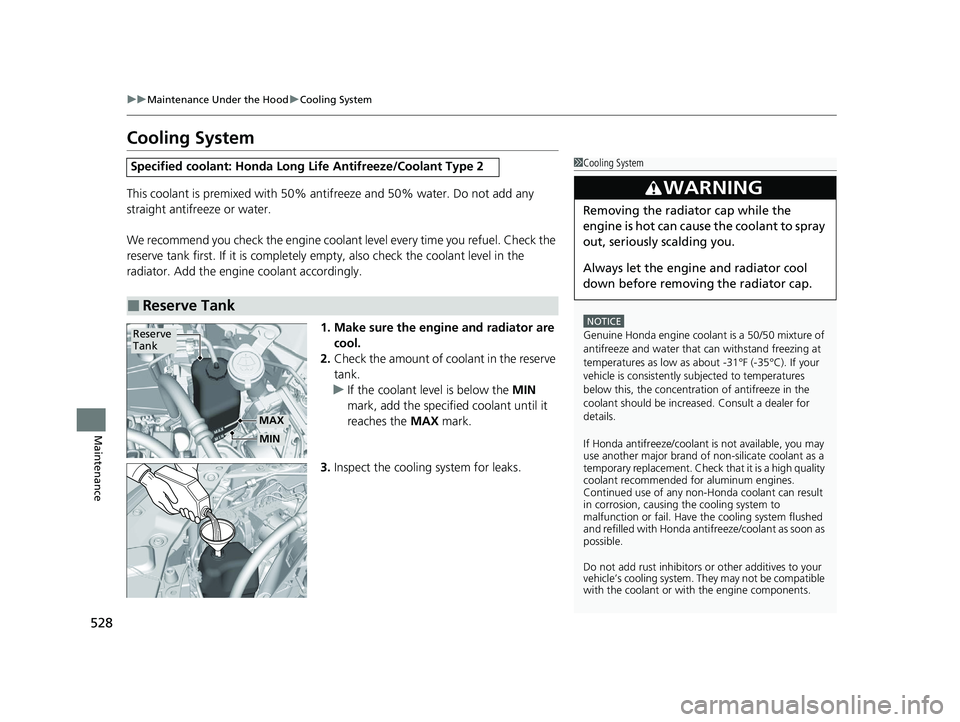

528
uuMaintenance Under the Hood uCooling System
Maintenance
Cooling System
This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the engine coolant level every time you refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.
1. Make sure the engine and radiator are cool.
2. Check the amount of coolant in the reserve
tank.
u If the coolant level is below the MIN
mark, add the specified coolant until it
reaches the MAX mark.
3. Inspect the cooling system for leaks.
Specified coolant: Honda Long Life Antifreeze/Coolant Type 2
■Reserve Tank
1Cooling System
NOTICE
Genuine Honda engine coolan t is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as a bout -31°F (-35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult a dealer for
details.
If Honda antifreeze /coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda anti freeze/coolant as soon as
possible.
Do not add rust inhibitors or other additives to your
vehicle’s cooling system. Th ey may not be compatible
with the coolant or with the engine components.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve
Tank
MAX
MIN
23 ACCORD 4D US HEV MAP-3130B6000.book 528 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

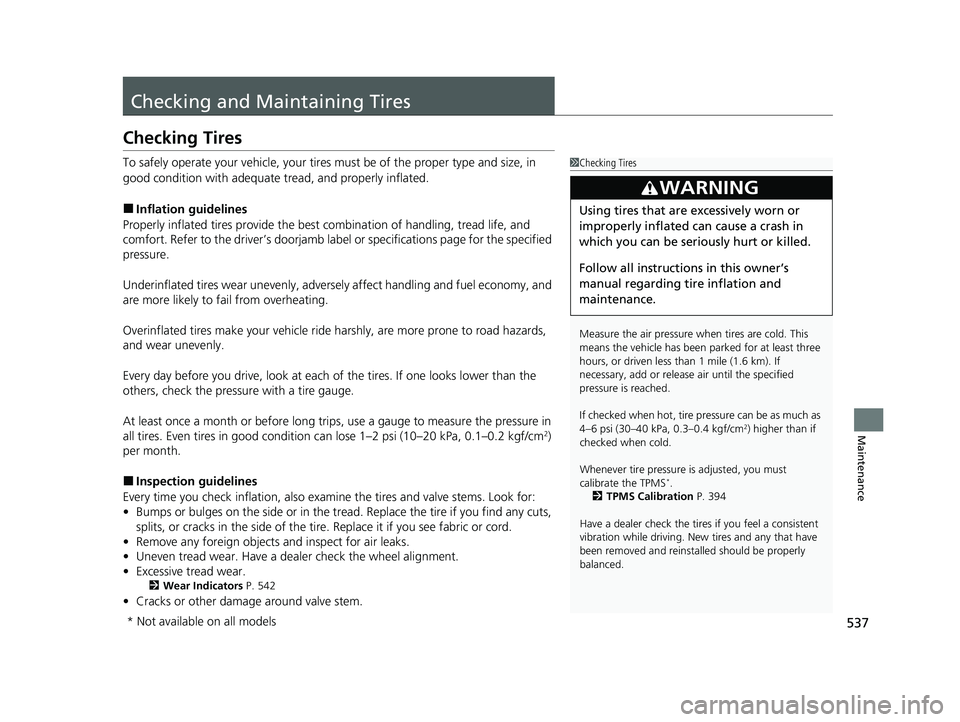

537
Maintenance
Checking and Maintaining Tires
Checking Tires
To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■Inflation guidelines
Properly inflated tires provide the best combination of handling, tread life, and
comfort. Refer to the driver’s doorjamb labe l or specifications page for the specified
pressure.
Underinflated tires wear unev enly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride ha rshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips , use a gauge to measure the pressure in
all tires. Even tires in good condition can lose 1–2 psi (10–20 kPa, 0.1–0.2 kgf/cm
2)
per month.
■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems. Look for:
• Bumps or bulges on the side or in the tr ead. Replace the tire if you find any cuts,
splits, or cracks in the side of the tire . Replace it if you see fabric or cord.
• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have a deal er check the wheel alignment.
• Excessive tread wear.
2 Wear Indicators P. 542
•Cracks or other damage around valve stem.
1Checking Tires
Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or releas e air until the specified
pressure is reached.
If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm
2) higher than if
checked when cold.
Whenever tire pressure is adjusted, you must
calibrate the TPMS
*.
2 TPMS Calibration P. 394
Have a dealer check the tires if you feel a consistent
vibration while driving. Ne w tires and any that have
been removed and reinst alled should be properly
balanced.
3WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding tire inflation and
maintenance.
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 537 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

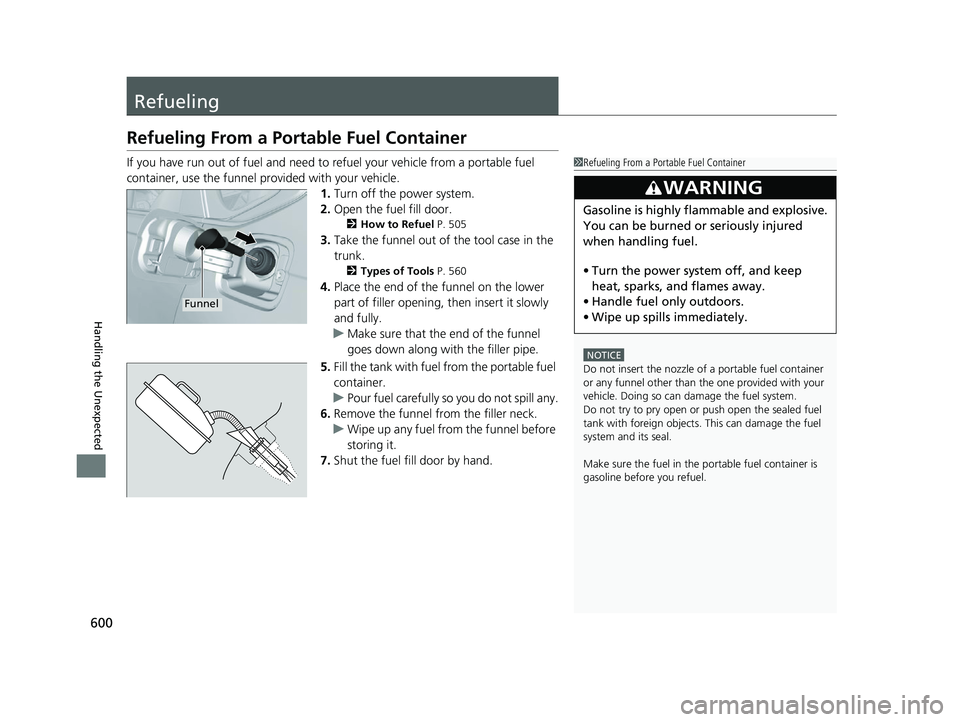

600
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel pr ovided with your vehicle.
1.Turn off the power system.
2. Open the fuel fill door.
2 How to Refuel P. 505
3.Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 560
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel systemM
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuelM
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Turn the power system off, and keep
heat, sparks, and flames away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
23 ACCORD 4D US HEV MAP-3130B6000.book 600 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

602
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelACCORD HYBRID
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 15.3 – 17.1 oz (435 – 485 g)
Lubricant TypeND-OIL 11 (POE)
Quantity 7.32 – 8.24 cu-in (120 – 135 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement121.57 cu-in (1,993 cm3)
Spark Plugs NGK DILZKAR7G11Y
TypeUnleaded gasoline, pump octane number
87 or higher
Fuel Tank Capacity 12.81 US gal (48.5 L)
Tank CapacityU.S.: 1.6 US qt (1.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Parking/Daytime Running LightsLED
Front Turn Signal Lights LED
Front Side Marker LightsLED
Side Turn Signal Lights*
(on Door Mirrors) LED
Brake LightsLED
Taillights LED
Rear Side Marker/TaillightsLED
Rear Turn Signal Lights LED
Back-Up LightsLED
High-Mount Brake Light LED
Rear License Plate LightLED
Interior Lights Map Lights LED
Ceiling Light LED
Ambient Lights LED
Vanity Mirror Lights LED
Center Console Light LED
Trunk Light LED
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 602 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

620
Index
Indicators..................................................... 90
12-Volt Battery Charging System ............. 586
Adaptive Cruise Control (ACC) with Low Speed Follow (Amber) ............ 104, 424
Adaptive Cruise Control (ACC) with
Low Speed Follow (White/Green) ... 104, 424
Adaptive Cruise Control (ACC) with Low Speed Follow Interval ............................. 105
Anti-lock Brake System (ABS) ..................... 98
Auto High-Beam ...................................... 101
AUTO Mode ............................................ 103
Automatic Brake Hold........................ 95, 488
Automatic Brake Hold System ............ 95, 488
CHARGE Mode ........................................ 103
Cruise Mode ............................................ 105
Deceleration Paddle Selector ...................... 97
ECON Mode ............................................ 102
Electric Power Steering (EPS) System .. 98, 590
Engine Oil Pressure Low Warning............. 585
EV ............................................................. 95
EV Mode ................................................. 103
High Beam............................................... 101
Immobilizer System .................................. 103
INDIVIDUAL Mode ................................... 102
Lane Keeping Assist System (LKAS)
(Amber) ................................................. 105
Lane Keeping Assist System (LKAS) (White/Green) ........................................ 105
Lights On ................................................. 101
Limited stopping power Warning ............. 586
Low Fuel .................................................... 98 Low Tire Pressure/TPMS ........... 393, 396, 591
Malfunction Indicator Lamp............... 96, 587
NORMAL Mode ....................................... 102
Parking Brake a
nd Brake System
(Amber) ........................................... 94, 589
Parking Brake and Brake System (Red)...................... 92, 93, 588, 589
POWER SYSTEM ........................................ 95
READY ...................................................... 95
Safety Support (Amber) ........................... 106
Safety Support (Green/Gray) .................... 109
Seat Belt Reminder .............................. 48, 97
Security System Alarm ............................. 103
Shift Position ............................................. 96
SPORT Mode ........................................... 102
Supplemental Restraint System ............ 70, 98
System Message ...................................... 102
Transmission System.................................. 97
Turn Signal and Hazard Warning ............. 101
Vehicle Stability Assist
TM (VSA ®) OFF .. 99, 391
Vehicle Stability AssistTM (VSA ®)
System ............................................ 99, 390
Information .............................................. 601
Instant Fuel Economy ............................... 122
Instrument Panel ........................................ 89
Interior Lights ........................................... 198
Interior Rearview Mirror .......................... 187
iPhone ....................................................... 298
iPod ................................................... 256, 298
K
Key
Type and Functions ................................. 144
Key Number Tag ...................................... 145
Keyless Access System .............................. 146
Keyless Lockout Prevention ..................... 154
Keys ........................................................... 144
Built-in Key ............................................. 144
Lockout Prevention ................................. 154
Number Tag............................................ 145
Rear Door Won’t Open ........................... 157
Remote Transmitter ................................ 152
Valet Key ................................................ 161
Knee Airbags .............................................. 63
L
Lane Keeping Assist System (LKAS) ........ 445
LATCH (Child Seats) ................................... 79
Lights ................................................ 174, 532
Auto High-Beam ..................................... 178
Automatic............................................... 175
Bulb Replacement ................................... 532
Daytime Running Lights .......................... 177
High Beam Indicator ............................... 101
Interior.................................................... 198
Light Switches......................................... 174
Lights On Indicator .................................. 101
Turn Signals ............................................ 173
Load Limits ............................................... 367
23 ACCORD 4D US HEV MAP-3130B6000.book 620 ページ ２０２２年１０月１３日　木曜日　午後４時５０分
