Page 594 of 627
592
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF, and check
to see if any applicable fuse is blown.
Located near the 12-volt battery. Push the
tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse
Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY175 A
2
−30 A
−40A
F/BOX OPTION60 A
A/C PTC1 (40 A)
F/BOX OPTION260 A
−60 A
F/BOX MAIN 60 A
3
AUDIO AMP(30 A)
−30 A
A/C PTC3(40 A)
−30 A
−50 A
HTR MTR40 A
RR DEFROSTER40 A
4 ABS/VSA FSR 40 A
ABS/VSA MTR 40 A
ENG WATER PUMP 40 A ESB 40 A
IG MAIN 30 A −40A
R/M2 30 A
5
SUB FUSE30 A
WIPER30 A
EPS70 A
R/M130 A
RFC60 A
−(30 A)
F/BOX MAIN260 A
6− −
7IG MAIN230 A
8− −
9BACK UP15 A
10 WASHER 15 A
11−−
12 RR H/SEAT*(20 A)
13−−
14 RFC RLY CL+ 10 A
15SHUTTER GRILLE(10 A)
16 − −
17−−
18 HORN 10 A
19AUDIO SUB*(15 A)
20 AUDIO 7.5 A
Circuit ProtectedAmps
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 592 ページ 2022年10月13日 木曜日 午後4時50分
Page 595 of 627
593
uuFuses uFuse Locations
Handling the Unexpected
21EVTC20 A
22 DBW 15 A
23HAZARD15 A
24 BACKUP FI-ECU 10 A
25IGP15 A
26 − −
27LCM L20 A
28 INJ 20 A
29STOP10 A
30 LCM R 20 A
31IG COIL15 A
32 ICM 10 A
33PCU EWP10 A
34 − −
35−−
38 − −
39IGA10 A
40 IGB 10 A
41−−
42 MON2 7.5 A
43−−
44 − −
45IGPS (LAF)10 A
46 − −
Circuit ProtectedAmps

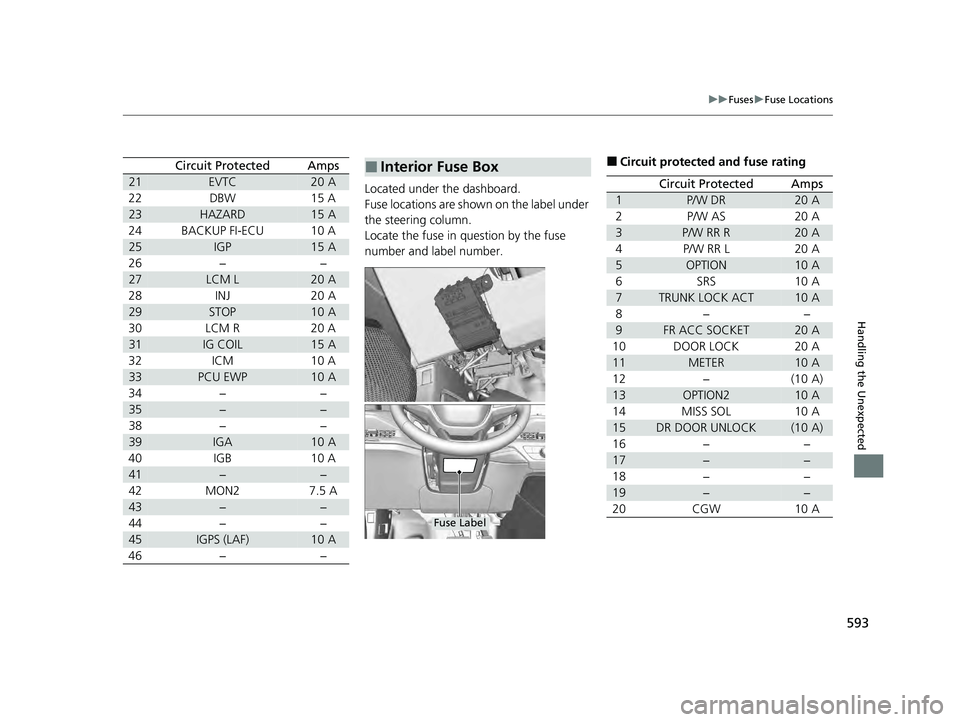

Located under the dashboard.
Fuse locations are shown on the label under
the steering column.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1P/W DR20 A
2P/W AS20 A
3P/W RR R20 A
4P/W RR L20 A
5OPTION10 A
6SRS10 A
7TRUNK LOCK ACT10 A
8−−
9FR ACC SOCKET20 A
10DOOR LOCK20 A
11METER10 A
12−(10 A)
13OPTION210 A
14MISS SOL10 A
15DR DOOR UNLOCK(10 A)
16−−
17−−
18−−
19−−
20CGW10 A
23 ACCORD 4D US HEV MAP-3130B6000.book 593 ページ 2022年10月13日 木曜日 午後4時50分
Page 597 of 627
595
uuFuses uInspecting and Changing Fuses
Continued
Handling the Unexpected

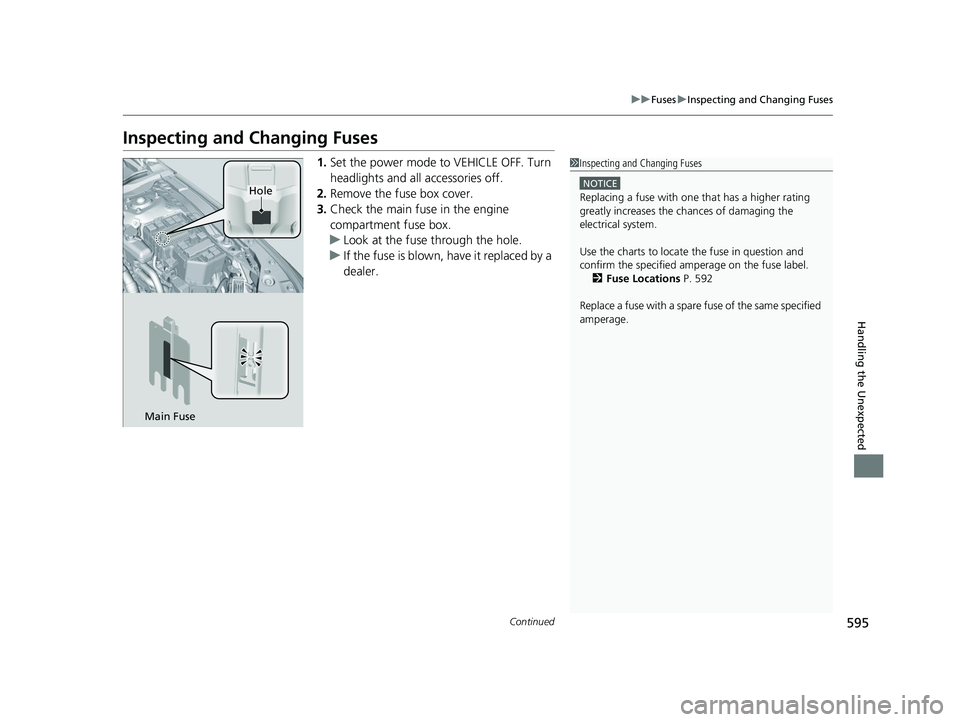

Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the main fuse in the engine
compartment fuse box.
u Look at the fuse through the hole.
u If the fuse is blown, have it replaced by a
dealer.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse labelM
2 Fuse Locations P. 592
Replace a fuse with a spare fuse of the same specified
amperage.
Main Fuse
Hole
23 ACCORD 4D US HEV MAP-3130B6000.book 595 ページ 2022年10月13日 木曜日 午後4時50分
Page 598 of 627
uuFuses uInspecting and Changing Fuses
596
Handling the Unexpected

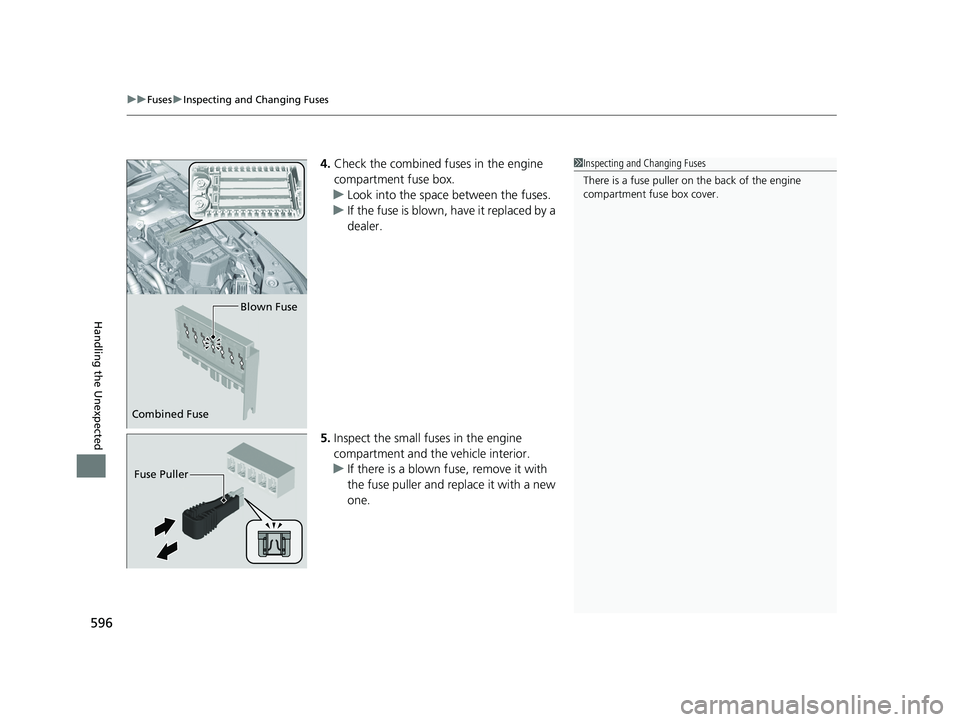

4. Check the combined fuses in the engine
compartment fuse box.
u Look into the space between the fuses.
u If the fuse is blown, have it replaced by a
dealer.
5. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined Fuse Blown Fuse
Fuse Puller
23 ACCORD 4D US HEV MAP-3130B6000.book 596 ページ 2022年10月13日 木曜日 午後4時50分
Page 621 of 627
619
Index

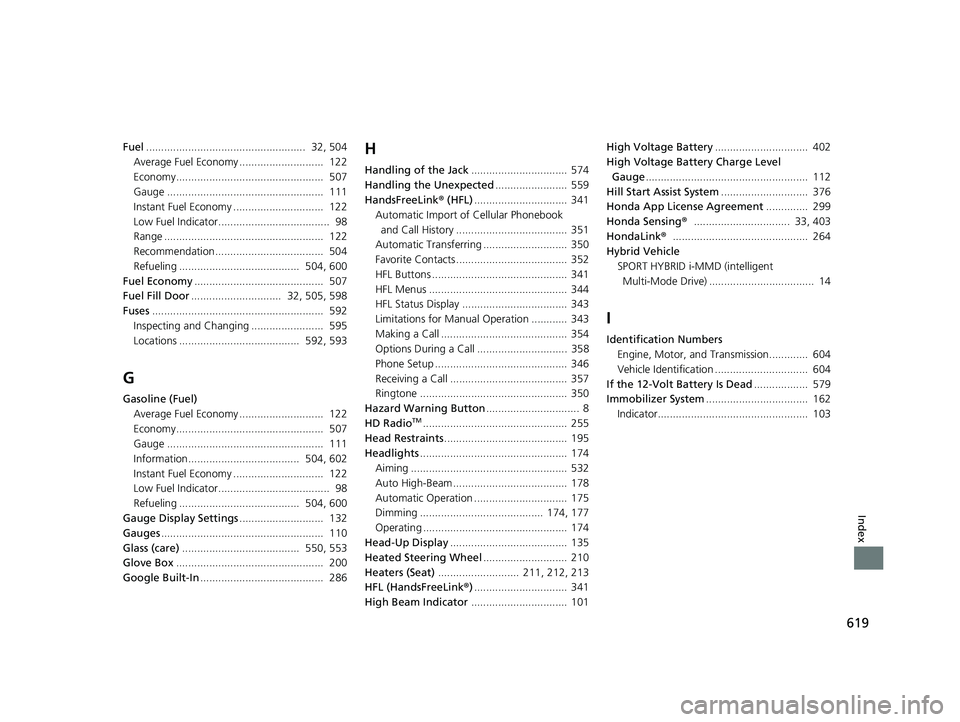

Fuel..................................................... 32, 504
Average Fuel Economy ............................ 122
Economy................................................. 507
Gauge .................................................... 111
Instant Fuel Economy .............................. 122
Low Fuel Indicator..................................... 98
Range ..................................................... 122
Recommendation.................................... 504
Refueling ........................................ 504, 600
Fuel Economy ........................................... 507
Fuel Fill Door .............................. 32, 505, 598
Fuses ......................................................... 592
Inspecting and Changing ........................ 595
Locations ........................................ 592, 593
