The SRS indicator alerts
you to a potential problem
with the f ront airbags or seat belt
tensioners. If equipped, it also alerts
you to a potential problem with the
side airbags, the automatic cutoff
system f or the passenger’s side
airbag, or the side curtain airbags.
When you turn the ignition ON (II),
this indicator will light brief ly then
go out. This tells you that the system
is working properly.
In a moderate to severe side impact,
sensors will detect rapid deceleration
and signal the control unit to
instantly inflate the side curtain
airbag on the driver’s or the
passenger’s side of the car. If the
impact is on the passenger’s side, the
passenger’s side curtain airbag will
inflate even if there are no occupants
on that side of the car.
To get the best protection f rom the
side curtain airbags, occupants
should wear their seat belts and sit
upright and well back in their seats.
Your car is equipped with side
curtain airbags. These airbags are
stored in the f ront, center, and rear
pillars on both sides. The f ront and
center pillars on both sides are
marked ‘‘SIDE CURTAIN AIRBAG.’’U.S. EX-V6 model, optional on Canadian EX-V6 model
Additional Inf ormation About Your Airbags
How the SRS Indicator Works
How Your Side Curtain A irbags
Work
Driver and Passenger Saf ety48
SIDE CURTAIN AIRBAG

CONT INUED
If you see any of these indications,
your airbags may not deploy, your
passenger’s side airbag automatic
cutof f system may not work properly,
or your seat belt tensioners may not
work when you need them. See your
Honda dealer as soon as possible.
If the light comes on at any other
time, or does not come on at all, you
should have the system checked by
your dealer. For example:
If the SRS indicator light does not
come on after you turn the ignition
switch to ON (II).
If the light stays on after the
engine starts.
If the light comes on or f lashes on
andoff whileyoudrive. This light alerts you that
the passenger’s side airbag
has been automatically shut off.
To reduce the risk of injury f rom an
inf lating side airbag, your car has an
automatic cutoff system for the
passenger’s side airbag.
It does not mean there is a problem
with your side airbags. It means that
thesideairbagcutoff systemhas
activated to prevent the side airbag
f rom deploying.
Only on models equipped with side
airbags
Driver and Passenger Saf ety
Additional Inf ormation About Your Airbags
How the Side Airbag Cutof f
Indicator L ight Works
49
Ignoring the SRS indicator light
can result in serious injury or
death if the airbags, cutoff
system, or tensioners do not
work properly.
Have your car checked by a
dealer as soon as possible if
the SRS light alerts you to a
potential problem.

A f ront seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutof f
system f rom working properly.
When you turn the ignition switch to
ON (II), the indicator should light
brief ly and go out (see page ). If it
doesn’t light, stays on, or comes on
while driving without a passenger in
the front seat, have the system
checked.
Although Honda does not encourage
children to ride in the f ront, this
system is designed to shut of f the
side airbag if a child leans sideways
and the child’s head is in the side
airbag deployment path.
If a small-statured adult leans
sideways, or larger adult slouches
and leans sideways into the
deployment path of the side airbag,
the system may also shut of f the side
airbag.
If the side airbag cutof f indicator
light comes on, you should have the
passenger sit upright. Once the
passenger is out of the deployment
path of the side airbag, the system
will turn the airbag back on and the
light will go out. 59
Driver and Passenger Saf ety
Additional Inf ormation About Your Airbags
50

Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury. See page f or f urther inf ormation
and precautions relating to your
airbags.
If rain or spilled water
soaks into a seat-back, it can
prevent the side airbag system
f rom working properly. Improperly
replacing or covering f ront seat-
back covers can prevent your side
airbags f rom inf lating during a
collision.
Your airbag systems are virtually
maintenance-f ree, and there are no
parts you can saf ely service.
However, you must have your car
serviced if :
Any
airbag that has deployed must be
replaced along with the control
unit, automatic seat belt
tensioners, and other related parts.
Do not try to remove or replace
anyairbagbyyourself.Thismust
be done by a Honda dealer or a
knowledgeable body shop.
Take your car to an
authorized Honda dealer as soon
as possible. If you ignore this
indication, the airbags might not
inf late when you need them. 213
Airbag Service
Additional Saf ety Precautions
Donotattempttodeactivateyour
airbags.
Do not t amper wit h airbagcomponent s or wiring f or anyreason.
Do not expose t he f ront seat -backsto water. Do not cover or replace f ront seat -
back covers wit hout consult ing aHonda dealer.
Your airbags ever inf late.
T he SRS indicat or light alert s yout o a problem.
Driver and Passenger Saf ety
Additional Inf ormation About Your Airbags
51

Your car’s exhaust contains carbon
monoxide gas. You should have no
problem with carbon monoxide
entering the car in normal driving if
you maintain your car properly.
Have the exhaust system inspected
f or leaks whenever:The car is raised f or an oil change.
You notice a change in the sound
of the exhaust.
Thecarwasinanaccidentthat
may have damaged the underside. If you must sit in your parked car,
even in an unconf ined area, with the
engine running, adjust the heating
and cooling system as f ollows: With the trunk lid open, air f low can
pull exhaust gas into your car’s
interior and create a hazardous
condition. If you must drive with the
trunk lid open, open all the windows
and set the heating and cooling
system as shown below.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
car out of the garage. Select the Fresh Air mode.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
1.
2.
3.
4.
Carbon Monoxide Hazard
Driver and Passenger Saf ety52
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels caref ully. If
a label comes of f or becomes hard to
read (except f or the U.S. dashboard
label which is removed by the
owner), contact your Honda dealer
f or a replacement.
U.S. models onlyU.S. models
Canadian models U.S. models
Canadian models
On cars with side curtain airbags
On cars with side airbags
U.S. models Canadian models
U.S. models
Canadian models
Saf ety L abels
Driver and Passenger Saf ety53
SUN VISOR
HOOD DASHBOARD DOORJAMBS
RADIATOR
CAP

54

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your Honda. All the essential
controls are within easy reach............................
Control Locations .56
...............................
Indicator Lights .57
.............................................
Gauges .63
...............................
Speedometer .63
.................................
Tachometer .63
Odometer/Outside ...........
Temperature Indicator . 63
.....................................
Odometer .63
...................................
Trip Meter .64
...................
Temperature Gauge . 64
..................................
Fuel Gauge .65
Maintenance Required ...................................
Indicator .65
Controls Near the Steering .......................................
Wheel .67
...................................
Headlights .68
Automatic Lighting Off .....................................
Feature .69 ............
Daytime Running Lights . 69
....
Instrument Panel Brightness . 69
................................
Turn Signals .70
.....................
Windshield Wipers .70
..................
Windshield Washers . 72
..........................
Hazard Warning .72
.............
Rear Window Def ogger . 72
......
Steering Wheel Adjustment . 73
...............................
Keys and Locks .74
..............................................
Keys .74
....................
Immobilizer System . 76
............................
Ignition Switch .77
..................................
Door Locks .78
...................
Remote Transmitter . 80
..............
Childproof Door Locks . 84
...........................................
Trunk .84
........
Emergency Trunk Opener . 85
....................................
Glove Box .86
............................
Seat Adjustments .87
.............
Front Seat Adjustments . 87
Driver’s Seat Manual Height ..............................
Adjustment .88
Driver’s Seat Power Height ..............................
Adjustment .88
Driver’s Seat Full Power ............................
Adjustments .89 ...........
Driver’s Lumbar Support . 90
Front Passenger’s Seat ............................
Adjustments .91
..........................
Head Restraints .91
.......................
Folding Rear Seat .92
.................
Rear Head Restraints . 93
......................
Rear Seat Armrest .93
....................................
Seat Heaters .95
..............................
Power Windows .96
Power Window Control ...............................
Operations .99
.......................................
Moonroof .100
...........................................
Mirrors .101
..
Adjusting the Power Mirrors . 101
...............................
Parking Brake .102
.................
Console Compartment . 103
..........................................
Armrest .103
.........................
Beverage Holders .104
.........................
Center CD Pocket .105
...................................
Coin Pocket .105
........................................
Sun Visor .106
................................
Vanity Mirror .106
........................
Sunglasses Holder .107
............
Accessory Power Sockets . 107
...............................
Interior Lights .108
Instruments and Controls
Inst rument s and Cont rols55

Inst rument s and Cont rols

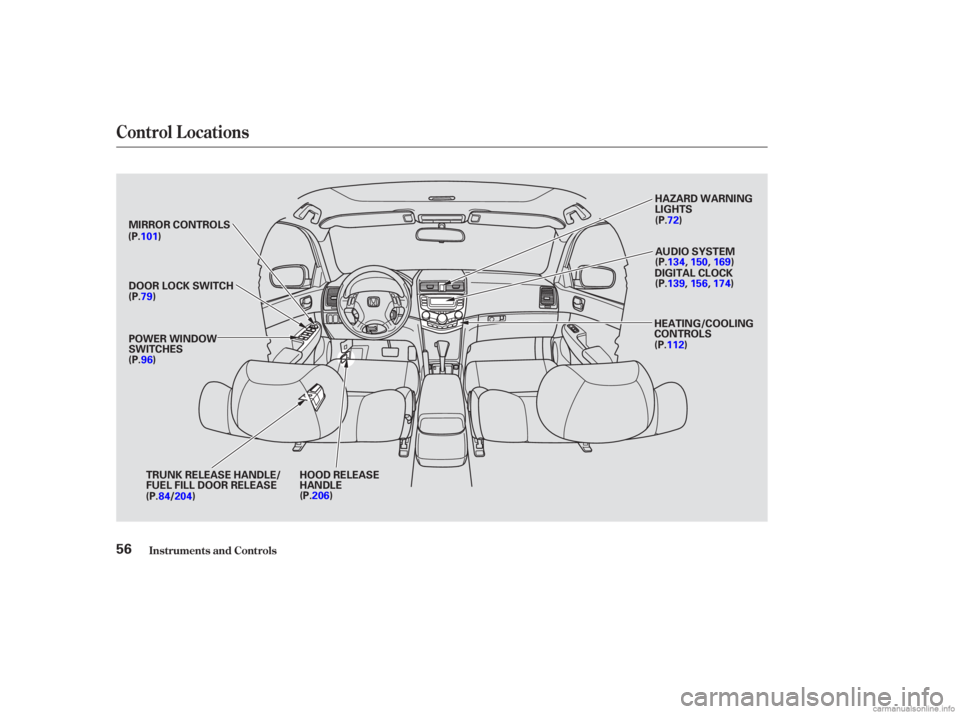

Control L ocations
56
MIRROR CONTROLS
DOOR LOCK SWITCH
POWER WINDOW
SWITCHESHOOD RELEASE
HANDLE
(P.79)
(P.96) AUDIO SYSTEM
DIGITAL CLOCK
(P.101)
(P.206) (P.139,
156,174)
HEATING/COOLING
CONTROLS
(P.112)
TRUNK RELEASE HANDLE/
FUEL FILL DOOR RELEASE (P.134,
150,169)
(P.84/ 204) (P.
72)
HAZARD WARNING
LIGHTS

The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Indicator L ights
Inst rument s and Cont rols57
CRUISE CONTROL INDICATOR
LOW FUEL INDICATOR LIGHT ON INDICATOR
SEAT BELT REMINDER LIGHT MAINTENANCE REQUIRED
INDICATOR
HIGH BEAM INDICATOR
MALFUNCTION
INDICATOR LAMP TRACTION CONTROL SYSTEM
INDICATOR
CRUISE MAIN INDICATOR ANTI-LOCK BRAKE SYSTEM
INDICATOR
PARKING BRAKE AND BRAKE
SYSTEM INDICATOR TCS ACTIVATION INDICATOR
LOW OIL PRESSURE
INDICATOR (P.58)
CHARGING SYSTEM
INDICATOR (P.62)
(P.62)
DOOR MONITOR
SECURITY SYSTEM INDICATOR SUPPLEMENTAL
RESTRAINT SYSTEM
INDICATOR
(P.58)
(P.59)
(P.
59)
(P. 62)
(P.61)
(P. 61) (P.
59)
(P.
65)
(P.60)
(P. 58)
(P.61)
(P.58)
(P.58) (P.60)
IMMOBILIZER SYSTEM INDICATOR (P.62)
(P.59)
SIDE AIRBAG CUTOFF
INDICATOR
