The instrument panel has many
indicators to give you important
inf ormation about your car.
This indicator lights when you turn
the ignition switch ON (II). It is a
reminder to you and your passengers
to protect yourselves by f astening
the seat belts. A beeper also sounds
if you have not fastened your seat
belt.
If you do not f asten your seat belt,
the beeper will stop af ter a f ew
seconds but the light stays on until
you do. Both the light and the beeper
stay of f if you f asten your seat belt
bef ore turning on the ignition.The engine can be severely damaged
if this light f lashes or stays on when
the engine is running. For complete
inf ormation, see page .
If this light comes on when the
engine is running, the battery is not
being charged. For complete
inf ormation, see page .
See page .
This light has two f unctions:
This indicator comes on when you
turn the ignition switch ON (II). It
is a reminder to check the parking
brake. Driving with the parking
brake not f ully released can
damage the brakes and tires.
If the indicator remains lit after
you have f ully released the
parking brake while the engine is
running, or if it comes on while
driving, it can indicate a problem
in the brake system. For complete
inf ormation, see page .
1.
2.
347
348
349
351
Indicator L ights
Inst rument s and Cont rols
Seat Belt Reminder L ightL ow Oil Pressure
Indicator
Charging System
Indicator
Malf unction Indicator
LampParking Brake and Brake
System Indicator
58
U.S. Canada
Page 62 of 395
This light normally comes on f or a
f ew seconds when you turn the
ignition switch ON (II), and when
the ignition switch is turned to
START (III). If this light comes on at
any other time, there is a problem in
theABS.If thishappens,takethe
cartoyourdealertohaveitchecked.
With the light on, your car still has
normal braking ability but no anti-
lock. For complete inf ormation, see
page .
This indicator lights brief ly when
you turn the ignition switch to ON
(II). If it comes on at any other time,
it indicates a potential problem with
your f ront airbags. This light will
also alert you to a potential problem
with your side airbags, passenger’s
side airbag automatic cutoff system,
automatic seat belt tensioners, or
side curtain airbags. For complete
inf ormation, see page .
This indicator comes on as a
reminder that you have turned of f
the Traction Control System. It
normally comes on f or a f ew seconds
when you turn the ignition switch to
ON (II). If the TCS activation
indicator and the TCS indicator
comeonandstayonatanyother
time, or if they do not come on when
you turn the ignition switch to ON
(II), there is a problem with the TCS.
Take the car to your dealer to have it
checked.
This indicator lights when you turn
the ignition switch ON (II). If it
comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For complete inf ormation, see page .
49 231
48
On all V6 models
Only on models equipped with side airbags
Indicator L ights
Inst rument s and Cont rols
Supplemental Restraint
System Indicator Anti-lock Brake System (ABS)
Indicator T CS A ctivation Indicator
Side A irbag Cutof f
Indicator
59
Page 63 of 395
The appropriate light comes on in
this display if the trunk or any door
is not closed tightly.
All the lights in the monitor display
come on f or a f ew seconds when you
turn the ignition switch to ON (II).The lef t or right turn signal light
blinks when you signal a lane change
or turn. If the light does not blink or
blinks rapidly, it usually means one
of the turn signal bulbs is burned out
(see page ). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signaling.
WhenyouturnontheHazard
Warning switch, both turn signal
lights blink. All turn signals on the
outside of the car should f lash.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II). If it comes
on and stays on when the Traction
Control System (TCS) is on, there is
a problem with the TCS. For more
inf ormation on the TCS, see page
.
232 315
On all V6 models
Indicator L ights
Inst rument s and Cont rols
Traction Control System
(T CS) Indicator
Door Monitor
T urn Signal and
Hazard Warning
Indicators
60
Page 64 of 395
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either theor position. If you turn the
ignition switch to ACCESSORY (I)
or LOCK (0) without turning of f the
light switch, this indicator will
remain on. A reminder chime will
also sound when you open the driver’s
door.
This indicator is located in the f uel
gauge. It comes on as a reminder
that you must ref uel soon.This indicator lights when the
security system is set. See page
f or complete inf ormation on the
security system. 194
Indicator L ights
Inst rument s and Cont rols

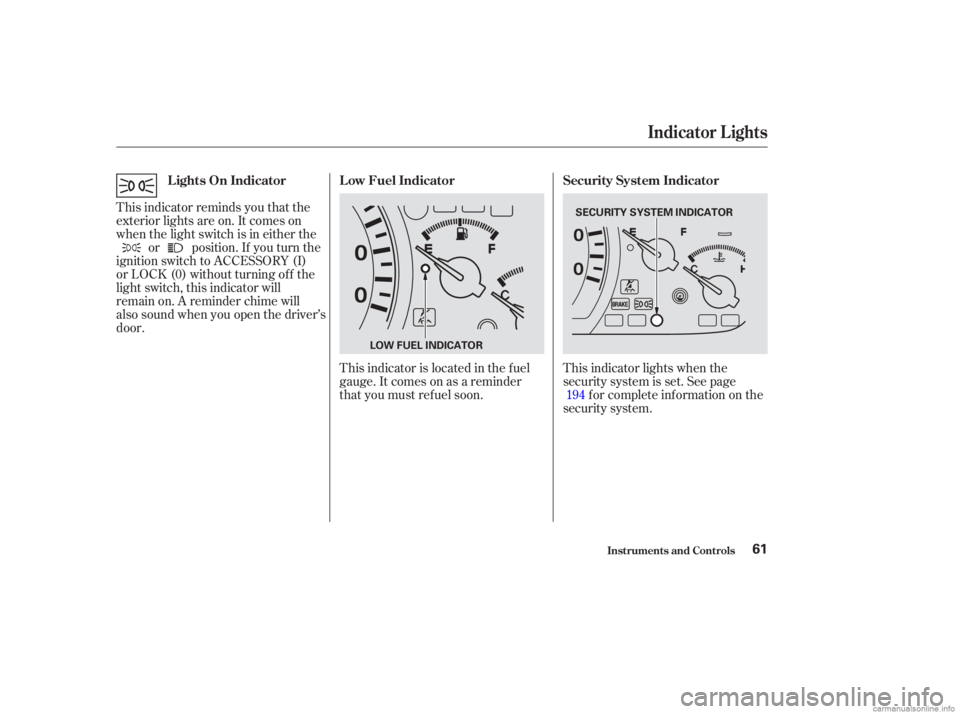

Lights On Indicator Low Fuel Indicator
Security System Indicator
61
SECURITY SYSTEM INDICATOR
LOW FUEL INDICATOR
Page 65 of 395
This indicator comes on f or a f ew
seconds when you turn the ignition
switch ON (II). It will then go of f if
you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink
and the engine will not start (see
page ).
This indicator also blinks several
times when you turn the ignition
switch f rom ON (II) to ACCESSORY
(I) or LOCK (0).
This light comes on when the
washer f luid level is low. Add washer
f luid when you see this light come on
(see page ).
This indicator lights when you turn
the ignition switch to ON (II) with
the headlight switch of f and the
parking brake set. It should go of f if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights.
This light comes on with the high
beam headlights. See page for
inf ormation on the headlight
controls.
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ).
This lights when you set the cruise
control. See page f or inf ormation
on operating the cruise control. This indicator comes on when you
turn on the Cruise Control Master
Button. (see page .)
76
68
69 195
195
279
Canadian models only
Only on models equipped with Cruise
Control System
Canadian models only
Only on models equipped with Cruise
Control System
Immobilizer System
Indicator
Washer Level Indicator
‘‘Daytime Running
Lights’’ Indicator
High Beam Indicator
Cruise Main Indicator
Cruise Control Indicator
Indicator L ights
Inst rument s and Cont rols62
Page 66 of 395
The tachometer shows the engine
speed in revolutions per minute
(rpm). To protect the engine f rom
damage, never drive with the
tachometer needle in the red zone.
This shows your speed in miles per
hour (mph). The smaller inner
numbers are the speed in kilometers
per hour (km/h).
This shows your speed in kilometers
per hour (km/h). The smaller inner
numbers are the speed in miles per
hour (mph). The odometer and the outside
temperature indicator use the same
display. To switch the display
between the odometer and the
outside temperature, press the
Select/Reset knob. When you turn
the ignition switch to ON (II), what
you last selected is displayed.
The odometer shows the total dis-
tance your car has been driven. It
measures miles in U.S. models and
kilometers in Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.U.S. Models
Canadian Models
Speedometer T achometer Odometer/Outside T emperature
Indicator
Odometer
Gauges
Inst rument s and Cont rols63

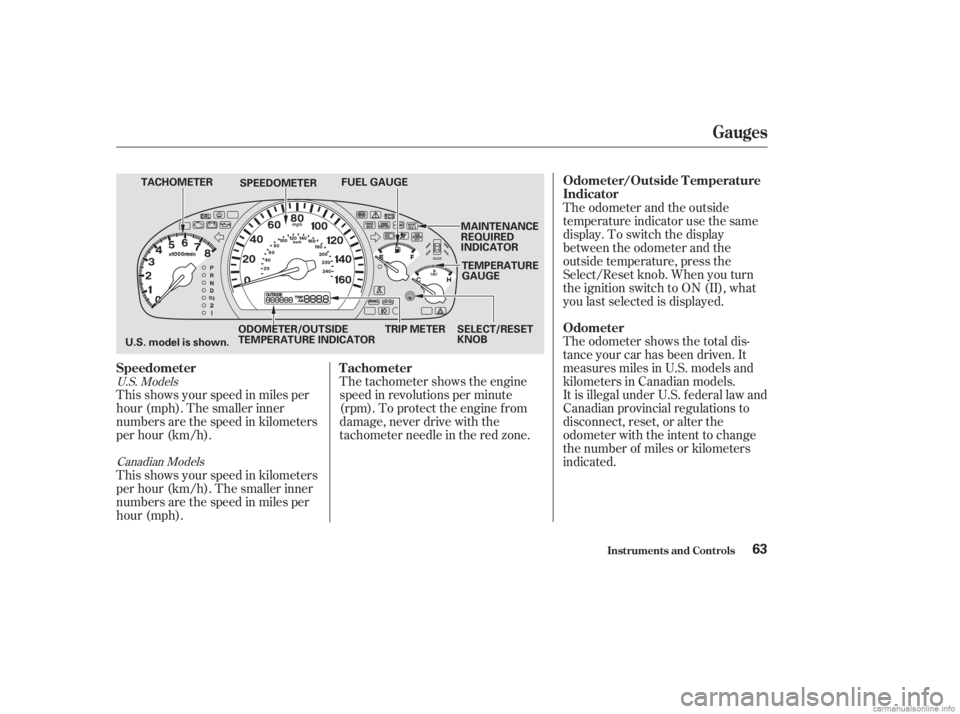

TACHOMETER
SPEEDOMETER FUEL GAUGE
TEMPERATURE
GAUGE
MAINTENANCE
REQUIRED
INDICATOR
TRIP METER
U.S. model is shown. SELECT/RESET
KNOB
ODOMETER/OUTSIDE
TEMPERATURE INDICATOR
Page 67 of 395
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise into the
upperhalfofthegauge.Ifitreaches
the red (Hot) mark, pull safely to the
side of the road. Turn to page f or
instructions and precautions on
checking the engine’s cooling
system.
This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace. The temperature sensor is located in
the f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road sur-
f ace, engine heat, and the exhaust
f rom surrounding traf f ic. This can
cause an incorrect temperature read-
ing when your speed is under
19 mph (30 km/h). This indicator displays the outside
temperature in Fahrenheit in U.S.
models, and in Centigrade in
Canadian models. To see the outside
temperature, press and release the
Select/Reset knob until the

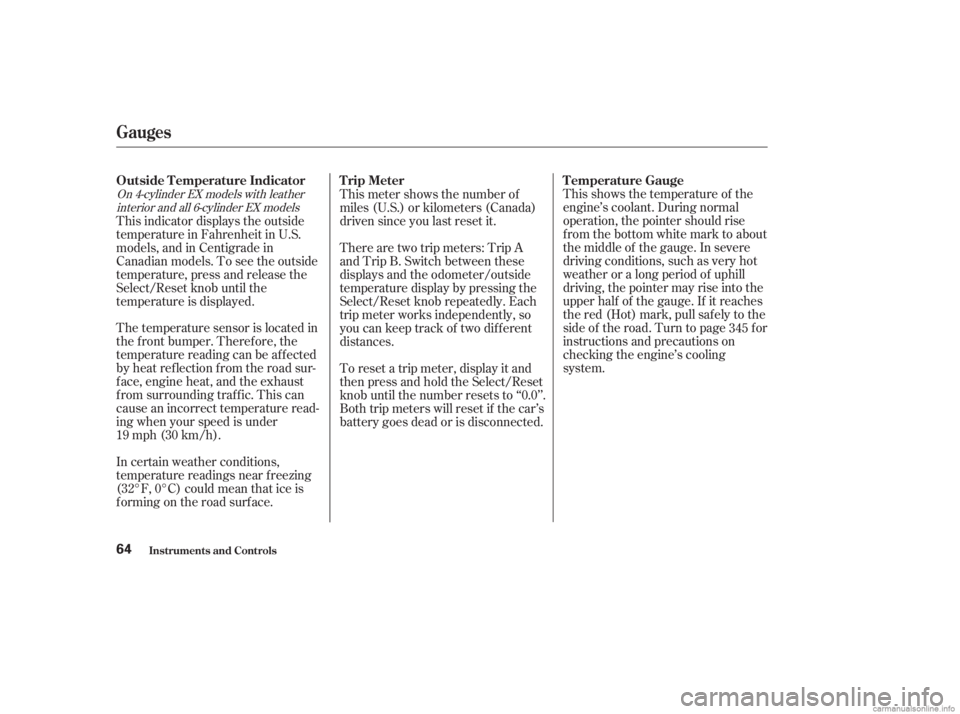

temperature is displayed. There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer/outside
temperature display by pressing the
Select/Reset knob repeatedly. Each
trip meter works independently, so
you can keep track of two dif f erent
distances.
To reset a trip meter, display it and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0’’.
Both trip meters will reset if the car’s
battery goes dead or is disconnected. 345On 4-cylinder EX models with leather
interior and all 6-cylinder EX models
Gauges
Inst rument s and Cont rols
Temperature Gauge
Trip Meter
Outside Temperature Indicator
64
Page 68 of 395
This shows how much f uel you have.
It is most accurate when the car is on
level ground. It may show slightly
more or less than the actual amount
whenyouaredrivingoncurvyor
hilly roads.
The needle returns to the bottom
after you turn off the ignition. The
gauge shows the f uel level reading
immediately af ter you turn the

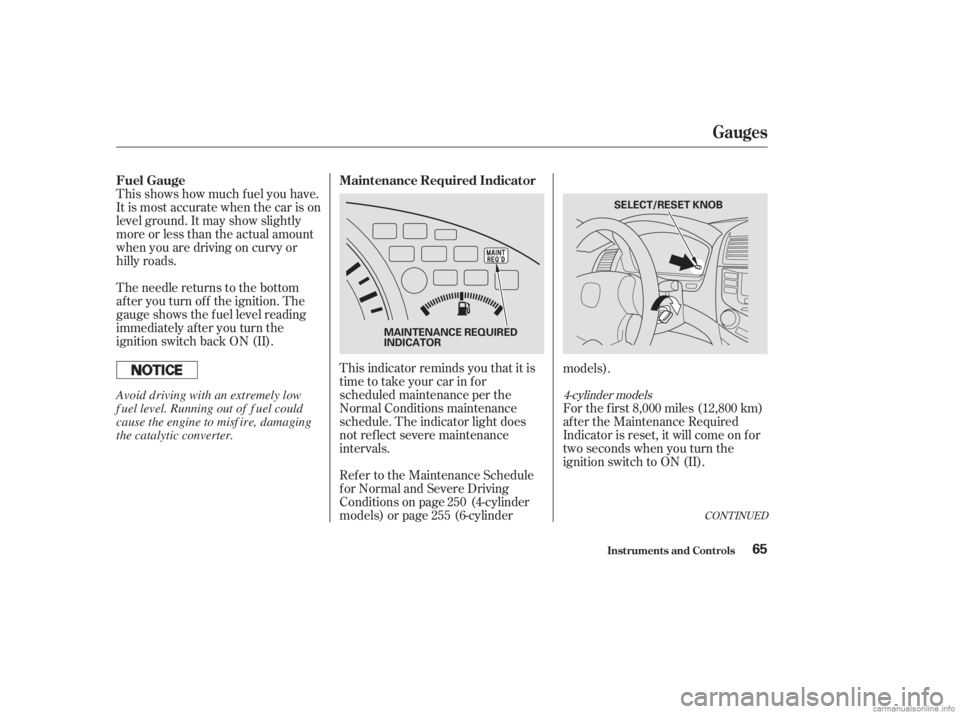

ignition switch back ON (II).This indicator reminds you that it is
time to take your car in for
scheduled maintenance per the
Normal Conditions maintenance
schedule. The indicator light does
not ref lect severe maintenance
intervals.For the f irst 8,000 miles (12,800 km)
after the Maintenance Required
Indicator is reset, it will come on f or
two seconds when you turn the
ignition switch to ON (II).
Ref er to the Maintenance Schedule
f or Normal and Severe Driving
Conditions on page (4-cylinder
models) or page (6-cylinder models).
250
255
CONT INUED
4-cylinder models
Gauges
Inst rument s and Cont rols
Maintenance Required Indicator
Fuel Gauge
65
MAINTENANCE REQUIRED
INDICATOR SELECT/RESET KNOB
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
Page 69 of 395
Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
done by someone other than your
Honda dealer, reset the indicator as
f ollows.Turn of f the engine.
Press and hold the Select/Reset
knob in the instrument panel, then
turn the ignition switch ON (II).
Hold the knob f or approximately
ten seconds until the indicator
resets.
For the f irst 6,000 miles (9,600 km)
af ter the Maintenance Required
Indicator is reset, it will come on f or
two seconds when you turn the
ignition switch to ON (II).
Between 6,000 miles (9,600 km) and
7,500 miles (12,000 km) this
indicator will light f or two seconds
when you first turn the ignition
switch to ON (II), and then flash for
ten seconds.
If you exceed 7,500 miles (12,000
km) without having the scheduled
maintenance perf ormed, this
indicator will remain on as a constant
reminder.
Between 8,000 miles (12,800 km)
and 10,000 miles (16,000 km) this
indicator will light f or two seconds
when you first turn the ignition
switch to ON (II), and then flash for
ten seconds.
If you exceed 10,000 miles (16,000
km) without having the scheduled
maintenance perf ormed, this
indicator will remain on as a constant
reminder.
1.
2.
3.6-cylinder models
Gauges
Inst rument s and Cont rols66
Page 70 of 395
Î
Î
Thetwoleversonthesteering
column contain controls f or driving
f eatures you use most of ten. The lef t
lever controls the turn signals,
headlights, and high beams. The
right lever controls the windshield
washers and wipers.To use the horn, press the pad
around the ‘‘H’’ logo.
The controls under the lef t air vent
are f or the moonroof and the
Traction Control System.
The steering wheel adjustment lever
on the underside of the steering
column allows you to tilt and
telescope the steering wheel.
Inst rument s and Cont rols
Controls Near the Steering Wheel
67
INSTRUMENT PANEL
BRIGHTNESS
WINDSHIELD
WIPERS/WASHERS
HAZARD
WARNING
LIGHTS
REAR WINDOW
DEFOGGER
CRUISE
CONTROLS
TRACTION
CONTROL
SYSTEM
MOONROOF
SWITCH HEADLIGHTS/
TURN SIGNALS
(P.
69)
(P.72)
(P. 73)
(P.
68/ 70)
(P. 100)
(P. 232) (P.
70, 71/72)
(P. 195)
TILT/TELESCOPIC
ADJUSTMENT (P.
72, 112,
125, 131)
HORN
