When using CD-R discs, use only
high quality CDs labeled f or audio
use.
When recording a CD-R, the
recording must be closed f or it to
be used by the system.
CD-RW discs will not work in this
unit.
Play only standard round CDs.
Odd-shaped CDs may jam in the
driveorcauseotherproblems.When a CD is not being played, store
it in its case to protect it f rom dust
and other contamination. To prevent
warpage, keep CDs out of direct
sunlight and extreme heat.
To clean a CD, use a clean sof t cloth.
Wipe across the CD f rom the center
to the outside edge.
AnewCDmayberoughonthe
inner and outer edges. The small
plastic pieces causing this roughness
can f lake of f and f all on the re-
cording surf ace of the CD, causing
skipping or other problems. Remove
these pieces by rubbing the inner
and outer edges with the side of a
pencil or pen.
Never try to insert f oreign objects in
the CD player or the magazine.
Handle a CD by its edges; never
touch either surf ace. Do not place
stabilizer rings or labels on the CD.
These, along with contamination
f rom f ingerprints, liquids, and f elt-tip
pens, can cause the CD to not play
properly or possibly jam in the drive.
Handle your CDs properly to
prevent damage and skipping. See
this page.
General Inf ormation
Protecting CDs
Protecting Your CDs
130

Playing a T ape (U.S. Vehicles)
Features
131

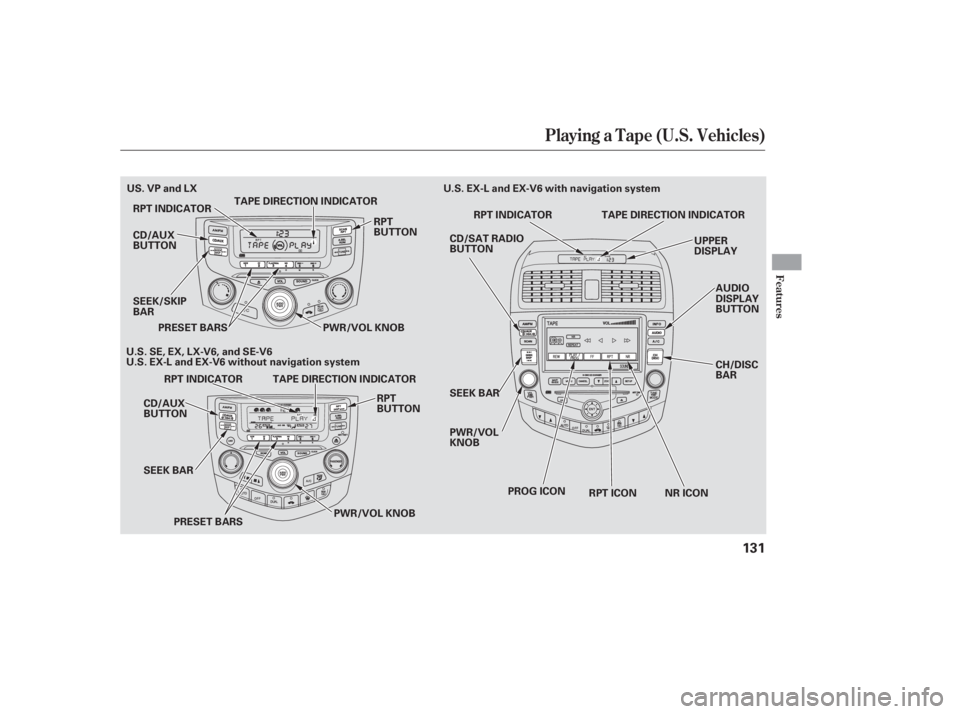

PWR/VOL KNOBAUDIO
DISPLAY
BUTTON
CD/AUX
BUTTON
RPT
BUTTON
RPT INDICATOR
PRESET BARS
PROG ICONNR ICON
RPT ICON TAPE DIRECTION INDICATOR
SEEK/SKIP
BAR U.S. EX-L and EX-V6 with navigation system
PWR/VOL KNOB
CD/AUX
BUTTON
SEEK BAR TAPE DIRECTION INDICATOR
UPPER
DISPLAY
CH/DISC
BAR
RPT INDICATOR
CD/SAT RADIO
BUTTON
PWR/VOL
KNOB
RPT INDICATOR
RPT
BUTTON
PRESET BARS
US. VP and LX
TAPE DIRECTION INDICATOR
U.S.SE,EX,LX-V6,andSE-V6
U.S. EX-L and EX-V6 without navigation system
SEEK BAR

The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Make sure the open side of the tape
is facing right, then insert the tape
most of the way into the slot. The
system will pull the tape in the rest
of the way, and begin to play it.
The tape direction indicator will light
to show you which side of the tape is
playing. The indicates the side
youinsertedupwardinnowplaying.
If you want to play the other side,
press the Preset 3 (PLAY/PROG)
side of the preset bar or press the
AUDIO DISPLAY button and touch
the PROG icon. When the player
reaches the end of the tape, it will
automatically reverse direction and
play the other side.Dolby noise reduction turns on
when you insert a tape. The
indicator will light in the
display. If the tape was not recorded
in Dolby, turn it of f by pressing the
Preset 4 (NR) side of the preset bar
or touching the NR icon. Dolby
remains of f until you press the
preset bar or the icon again.
Dolby noise reduction
manuf actured under license f rom
Dolby laboratories licensing
Corporation. ‘‘Dolby’’ and the
double-D symbol are trademarks
of the Dolby Laboratories
Licensing Corporation. To remove the tape, press the
EJECT button on the cassette player.
If you want to turn the player of f ,
press the PWR/VOL knob or turn
of f the ignition. The tape will remain
in the drive.
When you turn the system back on,
the tape player will be in pause mode.
Press the Preset 3 (PLAY/PROG)
side of the preset bar or touch the
PROG icon on vehicles with
navigation system to resume play.
To switch to the radio or CD player
while a tape is playing, press the
AM/FM, or CD/AUX button or CD/
AUX XM button. To change back to
thetapeplayer,pushtheCD/AUX
button or CD/AUX XM button.
Optional on all U.S. models
To Play a Tape
To Stop Playing a Tape
Playing a T ape (U.S. Vehicles)
132
Û

To rewind the tape,
push the Preset 1 (REW) side of the
presetbarortheupperside( )of
theCHDISCbar.YouwillseeREW
in the display. To f ast f orward the
tape, push the Preset 2 (FF) side of
the preset bar. You will see FF dis-
played.PressthePreset1,2,or3
sideof thebarsorthelowerside
( ) of the CH DISC bar to take the
system out of rewind or f ast f orward. Press the side to f ind
the beginning of the current song or
passage. Press the side to f ind
the beginning of the next song or
passage. When the system reaches
the beginning of a song or passage, it
begins to play it.
To rewind the tape
push the upper side ( ) of the CH
DISC bar. To f ast f orward the tape,
push the lower side ( ) of the CH
DISC bar. Press either side of the
PROG icon in the audio display to
take the system out of rewind or fast
forward. Press the RPT button
or icon to continuously play a song or
passage. You will see RPT displayed.
The track will repeat until you press
the RPT button or icon again.
The skip and repeat
f unctions use silent periods on the
tape to find the end of a song or
passage. These f eatures may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection. If you see the error message
‘‘ ’’ on the display, press the
tape eject button to remove the tape
from the unit. Make sure the tape is
not damaged. If the tape will not
eject or the error message stays on
after the tape ejects, take your
vehicle to your dealer.
EX-L and EX-V6 with Navigation System
T ape Search Functions
FF/REW
SK IP
FF/REW REPEAT
Playing a T ape (U.S. Vehicles)
Features
133
NOTE:
Û
Û
Ý
Ý µ
µ
µ
µ

If the tape is loose, tighten it by
turning the hub with a pencil or your
f inger. If the label is peeling of f ,
remove it or it could cause the tape
to jam in the player. Never try to
insert a warped or damaged tape in
the player.
Store tapes in their cases to protect
them f rom dust and moisture. Never
place tapes where they will be
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature bef ore
inserting it into the player.
Thetapeplayerpicksupdirtand
oxides f rom the tape. This
contamination builds up over time
and causes the sound quality to
degrade. To prevent this, you should
clean the player af ter every 30 hours
of use.
If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your dealer has a
cleaning kit available.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam in the drive.
Never try to insert f oreign objects
into the tape player.
Caring f or the T ape and Player
Playing a T ape (U.S. Vehicles)
134

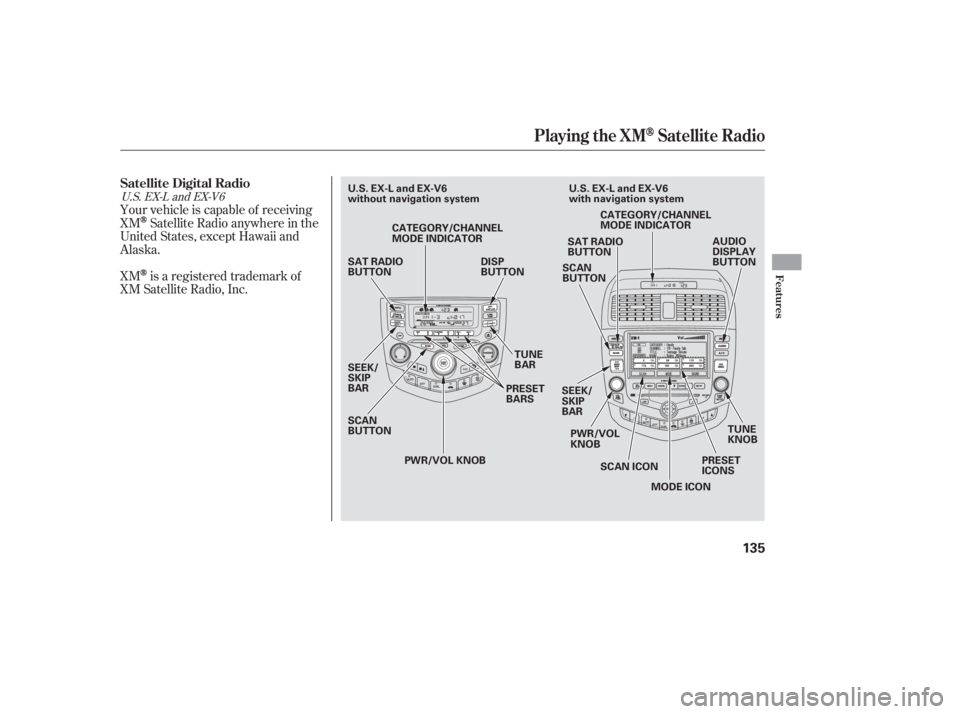

XMis a registered trademark of
XM Satellite Radio, Inc. Your vehicle is capable of receiving
XM
Satellite Radio anywhere in the
United States, except Hawaii and
Alaska.
U.S. EX-L and EX-V6
Satellite Digital Radio
Playing the XMSatellite Radio
Features
135
DISP
BUTTON
SAT RADIO
BUTTON
SCAN
BUTTON SCAN
BUTTON
TUNE
KNOB
TUNE
BAR
CATEGORY/CHANNEL
MODE INDICATOR
CATEGORY/CHANNEL
MODE INDICATOR
MODE ICON
SCAN ICON
PWR/VOL
KNOB
SAT RADIO
BUTTON
PWR/VOL KNOB AUDIO
DISPLAY
BUTTON
PRESET
BARS PRESET
ICONS
U.S. EX-L and EX-V6
without navigation system
U.S. EX-L and EX-V6
with navigation system
SEEK/
SKIP
BAR SEEK/
SKIP
BAR

The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position.
Turn the system on:Press the TUNE bar to change
channel selections. Press f or
higher numbered channels andf or lower numbered channels.
Turn the TUNE knob to change
channels. Turn the knob right f or
higher numbered channels and lef t
f or lower numbered channels.
Press and release this button to
change the display. The display will
change in the f ollowing sequence:
channel name, channel number,
category, artist name, and music title.
When in the satellite radio mode,
you can use any of three methods to
f ind channels: TUNE, SEEK/SKIP
(CATEGORY), and SCAN. Turn the PWR/VOL knob to adjust
the volume. Push any of the f ollowing: PWR/
VOL knob or the CD/AUX XM
button. Push any of the f ollowing: PWR/
VOL knob, the CD/AUX XM, or
AUDIO button.
Without navigation system
Without navigation system
With navigation system With navigation system With navigation system
TUNE
DISP
T o Select a Channel To Play XMSatellite Radio
Playing the XMSatellite Radio
136
µ µ

CONT INUED
The
seek/skip f unction selects the
various categories in XM, such as
Jazz/Blues, Rock, Classical, etc.
Push the to change the
category f orward. Push the to
change the category backward. To
search f or channels within a
category, turn the TUNE knob
clockwiseorpresstheTUNEbar . The scan f unction samples
all channels f or 5 seconds. To
activate the f unction, push the SCAN
button. Push it again to get out of the
sequence.
Each preset icon or button
canstoreonechannelinXM1and
one in XM2.
Use the TUNE, SEEK or SCAN
function to tune the radio to a
desired channel.
Pick a preset icon or button and
hold it until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on XM1 and XM2. Once your XM channels are preset,
pressing the CH DISC button will
select your preset channels.
Push the CD/AUX XM button.
(You will see XM1 or XM2.)
1.
2.
3.
4.With navigation systemSEEK /SK IP (CA T EGORY) SCA N
Preset
Playing the XMSatellite Radio
Features
137
µ
µ
µ

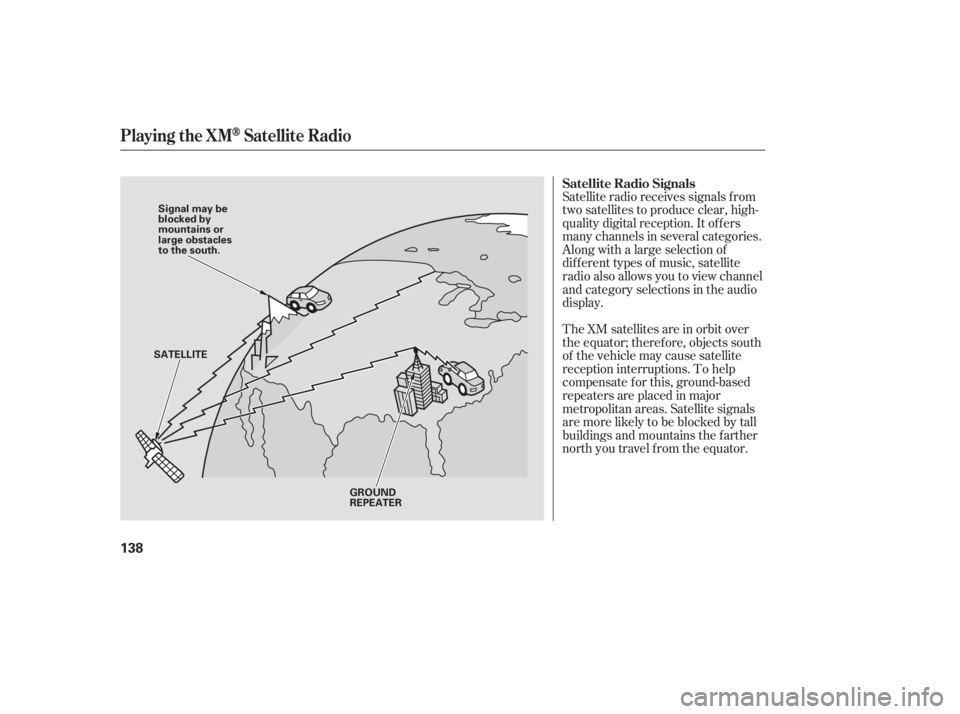

Satellite radio receives signals f rom
two satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, satellite
radio also allows you to view channel
and category selections in the audio
display.
The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas. Satellite signals
aremorelikelytobeblockedbytall
buildings and mountains the f arther
north you travel f rom the equator. Satellite Radio Signals
Playing the XMSatellite Radio
138
Signal may be
blocked by
mountains or
large obstacles
to the south.
SATELLITE
GROUND
REPEATER

Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Drivingonaneast/westroadwith
a mountain on the south side of
the road.
There may be other geographic
situations that could af f ect satellite
radio reception. Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you. Driving on the lower level of a
multi-tiered road. Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you. Driving in tunnels.
Driving on the north side of a
large commercial truck on an
east/west road. If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Satellite Radio. With the
ignition switch in the ACCESSORY
(I) or ON (II) position, push the
PWR/VOL knob to turn on the audio
system and press the CD/AUX XM
button. A variety of music types and
styles will play.As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
CONT INUED
Receiving Satellite Radio Service
Playing the XMSatellite Radio
Features
139
