Your seat belt system includes lap/
shoulder belts in all seating positions.
The f ront seat belts are also
equipped with automatic seat belt
tensioners.
If the indicator comes on or the
beeper sounds when the driver’s seat
belt is latched and there is no f ront
seat passenger and no items on the
front seat, something may be
interf ering with the monitoring
system. Look f or and remove:
Any items under the f ront
passenger’s seat.
Any object(s) hanging on the seat
or in the seat-back pocket.
Any object(s) touching the rear of
the seat-back.When no one is sitting in the f ront
passenger’s seat, or a child or small
adult is riding there, the indicator
should not come on and the beeper
should not sound.
If a f ront passenger does not f asten
their seat belt, the indicator will
come on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
This system monitors the f ront seat
belts. If you turn the ignition switch
to the ON (II) position bef ore your
seat belt is f astened, the beeper will
sound and the indicator will f lash. If
your seat belt is not f astened bef ore
the beeper stops, the indicator will
stop f lashing but remain on.
This system uses the same sensors
as the front airbags to monitor
whether the f ront seat belts are
latched or unlatched, and how much
weight is on the f ront passenger’s
seat (see pages and ).
The seat belt system
includes an indicator on the
instrument panel and a beeper to
remind you and your passengers to
f asten your seat belts.
If either the driver or a f ront
passenger does not f asten their seat
belt while driving, the beeper will
sound and the indicator will f lash
again at regular intervals.
If no obstructions are f ound, have
your vehicle checked by a dealer.
25 26
Additional Inf ormation About Your Seat Belts
Seat Belt System Components
18
 — —
y

 y
) y  y
2010 Accord Sedan

CONT INUED
For added protection, the f ront seat
belts are equipped with automatic
seat belt tensioners. When activated,
the tensioners immediately tighten
the belts to help hold the driver and
a f ront passenger in position.
The lap and shoulder belt goes over
your shoulder, across your chest,
and across your hips.
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched (see page f or how to
properly position the belt).
To unlock the belt, press the red
PRESSbuttononthebuckle.Guide
the belt across your body so that it
retracts completely. Af ter exiting the
vehicle, be sure the belt is out of the
way and will not get closed in the
door.
If the shoulder part of the belt is
pulled all the way out, the lockable
retractor will activate. The belt will
retract, but it will not allow the
passenger to move f reely.
The seat belts in all positions except
the driver’s have a lockable retractor
that must be activated to secure a
child seat (see page ).
All seat belts have an emergency
locking retractor. In normal driving,
the retractor lets you move f reely in
your seat while it keeps some
tension on the belt. During a collision
or sudden stop, the retractor
automatically locks the belt to help
restrain your body.
To deactivate the lockable retractor,
unlatch the buckle and let the seat
belt fully retract. To refasten the
seat belt, pull it out only as f ar as
needed.
14
44
Additional Inf ormation About Your Seat Belts
A utomatic Seat Belt T ensionersL ap/Shoulder Belt
Driver and Passenger Saf ety
19
 — —
y

 y
) y  y
2010 Accord Sedan

The dealer should also inspect the
anchors f or damage and replace
them if needed. If the automatic seat
belt tensioners activate during a
crash, they must be replaced.
If a seat belt is worn during a crash,
it must be replaced by the dealer. A
belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
For saf ety, you should check the
condition of your seat belts regularly.
Pull each belt out f ully, and look f or
f rays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. If a belt does
not retract easily, cleaning the belt
may correct the problem (see page
). Any belt that is not in good
condition or working properly will
not provide good protection and
should be replaced as soon as
possible.
The tensioners are designed to
activate in any collision severe
enough to cause the f ront airbags to
deploy.
The tensioners can also be activated
during a collision in which the f ront
airbags. In this case, the
airbags would not be needed, but the
extra tension in the seat belt could
be helpf ul.
Honda provides a limited warranty
on seat belts. See your
booklet f or
details.
If a side curtain airbag deploys
during a side impact, the tensioner
on that side of the vehicle will also
deploy.
When the tensioners are activated,
the seat belts will remain tight until
they are unbuckled.
334
do not deploy
Honda
Warranty Inf ormation
Additional Inf ormation About Your Seat Belts
Seat Belt Maintenance
20
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly when
needed.
Check your seat belts regularly
and have any problem
corrected as soon as possible.
09/07/08 21:33:04 31TA5620_025
2010 Accord Sedan

CONT INUED
Additional Inf ormation About Your Airbags

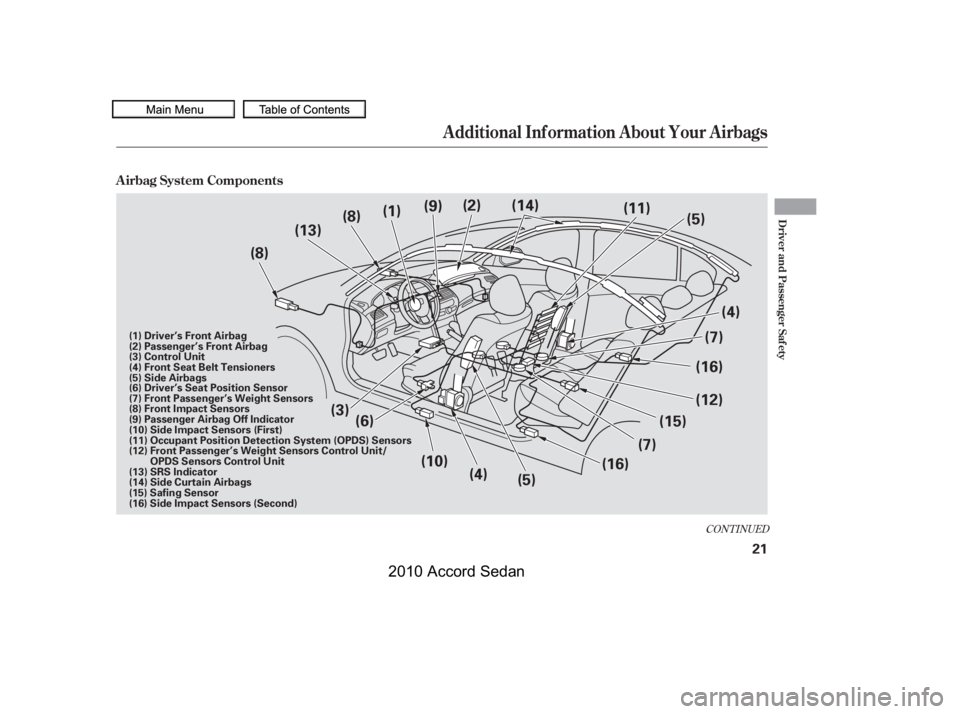

A irbag System Components
Driver and Passenger Saf ety
21
(3)
(5)
(7)
(4)
(7)
(12)
(6)
(8)
(8)(1)(9)(2)(11)(5)(13)
(14)
(10)(4)
(15)
(16)
(16)
(1) Driver’s Front Airbag (2) Passenger’s Front Airbag(3) Control Unit(4) Front Seat Belt Tensioners(5) Side Airbags
(11) Occupant Position Detection System (OPDS) Sensors (12) Front Passenger’s Weight Sensors Control Unit/OPDS Sensors Control Unit(13) SRS Indicator(14) Side Curtain Airbags(15) Safing Sensor(16) Side Impact Sensors (Second)
(6) Driver’s Seat Position Sensor(7) Front Passenger’s Weight Sensors(8) Front Impact Sensors(9) Passenger Airbag Off Indicator(10) Side Impact Sensors (First)
 — —
y

 y
) y  y
2010 Accord Sedan

A sophisticated electronic system
that continually monitors and
records inf ormation about the
sensors, the control unit, the
airbag activators, the seat belt
tensioners, and driver and f ront
passenger seat belt use when the
ignition switch is in the ON (II)
position.
An indicator on the instrument
panel that alerts you to a possible
problem with your airbags,
sensors, or seat belt tensioners
(see page ).
Automatic front seat belt
tensioners (see page ).
Sensors that can detect a
moderate to severe front impact or
side impact.
Sensors that can detect whether a
child is in the passenger’s side
airbag path and signal the control
unit to turn the airbag of f (see
page ).
A driver’s seat position sensor that
monitors the distance of the seat
from the front airbag. If the seat is
too f ar f orward, the airbag will
inf late with less f orce (see page
).
Your airbag system includes:
Two side airbags, one f or the
driver and one f or a f ront
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG’’ (see page ).
Two SRS (supplemental restraint
system) f ront airbags. The driver’s
airbag is stored in the center of
the steering wheel; the f ront
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
Two side curtain airbags, one f or
each side of the vehicle. The
airbags are stored in the ceiling
above the side windows. The f ront
and rear pillars are marked ‘‘SIDE
CURTAIN AIRBAG’’ (see page
).
Sensors that can detect whether
the driver’s seat belt and the f ront
passenger’s seat belt are latched
or unlatched (see page ).
Weight sensors that monitor the
weight on the f ront passenger’s
seat. If the weight is about 65 lbs
(29 kg) or less (the weight of an
inf ant or small child), the
passenger’s front airbag will be
turned of f (see page ).
23
27
28
19
25
29
26
18
28
Additional Inf ormation About Your Airbags
22
 — —
y


 y
) y  y
2010 Accord Sedan

CONT INUED
During a frontal crash, your seat belt
restrains your lower body and torso,
and the f ront airbag helps protect
your head and chest.
Although both airbags normally
inf late within a split second of each
other, it is possible f or only one
airbag to deploy.
This can happen if the severity of a
collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. In
such cases, the seat belt will provide
suf f icient protection, and the
supplemental protection of f ered by
the airbag would be minimal.
Only the driver’s airbag can deploy if
there is no passenger in the f ront
seat, or if the advanced airbag
system has turned the passenger’s
airbag off (see page ).
If you ever have a moderate to
severe f rontal collision, sensors will
detect the vehicle’s rapid
deceleration.
If the rate of deceleration is high
enough, the control unit will inf late
the driver’s and f ront passenger’s
airbags, at the time and with the
f orce needed.
An indicator on the dashboard that
alerts you that the passenger’s
f ront airbag has been turned of f
(see page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
An indicator on the instrument
panel that alerts you that the
passenger’s side airbag has been
turned of f (see page ).
30
25
30
Additional Inf ormation About Your Airbags
How Your Front A irbags Work
Driver and Passenger Saf ety
23
 — —
y


y
) y  y
2010 Accord Sedan

The total time for inflation and
def lation is one-tenth of a second, so
f ast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.
Your f ront airbags are dual-stage
airbags. This means they have two
inf lation stages that can be ignited
sequentially or simultaneously,
depending on crash severity.
In acrash, both stages
will ignite simultaneously to provide
the quickest and greatest protection.
In acrash, one stage will
ignite first, then the second stage
will ignite a split second later. This
provides longer airbag inf lation time
with a little less force.
After a crash, you may see what
looks like smoke. This is actually
powder f rom the airbag’s surf ace.
Although the powder is not harmf ul,
people with respiratory problems
mayexperiencesometemporary
discomf ort. If this occurs, get out of
the vehicle as soon as it is saf e to do
so.
Af ter inf lating, the f ront airbags
immediately def late, so they won’t
interf ere with the driver’s visibility,
or the ability to steer or operate
other controls.
Additional Inf ormation About Your Airbags
Dual-Stage A irbags
more severe
less severe
24
 — —
y



y
) y  y
2010 Accord Sedan

CONT INUED
Your f ront airbags are also dual-
threshold airbags. Airbags with this
f eature have two deployment
thresholds that depend on whether
sensors detect the occupant is
wearing a seat belt or not.
If the occupant’s belt is,
the airbag will deploy at a slightly
lower threshold, because the
occupant would need extra
protection.
If the occupant’s belt is , the
airbag will inf late at a slightly higher
threshold, when the airbag would be
needed to supplement the protection
provided by the seat belt.
The driver’s advanced front airbag
system includes a seat position
sensor under the seat. If the seat is
too f ar f orward, the airbag will
inf late with less f orce, regardless of
the severity of the impact.
If there is a problem with the sensor,
the SRS indicator will come on, and
the airbag will inf late in the normal
manner regardless of the driver’s
seating position.
Your f ront airbags are also advanced
airbags. The main purpose of this
feature is to help prevent airbag-
caused injuries to short drivers and
children or small-statured adults who
ride in f ront.
Failure to f ollow these instructions
could damage the sensors or prevent
them f rom working properly.
Do not spill any liquids on or
under the seats, cover the sensors,
or put any objects or metal items
under the f ront seats.
Occupants must sit upright and
wear their seat belts properly.
For both advanced airbags to work
properly:
Additional Inf ormation About Your Airbags
Advanced AirbagsDual-T hreshold A irbags
not lat ched
latched
Driver and Passenger Saf ety
25
DRIVER’S SEATPOSITIONSENSOR
 — —
y


y
) y   y
2010 Accord Sedan

When the passenger airbag gets
turned of f by the weight sensors, a
‘‘passenger airbag of f ’’ indicator in
the center of the dashboard comes
on (see page ).
Be aware that objects placed on the
passenger’s seat can also cause the
airbag to be turned off.
The passenger’s advanced f ront
airbag system has weight sensors
under the seat. Although Honda
does not encourage carrying an
inf ant or small child in f ront, if the
sensors detect the weight of an
inf ant or small child (up to about 65
lbs or 29 kg), the system will
automatically turn the passenger’s
front airbag off.
If the weight sensors detect there is
no passenger in the f ront seat, the
airbag is automatically turned off.
However, the passenger airbag of f
indicator in this situation will not
come on.
To ensure that the passenger’s
advanced front airbag system will
work properly,
This includes:
Moving the front seat or seat-back
f orcibly back against the f olded
rear seat.
Hanging heavy items on the f ront
passenger seat, or placing heavy
items in the seat-back pocket.
Moving the front seat or seat-back
forcibly back against cargo on the
seat or f loor behind it.
A rear passenger pushing or
pulling on the back of the f ront
passenger’s seat.
30
Additional Inf ormation About Your Airbags
do not do anyt hing
t hat would increase or decrease t he
weight on the f ront passenger’s seat.
26
PASSENGER’S SEAT WEIGHTSENSORS
 — —
y


y
) y
y
2010 Accord Sedan

CONT INUED
Only one airbag will deploy during a
side impact. If the impact is on the
passenger’s side, the passenger’s
side airbag will deploy even if there
is no passenger.
To get the best protection f rom the
side airbags, front seat occupants
should wear their seat belts and sit
upright and well back in their seats.
If you ever have a moderate to
severe side impact, sensors will
detect rapid acceleration and signal
the control unit to instantly inf late
either the driver’s or the passenger’s
side airbag.
Back seat passengers should not
wedge objects or intentionally
f orce their f eet under the f ront
passenger seat.
Also,makesurethefloormat
behind the f ront passenger’s seat
is properly positioned on the f loor
(see page ). If it is not, the mat
may interfere with the proper
operation of the f ront passenger’s
seat and its sensors.
334
Additional Inf ormation About Your Airbags
How Your Side A irbags Work
Driver and Passenger Saf ety
27
 — —
y

 y
) y  y
2010 Accord Sedan
