If itcomesonandstaysonatany
other time, or if it does not come on
when you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. Take
your vehicle to a dealer to have it
checked. Without VSA, your vehicle
still has normal driving ability, but
will not have VSA traction and
stability enhancement. See page
f or more inf ormation on the
VSA system.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock f unction. For more
inf ormation, see page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
This indicator has three f unctions:
Itcomesonasareminderthatyou
have turned off the vehicle
stability assist (VSA) system.
It flashes when VSA is active (see
page ).
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. For more inf ormation, see
page .
2.
3.
1.
289
287
289
289
Instrument Panel Indicators
VSA A ctivation IndicatorVehicle Stability Assist
(VSA ) System Indicator
Anti-lock Brake System
(A BS) Indicator
58
——
y

y
)yy
2010 Accord Sedan

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on while driving,
it indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
If this happens, pull to the side of the
road when it is saf e, check which tire
has lost the pressure, and determine
the cause. If it is because of a flat tire,
replace the flat tire with the compact
spare (see page ), and have the
f lat tire repaired as soon as possible.
If two or more tires are underinf lated,
call a prof essional towing service
(see page ). For more
inf ormation, see page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If this indicator comes on and stays
on at any other time, or if it does not
come on when you turn the ignition
switch to the ON (II) position, there
is a problem with the TPMS. With
this indicator on, the low tire
pressure indicator will not come on
when a tire loses pressure. Take the
vehicle to your dealer to have the
system checked.
While the engine is operating in its
most economical range, this
indicator may come on and stay on.
353
375
291
V6 models
Tire Pressure Monitoring
System (T PMS) Indicator
Low Tire Pressure
Indicator
Fuel Economy Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
59
——
y


y
)yy
2010 Accord Sedan

The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash.
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door.
This indicator will also come on
when the light switch is in AUTO
and the lights turn on automatically.
The appropriate indicator comes on
if the trunk or any door is not closed
tightly.
All the indicators come on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position.
328 330
EX-L and EX-L V6
Instrument Panel Indicators
Turn Signal and Hazard Warning
Indicators
Lights On Indicator Door and Trunk Open Indicator
60
DRIVER’S DOOR OPENINDICATOR
TRUNKOPENINDICATOR
——
y

y
)yy
2010 Accord Sedan

This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ).
If this indicator comes on when you
turn the ignition switch to the ON
(II) position and release the parking
brake, it means there is a problem
with the DRL. There may also be a
problem with the high beam
headlights. Have your vehicle
checked by your dealer.
This indicator comes on when the
security system is set. See page
f or more inf ormation on the
security system.
This indicator comes on as a
reminder that you must ref uel soon.
When the indicator comes on, there
are about 2.8 U.S. gal (10.5)of fuel
remaining in the tank.
When the needle reaches E, there is
a very small amount of f uel in the
tank.
69
71
217
If equipped
High Beam Indicator
Daytime Running L ights
Indicator
Security System IndicatorLow Fuel Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
61
SECURITY SYSTEM INDICATOR
——
y

y
)yy
2010 Accord Sedan

This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It
remindsyouthatitistimetotake
your vehicle in f or scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the inf ormation display. See page
f or more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page ).
This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control.
This indicator comes on when you
turn on the f og lights. For more
inf ormation, see page .
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. It will then go of f if
you have inserted a properly coded
ignition key. If it is not a properly
coded key, the indicator will blink,
and the engine’s f uel system will be
disabled (see page ).
This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
(see page ).
72
223
223
77
303
318
If equipped
Canadian models only
Immobilizer System
Indicator
Maintenance Minder
Indicator
Cruise Control Indicator
Washer Level Indicator
Cruise Control Main
Indicator
Fog L ight Indicator
Instrument Panel Indicators
62
——
y


y
)yy
2010 Accord Sedan

Î
ÎIf equipped:

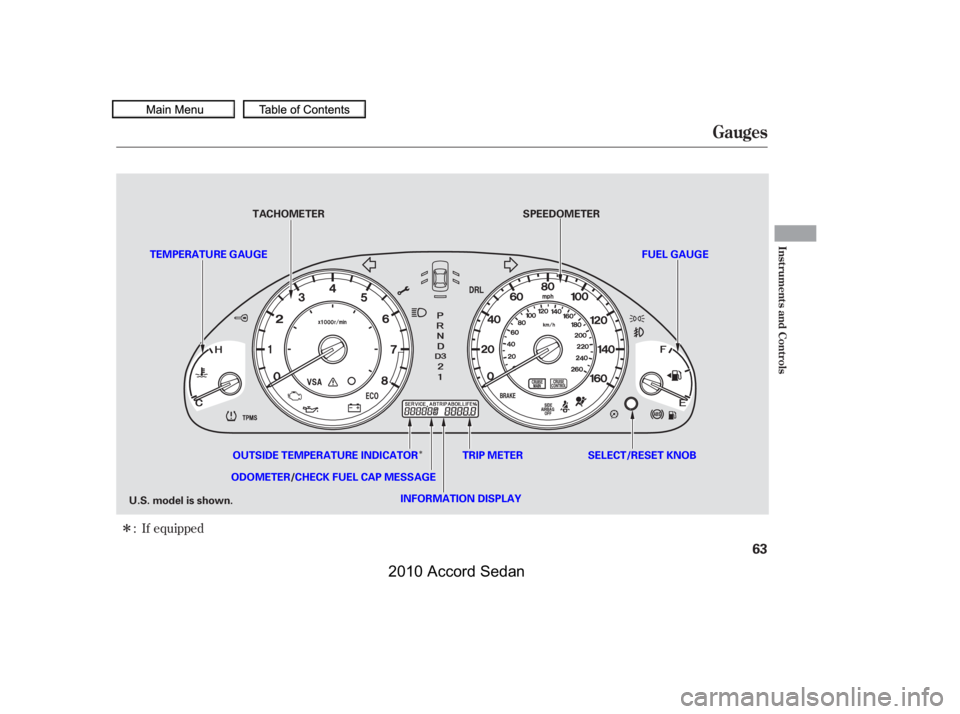

Gauges
Inst rument s and Cont rols
63
SELECT/RESET KNOBTRIP METER
ODOMETER/CHECK FUEL CAP MESSAGE
TACHOMETER
TEMPERATURE GAUGE
SPEEDOMETER
U.S. model is shown.INFORMATION DISPLAY
OUTSIDE TEMPERATURE INDICATOR
FUEL GAUGE
——
y

y
)yy
2010 Accord Sedan

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial/
territorial regulations to disconnect,
reset, or alter the odometer with the
intent to change the number of miles
or kilometers indicated.

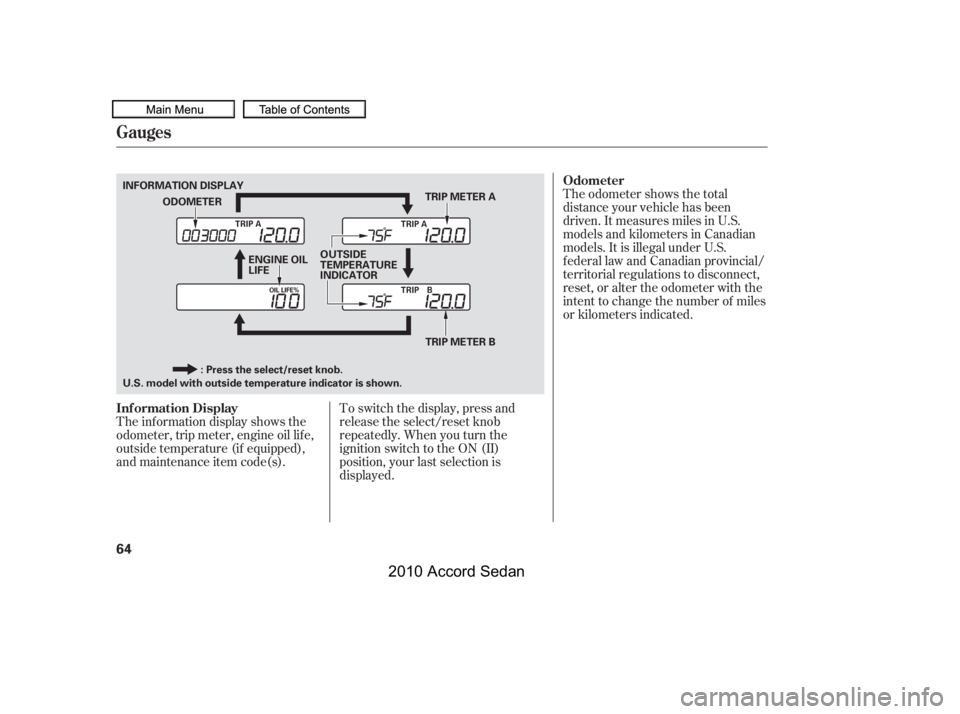

The inf ormation display shows the
odometer, trip meter, engine oil lif e,
outside temperature (if equipped),
and maintenance item code(s).
To switch the display, press and
release the select/reset knob
repeatedly. When you turn the
ignition switch to the ON (II)
position, your last selection is
displayed.
Gauges
Odometer
Inf ormation Display
64
INFORMATION DISPLAYTRIP METER A
TRIP METER B
ENGINE OIL LIFE
OUTSIDETEMPERATUREINDICATOR
: Press the select/reset knob.
U.S. model with outside temperature indicator is shown.
ODOMETER
——
y


y
)yy
2010 Accord Sedan

¶¶
µ
µµµµ
µµµ
If equipped
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F in U.S. models ( 3°C
in Canadian models) warmer or
cooler.
The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then press and hold the
select/reset knob f or 10 seconds.
The f ollowing sequence will appear
for1secondeach:0,1,2,3,4,5, 5,
4, 3, 2, 1, 0 (U.S.) or 0, 1, 2,
3, 3, 2, 1, 0 (Canada).
When the temperature reaches the
desired value, release the select/
reset knob. You should see the new
outside temperature displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
The trip meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the select/reset
knob repeatedly.
Each trip meter works independently,
so you can keep track of two
dif f erent distances.
When you turn the ignition switch to
the ON (II) position, your last
selection is displayed.
To reset a trip meter, display it, and
then press and hold the select/reset
knob until the number resets to ‘‘0.0’’.
This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Celsius (Canadian
models). To see the outside
temperature, press and release the
select/reset knob until the
temperature is displayed.
Gauges
Outside Temperature IndicatorTrip Meter
Inst rument s and Cont rols
65
NOTE:
——
y


y
)yy
2010 Accord Sedan

This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom mark to about the
middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to the
upper zone. If it reaches the red
(hot) mark, pull saf ely to the side of
the road. Turn to page for
instructions and precautions on
checking the engine cooling system.
This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
If your f uel f ill cap is loose or
missing, a ‘‘CHECK FUEL CAP’’
message appears on the information
display af ter you start the engine.
For more inf ormation, see page .
The inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more inf ormation.
258
303
363
Gauges
Temperature GaugeFuel GaugeCheck Fuel Cap Message
Maintenance Minder
66
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
——
y

y
)y
y
2010 Accord Sedan

Î
Î
ÎÎ
Î
Î
Î
Î
Î
Î
If equipped
Only on vehicles equipped with navigation system, ref er to the navigation system manual.
To use the horn, press the center pad of the steering wheel.1:
2:
3:

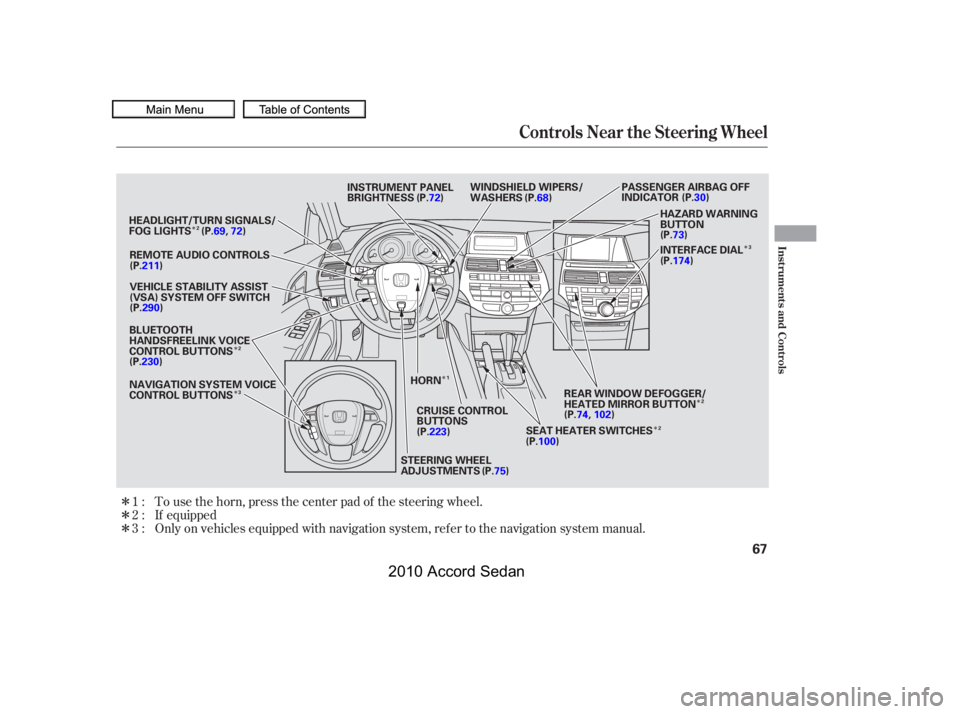

Controls Near the Steering Wheel
Inst rument s and Cont rols
67
INSTRUMENT PANEL BRIGHTNESS
REMOTE AUDIO CONTROLS
(P.100)
(P.69,72)
(P.75)
(P.72)PASSENGER AIRBAG OFFINDICATOR(P.30)
HEADLIGHT/TURN SIGNALS/FOG LIGHTS
WINDSHIELD WIPERS/WASHERS
SEAT HEATER SWITCHES
NAVIGATION SYSTEM VOICECONTROL BUTTONS
(P.68)
(P.211)
(P.223)
(P.230)
(P.74,102)
REAR WINDOW DEFOGGER/HEATED MIRROR BUTTON
HAZARD WARNINGBUTTON(P.73)
INTERFACE DIAL (P.174)
(P.290)
STEERING WHEELADJUSTMENTS
CRUISE CONTROLBUTTONS
HORN
BLUETOOTHHANDSFREELINK VOICECONTROL BUTTONS
VEHICLE STABILITY ASSIST(VSA) SYSTEM OFF SWITCH
2
2
32
3
1
2
——
y

y
)yy
2010 Accord Sedan
