HONDA ACCORD SEDAN 2016 Owner's Manual (in English)

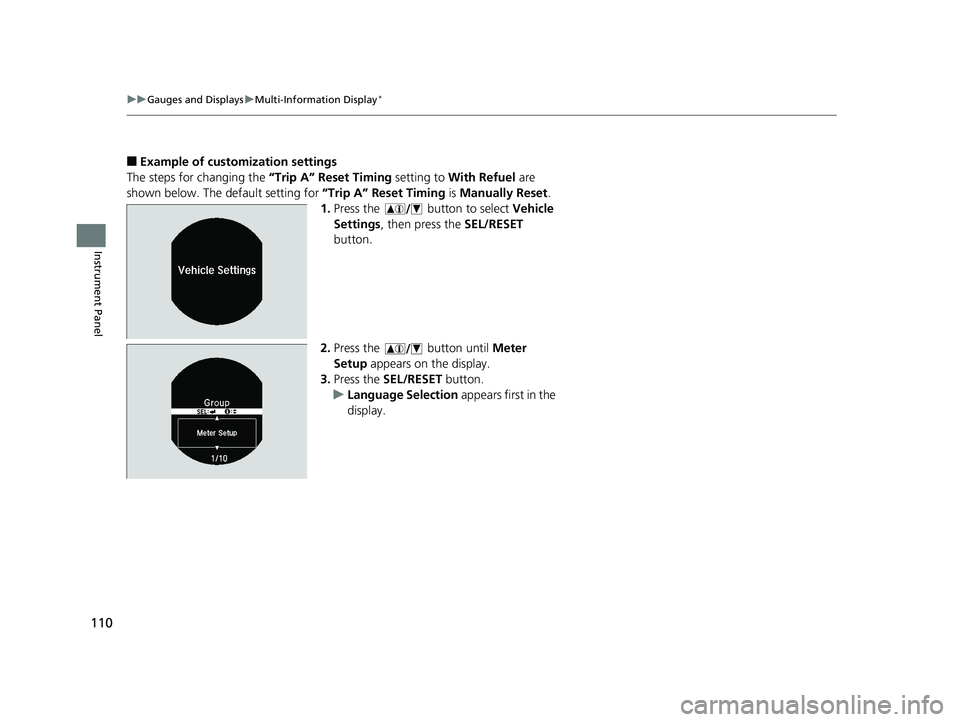

110
uuGauges and Displays uMulti-Information Display*
Instrument Panel
■Example of customization settings
The steps for changing the “Trip A” Reset Timing setting to With Refuel are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset .
1. Press the button to select Vehicle
Settings , then press the SEL/RESET
button.
2. Press the button until Meter
Setup appears on the display.
3. Press the SEL/RESET button.
u Language Selection appears first in the
display.
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 110 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

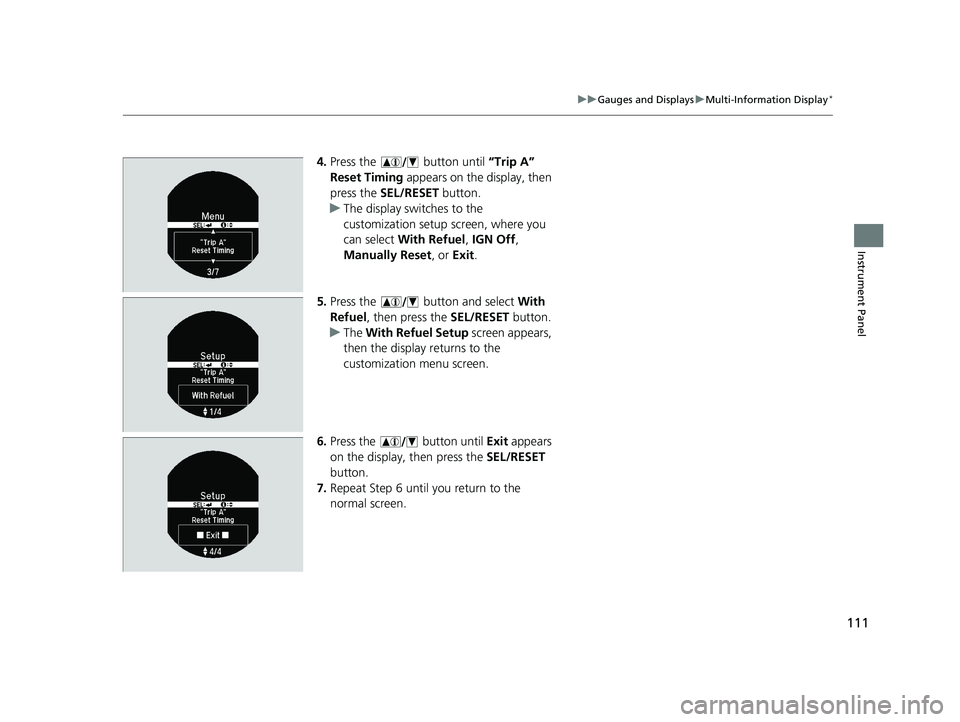

111
uuGauges and Displays uMulti-Information Display*
Instrument Panel
4. Press the button until “Trip A”
Reset Timing appears on the display, then
press the SEL/RESET button.
u The display swit ches to the
customization setup screen, where you
can select With Refuel , IGN Off,
Manually Reset , or Exit .
5. Press the button and select With
Refuel , then press the SEL/RESET button.
u The With Refuel Setup screen appears,
then the display returns to the
customization menu screen.
6. Press the button until Exit appears
on the display, then press the SEL/RESET
button.
7. Repeat Step 6 until you return to the
normal screen.
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 111 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

112
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 112 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

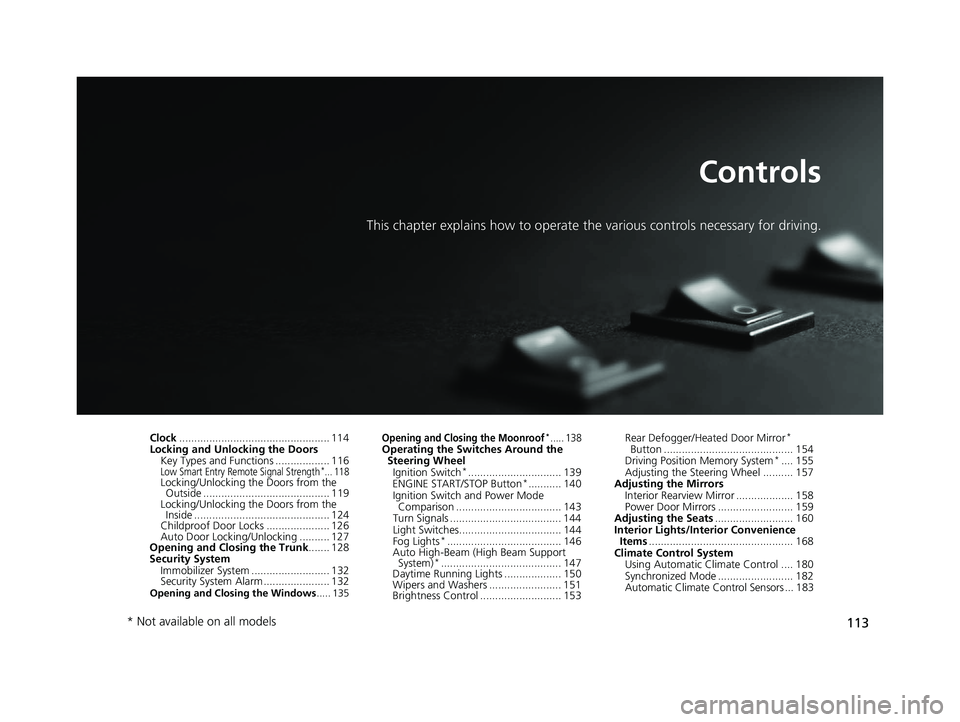

113
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 114
Locking and Unlocking the Doors
Key Types and Functions .................. 116
Low Smart Entry Remote Signal Strength*... 118Locking/Unlocking the Doors from the Outside .......................................... 119
Locking/Unlocking the Doors from the
Inside ............................................. 124
Childproof Door Locks ..................... 126
Auto Door Locking/Unlocking .......... 127
Opening and Closing the Trunk ....... 128
Security System
Immobilizer System .......................... 132
Security System Alarm ...................... 132
Opening and Closing the Windows ..... 135
Opening and Closing the Moonroof*..... 138Operating the Switches Around the
Steering Wheel Ignition Switch
*............................... 139
ENGINE START/STOP Button*........... 140
Ignition Switch and Power Mode Comparison ................................... 143
Turn Signals ..................................... 144
Light Switches.................................. 144
Fog Lights
*...................................... 146
Auto High-Beam (H igh Beam Support
System)
*........................................ 147
Daytime Running Lights ................... 150
Wipers and Washers ........................ 151
Brightness Control ........................... 153 Rear Defogger/Heated Door Mirror
*
Button ........................................... 154
Driving Position Memory System
*.... 155
Adjusting the Steering Wheel .......... 157
Adjusting the Mirrors
Interior Rearview Mirror ................... 158
Power Door Mirrors ......................... 159
Adjusting the Seats .......................... 160
Interior Lights/Interior Convenience Items ................................................ 168
Climate Control System
Using Automatic Climate Control .... 180
Synchronized Mode ......................... 182
Automatic Climate Control Sensors ... 183
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 113 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

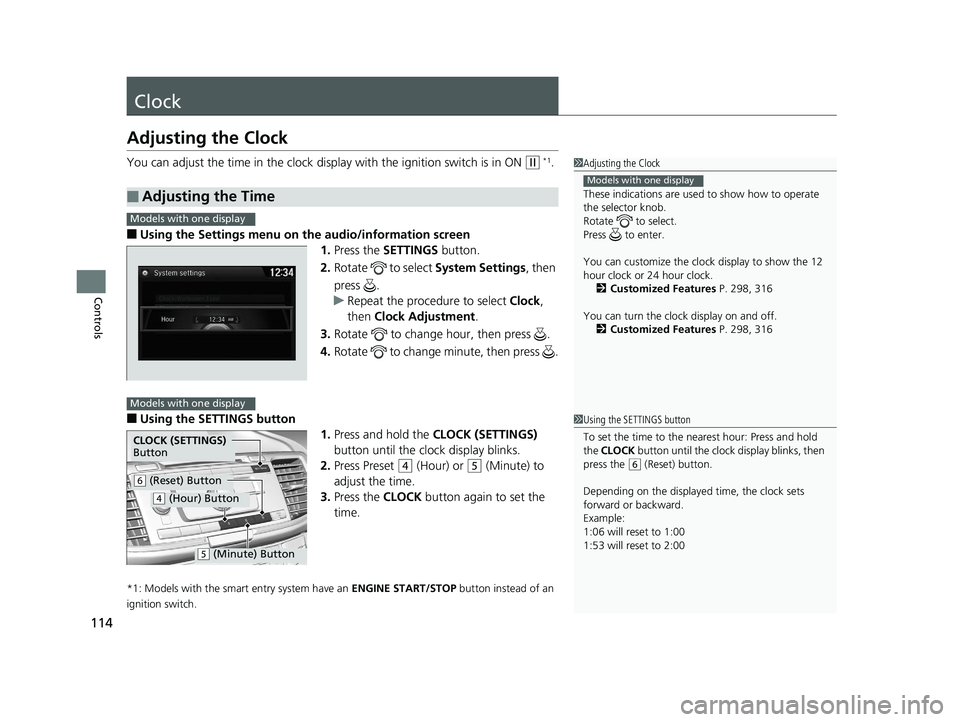

114
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch is in ON (w *1.
■Using the Settings menu on the audio/information screen1.Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
u Repeat the procedure to select Clock,
then Clock Adjustment .
3. Rotate to change hour, then press .
4. Rotate to change minute, then press .
■Using the SETTINGS button
1.Press and hold the CLOCK (SETTINGS)
button until the clock display blinks.
2. Press Preset
(4 (Hour) or (5 (Minute) to
adjust the time.
3. Press the CLOCK button again to set the
time.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
1 Adjusting the Clock
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 298, 316
You can turn the clock display on and off. 2 Customized Features P. 298, 316
Models with one display
1Using the SETTINGS button
To set the time to the nearest hour: Press and hold
the CLOCK button until the clock display blinks, then
press the
( 6 (Reset) button.
Depending on the displayed time, the clock sets
forward or backward.
Example:
1:06 will reset to 1:00
1:53 will reset to 2:00
Models with one display
Models with one display
CLOCK (SETTINGS)
Button
( 6 (Reset) Button
(4 (Hour) Button
(5 (Minute) Button
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 114 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

115
uuClock uAdjusting the Clock
Controls

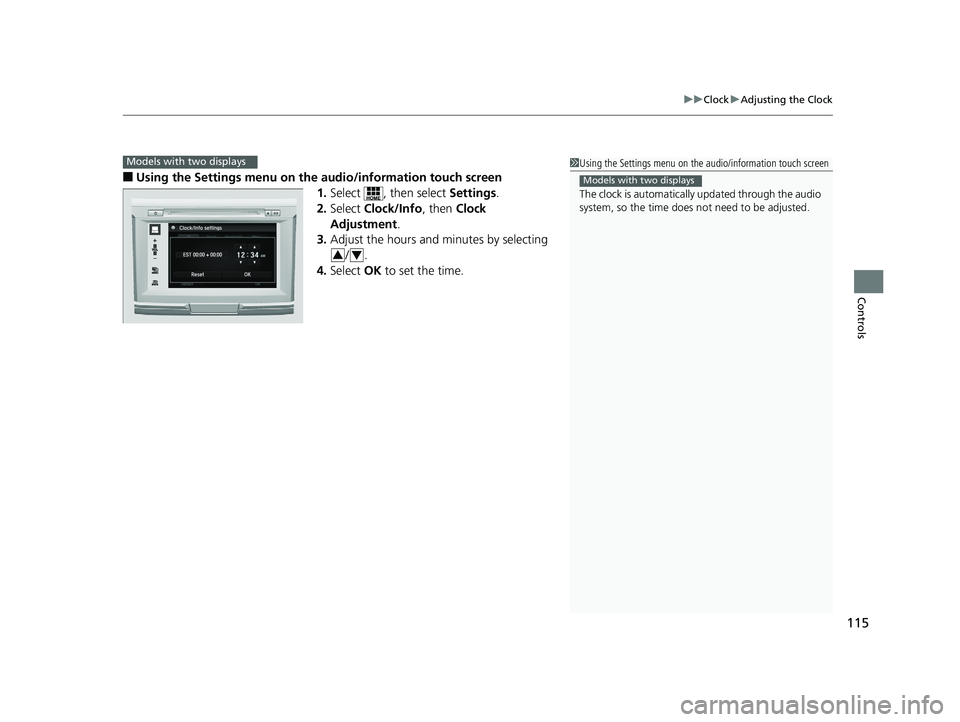

■Using the Settings menu on the audio/information touch screen
1.Select , then select Settings.
2. Select Clock/Info , then Clock
Adjustment .
3. Adjust the hours and minutes by selecting
/.
4. Select OK to set the time.
Models with two displays1Using the Settings menu on the audio/information touch screen
The clock is automatically updated through the audio
system, so the time does not need to be adjusted.
Models with two displays
34
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 115 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

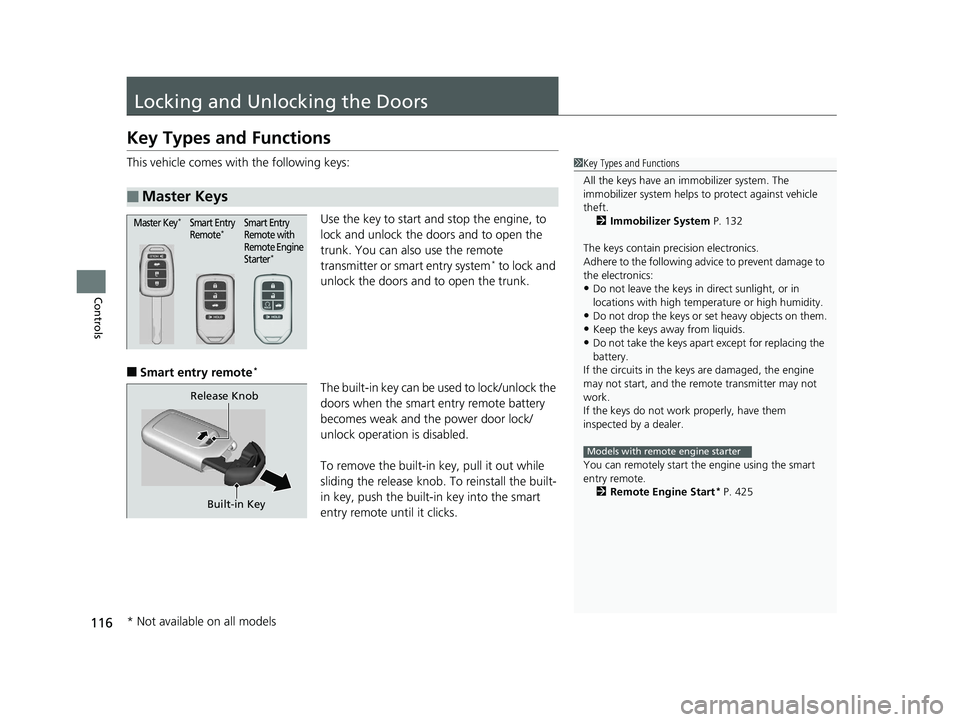

116
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:Use the key to start and stop the engine, to
lock and unlock the doors and to open the
trunk. You can also use the remote
transmitter or smart entry system
* to lock and
unlock the doors and to open the trunk.
■Smart entry remote*
The built-in key can be us ed to lock/unlock the
doors when the smart entry remote battery
becomes weak and th e power door lock/
unlock operation is disabled.
To remove the built-in key, pull it out while
sliding the release knob. To reinstall the built-
in key, push the built-in key into the smart
entry remote until it clicks.
■Master Keys
1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 132
The keys contain precision electronics.
Adhere to the following advi ce to prevent damage to
the electronics:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.
•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start th e engine using the smart
entry remote.
2 Remote Engine Start
* P. 425
Models with remote engine starter
Master Key*Smart Entry
Remote*Smart Entry
Remote with
Remote Engine
Starter
*
Built-in Key
Release Knob
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 116 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

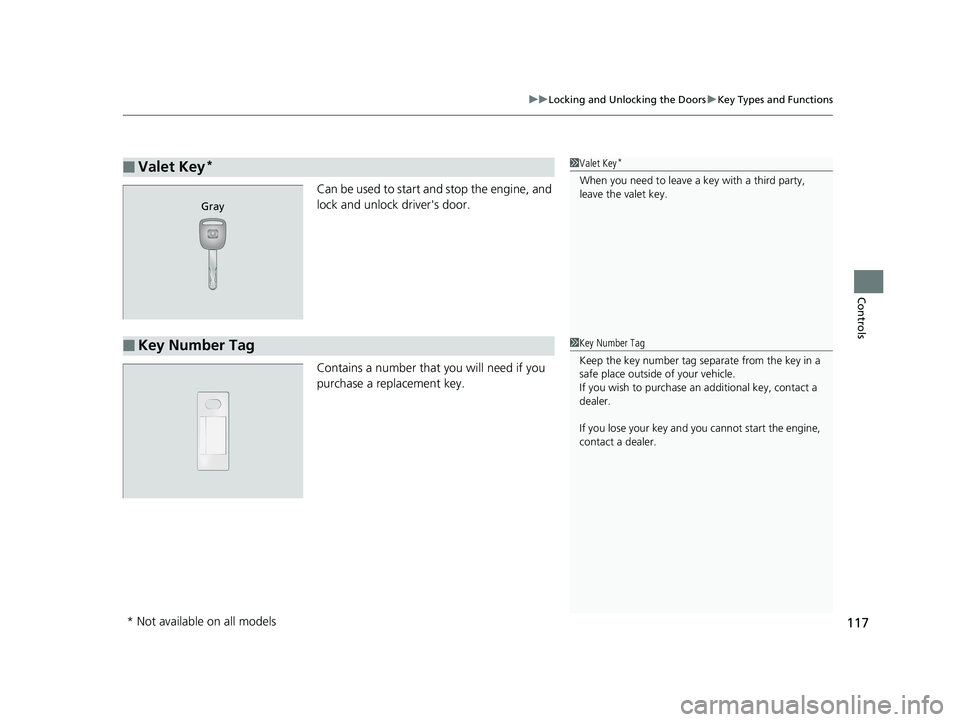

117
uuLocking and Unlocking the Doors uKey Types and Functions
Controls
Can be used to start an d stop the engine, and
lock and unlock driver's door.
Contains a number that you will need if you
purchase a replacement key.
■Valet Key*1 Valet Key*
When you need to leave a key with a third party,
leave the valet key.
Gray
■Key Number Tag1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 117 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

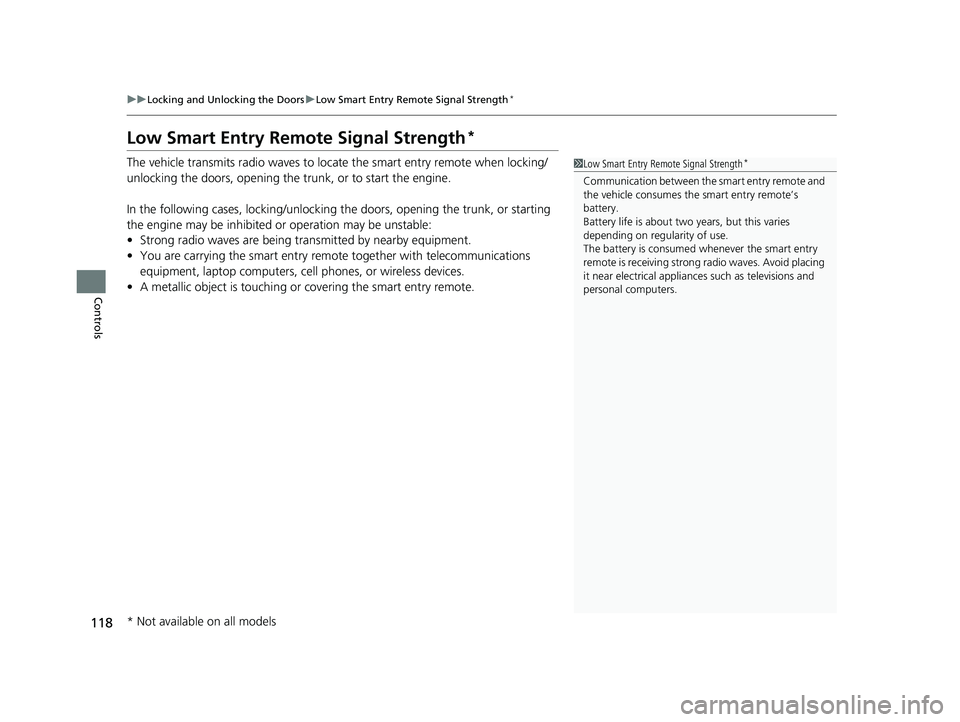

118
uuLocking and Unlocking the Doors uLow Smart Entry Remote Signal Strength*
Controls
Low Smart Entry Remo te Signal Strength*
The vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors, opening the trunk, or to start the engine.
In the following cases, locking/unlocking the doors, opening the trunk, or starting
the engine may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the smart entry remote.1Low Smart Entry Remote Signal Strength*
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on re gularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 118 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

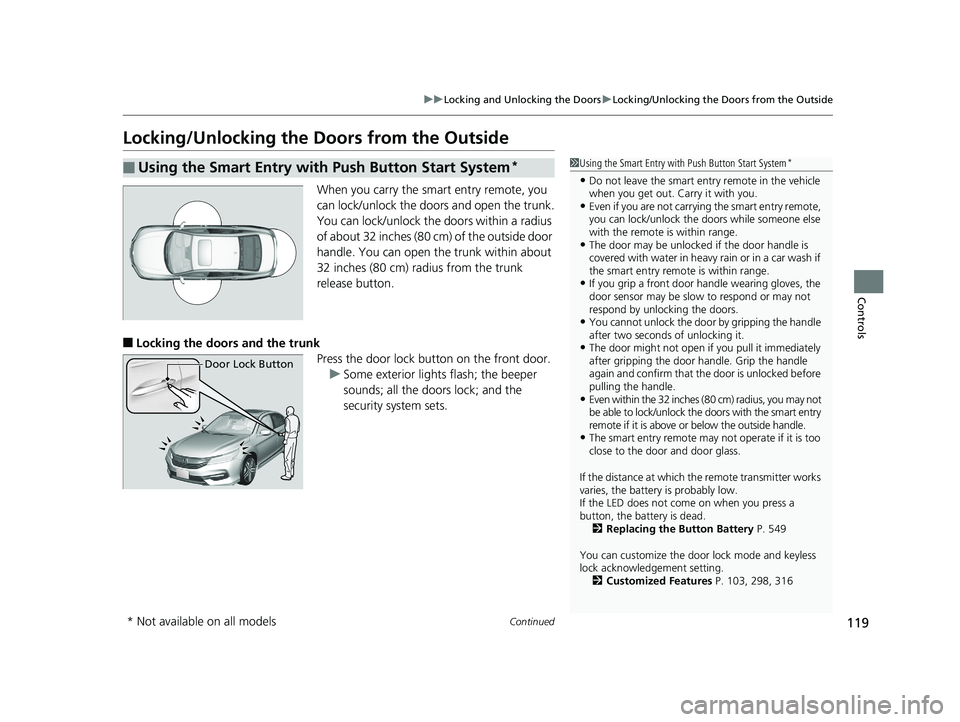

119
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls
Locking/Unlocking the Doors from the Outside
When you carry the sm art entry remote, you
can lock/unlock the doors and open the trunk.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the trunk within about
32 inches (80 cm) radius from the trunk
release button.
■Locking the doors and the trunk Press the door lock button on the front door.u Some exterior lights flash; the beeper
sounds; all the doors lock; and the
security system sets.
■Using the Smart Entry with Push Button Start System*
Door Lock Button
1Using the Smart Entry with Push Button Start System*
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can lock/unlock the doors while someone else
with the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the smart entry remote is within range.
•If you grip a front door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.
•You cannot unlock the door by gripping the handle
after two seconds of unlocking it.
•The door might not open if you pull it immediately
after gripping the door ha ndle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may not
be able to lock/unlock the doors with the smart entry
remote if it is above or below the outside handle.
•The smart entry remote may not operate if it is too
close to the door and door glass.
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Button Battery P. 549
You can customize the door lock mode and keyless
lock acknowledge ment setting.
2 Customized Features P. 103, 298, 316
* Not available on all models
