uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Auto High-Beam
Indicator
(Green)
*
●Comes on when all the operating
conditions of the auto high-beam
are met.2Auto High-Beam (High Beam Support
System)* P. 147—
Auto High-Beam
Indicator
(Amber)
*
●Comes on if there is a problem with
the auto high-beam.●Manually operate the headlight switch.●If you are driving with the high-beam
headlights when this happens, the
headlights are changed to low beams.
—●Comes on when the area around
the camera on the windshield is
blocked by dirt, mud, etc.●Stop your vehicle in a safe place, and wipe
it off with a soft cloth.
●If the indicator does not go off after
cleaning the lens, have your vehicle
checked by a dealer.
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 80 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

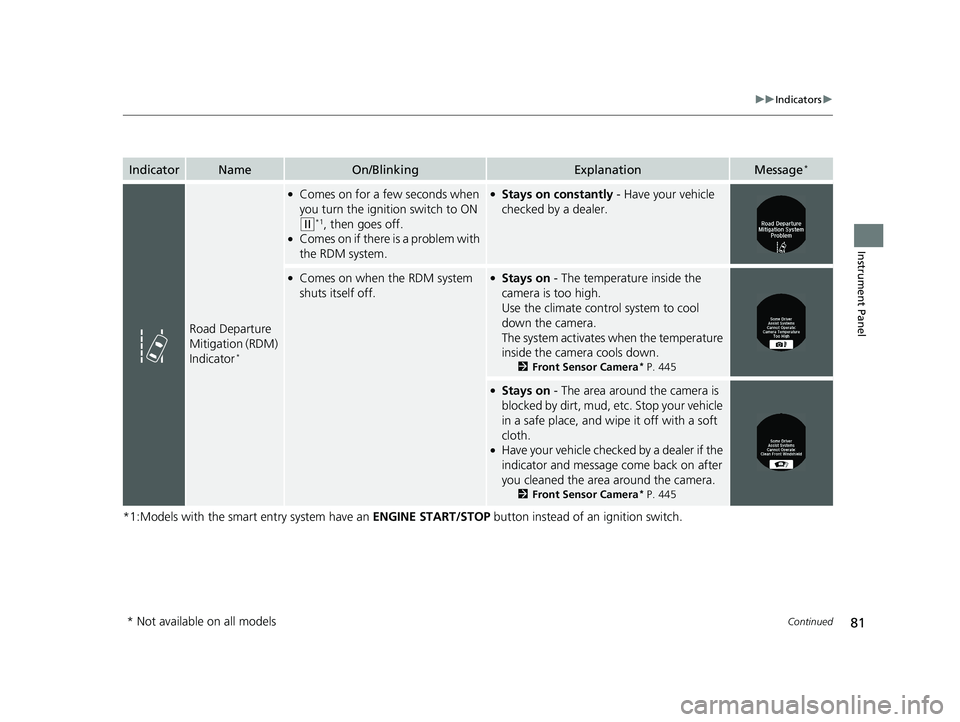

81
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Road Departure
Mitigation (RDM)
Indicator
*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on if there is a problem with
the RDM system.
●Stays on constantly - Have your vehicle
checked by a dealer.
●Comes on when the RDM system
shuts itself off.●Stays on - The temperature inside the
camera is too high.
Use the climate contro l system to cool
down the camera.
The system activates when the temperature
inside the camera cools down.
2 Front Sensor Camera* P. 445
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place, and wipe it off with a soft
cloth.
●Have your vehicle checked by a dealer if the
indicator and message come back on after
you cleaned the area around the camera.
2 Front Sensor Camera* P. 445
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 81 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

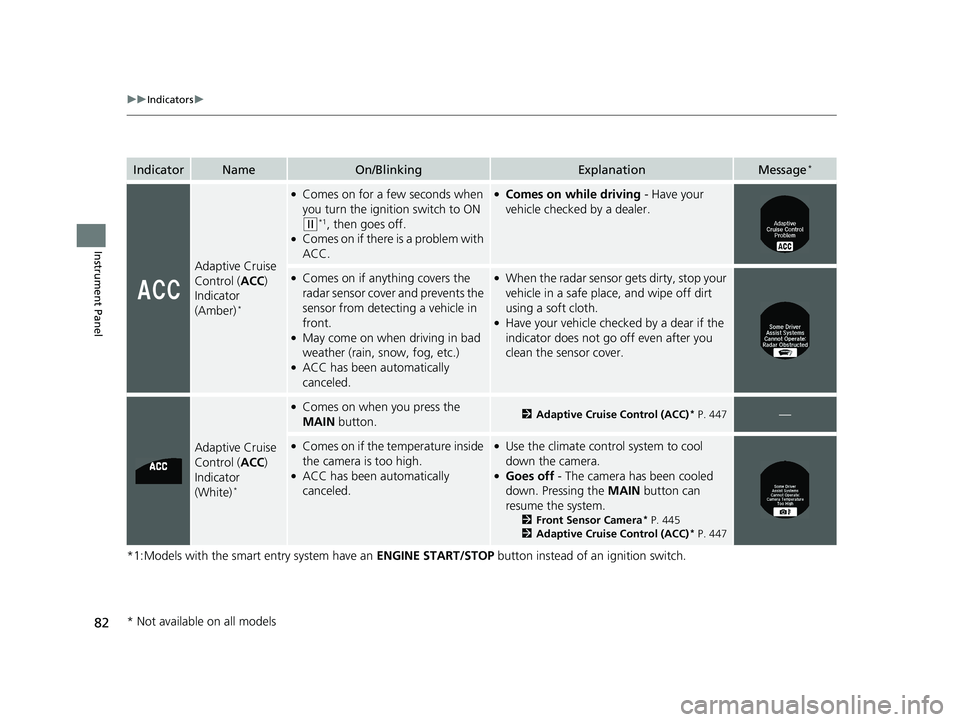

82
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Adaptive Cruise
Control (ACC)
Indicator
(Amber)
*
●Comes on for a few seconds when
you turn the igniti on switch to ON
(w*1, then goes off.●Comes on if there is a problem with
ACC.
●Comes on while driving - Have your
vehicle checked by a dealer.
●Comes on if anything covers the
radar sensor cover and prevents the
sensor from detecting a vehicle in
front.
●May come on when driving in bad
weather (rain, snow, fog, etc.)
●ACC has been automatically
canceled.
●When the radar sensor gets dirty, stop your
vehicle in a safe place, and wipe off dirt
using a soft cloth.
●Have your vehicle checked by a dear if the
indicator does not go off even after you
clean the sensor cover.
Adaptive Cruise
Control ( ACC)
Indicator
(White)
*
●Comes on when you press the
MAIN button.2Adaptive Cruise Control (ACC)* P. 447—
●Comes on if the temperature inside
the camera is too high.
●ACC has been automatically
canceled.
●Use the climate contro l system to cool
down the camera.
●Goes off - The camera has been cooled
down. Pressing the MAIN button can
resume the system.
2 Front Sensor Camera* P. 445
2 Adaptive Cruise Control (ACC)* P. 447
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 82 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

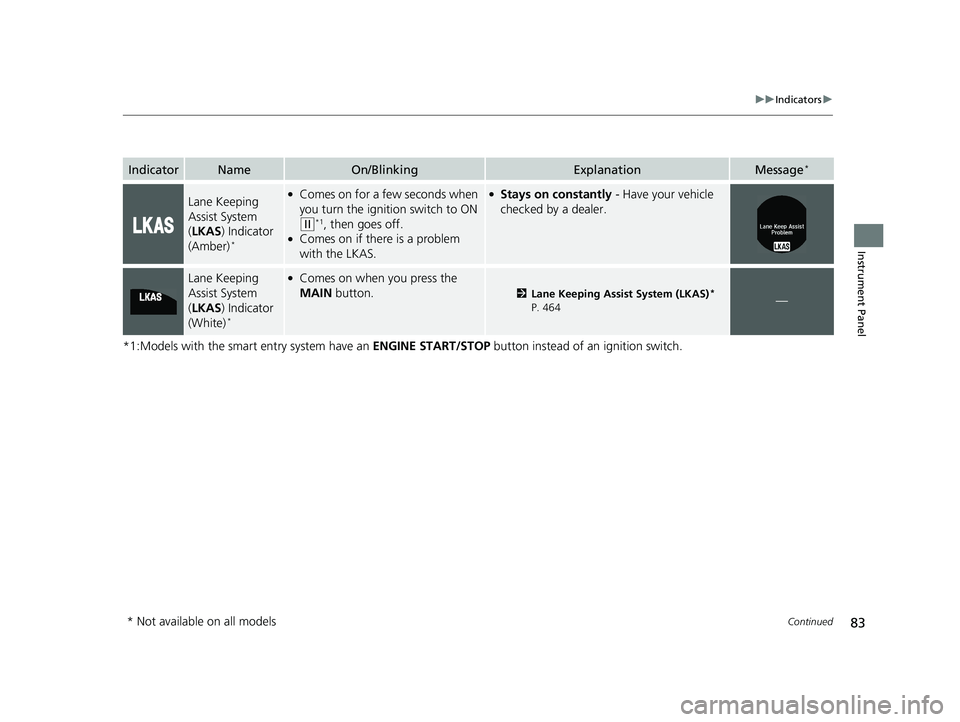

83
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Lane Keeping
Assist System
(LKAS ) Indicator
(Amber)
*
●Comes on for a few seconds when
you turn the igniti on switch to ON
(w*1, then goes off.●Comes on if there is a problem
with the LKAS.
●Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
( LKAS ) Indicator
(White)
*
●Comes on when you press the
MAIN button.
2Lane Keeping Assist System (LKAS)*
P. 464—
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 83 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

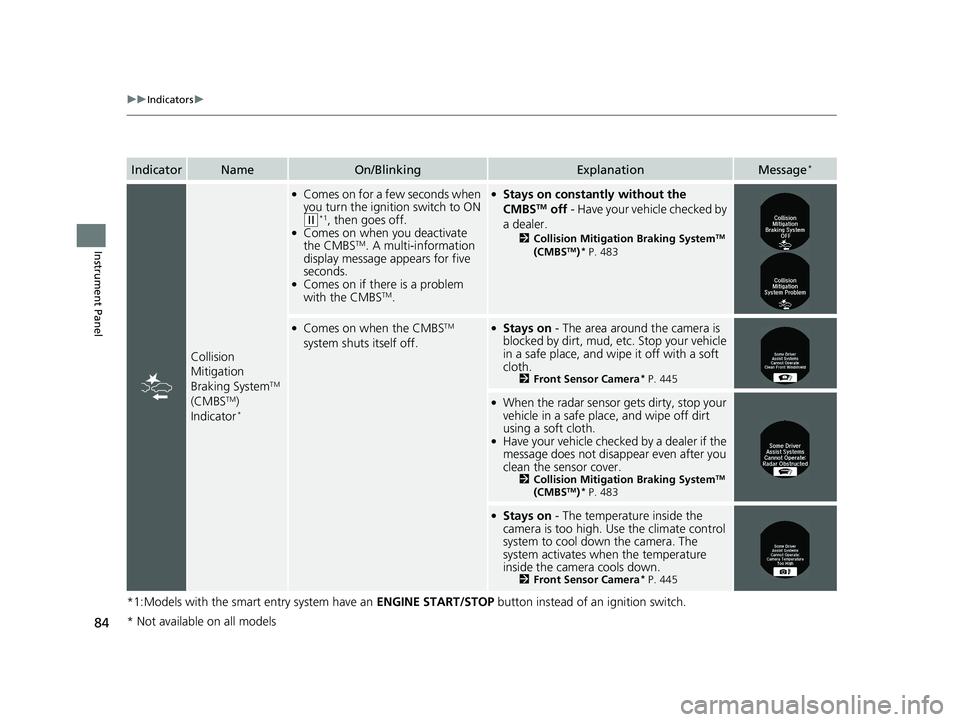

84
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Collision
Mitigation
Braking System
TM
(CMBSTM)
Indicator*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on when you deactivate
the CMBSTM. A multi-information
display message appears for five
seconds.
●Comes on if there is a problem
with the CMBSTM.
●Stays on constant ly without the
CMBSTM off - Have your vehicle checked by
a dealer.
2 Collision Mitigation Braking SystemTM
(CMBSTM)* P. 483
●Comes on when the CMBSTM
system shuts itself off.●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place, and wipe it off with a soft
cloth.
2 Front Sensor Camera* P. 445
●When the radar sensor gets dirty, stop your
vehicle in a safe place, and wipe off dirt
using a soft cloth.
●Have your vehicle checked by a dealer if the
message does not disappear even after you
clean the sensor cover.
2Collision Mitigation Braking SystemTM
(CMBSTM)* P. 483
●Stays on - The temperature inside the
camera is too high. Use the climate control
system to cool down the camera. The
system activates when the temperature
inside the camera cools down.
2 Front Sensor Camera* P. 445
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 84 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

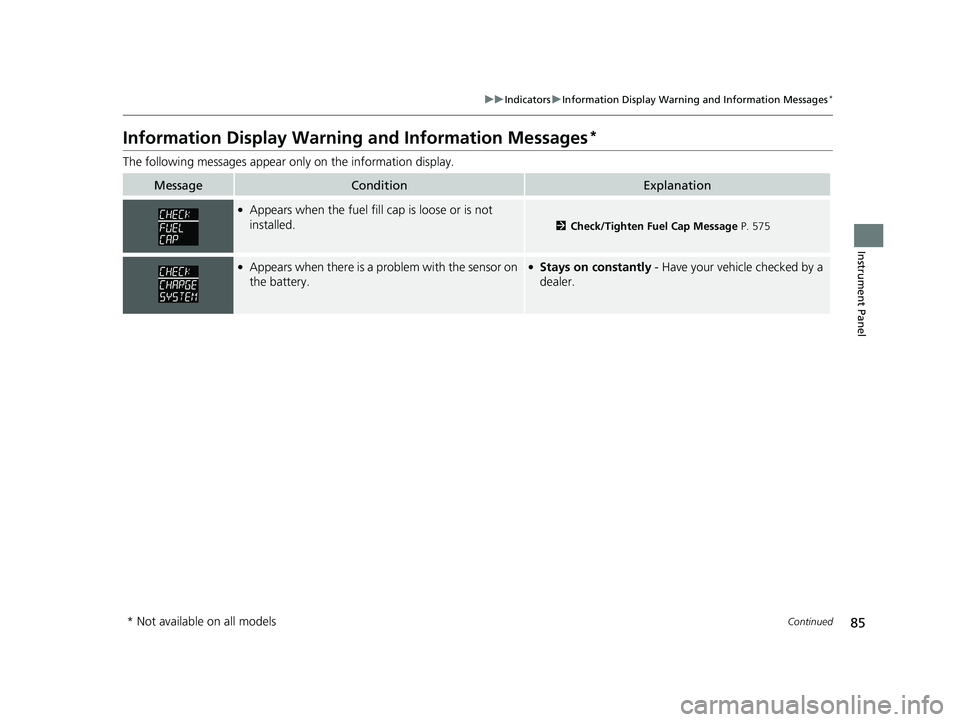

85
uuIndicators uInformation Display Warning and Information Messages*
Continued
Instrument Panel
Information Display Warning and Information Messages*
The following messages appear only on the information display.
MessageConditionExplanation
●Appears when the fuel fill cap is loose or is not
installed.
2Check/Tighten Fuel Cap Message P. 575
●Appears when there is a problem with the sensor on
the battery.●Stays on constantly - Have your vehicle checked by a
dealer.
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 85 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

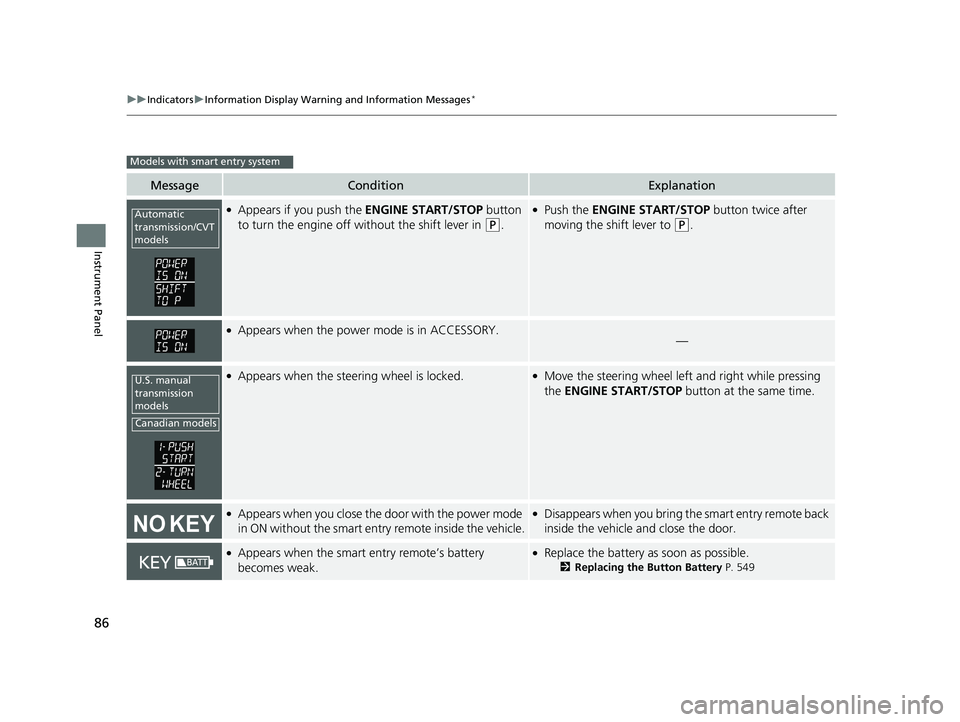

86
uuIndicators uInformation Display Warning and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears if you push the ENGINE START/STOP button
to turn the engine off wi thout the shift lever in
(P.
●Push the ENGINE START/STOP button twice after
moving the shift lever to
(P.
●Appears when the power mode is in ACCESSORY.—
●Appears when the steer ing wheel is locked.●Move the steering wheel left and right while pressing
the ENGINE START/STOP button at the same time.
●Appears when you close the door with the power mode
in ON without the smart entry remote inside the vehicle.●Disappears when you bring the smart entry remote back
inside the vehicle and close the door.
●Appears when the smart entry remote’s battery
becomes weak.●Replace the battery as soon as possible.
2Replacing the Button Battery P. 549
Models with smart entry system
Automatic
transmission/CVT
models
U.S. manual
transmission
models
Canadian models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 86 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

87
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
Multi-Information Display Warn ing and Information Messages*
The following messages appear only on the multi-information display. Press the (inf ormation) button to see the message again
with the system message indicator on.
MessageConditionExplanation
●Appears when the fuel fill cap is loose or is not
installed.
2 Check/Tighten Fuel Cap Message P. 575
●Appears when the scheduled maintenance is due
soon. u Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Multi-
Information Display P. 510
●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 572
●Appears if there is a pr oblem with the automatic
lighting control system.●Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
●Appears if there is a pr oblem with the low beam
headlights.●Appears while driving - The low beam headlights may
not be on. When conditions allow you to drive safely,
have your vehicle checked by a dealer as soon as
possible.
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 87 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

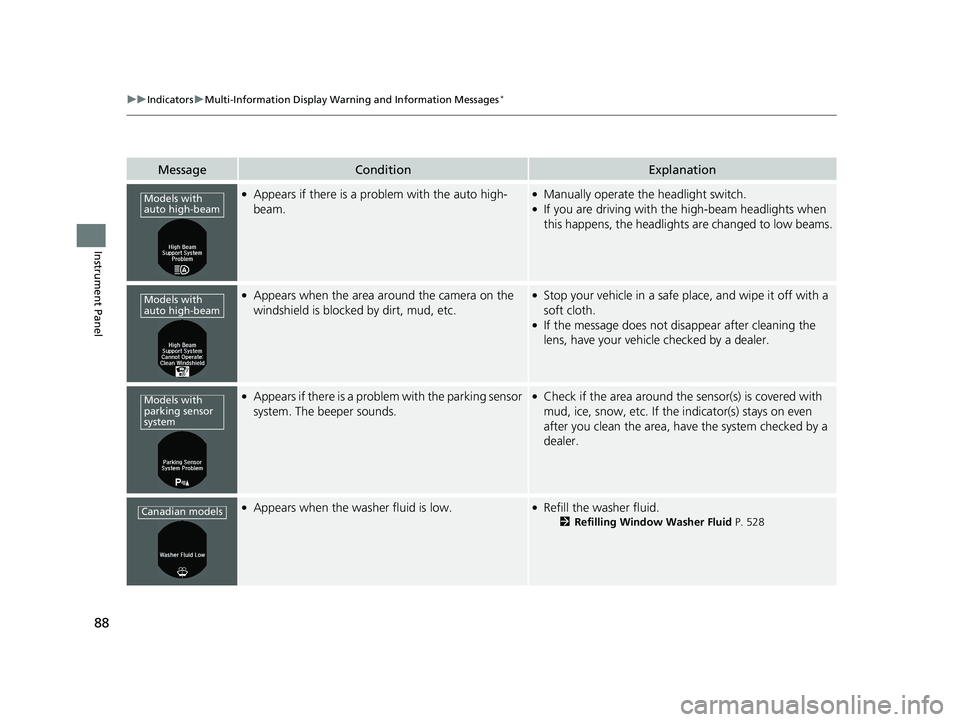

88
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the auto high-
beam.●Manually operate the headlight switch.●If you are driving with th e high-beam headlights when
this happens, the headlights are changed to low beams.
●Appears when the area around the camera on the
windshield is blocked by dirt, mud, etc.●Stop your vehicle in a safe pl ace, and wipe it off with a
soft cloth.
●If the message does not disappear after cleaning the
lens, have your vehicl e checked by a dealer.
●Appears if there is a problem with the parking sensor
system. The beeper sounds.●Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If th e indicator(s) stays on even
after you clean the area, have the system checked by a
dealer.
●Appears when the washer fluid is low.●Refill the washer fluid.
2 Refilling Window Washer Fluid P. 528
Models with
auto high-beam
Models with
auto high-beam
Models with
parking sensor
system
Canadian models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 88 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

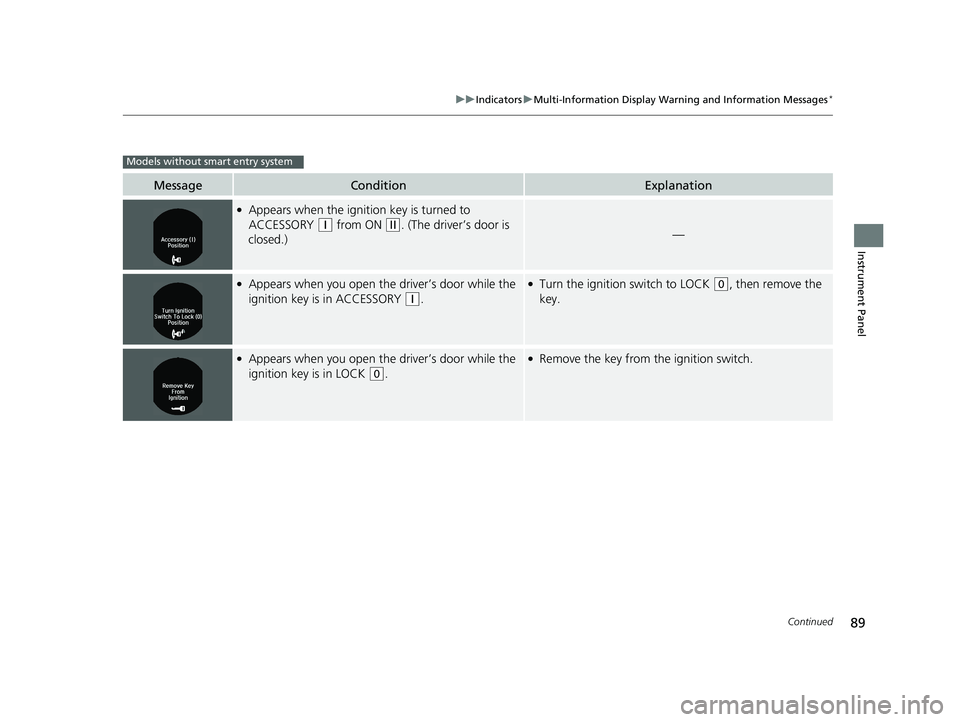

89
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the ignition key is turned to
ACCESSORY
(q from ON (w. (The driver’s door is
closed.)—
●Appears when you open the driver’s door while the
ignition key is in ACCESSORY
(q.
●Turn the ignition switch to LOCK (0, then remove the
key.
●Appears when you open the driver’s door while the
ignition key is in LOCK
(0.
●Remove the key from th e ignition switch.
Models without smart entry system
