Horn
Component Location Index
SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS
section (24) before performing repairs or service.
CABLE REELReplacement, section 24
(:-, ,,/ t.\
(6\'
\K2
HORN RELAY: '98 - 00 models-
lWire colorsr WHT/GRN, cBY,lIWHT/GRN, BLU/RED ]Test, page 23 87
HORN RELAY: '96 -97 models-lwire colors: WHT/GRN. GBY,I
IWHT/GRN, BLU/RED ITest, page 23-86
UNDER-DASH FUSE/RELAY BOX
23-196

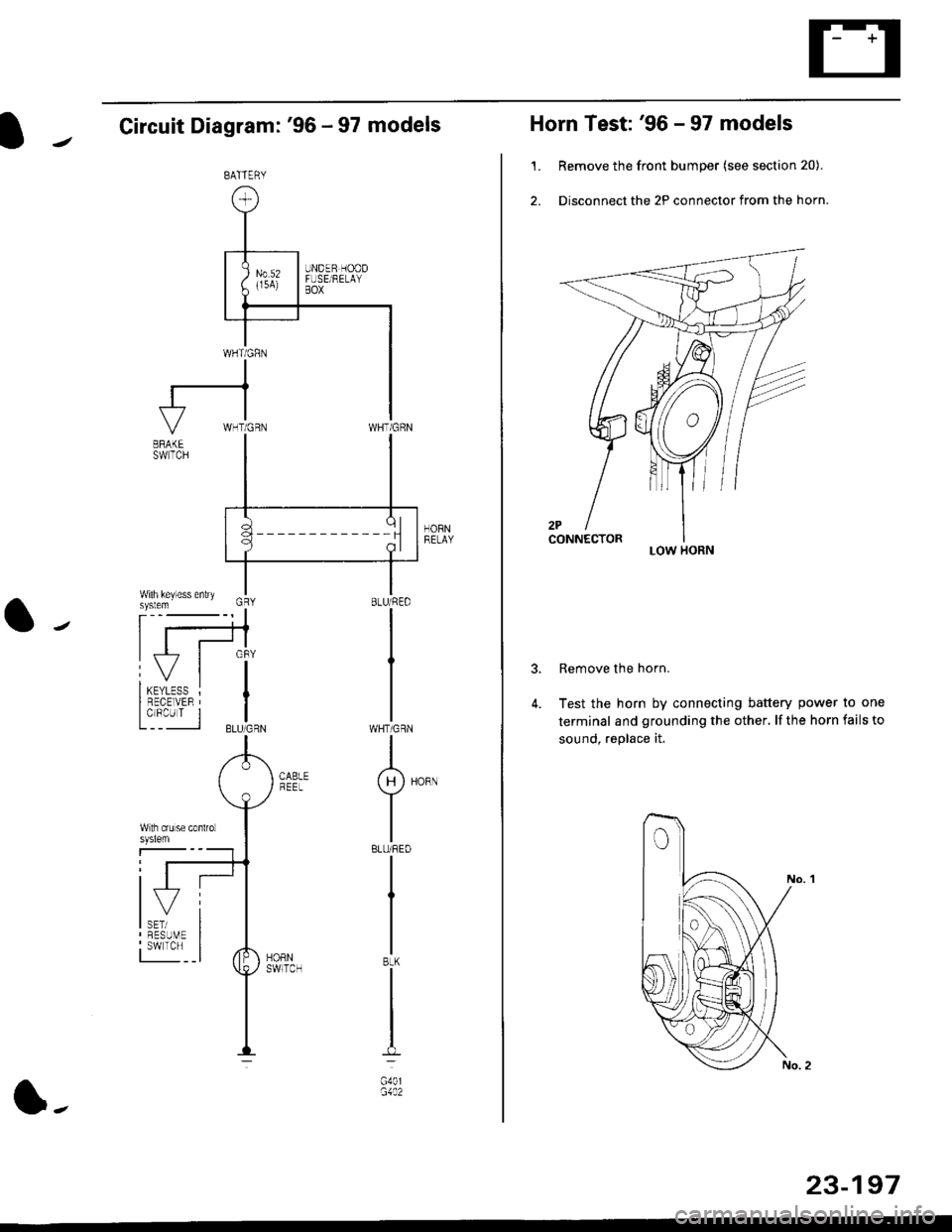

Circuit Diagram: '96 - 97 models
HORNRELAY
WHT/GRN
I(H)HoRN
Y
IBLU/REO
I
I
IBtK
I
t-l
G40lG1A2
BATTERY
l-
23-197
Horn Test: '96 - 97 models
1. Remove the front bumper (see section 20).
2. Disconnect the 2P connector from the horn.
Remove the horn.
Test the horn by connecting battery power to one
terminal and grounding the other, lf the horn fails to
sound, replace it.
3.
LOW HORN

Rear Window Defogger
Gomponent Location Index
36 - 98 modols:
UNDER.DASH FUSE/RELAY BOX
REAR WINDOW DEFOGGER SWITCHInput Test, page 23-203
REAR WINOOW DEFOGGERRELAYTest, page 23-86
REAR WINOOW OEFOGGERFunction Test, page 23'202Defogger Wire Repair. page 23 202
23-200

'99 - 00 models:
UNDER.OASH FUSE/RELAY BOX
REAR WINDOW DEFOGGER(Built into climate control unit)
REAR WINDOW DEFOGGER
Test, page 23-86
ANTENNA COIL (Sedsn)
f l_ f= L'
''rofia trF.-lj
l-
REAR WINDOW DEFOGGER
I est, page lr- lv.t
23-201

Rear Window Defogger
Circuit Diagram
36 - 98 models:IGNITIONswtTcH
/ BAT \+ ots't
\:7 |
I
IIYE
WHT/BLK +WHT
wtNDow
BLKBLU
It-lt-l
TBLK
UNOEF,HOOD FUSE/RELAY BOX
N0.41 (e,oA) No a2 (aoA)
G40lG402G601 : Coupe/SedanG77t :Nalchback
23-202

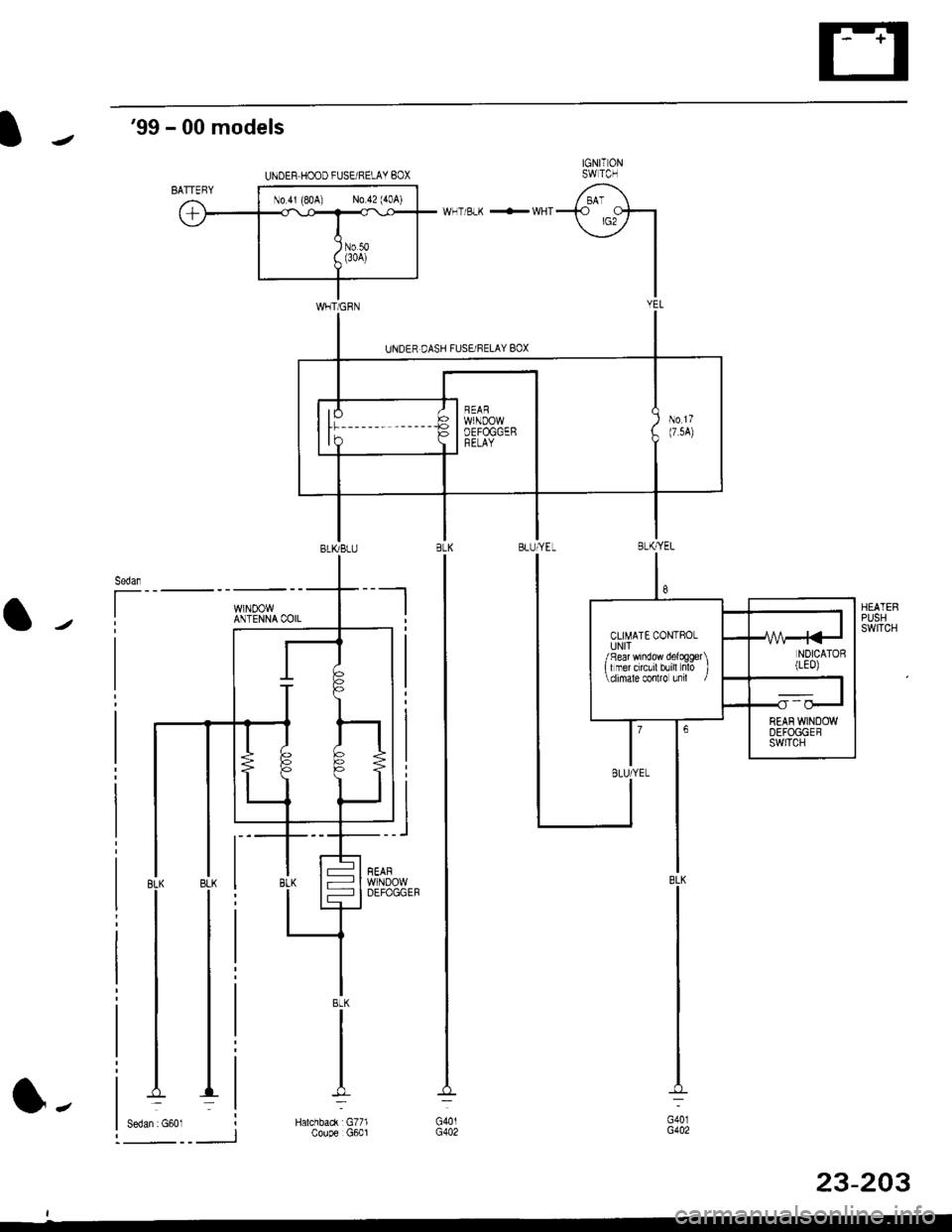

'99 - 00 models
IGNITONSWTCH
-fO Ctsr
\j7 |
I
I
WHT/BLK +WHT
HEATERPUSHswtTcH
BLK
G40lG402
BLK
G401G402
UNDER HOOD FUSEi RELAY BOX
No 4r (80A) No 42 (40A)
8
CLIMATE CONTROLUNIT/ R€ar window delogg€t \I I mer orcLril blill nlo J\climale conlro unil /
I{/\A-4<-INDICATOS(LE0)
II REAF WINDOWDEFOGGEBswtTcH7 16
,ll
23-203
l-

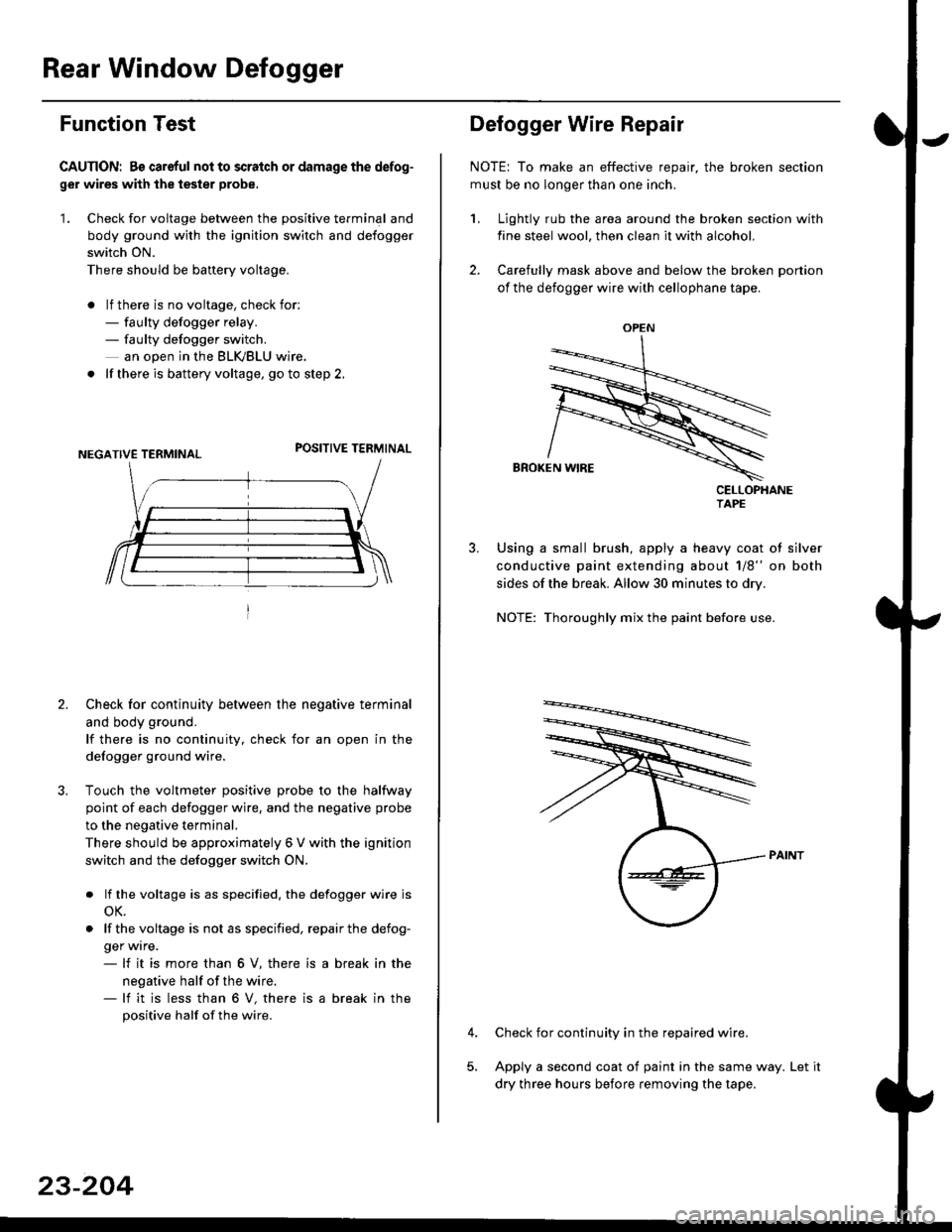

Rear Window Defogger
Function Test
CAUTION: Bs careful nol to scralch or damage the defog-
ger wires with the tester probe,
'1. Check for voltage between the positive terminal and
body ground with the ignition switch and defogger
switch ON.
There should be banery voltage.
. lf there is no voltage, check for:- faulty defogger relay.- faulty defogger switch.
an ooen in the BLK,/BLU wire.
. lf there is battery voltage, go to step 2.
POSITIVE TERMINAL
2. Check for continuity between the negative terminal
and body ground.
lf there is no continuity, check for an open in the
defogger ground wire.
Touch the voltmeter positive probe to the halfway
point of each defogger wire, and the negative probe
to the negative terminal.
There should be approximately 6 V with the ignition
switch and the defogger switch ON.
. lf the voltage is as specified. the defogger wire is
oK.
. lf thevoltage is not as specified, repairthe defog-
ger wrre.- lf it is more than 6 V, there is
negative half of the wire.- lf it is less than 6 V, there is
positive half of the wire.
a break in the
a break in the
23-204
OPEN
?
Defogger Wire Repair
NOTE: To make an effective repair, the broken section
must be no longer than one inch.
1, Lightly rub the area around the broken section with
fine steel wool, then clean it with alcohol.
2. Carefully mask above and below the broken portion
of the defogger wire with cellophane tape.
CELLOPHANETAPE
Using a small brush, apply a heavy coat of silver
conductive paint extending about 1/8" on both
sides of the break. Allow 30 minutes to dry.
NOTE: Thoroughly mix the paint before use.
Check for continuity in the repaired wire.
Apply a second coat of paint in the same way. Let it
dry three hours before removing the tape.

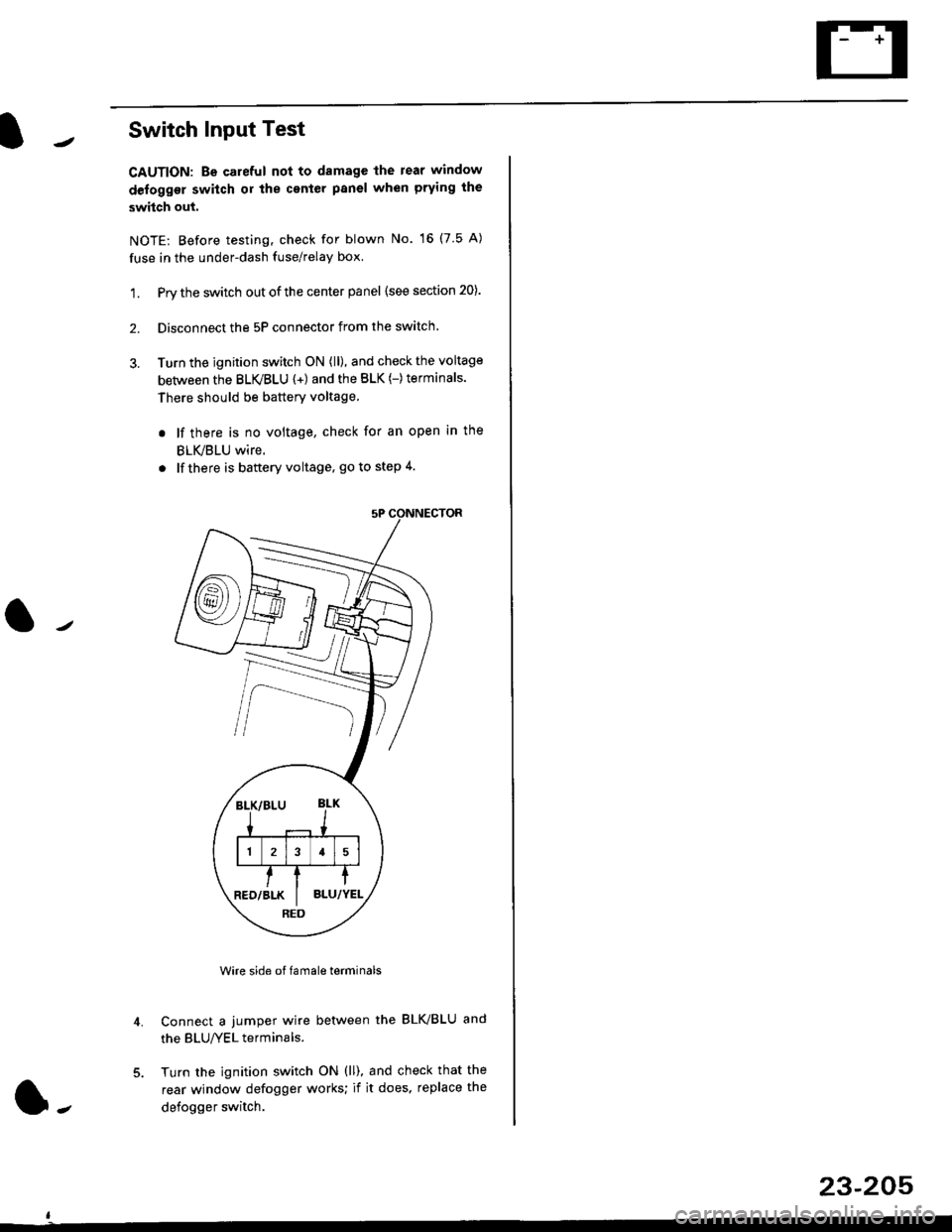

Switch Input Test
CAUTION: Be careful not to damagc the rear window
defogger switch or the center panel when prying the
switch out.
NOTE: Before testing, check for blown No. 16 (7.5 A)
fuse in the under-dash fuse/relay box,
1. Pry the switch out of the center panel (see section 20).
2. Disconnect the 5P connector from the switch.
3. Turn the jgnition switch ON (ll), and check the voltage
between the BLVBLU {+) and the BLK (-)terminals.
There should be battery voltage
. lf there is no voltage, check for an open in the
BLVBLU wire.
. lfthere is baftery voltage, go to step 4.
Wire side of famale terminals
connect a jumper wire between the BLK/BLU and
the BLU/YEL terminals.
Turn the ignition switch ON (ll), and check that the
rear window defogger works; if it does. replace the
defogger switch.
4.
RED
l-
23-205

Circuit Diagram (Without Defogger)
UNDER.HOOD FUSE]FELAY BOX
eo;T f-*---;',;r j-_l 6\
OF+-*'.v-f r'--;.' -"j-'a,_cy'
GN TIONSWITCH
UNDER DASHFUSEIRELAYBOX
BLK]YEL
) I dRGHT LEFTd I dFlGHr'f- -- ---\,
TT
I
I.t.olo
G551
23-207
(}-

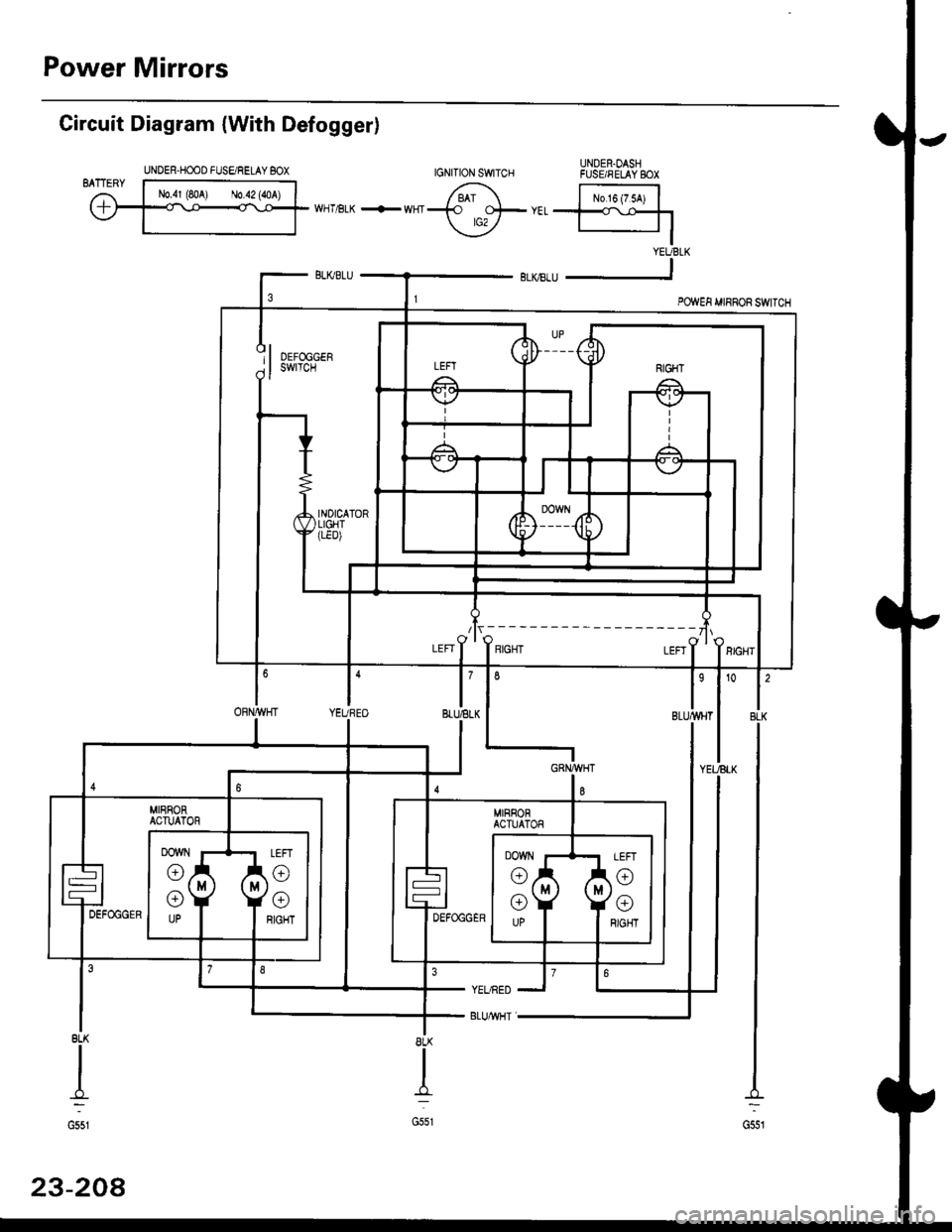

Power Mirrors
UNDER.OASHFUSE/FELAY BOX
Circuit Diagram {With Defogger)
BLK
G551
8LK
I
G551
YEURED
BLUMHT
8LK
II
-f,:
G551
23-208
UNDER-HOOD FUSE/RELAY BOX
/lr,---------- ---zlr
I'BLUELKl'YEUBEO
6
ORN/WHT
