HONDA CIVIC 2001 7.G Owners Manual

Û
Turn the audio system ON. Make
sure the tape opening on the cassette
is f acing to the right, then insert the
cassette most of the way into the slot.
The system will pull it in the rest of
the way, and begin to play. The tape direction indicator will light
to show you which side of the
cassette is playing. The indicates
thesideyouinsertedfacingupward
is now playing. If you want to play
the other side, press the PROG
button.
You can quickly set the time to the
nearest hour. If the displayed time is
bef ore the half hour, the clock is set
back to the previous hour by
pressing and holding the CLOCK
button, then pressing the RESET
(Preset 6) button. If the displayed
time is af ter the half hour, the clock
is set forward to the beginning of the
next hour.
1:06 would RESET to 1:00
1:52 would RESET to 2:00
For example:
Operating the Cassette Player
Audio System
Comf ort and Convenience Feat ures
132
RREEWWBBUUTTTTOONN
EEJJEECCTTBBUUTTTTOONN
AAMM//FFMMBBUUTTTTOONN
RREEPPEEAATTBBUUTTTTOONN
CCAASSSSEETTTTEESSLLOOTT
NNRRIINNDDIICCAATTOORR
PPLLAAYY//PPRROOGGBBUUTTTTOONN
CCDD//TTAAPPEEBBUUTTTTOONN
PPWWRR//VVOOLLKKNNOOBB
SSKKIIPPBBAARR
NNRRBBUUTTTTOONN
FFFFBBUUTTTTOONN

µ
µ
When the system reaches the end of
the tape, it will automatically reverse
direction and play the other side. If
you want to remove the cassette
f rom the drive, press the EJECT
button.
Dolby B noise reduction turns on
when you insert a cassette. If the
tape was not recorded with Dolby B
noise reduction, turn it of f by
pressing the button.
The Skip Function allows
you to f ind the beginning of a song
or passage. To f ind the beginning of
the song or passage currently
playing, push the lower part of the
SKIP bar. You will see REW f lashing
in the display as the tape rewinds. To
f ind the beginning of the next song,
push the upper part of the SKIP bar.
You will see FF f lashing in the
display as the tape f ast f orwards.
When the system finds the
beginning of a song or passage, it
goes back to PLAY mode.
If you turn the system of f while a
tape is playing, either with the PWR/
VOL knob or by turning of f the
ignition, the cassette will remain in
the drive. When you turn the system
back on, the tape will begin playing
where it lef t of f . To switch to the radio or optional CD
changer while listening to a tape,
press the AM/FM or CD/TAPE
button. To change back to the
cassette player, press the CD/TAPE
button.
Fast Forward and Re-
wind move the tape rapidly. To re-
wind the tape, push the REW button.
You will see REW in the display. To
fast forward the tape, push the FF
button. You will see FF displayed.
Press the PLAY button to take the
system out of rewind or f ast f orward.
If the system reaches the end of the
tape while in f ast f orward or rewind,
it automatically stops that function,
reverses direction, and begins to play.
With a cassette playing, you can use
the FF, REW, SKIP, or REPEAT
f unction to f ind a desired program.
CONT INUED
Audio System
Comf ort and Convenience Feat ures SK IP
FF/REW
T ape Search Functions
133

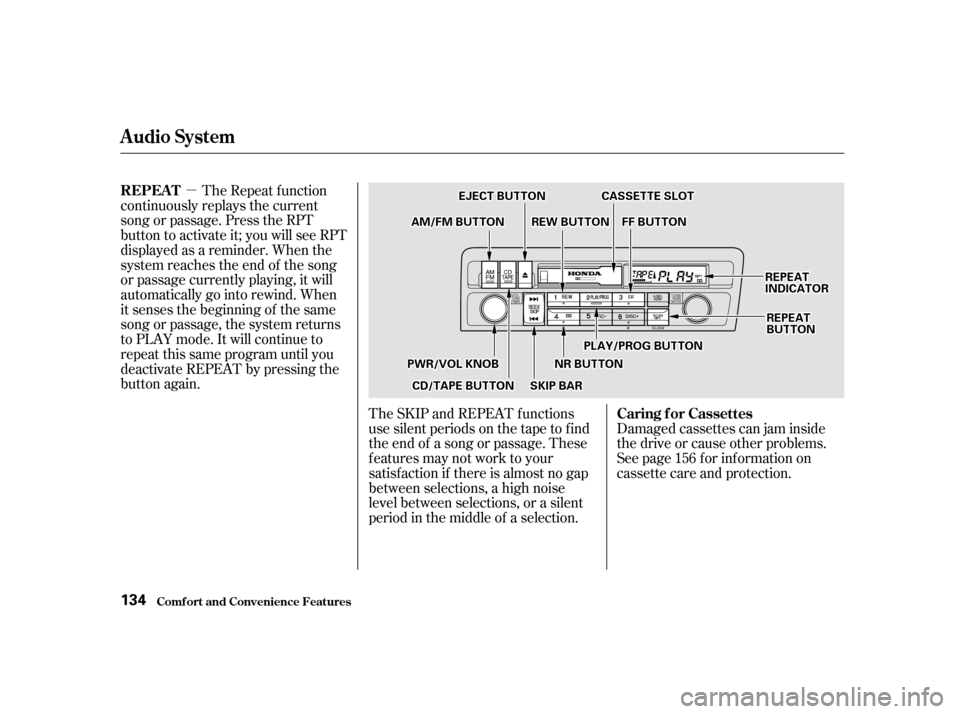

µThe Repeat f unction
continuously replays the current
song or passage. Press the RPT
button to activate it; you will see RPT
displayed as a reminder. When the
system reaches the end of the song
or passage currently playing, it will
automatically go into rewind. When
it senses the beginning of the same
song or passage, the system returns
to PLAY mode. It will continue to
repeat this same program until you
deactivate REPEAT by pressing the
button again.
The SKIP and REPEAT f unctions
use silent periods on the tape to f ind
the end of a song or passage. These
f eatures may not work to your
satisfaction if there is almost no gap
between selections, a high noise
level between selections, or a silent
period in the middle of a selection.Damaged cassettes can jam inside
the drive or cause other problems.
See page for information on
cassette care and protection.
156
Audio System
Comf ort and Convenience Feat ures
REPEAT
Caring f or Cassettes
134
FFFFBBUUTTTTOONNRREEWWBBUUTTTTOONN
EEJJEECCTTBBUUTTTTOONN
AAMM//FFMMBBUUTTTTOONN
RREEPPEEAATTIINNDDIICCAATTOORR
RREEPPEEAATTBBUUTTTTOONN
CCAASSSSEETTTTEESSLLOOTT
NNRRBBUUTTTTOONN
CCDD//TTAAPPEEBBUUTTTTOONNSSKKIIPPBBAARR
PPLLAAYY//PPRROOGGBBUUTTTTOONN
PPWWRR//VVOOLLKKNNOOBB

µµ
´´
CONT INUED
Your dealer also has an accessory in-
dash single CD player available that
is operated by the radio controls. To
operate this unit, use the instructions
(except f or those relating to multiple
discs) in this section.
A trunk-mounted Compact Disc
changer is available f or your dealer.
It holds up to six discs, providing
several hours of continuous
entertainment. You operate the CD
changer with the same controls used
f or the radio and cassette player.
To operate the CD changer or player,
the ignition must be in ACCESSORY
(I) or ON (II) and the audio system
must be on.
Audio System
Comf ort and Convenience Feat ures
Operating the Optional CD
Player/Changer
135
RRAANNDDOOMMIINNDDIICCAATTOORRAAMM//FFMMBBUUTTTTOONN
RREEPPEEAATTIINNDDIICCAATTOORR
PPWWRR//VVOOLLKKNNOOBB
RRAANNDDOOMMBBUUTTTTOONN
RREEPPEEAATTBBUUTTTTOONN
CCDD//TTAAPPEEBBUUTTTTOONN
SSEEEEKK//SSKKIIPPBBAARR
DDIISSCCBBUUTTTTOONN
DDIISSCCBBUUTTTTOONN

´µ´
µ
Press the CD/TAPE button. You will
see ‘‘CDC’’ in the display. The
system will start to play the f irst
track of the first disc. When that disc
ends, the next disc in the magazine
is loaded and played. Af ter the last
disc f inishes, the system returns to
disc 1.
To select a dif f erent disc, press the
DISC (Preset 6) or DISC
(Preset5)button.Thenextdiscin
the changer is loaded and played
when you press the DISC button.
DISC loads and plays the previous
disc. If you select an empty slot in
the magazine, the changer will, af ter
f inding that slot empty, try to load
the CD in the next slot. This
continues until it f inds a CD to load
and play.
Press the EJECT button to remove
the disc f rom the player.
If you eject the disc, but do not
remove it from the slot, the system
will automatically reload the disc
af ter 15 seconds and put the CD
player in pause mode. To begin
playing the disc, press the CD button.
Using the instructions that came
with the changer, load the desired
CDs in the magazine, and load the
magazine in the changer. Play only
standard round discs. Odd-shaped
CDs may jam in the drive or cause
other problems.
Insert the disc into the CD slot. Push
the disc in half way, the drive will pull
it in the rest of the way. Push the
CD/TAPE button and the disc will
start to play.
You will see the track number being
played in the display.
You can also play 3-inch (8-cm) discs
without using an adapter ring. In all
cases, play only standard round discs.
Odd-shaped CDs may jam in the
driveorcauseotherproblems.
When the system reaches the end of
the disc, it will return to the begin-
ning and play that disc again.
Audio System
Comf ort and Convenience Feat ures
CD Changer
CD Player
136

µµ

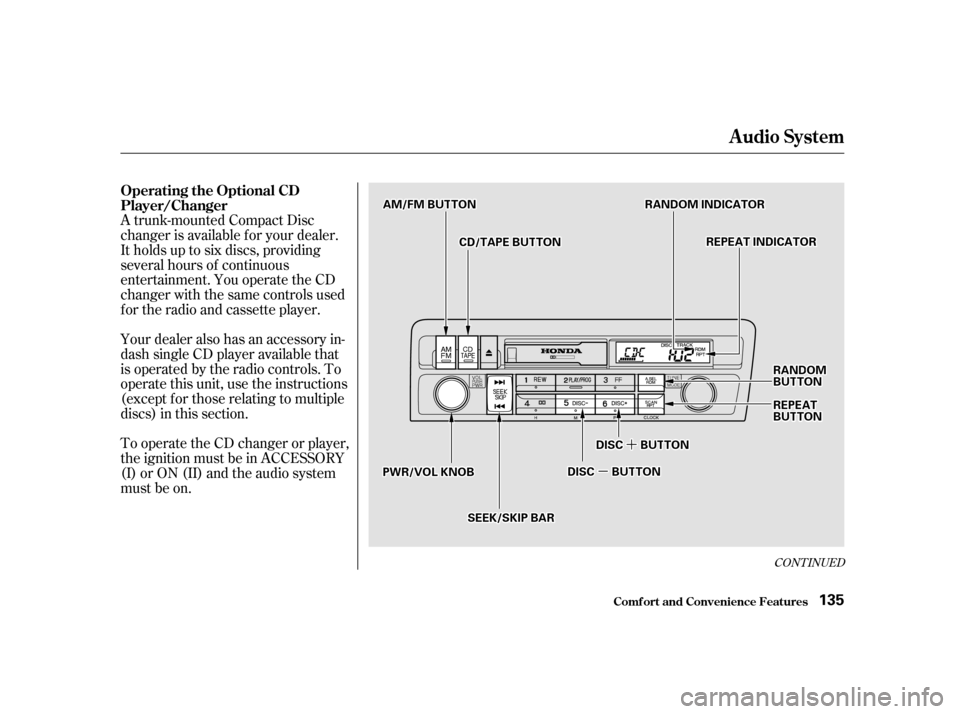

When you activate the
RepeatfeaturebypressingtheRPT
button, the system continuously
replays the current track. You will
see RPT in the display as a reminder.
Press the RPT button again to turn it
off.
This feature,
when activated, plays the tracks on a
CD in random order, rather than in
the order they are recorded on the
CD. To activate Random Play, press
the RDM button. You will see RDM
in the display. The system will then
select and play tracks randomly on
the current disc. When all tracks on
that disc have been played, the next
disc is loaded and played randomly.
This continues until you deactivate
RandomPlaybypressingtheRDM
button again.
If you push and hold the SEEK/
SKIP bar, the system will continue to
move across tracks. Release the bar
when you think it has reached the
desired place on the disc.
You can use the SEEK/SKIP bar to
select tracks within a disc. If you
press and release the SEEK/SKIP
bar, the system will move to the
beginning of a track. Press the
side to move to the beginning
of the next track, and the side
to move to the beginning of the
current track. To take the system out of CD mode,
press the AM/FM button or insert a
cassette in the player. If a tape is
already in the cassette player, press
the CD/TAPE button. When you
return to CD mode, play will contin-
ue at the same point that it left off.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or the ignition switch, play will
continue at the same point when you
turn it back on.
For inf ormation on how to handle
and protect compact discs, see page
.
For inf ormation, See page .
For inf ormation, See page . 151152
150
Audio System
Comf ort and Convenience Feat ures
REPEAT
RANDOM PLAY
Protecting Compact Discs
CD Player Error Indications
CD Changer Error Indications
CD Player and Changer
137

The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
Your Honda’s audio system provides
clear reception on both AM and FM
bands, while the preset buttons allow
you to easily select your f avorite
stations.
The anti-thef t f eature will disable the
system if it is disconnected f rom the
car’s battery. To get the system
working again, you must enter a
code number (see page ).
The ignition switch must be in
ACCESSORY (I) or ON (II) to
operate the audio system. Turn the
system on by pushing the PWR/
VOL knob. Adjust the volume by
turning the same knob.
157
For EX model in the U.S., and LX model
in Canada
Audio System
Comf ort and Convenience Feat ures

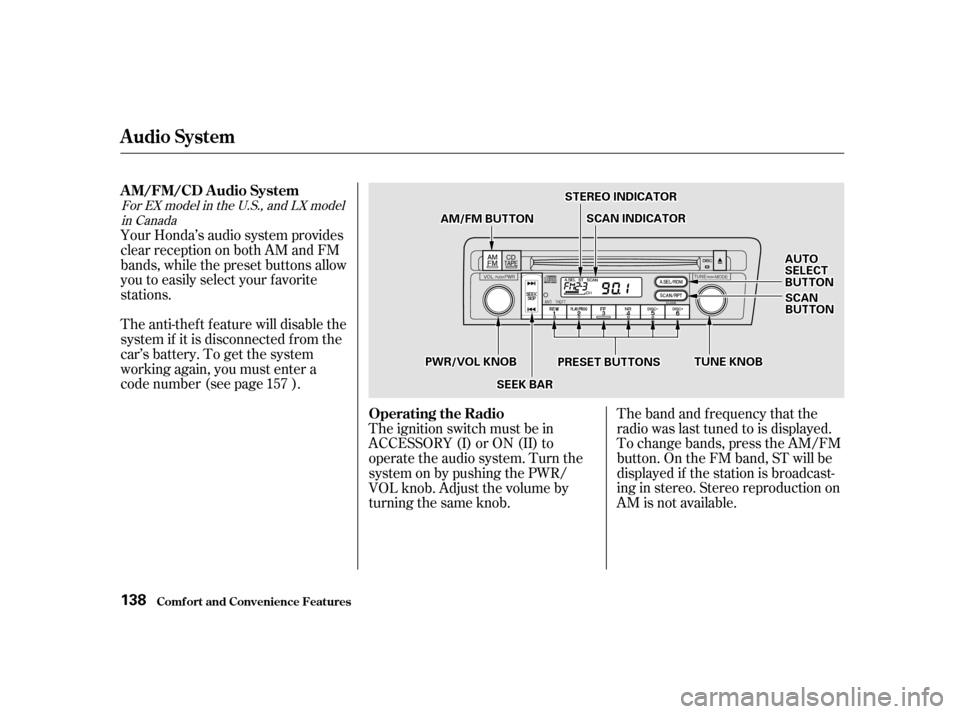

AM/FM/CD Audio System
Operating the Radio
138
SSTTEERREEOOIINNDDIICCAATTOORR
PPRREESSEETTBBUUTTTTOONNSS
AAMM//FFMMBBUUTTTTOONN
SSEEEEKKBBAARR
AAUUTTOOSSEELLEECCTTBBUUTTTTOONN
TTUUNNEEKKNNOOBBPPWWRR//VVOOLLKKNNOOBB
SSCCAANNIINNDDIICCAATTOORR
SSCCAANNBBUUTTTTOONN

µµµ
CONT INUED
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob clockwise to tune to a
higher f requency, or
counterclockwise to tune to a lower
f requency.
You can use any of f ive methods to
find radio stations on the selected
band: TUNE, SEEK, SCAN, AUTO
SELECT, and the Preset buttons.
To change the f requency rapidly,
press and hold the top or bottom of
theSEEKbar.Releasethebarwhen
the display reaches the desired
f requency. Depending on which part
of the bar you press, the system
scans upward or downward f rom the
current f requency. The SEEK f unction
searches the band for a station with
a strong signal. To activate it, press
and release the top or bottom of the
SEEK bar. Depending on which part
of the bar you press, the system
scans upward or downward f rom the
current f requency. It stops when it
finds a station with a strong signal. The SCAN f unction
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. The system will scan
up the band for a station with a
strong signal. When it f inds one, it
will stop and play that station f or
approximately f ive seconds. If you do
nothing, the system will then scan
f or the next strong station and play
that f or f ive seconds. When it plays a
station that you want to continue
listening to, press the SCAN button
again.
Audio System
Comf ort and Convenience Feat ures
TUNE
SEEK SCA N
139

µ
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
on FM.
Pick the Preset button you want
for that station. Press the button
and hold it until you hear a beep.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each Preset
button.
To store a f requency:
Once a station’s frequency is stored,
simply press and release the proper
preset button to tune to it.
The preset f requencies will be lost if
your car’s battery goes dead, is
disconnected, or the radio f use is
removed.
You can store the
f requencies of your f avorite radio
stations in the six preset buttons.
Each button will store one f requency
on the AM band, and two
f requencies on the FM band.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
1. 2. 3.4.
Audio System
Comf ort and Convenience Feat ures
Preset 140
AAMM//FFMMBBUUTTTTOONN
TTUUNNEEBBAARR
SSTTEERREEOOIINNDDIICCAATTOORR
SSCCAANNIINNDDIICCAATTOORR
SSEEEEKKBBAARRPPRREESSEETTBBUUTTTTOONNSS
AAUUTTOOSSEELLEECCTTBBUUTTTTOONN
SSCCAANNBBUUTTTTOONN
PPWWRR//VVOOLLKKNNOOBB

µIf you are
traveling far from home and can no
longer receive the stations you
preset, you can use the Auto Select
feature to find stations in the local
area.
To activate Auto Select, press the
A. SEL button. A. SEL will f lash in
the display, and the system will go
into scan mode f or several seconds.
It automatically scans both bands,
looking f or stations with strong
signals. It stores the f requencies of
six AM stations and twelve FM
stations in the preset buttons. You
can then use the preset buttons to
select those stations. Auto Select does not erase the
f requencies that you preset pre-
viously. When you return home, turn
of f Auto Select by pressing the
A. SEL button. The preset buttons
will then select the f requencies you
originally set.
If you are in a remote area, Auto
Select may not f ind six strong AM
stations or twelve strong FM stations.
If this happens, you will see a ‘‘0’’
displayed when you press any preset
button that does not have a station
stored. If you do not like the stations Auto
Select has stored, you can store
other f requencies in the preset
buttons. Use the TUNE, SEEK, or
SCAN f unction to f ind the desired
f requencies, then store them in the
selected preset buttons as described
previously.
AUTO SELECT
Audio System
Comf ort and Convenience Feat ures
141
AAMM//FFMMBBUUTTTTOONN
TTUUNNEEBBAARRSSEEEEKKBBAARRPPRREESSEETTBBUUTTTTOONNSS
AAUUTTOOSSEELLEECCTTBBUUTTTTOONN
SSCCAANNBBUUTTTTOONN
AAUUTTOOSSEELLEECCTTIINNDDIICCAATTOORR
PPWWRR//VVOOLLKKNNOOBB
