HONDA CIVIC 2001 7.G Owners Manual

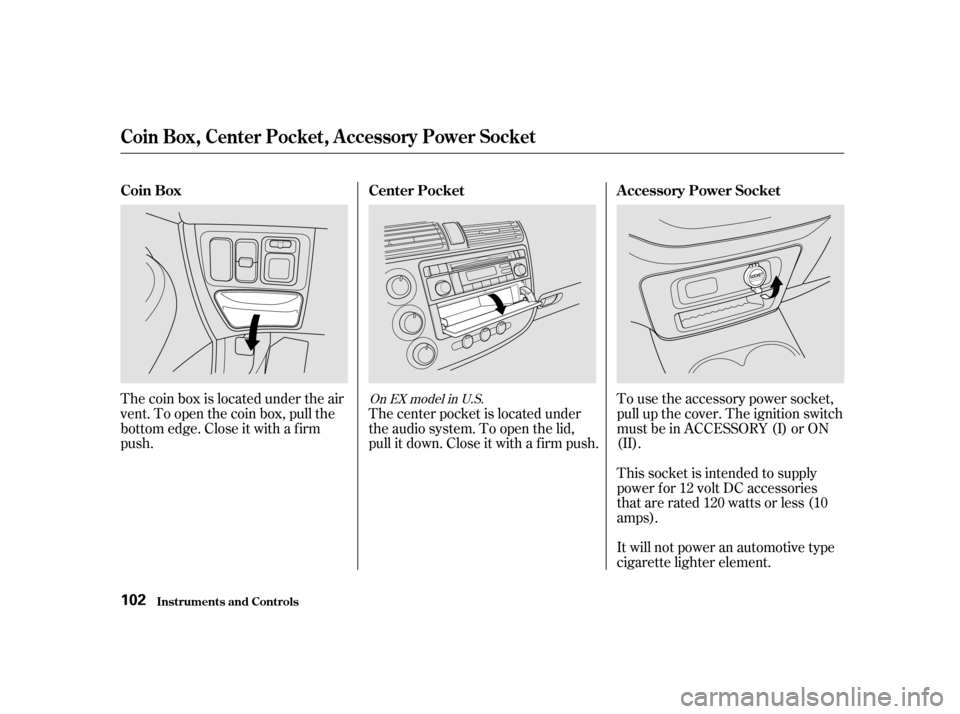

The coin box is located under the air
vent. To open the coin box, pull the
bottom edge. Close it with a f irm
push.The center pocket is located under
the audio system. To open the lid,
pull it down. Close it with a f irm push.To use the accessory power socket,
pull up the cover. The ignition switch
must be in ACCESSORY (I) or ON
(II).
This socket is intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
It will not power an automotive type
cigarette lighter element.On EX model in U.S.
Coin Box, Center Pocket, A ccessory Power Socket
CoinBox CenterPocket AccessoryPowerSocket
Inst rument s and Cont rols
102

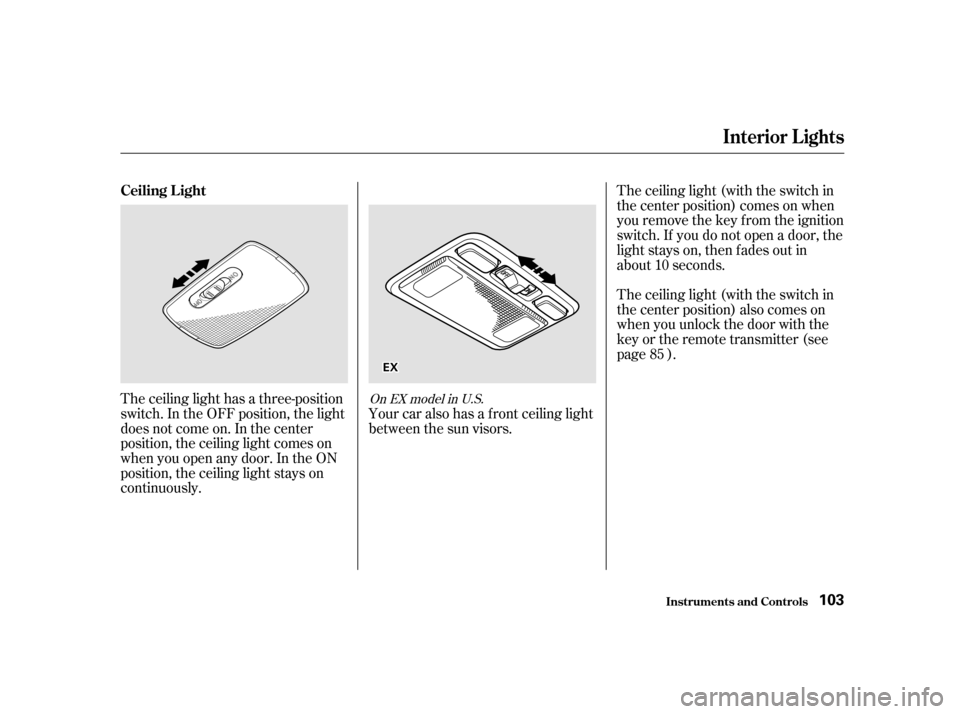

The ceiling light has a three-position
switch. In the OFF position, the light
does not come on. In the center
position, the ceiling light comes on
when you open any door. In the ON
position, the ceiling light stays on
continuously.The ceiling light (with the switch in
the center position) comes on when
you remove the key f rom the ignition
switch. If you do not open a door, the
light stays on, then f ades out in
about 10 seconds.
Your car also has a f ront ceiling light
between the sun visors. The ceiling light (with the switch in
the center position) also comes on
when you unlock the door with the
key or the remote transmitter (see
page ).
85On EX model in U.S.
Ceiling L ight
Interior Lights
Inst rument s and Cont rols 103
EEXX

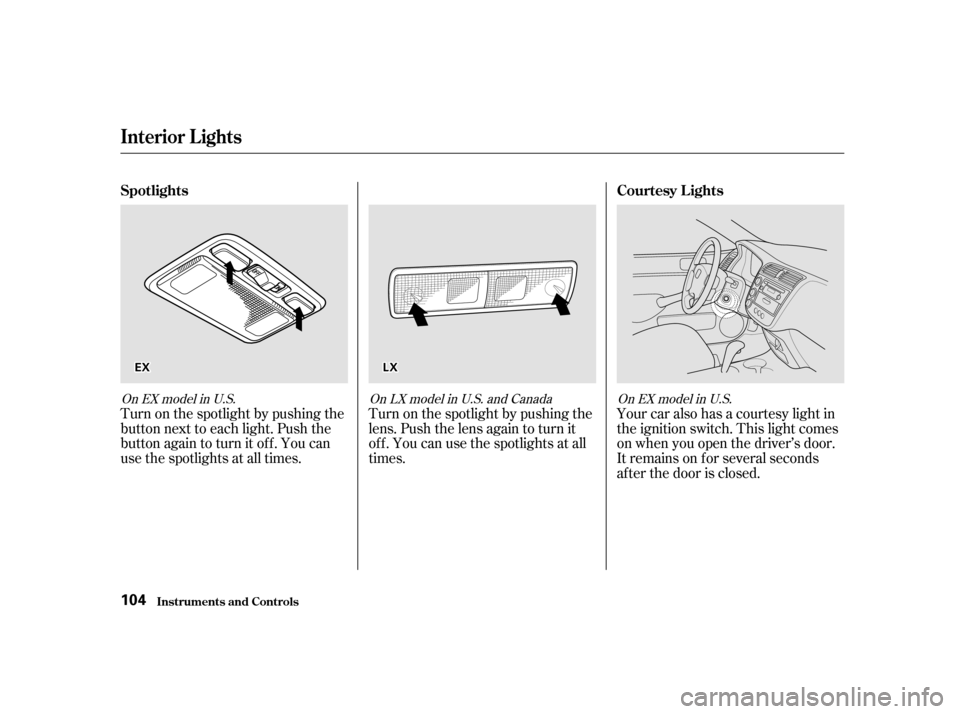

Turn on the spotlight by pushing the
button next to each light. Push the
button again to turn it off. You can
use the spotlights at all times.Your car also has a courtesy light in
the ignition switch. This light comes
on when you open the driver’s door.
It remains on f or several seconds
af ter the door is closed.
Turn on the spotlight by pushing the
lens. Push the lens again to turn it
of f . You can use the spotlights at all
times.
On EX model in U.S.
On EX model in U.S.
On LX model in U.S. and Canada
Interior Lights
Spotlights Courtesy L ights
Inst rument s and Cont rols
104
EEXXLLXX

Î
Î
The heating and air conditioning
systems in your Honda provide a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section de-
scribes those f eatures and how to
use them. (If you selected an
optional audio system, ref er to the
operating instructions that came
with it.)
.....................
Heating and Cooling . 106
.........
What Each Control Does . 106
............
How to Use the System . 108
..........
To Turn Everything Of f . 113
Audio System (U.S. and ........................
Canadian DX) . 114
.................
Operating the Radio . 114
.................
Adjusting the Sound . 118
............
Audio System Lighting . 119
..............................
Digital Clock . 119
Operating the Optional Cassette
.....................................
Player . 120
............
Tape Search Functions . 121
Operating the Optional
.............
CD Player/Changer . 123
...............
Audio System (U.S. LX) . 126
.................
Operating the Radio . 126
.................
Adjusting the Sound . 130
............
Audio System Lighting . 131
..............................
Digital Clock . 131
Operating the Cassette
.....................................
Player . 132
............
Tape Search Functions . 133
Operating the Optional
.............
CD Player/Changer . 135 Audio System (U.S. EX and
........................
Canadian LX) . 138
.................
Operating the Radio . 138
.................
Adjusting the Sound . 142
............
Audio System Lighting . 143
..............................
Digital Clock . 143
....................
Radio Frequencies . 144
........................
Radio Reception . 145
.........
Operating the CD Player . 147
.....
Operating the CD Changer . 149
.......
Protecting Compact Discs . 150
....
CD Player Error Indications . 151
CD Changer Error
.............................
Indications . 152
Operating the Cassette .....................................
Player . 153
............
Tape Search Functions . 154
Caring f or the Cassette
.....................................
Player . 156
.......................
Thef t Protection . 157
Air conditioning is standard on LX
andEXmodelsintheU.S.,andLX
model in Canada. It is optional on
other models.
Comf ort and Convenience Features
Comf ort and Convenience Feat ures 105

Proper use of the Heating and
Cooling system can make the
interior dry and comf ortable, and
keep the windows clear f or best
visibility.
If your car does not have air
conditioning, it can be installed at
any time. Your dealer can install a
genuine Honda air conditioning
system that meets Honda’s high
quality standards and is designed to
exactly f it your car. Please contact
your dealer f or more inf ormation.

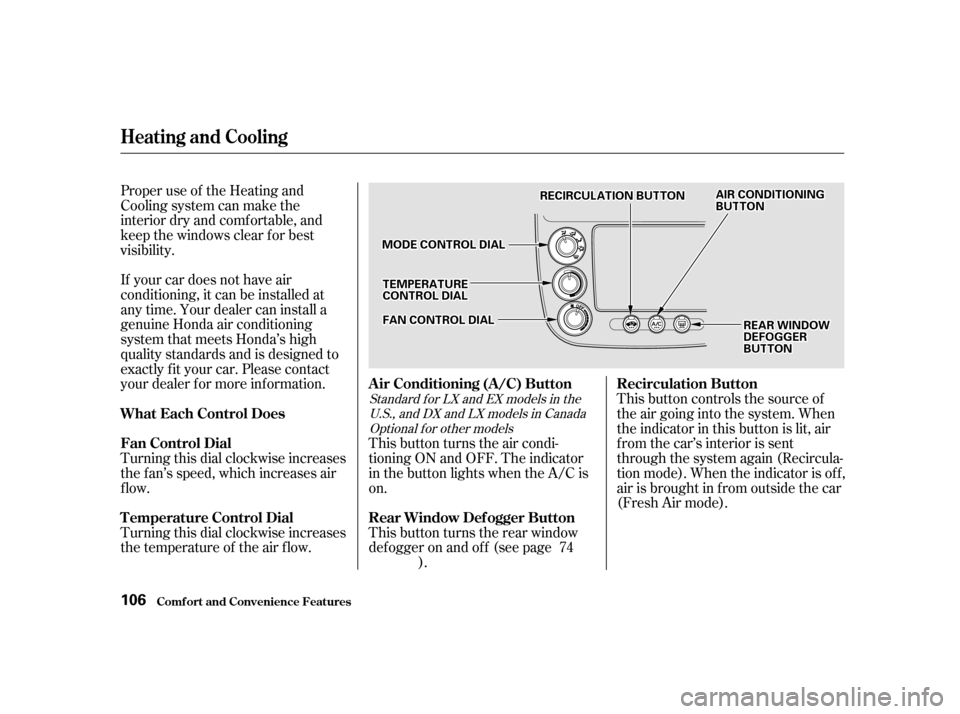

Turning this dial clockwise increases
the f an’s speed, which increases air
flow.This button controls the source of
the air going into the system. When
the indicator in this button is lit, air
from the car’s interior is sent
through the system again (Recircula-
tion mode). When the indicator is off,
air is brought in f rom outside the car
(Fresh Air mode).
Turning this dial clockwise increases
the temperature of the air flow. This button turns the air condi-
tioning ON and OFF. The indicator
in the button lights when the A/C ison.
This button turns the rear window
def ogger on and of f (see page
). 74
Standard f or LX and EX models in the
U.S., and DX and LX models in CanadaOptional f or other models
Comf ort and Convenience Feat ures
Heating and Cooling
Recirculation Button
What Each Control Does
Fan Control Dial
T emperature Control Dial Air Conditioning (A/C) Button
Rear Window Def ogger Button
106
AAIIRRCCOONNDDIITTIIOONNIINNGGBBUUTTTTOONN
MMOODDEECCOONNTTRROOLLDDIIAALL
RREECCIIRRCCUULLAATTIIOONNBBUUTTTTOONN
RREEAARRWWIINNDDOOWWDDEEFFOOGGGGEERRBBUUTTTTOONN
FFAANNCCOONNTTRROOLLDDIIAALL
TTEEMMPPEERRAATTUURREECCOONNTTRROOLLDDIIAALL

Air f lows f rom the def roster
vents at the base of the windshield. Air f low is divided between
the f loor vents and the def roster
vents at the base of the windshield. Air f lows f rom the f loor
vents. Air f low is divided between
the vents in the dashboard and the
f loor vents. Air flows from the center
and corner vents in the dashboard.
Use the MODE control dial to select
the vents the air flows from. Some
air will f low f rom the dashboard
vents in all modes.
When you select , the system
automatically switches to Fresh Air
mode.When you select or ,
the system automatically switches to
Fresh Air mode and turns on the
A/C.
Heating and Cooling
Comf ort and Convenience Feat ures
Mode Control Dial
107

This section covers how to set up the
system controls f or ventilation,
heating, cooling, dehumidif ying, and
def rosting.
The engine must be running f or the
heater and air conditioning to
generate hot and cold air. The heater
uses engine coolant to warm the air.
If the engine is cold, it will be several
minutes bef ore you f eel warm air
coming from the system.

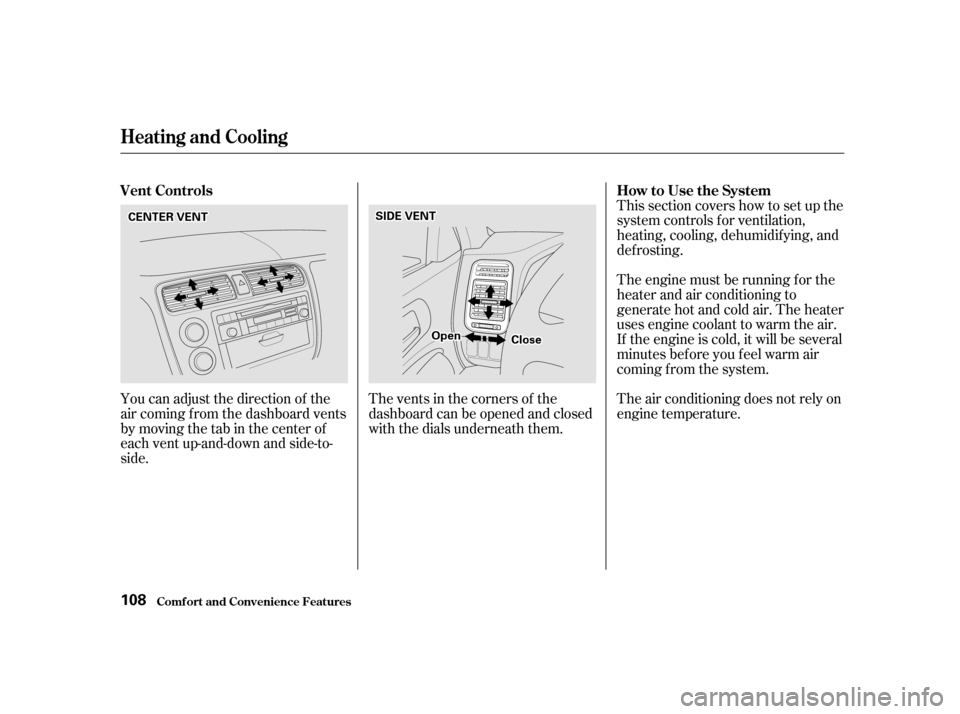

You can adjust the direction of the
air coming f rom the dashboard vents
by moving the tab in the center of
each vent up-and-down and side-to-
side. The air conditioning does not rely on
engine temperature.
The vents in the corners of the
dashboard can be opened and closed
with the dials underneath them.
Heating and Cooling
Comf ort and Convenience Feat ures
Vent Controls
How to Use the System
108
CCEENNTTEERRVVEENNTTSSIIDDEEVVEENNTT
OOppeennCClloossee

The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep
these clear of leaves and other
debris.The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window.
It is best to leave the system in Fresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to Recirculation mode when
you are driving through smoky or
dusty conditions, then switch back to
Fresh Air mode when the condition
clears.
Turn the temperature control dial
all the way to the lef t.
Make sure the A/C is of f .
Select and Fresh Air mode.
Set the f an to the desired speed.
1. 2. 3.
CONT INUED
Heating and Cooling
Comf ort and Convenience Feat ures
Vent ilat ion
109
AAIIRRCCOONNDDIITTIIOONNIINNGGBBUUTTTTOONN
MMOODDEECCOONNTTRROOLLDDIIAALL
TTEEMMPPEERRAATTUURREECCOONNTTRROOLLDDIIAALL
FFAANNCCOONNTTRROOLLDDIIAALL
RREECCIIRRCCUULLAATTIIOONNBBUUTTTTOONN
RREEAARRWWIINNDDOOWWDDEEFFOOGGGGEERRBBUUTTTTOONN

When the interior has cooled down
to a more comf ortable temperature,
close the windows and set the
controls as described f or normal
cooling.Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
) when driving in stop-and-go
traf f ic or climbing a long, steep hill.
If it moves near the red zone, turn
of f the A/C until the gauge reads
normally.
If the interior is very warm f rom
beingparkedinthesun,youcancool
it down more rapidly by setting up
the controls this way: Turn on the A/C by pressing the
button. The light in the button
comesonwhenafanspeedis
selected.
Make sure the temperature
control dial is all the way to the left.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed.
Start the engine.
Turn on the A/C by pressing the
button. Make sure the tempera-
ture control dial is turned all the
way to the left.
Set the f an to maximum speed.
Open the windows partially. Select
and Fresh Air mode.
1.2. 3. 4.
1. 2. 3. 4. 5.
68
Comf ort and Convenience Feat ures
Heating and Cooling
T o Cool wit h A /C
110
AAIIRRCCOONNDDIITTIIOONNIINNGGBBUUTTTTOONN
MMOODDEECCOONNTTRROOLLDDIIAALL
TTEEMMPPEERRAATTUURREECCOONNTTRROOLLDDIIAALL
FFAANNCCOONNTTRROOLLDDIIAALL
RREECCIIRRCCUULLAATTIIOONNBBUUTTTTOONN
RREEAARRWWIINNDDOOWWDDEEFFOOGGGGEERRBBUUTTTTOONN

To warm the interior:Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.To remove f og f rom the inside of the
windows:
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).
Start the engine.
Select and Fresh Air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial. Switch the f an on.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature control
dial so the mixture of heated and
cooled air f eels comf ortable.Switch the f an on.
Select .
When you select , the
system automatically switches to
Fresh Air mode and turns on the
A/C.
Adjust the temperature control
dial so the air flow from the
def roster vents f eels warm.
Turn on the rear window def ogger
to help clear the rear window.
When you switch to another mode
f rom , the A/C stays on.
PresstheA/Cbuttontoturnitoff.
1.2.3.4.
1.2.3.4.1.2. 3. 4.
CONT INUED
Heating and Cooling
Comf ort and Convenience Feat ures
T o Heat T o Heat and Dehumidif y wit h A ir
Condit ioningT o Def og and Def rost
111
