µYou can insert or
remove the key only in this position.
To switch f rom ACCESSORY to
LOCK, you must push the key in
slightly as you turn it. If your car has
an automatic transmission, the shif t
lever must also be in Park. The anti-
thef t lock will lock the steering
column when you remove the key.
If the f ront wheels are turned, the
anti-thef t lock may sometimes make
it difficult to turn the key from
LOCK to ACCESSORY. Firmly turn
the steering wheel to the lef t or to
the right as you turn the key.
The ignition switch is on the right
side of the steering column. It has
f our positions:
LOCK(0)
 ACCESSORY (I)
 ON (II)
 START (III)
Inst rument s and Cont rols
Keys and Locks
LOCK (0)
Ignition Switch 82 Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control.
Remove the key from the
ignition switch only whenparked.

µ
µ µ
In this position,
you can operate the audio system
and the accessory power socket.
This is the normal key
position when driving. All f eatures
and accessories on the car are usable.
Several of the lights on the instru-
ment panel come on as a test when
you turn the ignition switch f rom
ACCESSORY to ON.
Each door has a lock tab on the top.
Push the tab down to lock the door
andpullituptounlock.
To lock any passenger’s door when
getting out of the car, push the lock
tab down and close the door. To lock
the driver’s door, pull the outside
door handle and push the lock tab
down. Release the handle, then close
the door.
Use this position
only to start the engine. The switch
returns to ON (II) when you let go of
the key.
The engine will not start if the
Immobilizer System does not
recognize the key’s coding (see page ).
You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or
ACCESSORY (I) position and open
thedriver’sdoor.Removethekeyto
turn of f the beeper. 80
CONT INUED
Keys and Locks
Inst rument s and Cont rols
A CCESSORY (I)
ON (II)
Door L ocks
ST A RT (III)
83

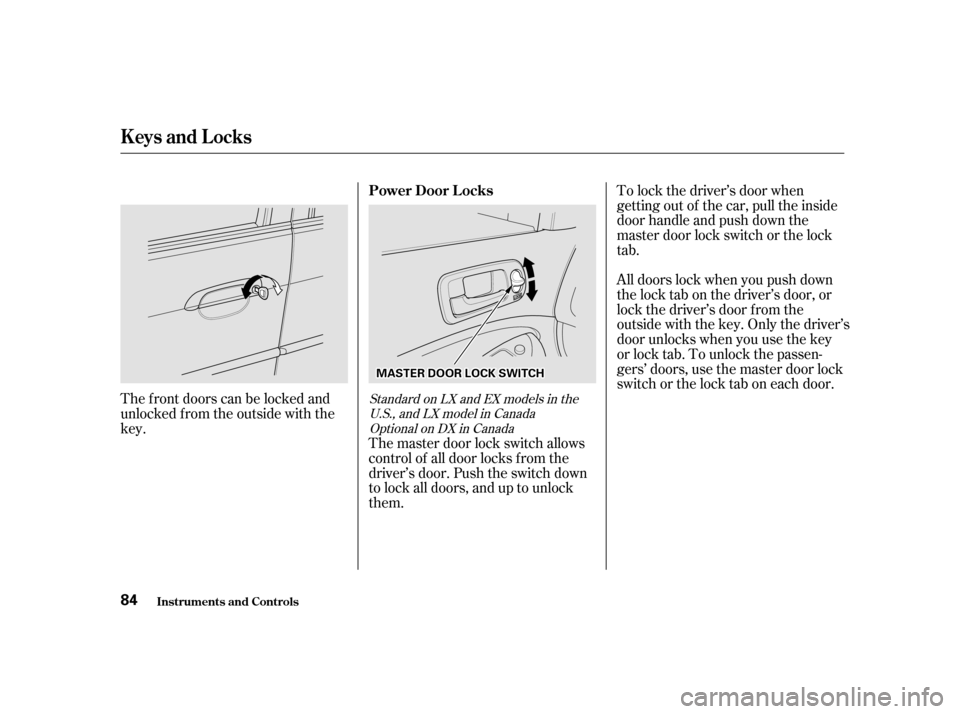

The master door lock switch allows
control of all door locks f rom the
driver’s door. Push the switch down
to lock all doors, and up to unlock
them.
The f ront doors can be locked and
unlocked f rom the outside with thekey. To lock the driver’s door when
getting out of the car, pull the inside
door handle and push down the
master door lock switch or the lock
tab.
All doors lock when you push down
the lock tab on the driver’s door, or
lock the driver’s door f rom the
outside with the key. Only the driver’s
door unlocks when you use the key
or lock tab. To unlock the passen-
gers’ doors, use the master door lock
switch or the lock tab on each door.
Standard on LX and EX models in the
U.S., and LX model in CanadaOptional on DX in Canada
Keys and Locks
Inst rument s and Cont rols Power Door L ocks
84
MMAASSTTEERRDDOOOORRLLOOCCKKSSWWIITTCCHH

CONT INUED

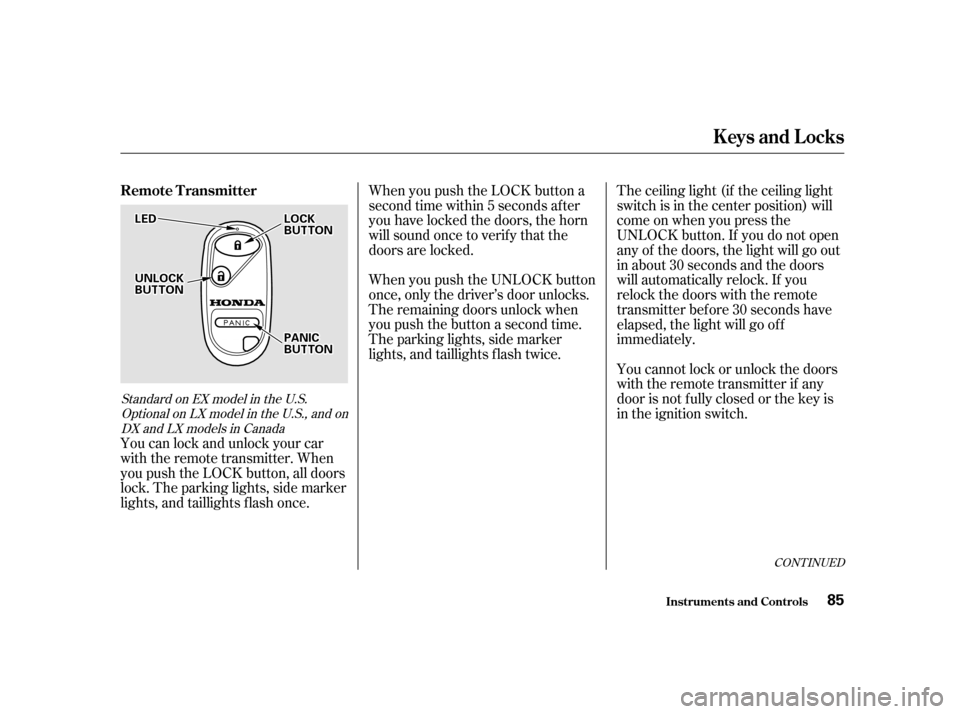

You can lock and unlock your car
with the remote transmitter. When
you push the LOCK button, all doors
lock. The parking lights, side marker
lights, and taillights f lash once.When you push the LOCK button a
second time within 5 seconds after
you have locked the doors, the horn
will sound once to verify that the
doors are locked.
When you push the UNLOCK button
once, only the driver’s door unlocks.
The remaining doors unlock when
you push the button a second time.
The parking lights, side marker
lights, and taillights f lash twice.
The ceiling light (if the ceiling light
switch is in the center position) will
come on when you press the
UNLOCK button. If you do not open
any of the doors, the light will go out
in about 30 seconds and the doors
will automatically relock. If you
relock the doors with the remote
transmitter before 30 seconds have
elapsed, the light will go of f
immediately.
You cannot lock or unlock the doors
with the remote transmitter if any
door is not f ully closed or the key is
in the ignition switch.
Standard on EX model in the U.S.
Optional on LX model in the U.S., and onDX and LX models in Canada
Remote Transmitter
Keys and Locks
Inst rument s and Cont rols 85
LLEEDD
UUNNLLOOCCKKBBUUTTTTOONN
LLOOCCKKBBUUTTTTOONN
PPAANNIICCBBUUTTTTOONN

´

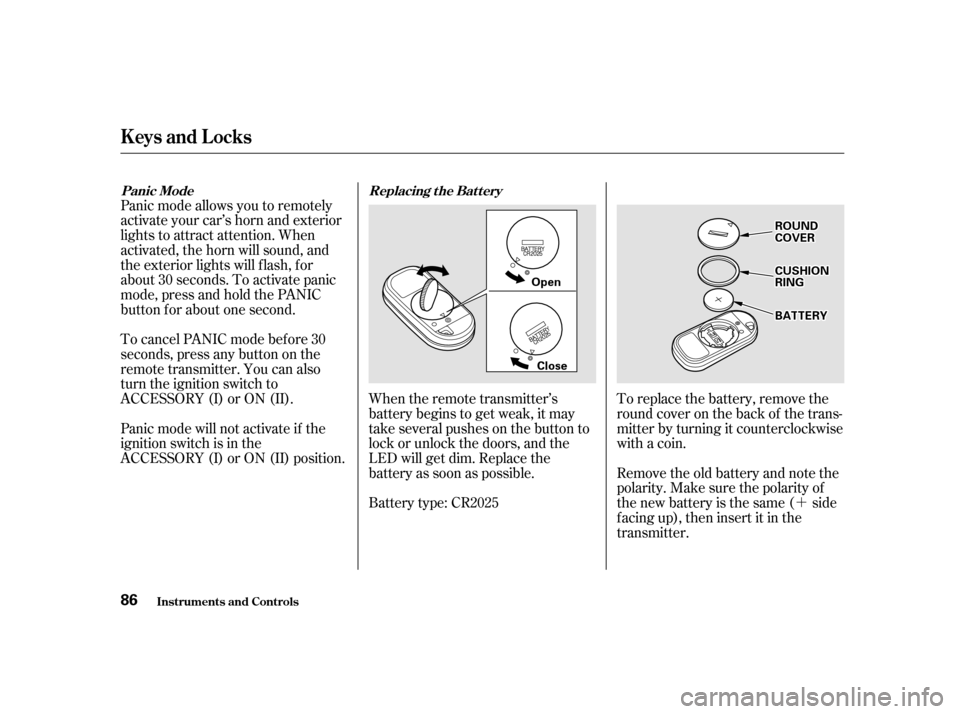

To replace the battery, remove the
round cover on the back of the trans-
mitter by turning it counterclockwise
with a coin.
Remove the old battery and note the
polarity. Make sure the polarity of
the new battery is the same ( side
f acing up), then insert it in the
transmitter.
When the remote transmitter’s
battery begins to get weak, it may
take several pushes on the button to
lock or unlock the doors, and the
LED will get dim. Replace the
battery as soon as possible.
Battery type: CR2025
Panic mode allows you to remotely
activate your car’s horn and exterior
lights to attract attention. When
activated, the horn will sound, and
the exterior lights will f lash, f or
about 30 seconds. To activate panic
mode,pressandholdthePANIC
button f or about one second.
To cancel PANIC mode bef ore 30
seconds, press any button on the
remote transmitter. You can also
turn the ignition switch to
ACCESSORY (I) or ON (II).
Panic mode will not activate if the
ignition switch is in the
ACCESSORY (I) or ON (II) position.
Inst rument s and Cont rols
Keys and Locks
Replacing the Battery
Panic Mode
86
OOppeenn
CClloossee
RROOUUNNDDCCOOVVEERR
CCUUSSHHIIOONNRRIINNGG
BBAATTTTEERRYY

Ü Õ
As required by the FCC:This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesired
operation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Avoid severe shock to the trans-
mitter, such as dropping or throwing
it. Also, protect it f rom extreme hot
or cold temperatures.
Clean the transmitter case with a
sof t cloth. Do not use strong
cleaners or solvents that could harm
the case. Immersing the transmitter
in any liquid will harm the trans-
mitter and cause it to not f unction
properly.
If you lose a transmitter, you will
need to have the replacement
programmed to your car’s system by
your Honda dealer. Any other
transmitters you have will also need
to be reprogrammed.
Reinstall the cushion ring. Align the
mark on the cover with the
mark on the transmitter,
thensetthecoverinplaceandturnit
clockwise.
Keys and Locks
Inst rument s and Cont rols
Transmitter Care
87

To close the trunk, press down on
the trunk lid.
See page f or cargo loading and
weight limit inf ormation. Keep the
trunk lid closed at all times while
driving to avoid damaging the lid,
and to prevent exhaust gas from
getting into the interior. Seeon page .

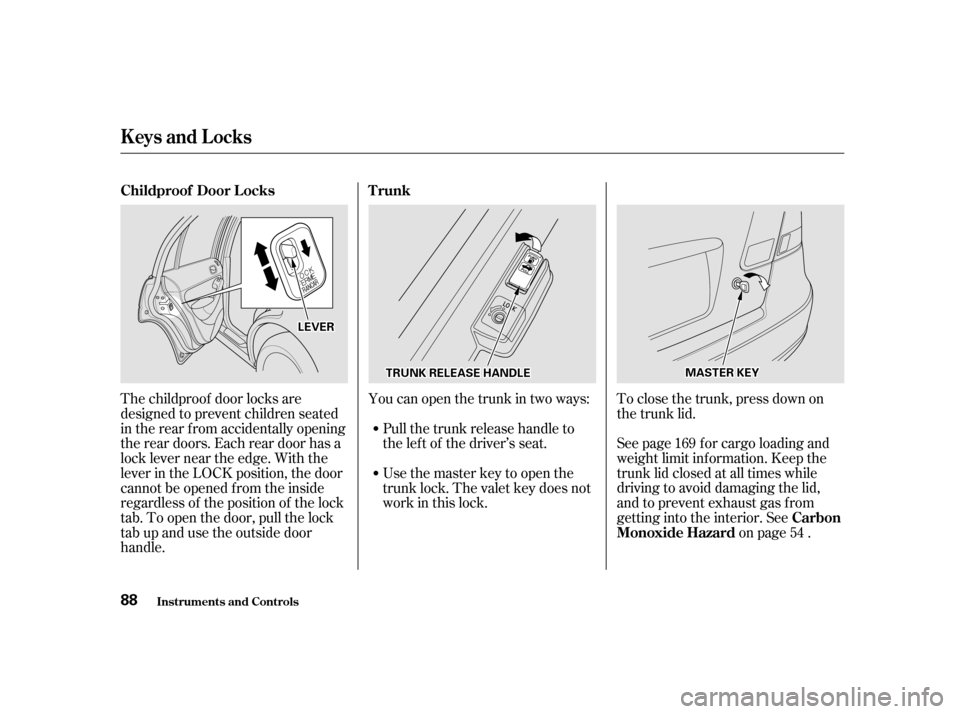

Youcanopenthetrunkintwoways:
Pull the trunk release handle to
the lef t of the driver’s seat.
Usethemasterkeytoopenthe
trunk lock. The valet key does not
work in this lock.
The childproof door locks are
designed to prevent children seated
in the rear f rom accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position, the door
cannot be opened f rom the inside
regardless of the position of the lock
tab. To open the door, pull the lock
tab up and use the outside door
handle.
169
54
Keys and Locks
Inst rument s and Cont rols Trunk
Carbon
Monoxide Hazard
Childproof Door L ocks
88
TTRRUUNNKKRREELLEEAASSEEHHAANNDDLLEEMMAASSTTEERRKKEEYY
LLEEVVEERR

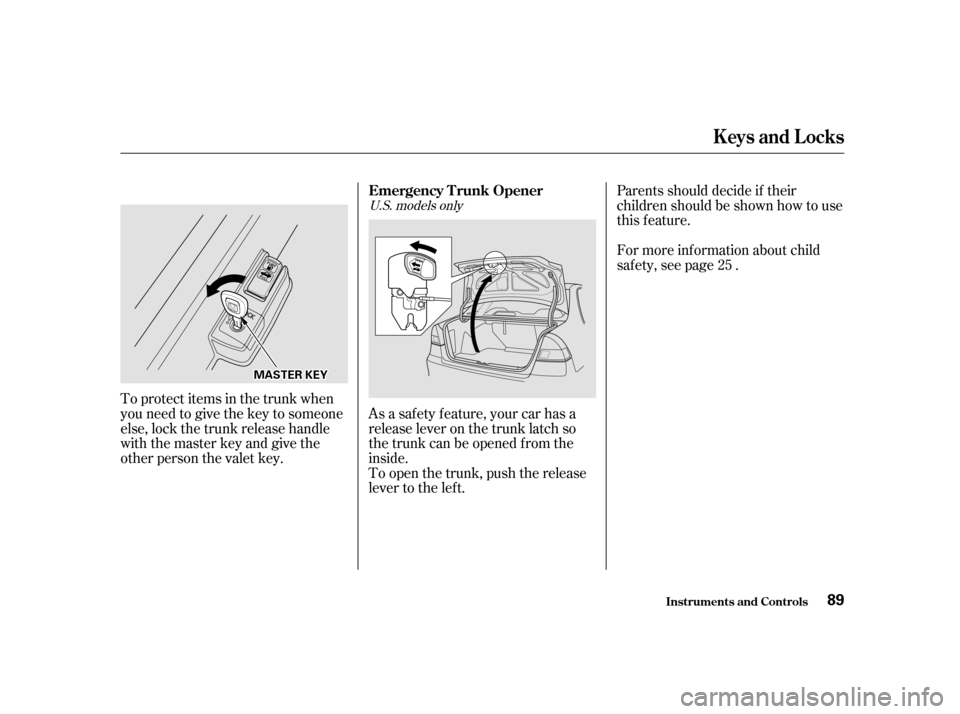

To protect items in the trunk when
you need to give the key to someone
else, lock the trunk release handle
with the master key and give the
other person the valet key.To open the trunk, push the release
lever to the lef t.
As a saf ety f eature, your car has a
release lever on the trunk latch so
the trunk can be opened f rom the
inside. Parents should decide if their
children should be shown how to use
this feature.
For more inf ormation about child
saf ety, see page .
25
U.S. models only
Keys and Locks
Inst rument s and Cont rols
Emergency T runk Opener
89
MMAASSTTEERRKKEEYY

µ
See pages f or important saf ety
inf ormation and warnings about how toproperly position seats and seat-backs. 13 15
Make all seat adjustments bef ore
you start driving.

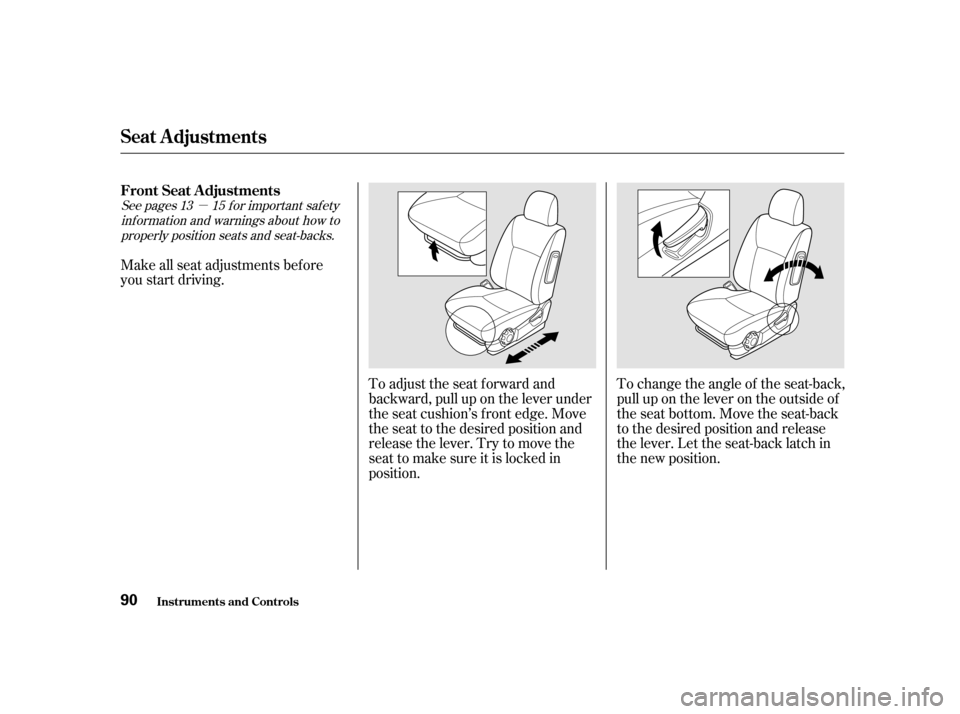

To adjust the seat forward and
backward, pull up on the lever under
the seat cushion’s f ront edge. Move
the seat to the desired position and
releasethelever.Trytomovethe
seat to make sure it is locked in
position.To change the angle of the seat-back,
pull up on the lever on the outside of
the seat bottom. Move the seat-back
to the desired position and release
the lever. Let the seat-back latch in
the new position.
FrontSeatAdjustments
Seat A djustments
Inst rument s and Cont rols
90

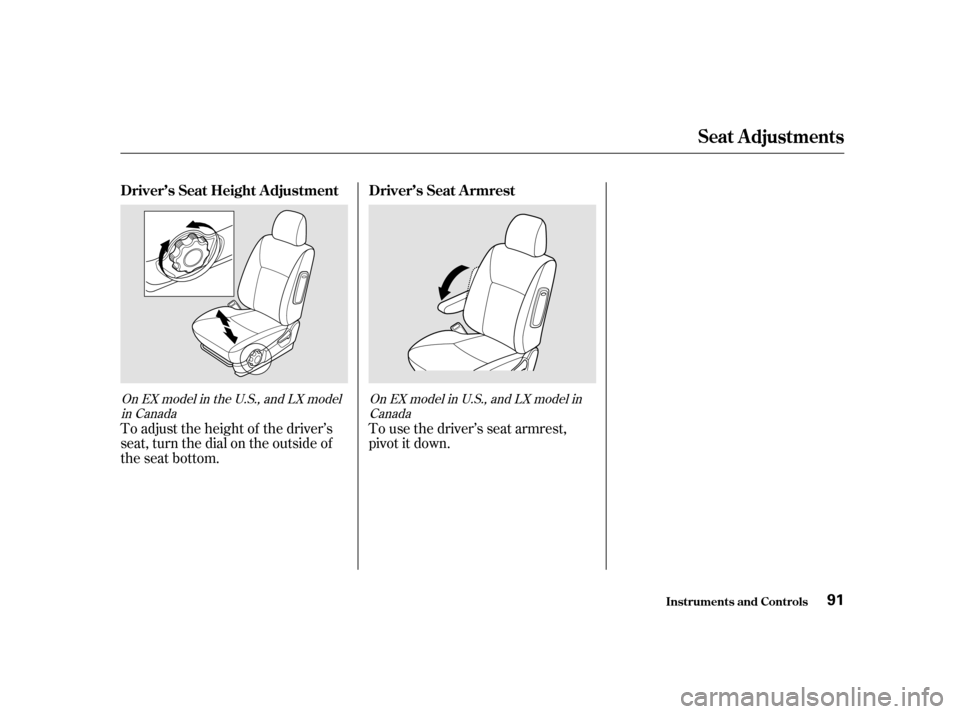

To adjust the height of the driver’s
seat, turn the dial on the outside of
the seat bottom.To use the driver’s seat armrest,
pivotitdown.
On EX model in the U.S., and LX model
in Canada OnEXmodelinU.S.,andLXmodelin
Canada
Driver’s Seat Height Adjustment Driver’s Seat Armrest
Seat A djustments
Inst rument s and Cont rols 91
