You can make calls using any phone
number, or by using a name in the
HFL phonebook. You can also redial
the last number called. During a call,
HFLallowsyoutotalkupto30
minutes af ter you remove the key
f rom the ignition switch. Continuing
a call without running the engine
may discharge and weaken the
vehicle’s battery.Press and release the Talk button.
Af ter the beep, say ‘‘Call’’ or ‘‘Dial.’’
HFL responds ‘‘Calling’’ or
‘‘Dialing.’’
Once connected, you will hear the
person you called through the
audio speakers. To change the
volume, use the audio system
volume knob, or the steering
wheel volume controls.
To end the call, press the Back
button.
With your phone on and the
ignition switch in the
ACCESSORY (I) or ON (II)
position, press and release the
Talk button. After the beep, say
‘‘Call’’ or ‘‘Dial.’’
HFL responds ‘‘What name or
number would you like to call/
dial? Press the Talk button and say
a name, a number, or say list to
hear the phonebook entries.’’
Press and release the Talk button.
Af ter the beep, say the number
you want to call. For example, say
‘‘123 456 7891.’’
HFL responds ‘‘123 456 7891.
Press the Talk button and
continue to add numbers, or say
Call or Dial to place a call.’’ 4.
2.
1.
3.
To make a call using a phone number,
do this:
Bluet oot hHandsFreeL ink
Making a Call
226
——y
y
(#y
y

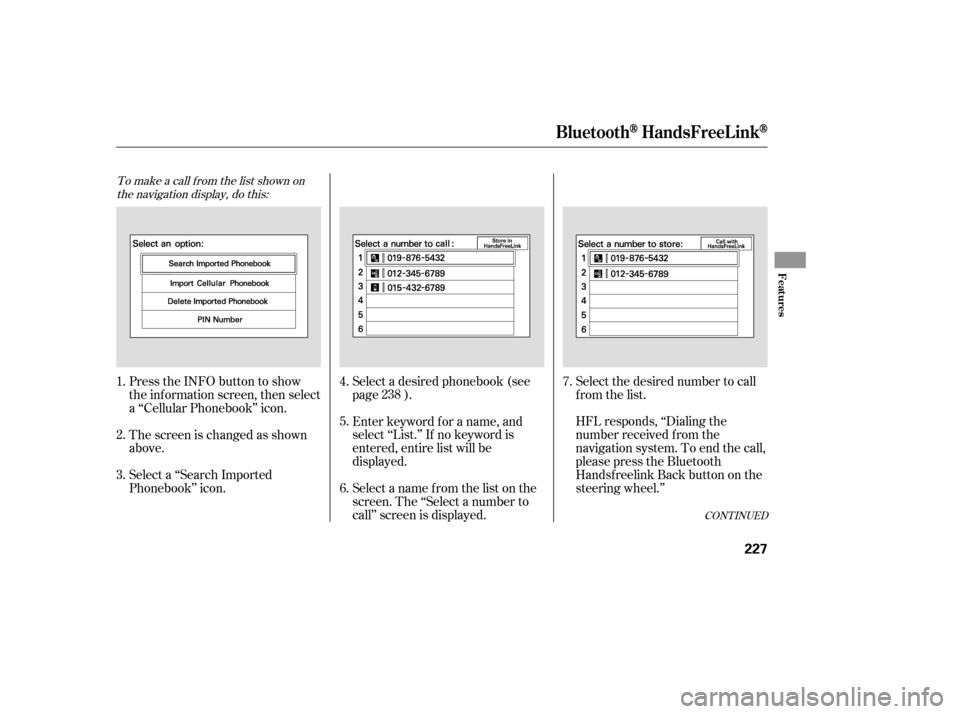

To make a call f rom the list shown onthe navigation display, do this:
Press the INFO button to show
the inf ormation screen, then select
a ‘‘Cellular Phonebook’’ icon.
The screen is changed as shown
above.
Select a ‘‘Search Imported
Phonebook’’ icon. Select a desired phonebook (see
page ).
Enter keyword f or a name, and
select ‘‘List.’’ If no keyword is
entered, entire list will be
displayed.
Select a name f rom the list on the
screen. The ‘‘Select a number to
call’’ screen is displayed.Select the desired number to call
from the list.
HFL responds, ‘‘Dialing the
number received f rom the
navigation system. To end the call,
please press the Bluetooth
Handsf reelink Back button on the
steering wheel.’’
1. 2. 3.
4.5. 6.7.
238
CONT INUED
Bluetoot hHandsFreeL ink
Features
227
——
y

y
(#yy

To redial the last number called by thephone, do this:
To make a call using a name in the HFL
phonebook, do this:
Press and release the Talk button.
Af ter the beep, say ‘‘Redial.’’
HFL responds ‘‘Redialing.’’
Once connected, you will hear the
person you called through the audio
speakers. To change the volume, use
the audio system volume knob or the
steering wheel volume controls.
To end the call, press the Back
button.
Once connected, you will hear the
person you called through the
audio speakers. To change the
volume, use the audio system
volume knob or the steering wheel
volume controls.
Press and release the Talk button.
Af ter the beep, say ‘‘Yes.’’
HFL responds ‘‘Calling’’ or
‘‘Dialing.’’
HFL responds ‘‘Would you like to
call John? Press the Talk button
and say Yes or No.’’
Press and release the Talk button.
After the beep, say the name you
want to call. For example, say
‘‘John.’’
With your phone on and the
ignition switch in the
ACCESSORY (I) or ON (II)
position, press and release the
Talk button. After the beep, say
‘‘Call’’ or ‘‘Dial.’’
HFL responds ‘‘What name or
number would you like to call/
dial? Press the Talk button and say
a name, a number, or say list to
hear the phonebook entries.’’
1.
2. 3. 4.
Bluetoot hHandsFreeL ink
228
——
y

y
(#yy

Ì
HFL allows you to send numbers or
names during a call. This is usef ul
when you call a menu-driven phone
system. You can also program
account numbers into the HFL
phonebook f or easy retrieval during
menu-driven calls.
Press and release the Talk button.
Af ter the beep, say ‘‘Send.’’
HFL responds ‘‘What name or
number would you like to send?’’
Press and release the Talk button.
Af ter the beep, say the number
you want to send. For example,
say‘‘1,2,3.’’
HFLresponds‘‘1,2,3.Pressthe
Talk button and continue to add
numbers or say send.’’Press and release the Talk button.
Af ter the beep, say ‘‘Send.’’
HFL responds ‘‘What name or
number would you like to send?’’
Press and release the Talk button.
After the beep, say the name you
want to send. For example, say
‘‘Account number.’’
HFL responds ‘‘Would you like to
send account number? Press the
Talk button and say Yes or No.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Yes.’’ The dial
tones will be sent, and the call will
continue.
To send a pound ( ), say
‘‘pound.’’ To send a star (*), say
‘‘star.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Send.’’ The
dial tones will be sent, and the call
will continue. 2. 3.
1.
2. 3.
1.
To send a number during a call, do this: To send a name during a call, do this:
Bluetoot hHandsFreeL ink
Sending Numbers or Names
During a Call
Features
229
NOTE:
——y
y
(#yy

If you receive a call when you are not
on the phone, HFL interrupts the
audio system (if it is on), and plays
the incoming call notif ication, if
activated. To answer the call, press
the Talk button and begin speaking.
If you don’t want to answer the call,
press the Back button.
If your phone has Call Waiting, and
you receive a call when you are on
the phone, press and release the
Talk button to answer it. When you
do this, the original call is placed on
hold. To return to the original call,
press the Talk button again. If you
don’t want to answer the new call,
disregard it, and continue with your
original call. If you want to hang up
the original call and answer the new
call, press the Back button.You can transfer a call from HFL to
your phone, or f rom your phone to
HFL.
To transfer a call from HFL to your
phone, or f rom your phone to HFL,
do this:
Press and release the Talk button.
Af ter the beep, say ‘‘Transf er.’’ The
audio switches between HFL and the
phone.
This f unction allows you to transf er a
call automatically to the HFL system.
If you get into the vehicle while you
are on the phone, a call will be
transferred automatically to the HFL
system when you turn the ignition
switch to the ACCESSORY (I)
position.
With this function activated, you can
also make a call by dialing with the
number keys on the phone which
has been paired to the HFL system.
The automatic transf erring f unction
can be set to on or of f .
Bluetoot hHandsFreeL ink
Receiving a Call Transf erring a Call Automatic Transf erring
230
——y
y
(#yy

To activate this function, do this:To mute your voice, do this:To unmute your voice, do this:
During a call, you can mute or
unmute your voice to the person you
are talking to.
Press and release the Talk button.
Af ter the beep, say ‘‘Mute.’’
HFL responds ‘‘Mute is active.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Mute.’’
HFL responds ‘‘Mute is canceled.’’
Press and release the Talk button.
Af ter the beep, say ‘‘System setup.’’
HFL responds ‘‘System setup
options are security, change
passcode, call notif ication, auto
transf er, and clear. Press the Talk
button and say a command.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Auto transf er.’’
If this feature is set to off, HFL
responds ‘‘Auto transf er is
disabled. Calls dialed on the phone
do not automatically transf er to
Bluetooth HandsFreeLink. Would
you like to enable Auto Transf er?
Press the Talk button and say Yes
or No.’’
Never try to dial from your
phonedirectlyif thevehicleis
moving.
To end the call, press the Back
button.
When you make a call directly f rom
the phone with the auto transf er on,
make sure to stop your vehicle saf ely. HFL responds ‘‘Auto transf er is
enabled.’’
If the setting changes from off to
on, press and release the Talk
button. Af ter the beep, say ‘‘Yes.’’
If this feature is set to on, HFL
responds ‘‘Auto-transf er is enabled.
Calls dialed on the phone will be
automatically transferred to
Bluetooth HandsFreeLink. Would
you like to disable Auto Transf er? Press the Talk button and say Yes
or No.’’
If the setting changes from on to off,
HFL responds ‘‘Auto transf er is
disabled. Use the Transf er command
at the HandsFree main menu to
manually transf er calls dialed on the
phone.’’
1. 2.
3.
Bluetoot hHandsFreeL ink
Muting a Call
Features
231
NOTE:
——y
y
(#yy

»¼»¼
»¼
»¼
The HFL phonebook can store up to
50 names with their associated
numbers. These can be any types of
numbers. For example, you can store
a phone number and use it to make a
call, or you can store an account
number and use it during a call to a
menu-driven phone system.
Press and release the Talk button.
After the beep, say the name you
would like to store. For example,
say ‘‘ John Smith .’’
HFL responds ‘‘What is the
number f or John Smith ? Press
the Talk button and say the
number.’’
Avoid using duplicate name
entries.
Avoid using ‘‘home’’ as a name
entry.
HFL will be able to better
recognize multisyllabic name
entries (‘‘Peter’’ instead of ‘‘Pete’’),
or using a longer name (‘‘John
Smith’’ instead of ‘‘John’’).
Press and release the Talk button.
Af ter the beep, say ‘‘Phonebook.’’
HFL responds ‘‘Phonebook
options are store, edit, delete,
receive contact, and list. Press the
Talk button and say a command.’’
Press and release the Talk button.
After the beep, say ‘‘Store.’’
HFL responds ‘‘What name would
you like to store? Press the Talk
button and say a name.’’ You can also say an account
number instead of John Smith .
Press and release the Talk button.
Af ter the beep, say the number.
For example, say ‘‘123 456 7891.’’
HFL responds ‘‘123 456 7891.
Press the Talk button and
continue to add numbers or say
enter.’’
Use a consistent, even tone and
reduce background noise when
storing names, as the HFL voice
recognition can be sensitive.
HFL responds ‘‘ John Smith
has been stored.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Enter.’’
5.
4.
1. 2. 3.
To add a name, do this:
Bluetoot hHandsFreeL ink
NOT E:
Setting up the Phonebook
232
——y

y
(#yy

CONT INUED
To delete a name, do this:
To edit the number of a name, do this:
Press and release the Talk button.
Af ter the beep, say ‘‘Phonebook.’’
HFL responds ‘‘Phonebook
options are store, edit, delete,
receive contact, and list. Press the
Talk button and say a command.’’
Press and release the Talk button.
After the beep, say the name you
would like to edit. For example,
say ‘‘Eric.’’
HFL responds ‘‘What is the new
number f or Eric? Press the Talk
button and say the number.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Phonebook.’’
HFL responds ‘‘Phonebook
options are store, edit, delete,
receive contact, and list. Press the
Talk button and say a command.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Edit.’’
HFL responds ‘‘What name would
you like to edit? Press the Talk
button and say a name or say list
to hear the phonebook entries.’’
If only one number is stored, HFL
responds ‘‘What is the new
number f or Eric?’’ Then go to step4. Press and release the Talk button.
Af ter the beep, say the new
number f or Eric. For example, say
‘‘987 654 3219.’’
HFL responds ‘‘987 654 3219.
Press the Talk button and
continue to add numbers or say
enter.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Enter.’’
HFL responds ‘‘The number has
been changed.’’Press and release the Talk button.
Af ter the beep, say ‘‘Delete.’’
HFL responds ‘‘What name would
you like to delete? Press the Talk
button and say a name or say list
to hear the phonebook entries.’’
Press and release the Talk button.
After the beep, say the name you
would like to delete. For example,
say ‘‘Eric.’’
HFL responds ‘‘Would you like to
delete Eric? Press the Talk button
and say Yes or No.’’
2.
3. 5.
1.
2.
1.
4. 3.
Bluetoot hHandsFreeL ink
Features
233
——y
y
(#yy

»¼»¼
Press and release the Talk button.
Af ter the beep, say ‘‘Yes.’’
HFL responds ‘‘The name has
been deleted.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Phonebook.’’
HFL responds ‘‘Phonebook
options are store, edit, delete,
receive contact, and list. Press the
Talk button and say a command.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Phonebook.’’
HFL responds ‘‘Phonebook
options are store, edit, delete,
receive contact, and list. Press the
Talk button and say a command.’’
Press and release the Talk button.
Af ter the beep, say ‘‘List.’’
HFL responds by listing the names
in the phonebook in the order which
they were stored. Af ter all names are
listed, HFL responds ‘‘The entire list
has been read.’’ Press and release the Talk button.
Af ter the beep, say ‘‘List.’’
HFL responds by listing the
names in the phonebook. When it
saysthenameyouwanttocall,for
example, Eric , press and
release the Talk button. After the
beep, say ‘‘Call.’’ HFL responds
‘‘Would you like to call Eric ?
Press the Talk button and say Yes
or No.’’Once connected, you will hear the
person you called through the audio
speakers. To change the volume, use
the audio system volume knob, or
the steering wheel volume controls.
Press and release the Talk button.
Af ter the beep, say ‘‘Yes.’’ HFL
responds ‘‘Calling.’’
1.
4. 2. 1. 2.
3.
To list all names in the phonebook, do
this: To call a name f rom the phonebook list,
do this:
BluetoothHandsFreeL ink
234
——y
y
(#yy

»¼
»¼
CONT INUED
You can store the desired number to
the HFL phonebook directly f rom
your cell phone. Your phone may not have
phonebook import f unction. Visit
,orcallthe
HandsFreeLink
consumer support
at (888) 528-7876. In Canada, call
(888) 9-HONDA-9. You can see your
phone’s owner’s manual f or
inf ormation. Press and release the Talk button.
After the beep, say the name you
would like to store. For example,
say ‘‘Neil at work.’’
With your phone on and the
ignition switch in the
ACCESSORY (I) or ON (II)
position, press and release the
Talk button. After the beep, say
‘‘Phonebook.’’
HFL responds ‘‘Phonebook
options are store, edit, delete,
receive contact, and list. Press the
Talk button and say a command.’’ Press and release the Talk button.
Af ter the beep, say ‘‘Receive
contact.’’
HFL responds ‘‘The receive
process requires operation of your
Bluetooth device. For saf ety, only
perf orm this f unction while the
vehicle is stopped. HandsFreeLink
is now waiting to receive a contact
f rom a Bluetooth device.’’
Select a desired number f rom the
list on your phone, and send it via
Bluetooth (steps will vary f or
phone types, f ollow your phone’s
operating manual).
HFL responds, f or example ‘‘ 2
phone numbers have been
received f or this contact. What
name would you like to store f or
the mobile number
1234567891 ? Press the Talk
button and say a name or say
Discard, to discard this number.’’ HFL responds ‘‘Neil at work will
be stored. Is this correct? Press
the Talk button and say Yes or No.’’
HFL responds ‘‘Neil at work has
been stored. Would you like
HandsFreeLink to receive another
contact? Press the Talk button and
say Yes or No.’’
Go to step 6.
If you say, ‘‘No,’’ HFL returns to
idle.
Press and release the Talk button.
Af ter the beep, if you say ‘‘Yes.’’
2.
4.
1. 3.
5.
handsf reelink.honda.com
Bluetoot hHandsFreeL ink
Storing a Phone Number Directly
f rom Your Phone
Features
235
NOTE:
——y
y
(#yy
