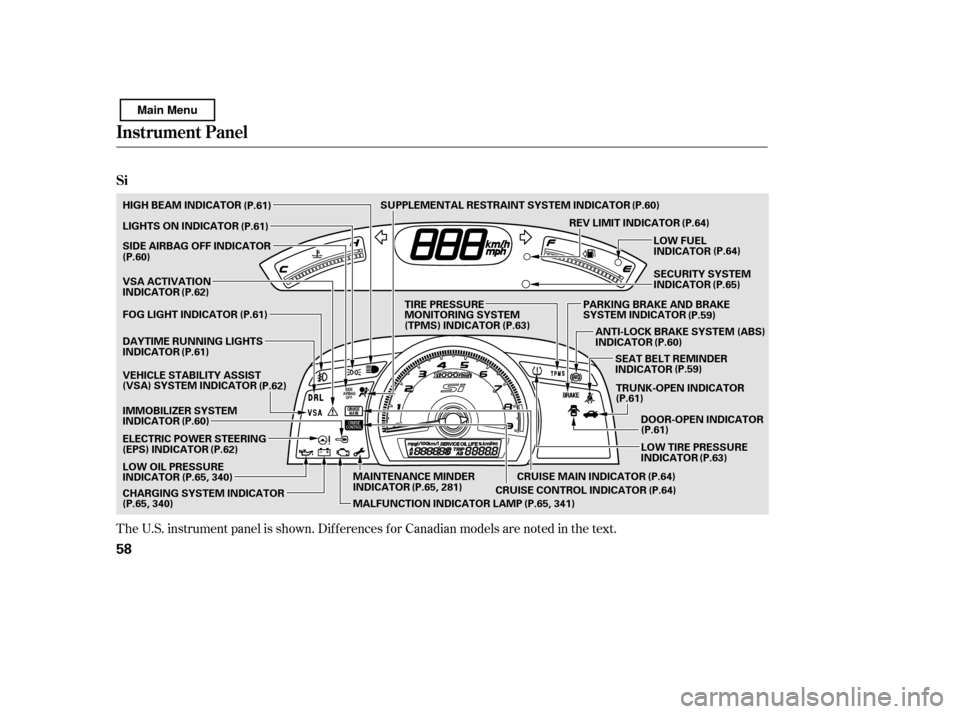

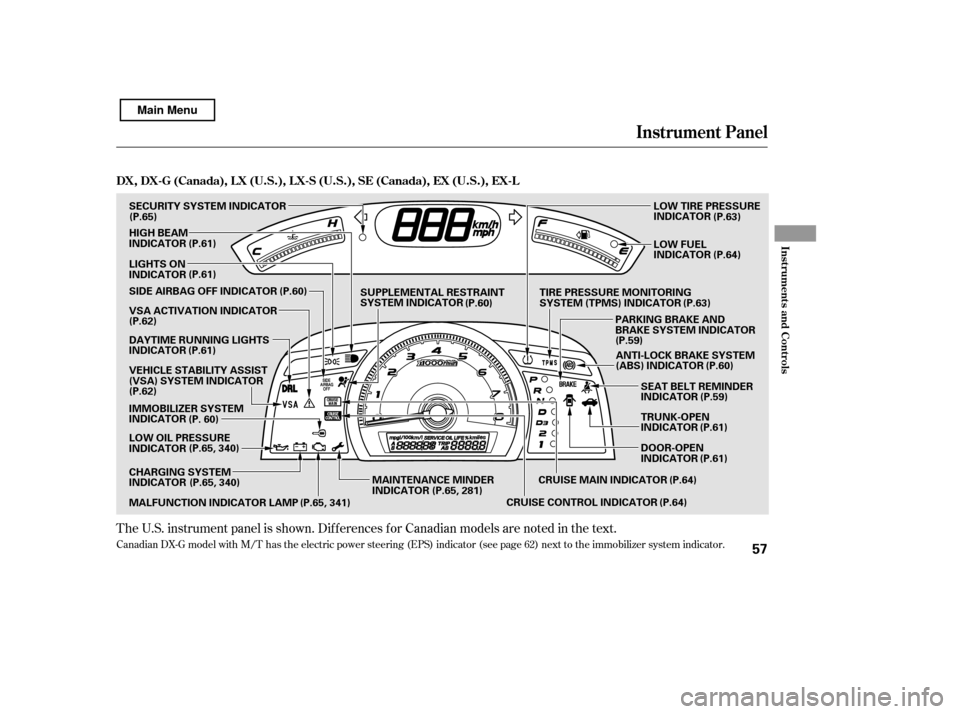

Instrument Panel
Inst rument s and Cont rols
DX, DX-G (Canada), L X (U.S.), L X-S (U.S.), SE (Canada), EX (U.S.), EX-L
57
PARKING BRAKE AND
BRAKE SYSTEM INDICATOR
ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
(P. 60) TRUNK-OPEN
INDICATOR
DOOR-OPEN
INDICATOR
(P.61)
(P.64)
SEAT BELT REMINDER
INDICATOR
(P.65, 340)
(P.65, 341)
(P.65, 340) (P.60)
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR (P.64)
TIRE PRESSURE MONITORING
SYSTEM (TPMS) INDICATOR
SECURITY SYSTEM INDICATOR
SIDE AIRBAG OFF INDICATOR
VSA ACTIVATION INDICATOR
(P.62)
DAYTIME RUNNING LIGHTS
INDICATOR
VEHICLE STABILITY ASSIST
(VSA) SYSTEM INDICATOR
(P.62)
MALFUNCTION INDICATOR LAMP CHARGING SYSTEM
INDICATOR
IMMOBILIZER SYSTEM
INDICATOR
CRUISE MAIN INDICATOR
MAINTENANCE MINDER
INDICATOR
CRUISE CONTROL INDICATOR (P.59)
(P.64)
LOW TIRE PRESSURE
INDICATOR
(P.63)
LOW FUEL
INDICATOR
(P.63)
(P.59) (P.60)
(P.61)
(P.61)
(P.65)
HIGH BEAM
INDICATOR
LIGHTS ON
INDICATOR (P.61)
(P.61)
LOW OIL PRESSURE
INDICATOR (P.65, 281)(P.60)
Main Menu

The U.S. instrument panel is shown. Dif f erences f or Canadian models are noted inthe text.
Instrument Panel
Si
58
ANTI-LOCK BRAKE SYSTEM (ABS)
INDICATOR
LOW TIRE PRESSURE
INDICATOR (P.63)
(P.61)
SEAT BELT REMINDER
INDICATOR
(P.65, 341) (P.65)
(P.64)
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
PARKING BRAKE AND BRAKE
SYSTEM INDICATORTRUNK-OPEN INDICATOR
CRUISE CONTROL INDICATOR
MALFUNCTION INDICATOR LAMP
LIGHTS ON INDICATOR
SIDE AIRBAG OFF INDICATOR
(P.60)
VSA ACTIVATION
INDICATOR
FOG LIGHT INDICATOR
DAYTIME RUNNING LIGHTS
INDICATOR
VEHICLE STABILITY ASSIST
(VSA) SYSTEM INDICATOR
IMMOBILIZER SYSTEM
INDICATOR
ELECTRIC POWER STEERING
(EPS) INDICATOR
LOW OIL PRESSURE
INDICATOR
CHARGING SYSTEM INDICATOR
(P.65, 340)
HIGH BEAM INDICATOR
(P.61)
(P.61)
(P.62) (P.61)
(P.61) (P.62)
(P.65, 340) CRUISE MAIN INDICATOR
MAINTENANCE MINDER
INDICATOR (P.65, 281) (P.64)
(P.64) LOW FUEL
INDICATOR
SECURITY SYSTEM
INDICATOR
REV LIMIT INDICATOR
TIRE PRESSURE
MONITORING SYSTEM
(TPMS) INDICATOR (P.59)
(P.61)
DOOR-OPEN INDICATOR
(P.60)
(P.64)
(P.60)
(P.63)
(P.60) (P.62) (P.59)
Main Menu

This indicator has two f unctions:Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you drive with the
parking brake not f ully released.
Driving with the parking brake not
fully released can damage the
brakes and tires.
If it stays on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page .
The instrument panel has many
indicators to give you important
inf ormation about your vehicle.
If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
This indicator reminds you and your
passengers to f asten your seat belts.
If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals. For more
inf ormation, see page .
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belt, the beeper sounds,
and the indicator f lashes. If you do
notfastenyourseatbeltbeforethe
beeper stops, the indicator stops
f lashing but remains on.
1. 2.
18 342Parking Brake
and Brake
System
Indicator
Seat Belt Reminder
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
59
U.S. Canada
Main Menu

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock f unction. For more
inf ormation, see page .
This indicator comes on f or several
seconds when you turn the ignition
switch to the ON (II) position. If it
comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For more inf ormation, see page .
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. It will then go of f if
you have inserted a properly coded
ignition key. If it is not a properly
coded key, the indicator will blink,
and the engine’s f uel system will be
disabled (see page ).
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
potential problem with your f ront
airbags. This indicator will also alert
you to a potential problem with your
airbag system components. For
more inf ormation, see page .
30 79
266
29
Supplemental Restraint
System Indicator
Immobilizer System
Indicator
Anti-lock Brake System
(A BS) Indicator Side A irbag Of f
Indicator
Instrument Panel Indicators
60
U.S. Canada
Main Menu

When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash.If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
with a circuit. Have your vehicle
checked by your dealer.
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door and remove the key
from the ignition switch.
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling.
This indicator comes on if the trunk
lid is not closed tightly.
This indicator comes on if any door
is not closed tightly.
This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ).
This indicator comes on when you
turn on the f og lights. For more
inf ormation, see page . 73
74
74
304 305
Si model only
Turn Signal and
Hazard Warning
Indicators
Lights On Indicator
High Beam Indicator Trunk-open Indicator
Door-open Indicator
Fog L ight Indicator
Daytime Running L ights
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
61
Main Menu

If equipped If equipped
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If itcomesonandstaysonatany
other time, there is a problem with
the VSA system. Take your vehicle
to a dealer to have it checked.
Without VSA, your vehicle still has
normal driving ability, but will not
have VSA traction and stability
enhancement. See page f or more
inf ormation on the VSA system.This indicator has three f unctions:
Itcomesonasareminderthatyou
have turned off the vehicle
stability assist (VSA) system.
It flashes when VSA is active (see
page ).
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. See page f or more
inf ormation on the VSA system. This indicator normally comes on
when you turn the ignition switch to
the ON (II) position and goes of f
af ter the engine starts. If it comes on
at any other time, there is a problem
in the electric power steering system.
If this happens, stop the vehicle in a
safe place, and turn off the engine.
Reset the system by restarting the
engine. The indicator will not turn
of f immediately. If it does not go of f
after driving a short distance, or
comes back on again while driving,
take the vehicle to your dealer to
have it checked. With the indicator
on, the EPS may be of f , making the
vehicle harder to steer.
1. 2. 3.
268
268
268
Instrument Panel Indicators
Vehicle Stability Assist
(VSA ) System Indicator
VSA A ctivation Indicator Electric Power Steering
(EPS) Indicator
Si and Canadian DX-G with manual
t ransmission models
62
Main Menu

If you turn the steering wheel to the
f ull lef t or right position repeatedly
while stopping or driving at very low
speed, you may f eel slightly harder
steering due to overheating of the
steering gearbox.This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If this indicator comes on and stays
on at any other time, or if it does not
come on when you turn the ignition
switch to the ON (II) position, there
is a problem with the TPMS. With
this indicator on, the low tire
pressure indicator will not come on
when a tire loses pressure. Take the
vehicle to your dealer to have the
system checked. For more
inf ormation, see page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on while driving,
it indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
If this happens, pull to the side of the
road when it is saf e, check which tire
has lost pressure, and determine the
cause. If it is because of a f lat tire,
replace the flat tire with the compact
spare (see page ), and have the
f lat tire repaired as soon as possible.
If two or more tires are underinf lated,
call a prof essional towing service
(see page ). For more
inf ormation, see page .
270
329
349 271
U.S. models only
U.S. models only
Instrument Panel Indicators
Tire Pressure Monitoring
System (T PMS) Indicator
Low Tire Pressure
Indicator
Inst rument s and Cont rols
63
Main Menu

If equippedIf equippedCanadian models only
Si model only
This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page ).
This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control.
This indicator comes on when the
washer f luid level is low. Add washer
f luid when you see this indicator
come on (see page ).
To protect the engine f rom damage,
never drive with the tachometer in
its red zone.
This indicator shows you when the
engine speed is near the tachometer’s
red zone. When the engine speed
gets to near the red zone, the
indicator blinks. If you exceed the
maximum speed f or the gear you are
in, the indicator stays on, and you
may f eel the engine cut in and out
due to the engine speed limiter (see
page ).
This indicator is in the f uel gauge. It
comes on as a reminder that you
must ref uel soon.
When the needle reaches E, there is
a very small amount of f uel in the
tank.
When the indicator comes on, there
are about 1.9 US gal (7.5
)of fuel
remaining in the tank.
259 209
209
297
Instrument Panel Indicators
Low Fuel Indicator
Cruise Main Indicator
Cruise Control Indicator
Washer Level Indicator

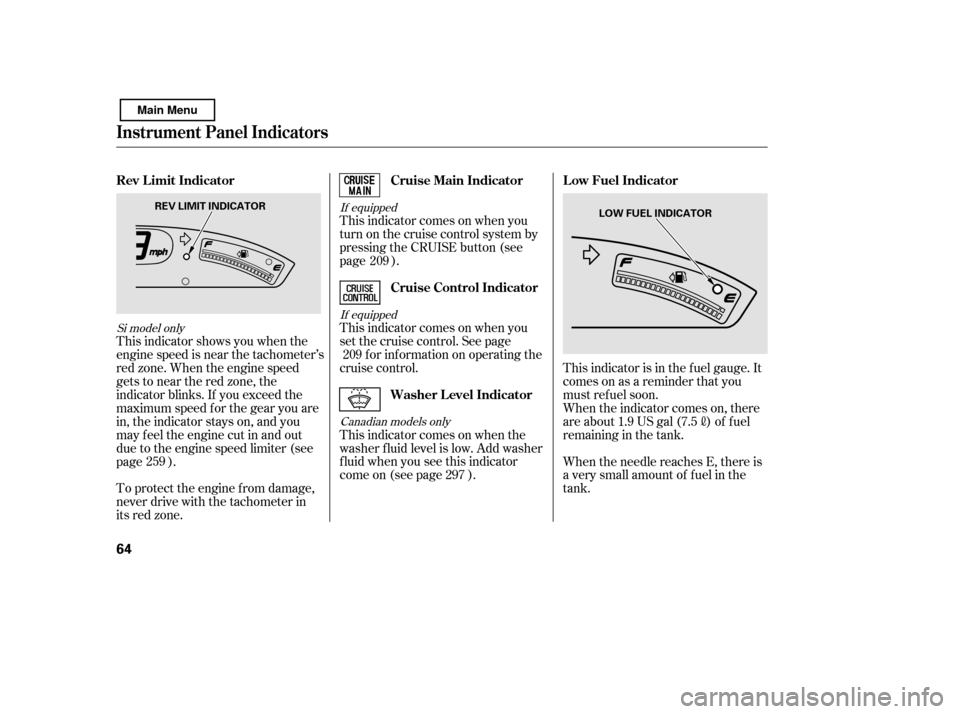

Rev L imit Indicator
64
LOW FUEL INDICATOR
REV LIMIT INDICATOR
Main Menu

See page .
The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more inf ormation, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page .
This indicator comes on when the
security system is set. See page
f or more inf ormation on the
security system.
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. The
maintenance main items and sub
items will be displayed in the
inf ormation display. See page f or
more inf ormation on the
Maintenance Minder .
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
281
208 341
340
340
If equipped
Instrument Panel Indicators
Malf unction Indicator
Lamp
L ow Oil Pressure
Indicator
Charging System
Indicator
Security System Indicator
Maintenance Minder
Indicator
Inst rument s and Cont rols
65

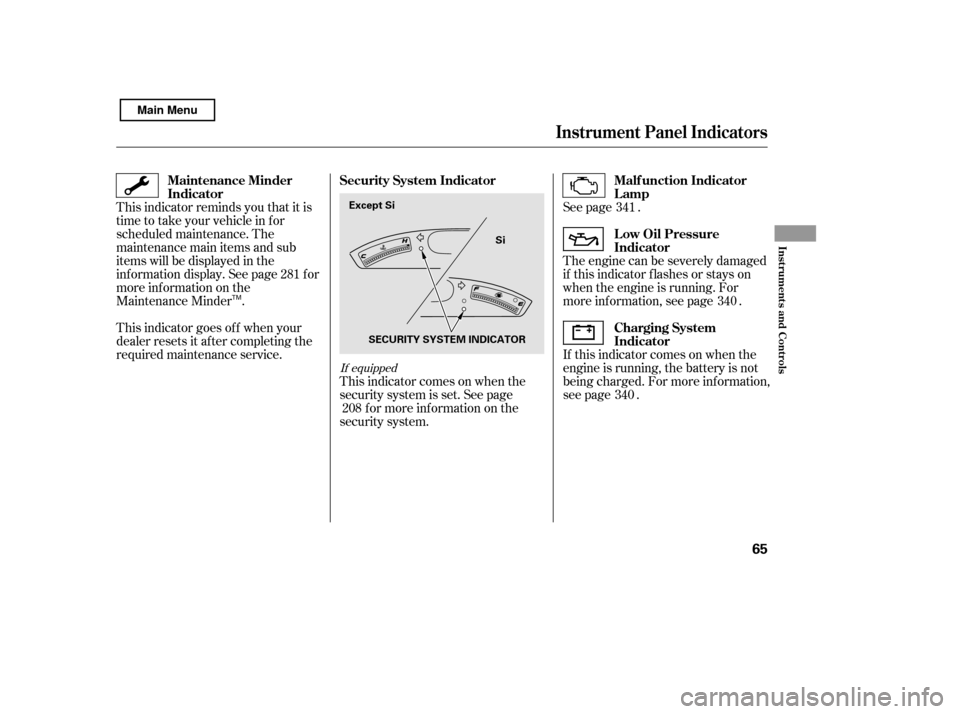

SECURITY SYSTEM INDICATOR Si
Except Si
TM
Main Menu

Press and hold until the speedometer,
trip meter, and odometer readings
switch between miles per hour and
kilometers per hour. A beeper willsound.
Gauges
Display Change Button
66
TEMPERATURE GAUGETRIP METER
SPEEDOMETER
FUEL
GAUGE
SEL/RESET BUTTON DISPLAY CHANGE BUTTON INFORMATION
DISPLAY
TACHOMETER
ODOMETER/OUTSIDE
TEMPERATURE INDICATOR INSTRUMENT PANEL BRIGHTNESS CONTROL BUTTONS
U.S. model with A/T is shown.
Main Menu
