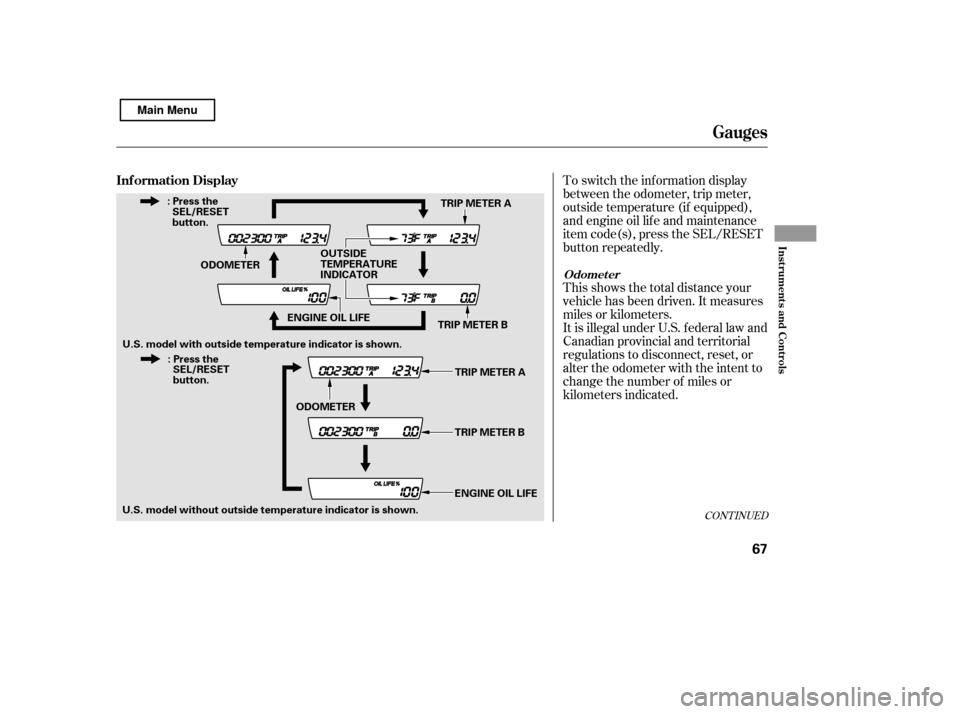

To switch the information display
between the odometer, trip meter,
outside temperature (if equipped),
and engine oil lif e and maintenance
item code(s), press the SEL/RESET
button repeatedly.
This shows the total distance your
vehicle has been driven. It measures
miles or kilometers.
It is illegal under U.S. f ederal law and
Canadian provincial and territorial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
CONT INUED
Gauges
Odomet er
Inf ormation Display
Inst rument s and Cont rols
67
U.S. model without outside temperature indicator is shown.ODOMETER
ODOMETER TRIP METER A
TRIP METER B
ENGINE OIL LIFE
TRIP METER A
U.S. model with outside temperature indicator is shown. ENGINE OIL LIFEOUTSIDE
TEMPERATURE
INDICATOR
TRIP METER B
: Press the
SEL/RESET
button.
: Press the SEL/RESET
button.
Main Menu

¶¶µ
µµµµ µµµ
Each trip meter works independently,
so you can keep track of two
dif f erent distances.
There are two trip meters: TRIP A
and TRIP B. Switch between these
displays by pressing the SEL/
RESET button repeatedly.
To reset a trip meter, display it, and
then press and hold the SEL/RESET
button until the number resets to‘‘0.0.’’
This meter shows the number of
miles or kilometers driven since you
last reset it.
This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Celsius (Canadian
models). To see the outside
temperature, press and release the
SEL/RESET button until the
temperature is shown on the
inf ormation display.If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F ( 3°C) warmer or
cooler.
The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then press and hold the
SEL/RESET button f or 10 seconds.
The f ollowing sequence will appear
for1secondeach:0,1,2,3,4,5, 5, 4, 3, 2, 1, 0 (U.S.) or 0, 1, 2,
3, 3, 2, 1, 0 (Canada).
When it reaches the desired value,
release the SEL/RESET button. You
should see the new outside
temperature displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
If equipped
Gauges
T rip Met er Out side T emperat ure Indicat or
68
NOTE:
Main Menu

Your vehicle’s onboard diagnostic
system will detect a loose or missing
f uel f ill cap as an evaporative system
leak. The f irst time a leak is detected
a ‘‘CHECK FUEL CAP’’ message
appears on the information display.
Turn the engine of f , and conf irm the
f uel f ill cap is installed. If it is, loosen
it, then retighten it until it clicks at
least once. The message should go
off after several days of normal
driving once you tighten or replace
the f uel f ill cap. To scroll to another
display, press the SEL/RESET
button. The ‘‘CHECK FUEL CAP’’
message will appear each time you
restart the engine until the system
turns the message of f .If the system still detects a leak in
your vehicle’s evaporative emissions
system, the malf unction indicator
lamp (MIL) comes on. If the f uel f ill
cap was not already tightened, turn
the engine of f , and check or
retighten the f uel f ill cap until it
clicks at least once. The MIL should
go off after several days of normal
driving once the cap is tightened or
replaced. If the MIL does not go of f ,
have your vehicle inspected by a
dealer. For more inf ormation, see
page .
The inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more inf ormation.
281
341
Gauges
Check Fuel Cap Message Maint enance Minder
Inst rument s and Cont rols
69
TM
Main Menu

This shows how much f uel you have.
It may show slightly more or less
than the actual amount.This shows the temperature of the
engine’s coolant. During normal
operation, the reading should rise to
about the middle of the gauge. In
severe driving conditions, such as
very hot weather or a long period of
uphill driving, the reading may rise
intotheupperhalfofthegauge.Ifit
reaches the red (Hot) mark, pull
safely to the side of the road. See
page f or instructions and
precautions on checking the engine
cooling system.338
Gauges
Fuel Gauge T emperature Gauge
70
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
Main Menu

ÎÎ
Î
Î Î
Î
Î
Î
Î ÎÎÎ
Only on vehicles equipped with navigation system. Ref er to the navigati on system manual.
To use the horn, press the center pad of the steering wheel.
If equipped
1:2:3:4: Si model

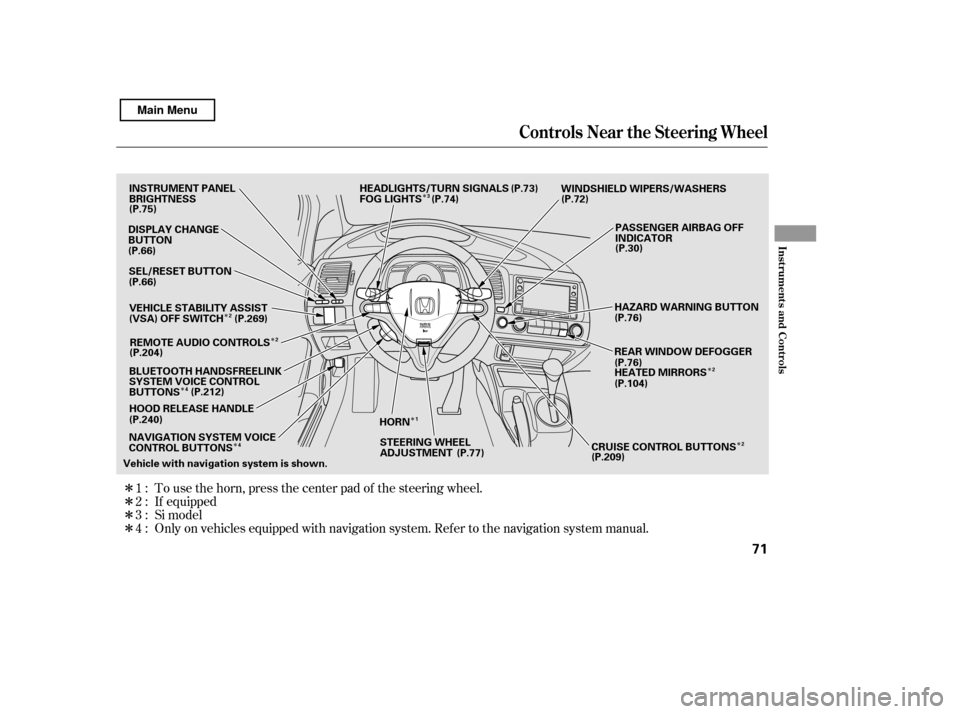

Controls Near the Steering Wheel
Inst rument s and Cont rols
71
STEERING WHEEL
ADJUSTMENT WINDSHIELD WIPERS/WASHERS
Vehicle with navigation system is shown. HORN
CRUISE CONTROL BUTTONSPASSENGER AIRBAG OFF
INDICATOR
HAZARD WARNING BUTTON
REAR WINDOW DEFOGGER
HEATED MIRRORS
DISPLAY CHANGE
BUTTON
HOOD RELEASE HANDLE
SEL/RESET BUTTON
(P.75)
(P.66) (P.66)
(P.76)
(P.76) (P.30)
(P.72)
REMOTE AUDIO CONTROLS HEADLIGHTS/TURN SIGNALS
(P.73)
FOG LIGHTS (P.74)
INSTRUMENT PANEL
BRIGHTNESS
(P.77)
VEHICLE STABILITY ASSIST
(VSA) OFF SWITCH
NAVIGATION SYSTEM VOICE
CONTROL BUTTONS (P.269)
(P.204)
BLUETOOTH HANDSFREELINK
SYSTEM VOICE CONTROL
BUTTONS (P.212)
(P.240)
(P.209)(P.104)
1 2
2
2 3
2
4
4
Main Menu

µ
µ
µ µ
µ
µ
µ
µ
µ
Î
Î
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield washers

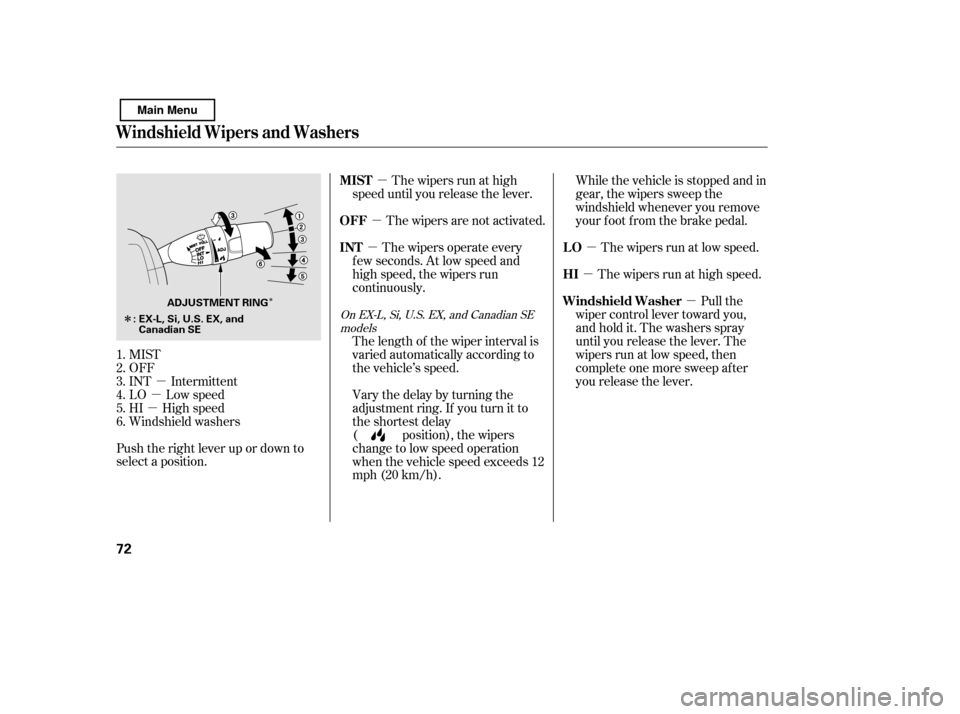

Push the right lever up or down to
select a position. The wipers are not activated.
The wipers run at high
speed until you release the lever. While the vehicle is stopped and in
gear, the wipers sweep the
windshield whenever you remove
your f oot f rom the brake pedal.
The wipers run at low speed.
The wipers run at high speed.
The wipers operate every
f ew seconds. At low speed and
high speed, the wipers run
continuously.
The length of the wiper interval is
varied automatically according to
the vehicle’s speed.
Vary the delay by turning the
adjustment ring. If you turn it to
the shortest delay
( position), the wipers
change to low speed operation
when the vehicle speed exceeds 12
mph (20 km/h). Pull the
wiper control lever toward you,
andholdit.Thewashersspray
until you release the lever. The
wipers run at low speed, then
complete one more sweep af ter
you release the lever.
1.2.3.4.5.6.
On EX-L, Si, U.S. EX, and Canadian SE
models
OFF
MIST
LO HI
INT
Windshield Washer
Windshield Wipers and Washers
72
ADJUSTMENT RING
: EX-L, Si, U.S. EX, and
Canadian SE
Main Menu

µµµ

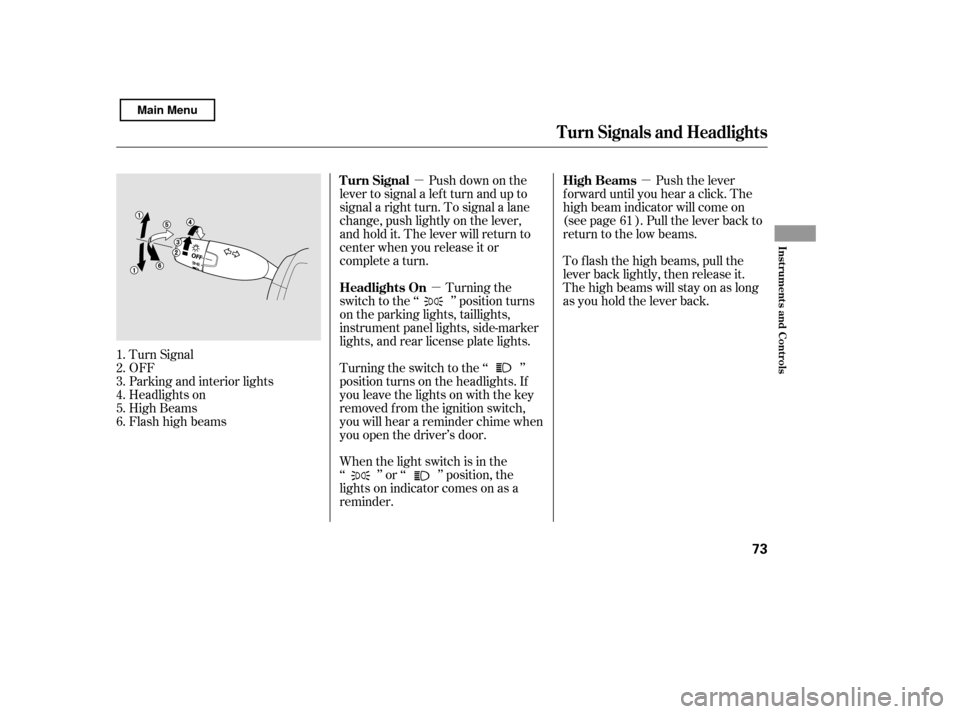

Turn Signal
OFF
Parking and interior lights
Headlights on
High Beams
Flashhighbeams When the light switch is in the
‘‘ ’’ or ‘‘ ’’ position, the
lights on indicator comes on as a
reminder. To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
Turning the switch to the ‘‘ ’’
position turns on the headlights. If
you leave the lights on with the key
removed f rom the ignition switch,
you will hear a reminder chime when
you open the driver’s door. Push down on the
lever to signal a lef t turn and up to
signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn. Push the lever
f orward until you hear a click. The
high beam indicator will come on
(see page ). Pull the lever back to
return to the low beams.
Turning the
switch to the ‘‘ ’’ position turns
on the parking lights, taillights,
instrument panel lights, side-marker
lights, and rear license plate lights.
1.2.3.4.5.6. 61
Turn Signal High Beams
Headlights On
Turn Signals and Headlights
Inst rument s and Cont rols
73
Main Menu

With the headlight switch of f or in
the position, the high beam
headlights come on with reduced
brightness when you turn the
ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch of f , even if you
set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.You can use the f og lights only when
the headlights are on low beam.
They will go of f when the headlights
are turned of f .
Turn the f og lights on and of f by
turning the switch next to the
headlight switch.
On Si model
Daytime Running L ights Fog L ights
Headlights, Fog Lights
74
FOG LIGHT SWITCH
Main Menu

´µ

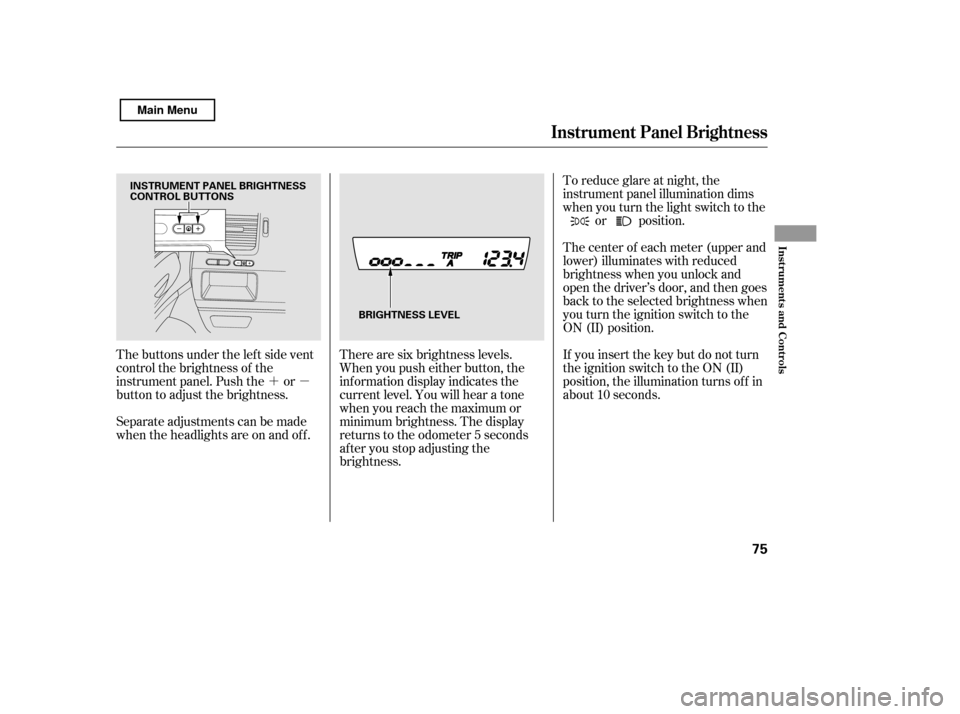

The buttons under the lef t side vent
control the brightness of the
instrument panel. Push the or
button to adjust the brightness.
Separate adjustments can be made
when the headlights are on and of f . There are six brightness levels.
When you push either button, the
inf ormation display indicates the
current level. You will hear a tone
when you reach the maximum or
minimum brightness. The display
returns to the odometer 5 seconds
af ter you stop adjusting the
brightness.To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to the
or position.
The center of each meter (upper and
lower) illuminates with reduced
brightness when you unlock and
open the driver’s door, and then goes
back to the selected brightness when
you turn the ignition switch to the
ON (II) position.
If you insert the key but do not turn
the ignition switch to the ON (II)
position, the illumination turns of f in
about 10 seconds.
Instrument Panel Brightness
Inst rument s and Cont rols
75
INSTRUMENT PANEL BRIGHTNESS
CONTROL BUTTONS
BRIGHTNESS LEVEL
Main Menu

Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
The def ogger and antenna wires on
the inside of the rear window can be
accidentally damaged. When
cleaning the glass, always wipe side-
to-side.

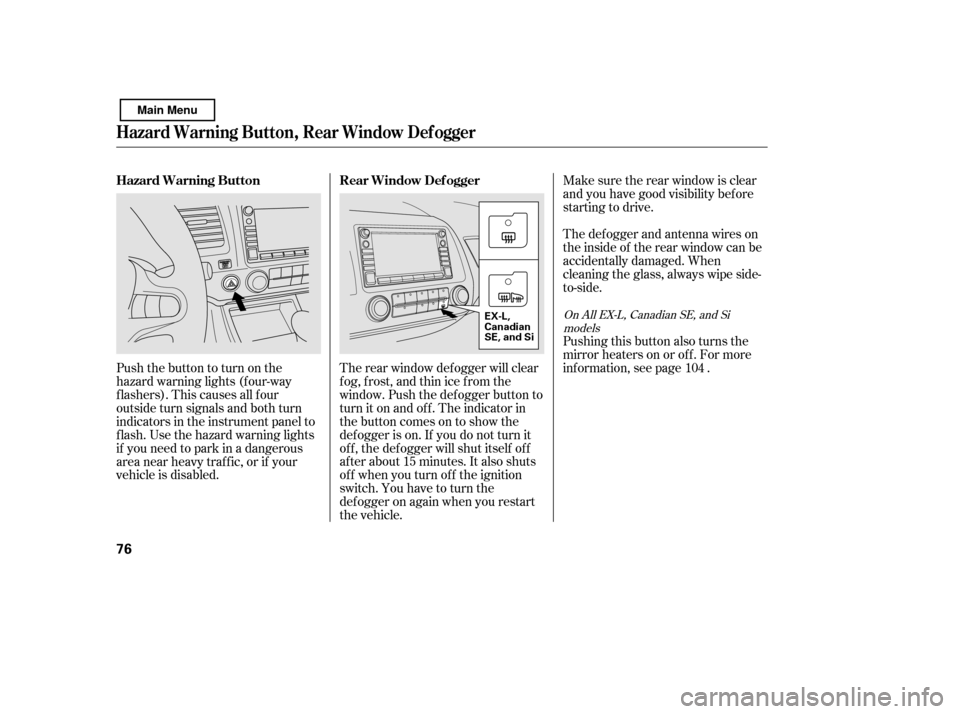

The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and off. The indicator in
the button comes on to show the
def ogger is on. If you do not turn it
of f , the def ogger will shut itself of f
af ter about 15 minutes. It also shuts
of f when you turn of f the ignition
switch. You have to turn the
def ogger on again when you restart
the vehicle.
Pushthebuttontoturnonthe
hazard warning lights (f our-way
flashers). This causes all four
outside turn signals and both turn
indicators in the instrument panel to
f lash. Use the hazard warning lights
if you need to park in a dangerous
area near heavy traffic, or if your
vehicle is disabled.
Pushing this button also turns the
mirror heaters on or of f . For more
inf ormation, see page .
104
OnAllEX-L,CanadianSE,andSi
models
Hazard Warning Button, Rear Window Def ogger
Rear Window Def ogger
Hazard Warning Button
76
EX-L,
Canadian
SE, and Si
Main Menu
