Page 381 of 469
380
uuReplacing Light Bulbs uFog Light Bulbs
*
Maintenance

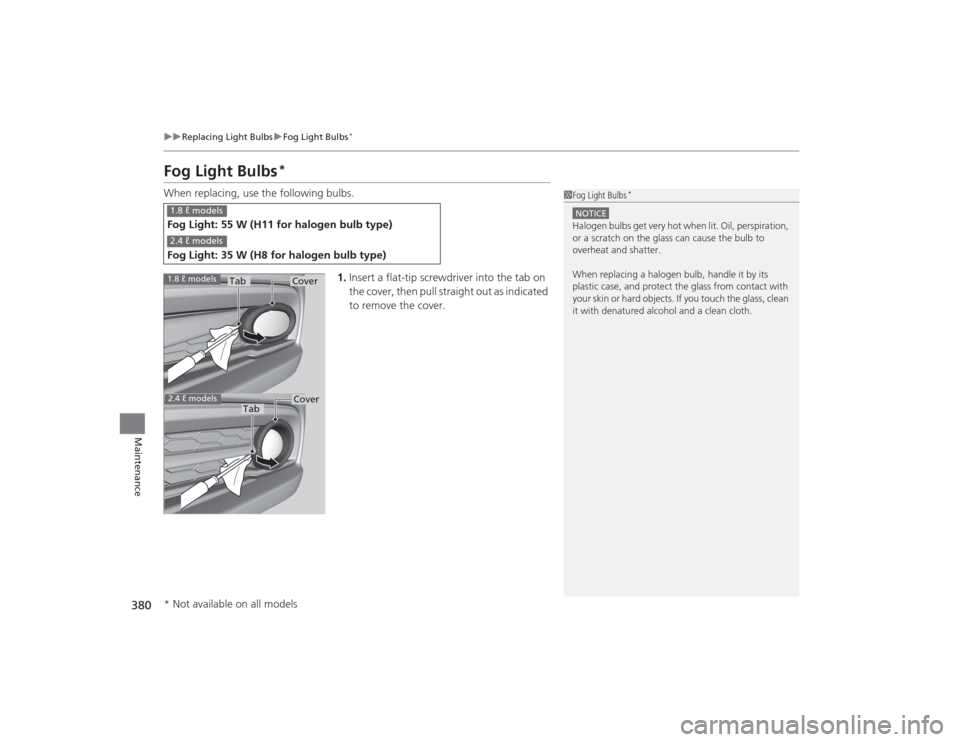

Fog Light Bulbs
*
When replacing, use the following bulbs.
1.Insert a flat-tip screwdriver into the tab on
the cover, then pull straight out as indicated
to remove the cover.Fog Light: 55 W (H11 for halogen bulb type)Fog Light: 35 W (H8 for halogen bulb type)
1Fog Light Bulbs
*
NOTICEHalogen bulbs get very hot when lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
When replacing a halogen bulb, handle it by its
plastic case, and protect the glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alcohol and a clean cloth.
1.8 ℓ models2.4 ℓ models
Tab
Cover
1.8 ℓ models2.4 ℓ models
Tab
Cover
* Not available on all models
Page 382 of 469
381
uuReplacing Light Bulbs uFog Light Bulbs
*
Continued
Maintenance

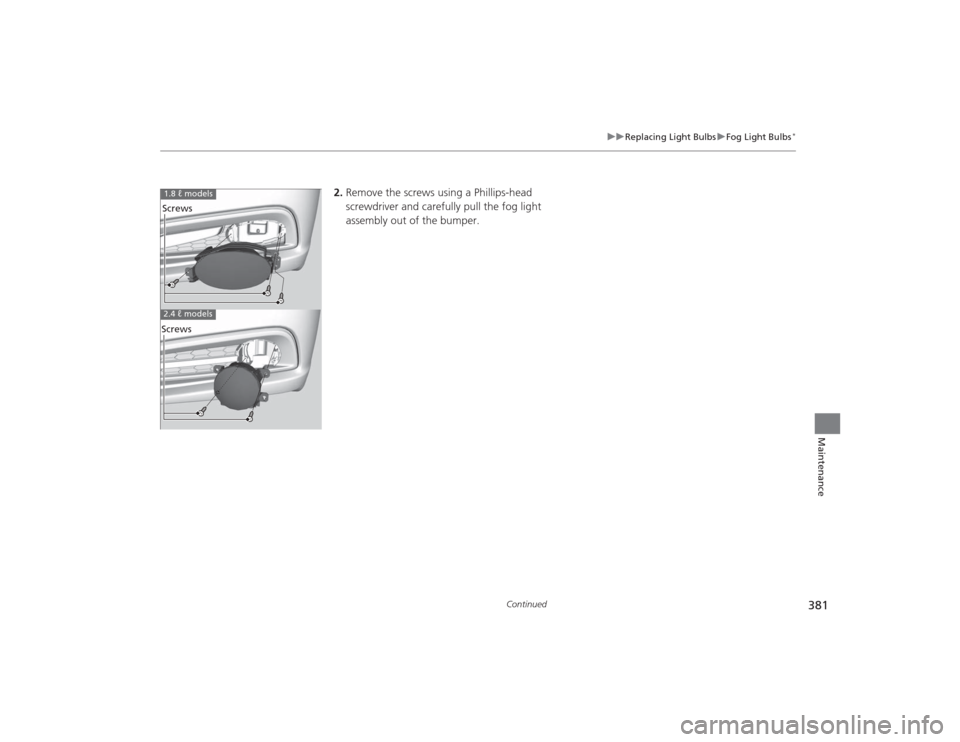

2. Remove the screws using a Phillips-head
screwdriver and carefully pull the fog light
assembly out of the bumper.
1.8 ℓ models2.4 ℓ modelsScrewsScrews
Page 383 of 469
382
uuReplacing Light Bulbs uFog Light Bulbs
*
Maintenance

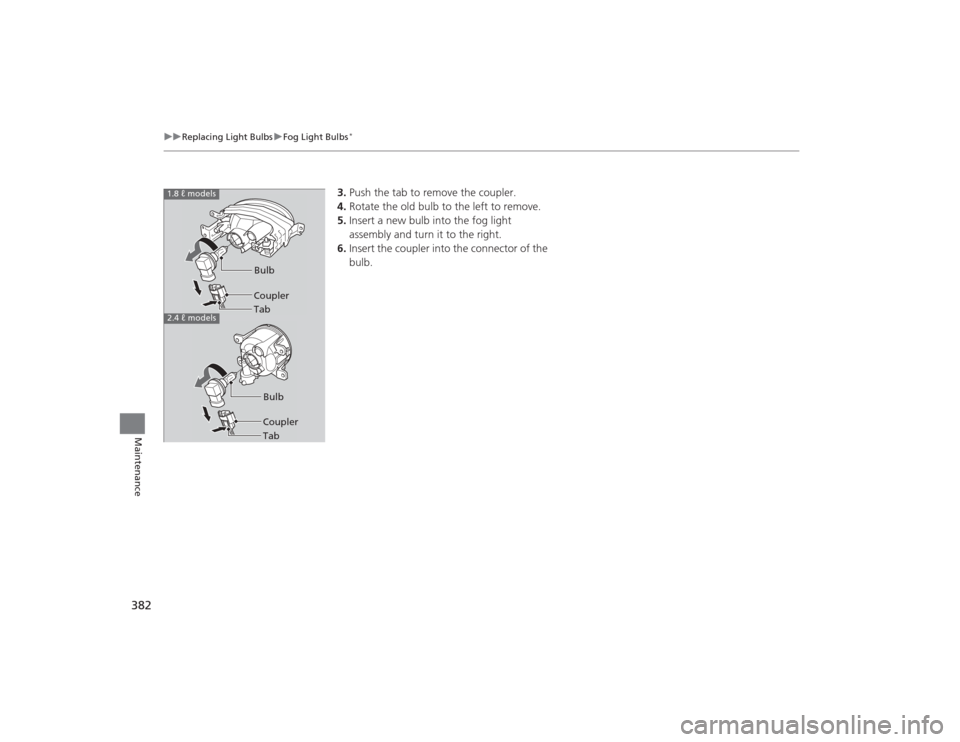

3. Push the tab to remove the coupler.
4. Rotate the old bulb to the left to remove.
5. Insert a new bulb into the fog light
assembly and turn it to the right.
6. Insert the coupler into the connector of the
bulb.
1.8 ℓ models2.4 ℓ models
TabCouplerBulbTabCouplerBulb

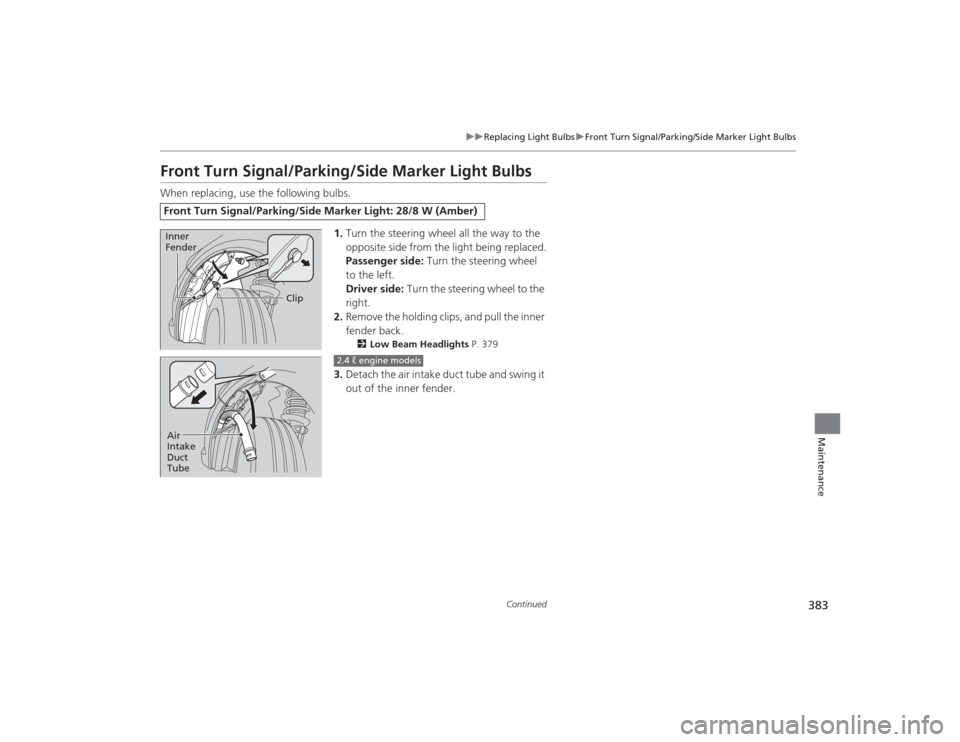

Page 384 of 469
383
uuReplacing Light Bulbs uFront Turn Signal/Parking/Side Marker Light Bulbs
Continued
Maintenance
Front Turn Signal/Parking/Side Marker Light BulbsWhen replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger side: Turn the steering wheel
to the left.
Driver side: Turn the steering wheel to the
right.
2. Remove the holding clips, and pull the inner
fender back.
2 Low Beam Headlights P. 379
3.Detach the air intake duct tube and swing it
out of the inner fender.
Front Turn Signal/Parking/Side Marker Light: 28/8 W (Amber)
Clip
Inner
Fender
Air
Intake
Duct
Tube
2.4 ℓ engine models
Page 385 of 469
384
uuReplacing Light Bulbs uFront Turn Signal/Parking/Side Marker Light Bulbs
Maintenance
4. Turn the socket to the left and remove it,
then remove the old bulb.
5. Insert a new bulb.
Bulb Socket
All models
Page 386 of 469
385
uuReplacing Light Bulbs uBrake/Taillight, Rear Turn Signal Light and Rear Side Marker Light Bulbs
Maintenance

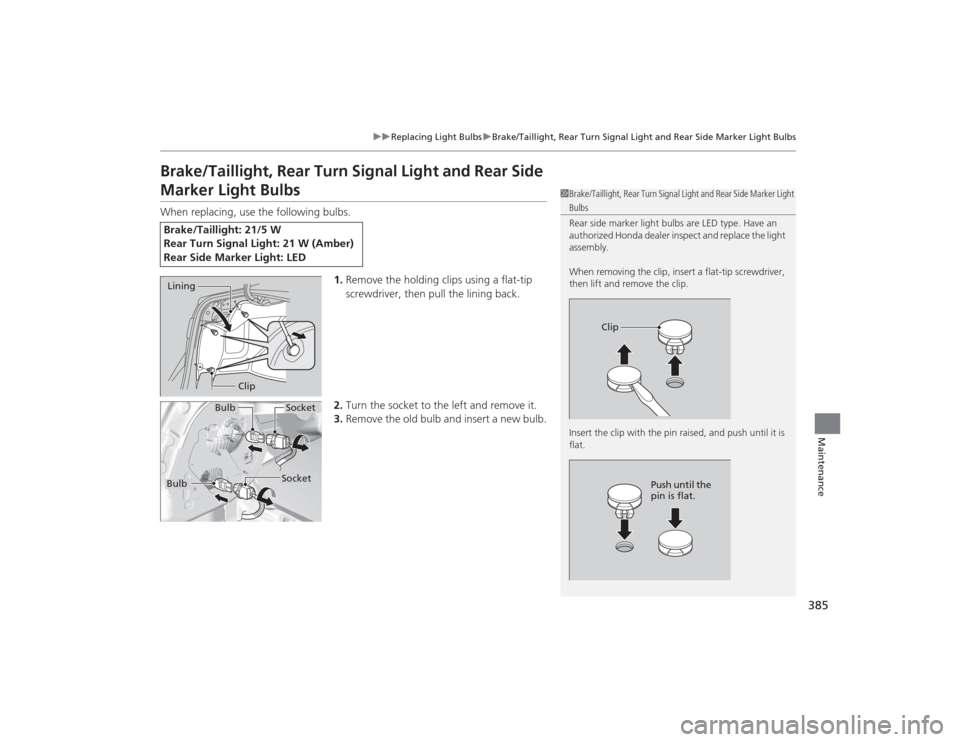

Brake/Taillight, Rear Turn Signal Light and Rear Side Marker Light BulbsWhen replacing, use the following bulbs.
1.Remove the holding clips using a flat-tip
screwdriver, then pull the lining back.
2. Turn the socket to the left and remove it.
3. Remove the old bulb and insert a new bulb.Brake/Taillight: 21/5 W
Rear Turn Signal Light: 21 W (Amber)
Rear Side Marker Light: LED
1Brake/Taillight, Rear Turn Signal Light and Rear Side Marker Light Bulbs
Rear side marker light bulbs are LED type. Have an
authorized Honda dealer inspect and replace the light
assembly.
When removing the clip, insert a flat-tip screwdriver,
then lift and remove the clip.
Insert the clip with the pin raised, and push until it is
flat.
Clip
Push until the
pin is flat.
Lining
Clip
Bulb
Socket
Bulb
Socket
Page 387 of 469
386
uuReplacing Light Bulbs uTaillight and Back-Up Light Bulbs
Maintenance

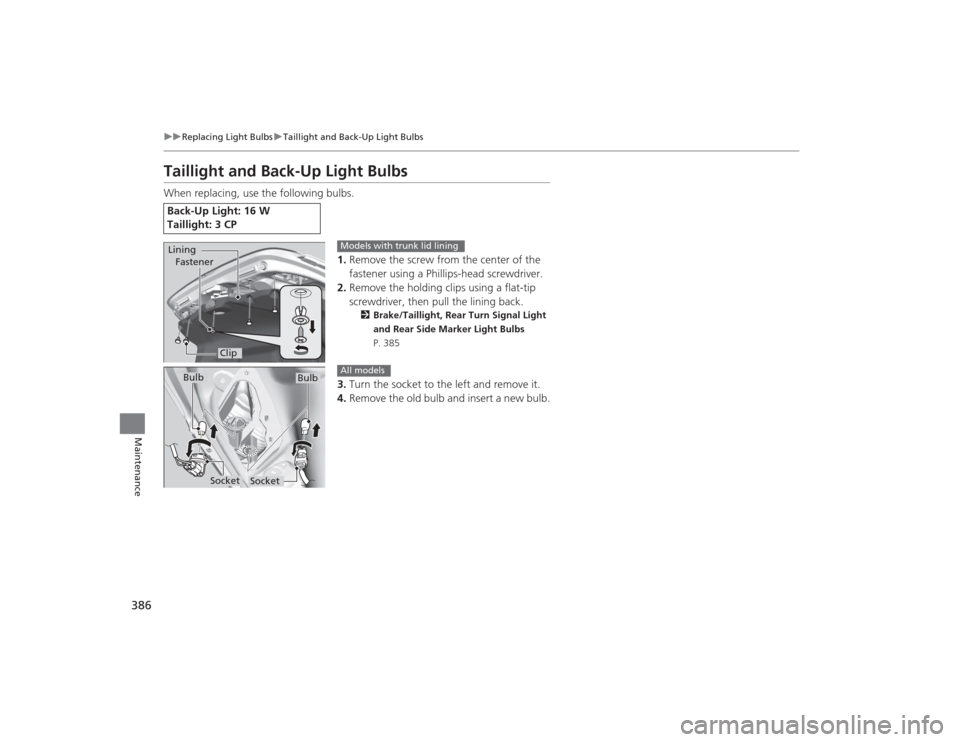

Taillight and Back-Up Light BulbsWhen replacing, use the following bulbs.
1.Remove the screw from the center of the
fastener using a Phillips-head screwdriver.
2. Remove the holding clips using a flat-tip
screwdriver, then pull the lining back.
2 Brake/Taillight, Rear Turn Signal Light
and Rear Side Marker Light Bulbs
P. 385
3. Turn the socket to the left and remove it.
4. Remove the old bulb a nd insert a new bulb.
Back-Up Light: 16 W
Taillight: 3 CPLining
Fastener
Clip
Models with trunk lid lining
Bulb
Socket
Bulb
Socket
All models
Page 388 of 469
387
uuReplacing Light Bulbs uRear License Plate Light Bulbs
Maintenance

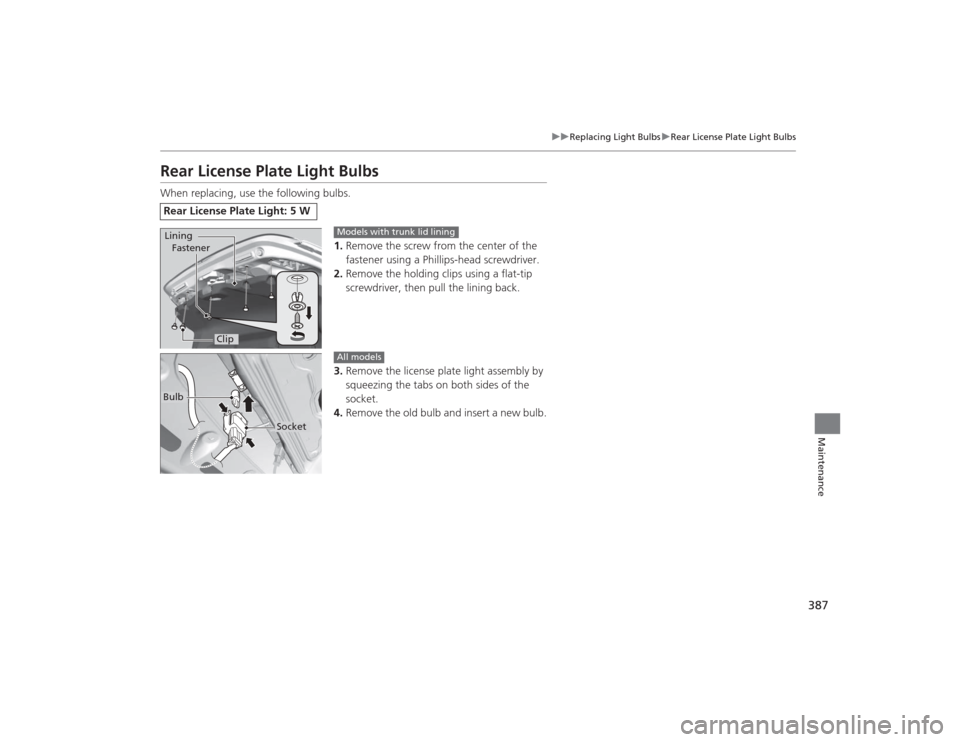

Rear License Plate Light BulbsWhen replacing, use the following bulbs.
1.Remove the screw from the center of the
fastener using a Phillips-head screwdriver.
2. Remove the holding clips using a flat-tip
screwdriver, then pull the lining back.
3. Remove the license plate light assembly by
squeezing the tabs on both sides of the
socket.
4. Remove the old bulb and insert a new bulb.Rear License Plate Light: 5 W Lining
Fastener
Clip
Models with trunk lid lining
Bulb
Socket
All models
Page 389 of 469
388
uuReplacing Light Bulbs uHigh-Mount Brake Light Bulb
Maintenance

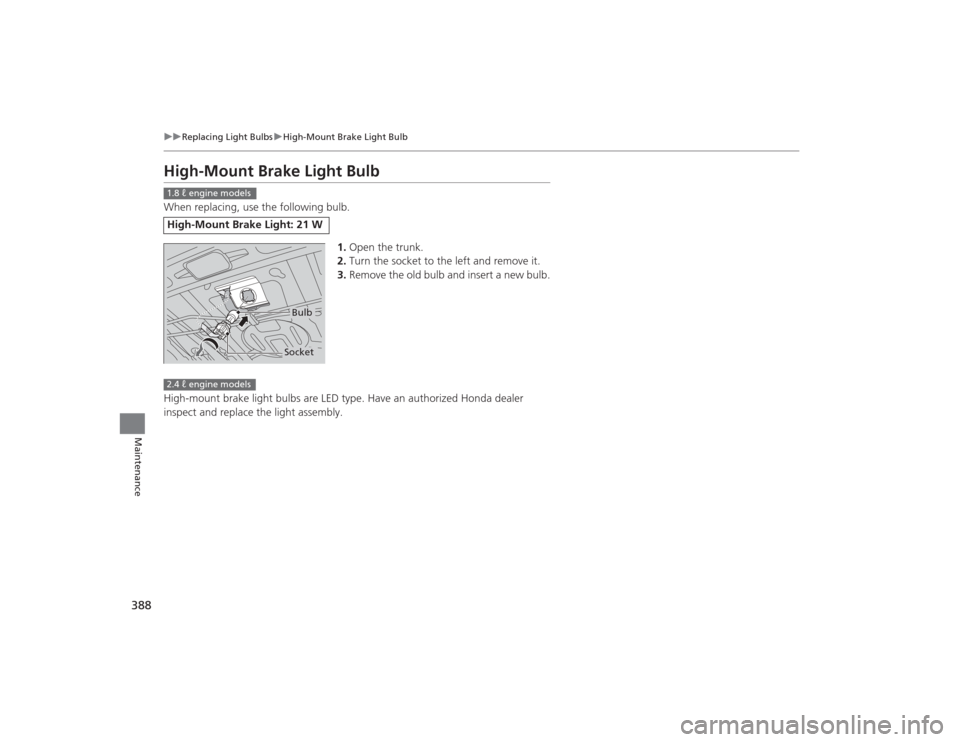

High-Mount Brake Light BulbWhen replacing, use the following bulb.
1.Open the trunk.
2. Turn the socket to the left and remove it.
3. Remove the old bulb a nd insert a new bulb.
High-mount brake light bulbs are LED type. Have an authorized Honda dealer
inspect and replace the light assembly.High-Mount Brake Light: 21 W1.8 ℓ engine models
BulbSocket
2.4 ℓ engine models
Page 390 of 469
389
Continued
Maintenance

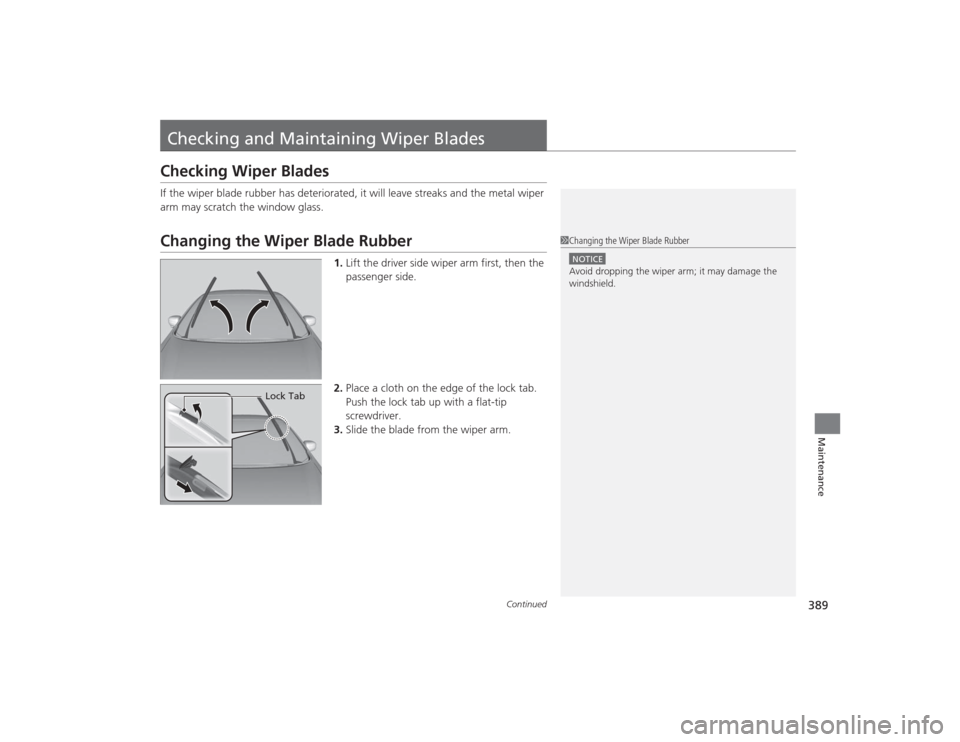

Checking and Maintaining Wiper BladesChecking Wiper BladesIf the wiper blade rubber has deteriorated, it will leave streaks and the metal wiper
arm may scratch the window glass.Changing the Wiper Blade Rubber
1.Lift the driver side wiper arm first, then the
passenger side.
2. Place a cloth on the edge of the lock tab.
Push the lock tab up with a flat-tip
screwdriver.
3. Slide the blade from the wiper arm.
1Changing the Wiper Blade RubberNOTICEAvoid dropping the wiper arm; it may damage the
windshield.
Lock Tab
