HONDA CIVIC 2016 10.G Owners Manual

uuBluetooth ® HandsFreeLink ®*uHFL Menus
380
Features

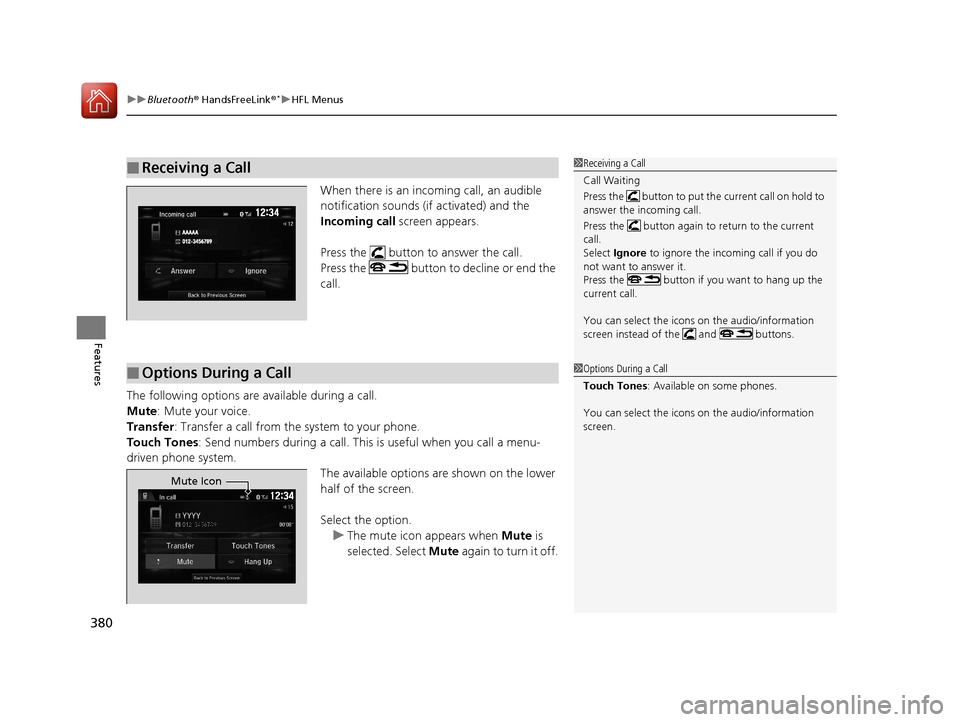

When there is an incoming call, an audible
notification sounds (if activated) and the
Incoming call screen appears.
Press the button to answer the call.
Press the button to decline or end the
call.
The following options are available during a call.
Mute : Mute your voice.
Transfer : Transfer a call from the system to your phone.
Touch Tones: Send numbers during a call. This is useful when you call a menu-
driven phone system. The available options are shown on the lower
half of the screen.
Select the option.u The mute icon appears when Mute is
selected. Select Mute again to turn it off.
■Receiving a Call1Receiving a Call
Call Waiting
Press the button to put the current call on hold to
answer the incoming call.
Press the button again to return to the current
call.
Select Ignore to ignore the incoming call if you do
not want to answer it.
Press the button if you want to hang up the
current call.
You can select the icons on the audio/information
screen instead of the and buttons.
■Options During a Call1 Options During a Call
Touch Tones : Available on some phones.
You can select the icons on the audio/information
screen.
Mute Icon
16 CIVIC 4D-31TBA6000.book 380 ページ ２０１５年８月３１日　月曜日　午後５時５６分

Continued381
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features

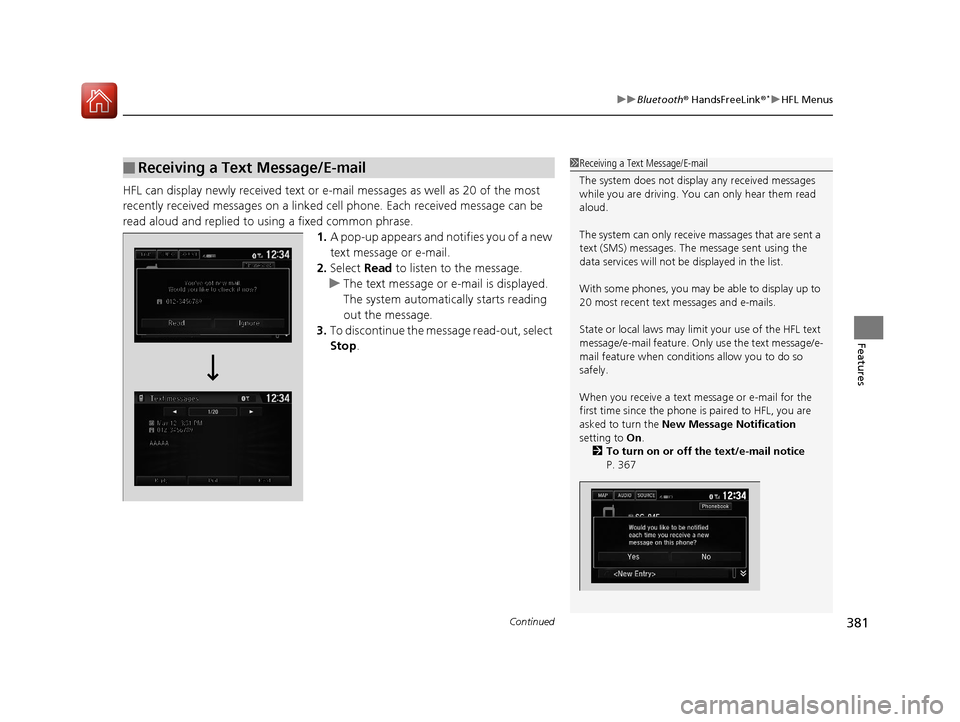

HFL can display newly received text or e-mail messages as well as 20 of the most
recently received messages on a linked cell phone. Each received message can be
read aloud and replied to using a fixed common phrase.
1.A pop-up appears and notifies you of a new
text message or e-mail.
2. Select Read to listen to the message.
u The text message or e-mail is displayed.
The system automatica lly starts reading
out the message.
3. To discontinue the mess age read-out, select
Stop .
■Receiving a Text Message/E-mail1Receiving a Text Message/E-mail
The system does not display any received messages
while you are driving. You can only hear them read
aloud.
The system can only receive massages that are sent a
text (SMS) messages. The message sent using the
data services will not be displayed in the list.
With some phones, you may be able to display up to
20 most recent text messages and e-mails.
State or local laws may limit your use of the HFL text
message/e-mail feature. Only use the text message/e-
mail feature when conditions allow you to do so
safely.
When you receive a text message or e-mail for the
first time since the phone is paired to HFL, you are
asked to turn the New Message Notification
setting to On .
2 To turn on or off the text/e-mail notice
P. 367
16 CIVIC 4D-31TBA6000.book 381 ページ ２０１５年８月３１日　月曜日　午後５時５６分

uuBluetooth ® HandsFreeLink ®*uHFL Menus
382
Features

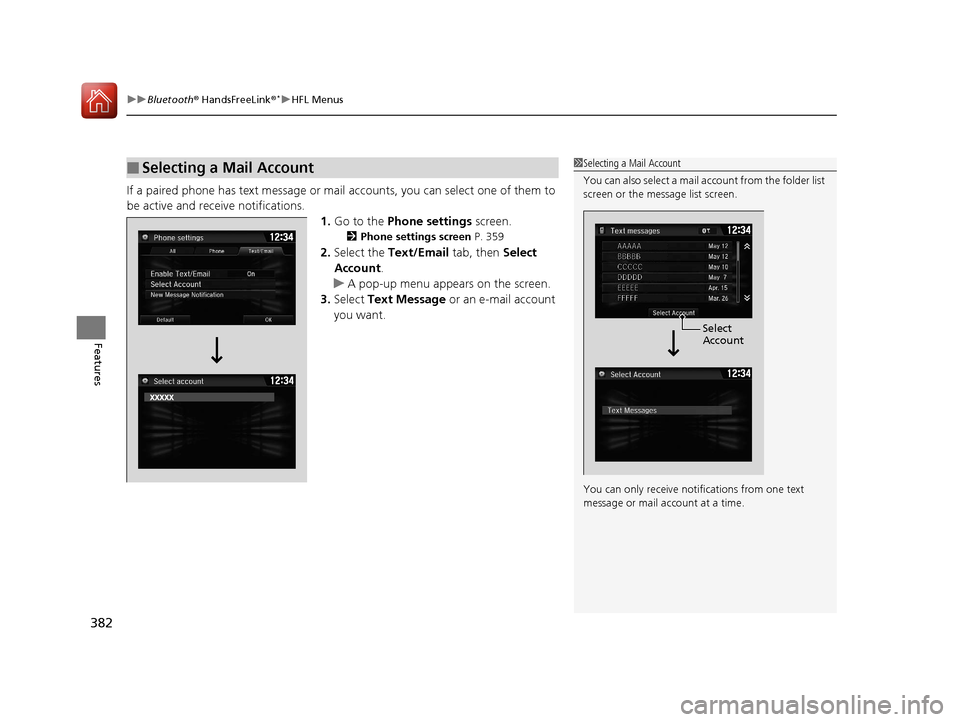

If a paired phone has text message or mail accounts, you can select one of them to
be active and receive notifications.
1.Go to the Phone settings screen.
2Phone settings screen P. 359
2.Select the Text/Email tab, then Select
Account .
u A pop-up menu appears on the screen.
3. Select Text Message or an e-mail account
you want.
■Selecting a Mail Account1 Selecting a Mail Account
You can also select a mail account from the folder list
screen or the message list screen.
You can only receive notif ications from one text
message or mail a ccount at a time.
Select
Account
16 CIVIC 4D-31TBA6000.book 382 ページ ２０１５年８月３１日　月曜日　午後５時５６分

Continued383
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features

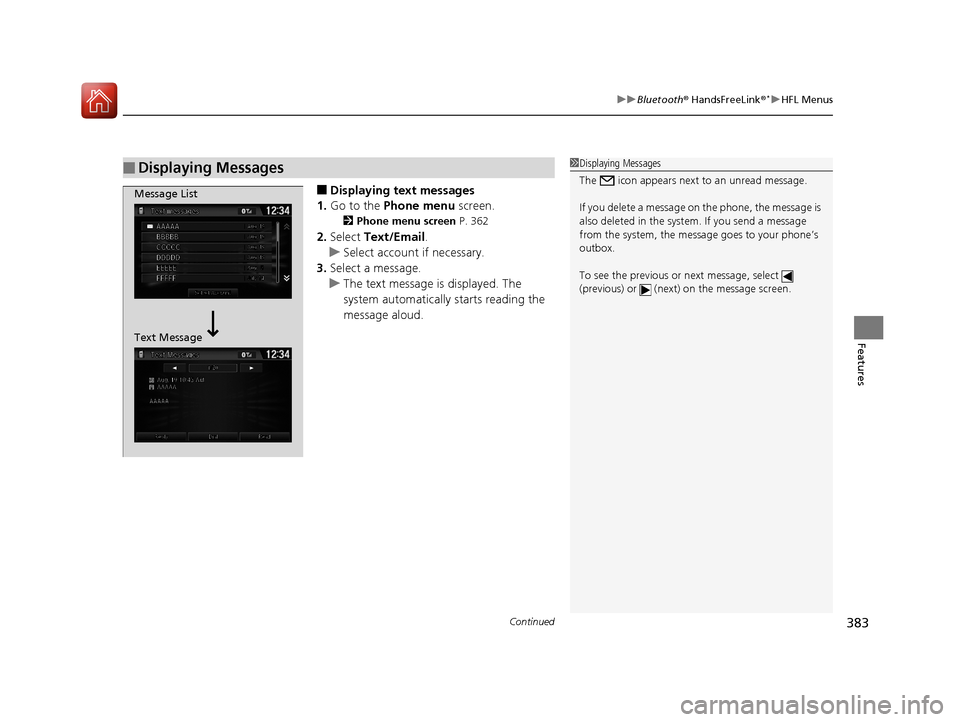

■Displaying text messages
1. Go to the Phone menu screen.
2Phone menu screen P. 362
2.Select Text/Email .
u Select account if necessary.
3. Select a message.
u The text message is displayed. The
system automatically starts reading the
message aloud.
■Displaying Messages1Displaying Messages
The icon appears next to an unread message.
If you delete a message on the phone, the message is
also deleted in the system. If you send a message
from the system, the message goes to your phone’s
outbox.
To see the previous or next message, select
(previous) or (next) on the message screen.
Message List
Text Message
16 CIVIC 4D-31TBA6000.book 383 ページ ２０１５年８月３１日　月曜日　午後５時５６分

384
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features
■Displaying e-mails
1. Go to the Phone menu screen.
2Phone menu screen P. 362
2.Select Text/Email .
u Select Select Account if necessary.
3. Select a folder.
4. Select a message.
u The e-mail is displayed. The system
automatically starts reading the message
aloud.
Folder List
Message List
E-mail
16 CIVIC 4D-31TBA6000.book 384 ページ ２０１５年８月３１日　月曜日　午後５時５６分

Continued385
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features

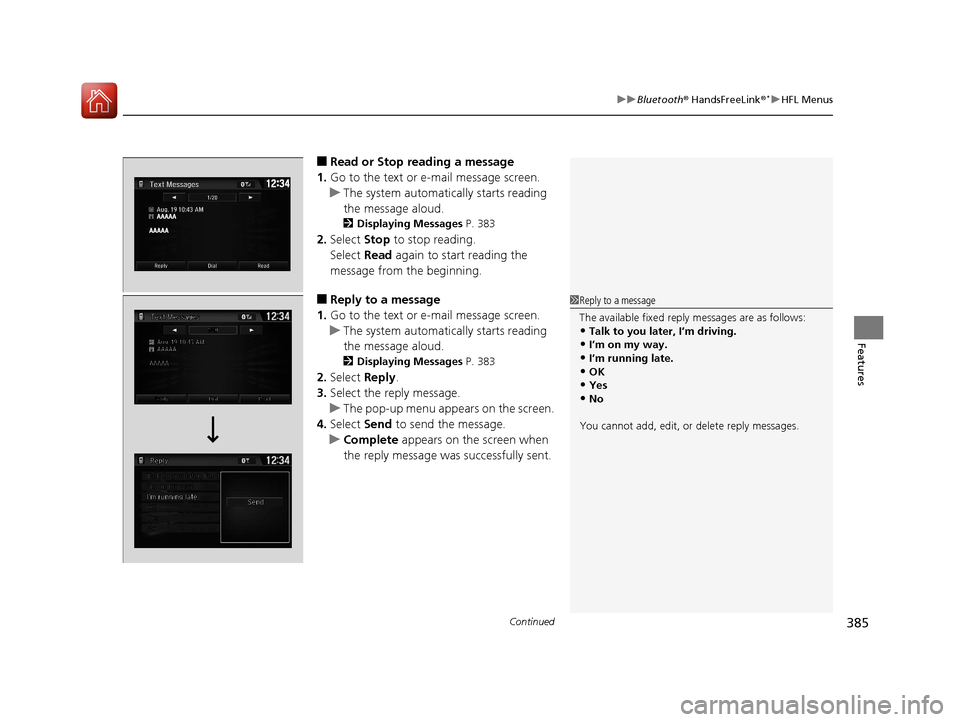

■Read or Stop reading a message
1. Go to the text or e-mail message screen.
u The system automatica lly starts reading
the message aloud.
2 Displaying Messages P. 383
2.Select Stop to stop reading.
Select Read again to start reading the
message from the beginning.
■Reply to a message
1. Go to the text or e-mail message screen.
u The system automatica lly starts reading
the message aloud.
2 Displaying Messages P. 383
2.Select Reply.
3. Select the reply message.
u The pop-up menu appears on the screen.
4. Select Send to send the message.
u Complete appears on the screen when
the reply message was successfully sent.
1 Reply to a message
The available fixed reply messages are as follows:
•Talk to you later, I’m driving.•I’m on my way.
•I’m running late.
•OK•Yes
•No
You cannot add, edit, or delete reply messages.
16 CIVIC 4D-31TBA6000.book 385 ページ ２０１５年８月３１日　月曜日　午後５時５６分

386
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features

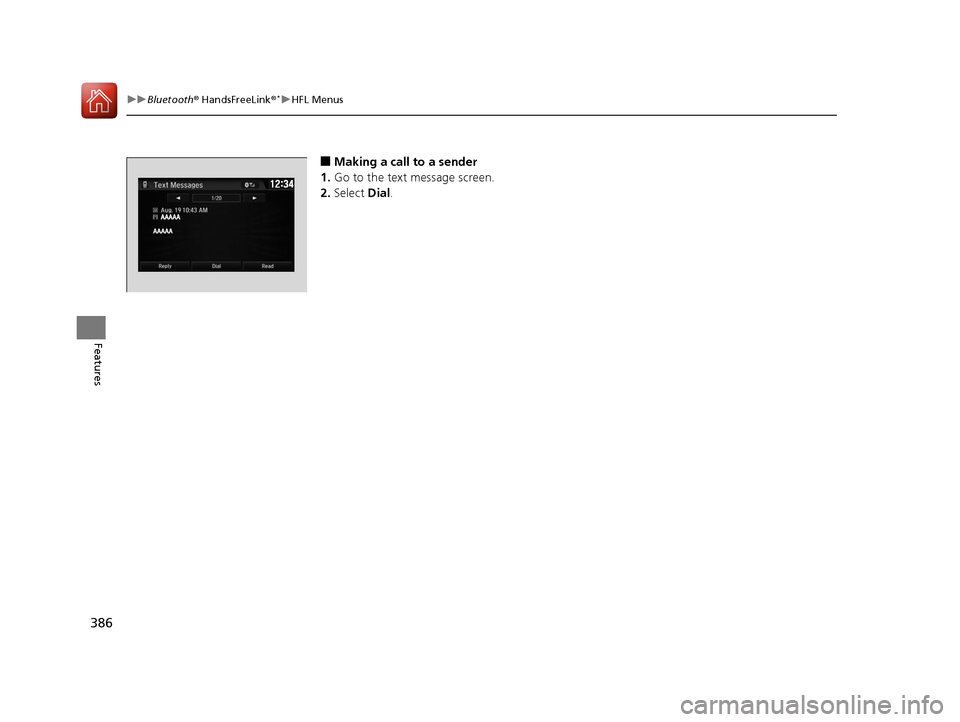

■Making a call to a sender
1. Go to the text message screen.
2. Select Dial.
16 CIVIC 4D-31TBA6000.book 386 ページ ２０１５年８月３１日　月曜日　午後５時５６分

Continued387
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features

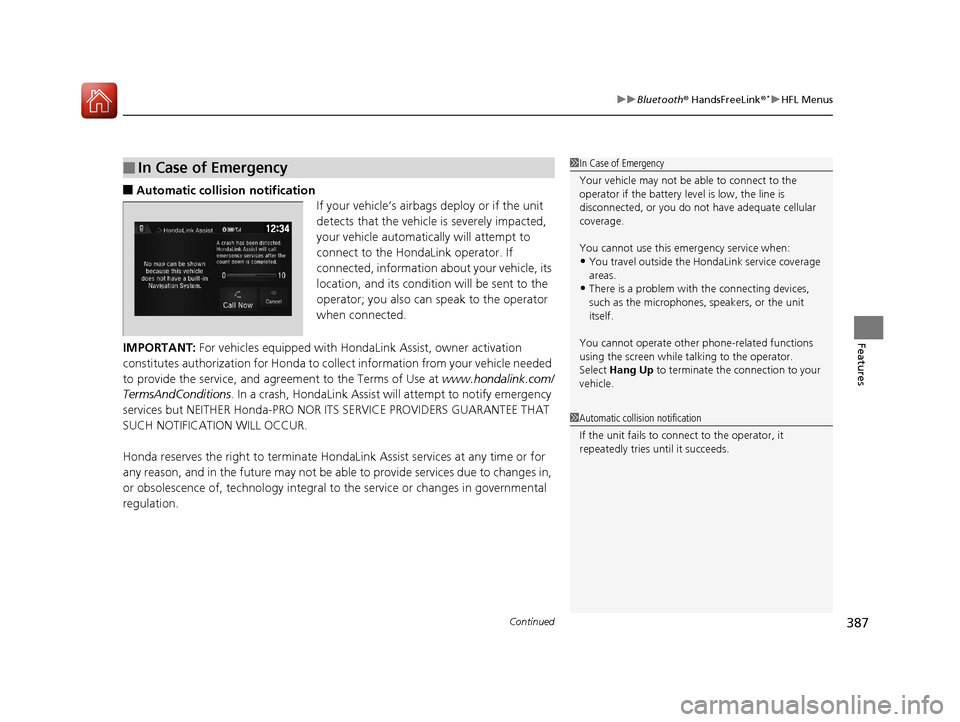

■Automatic collis ion notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink operator. If
connected, information about your vehicle, its
location, and its condition will be sent to the
operator; you also can speak to the operator
when connected.
IMPORTANT: For vehicles equipped with HondaLink Assist, owner activation
constitutes authorization for Honda to collect information from your vehicle needed
to provide the service, and agreement to the Terms of Use at www.hondalink.com/
TermsAndConditions . In a crash, HondaLink Assist will attempt to notify emergency
services but NEITHER Honda-PRO NOR ITS SERVICE PROVIDERS GUARANTEE THAT
SUCH NOTIFICATION WILL OCCUR.
Honda reserves the right to terminate HondaLink Assist services at any time or for
any reason, and in the future may not be ab le to provide services due to changes in,
or obsolescence of, technology integral to the service or changes in governmental
regulation.
■In Case of Emergency1 In Case of Emergency
Your vehicle may not be able to connect to the
operator if the battery level is low, the line is
disconnected, or you do not have adequate cellular
coverage.
You cannot use this emergency service when:
•You travel outside the HondaLink service coverage
areas.
•There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.
You cannot operate othe r phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.
1 Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
16 CIVIC 4D-31TBA6000.book 387 ページ ２０１５年８月３１日　月曜日　午後５時５６分

uuBluetooth ® HandsFreeLink ®*uHFL Menus
388
Features
■To enable notification
1.Go to the Phone settings screen.
2Phone settings screen P. 359
2.Select the Phone tab, then HondaLink
Assist .
u A pop-up menu appears on the screen.
3. Select On or Off .
1To enable notification
Setting options:
•On: Notification is available.
•Off: Disable the feature.
16 CIVIC 4D-31TBA6000.book 388 ページ ２０１５年８月３１日　月曜日　午後５時５６分

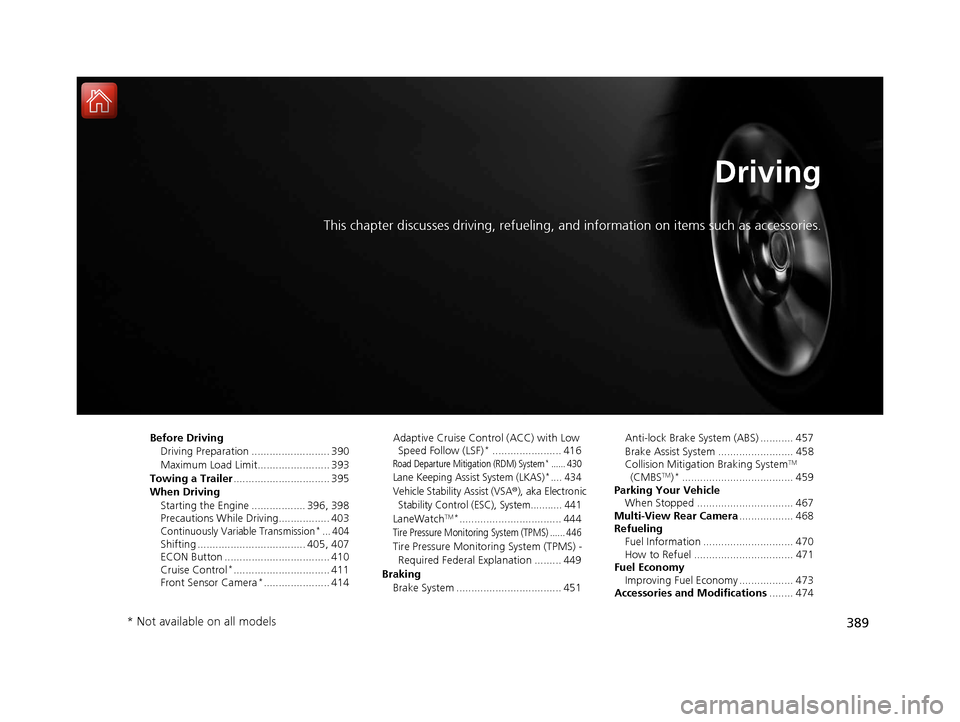

389
Driving
This chapter discusses driving, refueling, and information on items such as accessories.
Before Driving
Driving Preparation .......................... 390
Maximum Load Limit........................ 393
Towing a Trailer ................................ 395
When Driving
Starting the Engine .................. 396, 398
Precautions While Driving................. 403
Continuously Variable Transmission*... 404Shifting .................................... 405, 407
ECON Button ................................... 410
Cruise Control
*................................ 411
Front Sensor Camera*...................... 414 Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF)
*....................... 416Road Departure Mitigation (RDM) System*...... 430
Lane Keeping Assist System (LKAS)*.... 434
Vehicle Stabilit y Assist (VSA
®), aka Electronic
Stability Control (ESC), System........... 441
LaneWatchTM*.................................. 444
Tire Pressure Monitoring System (TPMS) ...... 446
Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 449
Braking Brake System ................................... 451 Anti-lock Brake System (ABS) ........... 457
Brake Assist System ......................... 458
Collision Mitigation Braking System
TM
(CMBSTM)*..................................... 459
Parking Your Vehicle When Stopped ................................ 467
Multi-View Rear Camera .................. 468
Refueling Fuel Information .............................. 470
How to Refuel ................................. 471
Fuel Economy Improving Fuel Economy .................. 473
Accessories and Modifications ........ 474
* Not available on all models
16 CIVIC 4D-31TBA6000.book 389 ページ ２０１５年８月３１日　月曜日　午後５時５６分
