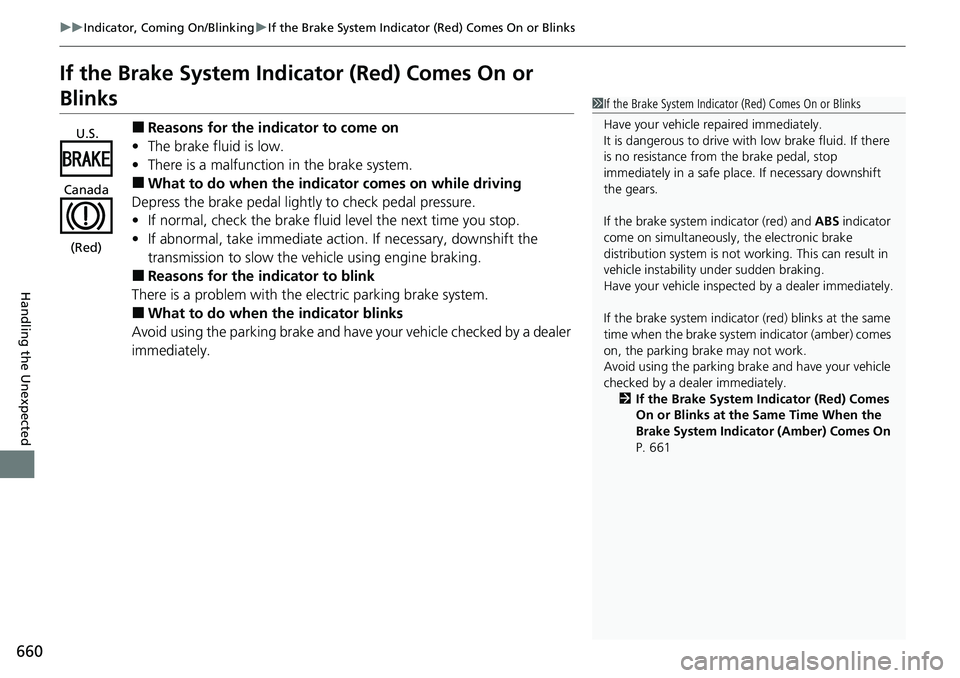

uuIndicator, Coming On/Blinking uIf the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or
Blinks
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.
■Reasons for the in dicator to blink
There is a problem with the electric parking brake system.
■What to do when the indicator blinks
Avoid using the parking brake and have your vehicle checked by a dealer
immediately.
1 If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator (red) and ABS indicator
come on simultaneously , the electronic brake
distribution system is not wo rking. This can result in
vehicle instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by a dealer immediately. 2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 661
U.S.
Canada
(Red)

661
uuIndicator, Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On
■If the brake system indicator (red) comes on or blinks at the
same time when the brake syst em indicator (amber) comes on,
release the parking brake ma nually or automatically.
2Parking Brake P. 554
•If the brake system indicator (red) continuously comes on or blinks at
the same time when the brake system indicator (amber) comes on,
stop the vehicle in a safe place a nd have it inspected by a dealer
immediately.
u Preventing the vehicle from mo ving, put the transmission into
(P.
•If only the brake system indicator (r ed) is turned off, avoid using the
parking brake and have your vehicle checked by a dealer immediately.
1If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On
If you apply the parking brake, you may not be able
to release it.
If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.
If you repeatedly operate the electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system and the indicator
blinks.
It returns to its original state in approximately 1
minute.
U.S.
Canada
(Red)
U.S.
Canada
(Amber)

662

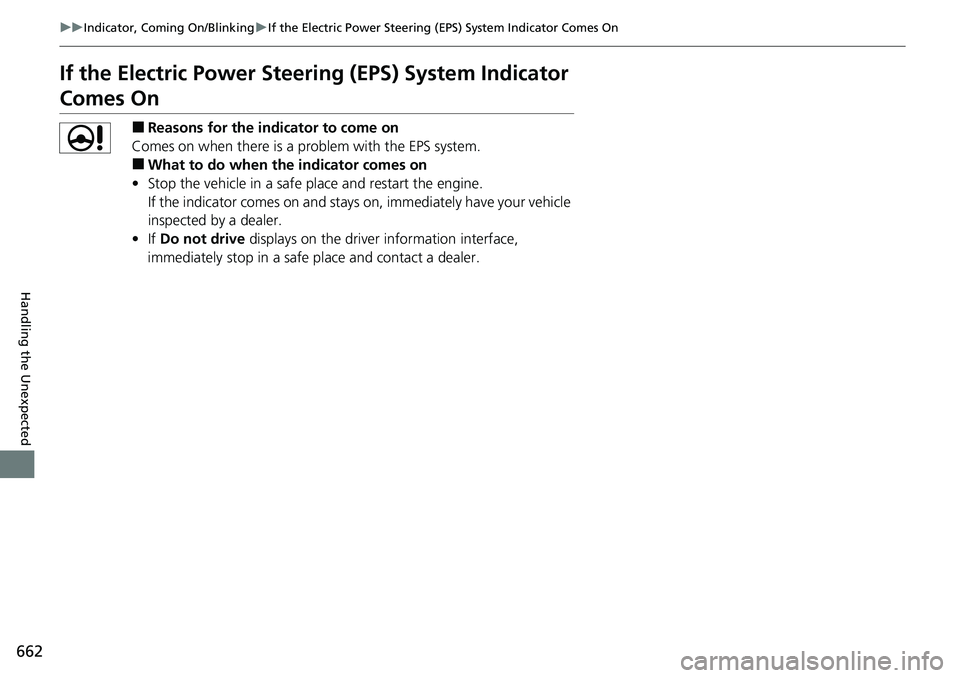

uuIndicator, Coming On/Blinking uIf the Electric Power Steering (EPS) System Indicator Comes On
Handling the Unexpected
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
Comes on when there is a problem with the EPS system.
■What to do when the indicator comes on
• Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
• If Do not drive displays on the driv er information interface,
immediately stop in a safe place and contact a dealer.

663
uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
If the compact spare tire is installed, the indicator will either come on or
it will first blink for about one minute, then stay on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
u Calibrate the TPMS after the tire pressure is adjusted.
2 TPMS Calibration P. 463
If the compact spare tire causes th e indicator to come on, change the
tire to a full-size tire. The indicato r goes off after calibrating the TPMS.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to firs t blink, and then stay on, change the
tire to a full- size tire. The indicator goes off after calibrating the TPMS.
2 TPMS Calibration P. 463
U.S. models
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

664
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any app licable fuse is blown.

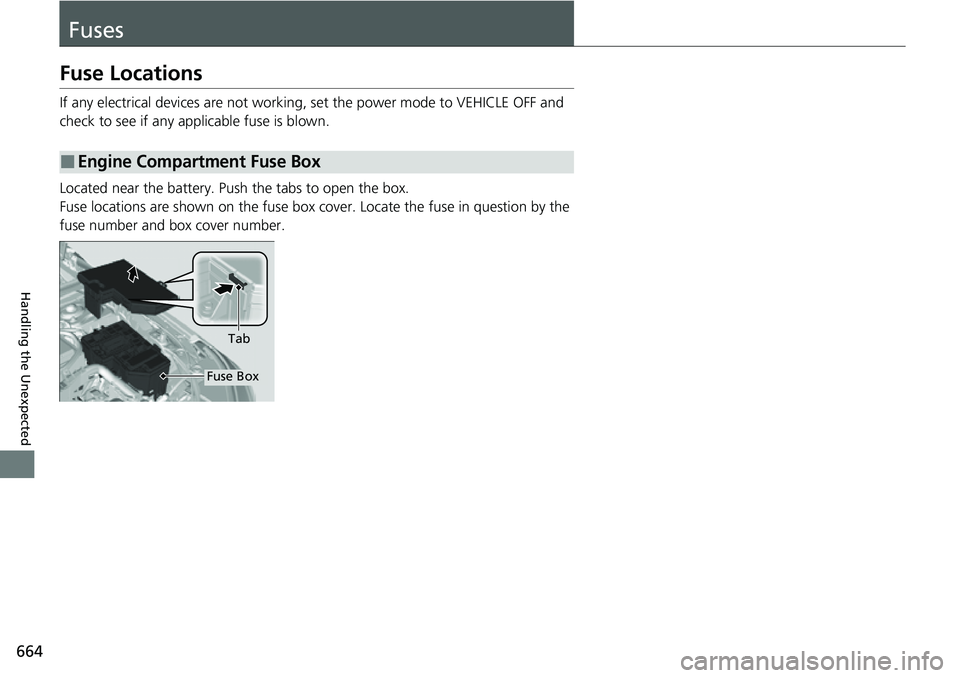

Located near the battery. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
Fuse Box
Tab

665
uuFuses uFuse Locations
Continued
Handling the Unexpected

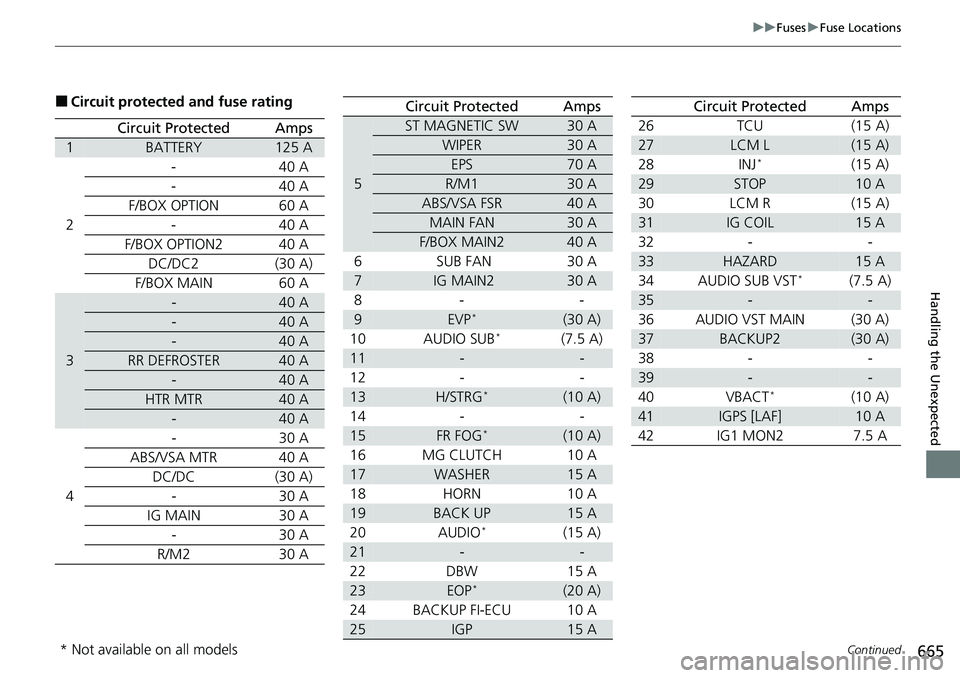

■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY125 A
2 - 40 A
- 40 A
F/BOX OPTION 60 A - 40 A
F/BOX OPTION2 40 A DC/DC2 (30 A)
F/BOX MAIN 60 A
3
-40 A
-40 A
-40 A
RR DEFROSTER40 A
-40 A
HTR MTR40 A
-40 A
4 - 30 A
ABS/VSA MTR 40 A DC/DC (30 A)
- 30 A
IG MAIN 30 A
- 30 A
R/M2 30 A
5
ST MAGNETIC SW30 A
WIPER30 A
EPS70 A
R/M130 A
ABS/VSA FSR40 A
MAIN FAN30 A
F/BOX MAIN240 A
6 SUB FAN 30 A
7 IG MAIN230 A
8- -
9EVP*(30 A)
10 AUDIO SUB*(7.5 A)
11--
12 - -
13H/STRG*(10 A)
14 - -
15FR FOG*(10 A)
16 MG CLUTCH 10 A
17WASHER15 A
18 HORN 10 A
19BACK UP15 A
20 AUDIO*(15 A)
21--
22 DBW 15 A
23EOP*(20 A)
24 BACKUP FI-ECU 10 A
25IGP15 A
Circuit ProtectedAmps
26 TCU (15 A)
27LCM L(15 A)
28 INJ*(15 A)
29STOP10 A
30 LCM R (15 A)
31IG COIL15 A
32 - -
33HAZARD15 A
34 AUDIO SUB VST*(7.5 A)
35--
36 AUDIO VST MAIN (30 A)
37BACKUP2(30 A)
38 - -
39--
40 VBACT*(10 A)
41IGPS [LAF]10 A
42 IG1 MON2 7.5 A
Circuit ProtectedAmps
* Not available on all models

666
uuFuses uFuse Locations
Handling the Unexpected

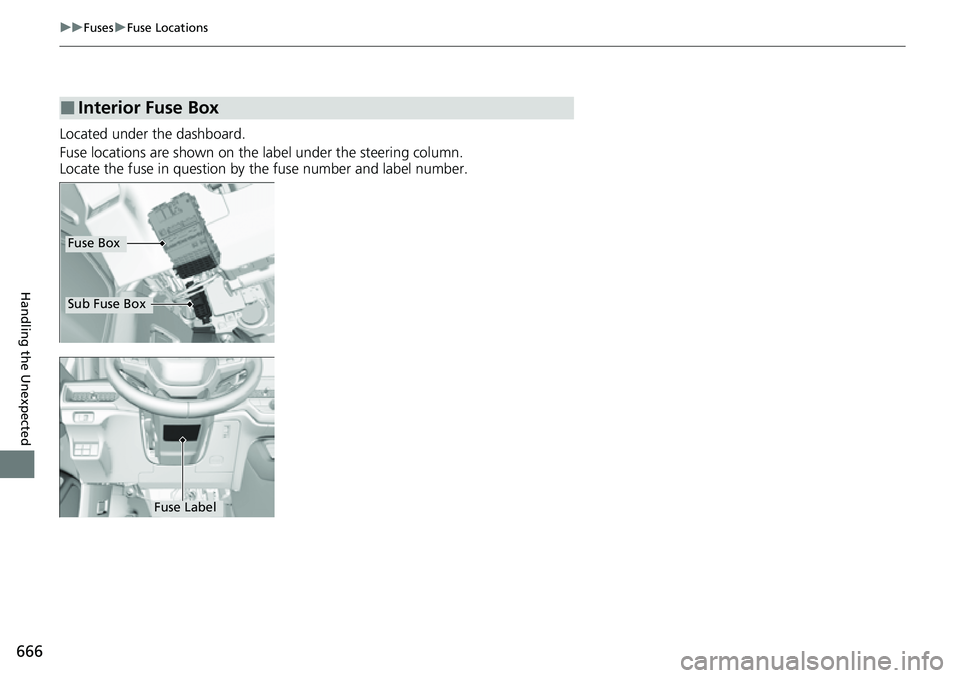

Located under the dashboard.
Fuse locations are shown on the label under the steering column.
Locate the fuse in question by the fuse number and label number.
■Interior Fuse Box
Fuse Box
Sub Fuse Box
Fuse Label

667
uuFuses uFuse Locations
Handling the Unexpected

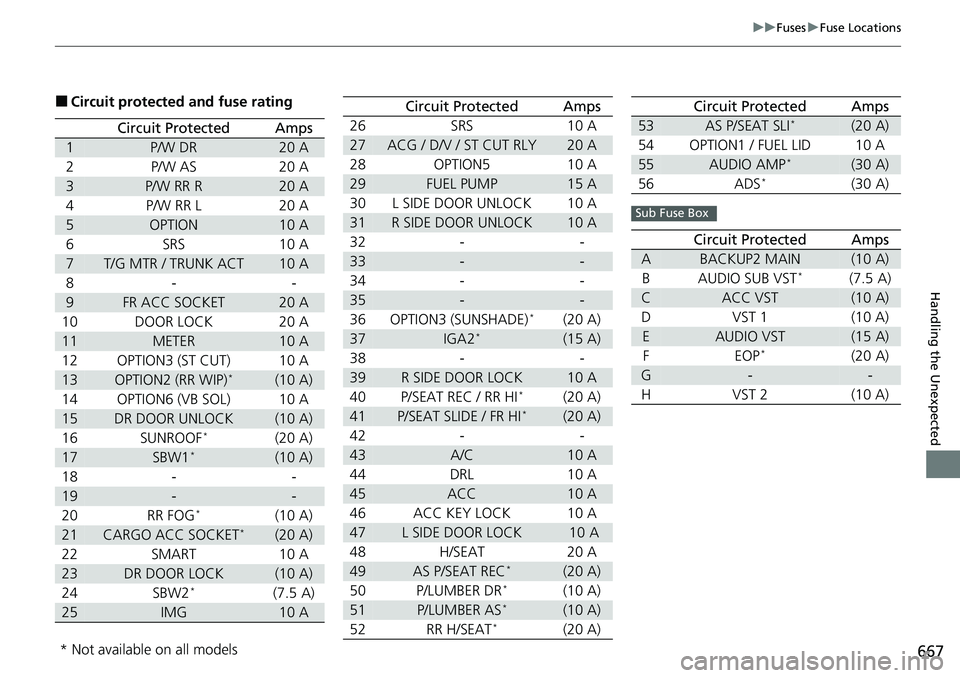

■Circuit protected and fuse rating
Circuit ProtectedAmps
1P/W DR20 A
2 P/W AS 20 A
3P/W RR R20 A
4 P/W RR L 20 A
5OPTION10 A
6 SRS 10 A
7T/G MTR / TRUNK ACT10 A
8- -
9FR ACC SOCKET20 A
10 DOOR LOCK 20 A
11METER10 A
12 OPTION3 (ST CUT) 10 A
13OPTION2 (RR WIP)*(10 A)
14 OPTION6 (VB SOL) 10 A
15DR DOOR UNLOCK(10 A)
16 SUNROOF*(20 A)
17SBW1*(10 A)
18 - -
19--
20 RR FOG*(10 A)
21CARGO ACC SOCKET*(20 A)
22 SMART 10 A
23DR DOOR LOCK(10 A)
24 SBW2*(7.5 A)
25IMG10 A
26 SRS 10 A
27ACG / D/V / ST CUT RLY20 A
28 OPTION5 10 A
29FUEL PUMP15 A
30 L SIDE DOOR UNLOCK 10 A
31R SIDE DOOR UNLOCK10 A
32 - -
33--
34 - -
35--
36 OPTION3 (SUNSHADE)*(20 A)
37IGA2*(15 A)
38 - -
39R SIDE DOOR LOCK10 A
40 P/SEAT REC / RR HI*(20 A)
41P/SEAT SLIDE / FR HI*(20 A)
42 - -
43A/C10 A
44 DRL 10 A
45ACC10 A
46 ACC KEY LOCK 10 A
47L SIDE DOOR LOCK 10 A
48 H/SEAT 20 A
49AS P/SEAT REC*(20 A)
50 P/LUMBER DR*(10 A)
51P/LUMBER AS*(10 A)
52 RR H/SEAT*(20 A)
Circuit ProtectedAmps
53AS P/SEAT SLI*(20 A)
54 OPTION1 / FUEL LID 10 A
55AUDIO AMP*(30 A)
56 ADS*(30 A)
Circuit ProtectedAmps
ABACKUP2 MAIN(10 A)
B AUDIO SUB VST*(7.5 A)
CACC VST(10 A)
D VST 1 (10 A)
EAUDIO VST(15 A)
FEOP*(20 A)
G--
H VST 2 (10 A)
Circuit ProtectedAmps
Sub Fuse Box
* Not available on all models

668
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses

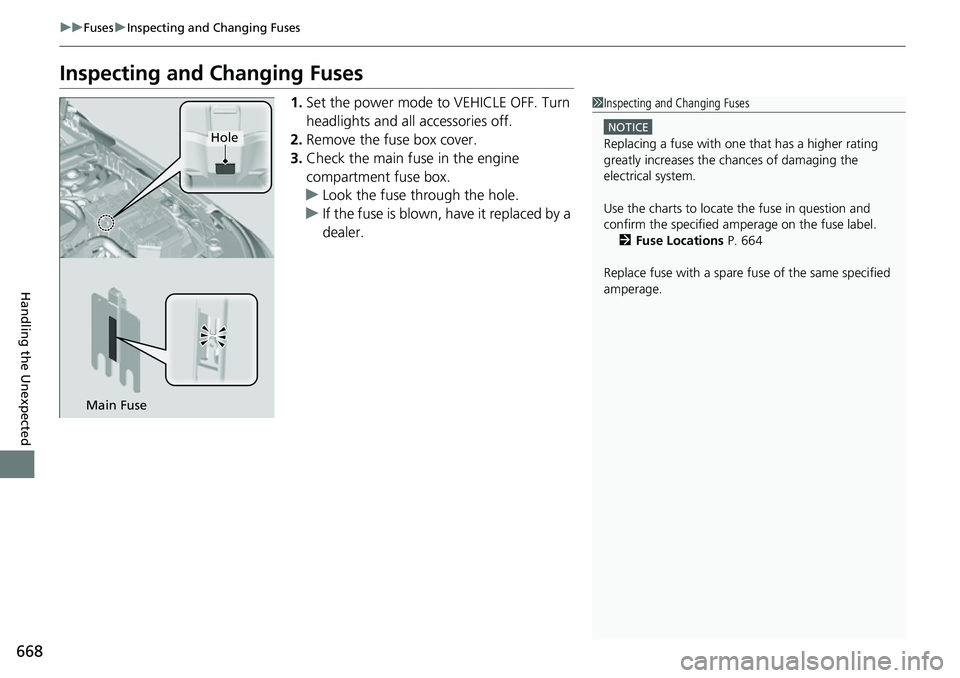

1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the main fuse in the engine
compartment fuse box.
u Look the fuse through the hole.
u If the fuse is blown, have it replaced by a
dealer.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 664
Replace fuse with a spare fuse of the same specified
amperage.
Main Fuse
Hole

669
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

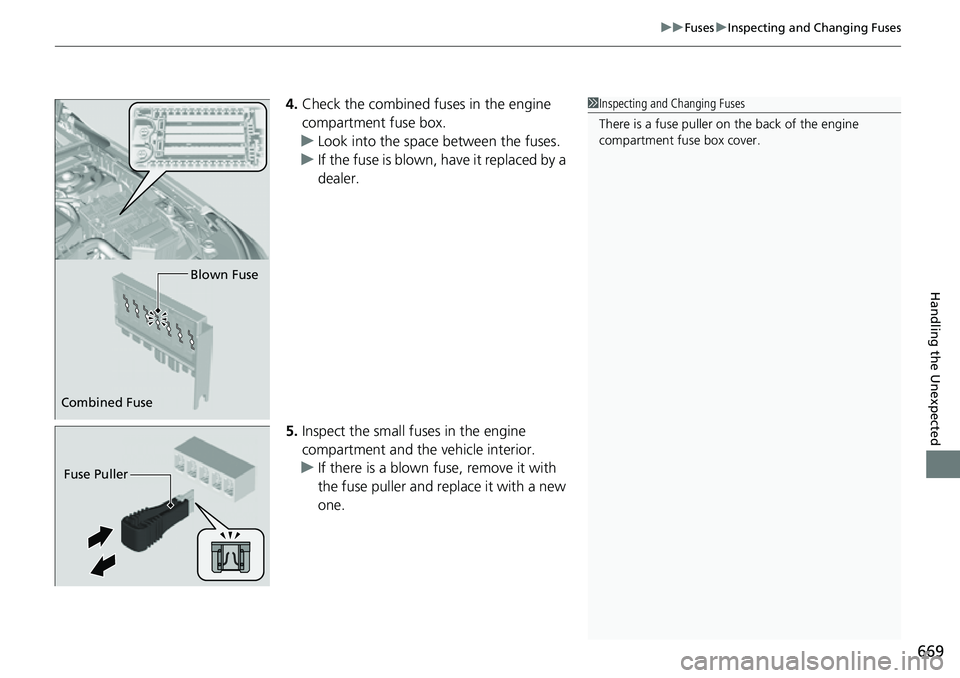

4. Check the combined fu ses in the engine
compartment fuse box.
u Look into the space between the fuses.
u If the fuse is blown, have it replaced by a
dealer.
5. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined Fuse Blown Fuse
Fuse Puller
