HONDA CIVIC 2023 Owners Manual

159
uuGauges and Driver Information Interface uDriver Information Interface Right Side Area (B-type-Meter)
Continued
Instrument Panel

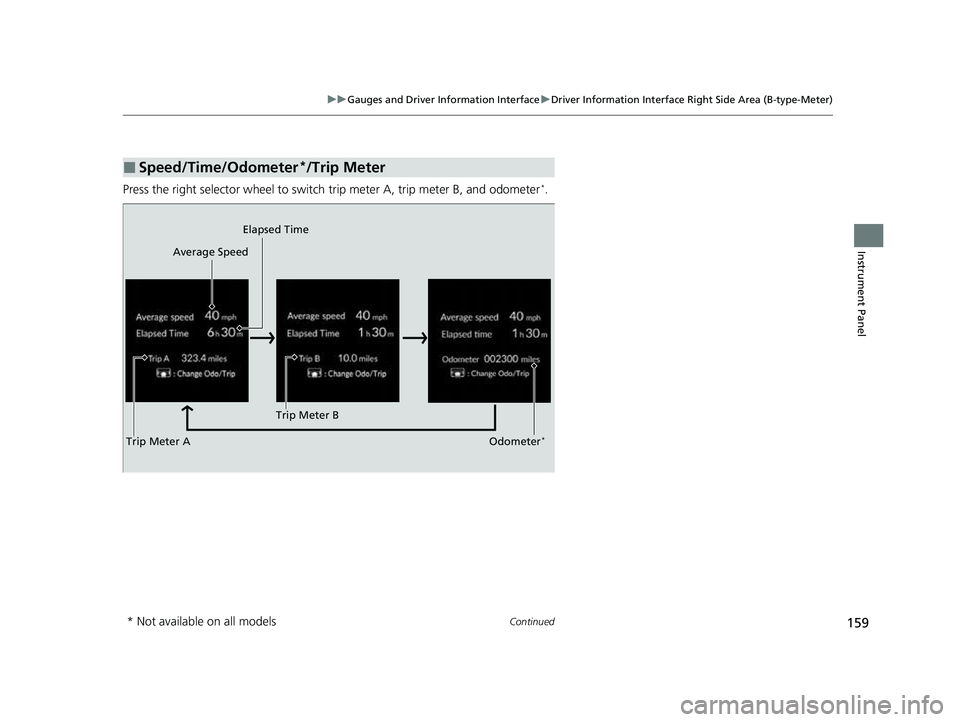

Press the right selector wheel to switch trip meter A, trip meter B, and odometer*.
■Speed/Time/Odometer*/Trip Meter
Trip Meter A Elapsed Time
Trip Meter B
Average SpeedOdometer*
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 159 ページ ２０２２年６月２３日　木曜日　午後９時２８分

uuGauges and Driver Information Interface uDriver Information Interface Right Side Area (B-type-Meter)
160
Instrument Panel

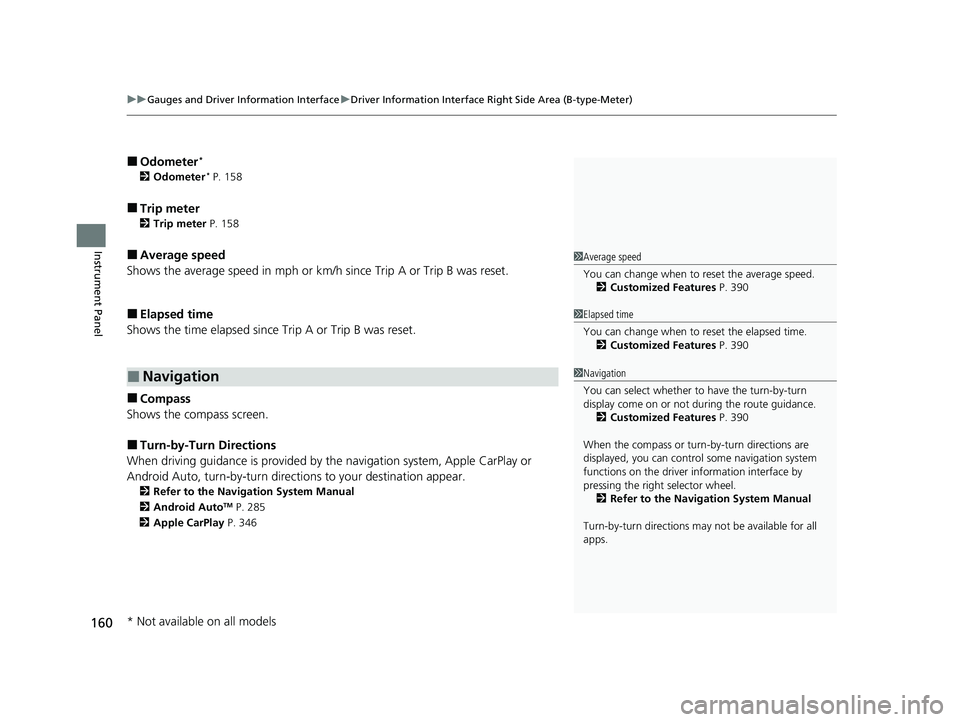

■Odometer*
2 Odometer* P. 158
■Trip meter
2Trip meter P. 158
■Average speed
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
■Elapsed time
Shows the time elapsed since Trip A or Trip B was reset.
■Compass
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the navigation system, Apple CarPlay or
Android Auto, turn-by-turn directio ns to your destination appear.
2Refer to the Navigation System Manual
2 Android AutoTM P. 285
2 Apple CarPlay P. 346
■Navigation
1Average speed
You can change when to reset the average speed.
2 Customized Features P. 390
1Elapsed time
You can change when to reset the elapsed time.
2 Customized Features P. 390
1Navigation
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 390
When the compass or turn-by-turn directions are
displayed, you can contro l some navigation system
functions on the driver information interface by
pressing the right selector wheel. 2 Refer to the Navigation System Manual
Turn-by-turn directions may not be available for all
apps.
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 160 ページ ２０２２年６月２３日　木曜日　午後９時２８分

Continued161
uuGauges and Driver Information Interface uDriver Information Interface Right Side Area (B-type-Meter)
Instrument Panel

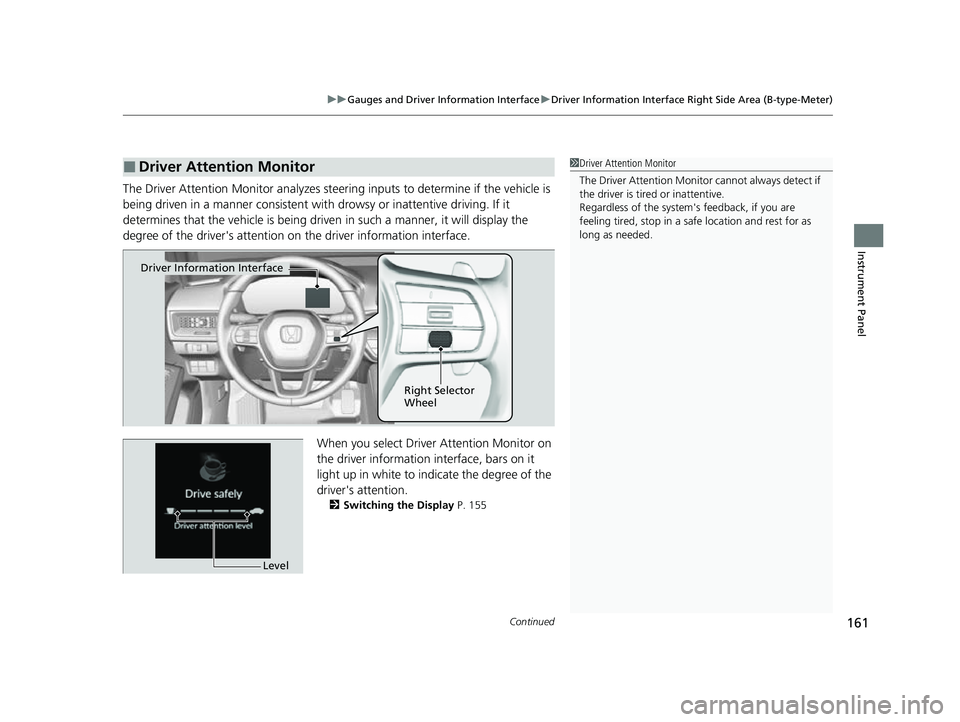

The Driver Attention Monitor an alyzes steering inputs to determine if the vehicle is
being driven in a manner consistent with drowsy or inattentive driving. If it
determines that the vehicle is being driven in such a manner, it will display the
degree of the driver's attention on the driver information interface.
When you select Driver Attention Monitor on
the driver information in terface, bars on it
light up in white to indicate the degree of the
driver's attention.
2 Switching the Display P. 155
■Driver Attention Monitor1Driver Attention Monitor
The Driver Attenti on Monitor cannot always detect if
the driver is tired or inattentive.
Regardless of the system's feedback, if you are
feeling tired, stop in a safe location and rest for as
long as needed.
Driver Information Interface
Right Selector
Wheel
Level
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 161 ページ ２０２２年６月２３日　木曜日　午後９時２８分

162
uuGauges and Driver Information Interface uDriver Information Interface Right Side Area (B-type-Meter)
Instrument Panel

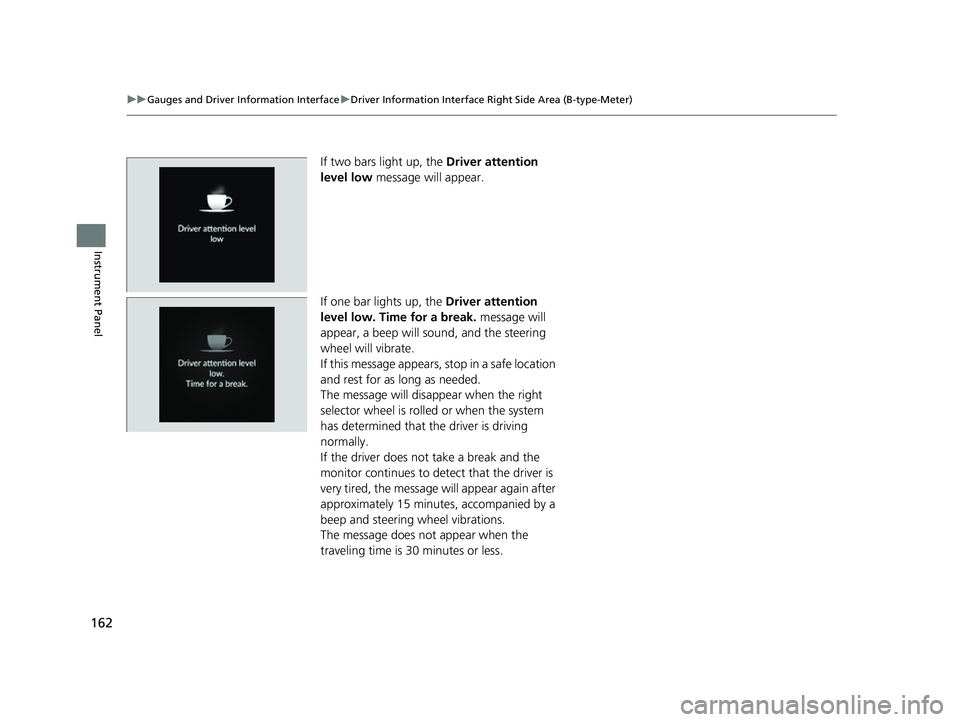

If two bars light up, the Driver attention
level low message will appear.
If one bar lights up, the Driver attention
level low. Time for a break. message will
appear, a beep will sound, and the steering
wheel will vibrate.
If this message appears, stop in a safe location
and rest for as long as needed.
The message will disa ppear when the right
selector wheel is rolled or when the system
has determined that the driver is driving
normally.
If the driver does not take a break and the
monitor continues to dete ct that the driver is
very tired, the message will appear again after
approximately 15 minutes, accompanied by a
beep and steering wheel vibrations.
The message does not appear when the
traveling time is 30 minutes or less.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 162 ページ ２０２２年６月２３日　木曜日　午後９時２８分

Continued163
uuGauges and Driver Information Interface uDriver Information Interface Right Side Area (B-type-Meter)
Instrument Panel

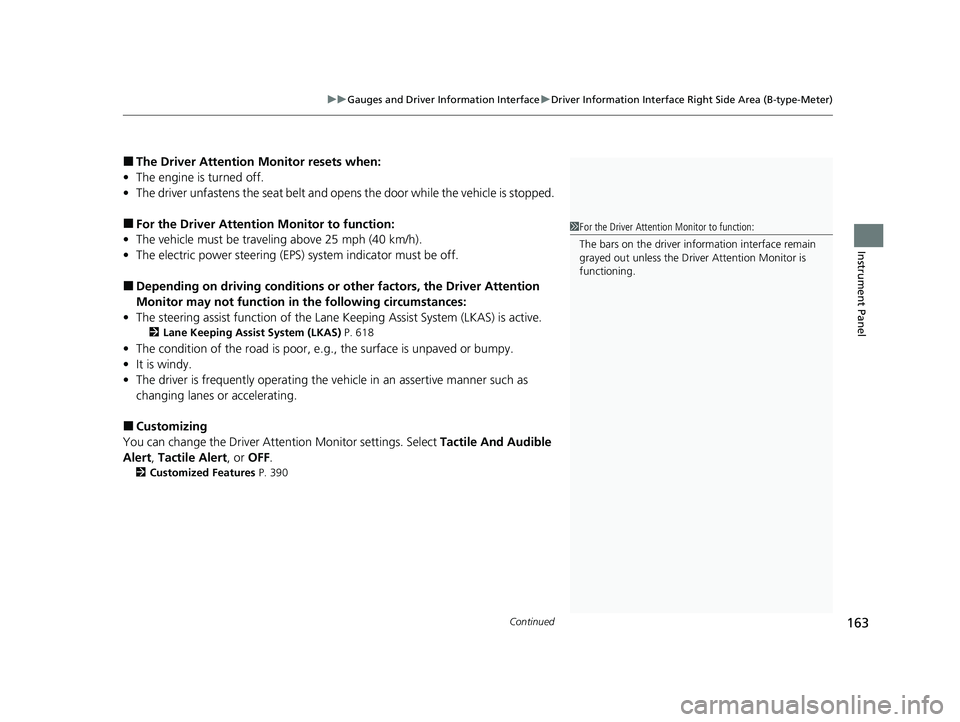

■The Driver Attention Monitor resets when:
• The engine is turned off.
• The driver unfastens the seat belt and ope ns the door while the vehicle is stopped.
■For the Driver Attention Monitor to function:
• The vehicle must be traveling above 25 mph (40 km/h).
• The electric power steering (EPS) system indicator must be off.
■Depending on driving conditions or other factors, the Driver Attention
Monitor may not function in the following circumstances:
• The steering assist function of the Lane Keeping Assist System (LKAS) is active.
2Lane Keeping Assist System (LKAS) P. 618
•The condition of the road is poor, e. g., the surface is unpaved or bumpy.
• It is windy.
• The driver is frequently op erating the vehicle in an assertive manner such as
changing lanes or accelerating.
■Customizing
You can change the Driver Attention Monitor settings. Select Tactile And Audible
Alert , Tactile Alert , or OFF .
2Customized Features P. 390
1For the Driver Attention Monitor to function:
The bars on the driver information interface remain
grayed out unless the Driv er Attention Monitor is
functioning.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 163 ページ ２０２２年６月２３日　木曜日　午後９時２８分

164
uuGauges and Driver Information Interface uDriver Information Interface Right Side Area (B-type-Meter)
Instrument Panel

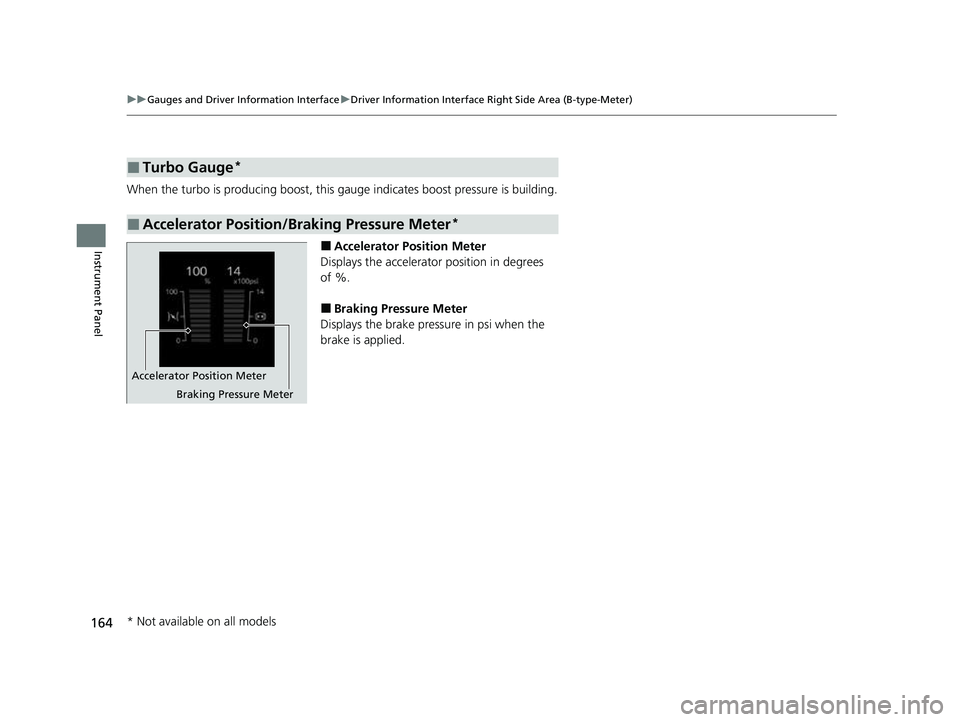

When the turbo is producing boost, this gauge indicates boost pressure is building.
■Accelerator Position Meter
Displays the accelerator position in degrees
of %.
■Braking Pressure Meter
Displays the brake pressure in psi when the
brake is applied.
■Turbo Gauge*
■Accelerator Position/Braking Pressure Meter*
Accelerator Position Meter
Braking Pressure Meter
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 164 ページ ２０２２年６月２３日　木曜日　午後９時２８分

Continued165
uuGauges and Driver Information Interface uDriver Information Interface Right Side Area (B-type-Meter)
Instrument Panel

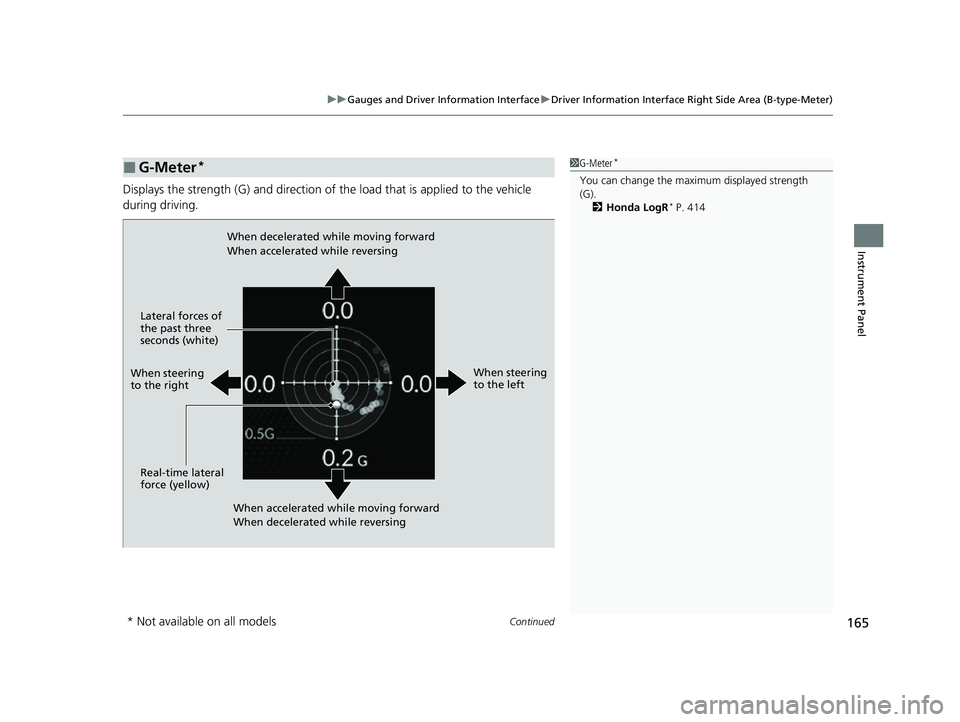

Displays the strength (G) and direction of the load that is applied to the vehicle
during driving.
■G-Meter*1 G-Meter*
You can change the maxi mum displayed strength
(G).
2 Honda LogR
* P. 414
When steering
to the right
When accelerated while moving forward
When decelerated while reversing
When decelerated while moving forward
When accelerated while reversing
When steering
to the left
Real-time lateral
force (yellow) Lateral forces of
the past three
seconds (white)
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 165 ページ ２０２２年６月２３日　木曜日　午後９時２８分

166
uuGauges and Driver Information Interface uDriver Information Interface Right Side Area (B-type-Meter)
Instrument Panel

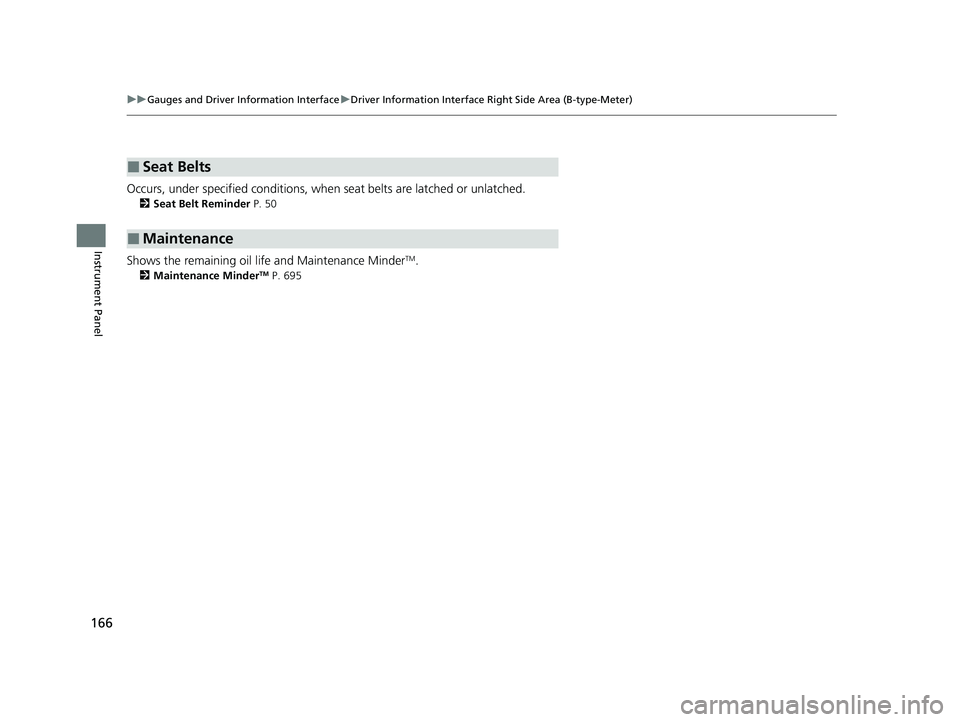

Occurs, under specified conditions, when seat belts are latched or unlatched.
2Seat Belt Reminder P. 50
Shows the remaining oil life and Maintenance MinderTM.
2Maintenance MinderTM P. 695
■Seat Belts
■Maintenance
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 166 ページ ２０２２年６月２３日　木曜日　午後９時２８分

Continued167
uuGauges and Driver Information Interface uDriver Information Interface Right Side Area (B-type-Meter)
Instrument Panel
Indicates the status of the Road Departure Mitigation system, CMBSTM, Low Speed
Braking Control* and blind spot information system such as On, Off, or Failure, by
color and letters.
The following colors indicate the status of any of the above mentioned systems:
• Green: The system is on.
• Gray: The system is off.
• Amber: There is a problem with the system.
■Safety Support1Safety Support
If a system is indicated by the color amber, have your
vehicle checked by a dealer immediately.
To turn on or off each system, first press the right
selector wheel to switch displays. From the next
display you can select which system to turn on or off. 2 Road Departure Mitigation system On and
Off P. 642
2 Blind Spot Information System On and Off
P. 549
2 System On and Off P. 570, 575
2 CMBS
TM On and Off P. 559
You can also confirm the st atus of each function by
the color of the safe ty support indicator.
2 Safety Support Indicator (Amber) P. 115
2 Safety Support Indicator (Green/Gray)
P. 117
Even when the Low Speed Braking Control icon is
green, if the parking sensor is turned off for the rear
only, the brake assist will not operate when reversing.
2 Turning off All Rear Sensors P. 676
Models with Low Speed Braking Control
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 167 ページ ２０２２年６月２３日　木曜日　午後９時２８分

168
uuGauges and Driver Information Interface uDriver Information Interface Right Side Area (B-type-Meter)
Instrument Panel

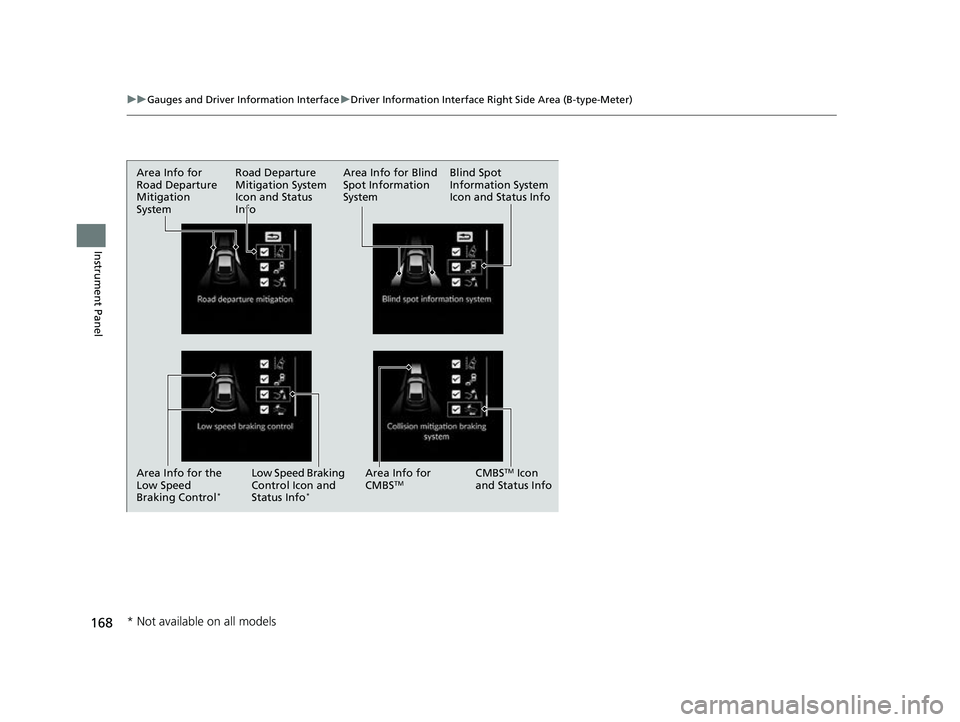

Area Info for
Road Departure
Mitigation
System Area Info for Blind
Spot Information
System
Blind Spot
Information System
Icon and Status Info
Road Departure
Mitigation System
Icon and Status
Info
Area Info for the
Low Speed
Braking Control
*
Low Speed Braking
Control Icon and
Status Info
*
CMBSTM Icon
and Status Info
Area Info for
CMBSTM
* Not available on all models
