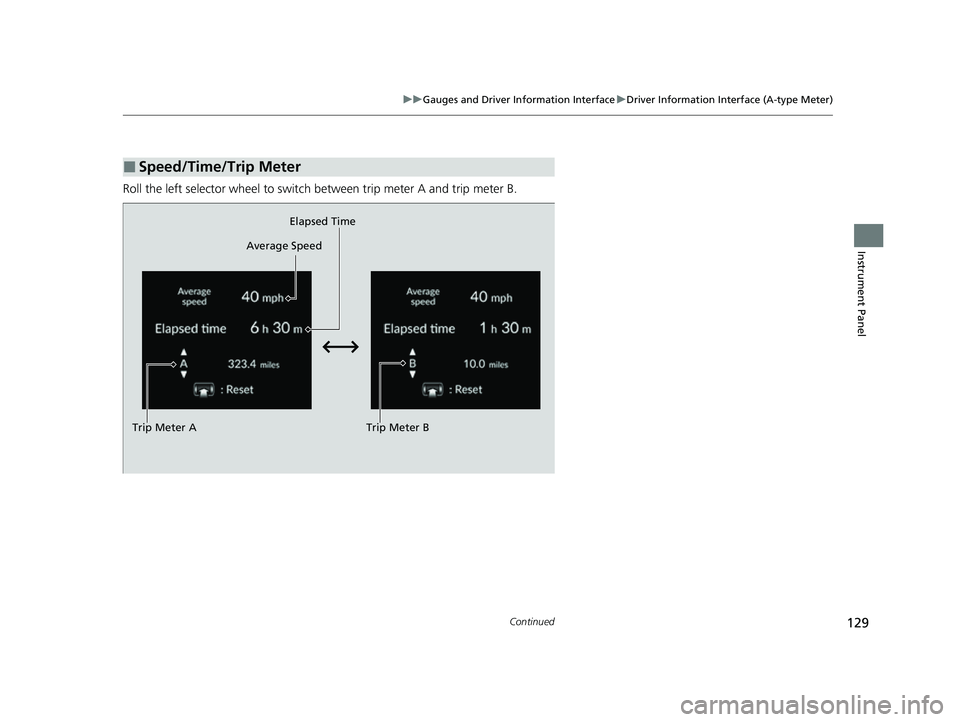

HONDA CIVIC 2023 Owners Manual

129
uuGauges and Driver Information Interface uDriver Information Interface (A-type Meter)
Continued
Instrument Panel
Roll the left selector wheel to switch between trip meter A and trip meter B.
■Speed/Time/Trip Meter
Trip Meter B
Average Speed
Trip Meter A Elapsed Time
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 129 ページ ２０２２年６月２３日　木曜日　午後９時２８分

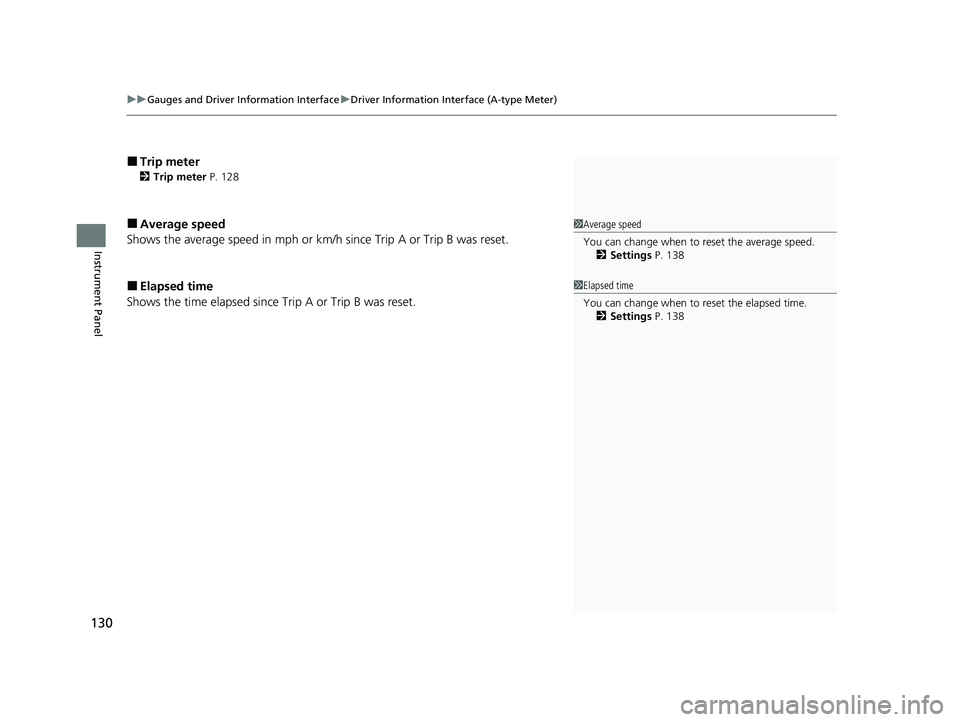

uuGauges and Driver Information Interface uDriver Information Interface (A-type Meter)
130
Instrument Panel
■Trip meter
2 Trip meter P. 128
■Average speed
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
■Elapsed time
Shows the time elapsed since Trip A or Trip B was reset.
1 Average speed
You can change when to reset the average speed.
2 Settings P. 138
1Elapsed time
You can change when to reset the elapsed time.
2 Settings P. 138
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 130 ページ ２０２２年６月２３日　木曜日　午後９時２８分

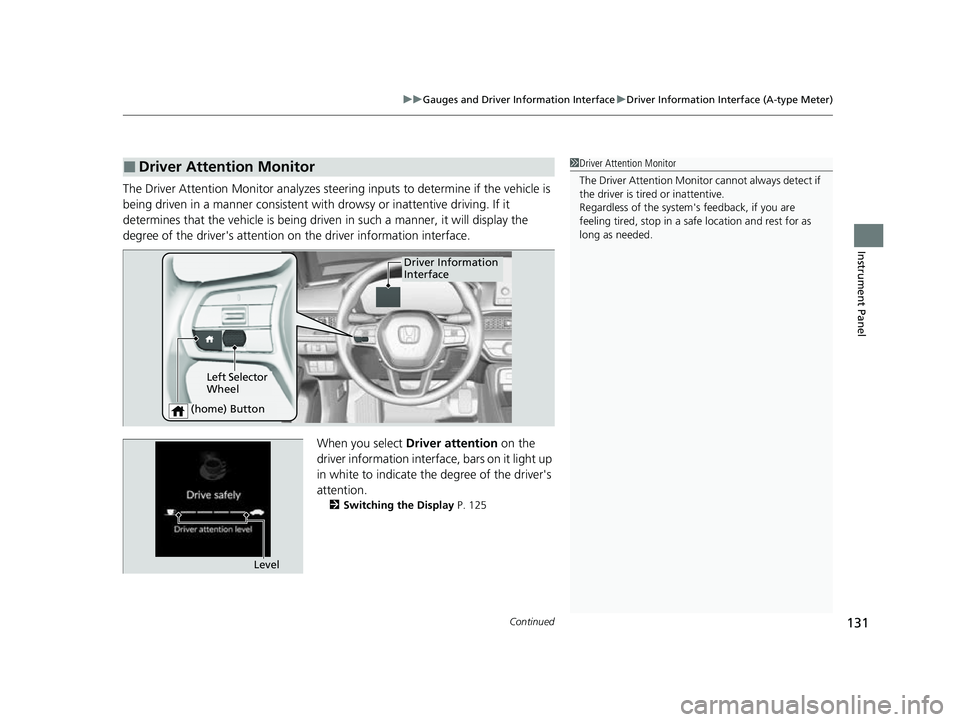

Continued131
uuGauges and Driver Information Interface uDriver Information Interface (A-type Meter)
Instrument Panel
The Driver Attention Monitor an alyzes steering inputs to determine if the vehicle is
being driven in a manner consistent with drowsy or inattentive driving. If it
determines that the vehicle is being driven in such a manner, it will display the
degree of the driver's attention on the driver information interface.
When you select Driver attention on the
driver information interface, bars on it light up
in white to indicate the degree of the driver's
attention.
2 Switching the Display P. 125
■Driver Attention Monitor1Driver Attention Monitor
The Driver Attenti on Monitor cannot always detect if
the driver is tired or inattentive.
Regardless of the system's feedback, if you are
feeling tired, stop in a safe location and rest for as
long as needed.
Driver Information
Interface
Left Selector
Wheel
(home) Button
Level
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 131 ページ ２０２２年６月２３日　木曜日　午後９時２８分

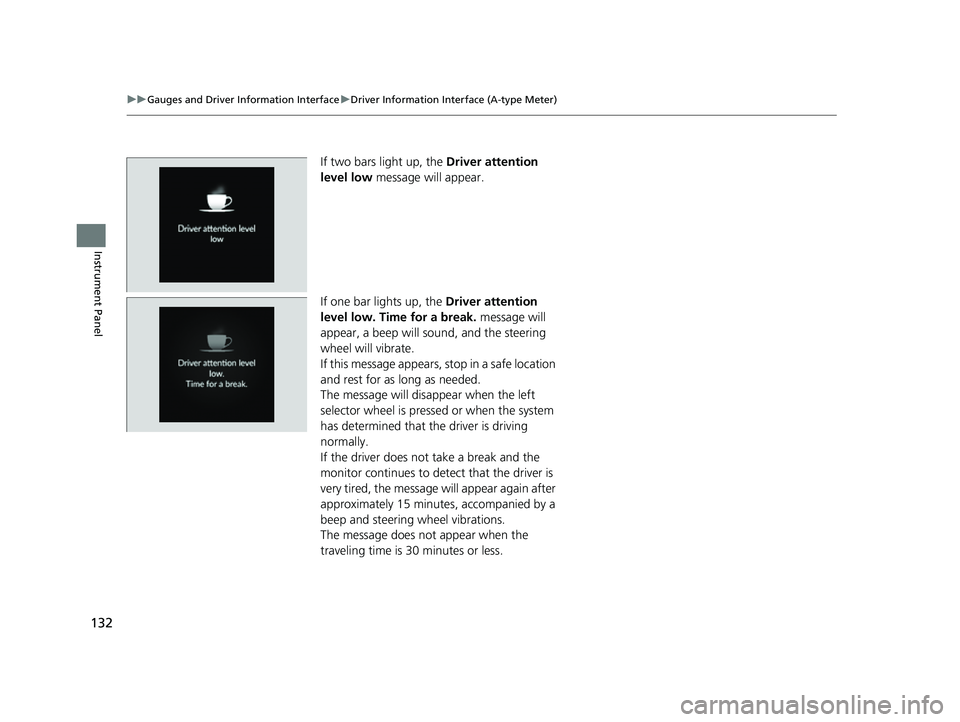

132
uuGauges and Driver Information Interface uDriver Information Interface (A-type Meter)
Instrument Panel
If two bars light up, the Driver attention
level low message will appear.
If one bar lights up, the Driver attention
level low. Time for a break. message will
appear, a beep will sound, and the steering
wheel will vibrate.
If this message appears, stop in a safe location
and rest for as long as needed.
The message will disappear when the left
selector wheel is pressed or when the system
has determined that the driver is driving
normally.
If the driver does not take a break and the
monitor continues to dete ct that the driver is
very tired, the message will appear again after
approximately 15 minutes, accompanied by a
beep and steering wheel vibrations.
The message does not appear when the
traveling time is 30 minutes or less.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 132 ページ ２０２２年６月２３日　木曜日　午後９時２８分

Continued133
uuGauges and Driver Information Interface uDriver Information Interface (A-type Meter)
Instrument Panel

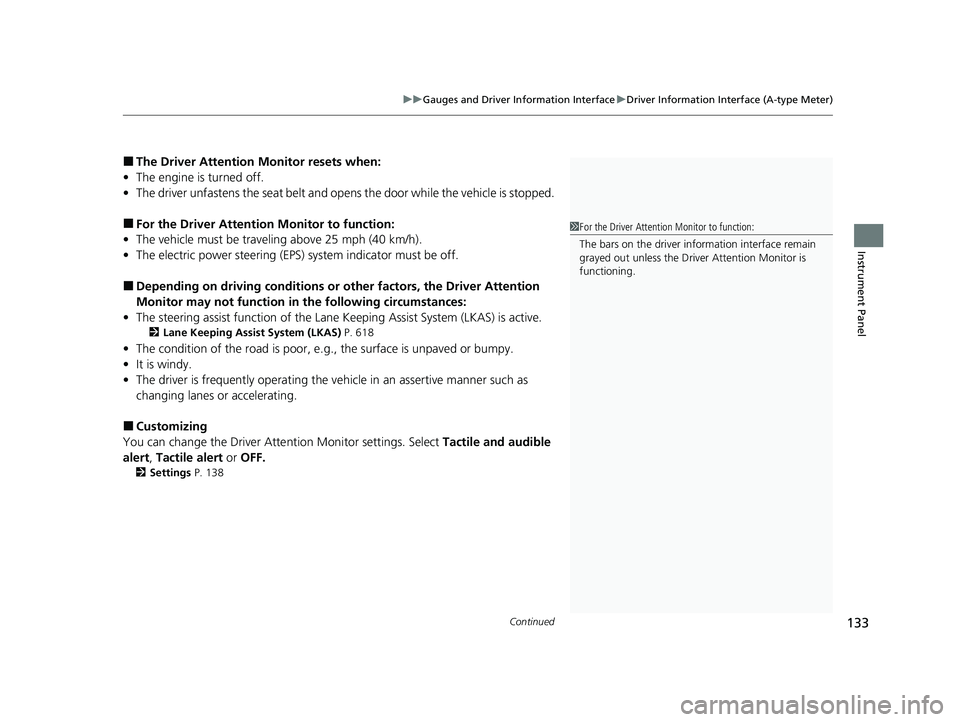

■The Driver Attention Monitor resets when:
• The engine is turned off.
• The driver unfastens the seat belt and ope ns the door while the vehicle is stopped.
■For the Driver Attention Monitor to function:
• The vehicle must be traveling above 25 mph (40 km/h).
• The electric power steering (EPS) system indicator must be off.
■Depending on driving conditions or other factors, the Driver Attention
Monitor may not function in the following circumstances:
• The steering assist function of the Lane Keeping Assist System (LKAS) is active.
2Lane Keeping Assist System (LKAS) P. 618
•The condition of the road is poor, e. g., the surface is unpaved or bumpy.
• It is windy.
• The driver is frequently op erating the vehicle in an assertive manner such as
changing lanes or accelerating.
■Customizing
You can change the Driver Atte ntion Monitor settings. Select Tactile and audible
alert , Tactile alert or OFF.
2Settings P. 138
1For the Driver Attention Monitor to function:
The bars on the driver information interface remain
grayed out unless the Driv er Attention Monitor is
functioning.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 133 ページ ２０２２年６月２３日　木曜日　午後９時２８分

uuGauges and Driver Information Interface uDriver Information Interface (A-type Meter)
134
Instrument Panel

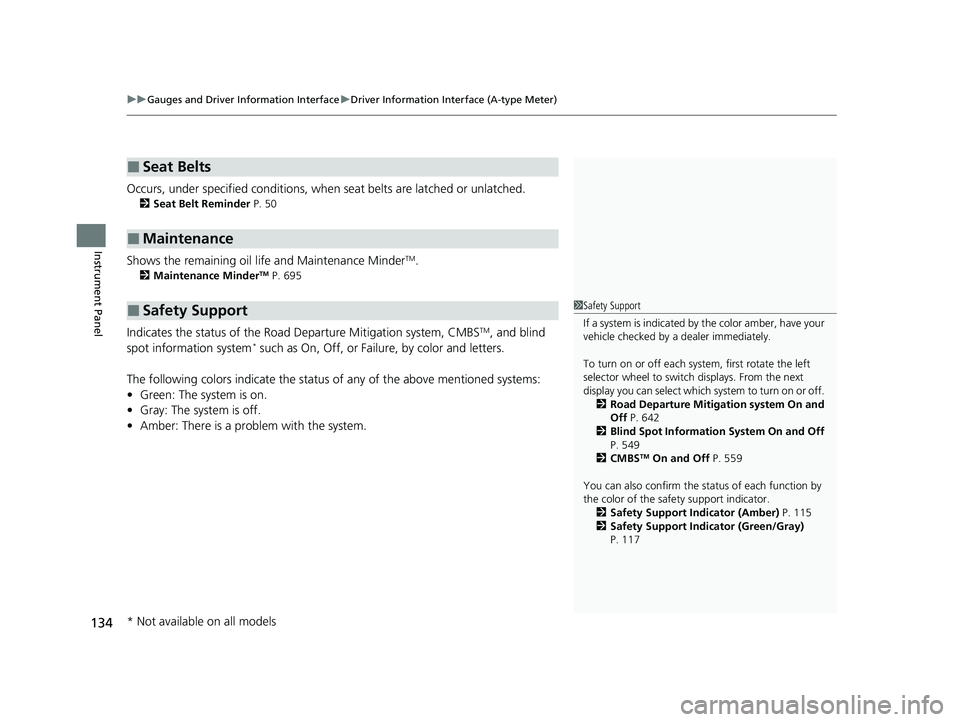

Occurs, under specified conditions, when seat belts are latched or unlatched.
2Seat Belt Reminder P. 50
Shows the remaining oil life and Maintenance MinderTM.
2Maintenance MinderTM P. 695
Indicates the status of the Road Departure Mitigation system, CMBSTM, and blind
spot information system* such as On, Off, or Failure, by color and letters.
The following colors indica te the status of any of the above mentioned systems:
• Green: The system is on.
• Gray: The system is off.
• Amber: There is a probl em with the system.
■Seat Belts
■Maintenance
■Safety Support1Safety Support
If a system is indicated by the color amber, have your
vehicle checked by a dealer immediately.
To turn on or off each system, first rotate the left
selector wheel to switch displays. From the next
display you can select which system to turn on or off. 2 Road Departure Mitigation system On and
Off P. 642
2 Blind Spot Information System On and Off
P. 549
2 CMBS
TM On and Off P. 559
You can also confirm the st atus of each function by
the color of the safe ty support indicator.
2 Safety Support Indicator (Amber) P. 115
2 Safety Support Indicator (Green/Gray)
P. 117
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 134 ページ ２０２２年６月２３日　木曜日　午後９時２８分

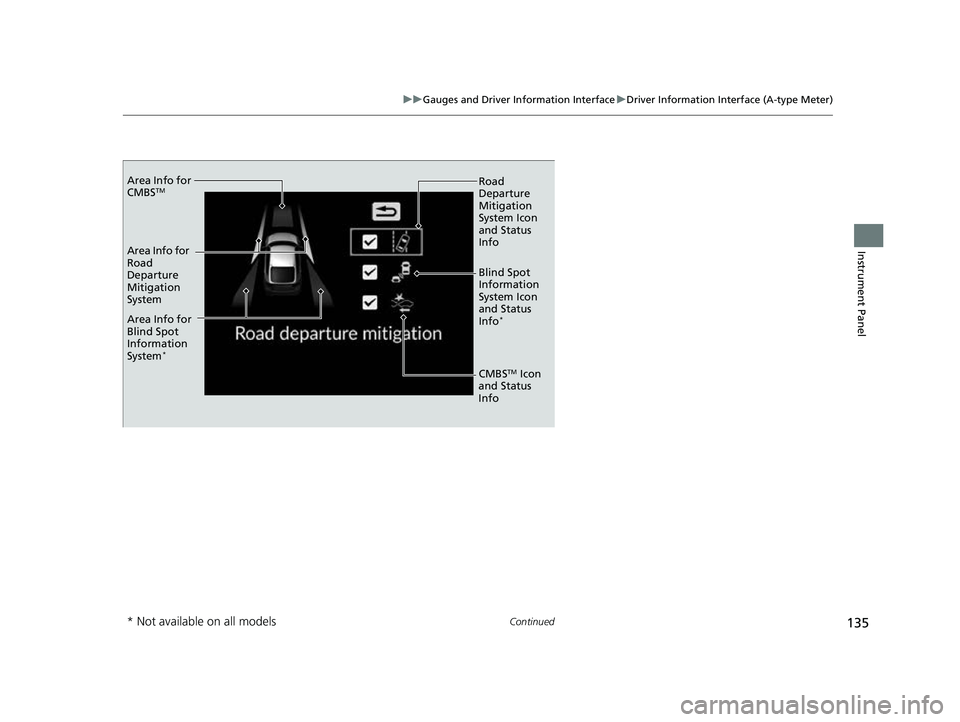

135
uuGauges and Driver Information Interface uDriver Information Interface (A-type Meter)
Continued
Instrument Panel
Area Info for
CMBSTM
Area Info for
Road
Departure
Mitigation
System
Area Info for
Blind Spot
Information
System
*
Road
Departure
Mitigation
System Icon
and Status
Info
Blind Spot
Information
System Icon
and Status
Info
*
CMBSTM Icon
and Status
Info
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 135 ページ ２０２２年６月２３日　木曜日　午後９時２８分

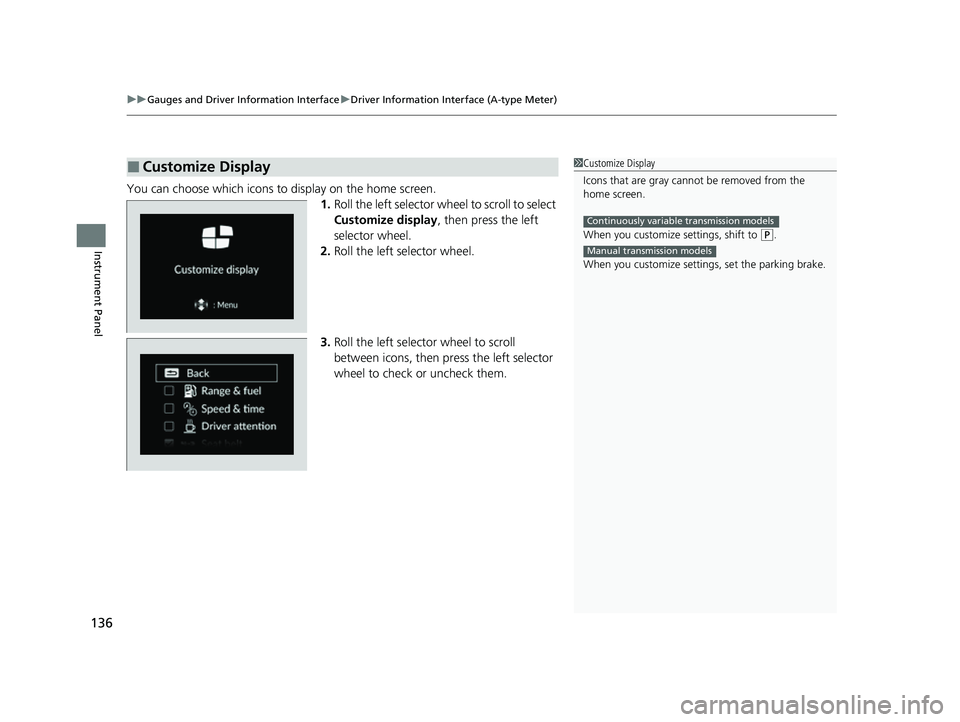

uuGauges and Driver Information Interface uDriver Information Interface (A-type Meter)
136
Instrument Panel
You can choose which icons to display on the home screen.
1.Roll the left selector wheel to scroll to select
Customize display , then press the left
selector wheel.
2. Roll the left selector wheel.
3. Roll the left selector wheel to scroll
between icons, then press the left selector
wheel to check or uncheck them.
■Customize Display1Customize Display
Icons that are gray cannot be removed from the
home screen.
When you customize settings, shift to
(P.
When you customize setti ngs, set the parking brake.
Continuously variable transmission models
Manual transmission models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 136 ページ ２０２２年６月２３日　木曜日　午後９時２８分

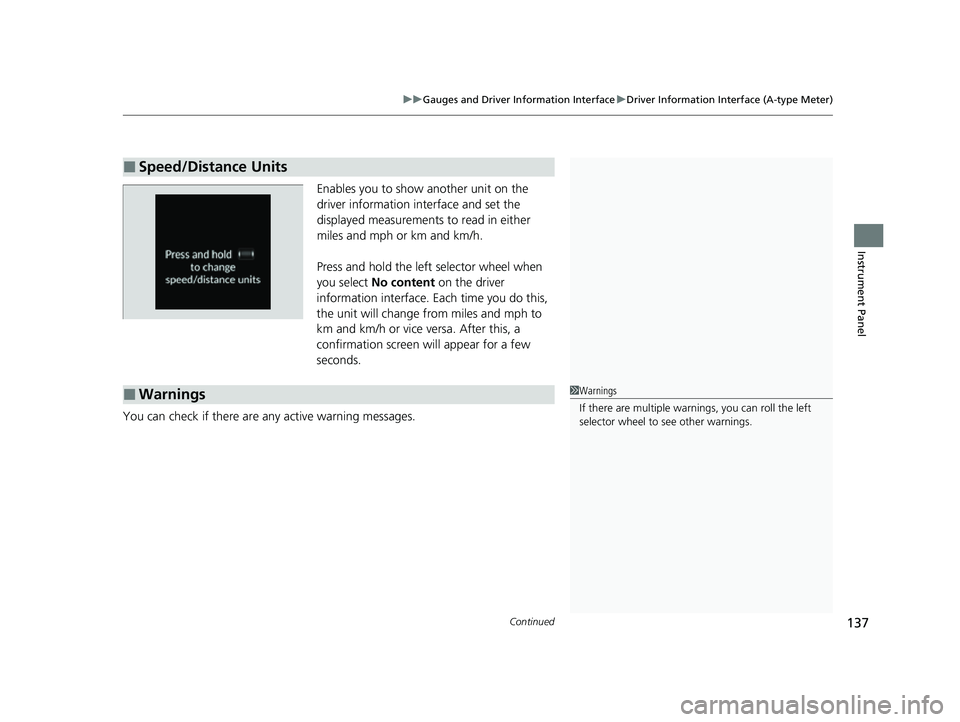

Continued137
uuGauges and Driver Information Interface uDriver Information Interface (A-type Meter)
Instrument Panel
Enables you to show another unit on the
driver information interface and set the
displayed measurements to read in either
miles and mph or km and km/h.
Press and hold the left selector wheel when
you select No content on the driver
information interface. Each time you do this,
the unit will change from miles and mph to
km and km/h or vice versa. After this, a
confirmation screen will appear for a few
seconds.
You can check if there are any active warning messages.
■Speed/Distance Units
■Warnings1 Warnings
If there are multiple warnings, you can roll the left
selector wheel to see other warnings.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 137 ページ ２０２２年６月２３日　木曜日　午後９時２８分

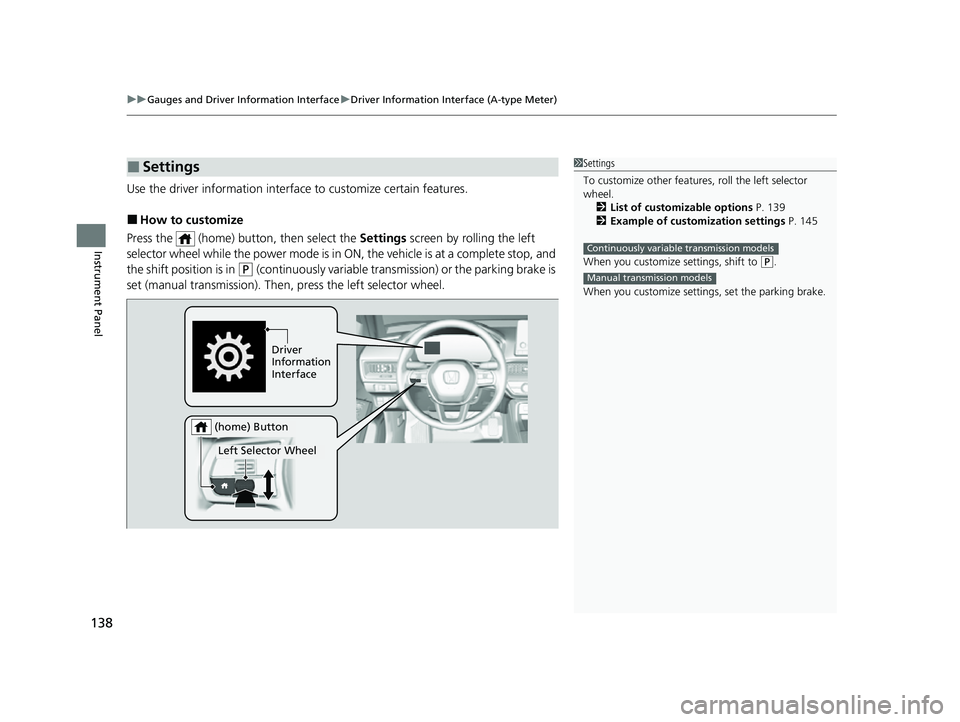

uuGauges and Driver Information Interface uDriver Information Interface (A-type Meter)
138
Instrument Panel
Use the driver information interfac e to customize certain features.
■How to customize
Press the (home) button, then select the Settings screen by rolling the left
selector wheel while the power mode is in ON, the vehicle is at a complete stop, and
the shift position is in
(P (continuously variable transmission) or the parking brake is
set (manual transmission). Then, press the left selector wheel.
■Settings1Settings
To customize other features , roll the left selector
wheel.
2 List of customizable options P. 139
2 Example of customization settings P. 145
When you customize settings, shift to
( P.
When you customize setti ngs, set the parking brake.
Continuously variable transmission models
Manual transmission models
Driver
Information
Interface
Left Selector Wheel
(home) Button
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 138 ページ ２０２２年６月２３日　木曜日　午後９時２８分
