HONDA CIVIC 2023 Owners Manual

249Continued
Controls
Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the driver's side or passenger's side
temperature control dial.
3. Press the ( ON/OFF) button to cancel.1Using Automatic Climate Control
If any buttons are presse d while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The auto button indicator
*/AUTO indicator* will go
off, but functions unrelated to the button that were
pressed will be cont rolled automatically.
During idle-stops, air-conditioning is suspended, and
only the blower remains ac tive. If you do not want
air-conditioning suspended, press the Auto Idle Stop
OFF button to cancel idle-stop.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
Models with Auto Idle Stop
Models with SYNC button
Dashboard
vents Dashboard
and floor
ventsFloor vents Floor and
defroster
vents
AUTO Button SYNC
Button
A/C (Air Conditioning) Button
(Recirculation) Button
( ON/OFF) Button
Fan Control Dial
Driver's Side
Temperature
Control Dial Passenger's Side
Temperature
Control Dial
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 249 ページ ２０２２年６月２３日　木曜日　午後９時２８分

uuClimate Control System uUsing Automatic Climate Control
250
Controls
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature us ing the temperature control dial.
3. Press the ( ON/OFF) button to cancel.
■Switching between the recirc ulation and fresh air modes
Press the (recirculation) button and switch the mode depending on
environmental conditions.
Recirculation mode (indicator on): Recirculates air from the vehicle's interior through
the system.
Fresh air mode (indicator off): Maintains ou tside ventilation. Keep the system in
fresh air mode in normal situations.
1 Using Automatic Climate Control
Pressing the button switches the climate control
system between on and off. When turned on, the
system returns to your last selection.
While ECON mode is active, the climate control
system may have reduced cooling performance.
Models with ECON mode
Models without SYNC button
AUTO Button
Temperature
Control Dial
(Recirculation) Button
(ON/OFF ) Button
Fan Control Dial
Dashboard
vents
Dashboard
and floor
ventsFloor vents Floor and
defroster
vents
A/C (Air Conditioning) Button
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 250 ページ ２０２２年６月２３日　木曜日　午後９時２８分

Continued251
uuClimate Control System uUsing Automatic Climate Control
Controls
Pressing the (windshield defroster) button
turns the air conditioning system on and
automatically switches th e system to fresh air
mode.
Press the button again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows1 Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If you press the button during Auto Idle Stop, the
engine restarts automatically.
To defog during the Auto Idle Stop, restart the
engine as follows.
1. Make sure the shift lever is in
( N.
2. Press the button.
Models with Auto Idle Stop
Manual transmission models with Auto Idle Stop
Models with SYNC button
Models without SYNC button
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 251 ページ ２０２２年６月２３日　木曜日　午後９時２８分

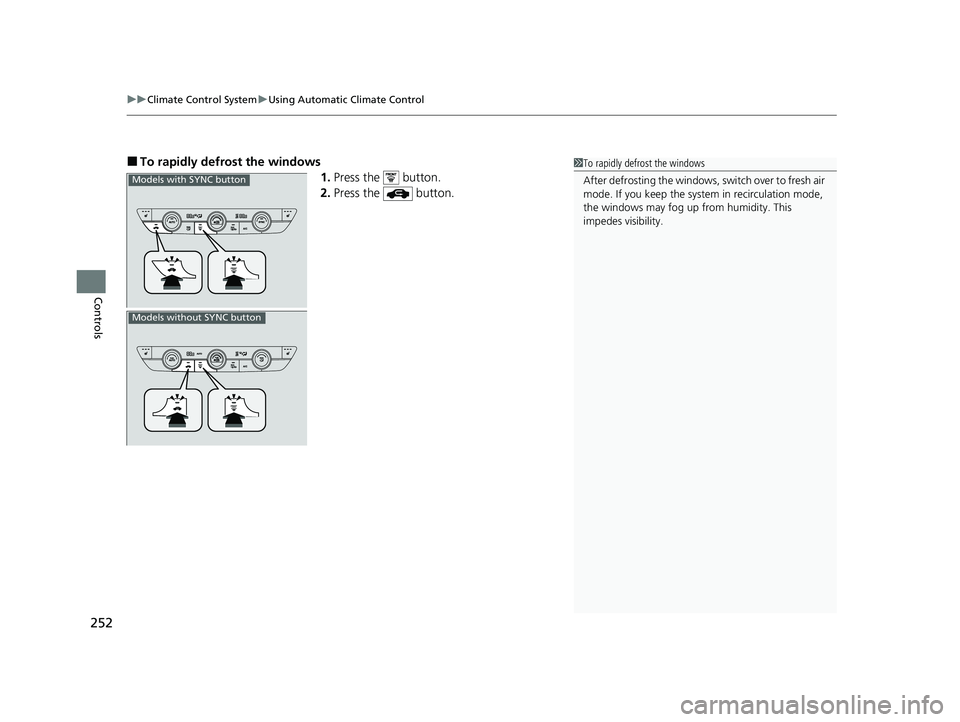

uuClimate Control System uUsing Automatic Climate Control
252
Controls
■To rapidly defro st the windows
1.Press the button.
2. Press the button.1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode. If you keep the syst em in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.
Models with SYNC button
Models without SYNC button
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 252 ページ ２０２２年６月２３日　木曜日　午後９時２８分

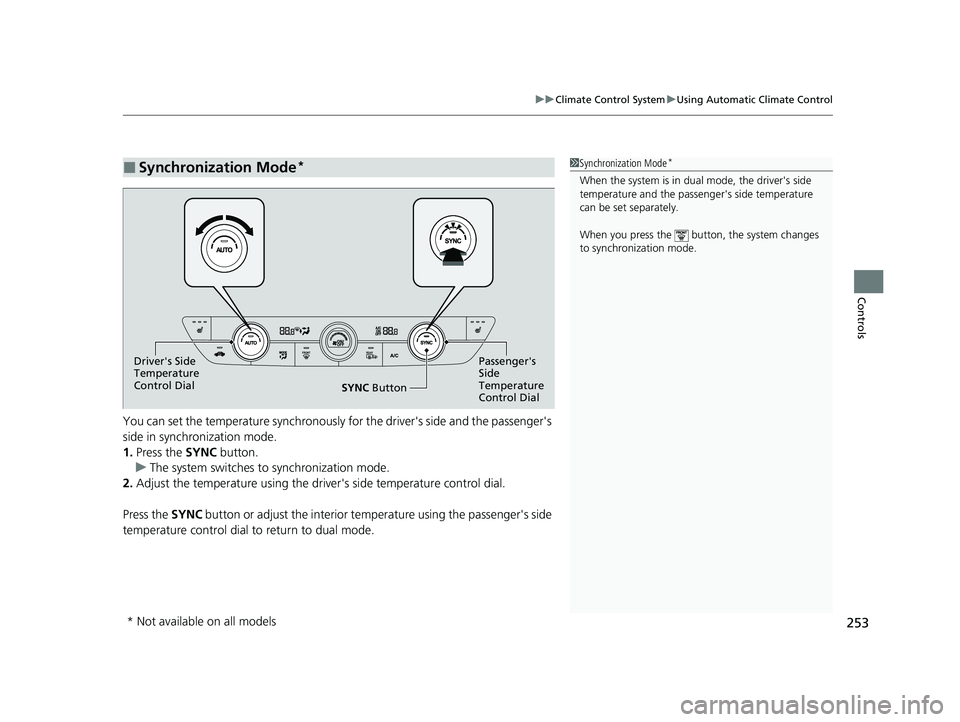

253
uuClimate Control System uUsing Automatic Climate Control
Controls
You can set the temperature synchronously for the driver's side and the passenger's
side in synchronization mode.
1. Press the SYNC button.
u The system switches to synchronization mode.
2. Adjust the temperature using the driv er's side temperature control dial.
Press the SYNC button or adjust the interior temp erature using the passenger's side
temperature control dial to return to dual mode.
■Synchronization Mode*1 Synchronization Mode*
When the system is in dua l mode, the driver's side
temperature and the passe nger's side temperature
can be set separately.
When you press the button, the system changes
to synchronization mode.
Driver's Side
Temperature
Control Dial Passenger's
Side
Temperature
Control Dial
SYNC
Button
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 253 ページ ２０２２年６月２３日　木曜日　午後９時２８分

254
uuClimate Control System uAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 254 ページ ２０２２年６月２３日　木曜日　午後９時２８分

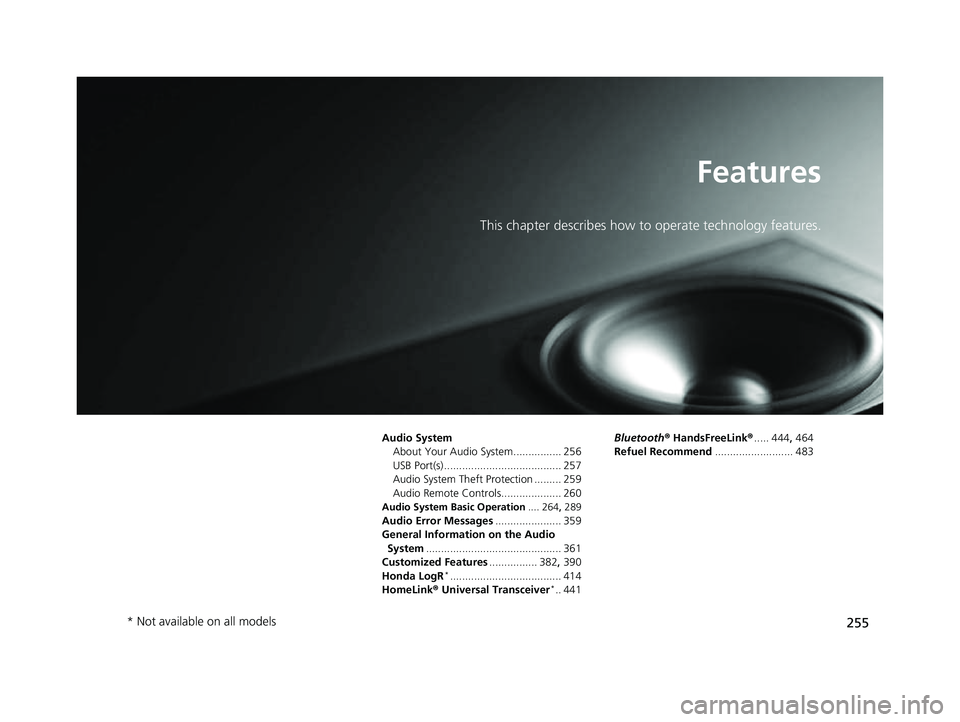

255
Features
This chapter describes how to operate technology features.
Audio System
About Your Audio System................ 256
USB Port(s) ....................................... 257
Audio System Theft Protection ......... 259
Audio Remote Controls.................... 260
Audio System Basic Operation .... 264, 289
Audio Error Messages ...................... 359
General Information on the Audio System ............................................. 361
Customized Features ................ 382, 390
Honda LogR
*..................................... 414
HomeLink ® Universal Transceiver*.. 441 Bluetooth
® HandsFreeLink® ..... 444, 464
Refuel Recommend .......................... 483
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 255 ページ ２０２２年６月２３日　木曜日　午後９時２８分

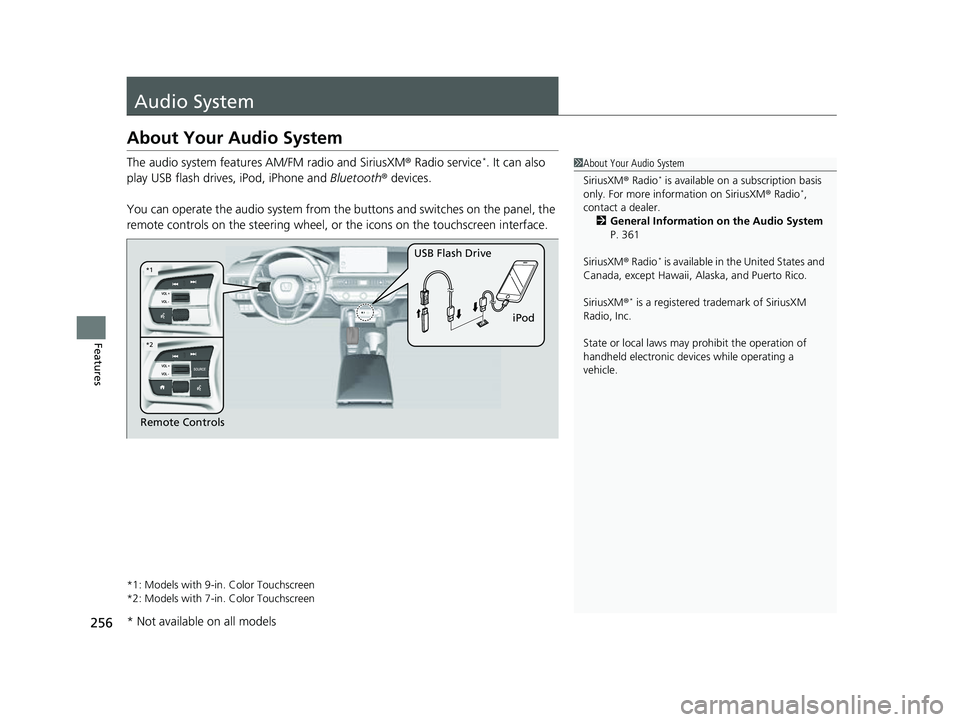

256
Features
Audio System
About Your Audio System
The audio system features AM/FM radio and SiriusXM ® Radio service*. It can also
play USB flash drives, iPod, iPhone and Bluetooth® devices.
You can operate the audio system from the buttons and switches on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface.
*1: Models with 9-in. Color Touchscreen
*2: Models with 7-in. Color Touchscreen
1About Your Audio System
SiriusXM ® Radio
* is available on a subscription basis
only. For more information on SiriusXM ® Radio*,
contact a dealer. 2 General Information on the Audio System
P. 361
SiriusXM ® Radio
* is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
SiriusXM ®
* is a registered tra demark of SiriusXM
Radio, Inc.
State or local laws may prohibit the operation of
handheld electronic devi ces while operating a
vehicle.
Remote Controls iPod
USB Flash Drive
*2
*1
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 256 ページ ２０２２年６月２３日　木曜日　午後９時２８分

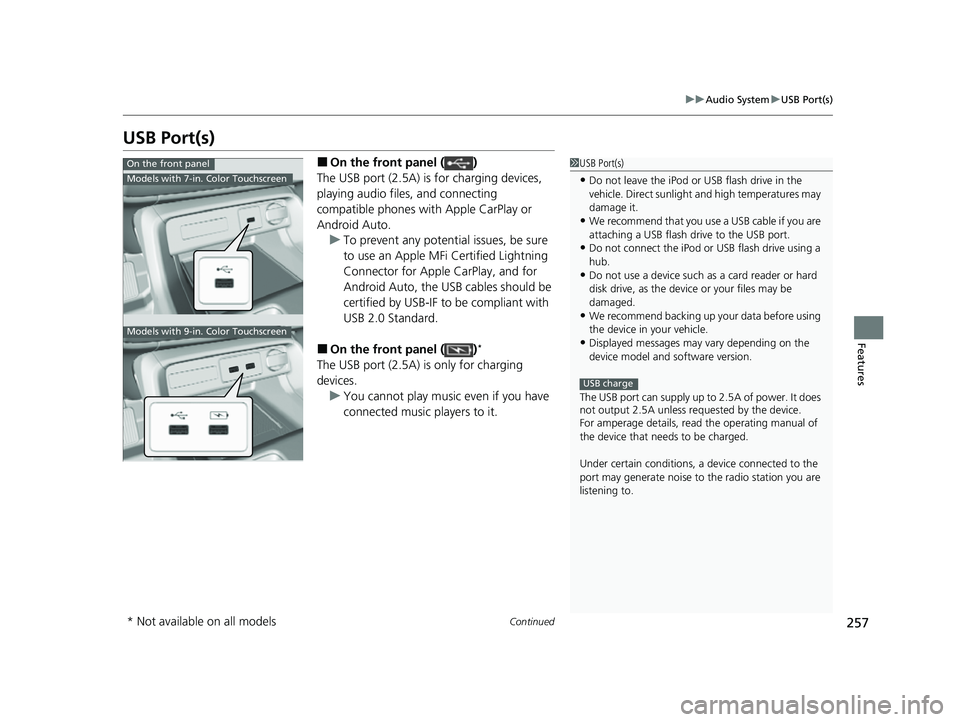

257
uuAudio System uUSB Port(s)
Continued
Features
USB Port(s)
■On the front panel ( )
The USB port (2.5A) is for charging devices,
playing audio files, and connecting
compatible phones with Apple CarPlay or
Android Auto. u To prevent any potenti al issues, be sure
to use an Apple MFi Certified Lightning
Connector for Apple CarPlay, and for
Android Auto, the USB cables should be
certified by USB-IF to be compliant with
USB 2.0 Standard.
■On the front panel ( )*
The USB port (2.5A) is only for charging
devices. u You cannot play music even if you have
connected music players to it.
1USB Port(s)
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend that you us e a USB cable if you are
attaching a USB flash drive to the USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
•We recommend backing up yo ur data before using
the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
The USB port can supply up to 2.5A of power. It does
not output 2.5A unless requested by the device.
For amperage details, read the operating manual of
the device that ne eds to be charged.
Under certain condi tions, a device connected to the
port may generate noise to the radio station you are
listening to.
USB charge
On the front panel
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 257 ページ ２０２２年６月２３日　木曜日　午後９時２８分

258
uuAudio System uUSB Port(s)
Features
■On the back of the console
compartment*
The USB ports (2.5A) are only for charging
devices.
u You cannot play music even if you have
connected music players to them.
On the back of the console
compartment
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 258 ページ ２０２２年６月２３日　木曜日　午後９時２８分
