HONDA CIVIC 2023 Owners Manual

Continued549

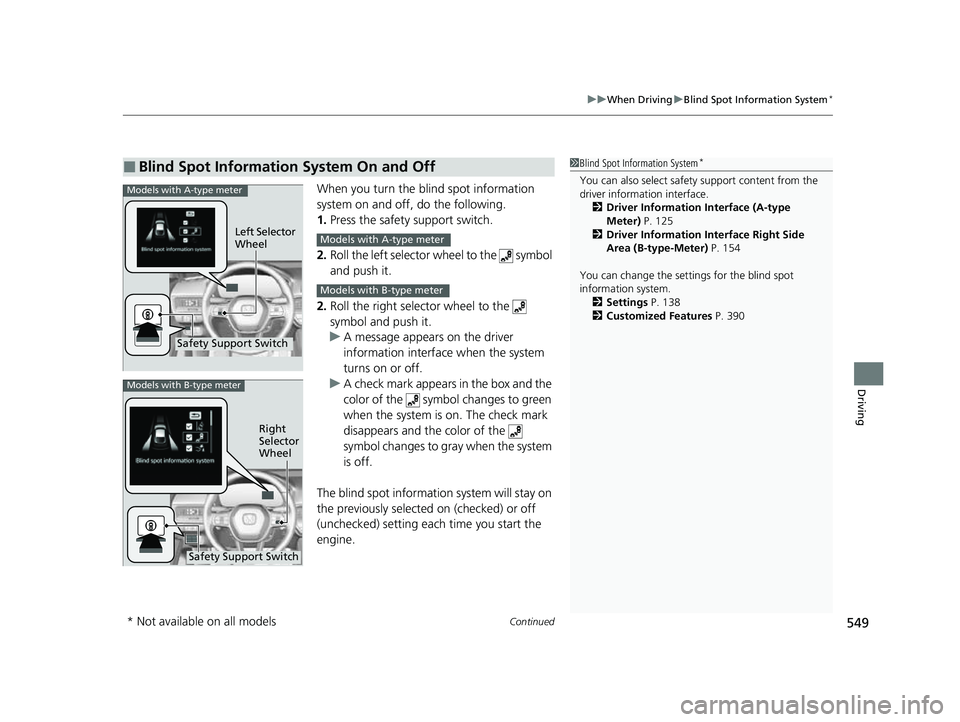

uuWhen Driving uBlind Spot Information System*
Driving
When you turn the b lind spot information
system on and off, do the following.
1. Press the safety support switch.
2. Roll the left selector wheel to the symbol
and push it.
2. Roll the right selector wheel to the
symbol and push it.
u A message appears on the driver
information interface when the system
turns on or off.
u A check mark appears in the box and the
color of the symbol changes to green
when the system is on. The check mark
disappears and the color of the
symbol changes to gray when the system
is off.
The blind spot informatio n system will stay on
the previously selected on (checked) or off
(unchecked) setting eac h time you start the
engine.
■Blind Spot Information System On and Off1 Blind Spot Information System*
You can also sele ct safety support content from the
driver information interface.
2 Driver Information Interface (A-type
Meter) P. 125
2 Driver Information Interface Right Side
Area (B-type-Meter) P. 154
You can change the settings for the blind spot
information system. 2 Settings P. 138
2 Customized Features P. 390Models with A-type meter
Left Selector
Wheel
Safety Support Switch
Models with A-type meter
Models with B-type meter
Models with B-type meter
Right
Selector
Wheel
Safety Support Switch
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 549 ページ ２０２２年６月２３日　木曜日　午後９時２８分

550
uuWhen Driving uBlind Spot Information System*
Driving
The blind spot information system alert indicator may not come on under the
following conditions:
• There is a large speed difference betwee n your vehicle and the vehicle in the
adjacent lane.
• A vehicle is parked in a side lane.
• An object not detected by the radar sensors approaches or passes your vehicle.
• The vehicle driving in the adjacent lane is a motorcycle or other small vehicle.
The blind spot information system may not operate correctly under the following
conditions:
• Making a turn at an intersection.
• Objects (guard rails, poles, trees, etc.) are detected.
• An object that does not reflect radio wave s well or a motorcycle, is in the alert
zone.
• Driving on a curved road.
• A vehicle is moving from a far lane to the adjacent lane.
• The system picks up signal interference such as other radar sensors from another
vehicle or strong radio wave transmitted from a facility nearby.
• The rear bumper or the area around the radar sensors is covered by dirt, mud,
snow, ice, etc.
• The rear bumper or the area around the radar sensors has been damaged or
deformed.
• In bad weather (heavy rain, snow, and fog).
• Making a short turn or driving on a bumpy road that slightly tilts the vehicle.
• An object such as a bicycle rack is attached to the rear of the vehicle.
■Blind Spot Information System Conditions and Limitations
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 550 ページ ２０２２年６月２３日　木曜日　午後９時２８分

551Continued
Driving
Honda Sensing®
Honda Sensing® is a driver support system which employs the use of two distinctly
different kinds of sensors: the sonar sens ors located in the front and rear bumpers,
and the front grille, and a front wide view camera mounted to the interior side of
the windshield, behind the rearview mirror.
Honda Sensing ® is a driver support system which employs the use of a front wide
view camera mounted to the interior side of the windshield, behind the rearview
mirror.
Honda Sensing ® has the following functions.
■The functions which do not requir e switch operations to activate
• Collision Mitigation Braking SystemTM (CMBSTM) 2 P. 555
• Low Speed Braking Control* 2 P. 567
• Low Speed Braking Control* 2 P. 573
• Road Departure Mitigation System 2 P. 639
• Traffic Sign Recognition System 2 P. 647
■The functions wh ich require switch operations to activate
• Adaptive Cruise Control (ACC) with Low Speed Follow* 2 P. 578
• Adaptive Cruise Control (ACC)* 2 P. 598
• Lane Keeping Assist System (LKAS) 2 P. 618
• Traffic Jam Assist* 2 P. 630
Models with Low Speed Braking Control
Models without Low Speed Braking Control
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 551 ページ ２０２２年６月２３日　木曜日　午後９時２８分

552

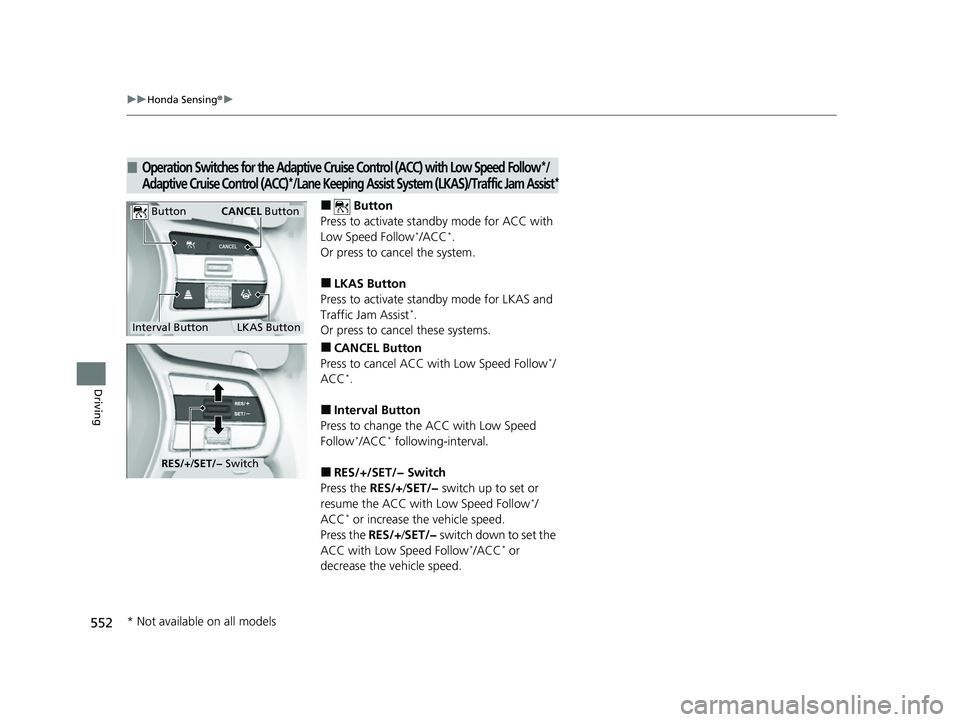

uuHonda Sensing ®u
Driving
■ Button
Press to activate standby mode for ACC with
Low Speed Follow
*/ACC*.
Or press to cancel the system.
■LKAS Button
Press to activate standby mode for LKAS and
Traffic Jam Assist
*.
Or press to cancel these systems.
■CANCEL Button
Press to cancel ACC with Low Speed Follow*/
ACC*.
■Interval Button
Press to change the ACC with Low Speed
Follow
*/ACC* following-interval.
■RES/+/SET/− Switch
Press the RES/+/SET/− switch up to set or
resume the ACC with Low Speed Follow
*/
ACC* or increase the vehicle speed.
Press the RES/+/SET/− switch down to set the
ACC with Low Speed Follow
*/ACC* or
decrease the vehicle speed.
■Operation Switches for the Adaptive Cruise Control (ACC) with Low Speed Follow*/
Adaptive Cruise Control (ACC)*/Lane Keeping Assist Syste m (LKAS)/Traffic Jam Assist*
Interval Button
Button
LKAS Button
CANCEL Button
RES/+/SET/− Switch
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 552 ページ ２０２２年６月２３日　木曜日　午後９時２８分

553

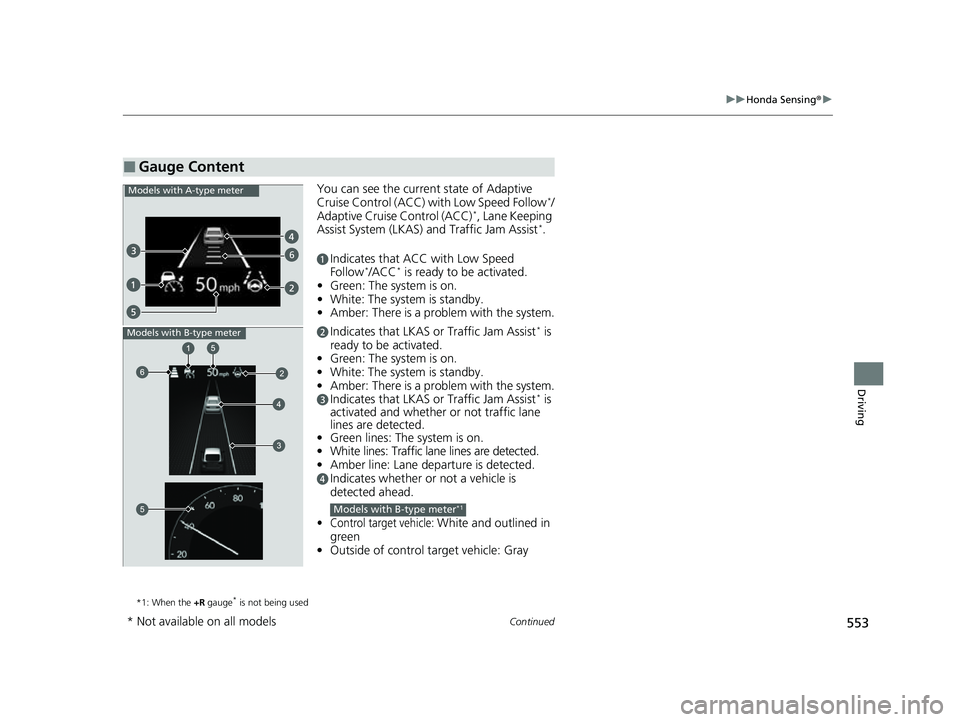

uuHonda Sensing ®u
Continued
Driving
You can see the current state of Adaptive
Cruise Control (ACC) with Low Speed Follow*/
Adaptive Cruise Control (ACC)*, Lane Keeping
Assist System (LKAS) and Traffic Jam Assist*.
aIndicates that ACC with Low Speed
Follow*/ACC* is ready to be activated.
• Green: The system is on.
• White: The system is standby.
• Amber: There is a prob lem with the system.
bIndicates that LKAS or Traffic Jam Assist* is
ready to be activated.
• Green: The system is on.
• White: The system is standby.
• Amber: There is a prob lem with the system.
cIndicates that LKAS or Traffic Jam Assist* is
activated and whether or not traffic lane
lines are detected.
• Green lines: The system is on.
• White lines: Traffic lane lines are detected.
• Amber line: Lane departure is detected.
dIndicates whether or not a vehicle is
detected ahead.
•Control target vehicle: White and outlined in
green
• Outside of control target vehicle: Gray
*1: When the +R gauge* is not being used
■Gauge Content
6
Models with A-type meter
Models with B-type meter
Models with B-type meter*1
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 553 ページ ２０２２年６月２３日　木曜日　午後９時２８分

554

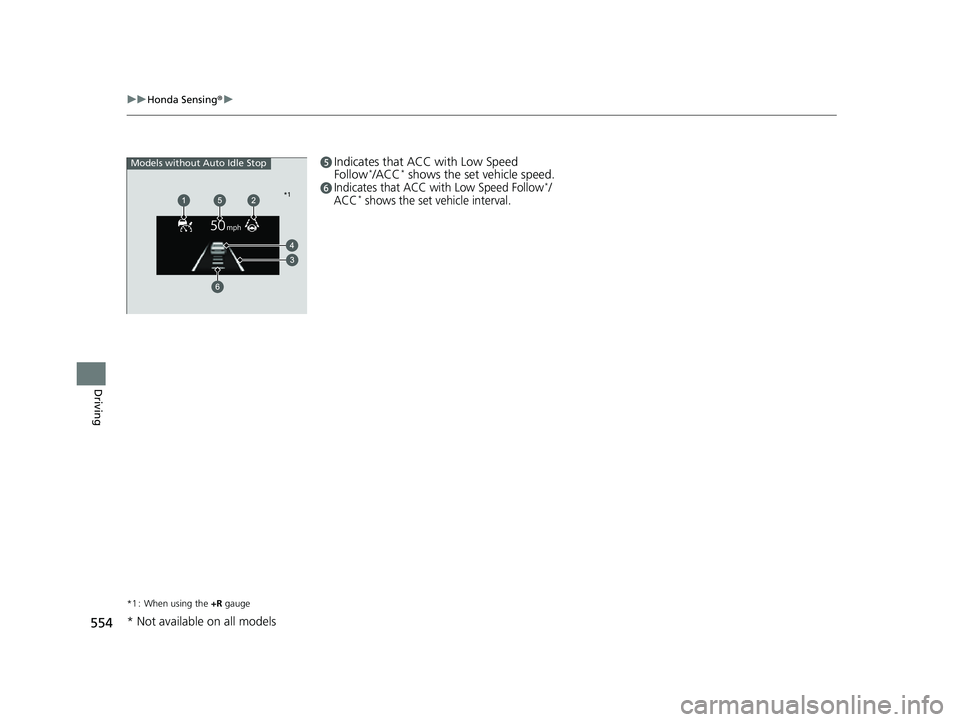

uuHonda Sensing ®u
Driving
eIndicates that ACC with Low Speed
Follow*/ACC* shows the set vehicle speed.fIndicates that ACC with Low Speed Follow*/
ACC* shows the set vehicle interval.
*1 : When using the +R gauge
Models without Auto Idle Stop
*1
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 554 ページ ２０２２年６月２３日　木曜日　午後９時２８分

555

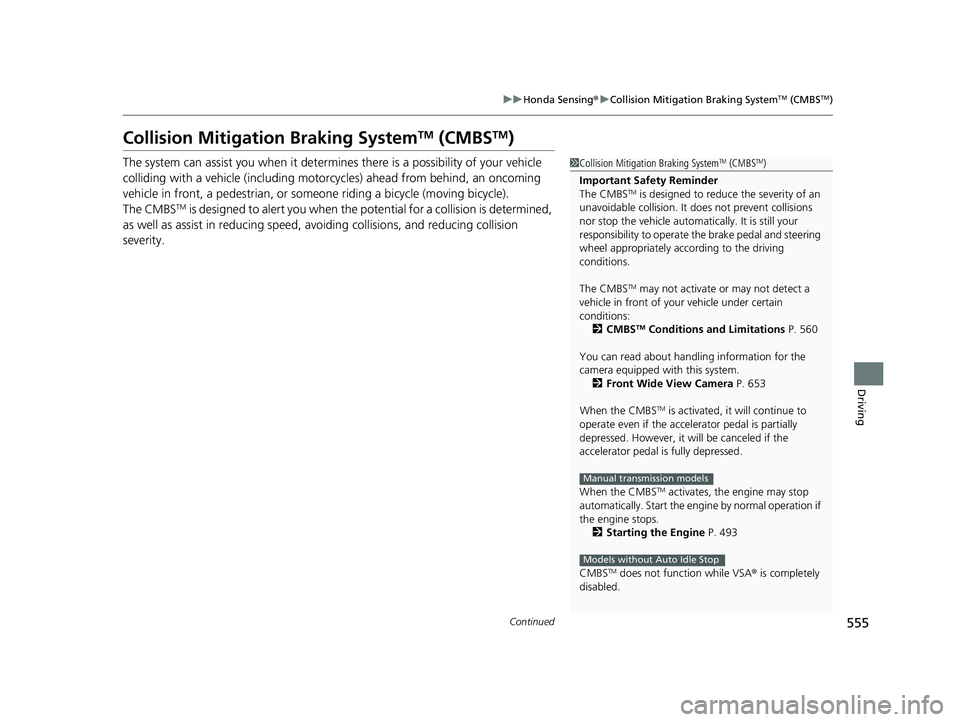

uuHonda Sensing ®u Collision Mitigation Braking SystemTM (CMBSTM)
Continued
Driving
Collision Mitigation Braking SystemTM (CMBSTM)
The system can assist you when it determines there is a possibility of your vehicle
colliding with a vehicle (including moto rcycles) ahead from behind, an oncoming
vehicle in front, a pedestrian, or someone riding a bicycle (moving bicycle).
The CMBS
TM is designed to alert you when the potential for a collision is determined,
as well as assist in reducing speed, avoiding collisions, and reducing collision
severity.
1 Collision Mitigation Braking SystemTM (CMBSTM)
Important Safety Reminder
The CMBS
TM is designed to reduce the severity of an
unavoidable collision. It does not prevent collisions
nor stop the vehicle automati cally. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately acco rding to the driving
conditions.
The CMBS
TM may not activate or may not detect a
vehicle in front of y our vehicle under certain
conditions:
2 CMBS
TM Conditions and Limitations P. 560
You can read about handling information for the
camera equipped with this system. 2 Front Wide View Camera P. 653
When the CMBS
TM is activated, it will continue to
operate even if the accele rator pedal is partially
depressed. However, it w ill be canceled if the
accelerator pedal is fully depressed.
When the CMBS
TM activates, the engine may stop
automatically. Start the engine by normal operation if
the engine stops. 2 Starting the Engine P. 493
CMBS
TM does not function while VSA® is completely
disabled.
Manual transmission models
Models without Auto Idle Stop
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 555 ページ ２０２２年６月２３日　木曜日　午後９時２８分

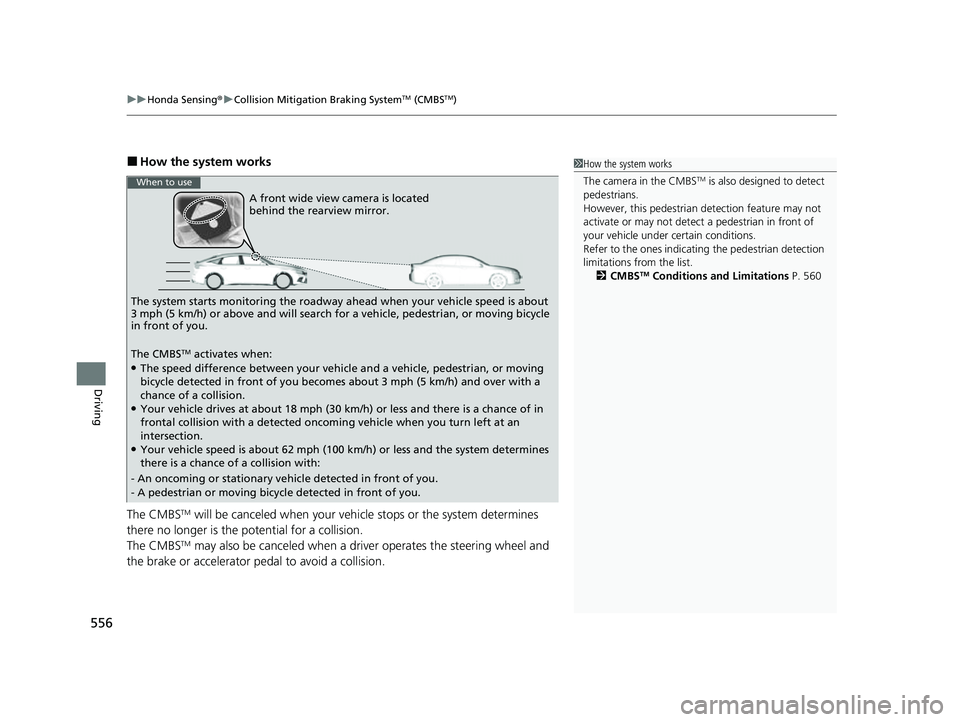

uuHonda Sensing ®u Collision Mitigation Braking SystemTM (CMBSTM)
556
Driving
■How the system works
The CMBS
TM will be canceled when your vehi cle stops or the system determines
there no longer is the potential for a collision.
The CMBS
TM may also be canceled when a driver operates the steering wheel and
the brake or accelerator pedal to avoid a collision.
1 How the system works
The camera in the CMBS
TM is also designed to detect
pedestrians.
However, this pedestrian detection feature may not
activate or may not detect a pedestrian in front of
your vehicle under certain conditions.
Refer to the ones indicating the pedestrian detection
limitations from the list. 2 CMBS
TM Conditions and Limitations P. 560
A front wide view camera is located
behind the rearview mirror.
The system starts monitoring the roadway ah ead when your vehicle speed is about
3 mph (5 km/h) or above and will search for a vehicle, pedestrian, or moving bicycle
in front of you.
The CMBS
TM activates when:●The speed difference between your vehicle and a vehicle, pedestrian, or moving
bicycle detected in front of you becomes about 3 mph (5 km/h) and over with a
chance of a collision.
●Your vehicle drives at about 18 mph (30 km/h) or less and there is a chance of in
frontal collision with a detected oncoming vehicle when you turn left at an
intersection.
●Your vehicle speed is about 62 mph (100 km/h) or less and the system determines
there is a chance of a collision with:
- An oncoming or stationary vehicle detected in front of you.
- A pedestrian or moving bicycle detected in front of you.
When to use
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 556 ページ ２０２２年６月２３日　木曜日　午後９時２８分

557

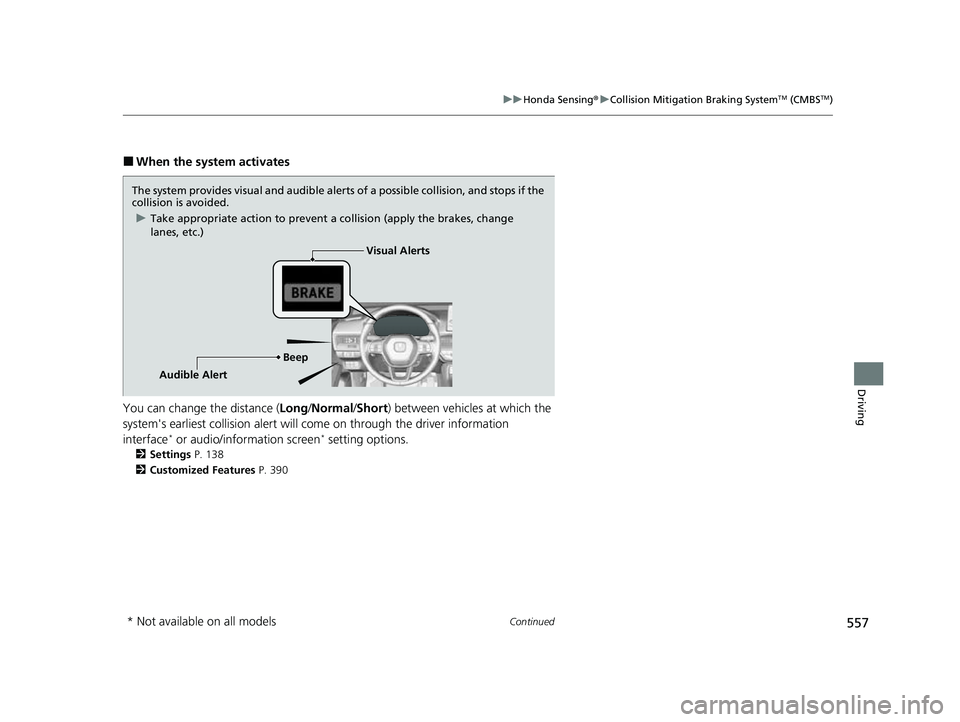

uuHonda Sensing ®u Collision Mitigation Braking SystemTM (CMBSTM)
Continued
Driving
■When the system activates
You can change the distance ( Long/Normal /Short ) between vehicles at which the
system's earliest collision alert will co me on through the driver information
interface
* or audio/information screen* setting options.
2 Settings P. 138
2 Customized Features P. 390
The system provides visual and audible alerts of a possible collision, and stops if the
collision is avoided.
u Take appropriate action to prevent a collision (apply the brakes, change
lanes, etc.)
Visual Alerts
Beep
Audible Alert
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 557 ページ ２０２２年６月２３日　木曜日　午後９時２８分

558
uuHonda Sensing ®u Collision Mitigation Braking SystemTM (CMBSTM)
Driving
The system has three alert stages for a possible collision. However, depending on circumstances, the CMBSTM may not go through all of
the stages before initiating the last stage.
■Collision Alert Stages
Distance between vehiclesCMBSTM
The sensors detect a vehicleAudible & Visual WARNINGSBraking
Stage oneThere is a risk of a collision with the
vehicle ahead of you.
When in Long, visual and audible
alerts come on at a longer distance
from a vehicle ahead than in Normal
setting, and in Short, at a shorter
distance than in Normal.
—
Stage
twoThe risk of a collision has increased,
time to respond is reduced.
Visual and audible alerts.
Lightly applied
Stage three The CMBSTM determines that a collision
is unavoidable.Forcefully applied
Your Vehicle Vehicle
Ahead
Normal
Short
Long
Your
Vehicle Vehicle
Ahead
Your
VehicleVehicle
Ahead
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 558 ページ ２０２２年６月２３日　木曜日　午後９時２８分
