HONDA CIVIC 2023 Owners Manual

809
Handling the Unexpected

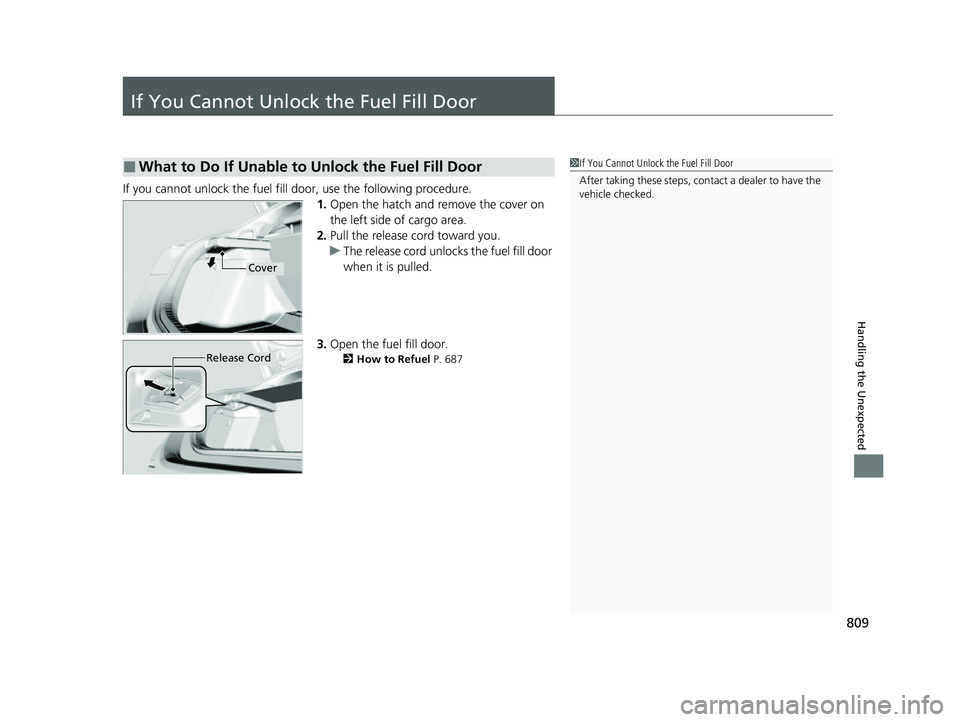

If You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the hatch and remove the cover on
the left side of cargo area.
2. Pull the release cord toward you.
u The release cord unlocks the fuel fill door
when it is pulled.
3. Open the fuel fill door.
2 How to Refuel P. 687
■What to Do If Unable to Unlock the Fuel Fill Door1If You Cannot Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Release Cord
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 809 ページ ２０２２年６月２３日　木曜日　午後９時２８分

810
Handling the Unexpected

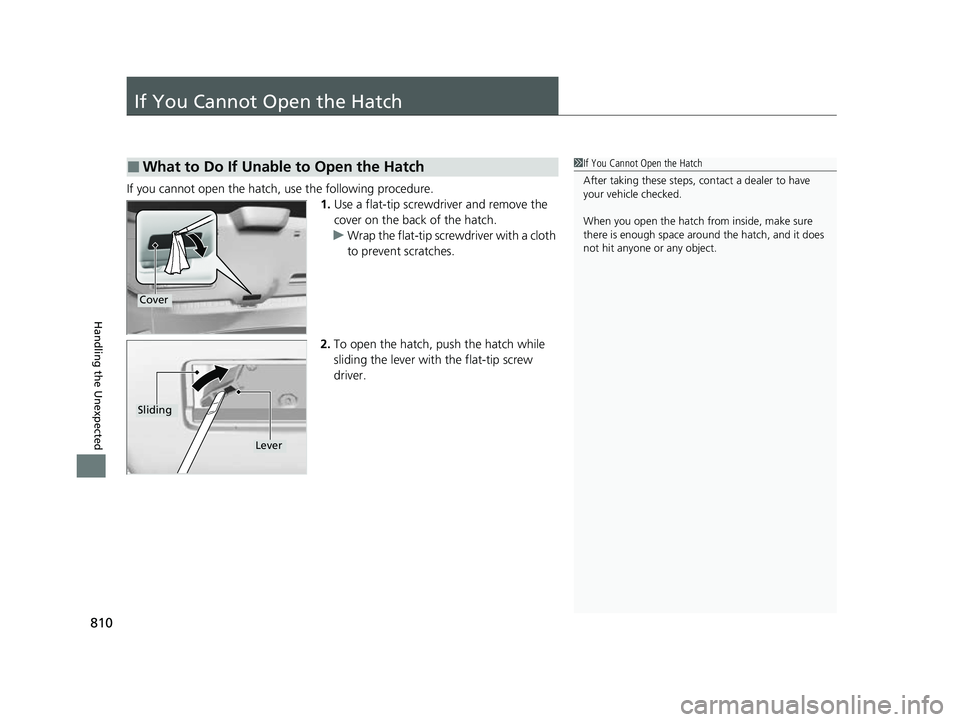

If You Cannot Open the Hatch
If you cannot open the hatch, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the back of the hatch.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the hatch, push the hatch while
sliding the lever with the flat-tip screw
driver.
■What to Do If Unable to Open the Hatch1If You Cannot Open the Hatch
After taking these steps, contact a dealer to have
your vehicle checked.
When you open the hatch fr om inside, make sure
there is enough space around the hatch, and it does
not hit anyone or any object.
Cover
Sliding
Lever
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 810 ページ ２０２２年６月２３日　木曜日　午後９時２８分

811
Handling the Unexpected

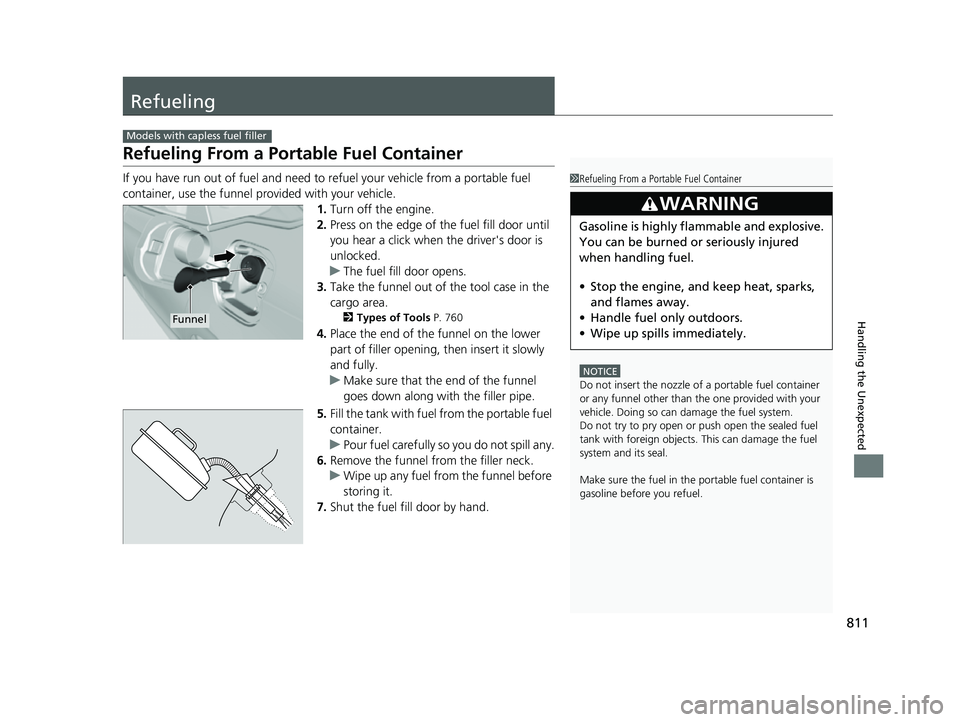

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door until
you hear a click when the driver's door is
unlocked.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
cargo area.
2 Types of Tools P. 760
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
Models with capless fuel filler
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flames away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 811 ページ ２０２２年６月２３日　木曜日　午後９時２８分

812
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 812 ページ ２０２２年６月２３日　木曜日　午後９時２８分This page intentionally left blank.

813

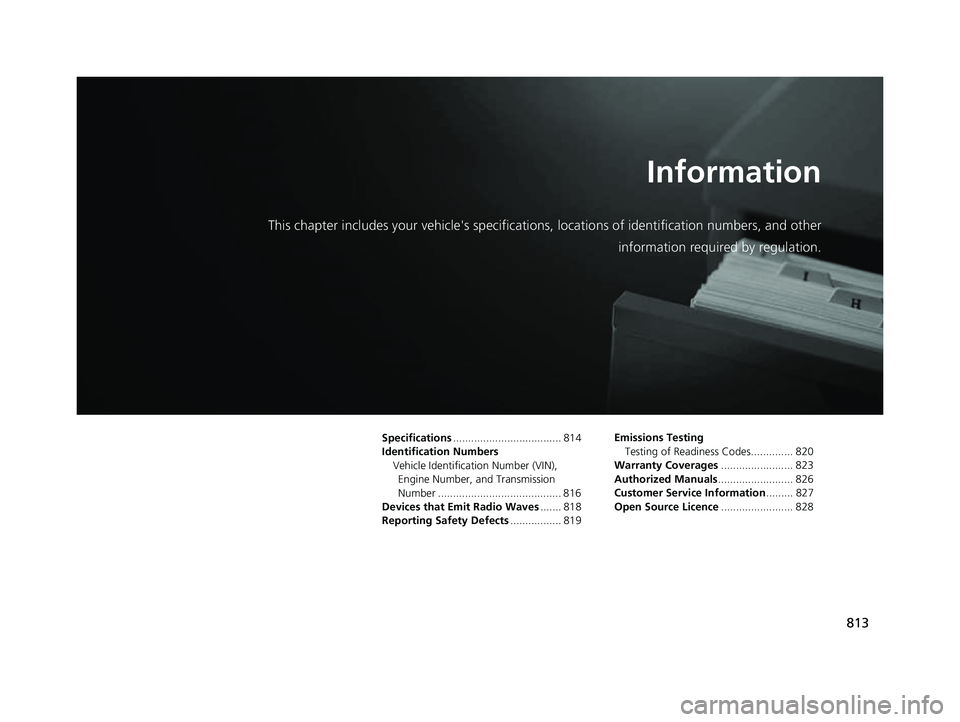

Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 814
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 816
Devices that Emit Radio Waves ....... 818
Reporting Safety Defects ................. 819Emissions Testing
Testing of Readiness Codes.............. 820
Warranty Coverages ........................ 823
Authorized Manuals ......................... 826
Customer Service Information ......... 827
Open Source Licence ........................ 828
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 813 ページ ２０２２年６月２３日　木曜日　午後９時２８分

814
Information
Specifications
■Vehicle Specifications
*1: 1.5 L engine models
*2: 2.0 L engine models with auto idle stop
*3: 2.0 L engine models without auto idle stop
■Air Conditioning
*1: 1.5 L engine models
*2: 2.0 L engine models
ModelCivic*1 *2
Civic TYPE R*3
No. of Passengers:
Front 2
Rear 3
*1 *2
2*3
Total5*1 *2
4*3
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver's
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 15.3 - 17.1 oz (435 - 485 g)
Lubricant TypeRL85HM (POE)*1
ND-OIL 14 (POE)*2
Quantity 6.41 - 7.32 cu-in (105 - 120 cm3)*2
6.71 - 7.5 cu-in (110 - 123 cm3)*1
■
Engine Specifications
*1: 1.5 L engine models
*2: 2.0 L engine models with auto idle stop
*3: 2.0 L engine models without auto idle stop
■Fuel
*1: Models with auto idle stop
*2: Models without auto idle stop
■Washer Fluid
*1: Models with auto idle stop
*2: Models without auto idle stop
Displacement91.38 cu-in (1,498 cm3)*1
121.76 cu-in (1,996 cm3)*2*3
Spark Plugs NGKDILKAR8P8SY
*1
DILKAR7H11GS*2
DILKAR7G11GS*2
ILZKAR8J8SY*3
DENSODXE22HQR-D11S*2
Type
Unleaded gasoline, pump octane number
87 or higher*1
Unleaded premium gasoline, pump octane
number 91 or higher*2
Fuel Tank Capacity
12.39 US gal (46.9 L)*1
12.4 US gal (47.0 L)*2
Tank CapacityU.S.:1.6 US qt (1.5 L)
Canada:1.6 US qt (1.5 L)*2
4.8 US qt (4.5 L)*1
■
Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Fog Lights*LED
Parking/Daytime Running Lights LED
Front Side Marker LightsLED
Front Turn Signal Lights LED
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights LED
Rear Turn Signal Lights21 W (Amber)
Rear Side Marker Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap LightsLEDCeiling LightLEDVanity Mirror Lights*2 WCenter Console Light*LEDGlove Box LightLEDCargo Area Light5 WFoot Lights*LEDAmbient LightsLED
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 814 ページ ２０２２年６月２３日　木曜日　午後９時２８分

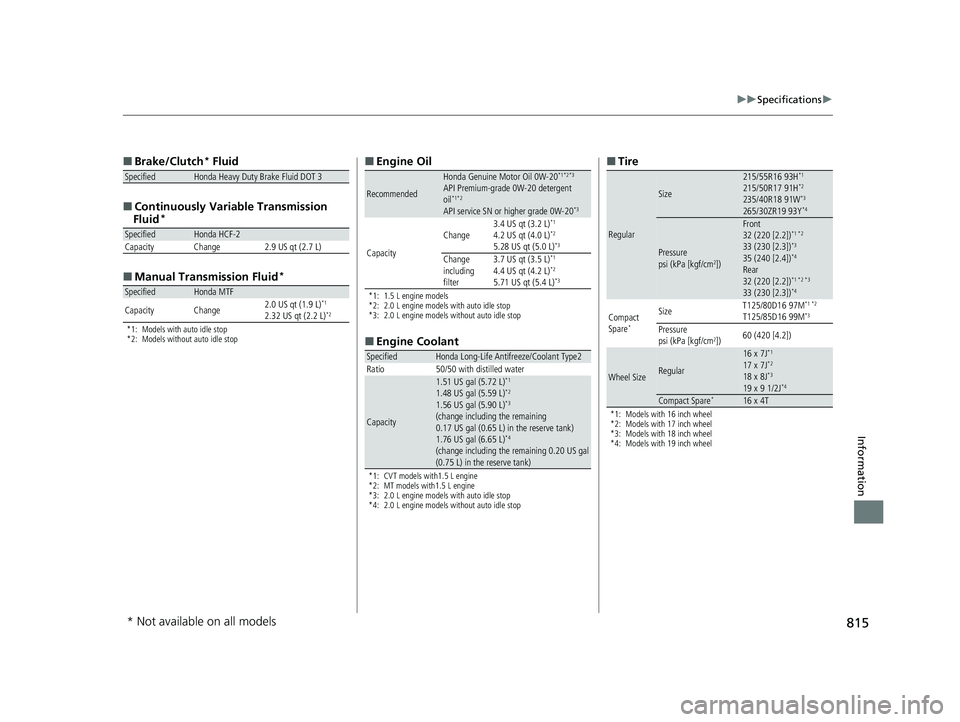

815
uuSpecifications u
Information
■
Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
*
■ Manual Transmi ssion Fluid*
*1: Models with auto idle stop
*2: Models without auto idle stop
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2
Capacity Change 2.9 US qt (2.7 L)
SpecifiedHonda MTF
Capacity Change 2.0 US qt (1.9 L)*1
2.32 US qt (2.2 L)*2
■
Engine Oil
*1: 1.5 L engine models
*2: 2.0 L engine models with auto idle stop
*3: 2.0 L engine models without auto idle stop
■Engine Coolant
*1: CVT models with1.5 L engine
*2: MT models with1.5 L engine
*3: 2.0 L engine models with auto idle stop
*4: 2.0 L engine models without auto idle stop
Recommended
Honda Genuine Motor Oil 0W-20*1*2*3
API Premium-grade 0W-20 detergent
oil*1*2
API service SN or higher grade 0W-20*3
Capacity Change
3.4 US qt (3.2 L)
*1
4.2 US qt (4.0 L)*2
5.28 US qt (5.0 L)*3
Change
including
filter3.7 US qt (3.5 L)*1
4.4 US qt (4.2 L)*2
5.71 US qt (5.4 L)*3
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.51 US gal (5.72 L)*1
1.48 US gal (5.59 L)*2
1.56 US gal (5.90 L)*3
(change including the remaining
0.17 US gal (0.65 L) in the reserve tank)
1.76 US gal (6.65 L)
*4
(change including the remaining 0.20 US gal
(0.75 L) in the reserve tank)
■ Tire
*1: Models with 16 inch wheel
*2: Models with 17 inch wheel
*3: Models with 18 inch wheel
*4: Models with 19 inch wheel
Regular
Size
215/55R16 93H*1
215/50R17 91H*2
235/40R18 91W*3
265/30ZR19 93Y*4
Pressure
psi (kPa [kgf/cm2])
Front
32 (220 [2.2])*1 *2
33 (230 [2.3])*3
35 (240 [2.4])*4
Rear
32 (220 [2.2])*1 *2 *3
33 (230 [2.3])*4
Compact
Spare*
Size T125/80D16 97M*1 *2
T125/85D16 99M*3
Pressure
psi (kPa [kgf/cm2])
60 (420 [4.2])
Wheel SizeRegular
16 x 7J*1
17 x 7J*2
18 x 8J*3
19 x 9 1/2J*4
Compact Spare*16 x 4T
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 815 ページ ２０２２年６月２３日　木曜日　午後９時２８分

816
Information

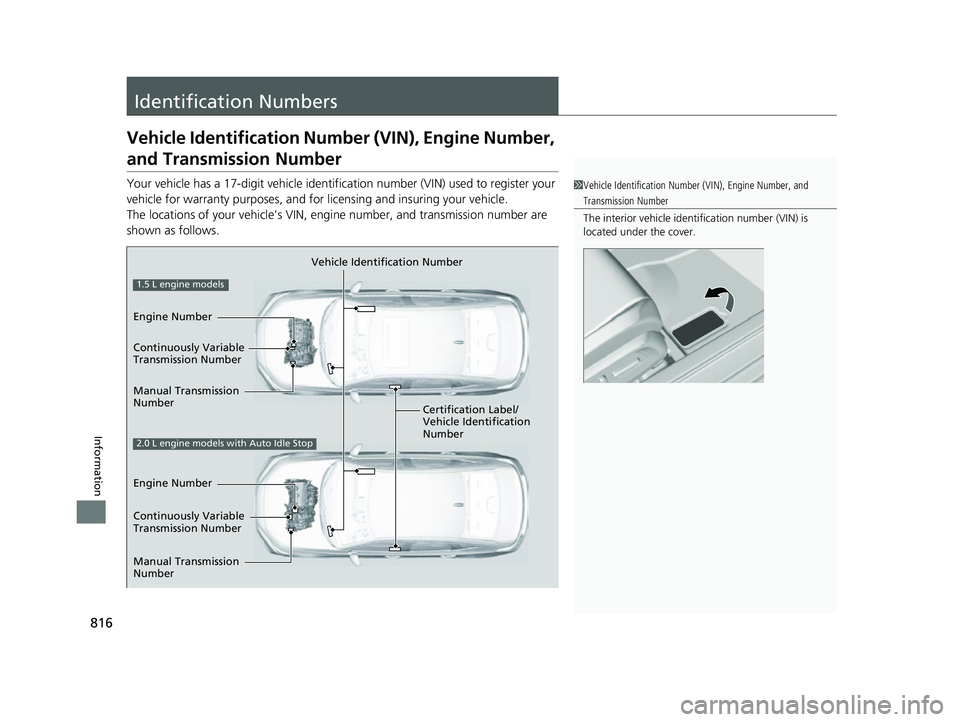

Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle's VIN, en gine number, and transmission number are
shown as follows.1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
2.0 L engine models with Auto Idle Stop
1.5 L engine models
Continuously Variable
Transmission Number
Engine Number
Continuously Variable
Transmission Number
Manual Transmission
Number
Manual Transmission
Number
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 816 ページ ２０２２年６月２３日　木曜日　午後９時２８分

817
uuIdentification Numbers uVehicle Identification Number (VIN), Engine Number, and Transmission Number
Information
2.0 L engine models without Auto Idle Stop
Engine Number Vehicle Identification Number
Manual
Transmission
Number Certification Label/Vehicle Identification Number
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 817 ページ ２０２２年６月２３日　木曜日　午後９時２８分

818
Information
Devices that Emit Radio Waves
Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interference, and (2 ) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compli ance could void the user's authority to
operate the equipment.
This device complies with Industry Ca nada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must acce pt any interference, including interference
that may cause undesired operation of the device.
