Emergency Towing
plugged into the accessory powersocket are turned off so they do not
run down the battery.
Trying to lift or tow your vehicle by
the bumpers will cause serious
damage. The bumpers are not designed to support the vehicle's
weight.
Taking Care of the Unexpected
The steering system can be
damaged if the steering wheel is locked. Leave the ignition switch in
Accessory (I), and make sure the steering wheel turns freely before
you begin towing.
NOTICE
NOTICEMain Menu Table of Contents s t
Page 242 of 269
Technical Information
The diagrams in this section give you the dimensions and capacities of
your Honda, and the locations of the identification numbers. The expla-
nations of several electronic and
mechanical systems on your Honda
are for the more technically-oriented
owner. Identification Numbers................. 244
Specifications................................. 246
Tire Information............................ 249 Tire Size Designation................ 249
Wheel Size Designation............ 249
Tire Speed Ratings.................... 249
Tire Pressure Adjustment For High Speed Driving............... 250
DOT Tire Quality Grading....... 250
Treadwear.............................. 250
Traction.................................. 251Temperature.......................... 251
Oxygenated Fuels.......................... 252
Driving in Foreign Countries....... 253 Emissions Controls........................ 254
The Clean Air Act...................... 254Crankcase Emissions Control System..................................... 254
Evaporative Emissions Control System..................................... 254
Onboard Refueling Vapor Recovery................................. 254
Exhaust Emissions Controls.... 255 PGM-FI System..................... 255
Ignition Timing ControlSystem................................. 255
Exhaust Gas Recirculation (EGR) System.................... 255
Three Way Catalytic Converter............................ 255
Replacement Parts..................... 255
Three Way Catalytic Converter... 256
Technical InformationMain Menu s t
Page 243 of 269
Identification Numbers

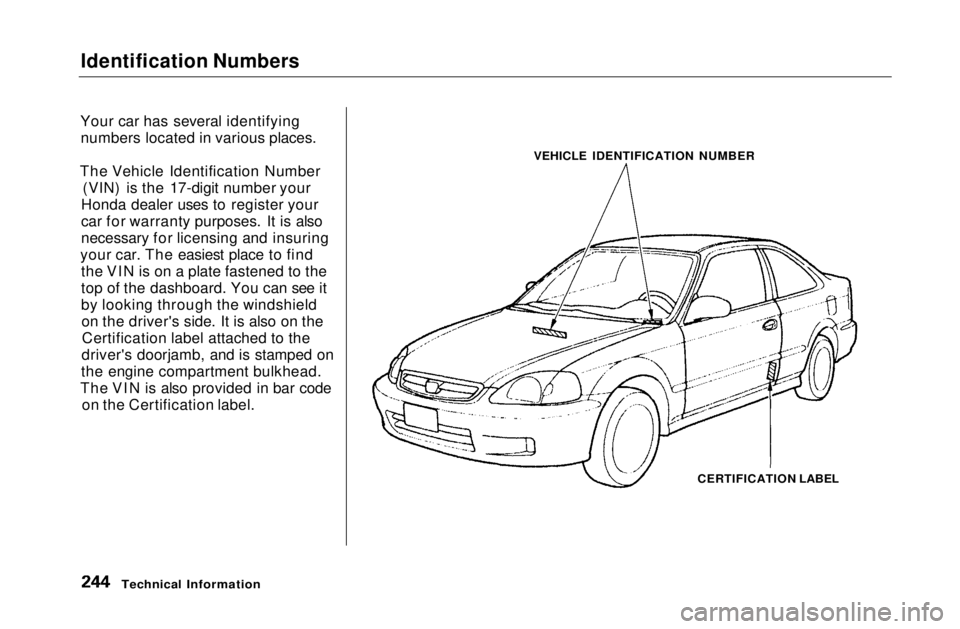

Your car has several identifying numbers located in various places.
The Vehicle Identification Number (VIN) is the 17-digit number your
Honda dealer uses to register your
car for warranty purposes. It is also
necessary for licensing and insuring
your car. The easiest place to find the VIN is on a plate fastened to the
top of the dashboard. You can see it
by looking through the windshieldon the driver's side. It is also on theCertification label attached to the
driver's doorjamb, and is stamped on
the engine compartment bulkhead.
The VIN is also provided in bar code on the Certification label.
Technical Information
VEHICLE IDENTIFICATION NUMBER
CERTIFICATION LABELMain Menu Table of Contents s t
Page 244 of 269
Identification Numbers

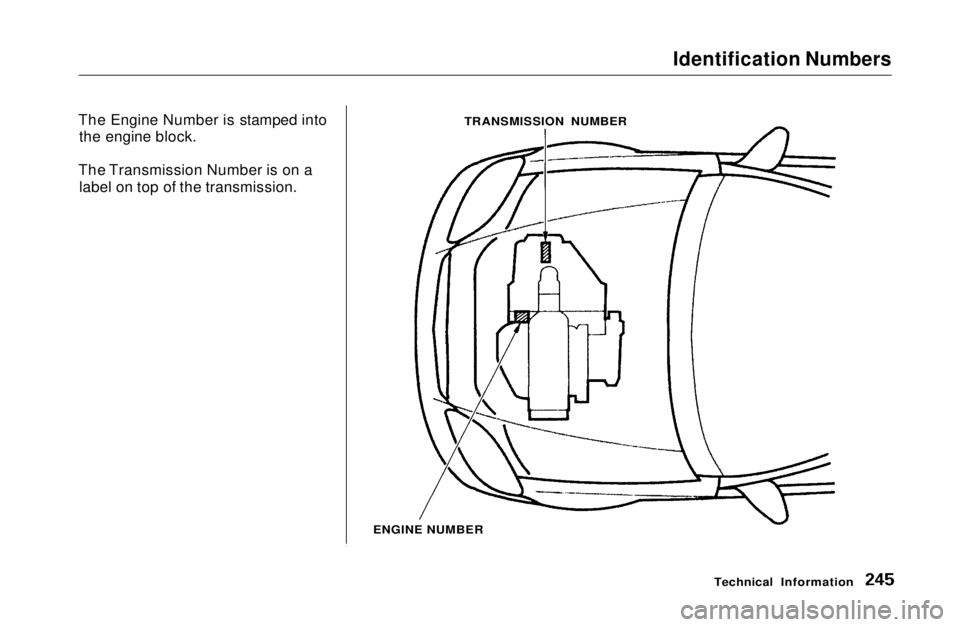

The Engine Number is stamped into the engine block.
The Transmission Number is on a label on top of the transmission.
Technical Information
TRANSMISSION NUMBER
ENGINE NUMBERMain Menu Table of Contents s t
Page 245 of 269
Specifications
*
1
: DX
* 2 : U.S.: HX, EX, Canada: Si
* 3 : U.S.: DX, HX, Canada: DX
* 4 : U.S.: EX, Canada: Si
* 5 : U.S.: Si, Canada: SiR
Technical Information
page 188Main Menu Table of Contents s t
Page 246 of 269

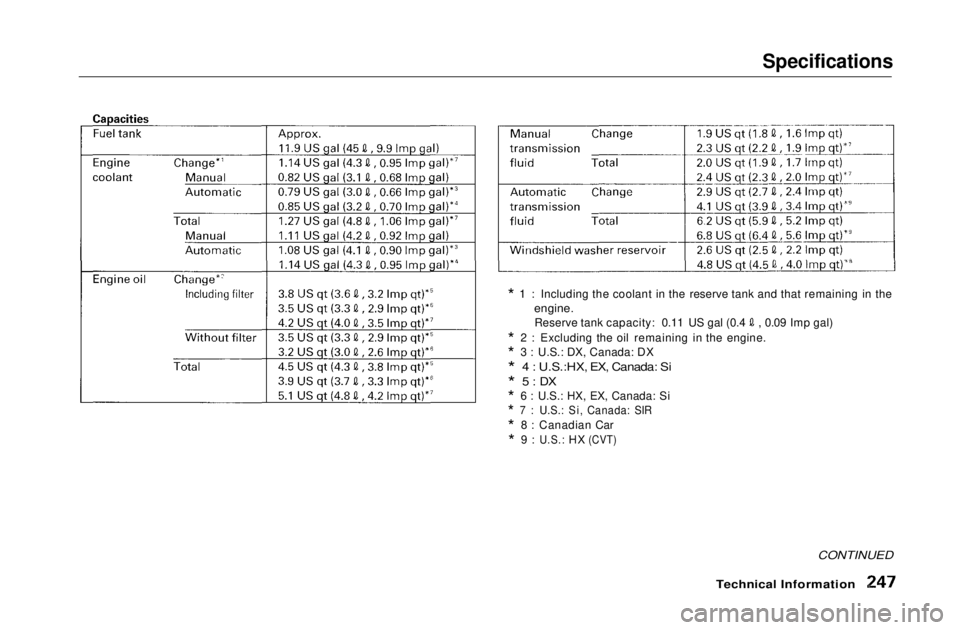

Specifications
* 1 : Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity: 0.11 US gal (0.4 , 0.09 Imp gal)
* 2 : Excluding the oil remaining in the engine.
* 3: U.S.: DX, Canada: DX
* 4: U.S.:HX, EX, Canada: Si
* 5: DX
* 6: U.S.: HX, EX, Canada: Si
* 7 : U.S.: Si, Canada: SIR
* 8 : Canadian Car
* 9:
U.S.:
HX
(CVT)
Technical InformationCONTINUEDMain Menu Table of Contents s t
Page 247 of 269
Specifications
* 1 : U.S.: DX and HX without ABS, Canada: DX without ABS
* 2 : U.S.: EX without ABS, Canada: Si without ABS
* 3 : U.S.: Cars equipped with ABS, Canada: Cars equipped with ABS
* 4: U.S.: Si, Canada: SiR
Technical Information
page 239
page 240Main Menu Table of Contents s t
Page 248 of 269
Tire Information
Tire Size Designation A tire's sidewall is marked with a tire size designation. You will need this
information when selecting replace-
ment tires for your vehicle. The
following explains what the letters and numbers in the tire size
designation mean.
(Example tire size designation)
P185/65R14 85S
P — Applicable vehicle type (tires
marked with the prefix "P" are
intended for use on passenger cars;
however, not all tires have this
marking).
185 — Tire width in millimeters.
65 — Aspect ratio. The tire's section
height as a percentage of its width.
R — Tire construction code (Radial). 14 — Rim diameter in inches. 85 — Load Index, a numerical code
associated with the maximum load
the tire can carry.
S — Speed Symbol. See the speed
rating chart in this section for additional information.
Wheel Size Designation Wheels are also marked with important information that you need
if you ever have to replace one. The
following explains what the letters and numbers in the wheel size
designation mean.
(Example wheel size designation)
14x5J
14 — Rim diameter in inches.
5 — Rim width in inches.
J — Rim contour designation. Tire Speed Ratings
The chart below shows many of the different speed ratings currently
being used for passenger vehicle
tires. The speed symbol is part of the tire size designation on the sidewallof the tire. This symbol corresponds
to that tire's designed maximum safe
operating speed.
Technical InformationMain Menu Table of Contents s t
Page 249 of 269
Tire Information

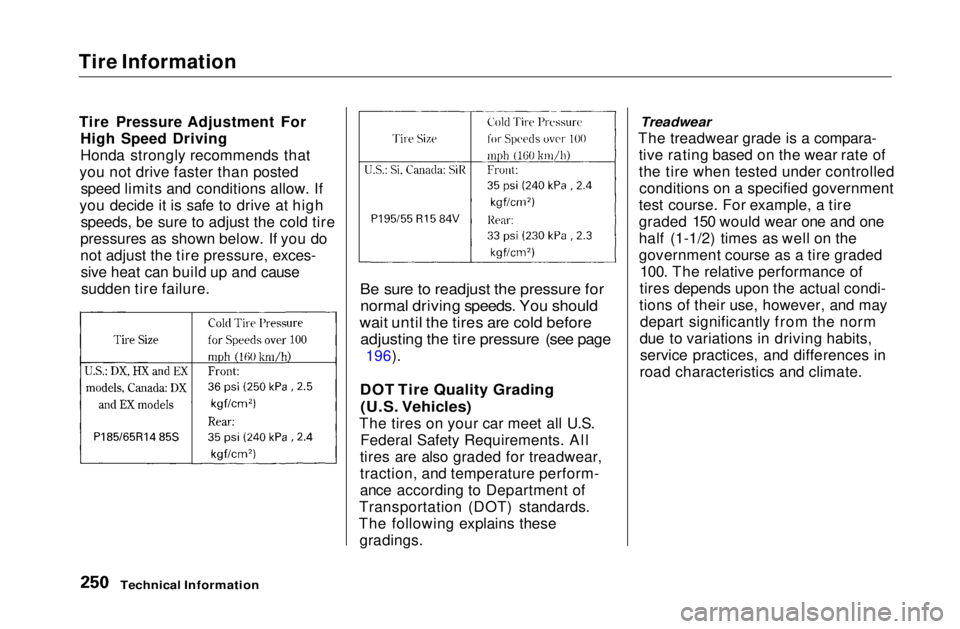

Tire Pressure Adjustment For High Speed Driving
Honda strongly recommends that
you not drive faster than posted speed limits and conditions allow. If
you decide it is safe to drive at high speeds, be sure to adjust the cold tire
pressures as shown below. If you do
not adjust the tire pressure, exces- sive heat can build up and causesudden tire failure.
Be sure to readjust the pressure for
normal driving speeds. You should
wait until the tires are cold before adjusting the tire pressure (see page
196).
DOT Tire Quality Grading
(U.S. Vehicles)
The tires on your car meet all U.S. Federal Safety Requirements. All
tires are also graded for treadwear,
traction, and temperature perform-
ance according to Department of
Transportation (DOT) standards.
The following explains these gradings.
Treadwear
The treadwear grade is a compara- tive rating based on the wear rate of
the tire when tested under controlledconditions on a specified government
test course. For example, a tire
graded 150 would wear one and one
half (1-1/2) times as well on the
government course as a tire graded 100. The relative performance of
tires depends upon the actual condi-
tions of their use, however, and may depart significantly from the norm
due to variations in driving habits, service practices, and differences in
road characteristics and climate.
Technical InformationMain Menu Table of Contents s t
Page 250 of 269
Tire Information
Traction
The traction grades, from highest to lowest, are A, B, and C, and they
represent the tire's ability to stop on
wet pavement as measured under controlled conditions on specified
government test surfaces of asphaltand concrete. A tire marked C may
have poor traction performance.
Warning: The traction grade as- signed to this tire is based on brak-
ing (straight ahead) traction tests
and does not include cornering (turning) traction.
Temperature
The temperature grades are A (the highest), B, and C, representing the
tire's resistance to the generation of heat and its ability to dissipate heat
when tested under controlled conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the materialof the tire to degenerate and reduce
tire life, and excessive temperature can lead to sudden tire failure. The
grade C corresponds to a level of
performance which all passenger car
tires must meet under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent
higher levels of performance on the
laboratory test wheel than the minimum required by law.
Warning: The temperature grade for
this tire is established for a tire that
is properly inflated and not over-
loaded. Excessive speed, underinfla-
tion, or excessive loading either
separately or in combination, can
cause heat build-up and possible tire
failure.
