HONDA CIVIC COUPE 2004 7.G Owners Manual

µµ µ µ µ
Î Î
Î
No. Amps. Circuits ProtectedNo. Amps. Circuits Protected
: On Canadian models
12345 15 A
20 A
10 A
10 A
Ignition Coil
LAF Heater
Daytime Running Lights
Alternator
Not Used 6789
1011 1213141516171819202122232425 7.5 A
20 A
7.5 A 10 A
7.5 A
7.5 A
7.5 A 10 A
10 A
10 A
15 A
15 A
7.5 A 20 A
20 A
20 A Power Window Relay
Moonroof
Accessory, Radio
SIDE SRS
Meter
ABS
Daytime Running Lights
SRS
Power Mirrors
(Security)
Not Used
Fuel Pump
Accessory Power Socket
Turn Signal Lights
Front Wipers
Not Used
Front Right Power Window
Front Left Power Window
Not Used
Not Used
Fuse Locations
T aking Care of t he Unexpect ed202
INTERIOR FUSE BOX
——y
y
(%yy

µµ µ
There are three popular types of
prof essional towing equipment. The operator
loads your vehicle on the back of a
truck.
The tow
truck uses two pivoting arms that go
under the tires (f ront or rear) and lif t
them of f the ground. The other two
tires remain on the ground. The tow
truck uses metal cables with hooks
on the ends. These hooks go around
parts of the f rame or suspension and
the cables lif t that end of the vehicle
of f the ground. Your vehicle’s sus-
pension and body can be seriously
damaged. Release the parking brake.
Shif t the transmission to Neutral.
Start the engine.
ShifttoD,thentoN.
Turn of f the engine.
If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
If your Honda cannot be transported
by f lat-bed, it should be towed by
wheel-lif t equipment with the f ront
wheels of f the ground. If , due to
damage, your vehicle must be towed
with the f ront wheels on the ground,
do the f ollowing: Release the parking brake.
5-speed Manual Transmission and
Continuously Variable Transmission(CVT)
Automatic Transmission:
CONT INUED
Flat -bed Equipment
Wheel-lif t Equipment Sling-t ype Equipment
This is the best way to trans-
port your Honda.
T his is
an acceptable way to tow your
Honda. T his method of towing
is unacceptable.
Emergency T owing
T aking Care of t he Unexpect ed203
NOTICE: Improper towing preparation
will damage the transmission. Follow
the above procedure exactly. If you
cannot shif t the transmission or start
the engine (automatic transmission),
your vehicle must be transported with
the f ront wheels of f the ground.
——y
y
(%yy

With the f ront wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
If your vehicle is equipped with a
f ront spoiler, remove it bef ore
towing so it is not damaged.If you decide to tow your vehicle
with all f our wheels on the ground,
make sure you use a properly-
designed and attached tow bar.
Prepare the vehicle for towing as
described above, and leave the
ignition switch in Accessory (I) so
the steering wheel does not lock.
Make sure the radio and any items
plugged into the accessory power
socket are turned of f so they do not
rundownthebattery.
T aking Care of t he Unexpect ed
Emergency T owing
204
NOTICE:
NOTICE: Trying to lif t or tow your
vehicle by the bumpers will cause
serious damage. The bumpers are not
designed to support the vehicle’s weight.
T he steering system can be
damaged if the steering wheel is locked.
Leave the ignition switch in Accessory
(I), and make sure the steering wheel
turns f reely bef ore you begin towing.
——yy
(%yy

Thediagramsinthissectiongive
you the dimensions and capacities of
your Honda, and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.................
Identif ication Numbers . 206
................................
Specif ications . 208
DOT Tire Quality Grading
......................
(U.S. Vehicles) . 210
.................................
Treadwear . 210
......................................
Traction . 210
.............................
Temperature . 211
.............................
Tire Labeling . 211 .......................
Emissions Controls . 212
.....................
The Clean Air Act . 212
Crankcase Emissions Control
....................................
System . 212
Evaporative Emissions Control ....................................
System . 212
Onboard Ref ueling Vapor ................................
Recovery . 212
...
Exhaust Emissions Controls . 213
....................
PGM-FI System . 213
Ignition Timing Control
................................
System . 213
Three Way Catalytic ...........................
Converter . 213
....................
Replacement Parts . 213
..
Three Way Catalytic Converter . 214
..............
State Emissions Testing . 215
....
Testing of Readiness Codes . 215
T echnical Inf ormat ion
T echnical Inf ormation205
——yy
(%yy

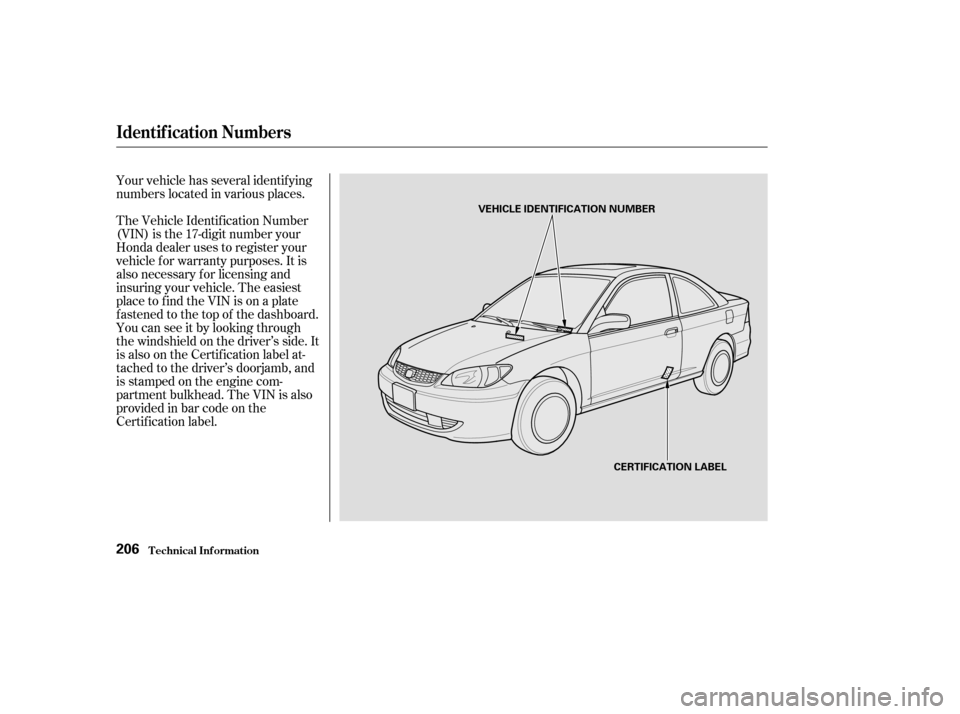

Your vehicle has several identif ying
numbers located in various places.
The Vehicle Identif ication Number
(VIN) is the 17-digit number your
Honda dealer uses to register your
vehicle f or warranty purposes. It is
also necessary f or licensing and
insuring your vehicle. The easiest
placetofindtheVINisonaplate
fastened to the top of the dashboard.
Youcanseeitbylookingthrough
the windshield on the driver’s side. It
is also on the Certification label at-
tached to the driver’s doorjamb, and
is stamped on the engine com-
partment bulkhead. The VIN is also
provided in bar code on the
Certif ication label.
Identif ication Numbers
T echnical Inf ormation206
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL
——yy
(%yy

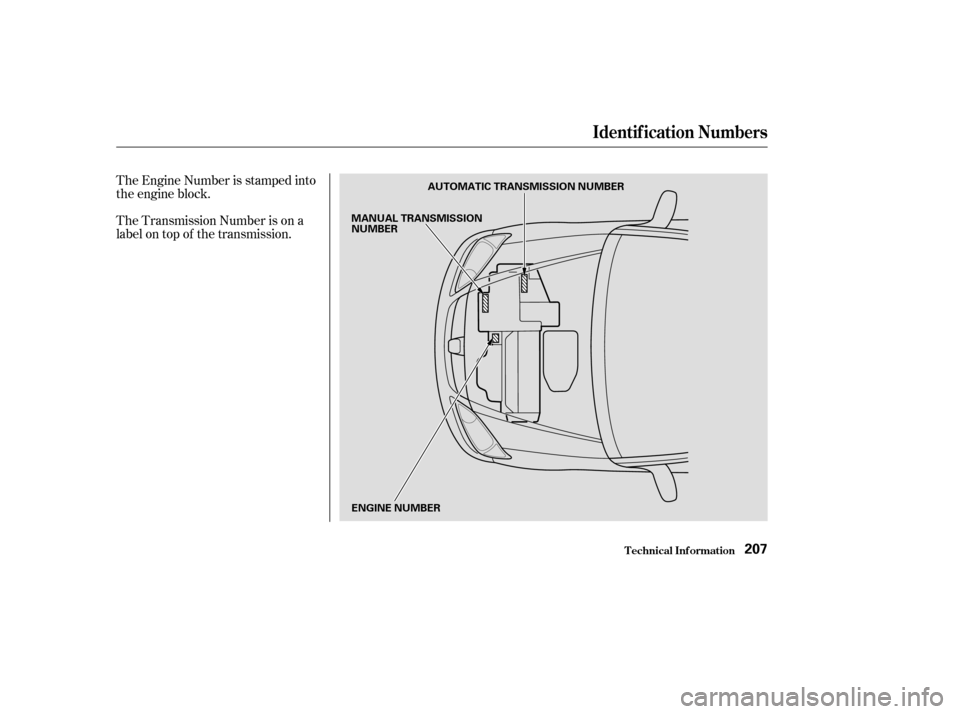

The Engine Number is stamped into
the engine block.
The Transmission Number is on a
label on top of the transmission.
Identif ication Numbers
T echnical Inf ormation207
AUTOMATIC TRANSMISSION NUMBER
ENGINE NUMBER
MANUAL TRANSMISSION
NUMBER
——yy
(%y
y

ÎÎÎ Î ÎÎÎÎ
Î Î
Î Î
Î Î ÎÎ
Î
Î Î
´ ´
Specif ications
T echnical Inf ormation208
Dimensions
Weights Capacities
Engine 174.7 in (4,438 mm)
66.7 in (1,695 mm)
55.1 in (1,399 mm)
103.1 in (2,620 mm)
57.9 in (1,470 mm)
57.9 in (1,470 mm)
2.95 x 3.72 in (75.0 x 94.4 mm) 13.2 US gal (50
)
102 cu-in (1,668 cm
)
9.5 9.9
0.108 US gal (0.41
)
4.8 US qt (4.5
)
2.6 US qt (2.5)
6.0 US qt (5.7)
6.3 US qt (6.0)
3.4 US qt (3.2)
2.9 US qt (2.7)
1.7 US qt (1.6)
1.6 US qt (1.5)
4.4 US qt (4.2)
3.5 US qt (3.3)
3.2 US qt (3.0)
3.7 US qt (3.5)
3.4 US qt (3.2)
1.03 US gal (3.9
)
1.00 US gal (3.8)
1.00 US gal (3.8)
1.32 US gal (5.0
)
1.29 US gal (4.9)
1.29 US gal (4.9)
Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
Excluding the oil remaining in the engine.
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb.
Water cooled 4-stroke
SOHC , SOHC VTEC
4-cylinder gasoline engine Fuel tank
Engine
coolant
Engine oil Automatic
transmission
fluid
NGK:
DENSO:
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Spark plug Gap
PZFR6F-11 PKJ20CR-M11
0.04 in (1.1 mm)
FrontRear
Approx.
U.S.: HX, EX
Canada: Si HX
3: 4: 5:6:
7:
1: 2: Change
Manual AutomaticCVT
Total ManualAutomaticCVT
Change
Including
filter
Without filter
Total
ChangeTotal
Change Total
U.S. Vehicles
U.S: HX, EX Canada: Si
U.S: DX, LX
Canada: DX, LX
U.S: DX, LX Canada: DX, LX
1212 5656
7 7
3 4
Manual trans-
mission fluid
Canada Vehicles
Windshield
washer reservoir
0
0.1 mm
——yy
(%y

y

µµµ
µµ
Î Î µ µµµµµµµµµµµµ µ µ
ÎÎÎÎ Î
Î
Î Î ÎÎÎ
ÎÎ
Specif ications
T echnical Inf ormation209
Air Conditioning
Lights Battery Fuses
Alignment
Tires
HFC-134a (R-134a)
17.6 19.4 oz (500 550 g) SP-10
12 V
12 V 60 W
2°14’45’
0°
0.00 in (0.0 mm)
P185/65R15 86H P185/70R14 87S
0.08 in ( 2.0 mm)
12 V
12 V 21 W
12 V 21/5 W
12 V 18 W
12 V 21 W
12 V 3 CP
12 V 10 W
12 V 5 W
12 V 5 W
12 V 8 W
12 V 5 W
12 V
12 V 36 AH/5 HR
38 AH/5 HR
51 W
60 psi (420 kPa , 4.2 kgf/cm
)
30 psi (210 kPa , 2.1 kgf/cm)
T125/70D15 95M
T115/70D14 88M
P195/60R15 87H
Refrigerant type
Charge quantity
Lubricant oil type
Headlights (HI)
Headlights (LO)
Front turn signal/Parking light
Rear turn signal lights
Stop/Taillights
Back-up lights
High-mount stop light
License plate lights
Ceiling light
Front ceiling light
Spotlights
Trunk light
Capacity Interior
Under-hood
Toe-in
CamberCaster Size
Pressure
24/2.2 CP
See page 202 or the fuse label
attached to the inside of the fuse
box door under the steering
column.
See page 201 or the fuse box
cover.
FrontRear
FrontRear
Front
1 : U.S.: EX Canada : Si
2: LX
3:4:5:6: 7:
(HB3)
Front/Rear
Spare
Front/Rear
Spare
(HB4)
U.S.: DX, HX Canada: DX
Canada: LX
U.S.: LX, EX Canada: Si
U.S.: DX, HX and LX
Canada : DX, LX and Si
U.S.: LX with ABS, EX
Canada: LX with ABS, Si with ABS
1 12 345
67
——yy
(%y
y

µ
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
Quality grades can be f ound where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
All passenger vehicle tires must
conf orm to Federal Saf ety
Requirements in addition to these
grades. The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.
The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A Treadwear Traction AA, A, B, C
T echnical Inf ormation
DOT T ire Quality Grading (U.S. Vehicles)
210
——yy
(%y
y

µµ µ µ µ
µµ µ
µ
µ µ
µ Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Tire Identif ication Number (TIN) is
a group of numbers and letters that
look like the f ollowing example TIN.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Date of manuf acture.Manuf acturer’s
identification mark.
Tire type code.
Load index (a numerical code
associated with the maximum
load the tire can carry).
Rim diameter in inches.
Tire construction code (R
indicates radial).
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance, which all passenger
vehicle tires must meet under the
Federal Motor Vehicle Saf ety
Standard No. 109. Grades B and A
represent higher levels of
perf ormance on the laboratory test
wheel than the minimum required by
law.
Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not over-
loaded. Excessive speed, underinf la- tion, or excessive loading, either
separately or in combination, can
cause heat buildup and possible tire
f ailure.
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
55 94 V B97R
FW6X 2202
DOT
225
P 16
R
DOT T ire Quality Grading (U.S. Vehicles), T ire L abeling
Temperature A,B,C
Tire Labeling
T ire Ident if icat ion Number
Tire Size
T echnical Inf ormation211
DOT B97R FW6X 2202
P225/55R16 94V
——yy
(%y
y
