HONDA CIVIC COUPE 2005 7.G Owners Manual

It only helps with the
steering control during braking.
such as trying to take a
corner too f ast or making a sudden
lane change. Always drive at a safe
speed f or the road and weather
conditions.
Always steer moderately
when you are braking hard. Severe
or sharp steering wheel movement
can still cause your vehicle to veer
into oncoming traffic or off the road. on loose or
uneven surf aces, such as gravel or
snow, than a vehicle without anti-
lock. Slow down and allow a greater
distance between vehicles under
those conditions. Your vehicle is not designed to tow a
trailer, attempting to do so can void
your warranties.
A BS does not reduce the time or
distance it takes to stop the
vehicle.
A BS will not prevent a skid that
results f rom changing direction
abruptly,
A BS cannot prevent a loss of
stability. A vehicle with A BS may require a
longer distance to stop
Important Saf ety Reminders
Towing a Trailer
Anti-Lock Brakes (ABS), Towing a Trailer
148
——y
y
(%y

y

To eliminate potential hazards, read
the instructions bef ore you begin,
and make sure you have the tools
and skills required.Do
not run the engine unless
instructed to do so.
Some of the most important saf ety
precautions are given here. However,
we cannot warn you of every
conceivable hazard that can arise in
perf orming maintenance. Only you
can decide whether or not you
should perf orm a given task.
All service items not detailed in this
section should be perf ormed by a
certif ied technician or other qualif ied
mechanic.
Make sure your vehicle is parked
on level ground, the parking brake
is set, and the engine is of f .
To clean parts, use a commercially
available degreaser or parts
cleaner, not gasoline.
To reduce the possibility of f ire or
explosion, keep cigarettes, sparks,
and f lames away f rom the battery
and all f uel-related parts.
Wear eye protection and
protective clothing when working
with the battery or compressed air. Be sure there is
adequate ventilation whenever you
operate the engine.
Let the
engine and exhaust system cool
bef ore touching any parts.
Maintenance Saf ety
Important Saf ety Precautions Injury f rom moving parts.
Potential Vehicle Hazards Carbon Monoxide poison f rom
engine exhaust.
Burns f rom hot parts.
150
Failure to properly follow
maintenance instructions and
precautions can cause you to
be seriously hurt or killed.
Always follow the procedures
and precautions in this owner’smanual.
Improperly maintaining this
vehicle, or failing to correct a
problem before driving can
cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection
and maintenance
recommendations and
schedules in this owner’smanual.
——y
y
(%y
y

µµ
Avoid exceeding your vehicle’s
load limit. This puts excess stress
on the engine, brakes, and many
other vehicle parts. The load limit
is shown on the tire inf ormation
label on the driver’s doorjamb.
Operate your vehicle on
reasonable roads within the legal
speed limit.
Drive your vehicle regularly over a
distance of several miles
(kilometers).
Always use unleaded gasoline with
theproperoctanerating(seepage
). Service your vehicle according to the
time and mileage periods on one of
the Maintenance Schedules on the
f ollowing pages.
Follow the
Maintenance Schedule f or Severe
Conditions if you drive your vehicle
MAINLY under one or more of the
f ollowing conditions.
Driving in extremely hot [over
90°F (32°C)] conditions.
Driving less than 5 miles (8 km)
per trip or, in f reezing
temperatures, driving less than 10
miles (16 km) per trip. Driving on muddy, dusty, or de-
iced roads.
Follow the
Maintenance Schedule f or Severe
Conditions.
The maintenance schedule assumes
you will use your vehicle as normal
transportation for passengers and
their possessions. You should also
f ollow these recommendations:
Extensive idling or long periods of
stop-and-go driving, such as a taxi
or a commercial delivery vehicle. If you only OCCASIONALLY
drive under a ‘‘severe’’ condition, you
should f ollow the Maintenance
Schedule f or Normal Conditions. Driving with a loaded roof rack, or
driving in mountainous conditions.
122
CONT INUED
Maintenance Schedule
Which Schedule to Follow
U.S. Owners Canadian Owners
Maint enance
151
NOTE:
——y

y
(%y
y

µµµ
µ
µ
µ

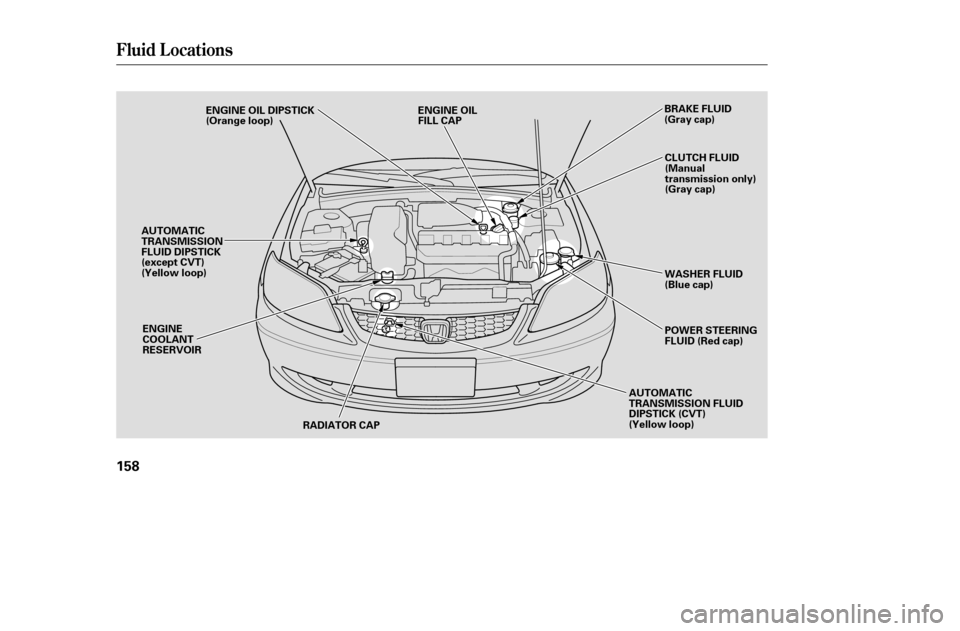

Ì Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you f ill the f uel tank. See page .
Automatic transmission Check
the f luid level monthly. See page
.
Brakes Check the f luid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page .
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page .
We recommend the use of Honda
parts and f luids whenever you have
maintenance done. U.S. Vehicles:
According to state and federal
regulations, f ailure to perf orm
maintenance on the items marked
with will not void your emissions
warranties. However, all
maintenance services should be
perf ormed at the recommended time
or mileage period to ensure long-
term reliability.
Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the appropriate
page listed.
Your authorized dealer knows your
vehicle best and can provide
competent, ef f icient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualif ied service f acility or
skilled person to keep your
warranties in ef f ect. Keep all the
receipts as proof of completion, and
have the person who does the work
f ill out the maintenance record.
Check your warranty booklet f or
more inf ormation.
165126
168
178
170
125
Maintenance Schedule
Maintenance,
replacement, or repair of
emissions control devices and
systems may be done by any
automotive repair establishment
or individual using parts that are
‘‘certif ied’’ to EPA standards.
Owner’s Maintenance Checks
Servicing Your Vehicle
152
——y
y
(%y
y

µ
Ì
Î Î Ì
Ì
ÃŽ
ÃŽ
153
Canadian Owners Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000 10162032 304840645080 70
112 80
128 90
144 120192130208 150240
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 10,000 miles (16,000 km) or every 1 year, whichever comes first Every 10,000 miles (16,000 km)
Every 20,000 miles (32,000 km) or every 1 year, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Inspect every 110,000 miles (176,000 km), otherwise adjust only if noisy
Every 120,000 miles (192,000 km) or every 6 years, whichever comes first
Every 110,000 miles (176,000 km) or every 7 years, whichever comes first
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years Every 3 years (independent of mileage)
See information on maintenance and emissions warranty, middle column, page .
Replace at 120,000 miles (192,000 km) or 6 years, then every 90,000 miles (144,000 km) or 5 years.
Replace at 60,000 miles (96,000 km) or 3 years, then every 40,000 miles (64,000 km) or 2 years.
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 181 )
Replace engine oil filter
Check front and rear brakes
Check parking brake adjustment
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Inspect and adjust drive belts
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Replace manual transmission fluid
Replace CVT fluid
Inspect idle speed
Replace timing belt, inspect auto-tensioner and water pump
Replace engine coolant
Replace brake fluid 6096
100160110176 140224
Follow the maintenance schedule for severe conditions. 152
:
1:2: 1
2
Maintenance Schedule for Normal Conditions
——y

y
(%y
y

Ì
Î ÎÎÎ ÌÌ
ÃŽ
ÃŽ
Î ÌÎ
154
Service the items listed at the indicated distance (or time, if given). miles x 1,000
km x 1,000 101620323048 40645080 70
112 80
128 130208
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 5,000 miles (8,000 km) or every 6 months, whichever comes first Every 10,000 miles (16,000 km)
Every 10,000 miles (16,000 km) or every 1 year, whichever comes first
Every 20,000 miles (32,000 km) or every 1 year, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Every 15,000 miles (24,000 km) (Use normal schedule except in dusty conditions)
Inspect every 110,000 miles (176,000 km), otherwise adjust only if noisy
Every 3 years (independent of mileage)
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years Every 110,000 miles (176,000 km) or every 7 years, whichever comes first
See information on maintenance and emissions warranty, middle column, page .
See dust and pollen filter on page for replacement information under special driving conditions.
Replace at 60,000 miles (96,000 km) or 3 years, then every 30,000 miles (48,000 km) or 2 years.
Replace at 60,000 miles (96,000 km) or 3 years, then every 40,000 miles (64,000 km) or 2 years.
See timing belt on page for replacement information under special driving conditions. Every 60,000 miles (96,000 km) or every 3 years, whichever comes first90
144 120192 150240
110176 140224
100160
6096
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 181 )
Replace engine oil filter
Check front and rear brakes
Lubricate all hinges, locks and latches
Inspect the following items: Tie-rod ends, steering gearbox, and boots
Suspension components, Driveshaft boots
Check parking brake adjustment
Inspect the following items: Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system , Fuel lines and connections
Lights and controls/vehicle underbody
Inspect and adjust drive belts
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Replace manual transmission fluid
Replace CVT fluid
Inspect idle speed
Replace timing belt , inspect auto-tensioner and water pump
Replace engine coolant
Replace brake fluid
:
1:2:3:4: 152
176
169 1
2
3
,4
Maintenance Schedule for Severe Conditions
——y

y
(%y
y

CONT INUED
(f or Normal and Severe Schedules)Maintenance Record
Maint enance
155
5,000 mi
10,000 mi
15,000 mi
20,000 mi
25,000 mi30,000 mi
35,000 mi
40,000 mi
45,000 mi
50,000 mi
You or the servicing dealer can record all completed maintenance here, whether you follow the sc
hedule for normal conditions (page ) or severe
conditions (page ). Keep the receipts for all work done on your vehicle.
8,000 km
16,000 km
24,000 km
32,000 km
40,000 km 48,000 km
56,000 km
64,000 km
72,000 km
80,000 km
Signature or dealer stamp
Signature or dealer stamp
mi/km Date
mi/km
mi/km
mi/km
mi/km
DateDateDateDate DateDateDateDateDate
mi/km
mi/km
mi/km
mi/km
mi/km 153
154
——y
y
(%y
y

(f or Normal and Severe Schedules)Maintenance Record
156
55,000 mi
60,000 mi
65,000 mi
70,000 mi
75,000 mi80,000 mi
85,000 mi
90,000 mi
95,000 mi
100,000 mi
88,000 km
96,000 km
104,000 km
112,000 km
120,000 km Signature or dealer stamp
128,000 km
136,000 km
144,000 km
152,000 km
160,000 kmSignature or dealer stamp
mi/km
mi/km
mi/km
mi/km
mi/km
DateDateDateDateDate DateDateDateDateDate
mi/km
mi/km
mi/km
mi/km
mi/km
——y
y
(%y
y

(f or Normal and Severe Schedules)Maintenance Record
Maint enance
157
105,000 mi
110,000 mi
115,000 mi
120,000 mi
125,000 mi130,000 mi
135,000 mi
140,000 mi
145,000 mi
150,000 mi
168,000 km
176,000 km
184,000 km
192,000 km
200,000 km Signature or dealer stamp
208,000 km
216,000 km
224,000 km
232,000 km
240,000 kmSignature or dealer stamp
mi/km
mi/km
mi/km
mi/km
mi/km mi/km
mi/km
mi/km
mi/km
mi/km
DateDateDateDateDate DateDateDateDateDate
——y
y
(%y
y

Fluid Locations
158
BRAKE FLUID
(Gray cap)WASHER FLUID
(Blue cap)
POWER STEERING
FLUID (Red cap)
AUTOMATIC
TRANSMISSION FLUID
DIPSTICK (CVT)
(Yellow loop)
RADIATOR CAP
ENGINE
COOLANT
RESERVOIR ENGINE OIL DIPSTICK
(Orange loop)
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(except CVT)
(Yellow loop) CLUTCH FLUID
(Manual
transmission only)
(Gray cap)
ENGINE OIL
FILL CAP
——y
y
(%y

y
