HONDA CIVIC COUPE 2005 7.G Owners Manual

On models with in-dash CD changerOn models with in-dash CD changer
Press the FM/AM button to switch
to the radio while a disc is playing.
To play the disc, press the CD button.
If you turn the system of f while a
disc is playing, either with the
Power/Volume knob or by turning
of f the ignition switch, the disc will
stay in the drive. When you turn the
system back on, the disc will begin
playing where it lef t of f .To remove the disc currently in play,
press the eject ( ) button. When
a disc is removed f rom a slot, the
system automatically begins the load
sequence so you can load another
disc in that position. If you do not
remove the disc f rom the changer
within 15 seconds, the system
returns to the previous mode (FM/
AM). The disc will reload into the
system and will remain in a pause
mode.
To remove a dif f erent disc f rom the
changer,firstselectitwiththe
appropriate preset button. When that
disc begins playing, press the eject
button. Continue pressing the eject
button to remove all the discs from
the changer.You can also eject discs when the
ignition switch is of f . The disc that
was last selected is ejected f irst.
Playing a Disc
Removing Discs f rom t he In-dash CD
Changer
106
——y
y
(%y
y

µ´µ
´
On models with in-dash CD changer
Except f or models with in-dash CDchanger
On models with in-dash CD changer Except f or models with in-dash CD
changer
The auxiliary input jack is on the
audio panel. The system will accept
auxiliary input f rom standard audio
accessories.
When the appropriate audio unit is
connected with the auxiliary input
jack, press the AUX button to select
the unit.
See pages and for
inf ormation on the error messages.
If you f ind any problem with this
audio system, take the vehicle to
your dealer.
For inf ormation on how to handle
and protect discs, see page . If you select an empty slot in the
magazine, the changer will search
f or the next available disc to load and
play.
An optional six disc CD changer is
available f or your vehicle. This disc
changer uses the same controls used
f or the in-dash CD player or the
radio.
Load the desired CDs in the
magazine, and load the magazine in
the changer according to the
instructions that came with the unit.
To select the CD changer, press the
CD button. The disc and track
numbers will be displayed. To select
a dif f erent disc, use the preset 5
(DISC ) or the preset 6 (DISC )
button. To select the previous disc,
press the preset 5 (DISC ), or the
preset 6 (DISC ) to select the next
disc in sequence.
109
110
108
Playing a Disc
Auxiliary Input Jack
Audio System Malf unction
Protecting Discs Operating the Optional CD
Changer
Features
107
——y
y
(%y

y

When using CD-R or CD-RW (only
with in-dash CD changer) discs,
use only high quality CDs labeled
f or audio use.
When recording a CD-R or
CD-RW (only with in-dash CD
changer), the recording must be
closedforittobeusedbythe
system.
CD-RW discs will not work in this
unit.
Play only standard round CDs.
Odd-shaped CDs may jam in the
driveorcauseotherproblems.Handle your CDs properly to
prevent damage and skipping.
Never try to insert f oreign objects in
the system or the magazine.
When a disc is not being played,
store it in its case to protect it f rom
dust and other contamination. To
prevent warpage, keep discs out of
direct sunlight and extreme heat.
A new disc may be rough on the
inner and outer edges. The small
plastic pieces causing this roughness
can f lake of f and f all on the
recording surf ace of the disc,
causing skipping or other problems.
Remove these pieces by rubbing the
inner and outer edges with the side
of a pencil or pen.
To clean a disc, use a clean sof t cloth.
Wipe across the disc f rom the center
to the outside edge.

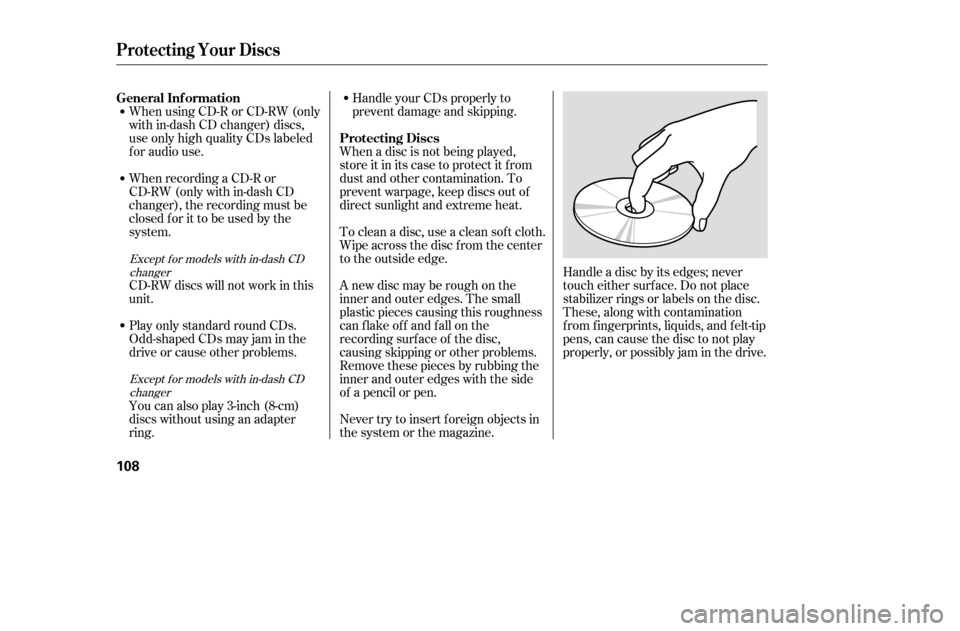

Handle a disc by its edges; never
touch either surf ace. Do not place
stabilizer rings or labels on the disc.
These, along with contamination
f rom f ingerprints, liquids, and f elt-tip
pens, can cause the disc to not play
properly, or possibly jam in the drive.
You can also play 3-inch (8-cm)
discs without using an adapter
ring.
Except f or models with in-dash CD changer
Except f or models with in-dash CDchanger
General Inf ormation
Protecting Discs
Protecting Your Discs
108
——y
y
(%y


y

Error Message Cause Solution
If you see an error message in the
display while playing a disc, f ind the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to your dealer.
Except f or models with in-dash CDchanger
FOCUS Error
Mechanical Error
High temperature Press the EJECT button and pull out the disc.
Check if it is inserted correctly in the discplayer.
Make sure the disc is not scratched or damaged.
Press the EJECT button and pull out the disc.
Check the disc for damage or deformation.
If the disc cannot be pulled out, or the error
message does not disappear after the disc is
ejected, see your dealer.
Will disappear when the temperature returns to
normal.
CD Player Error Messages
Features
109
——y
y
(%y

y

Error MessageSolution
CauseExcept f or models with in-dash CD
changer
If you see an error message in the
display while playing a disc, f ind the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to your dealer.Press the magazine eject button and pull it out.
If the message does not disappear or the
magazine cannot be pulled out, see your dealer.
Insert disc.
Press the magazine eject button and pull it out,
check f or an error message, and insert the
magazine again. If the message does not
disappear or the magazine cannot be pulled out,
see your dealer.
Will disappear when the temperature returns to
normal.
Insert disc magazine.
FOCUS Error
No disc in the disc magazine
Mechanical Error
High temperature
No disc magazine in the
disc changer
CD Changer Error Messages
110
——y

y
(%y

y

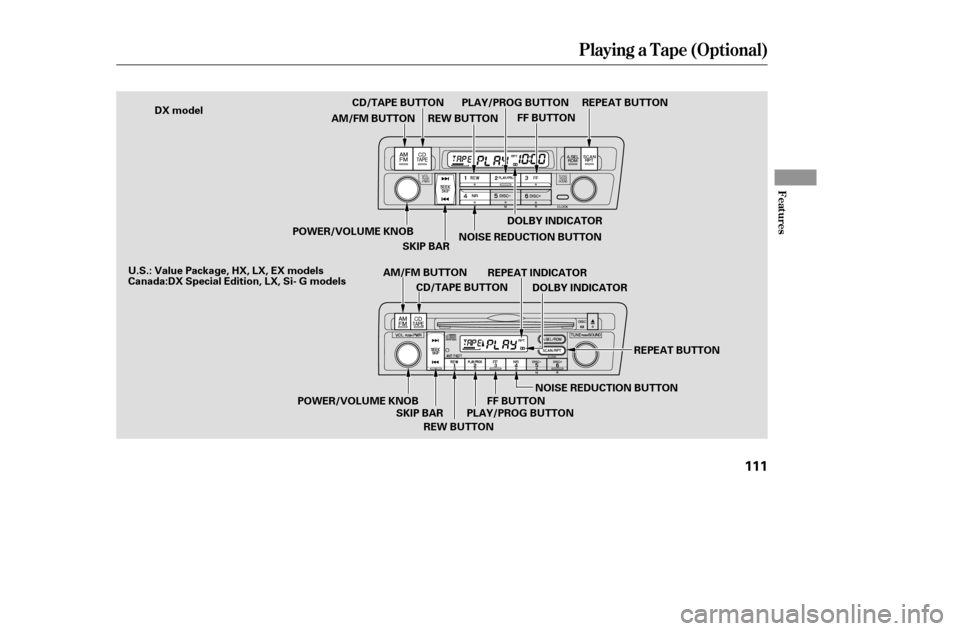

Playing a T ape (Opt ional)
Features
111
FF BUTTON
REW BUTTON
CD/TAPE BUTTON
AM/FM BUTTON
SKIP BARCD/TAPE BUTTON
SKIP BAR REW BUTTON FF BUTTON
PLAY/PROG BUTTON REPEAT INDICATOR
DOLBY INDICATOR
AM/FM BUTTON PLAY/PROG BUTTON
DX model REPEAT BUTTON
POWER/VOLUME KNOB NOISE REDUCTION BUTTONDOLBY INDICATOR
REPEAT BUTTON
NOISE REDUCTION BUTTON
POWER/VOLUME KNOB
U.S.: Value Package, HX, LX, EX models
Canada:DX Special Edition, LX, Si- G models
——y
y
(%y

y

µ
µ
Û
Î
Î
To switch to the radio or CD player
while a tape is playing, press the
AM/FM or CD/TAPE button. To
change back to the tape player, press
the CD/TAPE button.
To rewind the tape,
push the REW button. You will see
REW in the display. To f ast f orward
the tape, push the FF button. You
will see FF displayed. Press the FF,
REW, or PLAY/PROG button to
take the system out of rewind or fast
forward.
Press button to find
the beginning of the current song or
passage. Press button to f ind
the beginning of the next song or
passage. When the system reaches
the beginning of a song or passage, it
begins to play it.
The ignition switch must be in
ACCESSORY (I) or ON (II). Make
sure the open side of the tape is
facing right, then insert the tape
most of the way into the slot. The
system will pull the tape in the rest
of the way, and begin to play it.
The tape direction indicator will
come on to show you which side of
the tape is playing. The indicates
the side you inserted upward is now
playing. If you want to play the other
side, press the PLAY/PROG button.
When the player reaches the end of
the tape, it will automatically reverse
direction and play the other side. Dolby noise reduction turns on
when you insert a tape. The
indicator will come on in the
display. If the tape was not recorded
in Dolby, turn it of f by pressing the
NR button. Dolby remains of f until
you press the NR button again.
To remove the tape, press the eject
button on the tape player. If you
want to turn the player off, press the
Power/Volume knob or turn of f the
ignition. The tape will remain in the
drive. When you turn the system
back on, the tape will begin playing
where it lef t of f .
Tape player is optional except f or
models with in-dash CD changer.
Dolby noise reduction is manuf actured under
license from Dolby Laboratories Licensing
Corporation. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
To Play a Tape
To Stop Playing a TapeT ape Search Functions
FF/REW
SK IP
Playing a T ape (Opt ional)
112
——y
y
(%y

y

µPress the RPT button
to continuously play a song or
passage. You will see RPT displayed.
The track will repeat until you press
the RPT button again.
The SKIP and REPEAT
f unctions use silent periods on the
tape to find the end of a song or
passage. These f eatures may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection. Thetapeplayerpicksupdirtand
oxides f rom the tape. This
contamination builds up over time
and causes the sound quality to
degrade. To prevent this, you should
clean the player af ter every 30 hours
of use.
If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your dealer has a
cleaning kit available.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam the drive.
If the tape is loose, tighten it by
turning the hub with a pencil or your
f inger. If the label is peeling of f ,
remove it or it could cause the
cassette to jam in the player. Never
try to insert a warped or damagedcassette in the player.
Store tapes in their cases to protect
them f rom dust and moisture. Never
place tapes where they will be
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature bef ore
inserting it into the player.
Never try to insert f oreign object
into the tape player.
REPEAT Caring f or the Tape and Player
Playing a T ape (Opt ional)
Features
113
NOTE:
——y
y
(%y

y

Your vehicle’s audio system will
disable itself if it is disconnected
f rom electrical power f or any reason.
To make it work again, the user
must enter a specif ic f ive-digit code
in the Preset buttons. Because there
are hundreds of number
combinations possible f rom the f ive-
digits, making the system work
without knowing the exact code is
nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system’s code and
serial numbers. It is best to store this
card in a saf e place at home. In
addition, you should write the audio
system’s serial number in this
Owner’s Manual.
If you lose the card, you must obtain
the code number f rom a dealer. Todo this, you will need the system’s
serial number.
If your vehicle’s battery is
disconnected or goes dead, or the
radio f use is removed, the audio
system will disable itself . If this
happens, you will see ‘‘ ’’
(except for models with
in-dash CD changer)/‘‘CODE’’
(on models with in-dash CD
changer) in the f requency display
the next time you turn on the system.
Use the preset buttons to enter the
f ive-digit code. The code is on the
radio code card included in your
Owner’s Manual kit. When it is
entered correctly, the radio will start
playing.
If you make a mistake entering the
code, do not start over; complete the
f ive-digit sequence, then enter the
correct code. You have ten tries to
enter the correct code. If you are
unsuccessful in ten attempts, youmust then leave the system on for 1
hour bef ore trying again.
You will have to store your favorite
stations in the preset buttons after
the system begins working. Your
original settings were lost when the
power was disconnected.
Standard f or Value Package, HX, LX, EX
and Special Edition models in the U.S.,and DX Special Edition, REVERB, LXandSimodelsinCanada
Radio T hef t Prot ect ion
114
——y
y
(%y

y

CONT INUED

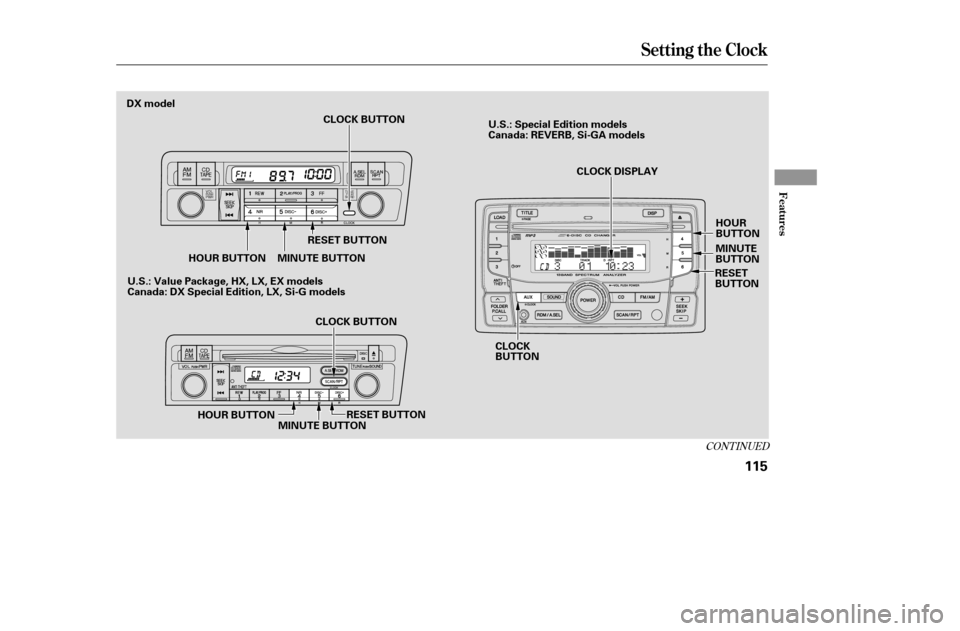

Setting the Clock
Features
115
DX modelCLOCK BUTTON
RESET BUTTON
MINUTE BUTTON
HOUR BUTTON
CLOCK BUTTON
HOUR BUTTON MINUTE BUTTONRESET BUTTON CLOCK
BUTTONCLOCK DISPLAY
HOUR
BUTTON
MINUTE
BUTTON
RESET
BUTTON
U.S.: Special Edition models
Canada: REVERB, Si-GA models
U.S.: Value Package, HX, LX, EX models
Canada: DX Special Edition, LX, Si-G models
——y

y
(%y

y
