This shows how much f uel you have.
It may show slightly more or less
than the actual amount.This shows the temperature of the
engine’s coolant. During normal
operation, the reading should rise to
about the middle of the gauge. In
severe driving conditions, such as
very hot weather or a long period of
uphill driving, the reading may rise
intotheupperhalfofthegauge.Ifit
reaches the red (Hot) mark, pull
safely to the side of the road. See
page f or instructions and
precautions on checking the engine
cooling system.Your vehicle’s onboard diagnostic
system will detect a loose or missing
f uel f ill cap as an evaporative system
leak. The f irst time a leak is detected
a ‘‘CHECK FUEL CAP’’ message
appears on the information display.
Turn the engine of f , and conf irm the
f uel f ill cap is installed. If it is, loosen
it, then retighten it until it clicks at
least once. The message should go
off after several days of normal
driving once you tighten or replace
the f uel f ill cap. To scroll to another
display, press the SEL/RESET
button. The ‘‘CHECK FUEL CAP’’
message will appear each time you
restart the engine until the system
turns the message of f .
359
Fuel Gauge T emperature Gauge Check Fuel Cap Message
Gauges
68
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
\f—\f—\fy
\f
y
(+\fy\f\fy
2009 Civic Coupe

The inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more inf ormation.
If the system still detects a leak in
your vehicle’s evaporative emissions
system, the malf unction indicator
lamp (MIL) comes on. If the f uel f ill
cap was not already tightened, turn
the engine of f , and check or
retighten the f uel f ill cap until it
clicks at least once. The MIL should
go off after several days of normal
driving once the cap is tightened or
replaced. If the MIL does not go of f ,
have your vehicle inspected by a
dealer. For more inf ormation, see
page .
362 303
Maintenance Minder
Gauges
Inst rument s and Cont rols
69
\f—\f—\fy
\fy
(+\fy\f\fy
2009 Civic Coupe

ÎÎ
Î
Î
Î Î
Î
Î Î
Î
Î
Î
Î
Î To use the horn, press the center pad of the steering wheel.
If equipped.
Only on vehicles equipped with navigation system. Ref er to the navigation system manual.
1:
2:
3:

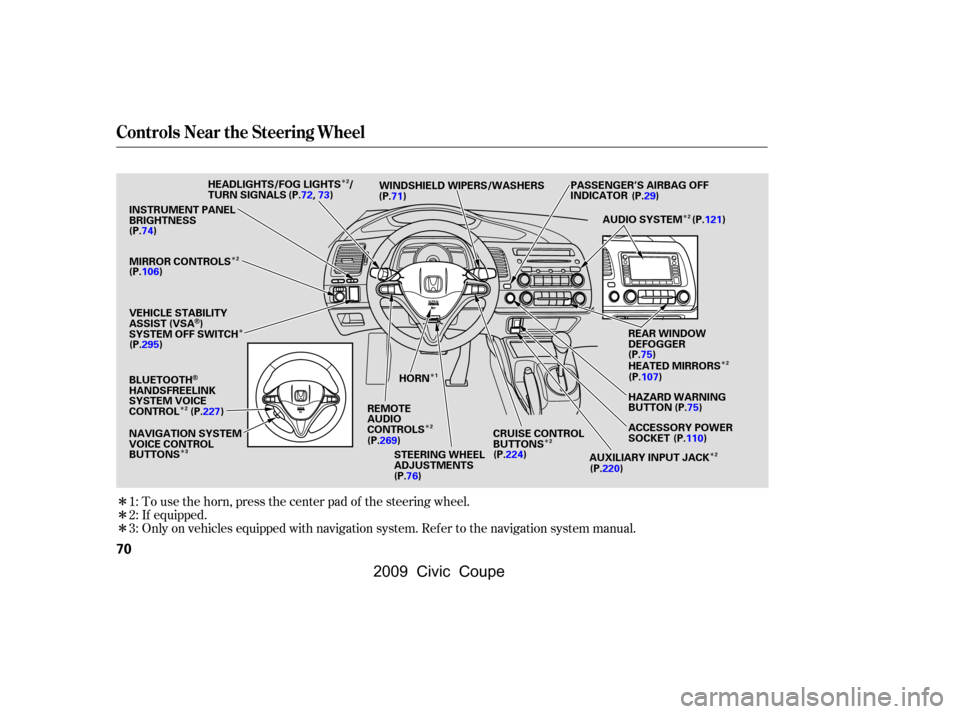

Controls Near the Steering Wheel
70
WINDSHIELD WIPERS/WASHERS
INSTRUMENT PANEL
BRIGHTNESS
HORNHEATED MIRRORS
REMOTE
AUDIO
CONTROLS PASSENGER’S AIRBAG OFF
INDICATOR
MIRROR CONTROLS
NAVIGATION SYSTEM
VOICE CONTROL
BUTTONS REAR WINDOW
DEFOGGER
ACCESSORY POWER
SOCKET
HAZARD WARNING
BUTTON
AUXILIARY INPUT JACK
STEERING WHEEL
ADJUSTMENTS CRUISE CONTROL
BUTTONS
(P.71)
(P.29)
VEHICLE STABILITY
ASSIST (VSA
)
SYSTEM OFF SWITCH AUDIO SYSTEM
HEADLIGHTS/FOG LIGHTS /
TURN SIGNALS
BLUETOOTH
HANDSFREELINK
SYSTEM VOICE
CONTROL (P.269)
(P.76) (P.224)
(P.220)(P.110)(P.75)
(P.107)
(P.75) (P.121)
(P.227)
(P.74)
(P.106)
(P.295) (P.72,73)
1
2
2
2
3 2
2 2
2
2
\f—\f—\fy
\f\fy
(+\fy\f\fy
2009 Civic Coupe

µ
µ
µ µ
µ µ
µ
µ
µ
Î
Î
Push the right lever up or down to
select a position. MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield washers The wipers run at high
speed until you release the lever.
The wipers are not activated. Pull the
wiper control lever toward you, and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
The wipers operate every
f ew seconds.
The length of the wiper interval is
varied automatically according to the
vehicle’s speed.
Vary the delay by turning the
adjustment ring. If you turn it to the
shortest delay ( position), the
wipers change to low speed
operation when the vehicle speed
exceeds 12 mph (20 km/h).
The wipers run at low speed.
The wipers run at high speed.
1.
2.
3.
4.
5.
6.
On EX, EX-L and Si models in the U.S.,
andLX,EX-LandSimodelsinCanada
MIST
OFF Windshield Washers
INT
LO
HI
Windshield Wipers and Washers
Inst rument s and Cont rols
71
ADJUSTMENT RING
: EX, EX-L, Si, Canadian LX
\f—\f—\fy
\f
y
(+\fy\f\fy
2009 Civic Coupe

µµ µ
Î
Î
Î
Push down on the
lever to signal a lef t turn and up to
signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn.
Turning the
switch to the ‘‘ ’’ position turns
on the parking lights, taillights,
instrument panel lights, side-marker
lights, and rear license plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights.
When the light switch is in the
‘‘ ’’ or ‘‘ ’’ position, the
lights on indicator comes on as a
reminder.
This indicator stays on if you leave
the lights on and turn the ignition
switch to the ACCESSORY (I) or
LOCK (0) position. If you leave the lights on with the
key removed f rom the ignition
switch, you will hear a reminder
chime when you open the driver’s
door.
Push the lever
f orward until you hear a click. The
high beam indicator will come on
(see page ). Pull the lever back to
return to the low beams.
To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
Turn signal
Of f
Parking and instrument panel
lights
Headlights on
High beams
Flashhighbeams
Fog lights of f
Fog lights on
If equipped
1.
2.
3.
4.
5.
6.
7.
8.
: 63
Turn Signal
Headlights On
High Beams
Turn Signals and Headlights
72
Si model is shown.
\f—\f—\fy
\fy
(+\fy\f\fy
2009 Civic Coupe

Turn the f og lights on and of f by
turning the switch next to the
headlight switch.
With the headlight switch of f or in
the position, the high beam
headlights and the high beam
indicator come on with reduced
brightness when you turn the
ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch of f , even if you
set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
You can use the f og lights only when
the headlights are on low beam.
They will go of f when you turn the
headlights of f or onto high beam.
Si model
Headlights, Fog Lights
Fog Lights
Daytime Running L ights
Inst rument s and Cont rols
73
\f—\f—\fy
\fy
(+\fy\f\fy
2009 Civic Coupe

´µ

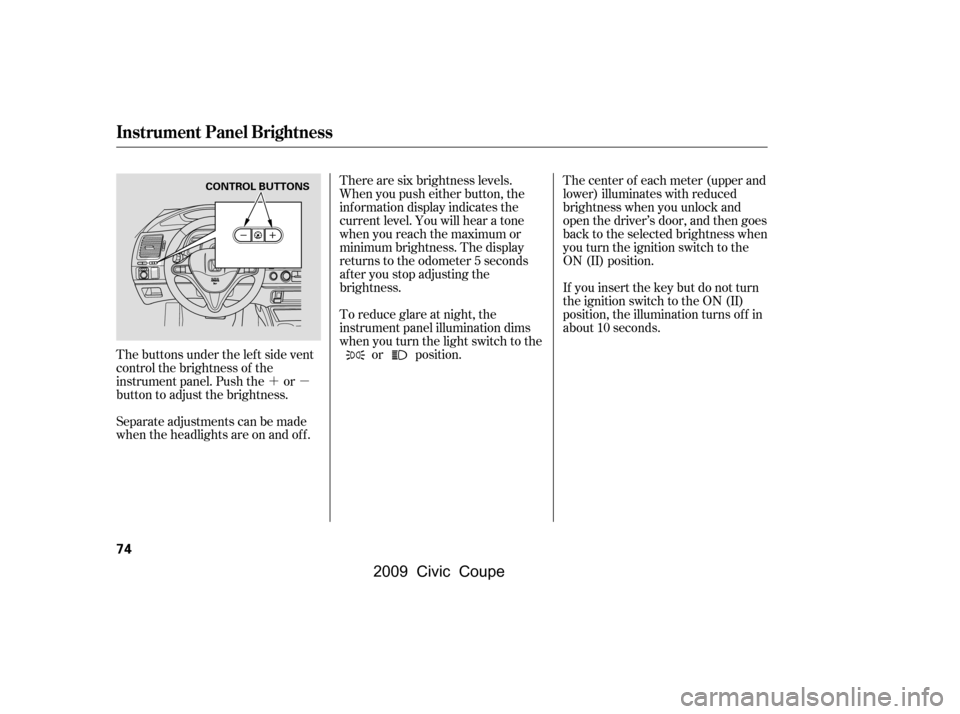

The buttons under the lef t side vent
control the brightness of the
instrument panel. Push the or
button to adjust the brightness.
Separate adjustments can be made
when the headlights are on and of f . There are six brightness levels.
When you push either button, the
inf ormation display indicates the
current level. You will hear a tone
when you reach the maximum or
minimum brightness. The display
returns to the odometer 5 seconds
af ter you stop adjusting the
brightness.
To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to the
or position. The center of each meter (upper and
lower) illuminates with reduced
brightness when you unlock and
open the driver’s door, and then goes
back to the selected brightness when
you turn the ignition switch to the
ON (II) position.
If you insert the key but do not turn
the ignition switch to the ON (II)
position, the illumination turns of f in
about 10 seconds.
Instrument Panel Brightness
74
CONTROL BUTTONS
\f—\f—\fy
\fy
(+\fy\f\fy
2009 Civic Coupe

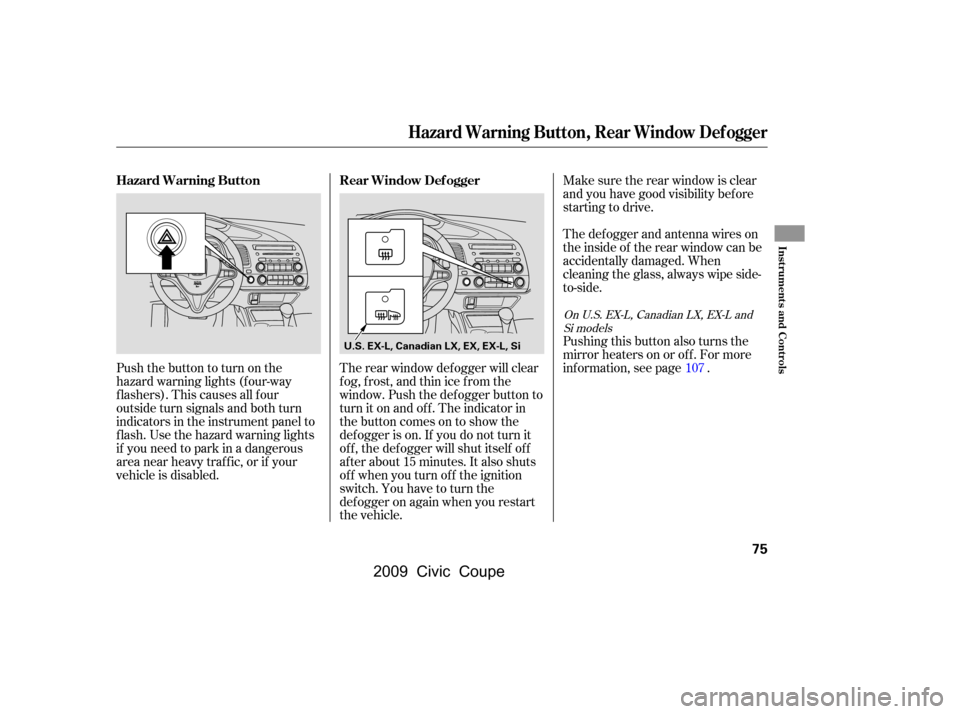

Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and off. The indicator in
the button comes on to show the
def ogger is on. If you do not turn it
of f , the def ogger will shut itself of f
af ter about 15 minutes. It also shuts
of f when you turn of f the ignition
switch. You have to turn the
def ogger on again when you restart
the vehicle. The def ogger and antenna wires on
the inside of the rear window can be
accidentally damaged. When
cleaning the glass, always wipe side-
to-side.
Pushthebuttontoturnonthe
hazard warning lights (f our-way
flashers). This causes all four
outside turn signals and both turn
indicators in the instrument panel to
f lash. Use the hazard warning lights
if you need to park in a dangerous
area near heavy traffic, or if your
vehicle is disabled. Pushing this button also turns the
mirror heaters on or of f . For more
inf ormation, see page .
107
On U.S. EX-L, Canadian LX, EX-L and
Si models
Rear Window Def ogger
Hazard Warning Button
Hazard Warning Button, Rear Window Def ogger
Inst rument s and Cont rols
75
U.S. EX-L, Canadian LX, EX, EX-L, Si
\f—\f—\fy
\fy
(+\fy\f\f\fy
2009 Civic Coupe

Push the lever under the steering
column all the way down.Push the lever up to lock the
steering wheel in position.
Make sure you have securely
locked the steering wheel in place
by trying to move it up, down, in,
and out.
Make any steering wheel
adjustments before you start driving.
Move the steering wheel up or
down, and in or out, so it points
toward your chest, not toward
your f ace. Make sure you can see
the instrument panel gauges and
indicators.
1. 4.
3.
2.
Steering Wheel A djustments
76
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.
\f—\f—\fy
\f\fy
(+\fy\f\f
y
2009 Civic Coupe

Î
Î

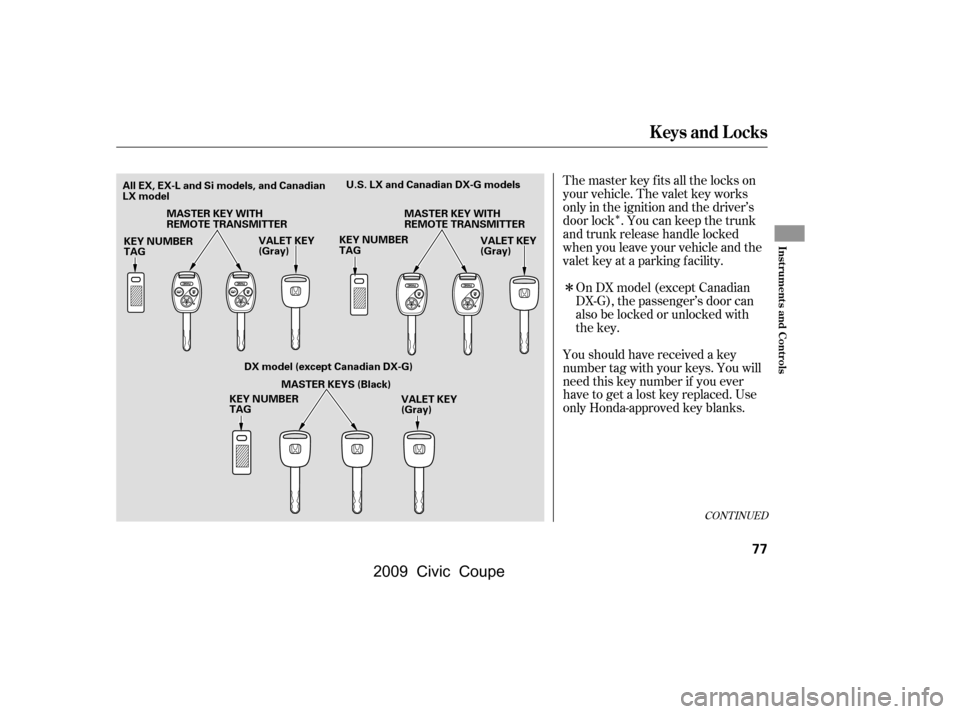

The master key fits all the locks on
your vehicle. The valet key works
only in the ignition and the driver’s
door lock . You can keep the trunk
and trunk release handle locked
when you leave your vehicle and the
valet key at a parking f acility.On DX model (except Canadian
DX-G), the passenger’s door can
also be locked or unlocked with
the key.
Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a lost key replaced. Use
only Honda-approved key blanks.
CONT INUED
Keys and Locks
Inst rument s and Cont rols
77
MASTER KEY WITH
REMOTE TRANSMITTER MASTER KEY WITH
REMOTE TRANSMITTER
KEY NUMBER
TAG
KEY NUMBER
TAG VALET KEY
(Gray)
VALET KEY
(Gray)
KEY NUMBER
TAG VALET KEY
(Gray)
MASTER KEYS (Black)
DX model (except Canadian DX-G)
All EX, EX-L and Si models, and Canadian
LX model
U.S. LX and Canadian DX-G models
\f—\f—\fy
\fy
(+\fy\f\fy
2009 Civic Coupe
