A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster seat.If the passenger’s front airbag
inf lates in a moderate to severe
f rontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
A side airbag also poses risks. If any
part of a larger child’s body is in the
path of a deploying side airbag, the
child could receive possibly serious
injuries.Of course, children vary widely. And
while age may be one indicator of
when a child can saf ely ride in f ront,
there are other important f actors you
should consider.
To saf ely ride in f ront, a child must
be able to f ollow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.
Physically, a child must be large
enough f or the lap/shoulder belt to
properly f it (see pages and ). If
the seat belt does not f it properly,
with or without the child sitting on a
booster seat, the child should not sit
in f ront.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
age 12 and under be properly
restrained in the back seat.
1446
When Can a L arger Child Sit in
Front
Physical Size
Maturity
Protecting L arger Children
48
\f—\f—\fy
\fy
(+\fy\f\fy
2009 Civic Coupe

If you decide that a child can saf ely
ride up f ront, be sure to:Caref ully read the owner’s manual,
and make sure you understand all
seat belt instructions and all saf ety
inf ormation.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the f loor.
Check that the child’s seat belt is
properly and securely positioned.
Supervise the child. Even mature
children sometimes need to be
reminded to f asten the seat belts
or sit properly. This could result
in serious neck injuries during a
crash.
This could
cause very serious injuries during
a crash. It also increases the
chance that the child will slide
under the belt in a crash and be
injured.
If they do, they
could be very seriously injured in a
crash. Devices intended to
improve a child’s comf ort or
reposition the shoulder part of a
seat belt can make the belt less
ef f ective and increase the chance
of serious injury in a crash.
Additional Saf ety Precautions
Do not let a child wear a seat belt
across t he neck.
Do not let a child put the shoulderpart of a seat belt behind t he backor under t he arm.
T wo children should never use thesame seat belt . Do not put any accessories on a
seat belt.
Protecting L arger Children
Driver and Passenger Saf ety
49
\f—\f—\fy
\fy
(+\fy\f\fy
2009 Civic Coupe

Your vehicle’s exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
f ollow the inf ormation on this page.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.With the trunk open, airf low can pull
exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
trunk open, open all the windows and
set the heating and cooling system
as shown below.
If you must sit in your parked vehicle
with the engine running, even in an
unconf ined area, adjust the heating
and cooling system as f ollows:
Select the f resh air mode.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
Have the exhaust system inspected
f or leaks whenever:
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the
underside. 1.
2.
3.
4.
Carbon Monoxide Hazard
50
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
\f—\f—\fy
\f\f\fy
(+\fy\f\fy
2009 Civic Coupe

CONT INUED

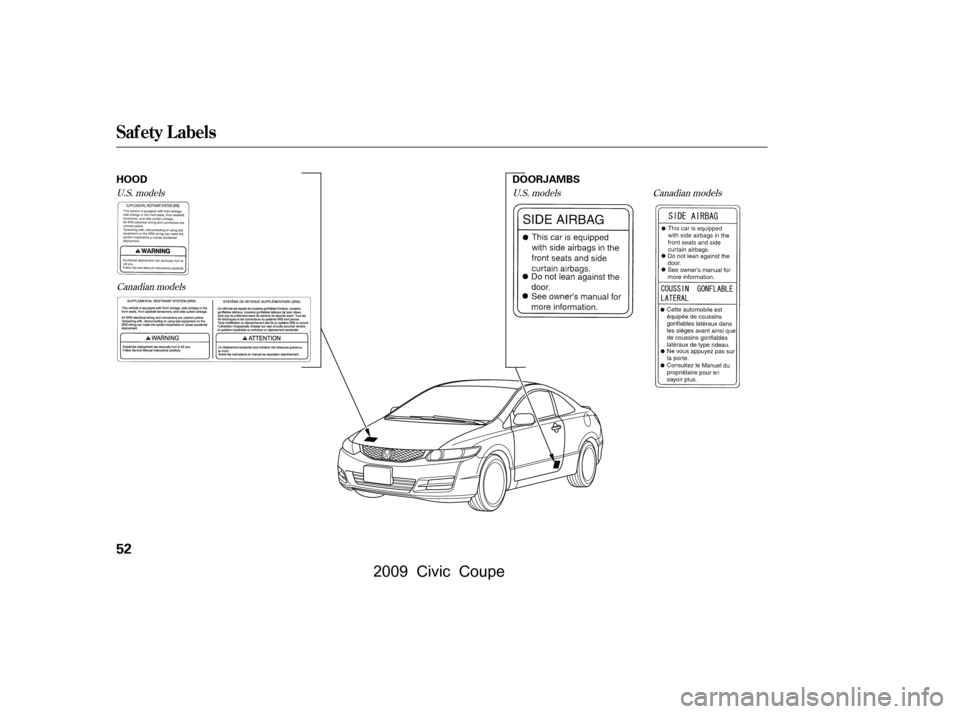

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury or death. Read these labels
caref ully.
If a label comes of f or becomes hard
to read (except for the U.S.
dashboard label which may be
removed by the owner), contact your
dealer f or a replacement.U.S. models
U.S. models only
Canadian models
Saf ety L abels
Driver and Passenger Saf ety
51
RADIATOR CAP SUN VISOR
DASHBOARD
\f—\f—\fy
\f\f
y
(+\fy\f\fy
2009 Civic Coupe

Canadian models
U.S. models
Canadian models U.S. models
Saf ety L abels
52
HOOD
DOORJAMBS
\f—\f—\fy
\f\fy
(+\fy\f\fy
2009 Civic Coupe

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .54
............................
Instrument Panel .55
..........
Instrument Panel Indicators .57
.............................................
Gauges .65
..............
Display Change Button .66
.....................................
Odometer .66
...................................
Trip Meter .66
Outside Temperature
...................................
Indicator .67
..................................
Fuel Gauge .68
...................
Temperature Gauge .68
..........
Check Fuel Cap Message .68
..................
Maintenance Minder .69
Controls Near the Steering ...........................................
Wheel .70
.
Windshield Wipers and Washers .71
.........
Turn Signals and Headlights .72
........................................
Fog Lights .73
........
Instrument Panel Brightness .74
.................
Hazard Warning Button .75
.................
Rear Window Def ogger .75
........
Steering Wheel Adjustments .76
...............................
Keys and Locks .77
........................
Immobilizer System .78
................................
Ignition Switch .79 ......................................
Door Locks .80
......................
Power Door Locks .81
.
Auto Door Locking/Unlocking .82
.......................
Remote Transmitter .87
................................................
Trunk .91
........
Emergency Trunk Opener .92
.................................................
Seats .93
..................................
Seat Heaters .101
............................
Power Windows .102
.......................................
Moonroof .104
...........................................
Mirrors .106
...............................
Parking Brake .107
.........
Interior Convenience Items .108
.....................
Beverage Holders .109
.............
Console Compartment .109
..................................
Glove Box .109
..................................
Coat Hook .110
........
Accessory Power Sockets .110
............................
Vanity Mirror .111
...................................
Sun Visor .112
...............................
Interior Lights .113
..............................
Ceiling Light .113
...................................
Spotlights .113
..........................
Courtesy Light .114
Instruments and Controls
Inst rument s and Cont rols
53
\f—\f—\fy
\f\fy
(+\fy\f\fy
2009 Civic Coupe

Î
Î
Î
Î
Î ÎÎ
Î Î
Î
Î
If equipped
:

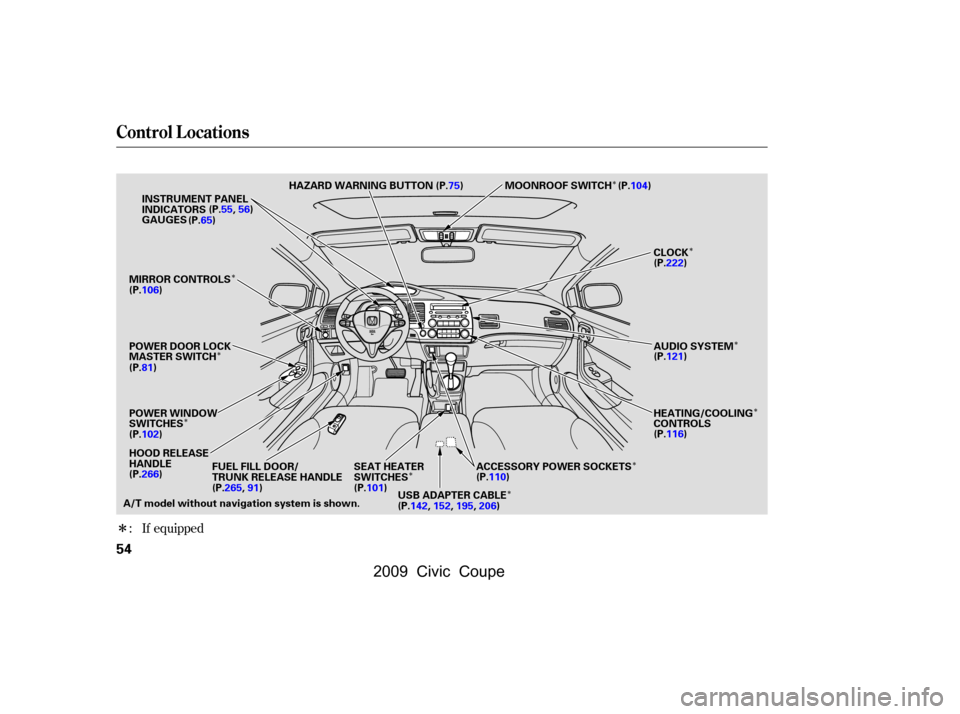

Control L ocations
54
INSTRUMENT PANEL
INDICATORS
GAUGES (P.55,56)
(P.65) MOONROOF SWITCH
MIRROR CONTROLS
POWER DOOR LOCK
MASTER SWITCH
POWER WINDOW
SWITCHES
A/T model without navigation system is shown. HAZARD WARNING BUTTON
HOOD RELEASE
HANDLE FUEL FILL DOOR/
TRUNK RELEASE HANDLE SEAT HEATER
SWITCHESACCESSORY POWER SOCKETS
(P.75) (P.104)
(P.106)
(P.81)
(P.102)
(P.266) (P.265,91) (P.101)(P.110)
(P.142,152,195,206) USB ADAPTER CABLE HEATING/COOLING
CONTROLS AUDIO SYSTEM
(P.121) CLOCK
(P.222)
(P.116)
——y
y
(+yy
2009 Civic Coupe

Î
Î Î
Î Î
Î
CONT INUED
Canadian DX-G model with M/T has the electric power steering (EPS) indicator (see page60) next to the immobilizer system indicator.

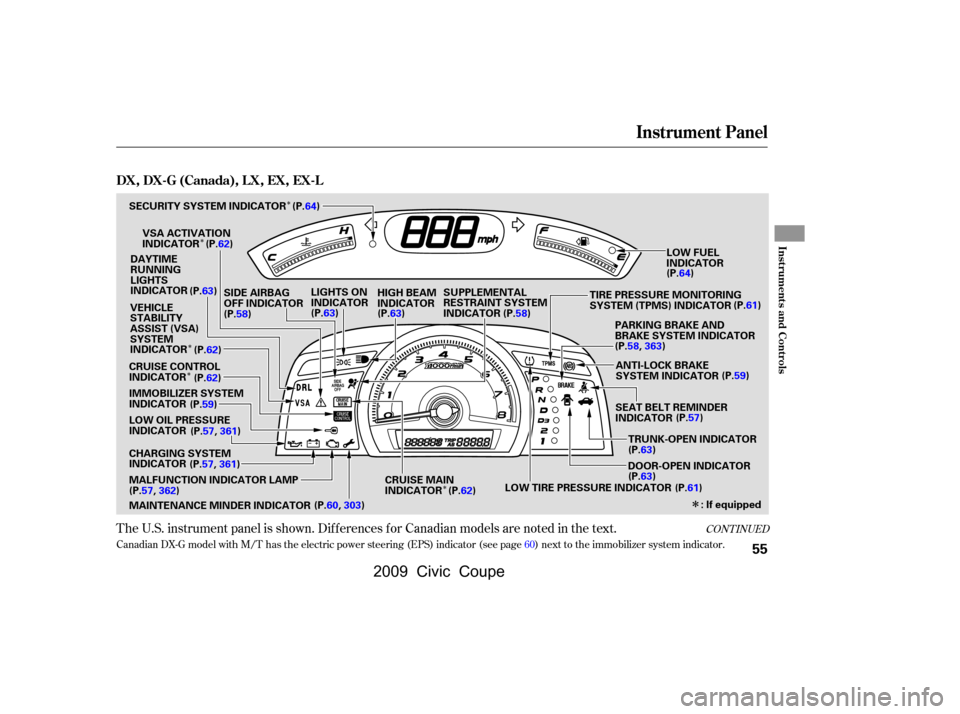

The U.S. instrument panel is shown. Dif f erences f or Canadian models are noted in the text.
Instrument Panel
Inst rument s and Cont rols
DX,DX-G(Canada),LX,EX,EX-L
55
LOW FUEL
INDICATOR
SUPPLEMENTAL
RESTRAINT SYSTEM
INDICATOR
SEAT BELT REMINDER
INDICATORANTI-LOCK BRAKE
SYSTEM INDICATOR
SECURITY SYSTEM INDICATOR
(P.63)(P.57)
(P.64)
(P.58) PARKING BRAKE AND
BRAKE SYSTEM INDICATOR
(P.59)
TRUNK-OPEN INDICATOR
(P.63)
DOOR-OPEN INDICATOR
(P.61)
LOW TIRE PRESSURE INDICATOR
(P.64)
TIRE PRESSURE MONITORING
SYSTEM (TPMS) INDICATOR(P.61)
HIGH BEAM
INDICATOR
(P.63)
LIGHTS ON
INDICATOR
(P.63)
: If equipped
SIDE AIRBAG
OFF INDICATOR
(P.58)
(P.59)
(P.63)
(P.62)
(P.62)
DAYTIME
RUNNING
LIGHTS
INDICATOR
VEHICLE
STABILITY
ASSIST (VSA)
SYSTEM
INDICATOR
CRUISE MAIN
INDICATOR
IMMOBILIZER SYSTEM
INDICATOR CRUISE CONTROL
INDICATOR
CHARGING SYSTEM
INDICATOR LOW OIL PRESSURE
INDICATOR VSA ACTIVATION
INDICATOR
MALFUNCTION INDICATOR LAMP
MAINTENANCE MINDER INDICATOR (P.62)
(P.62)
(P.57,361)
(P.57,361)
(P.57,362) (P.60,303) (P.58,363)
——y
y
(+yy
2009 Civic Coupe

Î
ÎÎ

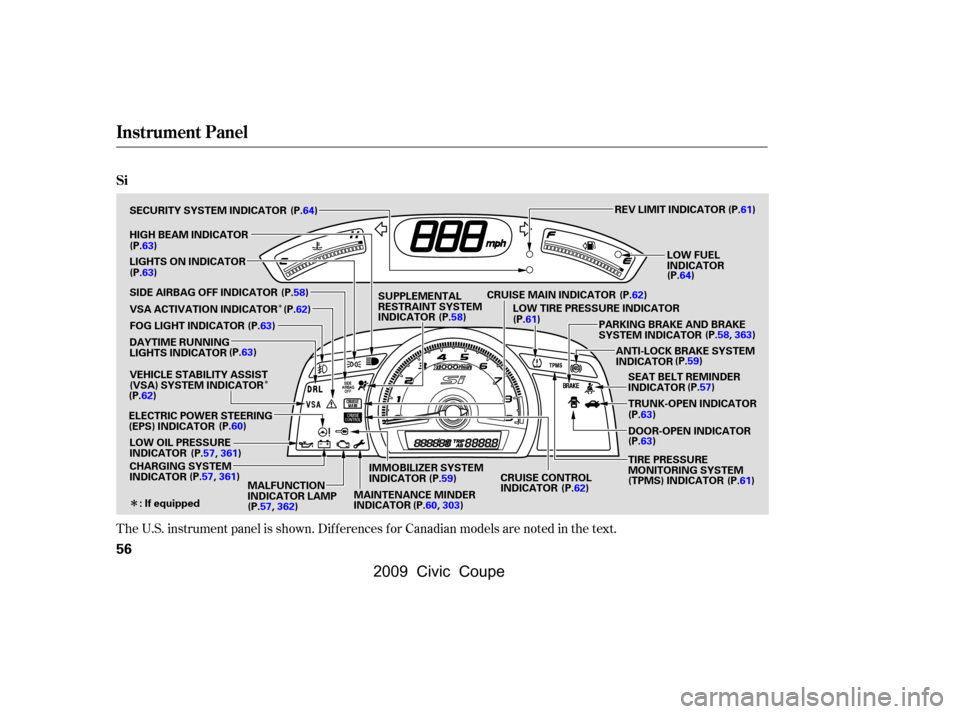

The U.S. instrument panel is shown. Dif f erences f or Canadian models are noted in the text.
Instrument Panel
Si
56
REV LIMIT INDICATOR
DOOR-OPEN INDICATOR
ANTI-LOCK BRAKE SYSTEM
INDICATOR
SEAT BELT REMINDER
INDICATOR
TRUNK-OPEN INDICATOR
CHARGING SYSTEM
INDICATOR
ELECTRIC POWER STEERING
(EPS) INDICATOR DAYTIME RUNNING
LIGHTS INDICATOR
SECURITY SYSTEM INDICATOR
LIGHTS ON INDICATOR
SUPPLEMENTAL
RESTRAINT SYSTEM
INDICATOR
HIGH BEAM INDICATOR
: If equipped PARKING BRAKE AND BRAKE
SYSTEM INDICATOR
LOW FUEL
INDICATOR
(P.63)
(P.63)
(P.63)
VEHICLE STABILITY ASSIST
(VSA) SYSTEM INDICATOR
(P.62)
(P.60)(P.64)
(P.61)
(P.64)
CRUISE MAIN INDICATOR LOW TIRE PRESSURE INDICATOR
MALFUNCTION
INDICATOR LAMP IMMOBILIZER SYSTEM
INDICATOR (P.62)
(P.61)
(P.59)(P.57)
(P.63)
(P.63)
(P.58)
(P.61)
(P.62)
MAINTENANCE MINDER
INDICATOR (P.59)
CRUISE CONTROL
INDICATOR TIRE PRESSURE
MONITORING SYSTEM
(TPMS) INDICATOR
SIDE AIRBAG OFF INDICATOR (P.58)
(P.62)
FOG LIGHT INDICATOR
VSA ACTIVATION INDICATOR
(P.63)
LOW OIL PRESSURE
INDICATOR (P.57,361)
(P.57,361)
(P.57,362) (P.60,303) (P.58,363)
\f—\f—\fy
\f
\fy
(+\fy\f\f
y
2009 Civic Coupe

The instrument panel has many
indicators to give you important
inf ormation about your vehicle. If this indicator comes on when theengine is running, the battery is not
being charged. For more inf ormation,
see page .
The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more information, see page .
See page .
If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals. For more
inf ormation, see page .
This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to f asten your seat belts.
A beeper also sounds if you have not
f astened your seat belt.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belt, the beeper sounds
and the indicator f lashes. If you do
notfastenyourseatbeltbeforethe
beeper stops, the indicator stops
f lashing but remains on. 18
361
361
362
Charging System
Indicator
L ow Oil Pressure
Indicator
Seat Belt Reminder
Indicator
Malf unction Indicator
Lamp
Instrument Panel Indicators
Inst rument s and Cont rols
57
\f—\f—\fy
\f

y
(+\fy\f\fy
2009 Civic Coupe
