If equippedTo switch the information display
between the odometer, trip meter,
and outside temperature (if
equipped), and engine oil lif e and
maintenance service items, press the
SEL/RESET button repeatedly.
:

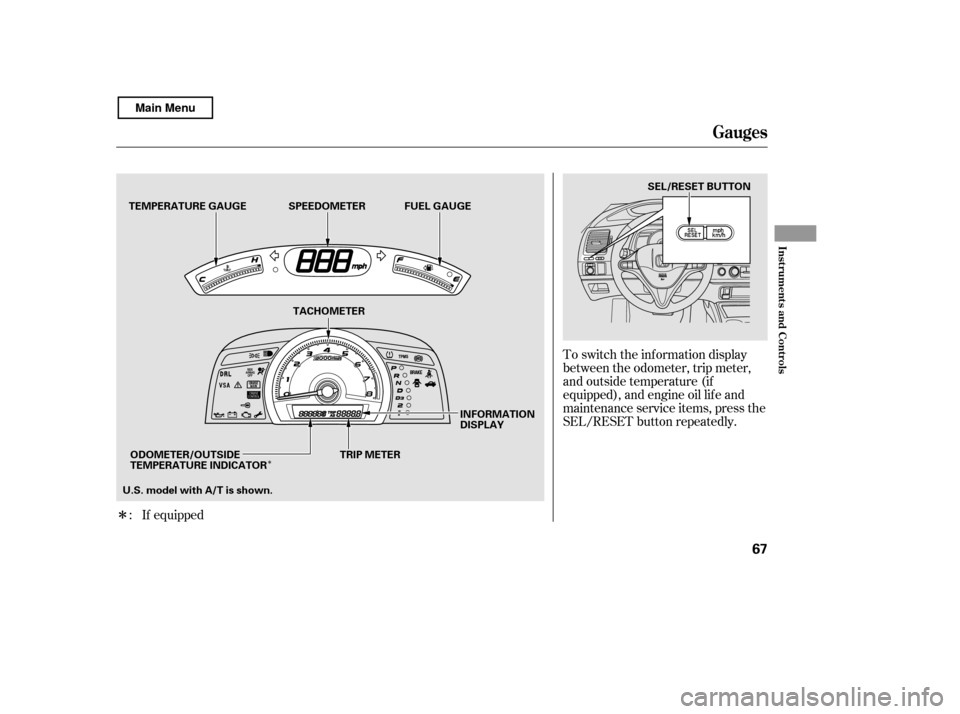

Gauges
Inst rument s and Cont rols
67
INFORMATION
DISPLAY
TACHOMETER
TEMPERATURE GAUGE
SEL/RESET BUTTON
TRIP METER
ODOMETER/OUTSIDE
TEMPERATURE INDICATOR
U.S. model with A/T is shown. SPEEDOMETER
FUEL GAUGE
Main Menu

Press and hold the display change
button until you hear a beep. The
speedometer, trip meter, and
odometer readings switch between
miles per hour (mph) and kilometers
per hour (km/h).This meter shows the number of
miles or kilometers driven since you
last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the SEL/
RESET button repeatedly. Each trip
meter works independently, so you
can keep track of two dif f erent
distances.
When you turn the ignition switch to
the ON (II) position, your last
selection is displayed.
To reset a trip meter, display it, and
then press and hold the SEL/RESET
button until the number resets to‘‘0.0.’’
This shows the total distance your
vehicle has been driven. It measures
miles or kilometers.
It is illegal under U.S. f ederal law and
Canadian provincial and territorial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
The odometer and the outside
temperature indicator (if equipped)
use the same display. To switch the
display between them, press the
SEL/RESET button repeatedly.
When you turn the ignition switch to
the ON (II) position, your last
selection is displayed.
Display Change Button Odometer Trip Meter
Gauges
68
DISPLAY CHANGE BUTTON
Main Menu

¶¶µ
µµµµ
µµµ
This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Celsius (Canadian
models). To see the outside
temperature, press and release the
SEL/RESET button until the
temperature is shown on the
inf ormation display.
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes. In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F in U.S. models ( 3°C
in Canadian models) warmer or
cooler.
When it reaches the desired value,
release the SEL/RESET button. You
should see the new outside
temperature displayed.
Select the outside temperature
display, then press and hold the
SEL/RESET button f or 10 seconds.
The f ollowing sequence will appear
for1secondeach:0,1,2,3,4,5, 5,
4, 3, 2, 1, 0 (U.S.) or 0, 1, 2,
3, 3, 2, 1, 0 (Canada). The temperature must be
stabilized bef ore doing this
procedure.
If equipped
Outside Temperature Indicator
Gauges
Inst rument s and Cont rols
69
NOTE:
Main Menu

This shows how much f uel you have.
It may show slightly more or less
than the actual amount.This shows the temperature of the
engine’s coolant. During normal
operation, the reading should rise to
about the middle of the gauge. In
severe driving conditions, such as
very hot weather or a long period of
uphill driving, the reading may rise
intotheupperhalfofthegauge.Ifit
reaches the red (Hot) mark, pull
safely to the side of the road. See
page f or instructions and
precautions on checking the engine
cooling system.Your vehicle’s onboard diagnostic
system will detect a loose or missing
f uel f ill cap as an evaporative system
leak. The f irst time a leak is detected
a ‘‘CHECK FUEL CAP’’ message
appears on the information display.
Turn the engine of f , and conf irm the
f uel f ill cap is installed. If it is, loosen
it, then retighten it until it clicks at
least once. The message should go
off after several days of normal
driving once you tighten or replace
the f uel f ill cap. To scroll to another
display, press the SEL/RESET
button. The ‘‘CHECK FUEL CAP’’
message will appear each time you
restart the engine until the system
turns the message of f .
347
Fuel Gauge T emperature Gauge Check Fuel Cap Message
Gauges
70
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
Main Menu

The inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more inf ormation.
If the system still detects a leak in
your vehicle’s evaporative emissions
system, the malf unction indicator
lamp (MIL) comes on. If the f uel f ill
cap was not already tightened, turn
the engine of f , and check or
retighten the f uel f ill cap until it
clicks at least once. The MIL should
go off after several days of normal
driving once the cap is tightened or
replaced. If the MIL does not go of f ,
have your vehicle inspected by a
dealer. For more inf ormation, see
page .
350 291
Maintenance Minder
Gauges
Inst rument s and Cont rols
71
TM
Main Menu

Î
Î Î
Î
Î
Î Î
Î Î
Î
Î
Î ÎÎ
To use the horn, press the center pad of the steering wheel.
If equipped.
Only on vehicles equipped with navigation system. Ref er to the navigati
on system manual.
1:2:3:

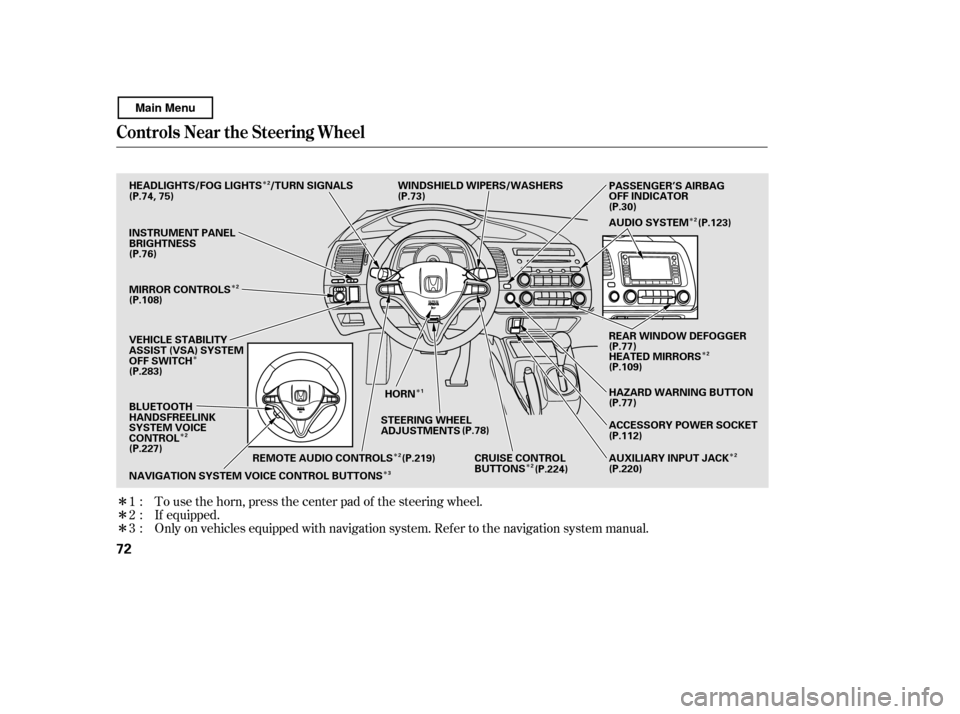

Controls Near the Steering Wheel
72
HORN
STEERING WHEEL
ADJUSTMENTS
(P.219)
REMOTE AUDIO CONTROLS CRUISE CONTROL
BUTTONS(P.224)
NAVIGATION SYSTEM VOICE CONTROL BUTTONS
VEHICLE STABILITY
ASSIST (VSA) SYSTEM
OFF SWITCH
(P.283)
BLUETOOTH
HANDSFREELINK
SYSTEM VOICE
CONTROL
(P.227)
(P.108)
INSTRUMENT PANEL
BRIGHTNESS
(P.76)
HEADLIGHTS/FOG LIGHTS /TURN SIGNALS
(P.74, 75)
MIRROR CONTROLS
REAR WINDOW DEFOGGER
(P.77)
HEATED MIRRORS
(P.109)
HAZARD WARNING BUTTON
(P.77)
ACCESSORY POWER SOCKET
(P.112)
AUXILIARY INPUT JACK
(P.220)
(P.30)
PASSENGER’S AIRBAG
OFF INDICATOR
AUDIO SYSTEM
WINDSHIELD WIPERS/WASHERS
(P.73)
(P.123)
(P.78)
1
2 2
3
2 2
2 2
2
2
Main Menu

µ
µ
µ µ
µ
µ
µ
µ µ
Î
Î

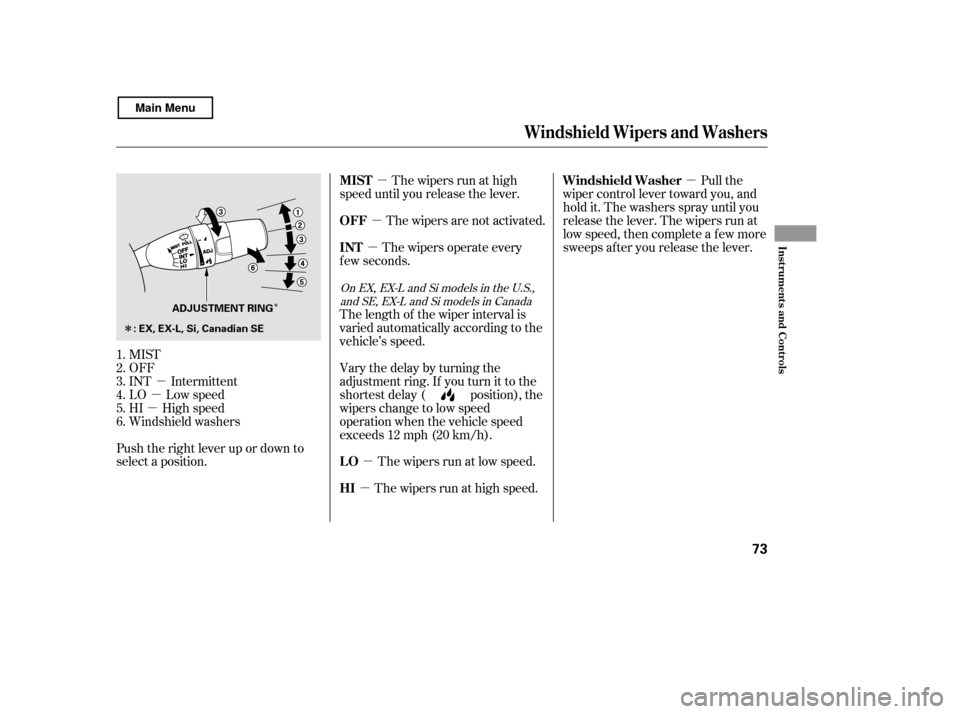

Push the right lever up or down to
select a position. MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield washers The wipers run at high
speed until you release the lever.
The wipers are not activated.
The wipers operate every
f ew seconds.
The length of the wiper interval is
varied automatically according to the
vehicle’s speed.
Vary the delay by turning the
adjustment ring. If you turn it to the
shortest delay ( position), the
wipers change to low speed
operation when the vehicle speed
exceeds 12 mph (20 km/h).
The wipers run at low speed.
The wipers run at high speed. Pull the
wiper control lever toward you, and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete a f ew more
sweeps af ter you release the lever.
1.2.3.4.5.6.
On EX, EX-L and Si models in the U.S., andSE,EX-LandSimodelsinCanada
MIST
OFF INT LO HI Windshield Washer
Windshield Wipers and Washers
Inst rument s and Cont rols
73
ADJUSTMENT RING
: EX, EX-L, Si, Canadian SE
Main Menu

µµ µ
Î Î
Î Push down on the
lever to signal a lef t turn and up to
signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn.
Turning the
switch to the ‘‘ ’’ position turns
on the parking lights, taillights,
instrument panel lights, side-marker
lights, and rear license plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights.
When the light switch is in the
‘‘ ’’ or ‘‘ ’’ position, the
lights on indicator comes on as a
reminder.
This indicator stays on if you leave
the lights on and turn the ignition
switch to the ACCESSORY (I) or
LOCK (0) position. If you leave the lights on with the
key removed f rom the ignition
switch, you will hear a reminder
chime when you open the driver’s
door.
Push the lever
f orward until you hear a click. The
high beam indicator will come on
(see page ). Pull the lever back to
return to the low beams.
To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
Turn signal
Of f
Parking and instrument panel
lights
Headlights on
High beams
Flashhighbeams
Fog lights of f
Fog lights on
If equipped
1.2.3. 4. 5.6.7.8.
: 65
Turn Signal
Headlights On
High Beams
Turn Signals and Headlights
74
Si model is shown.
Main Menu

Turn the f og lights on and of f by
turning the switch next to the
headlight switch.
With the headlight switch of f or in
the position, the high beam
headlights and the high beam
indicator come on with reduced
brightness when you turn the
ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch of f , even if you
set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
You can use the f og lights only when
the headlights are on low beam.
They will go of f when you turn the
headlights of f or onto high beam.
If equipped
Headlights, Fog Lights
Fog Lights
Daytime Running L ights
Inst rument s and Cont rols
75
Main Menu

´µ
The buttons under the lef t side vent
control the brightness of the
instrument panel. Push the or
button to adjust the brightness.
Separate adjustments can be made
when the headlights are on and of f . There are six brightness levels.
When you push either button, the
inf ormation display indicates the
current level. You will hear a tone
when you reach the maximum or
minimum brightness. The display
returns to the odometer 5 seconds
af ter you stop adjusting the
brightness.
To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to the
or position. The center of each meter (upper and
lower) illuminates with reduced
brightness when you unlock and
open the driver’s door, and then goes
back to the selected brightness when
you turn the ignition switch to the
ON (II) position.
If you insert the key but do not turn
the ignition switch to the ON (II)
position, the illumination turns of f in
about 10 seconds.
Instrument Panel Brightness
76
CONTROL BUTTONS
Main Menu
