HONDA CIVIC COUPE 2013 Owner's Manual (in English)

T E C H N O L O G Y R E F E R E N C E G U I D E
2 0 \b 3 C i v i c C o u p e
\8 o w n e r s . h o n d a . c o m
3 \b T S 8 A \b 0 2 0 \b 3 H o n d a C i v i c C o u p e T e c h n o l o g y R e f e r e n c e G u i d e
0 0 X 3 \b T S 8 A \b 0 0 ©20\b2 American Honda Motor Co., Inc. — All Rights Reserved P r i n t e d i n U . S . A .
13 Civic 2D TRG_Base_\AATG_NEW STYLE 10/3\A0/2012 11\f14 AM P\Aage 1

Bluetooth®HandsFreeLink®(HFL)........................................................................\f2
SMS Text Messaging ................................................................................................\f7
iPod
®or USB Flash Drive .....................................................................................\f9
Bluetooth
®Audio ......................................................................................................20
Pandora
®...................................................................................................................2\f
Owner Link ..............................................................................................................22
Safety Reminder ......................................................................................................22
Fuel Recommendation........................................................................................... 23
* if equipped
Auto Door Locks .....................................................................................................2
Instrument Panel Indicators ...................................................................................4
Eco Assist
TM*.............................................................................................................. 6
Tire Pre ssure Monitoring System (TPMS)...........................................................7
Intelligent Multi\bInformation Display (i\bMID) ..................................................... 8
One\bTouch Turn Signal........................................................................................... \f0
Auto Headlights with Wiper Integration* .........................................................\f0
Rearview Camera ................................................................................................... \f\f

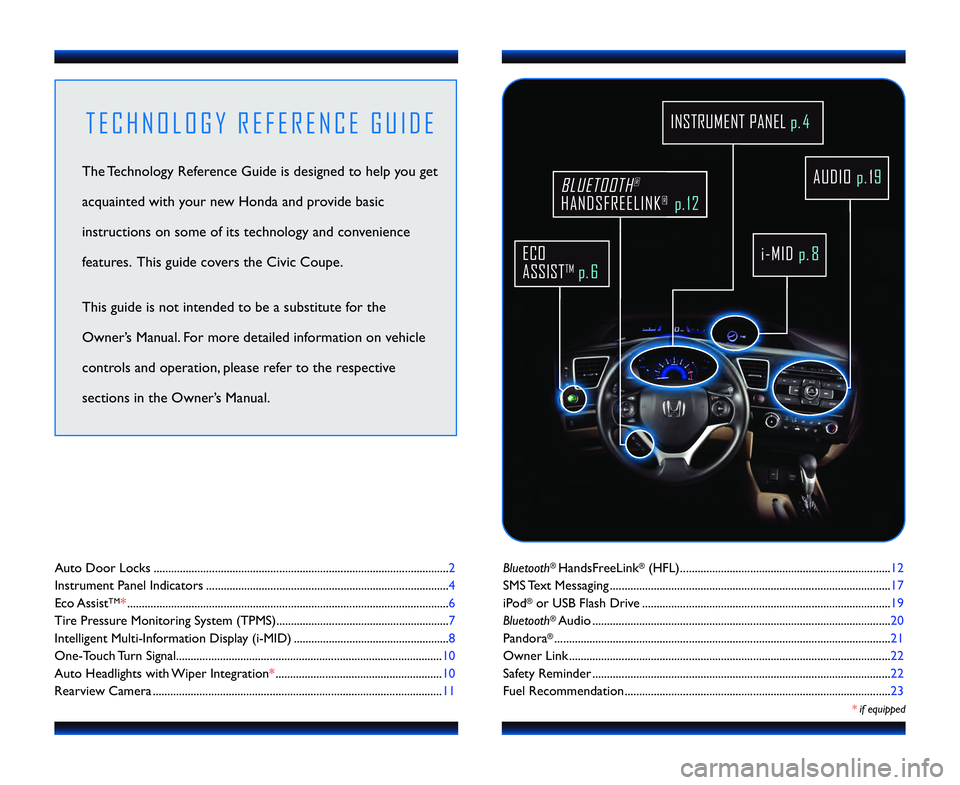

T E C H N O L O G Y R E F E R E N C E G U I D E
The Technology Reference Guide is designed to help you get
acquainted with your new Honda and provide basic
instructions on some of its technology and convenience
features. This guide covers the Civic Coupe.
This guide is not intended to be a substitute \2for the
Owner’s Manual. For more detailed information on vehicle
controls and operation, please refer to the respective
sections in the Owner’s Manual.
ECO
ASSIST
TMp. \f
BLUETOOTH®
HANDSFREELINK®p. \b2
INSTRUMENT PANEL p. 4
iMIDp. 8
AUDIO p.\b9
13 Civic 2D TRG_Base_\AATG_NEW STYLE 10/3\A0/2012 11\f14 AM P\Aage 2
p.\b2

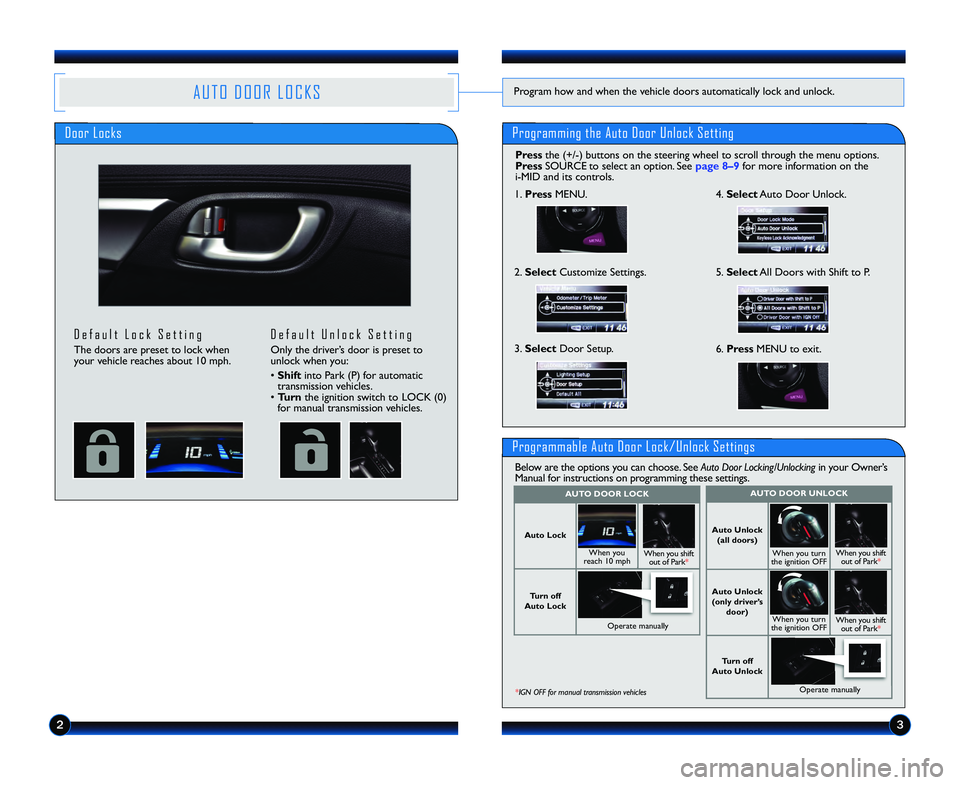

A U T O D O O R L O C K S
23
Program how and when the vehicle doors automatically lock and unlock.
Programming the Auto Door Unlock Setting
Pressthe (+/\b) buttons on the steering wheel \2to scroll through the menu options.
Press SOURCE to select an option. See page 8–9 for more information on the
i\bMID and its controls.
\f. Press MENU.
2. Select Customize Settings.
3. Select Door Setup. 4 .
Select Auto Door Unlock.
5. Select All Doors with Shift to P.
6. Press MENU to exit.
Door Locks
D e f a u l t L o c k S e t t i n g
The doors are preset to lock when
your vehicle reaches about \f0 mph.
D e f a u l t U n l o c k S e t t i n g
Only the driver’s door is preset to
unlock when you:
• Shift into Park (P) for automatic
transmission vehicles.
• Turn the ignition switch to LOCK (0)
for manual transmission vehicles.
Programmable Auto Door Lock/Unlock Settings
AUTO DOOR UNLOCK
Auto Unlock
(all doors)
When you turn
the ignition OFFWhen you shift out of Park *
Auto Unlock
(only driver’s door)
When you turn
the ignition OFFWhen you shift out of Park *
Turn off
Auto Unlock
Operate manually
AUTO DOOR LOCK
Auto Lock
When you
reach \f0 mphWhen you shift out of Park *
Turn off
Auto Lock
Operate manually
Below are the options you can choose. See Auto Door Locking/Unlockingin your Owner’s
Manual for instructions on programming these settings.
* \fGN OFF for manual transmission vehicles
13 Civic 2D TRG_Base_\AATG_NEW STYLE 10/3\A0/2012 11\f14 AM P\Aage 3

Malfunction IndicatorsIf an indicator remains on, there may be a problem; see your dealer
On/Off Indicators
Condition IndicatorsAction is needed by driver
PASSENGERAIRBAG
OFFPASSENGER AIRBAG OFF(next to i\bMID)
VSA OFF
CRUISE CONTROL on
Exterior lights on
Turn signals/hazards on
ECON* on
Fog lights* on
High beams on
Charging system
Low brake fluid, Brake system
Low oil pressure
ABS (anti\block brake system)
VSA®(vehicle stability assist)SRS (supplemental restraint system)
EPS (electric power steering)
Low temperature
Transmission (blinking)
(automatic transmission)
Parking brake on:
Release
Low fuel:
Refill
Low tire pressure:
Add air

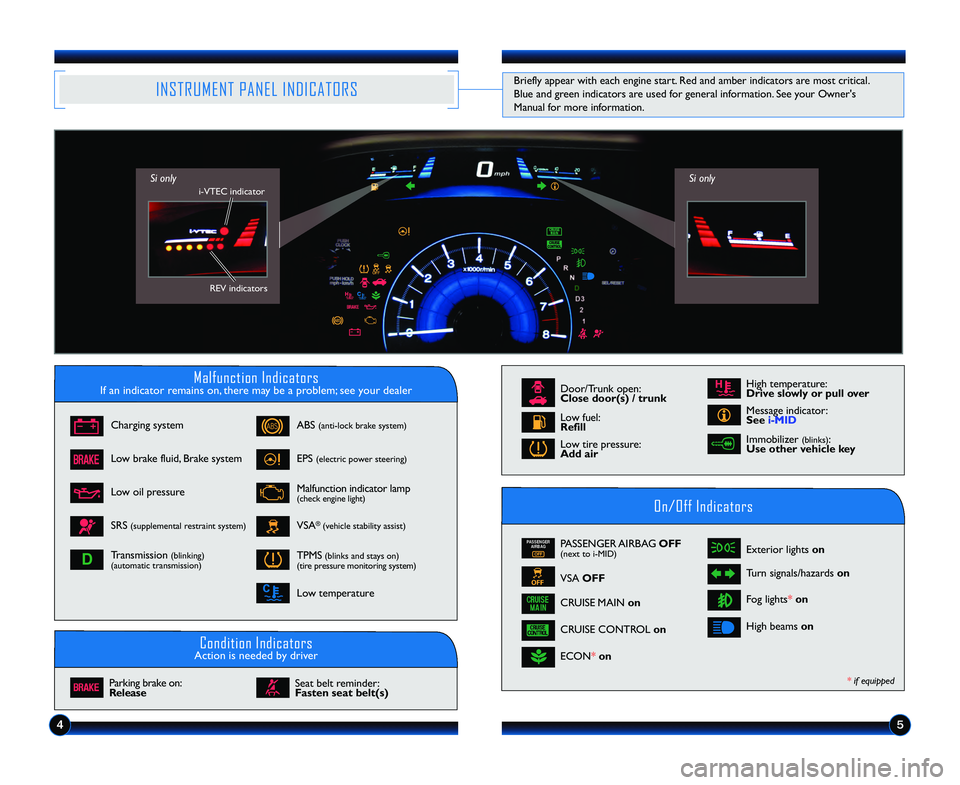

INSTRUMENT PANEL INDICATORS
Immobilizer (blinks):
Use other vehicle key
Briefly appear with each engine start. Red and amber indicators are most critical.
Blue and green indicators are used for general information. See your Owner's
Manual for more information.
45
Malfunction indicator lamp(check engine light)
Seat belt reminder:
Fasten seat belt(s) * if equipped
Si only
i\bVTEC indicator
Si only
REV indicators
D
Message indicator:
See iMID
Door/Trunk open:
Close door(s) / trunkHigh temperature:
Drive slowly or pull over
TPMS (blinks and stays on)
(tire pressure monitoring system)
CRUISE MAIN on
13 Civic 2D TRG_Base_\AATG_NEW STYLE 10/3\A0/2012 11\f15 AM P\Aage 4
iMID

67
Turning ECON Mode On/Off
3.Check the i\bMID for the
system status.
4. Press ECON again to turn the
system off.

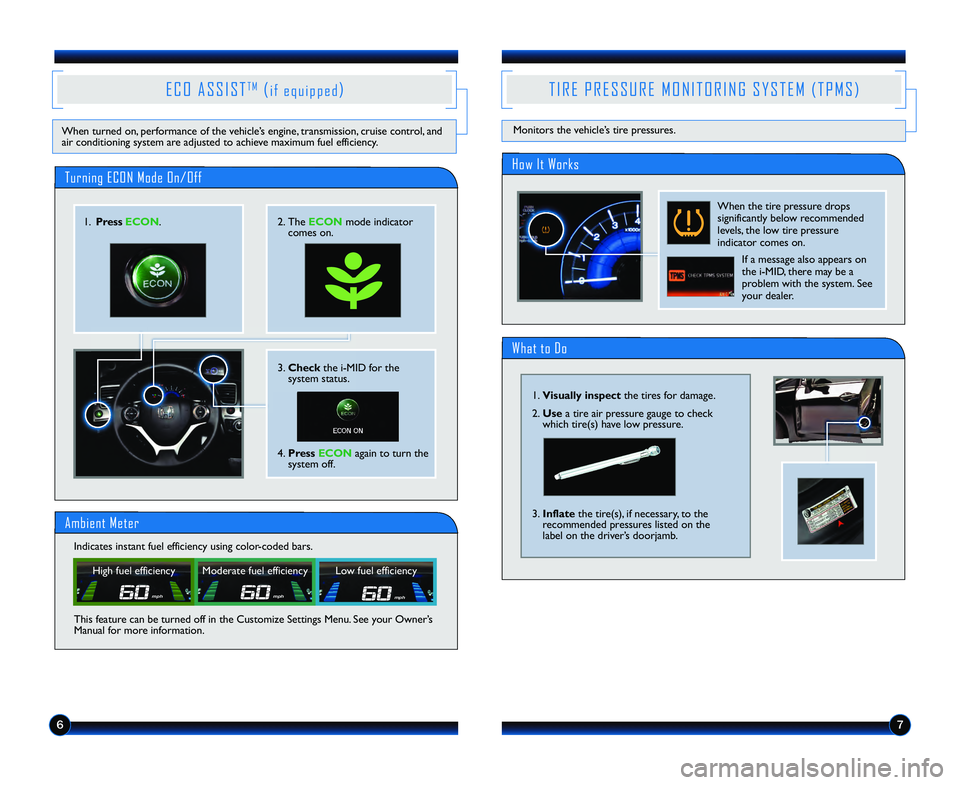

E C O A S S I S TT M(i f e q u i p p e d)
When turned on, performance of the vehicle’s engine, transmission, cruise control, and
air conditioning system are adjusted to achieve maximum fuel efficiency.
2. The ECON mode indicator
comes on.
Ambient Meter
mphmphmph
High fuel efficiency Moderate fuel efficiency Low fuel efficiency
\f. Press ECON .
Indicates instant fuel efficiency using color\bcoded bars.
This feature can be turned off in the Customize Setting\2s Menu. See your Owner’s
Manual for more information.
What to Do
T I R E P R E S S U R E M O N I T O R I N G S Y S T E M ( T P M S )
Monitors the vehicle’s tire pressures.
\f. Visually inspect the tires for damage.
2. Use a tire air pressure gauge to check
which tire(s) have low pressure.
3. Inflate the tire(s), if necessary, to the
recommended pressures listed on the
label on the driver’s doorjamb.
How It Works
When the tire pressure drops
significantly below recommended
levels, the low tire pressure
indicator comes on.
If a message also appears on
the i\bMID, there may be a
problem with the system. See
your dealer.
13 Civic 2D TRG_Base_\AATG_NEW STYLE 10/3\A0/2012 11\f15 AM P\Aage 5

\b9

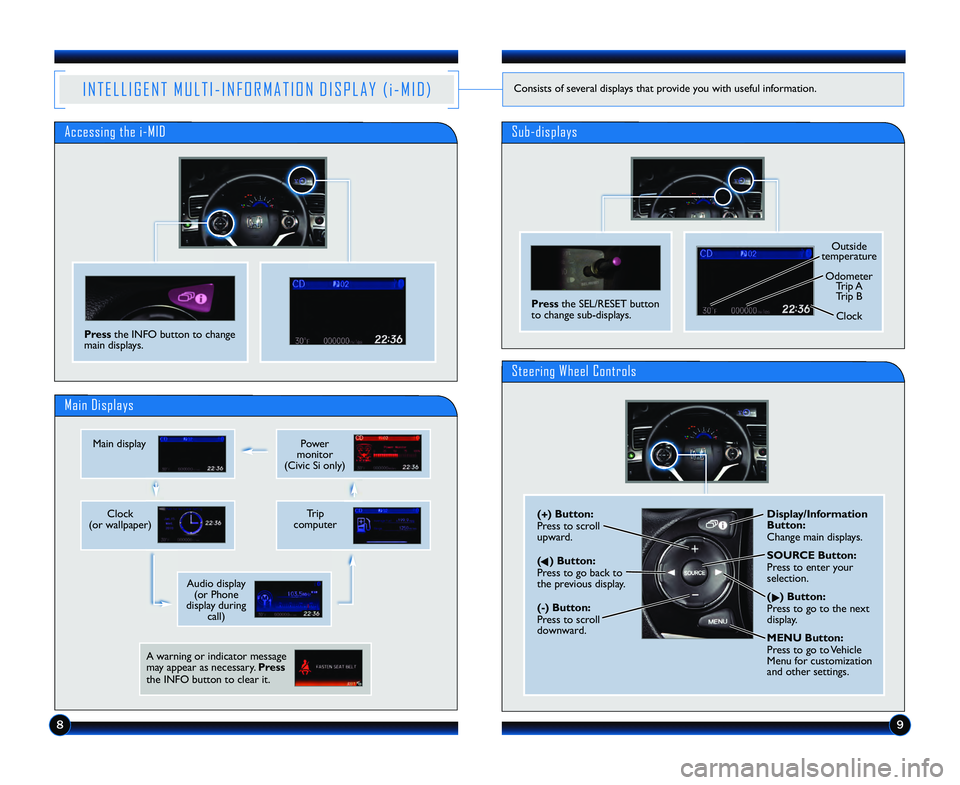

I N T E L L I G E N T M U L T I I N F O R M A T I O N D I S P L A Y ( i M I D )Consists of several displays that provide you with useful information.
Clock
(or wallpa per)Trip
computer
Main Displays
Main display Power
monitor
(Civic Si only)
Steering Wheel Controls
( + ) Button\f
Press to scroll
upward.
(
t) Button\f
Press to go back to
the previous display.
() Button\f
Press to scroll
downward. Display/Information
Button\f
Change main displays.
SOURCE Button\f
Press to enter your
selection.
(
u) Button\f
Press to go to the next
display.
MENU Button\f
Press to go to Vehicle
Menu for customization
and other settings.
Subdisplays
Press the SEL/RESET button
to change sub\bdisplays.
Outside
temperature
Odometer Trip A Trip B
Clock
Accessing the iMID
Press the INFO button to change
main displays.
A warning or indicator message
may appear as necessary. Press
the INFO button to clear it. Audio display
(or Phone
display during call)
13 Civic 2D TRG_Base_\AATG_NEW STYLE 10/3\A0/2012 11\f15 AM P\Aage \b

1011
How It Works

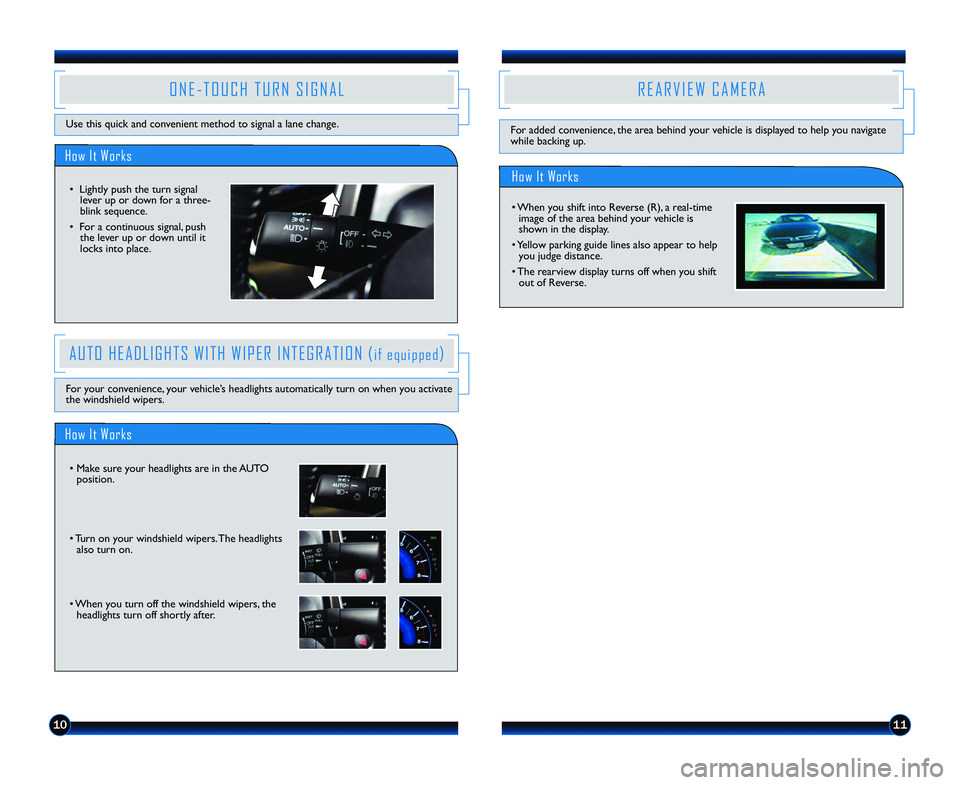

O N E T O U C H T U R N S I G N A L
Use this quick and convenient method to signal a lane change.
• Lightly push the turn signallever up or down for a three\b
blink sequence.
• For a continuous signal, push the lever up or down until it
locks into place.
How It Works
A U T O H E A D L I G H T S W I T H W I P E R I N T E G R A T I O N (i f e q u i p p e d)
For your convenience, your vehicle’s headlights automatically turn on when you activate
the windshield wipers.
• Make sure your headlights are in the AUTO position.
• Turn on your windshield wipers. The headlights also turn on.
• When you turn off the windshield wipers, the headlights turn off shortly after.
How It Works
R E A R V I E W C A M E R A
For added convenience, the area behind your vehicle is displayed to help you navigate
while backing up.
• When you shift into Reverse (R), a real\btime image of the area behind your vehicle is
shown in the display.
• Yellow parking guide lines also appear to help you judge distance.
• The rearview display turns off when you shift out of Reverse.
13 Civic 2D TRG_Base_\AATG_NEW STYLE 10/3\A0/2012 11\f15 AM P\Aage 7

1213

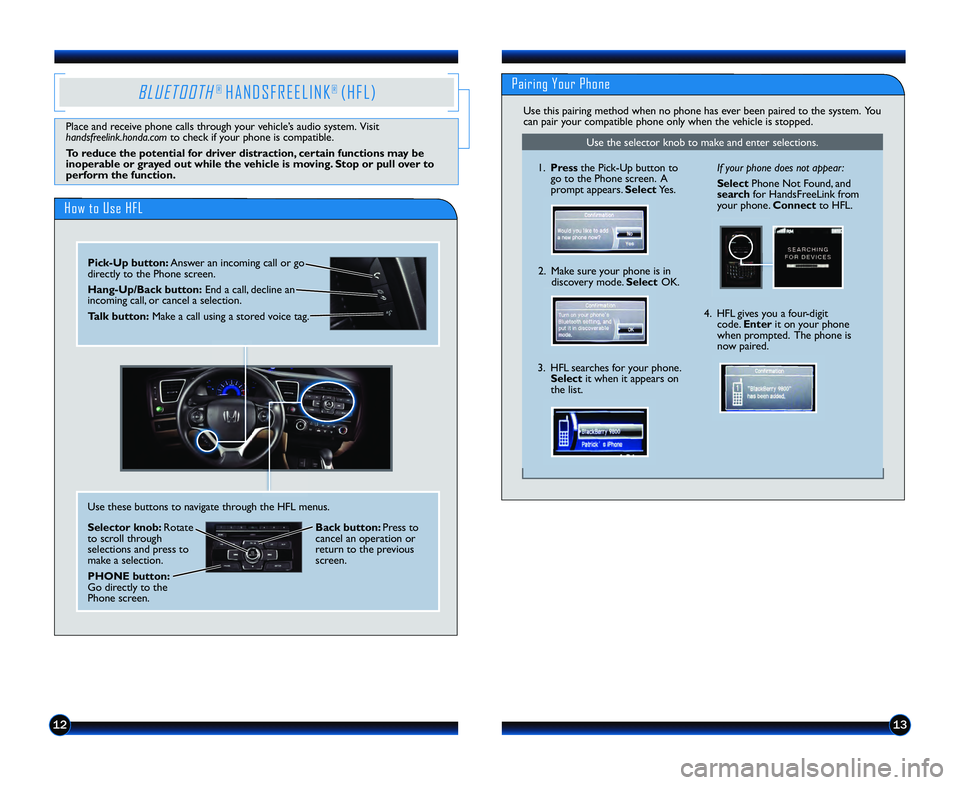

B L U E T O O T H® H A N D S F R E E L I N K® ( H F L )
How to Use HFL
PickUp button\f Answer an incoming call or go
directly to the Phone screen.
HangUp/Back button\f End a call, decline an
incoming call, or cancel a selection.
Talk button\f Make a call using a stored voice tag.
Use these buttons to navigate through the HFL menus.
Selector knob\f Rotate
to scroll through
selections and press to
make a selection.
PHONE button\f
Go directly to the
Phone screen. Back button\f Press to
cancel an operation or
return to the previous
screen.
Place and receive phone calls through your vehicle’s audio system. Visit
handsfreelink.honda.com to check if your phone is compatible.
To reduce the potential for driver distraction, certain functions may be
inoperable or grayed out while the vehicle is moving. Stop or pull over to
perform the function.
Use the selector knob to make and enter selections.
Pairing Your Phone
\f. Press the Pick\bUp button to
go to the Phone screen. A
prompt appears. Select Yes.\ff your phone does not appear:
Select Phone Not Found, and
search for HandsFreeLink from
your phone. Connect to HFL.
Use this pairing method when no phone has ever been paired to the system. You
can pair your compatible phone only when the vehicle is stopped.
4. HFL gives you a four\bdigitcode. Enter it on your phone
when prompted. The phone is
now paired.
3. HFL searches for your phone. Select it when it appears on
the list.
2. Make sure your phone is in
discovery mode. Select OK.
13 Civic 2D TRG_Base_\AATG_NEW STYLE 10/3\A0/2012 11\f15 AM P\Aage 8

1415
Use the selector knob to make and enter selections.

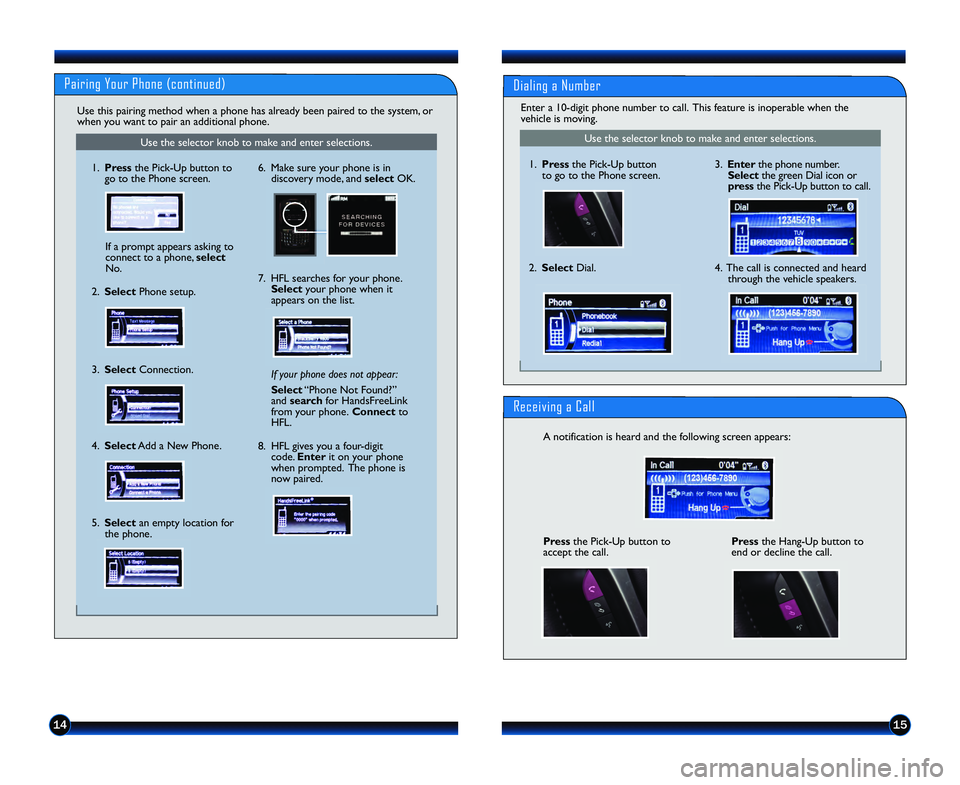

Pairing Your Phone (continued)
\f. Pressthe Pick\bUp button to
go to the Phone screen.
\ff your phone does not appear:
Select “Phone Not Found?”
and search for HandsFreeLink
from your phone. Connectto
HFL.
Use this pairing method when a phone has already been paired to the system, or
when you want to pair an additional phone.
8. HFL gives you a four\bdigitcode. Enter it on your phone
when prompted. The phone is
now paired.
6. Make sure your phone is in
discovery mode, and select OK.
2. Select Phone setup.
3. Select Connection.
4. Select Add a New Phone.
5. Select an empty location for
the phone. If a prompt appears asking to
connect to a phone, select
No. 7. HFL searches for your phone.
Select your phone when it
appears on the list.
Dialing a Number
Receiving a Call
Press the Hang\bUp button to
end or decline the call.
A notification is heard and the following screen appears:
Press the Pick\bUp button to
accept the call.
Use the selector knob to make and enter selections.
Enter a \f0\bdigit phone number to call. This feature is inoperable when the
vehicle is moving.
4. The call is connected and heard through the vehicle speakers.
2. Select
Dial.
\f. Pressthe Pick\bUp button
to go to the Phone screen. 3.
Enter the phone number.
Select the green Dial icon or
press the Pick\bUp button to call.
13 Civic 2D TRG_Base_\AATG_NEW STYLE 10/3\A0/2012 11\f15 AM P\Aage 9

1617
Use the selector knob to make and enter selections.
Use the selector knob to make and enter selections.

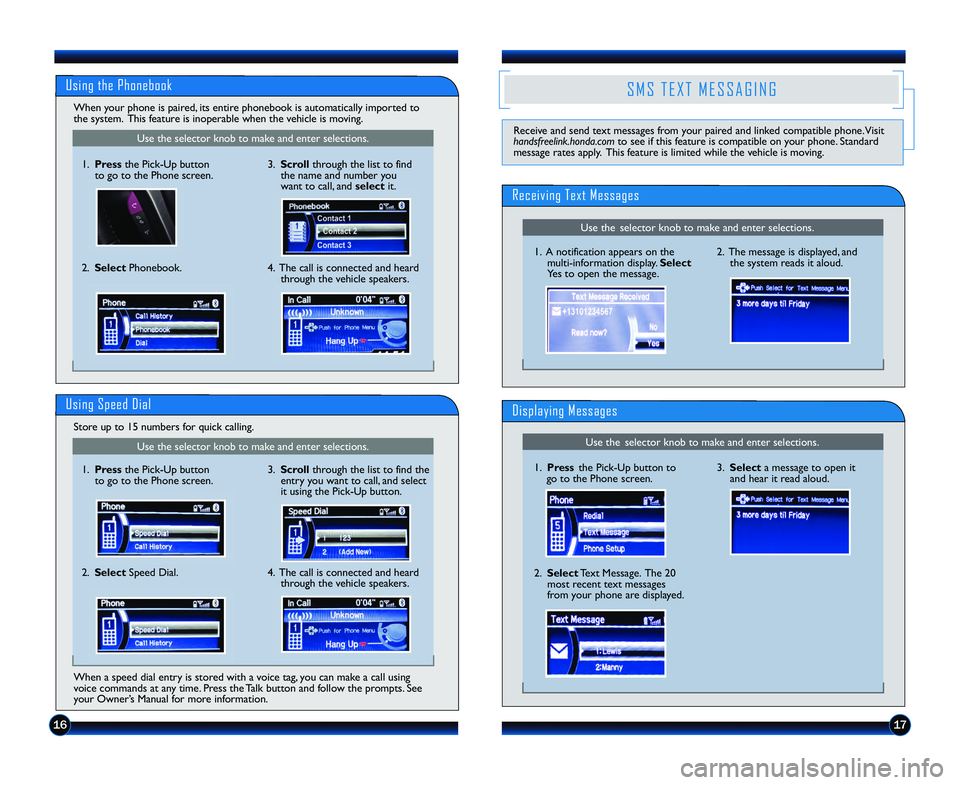

Using the Phonebook
When your phone is paired, its entire phonebook is automatically imported to
the system. This feature is inoperable when the vehicle is moving.
4. The call is connected and heard through the vehicle speakers.
2. Select
Phonebook.
\f. Pressthe Pick\bUp button
to go to the Phone screen.
Using Speed Dial
Store up to \f5 numbers for quick calling.
When a speed dial entry is stored with a voice tag, you can make a call using
voice commands at any time. Press the Talk button and follow the prompts. See
your Owner’s Manual for more information.
4. The call is connected and heard through the vehicle speakers.
2. Select
Speed Dial.
\f. Pressthe Pick\bUp button
to go to the Phone screen.
3. Scroll through the list to find
the name and number you
want to call, and select it.
3. Scroll through the list to find the
entry you want to call, and select
it using the Pick\bUp button.
3. HFL begins dialing the number.
1. With the message open, pr ess
the selector knob to enter the
Text Message menu.
2. Select Call.
Replying to Text Messages
Calling the Sender
Use the selector knob to make and enter selections.
Receiving Text Messages
Displaying Messages
2. The message is displayed, and
the system reads it aloud.1. A notification appears on themultiinformation display. Select
Yes to open the message.
3. Select a message to open it
and hear it read aloud.1. Press the PickUp button to
screen.
go to the Phone
2. Select
Text Message. The 20
most recent text messages
from your phone are displayed. 3. Select
one of the six available
reply messages.
1. With the message open,
pr
ess
the selector knob to enter the
Text Message menu.
4. SelectY
es to send the message.
2. Select Repl y.
12 CRVTRG_EXEXLEXLRES:ATG_NEWSTYLE 6/20/2011 2:29PM Page 10
Use the selector knob to make and enter selections. Use the selector knob to make and enter selections.
Use the selector knob to make and enter selections.
S M S T E X T M E S S A G I N G
Receive and send text messages from your paired and linked compatible phone. Visit
handsfreelink.honda.com to see if this feature is compatible on your phone. Standard
message rates apply. This feature is limited while the vehicle is moving.
13 Civic 2D TRG_Base_\AATG_NEW STYLE 10/3\A0/2012 11\f15 AM P\Aage 10
