audio HONDA CIVIC COUPE 2014 9.G Navigation Manual

321
uuWhen Driving uLaneWatchTM*
Driving
■Customizing the La neWatch settings
You can customize the following items using the audio/information screen.
• Show with Turn Signal : Selects whether LaneWatch monitor comes on when
you operate the turn signal light lever.
• Display Time after Turn Signal Off : Changes the length of time the LaneWatch
display stays on after you pull the turn signal lever back.
• Reference Lines : Selects whether the reference lines appear on the LaneWatch
monitor.
• Next Maneuver Pop up
*: Selects whether a turn direction screen of the
navigation system interr upts the LaneWatch display.
• Display : Allows for display adjustments of items, such as brightness, and tint.
This setting is part of the Audio setup group.
2Customized Features* P. 220
■Reference Lines
Three lines that appear on the screen can give
an idea of how far the vehicles or objects on
the screen are from your vehicle, respectively.
If an object is near line 1 (in red), it indicates
that it is close to your vehicle whereas an
object near line 3 farther away.
1LaneWatchTM*
The LaneWatch camera view is restricted. Its unique
lens makes objects on the screen look slightly
different from what they are.
LaneWatch display does not come on when the shift
lever is in
( R.
For proper LaneWatch operation:
•The camera is located in the passenger side door
mirror. Always keep this area clean. If the camera
lens is covered with dirt or moisture, use a soft,
moist cloth to keep the lens clean and free of debris.
•Do not cover the camera lens with labels or stickers
of any kind.
•Do not touch the camera lens.
23
1
1Reference Lines
The area around the reference lin e 1 (red) is very close to
your vehicle. As always, m ake sure to visually confirm
the safety of a lane chan ge before changing lanes.
The distance betwee n your vehicle and lines 1, 2 and
3 on the screen vary depending road conditions and
vehicle loading. For example, the reference lines on
the screen may seem to appear closer than the actual
distances when the rear of your vehicle is more
heavily loaded.
Consult a dealer if:
•The passenger side door mirr or, or area around it is
severely impacted, resulting in changing the
camera angle.
•The LaneWatch display doe s not come on at all.
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 321 ページ ２０１４年１月２９日　水曜日　午後８時９分

331
Driving
Rearview Camera*
About Your Rearview Camera
For models with the navigation system, see the Navigation System Manual for the
rearview camera.
The i-MID can display your vehicle’s rear view.
The display automatically changes to a rear view when the shift lever is moved to
(R.
The audio/information screen can display your vehicle’s rear view. The display
automatically changes to the rear view when the shift lever is moved to
(R.
The rearview camera has a un ique lens that makes objects appear closer or further
than they actually are.
■Rearview Camera Display Area
1 About Your Rearview Camera
The rear camera view is restricted. You cannot see
the corner ends of the bum per or what is underneath
the bumper. Its unique le ns also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions, such as weather, lighting, and
high temperatures, may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
If the camera lens is cove red with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.
You can change the Fixed Guideline and Dynamic
Guideline settings.
2 Customized Features
* P. 220
Fixed Guideline
On : Guidelines appear when you shift into
(R.
Off : Guidelines do not appear when the dynamic
guideline is off.
Dynamic Guideline
On : Guidelines move according to the steering wheel
direction.
Off : Guidelines do not move.
Models with display audio system
Models with navigation system
Models without navigation system
Models with one display
Models without navigation system
Models with display audio system
Bumper
Guidelines
Approx. 118 in (3 m)
Approx. 79 in (2 m) Approx. 39 in (1 m)
Approx. 20 in (0.5 m)
Approx. 118 in (3 m) Approx. 79 in (2 m) Approx. 39 in (1 m) Camera
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 331 ページ ２０１４年１月２９日　水曜日　午後８時９分

381
Maintenance
Battery
Checking the Battery
Check the battery terminals for corrosion
monthly.
If your vehicle's battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 163
•The clock resets.
2 Adjusting the Clock P. 100
•The navigation system* is disabled.
2 Refer to the Navigation System Manual
Charging the Battery
Disconnect both battery cables to prevent damaging your vehicle's electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminal with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Please consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 381 ページ ２０１４年１月２９日　水曜日　午後８時９分

385Continued
Maintenance

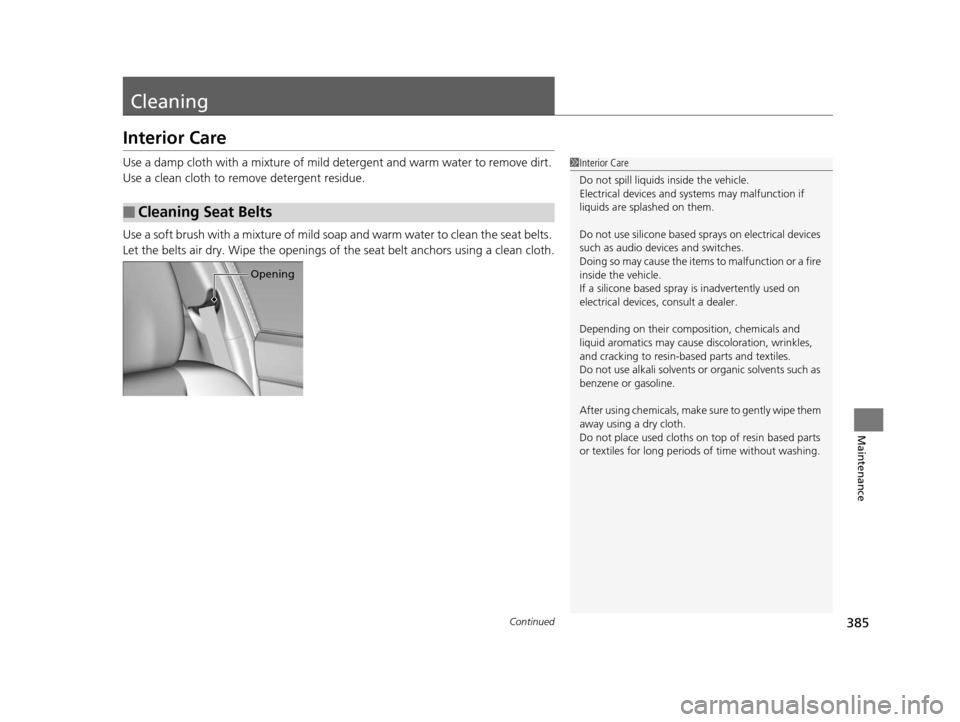

Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the openings of the seat belt anchors using a clean cloth.
■Cleaning Seat Belts
1Interior Care
Do not spill liquids inside the vehicle.
Electrical devices and sy stems may malfunction if
liquids are splashed on them.
Do not use silicone based sprays on electrical devices
such as audio devices and switches.
Doing so may cause the items to malfunction or a fire
inside the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemical s, make sure to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
Opening
14 CIVIC 2D_SI-31TS86210.book 385 ページ ２０１４年１月２９日　水曜日　午後８時９分

403Continued
Handling the Unexpected
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Connect the first jumper cable to your
vehicle's battery + terminal.
2. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
3. Connect the second jumper cable to the
booster battery - terminal.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster Battery
1.8 ℓ engine models
2.4 ℓ engine models
Booster Battery
14 CIVIC 2D_SI-31TS86210.book 403 ページ ２０１４年１月２９日　水曜日　午後８時９分

423
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any inte rference, including interference that may
cause undesired operation of the device.
Audio System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Immobilizer System
Remote Transmitter
14 CIVIC 2D_SI-31TS86210.book 423 ページ ２０１４年１月２９日　水曜日　午後８時９分

Index
431
Index
Index
Numbers
7-Speed Manual Shift Mode................... 309
Operation ............................................... 310
A
ABS (Anti-lock Brake System) .................. 328
Accessories and Modifications ................ 336
Accessory Power Socket ........................... 150
Additives
Coolant .................................................. 355
Engine Oil ............................................... 348
Washer ................................................... 359
Adjusting Armrest .................................................. 144
Clock ...................................................... 100
Front Seats.............................................. 137
Head Restraints ....................................... 139
Mirrors.................................................... 135
Rear Seats ............................................... 143
Steering Wheel ....................................... 134
Temperature ............................................. 86
Air Conditioning System (Climate Control System) .................................................... 155
Changing the Mode................................ 156
Defrosting the Windshield and Windows .............................................. 156
Dust and Pollen Filter .............................. 384
Recirculation/Fresh Air Mode................... 156 Sensor ..................................................... 157
Using Automatic Climate Control ............ 155
Air Conditioning System (Heating and Cooling System) ...................................... 152
Cooling ................................................... 154
Defrosting the Windshield and Windows ............................................... 154
Dust and Pollen Filter ............................... 384
Heating ................................................... 153
Air Pressure ............................... 373, 419, 421
Airbags ........................................................ 37
Advanced Airbags ..................................... 43
After a Collision ......................................... 40
Airbag Care ............................................... 49
Event Data Recorder .................................. 22
Front Airbags (SRS) .................................... 40
Indicator .............................................. 47, 70
Passenger Airbag Off Indicator .................. 48
Sensors ...................................................... 37
Side Airbags .............................................. 44
Side Curtain Airbags .................................. 46
AM/FM Radio .................................... 168, 191
Anti-lock Brake System (ABS) .................. 328
Indicator .................................................... 69
Armrest ..................................................... 144
Audio Remote Controls ............................ 164
Audio System ............................................ 160
Adjusting the Sound ........................ 167, 189
Auxiliary Input Jack .................................. 162 Error Messages ........................................ 211
General Information ................................ 217
Internet Radio ................................. 177, 200
iPod ........................................................ 197
MP3/WMA/AAC ...................... 179, 202, 207
Reactivating ............................................ 163
Recommended CDs ................................. 217
Recommended Devices............................ 219
Remote Controls ..................................... 164
Security Code .......................................... 163
Theft Protection ...................................... 163
USB Adapter Cable.......................... 161, 162
USB Flash Drives ...................................... 219
USB/HDMI
® Port ...................................... 161
Authorized Manuals ................................ 429
Auto Door Locking/Unlocking ................. 112
Customize ................................................. 94
Automatic Lighting .................................. 128
Automatic Transmission
Creeping ................................................. 304
Kickdown ................................................ 304
Shift Lever Does Not Move ...................... 406
Automatic Transmission (CVT) ................. 304
Fluid ........................................................ 357
Operating the Shift Lever........... 16, 306, 308
Shifting ........................................... 305, 307
Auxiliary Input Jack .................................. 162
Average Fuel Economy .............................. 85
Average Speed ........................................... 85
14 CIVIC 2D_SI-31TS86210.book 431 ページ ２０１４年１月２９日　水曜日　午後８時９分

432
Index
B
Battery....................................................... 381
Charging System Indicator ................. 67, 409
Jump Starting .......................................... 403
Maintenance (Checking the Battery) ........ 381
Maintenance (Replacing).......................... 382
Belts (Seat) .................................................. 30
Beverage Holders ...................................... 149
Bluetooth ® Audio ............................. 182, 205
Bluetooth ® HandsFreeLink ®............. 233, 264
Booster Seats (For Children) ....................... 61
Brake System ............................................. 326
Anti-lock Brake System (ABS) ................... 328
Brake Assist System ................................. 329
Fluid ........................................................ 358
Foot Brake ............................................... 327
Indicator .................................................... 66
Indicator (Amber)....................................... 66
Indicator (Red) ......................................... 411
Parking Brake .......................................... 326
Brake System Indicator (Amber) ................ 66
Brightness Control (Instrument Panel) .... 132
Bulb Replacement ..................................... 360
Brake Lights, Taillights, Re ar Side Marker lights,
Back-Up Lights and Rear Turn Signal
Lights..................................................... 367
Fog Lights ................................................ 364
Front Turn Signal/Par king/Side Marker
Lights..................................................... 365
Headlights ............................................... 360
High-Mount Brake Light .......................... 369 Rear License Plate Light ........................... 368
Bulb Specifications ........................... 418, 420
C
Carbon Monoxide Gas ............................... 62
Carrying Cargo ................................. 293, 295
CD Player ........................................... 171, 194
Center Pocket ........................................... 148
Certification Label .................................... 422
Changing Bulbs ........................................ 360
Charging System Indicator ................. 67, 409
Child Safety ................................................. 50
Emergency Trunk Opener ........................ 115
Child Seat .................................................... 50
Booster Seats ............................................ 61
Child Seat for Infants................................. 52
Child Seat for Small Children ..................... 53
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 57
Larger Children ......................................... 60
Rear-facing Child Seat ............................... 52
Selecting a Child Seat ................................ 54
Using a Tether ........................................... 59
Cleaning the Exterior ............................... 387
Cleaning the Interior ................................ 385
Climate Control System ............................ 155
Changing the Mode ................................ 155
Defrosting the Windshield and Windows ............................................... 156
Dust and Pollen Filter............................... 384 Recirculation/Fresh Air Mode................... 156
Sensors ................................................... 157
Using Automatic Climate Control............ 155
Clock ......................................................... 100
Clutch Fluid .............................................. 358
Coat Hook ................................................ 150
Compact Spare Tire .................. 393, 419, 421
Console Compartment ............................. 147
Controls ...................................................... 99
Coolant (Engine) ...................................... 355
Adding to the Radiator ........................... 356
Adding to the Reserve Tank .................... 355
High Temperature Indicator ...................... 70
Low Temperature Indicator ....................... 70
Overheating ............................................ 407
Creeping (Automatic Transmission) ........ 304
Cruise Control .......................................... 315
Indicator ................................................... 75
Cup Holders .............................................. 149
Customer Service Information ................ 430
Customized Features ......................... 87, 220
D
Daytime Running Lights .......................... 130
Dead Battery ............................................ 403
Defrosting the Windshield and
Windows ......................................... 154, 156
Devices that Emit Radio Waves ............... 423
Dimming
Headlights .............................................. 127
14 CIVIC 2D_SI-31TS86210.book 432 ページ ２０１４年１月２９日　水曜日　午後８時９分

437
Index
Reporting Safety Defects......................... 424
Resetting a Trip Meter ............................... 84
S
Safe Driving................................................ 25
Safety Check ............................................... 29
Safety Labels .............................................. 63
Safety Message .......................................... 23
Seat Belts .................................................... 30
Automatic Seat Belt Tensioners ................. 32
Checking .................................................. 36
Fastening .................................................. 33
Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 57
Pregnant Women...................................... 35
Reminder .................................................. 31
Warning Indicator ............................... 31, 69
Seat Heaters ............................................. 151
Seats .......................................................... 137
Adjusting ................................................ 137
Front Seats.............................................. 137
Rear Seats ............................................... 143
Seat Heaters ........................................... 151
Security System ........................................ 116
Immobilizer System Indicator..................... 74
Security System Alarm Indicator ................ 74
SEL/RESET Knob .......................................... 83
Select Lever ........................ 16, 305, 307, 311
Operation ......................... 16, 306, 308, 311
Releasing ................................................ 406 Won’t Move ............................................ 406
Selecting a Child Seat ................................. 54
Selector Knob (Audio) .............................. 166
Shift Lever ........................... 16, 305, 307, 311
Shift Lever Position Indicator ..................... 68
Shift Position Indicator ..................... 306, 308
Shifting (Transmission) ............. 305, 307, 311
Side Airbags ................................................ 44
Side Curtain Airbags ................................... 46
Smart Entry System Indicator ..................... 74
Smart Entry with Push Button Start
System ..................................................... 107
SMS Text Message ............ 245, 259, 274, 283
Snow Tires ................................................. 380
Spare Tire .................................. 393, 419, 421
Spark Plugs ........................................ 418, 420
Specifications ............................................ 418
Specified Fuel ............................ 332, 418, 420
Speedometer .............................................. 81
SRS Airbags (Airbags) ................................. 40
Starting the Engine .......................... 298, 300
Does Not Start ......................................... 400
Engine Switch Buzzer .............................. 122
Jump Starting .......................................... 403
Steering Wheel ......................................... 134
Adjusting ................................................. 134
Stopping .................................................... 330
Summer Tires ............................................ 380
Supplemental Restraint System (SRS) ........ 40
Switches (Around the Steering Wheel) ............................................. 2, 3, 122 System Message Indicator
.......................... 73
T
Tachometer................................................. 81
Temperature High Temperature Indicator ....................... 70
Low Temperature Indicator........................ 70
Outside Temperature Display ..................... 86
Temperature Sensor ................................... 86
Text Message .................................... 245, 259
Time (Setting) ........................................... 100
Tire Pressure Monitoring System
(TPMS) ..................................................... 322
Indicator............................................ 72, 412
Tires ........................................................... 372
Air Pressure ............................. 373, 419, 421
Checking and Maintaining ...................... 372
Inspection ............................................... 372
Labeling .................................................. 373
Puncture (Flat Tire) .................................. 393
Regulations ............................................. 375
Rotation .................................................. 379
Spare Tire ................................ 393, 419, 421
Summer .................................................. 380
Tire Chains .............................................. 380
Wear Indicators ....................................... 377
Winter..................................................... 380
Tools .......................................................... 392
Towing a Trailer ....................................... 297
14 CIVIC 2D_SI-31TS86210.book 437 ページ ２０１４年１月２９日　水曜日　午後８時９分
