HONDA CIVIC COUPE 2014 9.G Technology Reference Guide

20\b4 Civic SedanEX, EXL, Si, and Natural Gas
T E C H N O L O G Y
R E F E R E N C E G U I D E
\8
o w n e r s . h o n d a . c o m
2 0 \b 4 H o n d a C i v i c S e d a n E X , E X L , S i , a n d N a t u r a l G a s
3 \b T R 3 B 2 0 T e c h n o l o g y R e f e r e n c e G u i d e
0 0 X 3 \b T R 3 B 2 0 0 ©20\b3 American Honda Motor Co., Inc. — All Rights Reserved P r i n t e d i n U . S . A .
14 Civic 4D TRG_EX EX\AL Si NG_ATG_NEW STYL\AE 10/21/2013 8\f59\A AM Page 1

SMS Text Messaging and E\bMail............................................................................20
Siri Eyes Free Mode ...............................................................................................2\f
HondaLink Assist ....................................................................................................22
Basic Audio Operation ..........................................................................................23
iPod
®or USB Flash Drive .....................................................................................24
\bluetooth®Audio ......................................................................................................25
Pandora®...................................................................................................................26
HDMI Video .............................................................................................................27
Settings for Your Vehicle ........................................................................................28
Honda Owners .......................................................................................................29
Safety Reminder ......................................................................................................29
Fuel Information......................................................................................................29
Smart Entry with Push Button Start* ...................................................................2
Instrument Panel Indicators ...................................................................................4
Intelligent Multi\bInformation Display (i\bMID) .....................................................6
Eco Assist
TM*.............................................................................................................
.8
Tire Pre ssure Monitoring System (TPMS)...........................................................9
Auto Door Locks ...................................................................................................\f0
One\bTouch Turn Signal........................................................................................... \f\f
Auto Headlights with Wiper Integration...........................................................\f\f
Rearview Camera ................................................................................................... \f2
LaneWatch™*.........................................................................................................\f3
Display Audio ...........................................................................................................\f4
\bluetooth
®HandsFreeLink®(HFL)........................................................................\f6

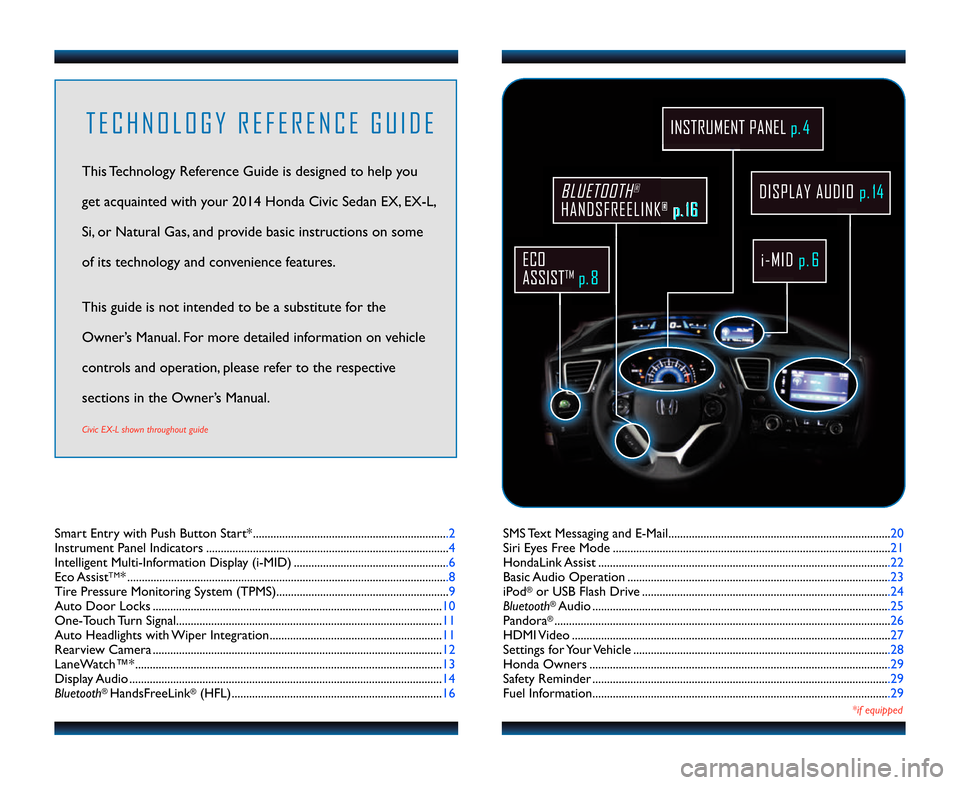

T E C H N O L O G Y R E F E R E N C E G U I D E
This Technology Reference Guide is designed to help you
get acquainted with your 20\f4 Honda Civic Sedan EX, EX\bL,
Si, or Natural Gas, and provide basic instructions on some
of its technology and convenience features.
This guide is not intended to be a substitute \2for the
Owner’s Manual. For more detailed information on vehicle
controls and operation, please refer to the respective
sections in the Owner’s Manual.
Civic EXL shown throughout guide
ECO
ASSIST
TMp. 8
BLUETOOTH®
HANDSFREELINK®p. \b\f
INSTRUMENT PANEL p. 4
iMIDp. \f
DISPLAY AUDIO p.\b4
*if equipped
14 Civic 4D TRG_EX EX\AL Si NG_ATG_NEW STYL\AE 10/21/2013 8\f59\A AM Page 2
p.\b\f

Accessory or On Mode
Press ENGINE START/STOP once without pressing the brake pedal for Accessory
mode. Press it again for On mode.
Starting the Engine
Press and hold the brake pedal*, then press ENGINE START/STOP.*\for manual transmission, press and hold the clutch.
Turning the Vehicle Off
Shift to Park*, then press ENGINE START/STOP.*\for manual transmission, apply the parking brake.
Note:If you press ENGINE START/STOP and the shift lever is not in Park, the vehicle goes
into Accessory mode.

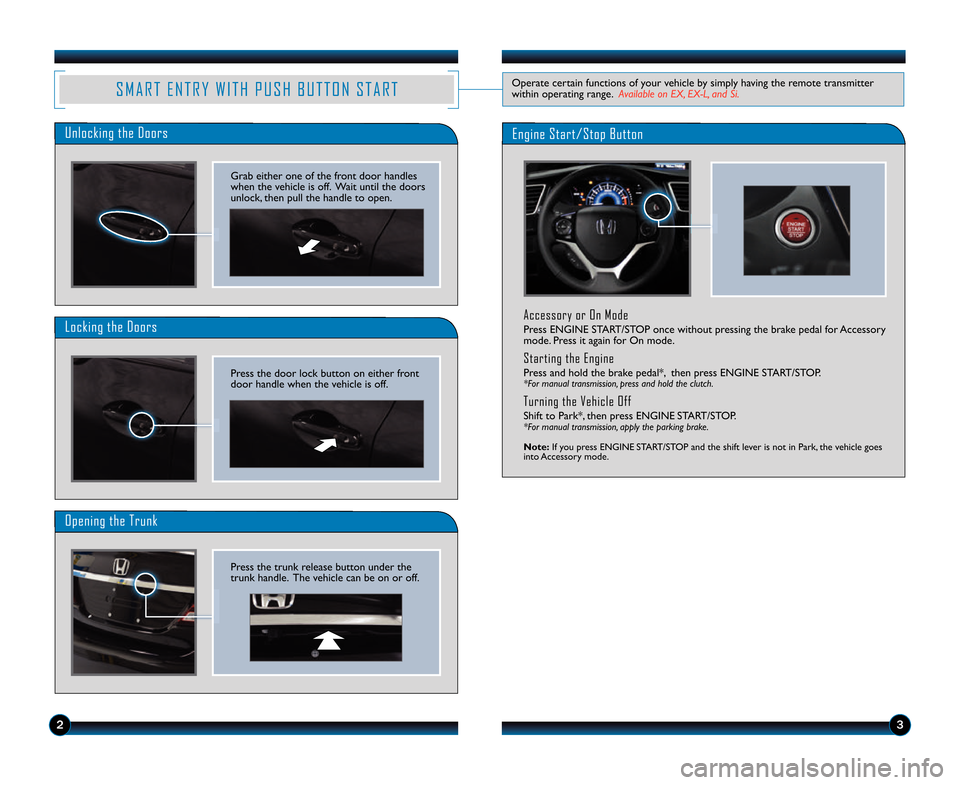

S M A R T E N T R Y W I T H P U S H B U T T O N S T A R TOperate certain functions of your vehicle by simply having the remote transmitter
within operating range. Available on EX, EXL, and Si.
Unlocking the Doors
Locking the Doors
Opening the Trunk
Engine Start/Stop Button
23
Grab either one of the front door handles
when the vehicle is off. Wait until the doors
unlock, then pull the handle to open.
Press the door lock button on either front
door handle when the vehicle is off.
Press the trunk release button under the
trunk handle. The vehicle can be on or off.
14 Civic 4D TRG_EX EX\AL Si NG_ATG_NEW STYL\AE 10/21/2013 8\f59\A AM Page 3

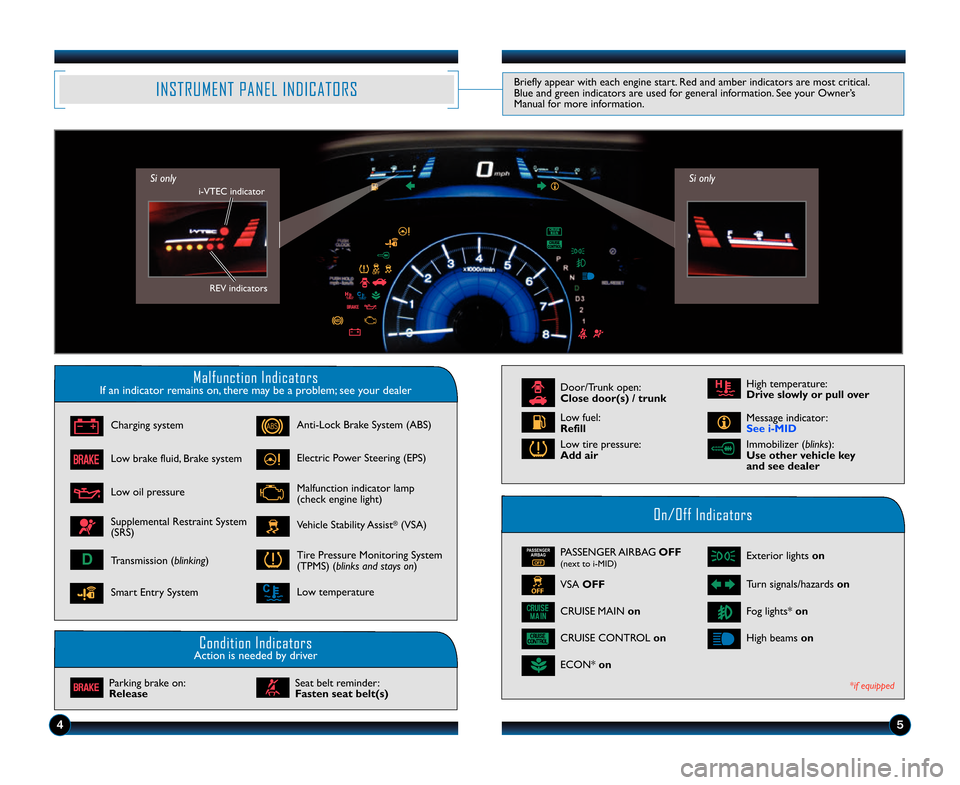

Malfunction IndicatorsIf an indicator remains on, there may be a problem; see your dealer
On/Off Indicators
Condition IndicatorsAction is needed by driver
PASSENGERAIRBAG
OFFPASSENGER AIRBAG OFF(next to i\bMID)
VSA OFF
CRUISE CONTROL on
Exterior lights on
Turn signals/hazards on
ECON* on
Fog lights* on
High beams on
Charging system
Low brake fluid, Brake system
Low oil pressure
Anti\bLock Brake System (ABS)
Vehicle Stability Assist®(VSA)
Supplemental Restraint System
(SRS)
Electric Power Steering (EPS)
Low temperature
Transmission (blinking)
Parking brake on:
Release
Low fuel:
Refill
Low tire pressure:
Add air
INSTRUMENT PANEL INDICATORS
Immobilizer (blinks):
Use other vehicle key
and see dealer
Briefly appear with each engine start. Red and amber indicators are most critical.
Blue and green indicators are used for general information. See your Owner’s
Manual for more information.
45
Malfunction indicator lamp
(check engine light)
Seat belt reminder:
Fasten seat belt(s) *if equipped
Si only
i\bVTEC indicator
Si only
REV indicators
D
Message indicator:
See iMID
Door/Trunk open:
Close door(s) / trunkHigh temperature:
Drive slowly or pull over
Tire Pressure Monitoring System
(TPMS) (blinks and stays on)
CRUISE MAIN on
Smart Entry System
14 Civic 4D TRG_EX EX\AL Si NG_ATG_NEW STYL\AE 10/21/2013 8\f59\A AM Page 4

67

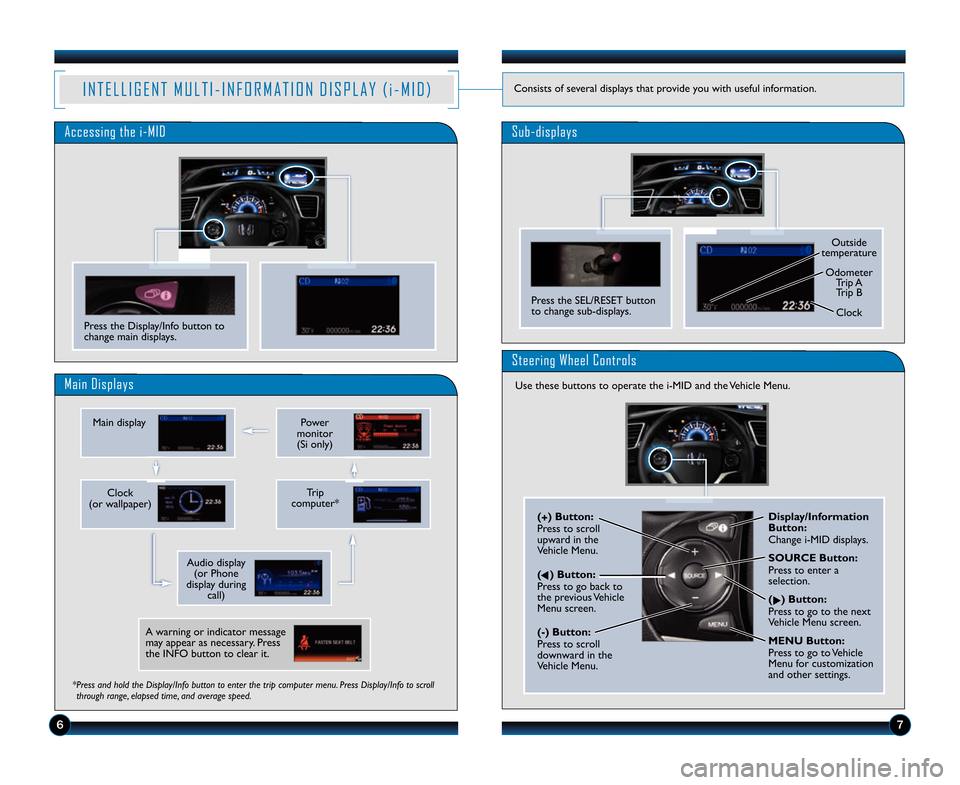

I N T E L L I G E N T M U L T I I N F O R M A T I O N D I S P L A Y ( i M I D )Consists of several displays that provide you with useful information.
Clock
(or wallpaper)Trip
computer*
Main Displays
Main display Power
monitor (Si only)
Subdisplays
Press the SEL/RESET button
to change sub\bdisplays.
Outside
temperature
Odometer Trip A Trip B
Clock
Accessing the iMID
Press the Display/Info button to
change main displays.
A warning or indicator message
may appear as necessary. Press
the INFO button to clear it. Audio display
(or Phone
display during call)
Steering Wheel Controls
(+ ) \futton:
Press to scroll
upward in the
Vehicle Menu.
(
t) \futton:
Press to go back to
the previous Vehicle
Menu screen.
() \futton:
Press to scroll
downward in the
Vehicle Menu. Display/Information
\futton:
Change i\bMID displays.
SOURCE \futton:
Press to enter a
selection.
(
u) \futton:
Press to go to the next
Vehicle Menu screen.
MENU \futton:
Press to go to Vehicle
Menu for customization
and other settings.
Use these buttons to operate the i\bMID and \2the Vehicle Menu.
*Press and hold the Display/Info button to enter the trip computer menu. Press Display/Info to scroll
through range, elapsed time, and average speed.
14 Civic 4D TRG_EX EX\AL Si NG_ATG_NEW STYL\AE 10/21/2013 8\f59\A AM Page 5

\b9

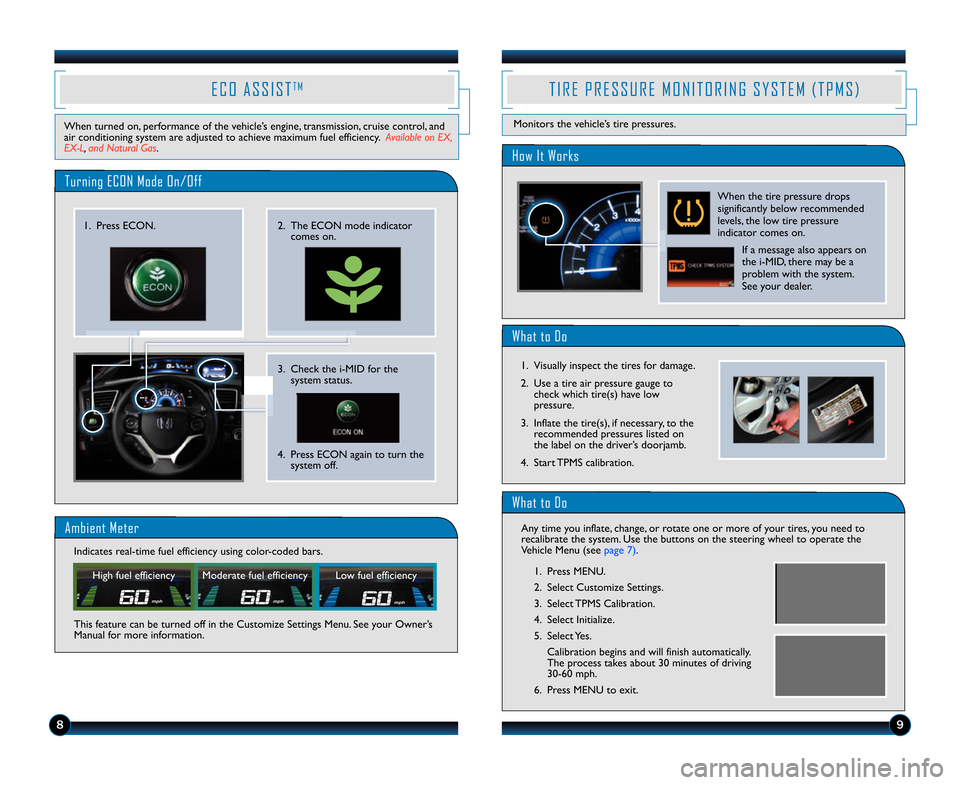

T I R E P R E S S U R E M O N I T O R I N G S Y S T E M ( T P M S )
Monitors the vehicle’s tire pressures.
Turning ECON Mode On/Off
3. Check the i\bMID for thesystem status.
4. Press ECON again to turn the system off.
E C O A S S I S TT M
When turned on, performance of the vehicle’s engine, transmission, cruise control, and
air conditioning system are adjusted to achieve maximum fuel efficiency. Available on EX,
EXL, and Natural Gas .
2. The ECON mode indicator
comes on.
Ambient Meter
mphmphmph
High fuel efficiency Moderate fuel efficiency Low fuel efficiency
\f. Press ECON.
Indicates real\btime fuel efficiency using color\bcoded bars.
This feature can be turned off in the Customize Settings\2 Menu. See your Owner’s
Manual for more information.
What to Do
\f. Visually inspect the tires for damage.
2. Use a tire air pressure gauge tocheck which tire(s) have low
pressure.
3. Inflate the tire(s), if necessary, to the recommended pressures listed on
the label on the driver’s doorjamb.
4. Start TPMS calibration.
How It Works
When the tire pressure drops
significantly below recommended
levels, the low tire pressure
indicator comes on. If a message also appears on
the i\bMID, there may be a
problem with the system.
See your dealer.
What to Do
\f. Press MENU.
2. Select Customize Settings.
3. Select TPMS Calibration.
4. Select Initialize.
5. Select Yes.Calibration begins and will finish automatically.
The process takes about 30 minutes of driving
30\b60 mph.
6. Press MENU to exit.
Any time you inflate, change, or rotate one or more of your tires, you need to
recalibrate the system. Use the buttons on the steering wheel to op\2erate the
Vehicle Menu (see page 7).
14 Civic 4D TRG_EX EX\AL Si NG_ATG_NEW STYL\AE 10/21/2013 8\f59\A AM Page \b

1011

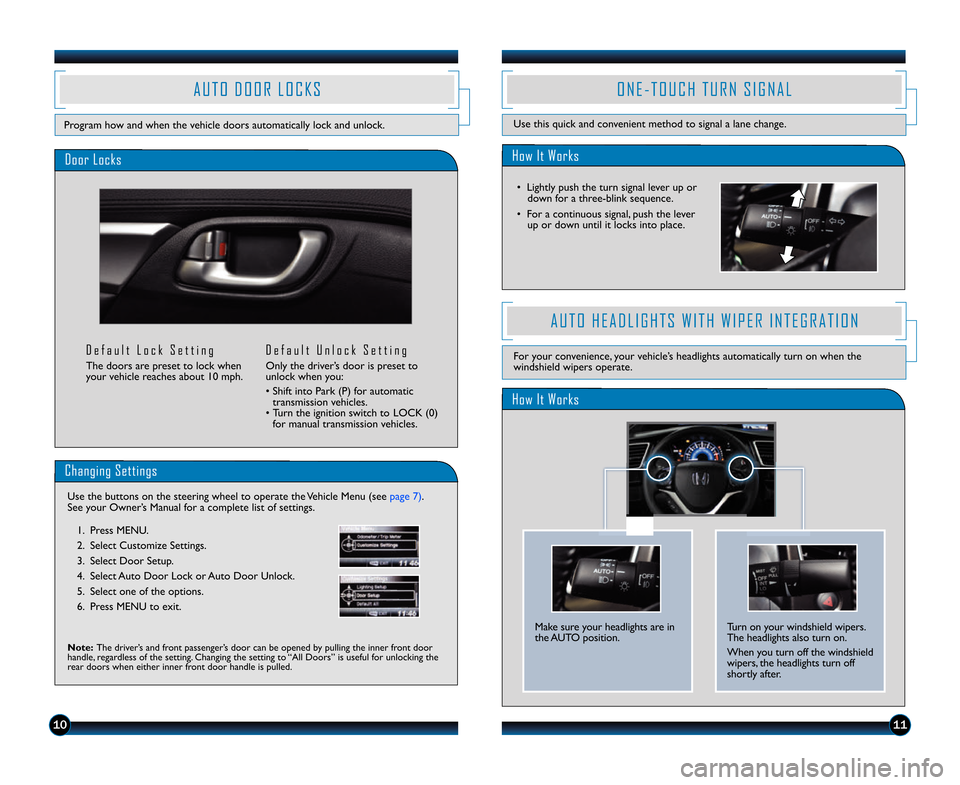

A U T O D O O R L O C K S
Changing Settings
Use the buttons on the steering wheel to operat\2e the Vehicle Menu (see page 7).
See your Owner’s Manual for a complete list of settings.
Note: The driver’s and front passenger’s door can be opened by pulling the inner front door
handle, regardless of the setting. Changing the setting to “All Doors” is useful for unlocking the
rear doors when either inner front door handle is pulled.
\f. Press MENU.
2. Select Customize Settings.
3. Select Door Setup.
4 . Select Auto Door Lock or Auto Door Unlock.
5. Select one of the options.
6. Press MENU to exit.
Door Locks
D e f a u l t L o c k S e t t i n g
The doors are preset to lock when
your vehicle reaches about \f0 mph.
D e f a u l t U n l o c k S e t t i n g
Only the driver’s door is preset to
unlock when you:
• Shift into Park (P) for automatic transmission vehicles.
• Turn the ignition switch to LOCK (0) for manual transmission vehicles.
Program how and when the vehicle doors automatically lock and unlock.
How It Works
A U T O H E A D L I G H T S W I T H W I P E R I N T E G R A T I O N
For your convenience, your vehicle’s headlights automatically turn on when the
windshield wipers operate.
Make sure your headlights are in
the AUTO position. Turn on your windshield wipers.
The headlights also turn on.
When you turn off the windshield
wipers, the headlights turn off
shortly after.
How It Works
O N E T O U C H T U R N S I G N A L
Use this quick and convenient method to signal a lane change.
• Lightly push the turn signal lever up or
down for a three\bblink sequence.
• For a continuous signal, push the lever up or down until it locks into place.
14 Civic 4D TRG_EX EX\AL Si NG_ATG_NEW STYL\AE 10/21/2013 9\f00\A AM Page 7

1213

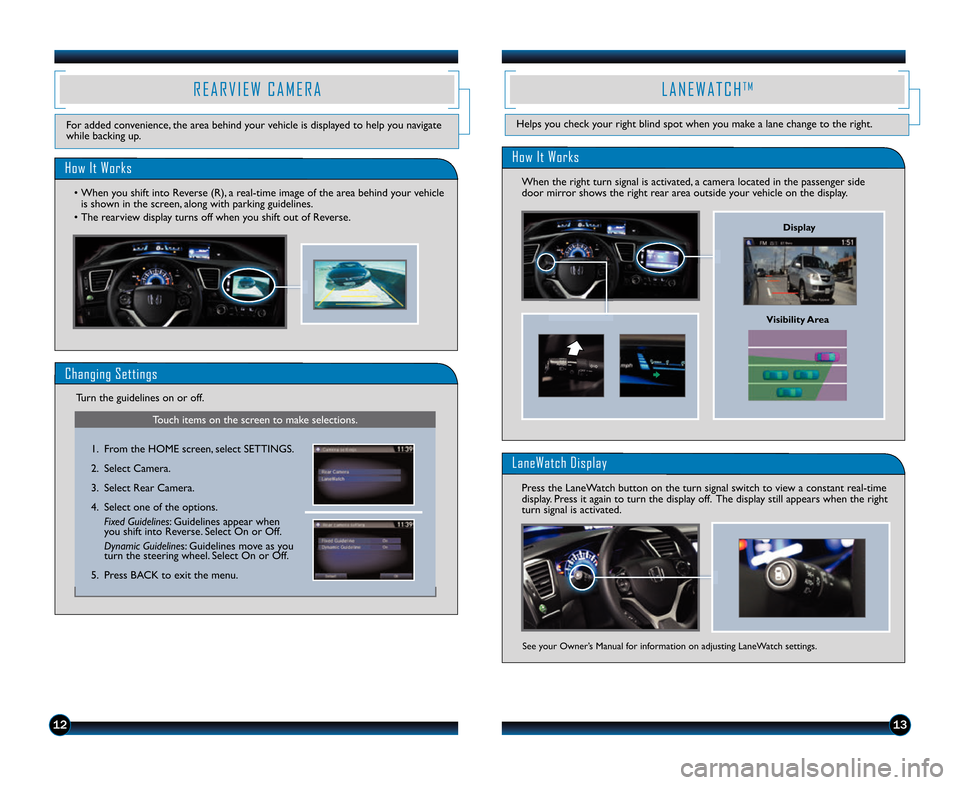

R E A R V I E W C A M E R A
For added convenience, the area behind your vehicle is displayed to help you navigate
while backing up.
How It Works
• When you shift into Reverse (R), a real\btime image of the area behind your vehicleis shown in the screen, along with parking guidelines.
• The rearview display turns off when you shift out of Reverse.
Helps you check your right blind spot when you make a lane change to the right.
L A N E W A T C HT M
Visibility Area
How It Works
When the right turn signal is activated, a camera located in the passenger side
door mirror shows the right rear area outside your vehicle on the display.
LaneWatch Display
Press the LaneWatch button on the turn signal switch to view a constant real\btime
display. Press it again to turn the display off. The display still appears when the right
turn signal is activated.
See your Owner’s Manual for information on adjusting LaneWatch settings.
Display
Changing Settings
Turn the guidelines on or off.
Touch items on the screen to make selections.
\f. From the HOME screen, select SETTINGS.
2. Select Camera.
3. Select Rear Camera.
4. Select one of the options. \fixed Guidelines: Guidelines appear when
you shift into Reverse. Select On or Off.
Dynamic Guidelines: Guidelines move as you
turn the steering wheel. Select On or Off.
5. Press BACK to exit the menu.
14 Civic 4D TRG_EX EX\AL Si NG_ATG_NEW STYL\AE 10/21/2013 9\f00\A AM Page 8

1415

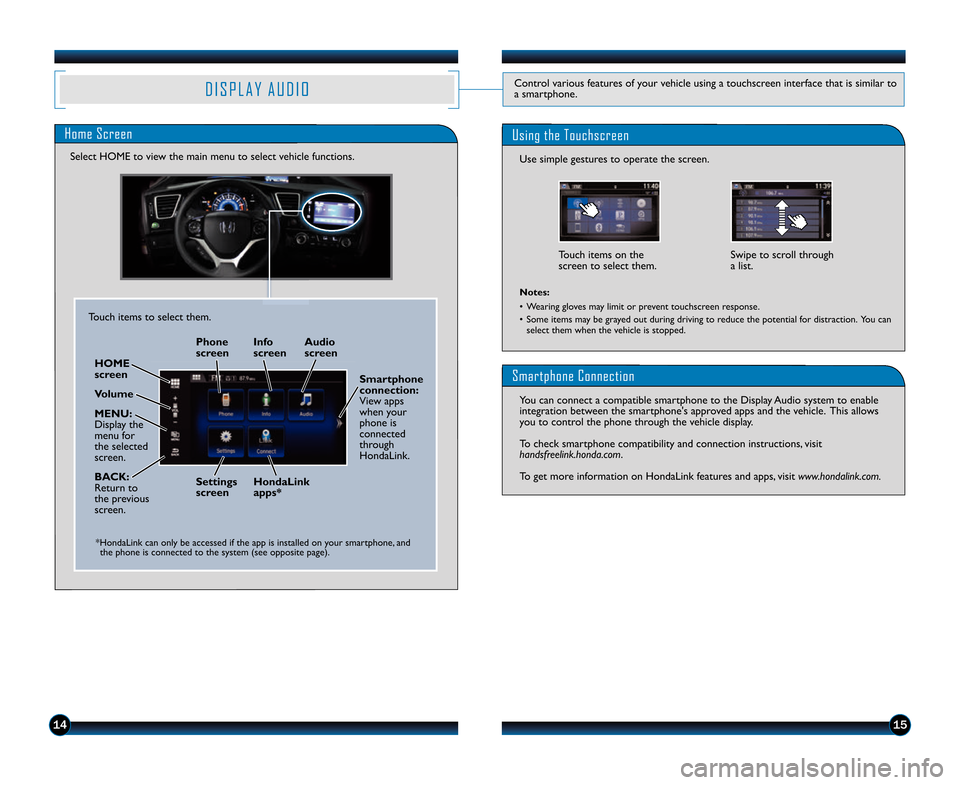

D I S P L A Y A U D I OControl various features of your vehicle using a touchscreen interface that is similar to
a smartphone.
Home Screen
Select HOME to view the main menu to select vehicle functions.
Using the Touchscreen
Use simple gestures to operate the screen.Touch items on the
screen to select them. Swipe to scroll through
a list.
Notes:
• Wearing gloves may limit or prevent touchscreen response.
• Some items may be grayed out during driving to reduce the potential for distraction. You can
select them when the vehicle is stopped.
Smartphone Connection
You can connect a compatible smartphone to the Display Audio system to enable
integration between the smartphone's approved apps and the vehicle. This allows
you to control the phone through the vehicle display.
To check smartphone compatibility and connection instructions, visit
handsfreelink.honda.com.
To get more information on HondaLink features and apps, visit www.hondalink.com.
Touch items to select them.
HOME
screen
Volume
MENU:
Display the
menu for
the selected
screen.
\fACK:
Return to
the previous
screen. Smartphone
connection:
View apps
when your
phone is
connected
through
HondaLink.
Phone
screen
Info
screenAudio
screen
Settings
screen HondaLink
apps*
*HondaLink can only be accessed if the app is installed on your smartphone, and
the phone is connected to the system (see opposite page).
14 Civic 4D TRG_EX EX\AL Si NG_ATG_NEW STYL\AE 10/21/2013 9\f00\A AM Page 9

1617
B L U E T O O T H® H A N D S F R E E L I N K® ( H F L )
How to Use HFL
Place and receive phone calls through your vehicle’s audio system. Visit
handsfreelink.honda.comto check if this feature is compatible with your phone.
To reduce the potential for driver distraction, certain functions may be
inoperable or grayed out while the vehicle is moving\b Stop or pull over to
perform the function\b
PickUp button: Answer an incoming
call.
HangUp/\fack button: End a call,
decline an incoming call, or cancel a
selection.
Talk button: Make a call using a stored
voice tag or phone number.
+/ buttons: Scroll the list.
SOURCE button: Press to enter a selection.
MENU button: From the phone screen, press and
hold to display speed dial, call history, or redial.
Touch items on the screen to make selections.
Pairing Your Phone
Pair your phone when the vehicle is stopped to begin using hands\bfree phone and
related audio functions.
\f. From the Home screen, select Settings.
2. Select Phone.
3. Select Bluetooth Device List.
4. Select Add Bluetooth Device.
5. Make sure your phone is in discoverymode and select OK.
6. HFL searches for your phone. Select your phone when it appears on the list.
If your phone does not appear\G:
Select Phone Not Found and search for
HandsFreeLink from your phone.
7. HFL gives you a six\bdigit code. Compare it to the code that appears on your
phone. Connect to HFL from your
phone.
8. The system asks if you want to enable options:
HondaLink Assist: Select On to enable
emergency notification in the event of a
collision (see page 22).
Phone Synchronization: Select On to
automatically import contacts and call
history from your phone.
Phone: Display the phone screen.
Settings: Display the settings
screen and select Phone for phone
pairing and more.
MENU: From the phone screen,
select various call options.
\fACK: Return to the previous
screen.
14 Civic 4D TRG_EX EX\AL Si NG_ATG_NEW STYL\AE 10/21/2013 9\f00\A AM Page 10
