■Vehicle Specifications
*1: LX models
*2: EX and U.S. EX-L models
*3: Canadian EX-L models
*4: Manual transmission models
*5: Automatic transmission (CVT) models
ModelHonda Civic 2-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 3,682 lbs (1,670 kg)*1, *4
Canada: 1,670 kg*1, *4
U.S.: 3,704 lbs (1,680 kg)*1, *5
Canada: 1,680 kg*1, *5
U.S.: 3,792 lbs (1,720 kg)*2, *3
Canada: 1,720 kg*2, *3
Gross Axle Weight
Rating (Front)U.S.: 1,985 lbs (900 kg)*1, *4
Canada: 900 kg*1, *4
U.S.: 1,996 lbs (905 kg)*1, *5
Canada: 910 kg*1, *5
U.S.: 2,040 lbs (925 kg)*2
Canada: 925 kg*2
Canada: 930 kg*3
Gross Axle Weight
Rating (Rear)U.S.: 1,742 lbs (790 kg)*1
Canada: 790 kg*1
U.S.: 1,786 lbs (810 kg)*2, *3
Canada: 810 kg*2, *3
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-10
1.8 ℓ engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement110 cu-in (1,798 cm3)
Spark Plugs NGK DILZKR7B11GS
DENSO DXU22HCR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
*6: LX and Canadian EX models
*7: EX-L and U.S. EX models
Headlights (Low Beam)55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights*55W (H11)
Front Turn Signal/Parking/Side
Marker Lights 28/8W
Brake/Taillights21/5W
Rear Side Marker Light 5W
Back-Up Lights16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake Light*621W
High-Mount Brake Light*7LEDRear License Plate Light5W
Trunk Light 5W
Interior LightsMap Lights8WCeiling Light8W
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 418 ページ ２０１４年１月２９日　水曜日　午後８時９分

419
uuSpecifications u
Continued
Information
■Brake/Clutch Fluid
■ Automatic Transmission (CVT) Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHCF-2
Capacity Change 3.6 US qt (3.4 ℓ)
SpecifiedHonda Manual Transmission Fluid
Capacity Change 1.5 US qt (1.4 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.7 US qt (3.5 ℓ)
Change
including
filter
3.9 US qt (3.7 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.48 US gal (5.59 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire
*1: Except EX-L model
*2: EX-L model
RegularSizeP205/55R16 89H*1
P215/45R17 87V*2
Pressure
psi(kPa[kgf/cm2])32 (220 [2.2])
Compact
Spare Size
T135/80D15 99M
Pressure
psi(kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular16 x 6 1/2J*1
17 x 7J*2
Compact Spare15 x 4T
14 CIVIC 2D_SI-31TS86210.book 419 ページ ２０１４年１月２９日　水曜日　午後８時９分

420
uuSpecifications u
Information
■Vehicle Specifications
ModelHonda Civic 2-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 3,925 lbs (1,780 kg)
Canada: 1,780 kg
Gross Axle Weight
Rating (Front)U.S.: 2,117 lbs (960 kg)
Canada: 960 kg
Gross Axle Weight
Rating (Rear)U.S.: 1,830 lbs (830 kg)
Canada: 830 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-10
2.4 ℓ engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,354 cm3)
Spark Plugs NGK ILZKR7B-11S
DENSO SXU22HCR11S
Fuel:
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
Headlights (Low Beam)55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights55W (H11)
Front Turn Signal/Parking/Side
Marker Lights 28/8W
Brake/Taillights21/5W
Rear Side Marker Light 5W
Back-Up Lights16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake LightLED
Rear License Plate Light 5W
Trunk Light5W
Interior Lights Map Lights 8W
Ceiling Light 8W
14 CIVIC 2D_SI-31TS86210.book 420 ページ ２０１４年１月２９日　水曜日　午後８時９分

421
uuSpecifications u
Information
■Brake/Clutch Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Manual Transmission Fluid
Capacity Change 2.0 US qt (1.9 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.45 US gal (5.5 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire
*1: Optional for U.S. models (summer tires)
RegularSize225/40R18 92V
225/40R18 92Y*1
Pressure
psi(kPa[kgf/cm2])33 (230 [2.3])
32 (220 [2.2])*1
Compact
Spare Size
T135/80D16 101M
Pressure
psi(kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular18 x 7 1/2JCompact Spare16 x 4T
14 CIVIC 2D_SI-31TS86210.book 421 ページ ２０１４年１月２９日　水曜日　午後８時９分

422
Information
Identification Numbers
Vehicle Identification Number (VIN)
Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licen sing and insuring your vehicle. See the
image below for the VIN locations.

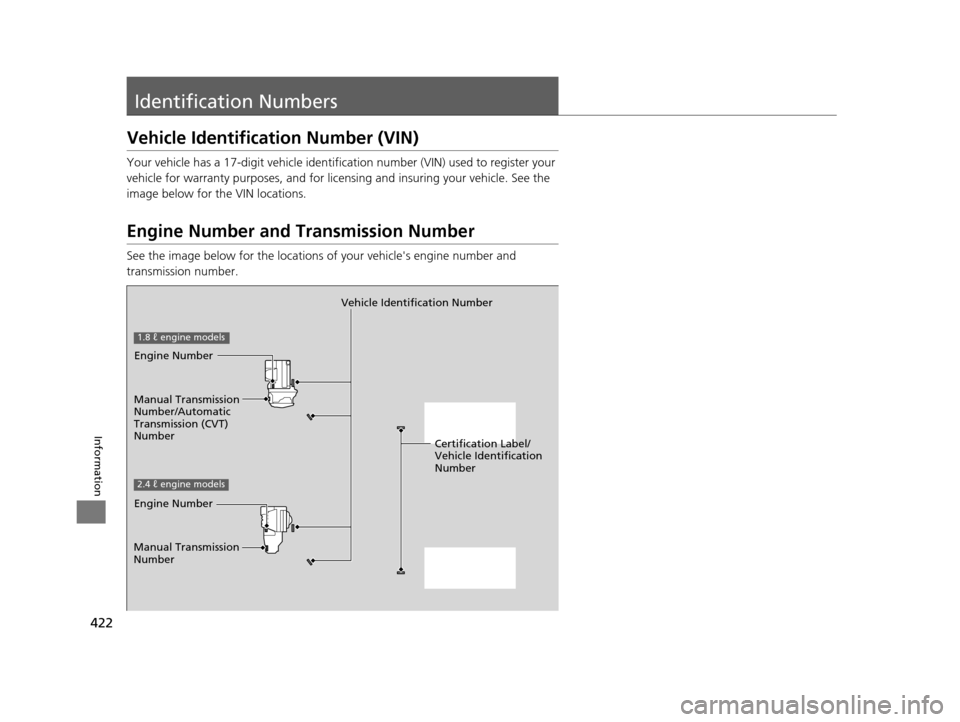

Engine Number and Transmission Number
See the image below for the locations of your vehicle's engine number and
transmission number.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
Manual Transmission
Number/Automatic
Transmission (CVT)
Number
2.4 ℓ engine models
1.8 ℓ engine models
Engine Number
Manual Transmission
Number
14 CIVIC 2D_SI-31TS86210.book 422 ページ ２０１４年１月２９日　水曜日　午後８時９分

425Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if your vehicle's emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engi ne off for six hours or more.
3. Make sure the ambient temperature is between 40 °F and 95 °F (4 °C and 35 °C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (CVT) or (N (manual transmission). Increase the engine
speed to 2,000 rpm, and hold it there for about three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
14 CIVIC 2D_SI-31TS86210.book 425 ページ ２０１４年１月２９日　水曜日　午後８時９分

426
uuEmissions Testing uTesting of Readiness Codes
Information

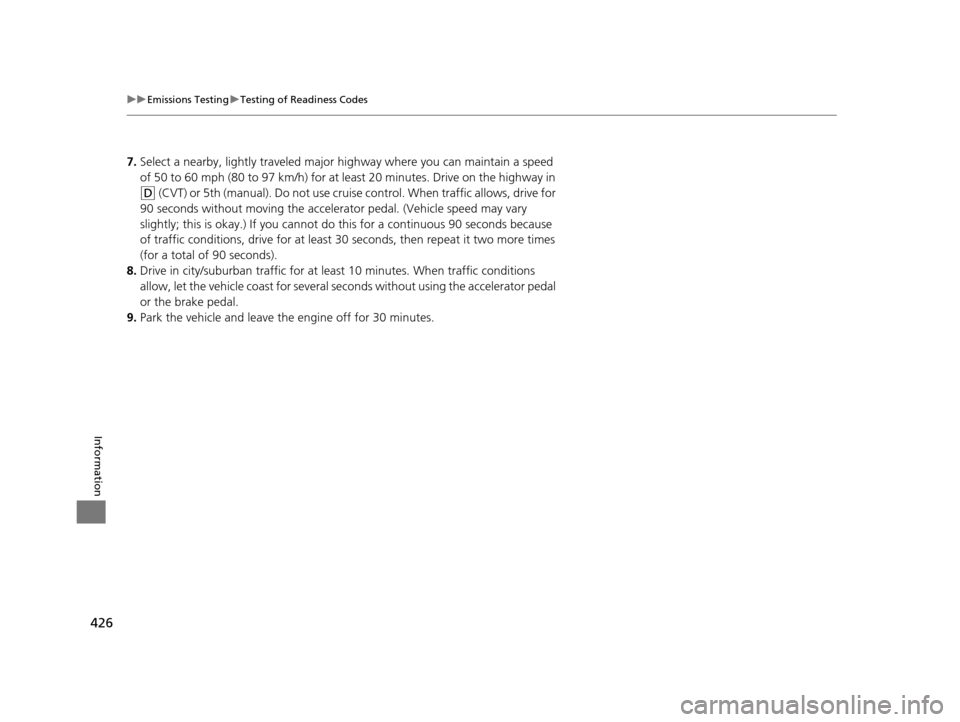

7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D (CVT) or 5th (manual). Do not use cruise control. When traffic allows, drive for
90 seconds without moving the accelerator pedal. (Vehicle speed may vary
slightly; this is okay.) If you cannot do this for a continuous 90 seconds because
of traffic conditions, drive for at least 30 seconds, then repeat it two more times
(for a total of 90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
14 CIVIC 2D_SI-31TS86210.book 426 ページ ２０１４年１月２９日　水曜日　午後８時９分

Index
431
Index
Index
Numbers
7-Speed Manual Shift Mode................... 309
Operation ............................................... 310
A
ABS (Anti-lock Brake System) .................. 328
Accessories and Modifications ................ 336
Accessory Power Socket ........................... 150
Additives
Coolant .................................................. 355
Engine Oil ............................................... 348
Washer ................................................... 359
Adjusting Armrest .................................................. 144
Clock ...................................................... 100
Front Seats.............................................. 137
Head Restraints ....................................... 139
Mirrors.................................................... 135
Rear Seats ............................................... 143
Steering Wheel ....................................... 134
Temperature ............................................. 86
Air Conditioning System (Climate Control System) .................................................... 155
Changing the Mode................................ 156
Defrosting the Windshield and Windows .............................................. 156
Dust and Pollen Filter .............................. 384
Recirculation/Fresh Air Mode................... 156 Sensor ..................................................... 157
Using Automatic Climate Control ............ 155
Air Conditioning System (Heating and Cooling System) ...................................... 152
Cooling ................................................... 154
Defrosting the Windshield and Windows ............................................... 154
Dust and Pollen Filter ............................... 384
Heating ................................................... 153
Air Pressure ............................... 373, 419, 421
Airbags ........................................................ 37
Advanced Airbags ..................................... 43
After a Collision ......................................... 40
Airbag Care ............................................... 49
Event Data Recorder .................................. 22
Front Airbags (SRS) .................................... 40
Indicator .............................................. 47, 70
Passenger Airbag Off Indicator .................. 48
Sensors ...................................................... 37
Side Airbags .............................................. 44
Side Curtain Airbags .................................. 46
AM/FM Radio .................................... 168, 191
Anti-lock Brake System (ABS) .................. 328
Indicator .................................................... 69
Armrest ..................................................... 144
Audio Remote Controls ............................ 164
Audio System ............................................ 160
Adjusting the Sound ........................ 167, 189
Auxiliary Input Jack .................................. 162 Error Messages ........................................ 211
General Information ................................ 217
Internet Radio ................................. 177, 200
iPod ........................................................ 197
MP3/WMA/AAC ...................... 179, 202, 207
Reactivating ............................................ 163
Recommended CDs ................................. 217
Recommended Devices............................ 219
Remote Controls ..................................... 164
Security Code .......................................... 163
Theft Protection ...................................... 163
USB Adapter Cable.......................... 161, 162
USB Flash Drives ...................................... 219
USB/HDMI
® Port ...................................... 161
Authorized Manuals ................................ 429
Auto Door Locking/Unlocking ................. 112
Customize ................................................. 94
Automatic Lighting .................................. 128
Automatic Transmission
Creeping ................................................. 304
Kickdown ................................................ 304
Shift Lever Does Not Move ...................... 406
Automatic Transmission (CVT) ................. 304
Fluid ........................................................ 357
Operating the Shift Lever........... 16, 306, 308
Shifting ........................................... 305, 307
Auxiliary Input Jack .................................. 162
Average Fuel Economy .............................. 85
Average Speed ........................................... 85
14 CIVIC 2D_SI-31TS86210.book 431 ページ ２０１４年１月２９日　水曜日　午後８時９分

432
Index
B
Battery....................................................... 381
Charging System Indicator ................. 67, 409
Jump Starting .......................................... 403
Maintenance (Checking the Battery) ........ 381
Maintenance (Replacing).......................... 382
Belts (Seat) .................................................. 30
Beverage Holders ...................................... 149
Bluetooth ® Audio ............................. 182, 205
Bluetooth ® HandsFreeLink ®............. 233, 264
Booster Seats (For Children) ....................... 61
Brake System ............................................. 326
Anti-lock Brake System (ABS) ................... 328
Brake Assist System ................................. 329
Fluid ........................................................ 358
Foot Brake ............................................... 327
Indicator .................................................... 66
Indicator (Amber)....................................... 66
Indicator (Red) ......................................... 411
Parking Brake .......................................... 326
Brake System Indicator (Amber) ................ 66
Brightness Control (Instrument Panel) .... 132
Bulb Replacement ..................................... 360
Brake Lights, Taillights, Re ar Side Marker lights,
Back-Up Lights and Rear Turn Signal
Lights..................................................... 367
Fog Lights ................................................ 364
Front Turn Signal/Par king/Side Marker
Lights..................................................... 365
Headlights ............................................... 360
High-Mount Brake Light .......................... 369 Rear License Plate Light ........................... 368
Bulb Specifications ........................... 418, 420
C
Carbon Monoxide Gas ............................... 62
Carrying Cargo ................................. 293, 295
CD Player ........................................... 171, 194
Center Pocket ........................................... 148
Certification Label .................................... 422
Changing Bulbs ........................................ 360
Charging System Indicator ................. 67, 409
Child Safety ................................................. 50
Emergency Trunk Opener ........................ 115
Child Seat .................................................... 50
Booster Seats ............................................ 61
Child Seat for Infants................................. 52
Child Seat for Small Children ..................... 53
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 57
Larger Children ......................................... 60
Rear-facing Child Seat ............................... 52
Selecting a Child Seat ................................ 54
Using a Tether ........................................... 59
Cleaning the Exterior ............................... 387
Cleaning the Interior ................................ 385
Climate Control System ............................ 155
Changing the Mode ................................ 155
Defrosting the Windshield and Windows ............................................... 156
Dust and Pollen Filter............................... 384 Recirculation/Fresh Air Mode................... 156
Sensors ................................................... 157
Using Automatic Climate Control............ 155
Clock ......................................................... 100
Clutch Fluid .............................................. 358
Coat Hook ................................................ 150
Compact Spare Tire .................. 393, 419, 421
Console Compartment ............................. 147
Controls ...................................................... 99
Coolant (Engine) ...................................... 355
Adding to the Radiator ........................... 356
Adding to the Reserve Tank .................... 355
High Temperature Indicator ...................... 70
Low Temperature Indicator ....................... 70
Overheating ............................................ 407
Creeping (Automatic Transmission) ........ 304
Cruise Control .......................................... 315
Indicator ................................................... 75
Cup Holders .............................................. 149
Customer Service Information ................ 430
Customized Features ......................... 87, 220
D
Daytime Running Lights .......................... 130
Dead Battery ............................................ 403
Defrosting the Windshield and
Windows ......................................... 154, 156
Devices that Emit Radio Waves ............... 423
Dimming
Headlights .............................................. 127
14 CIVIC 2D_SI-31TS86210.book 432 ページ ２０１４年１月２９日　水曜日　午後８時９分

433
Index
Rearview Mirror ...................................... 135
Dipstick (Engine Oil) ................................ 349
Directional Signals (Turn Signal) ............. 127
Display Button .......................................... 185
Display/Information Button ...................... 83
Door Mirrors ............................................. 135
Doors ........................................................ 102
Auto Door Locking.................................. 112
Auto Door Unlocking .............................. 112
Door Open Indicator ........................... 29, 71
Keys........................................................ 102
Locking/Unlocking the Doors from the Inside .............................................. 110
Locking/Unlocking the Doors from
the Outside ........................................... 105
Lockout Prevention System ..................... 109
DOT Tire Quality Grading ........................ 375
Driving ...................................................... 291
Automatic Transmission (CVT)................. 304
Braking ................................................... 326
Cruise Control ........................................ 315
Shifting Gear .......................................... 311
Shifting Position .............................. 305, 307
Starting the Engine ......................... 298, 300
Dust and Pollen Filter .............................. 384
E
Eco Assist System.......................................... 7
ECON Button ............................................ 314
Elapsed Time .............................................. 85 Electric Power Steering (EPS) System
Indicator ............................................ 72, 411
Electronic Stability Control (ESC) ............. 318
Emergency Engine Stop ........................... 402
Emergency Towing ................................... 416
Emergency Trunk Opener ........................ 115
Emissions Testing (Readiness Codes) ....... 425
Engine ....................................................... 422
Coolant ................................................... 355
Jump Starting .......................................... 403
Oil ........................................................... 348
Starting ........................................... 298, 300
Switch Buzzer .......................................... 122
Engine Coolant ......................................... 355
Adding to the Radiator ............................ 356
Adding to the Reserve Tank ..................... 355
High Temperature Indicator ....................... 70
Low Temperature Indicator ........................ 70
Overheating ............................................ 407
Engine Oil ................................................. 348
Adding .................................................... 351
Checking ................................................. 349
Displaying Oil Life .................................... 341
Low Oil Pressure Indicator .................. 67, 409
Recommended Engine Oil ........................ 348
ENGINE START/STOP Button .................... 123
Exhaust Gas Hazard (Carbon Monoxide) ................................................. 62
Expanded View Driver’s Mirror ............... 136
Exterior Care (Cleaning) ........................... 387
Exterior Mirrors ........................................ 135
F
Features.................................................... 159
Filters Dust and Pollen ....................................... 384
Oil ........................................................... 352
Flat Tire ..................................................... 393
Floor Mats ................................................. 386
Fluids
Brake/Clutch ........................................... 358
Continuously Variable Transmission (CVT) ..................................................... 357
Engine Coolant ....................................... 355
Manual Transmission ............................... 357
Windshield Washer ................................. 359
Fog Light Indicator ..................................... 73
Folding Down the Rear Seats .................. 143
Foot Brake ................................................ 327
Front Airbags (SRS) ..................................... 40
Front Seats ................................................ 137
Adjusting ................................................ 137
Fuel ...................................................... 17, 332
Economy ................................................. 335
Gauge ....................................................... 81
Instant Fuel Economy .......................... 81, 86
Low Fuel Indicator ..................................... 69
Range ....................................................... 85
Recommendation .................................... 332
Refueling................................................. 332
Fuel Economy ........................................... 335
Fuel Fill Cap ........................................ 17, 334
Message.................................................. 410
14 CIVIC 2D_SI-31TS86210.book 433 ページ ２０１４年１月２９日　水曜日　午後８時９分
