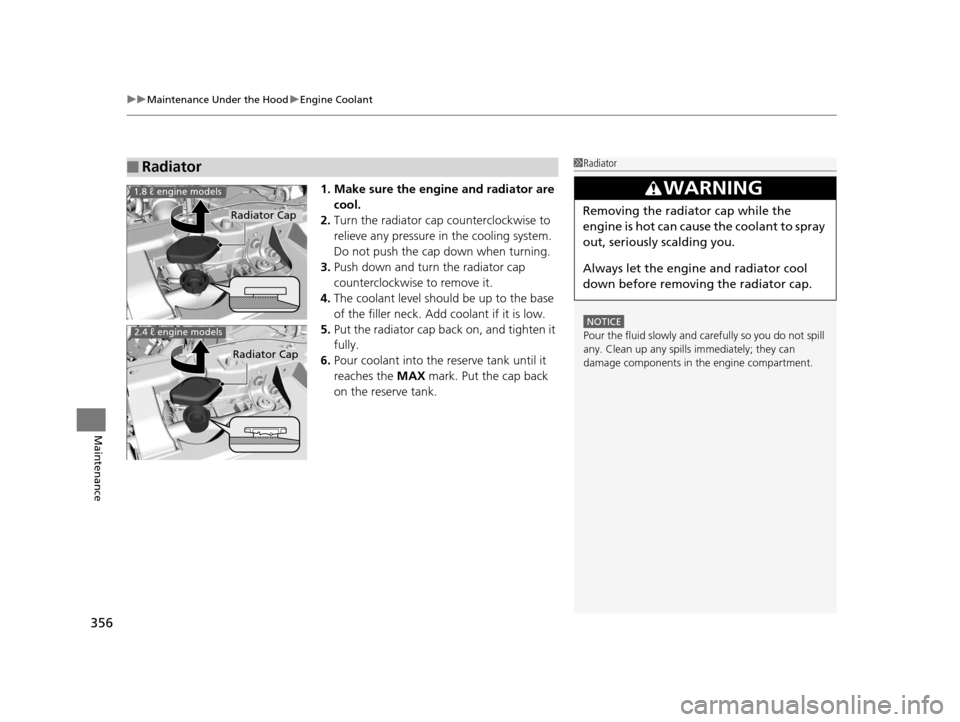

uuMaintenance Under the Hood uEngine Coolant
356
Maintenance
1. Make sure the engine and radiator are
cool.
2. Turn the radiator cap counterclockwise to
relieve any pressure in the cooling system.
Do not push the cap down when turning.
3. Push down and turn the radiator cap
counterclockwise to remove it.
4. The coolant level should be up to the base
of the filler neck. Add coolant if it is low.
5. Put the radiator cap back on, and tighten it
fully.
6. Pour coolant into the reserve tank until it
reaches the MAX mark. Put the cap back
on the reserve tank.
■Radiator1 Radiator
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.Radiator Cap
1.8 ℓ engine models
2.4 ℓ engine models
Radiator Cap
14 CIVIC 2D_SI-31TS86210.book 356 ページ ２０１４年１月２９日　水曜日　午後８時９分

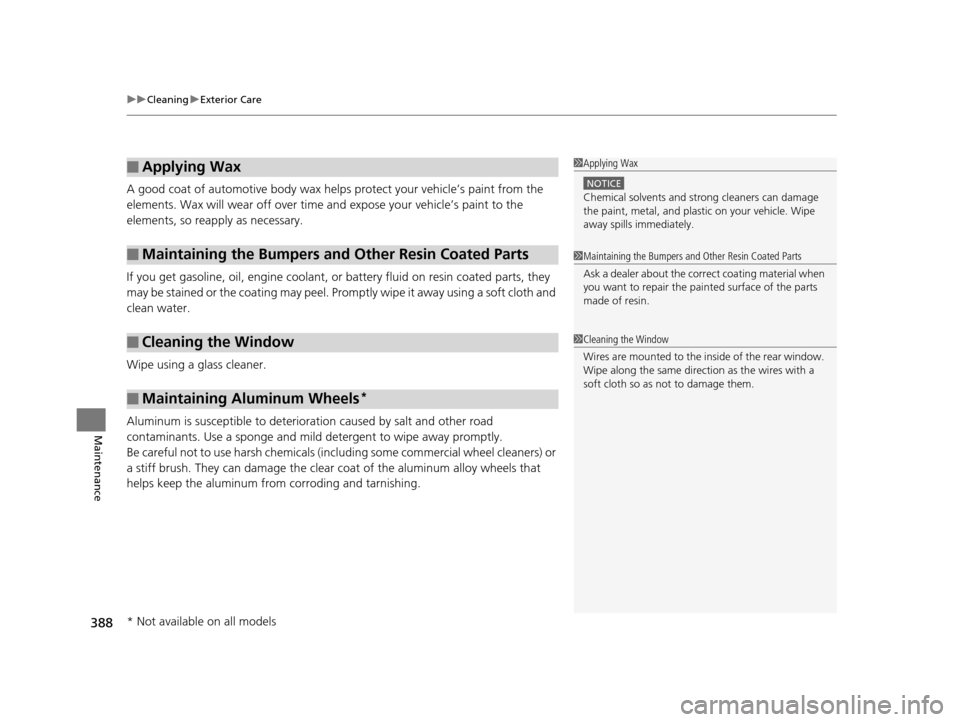

uuCleaning uExterior Care
388
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. Use a sponge and mild detergent to wipe away promptly.
Be careful not to use harsh chemicals (inc luding some commercial wheel cleaners) or
a stiff brush. They can damage the clear coat of the aluminum alloy wheels that
helps keep the aluminum from corroding and tarnishing.
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels*
1 Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the corr ect coating material when
you want to repair the painted surface of the parts
made of resin.
1 Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 388 ページ ２０１４年１月２９日　水曜日　午後８時９分

uuOverheating uHow to Handle Overheating
408
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the high temperature
indicator goes off.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, restart it and check the high temperature
indicator.
If the high temperature indicator is off, resume driving. If it stays on, contact a dealer
for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
MAX
Reserve TankMIN
14 CIVIC 2D_SI-31TS86210.book 408 ページ ２０１４年１月２９日　水曜日　午後８時９分

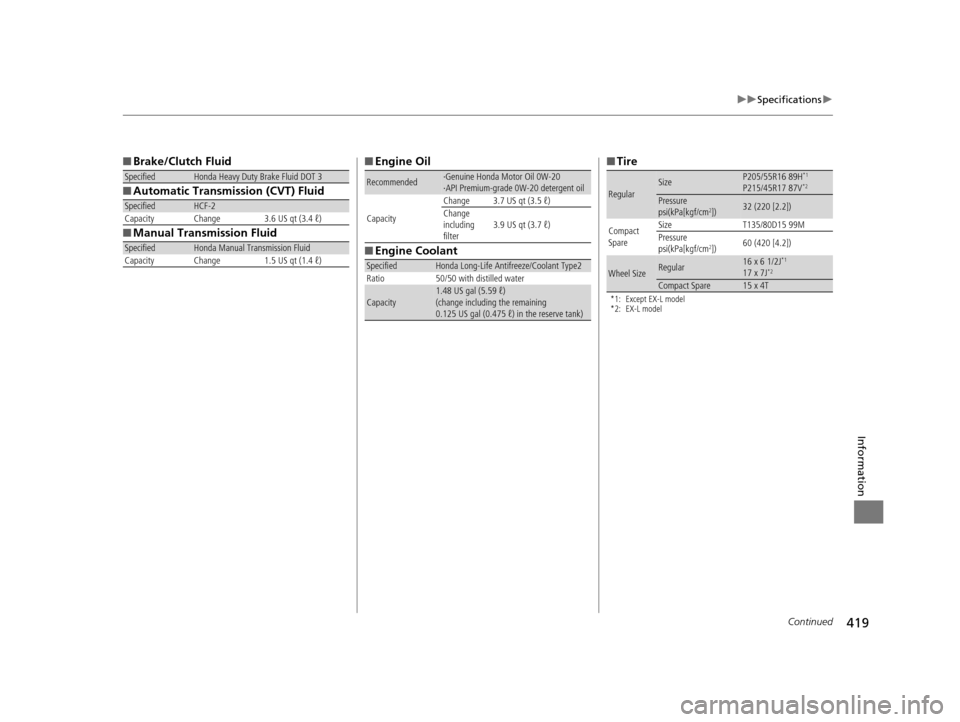

419
uuSpecifications u
Continued
Information
■Brake/Clutch Fluid
■ Automatic Transmission (CVT) Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHCF-2
Capacity Change 3.6 US qt (3.4 ℓ)
SpecifiedHonda Manual Transmission Fluid
Capacity Change 1.5 US qt (1.4 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.7 US qt (3.5 ℓ)
Change
including
filter
3.9 US qt (3.7 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.48 US gal (5.59 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire
*1: Except EX-L model
*2: EX-L model
RegularSizeP205/55R16 89H*1
P215/45R17 87V*2
Pressure
psi(kPa[kgf/cm2])32 (220 [2.2])
Compact
Spare Size
T135/80D15 99M
Pressure
psi(kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular16 x 6 1/2J*1
17 x 7J*2
Compact Spare15 x 4T
14 CIVIC 2D_SI-31TS86210.book 419 ページ ２０１４年１月２９日　水曜日　午後８時９分

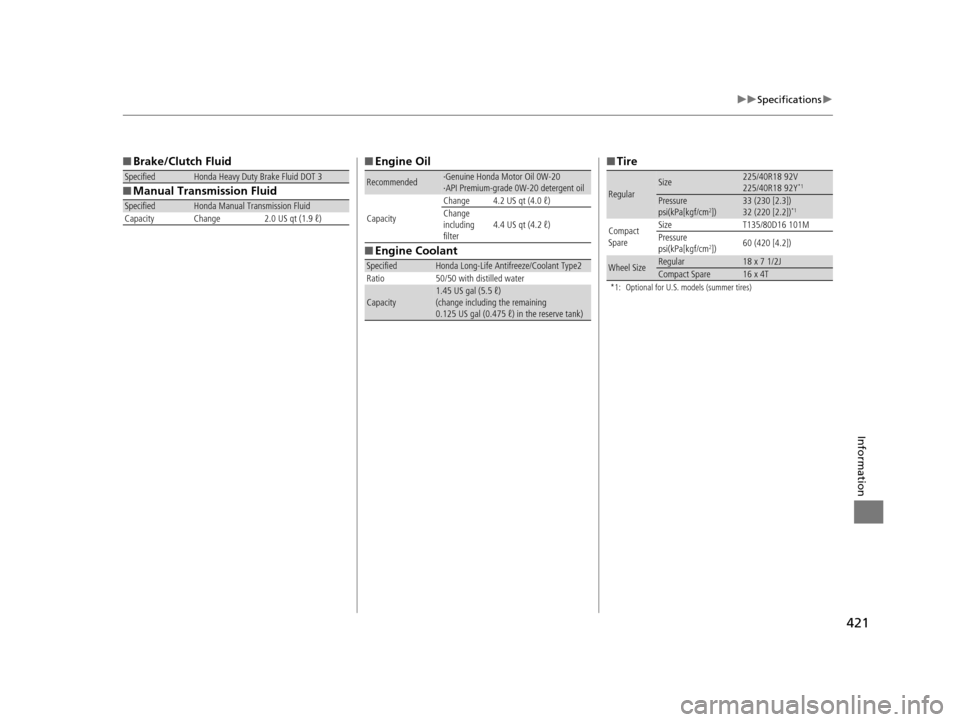

421
uuSpecifications u
Information
■Brake/Clutch Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Manual Transmission Fluid
Capacity Change 2.0 US qt (1.9 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.45 US gal (5.5 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire
*1: Optional for U.S. models (summer tires)
RegularSize225/40R18 92V
225/40R18 92Y*1
Pressure
psi(kPa[kgf/cm2])33 (230 [2.3])
32 (220 [2.2])*1
Compact
Spare Size
T135/80D16 101M
Pressure
psi(kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular18 x 7 1/2JCompact Spare16 x 4T
14 CIVIC 2D_SI-31TS86210.book 421 ページ ２０１４年１月２９日　水曜日　午後８時９分

Index
431
Index
Index
Numbers
7-Speed Manual Shift Mode................... 309
Operation ............................................... 310
A
ABS (Anti-lock Brake System) .................. 328
Accessories and Modifications ................ 336
Accessory Power Socket ........................... 150
Additives
Coolant .................................................. 355
Engine Oil ............................................... 348
Washer ................................................... 359
Adjusting Armrest .................................................. 144
Clock ...................................................... 100
Front Seats.............................................. 137
Head Restraints ....................................... 139
Mirrors.................................................... 135
Rear Seats ............................................... 143
Steering Wheel ....................................... 134
Temperature ............................................. 86
Air Conditioning System (Climate Control System) .................................................... 155
Changing the Mode................................ 156
Defrosting the Windshield and Windows .............................................. 156
Dust and Pollen Filter .............................. 384
Recirculation/Fresh Air Mode................... 156 Sensor ..................................................... 157
Using Automatic Climate Control ............ 155
Air Conditioning System (Heating and Cooling System) ...................................... 152
Cooling ................................................... 154
Defrosting the Windshield and Windows ............................................... 154
Dust and Pollen Filter ............................... 384
Heating ................................................... 153
Air Pressure ............................... 373, 419, 421
Airbags ........................................................ 37
Advanced Airbags ..................................... 43
After a Collision ......................................... 40
Airbag Care ............................................... 49
Event Data Recorder .................................. 22
Front Airbags (SRS) .................................... 40
Indicator .............................................. 47, 70
Passenger Airbag Off Indicator .................. 48
Sensors ...................................................... 37
Side Airbags .............................................. 44
Side Curtain Airbags .................................. 46
AM/FM Radio .................................... 168, 191
Anti-lock Brake System (ABS) .................. 328
Indicator .................................................... 69
Armrest ..................................................... 144
Audio Remote Controls ............................ 164
Audio System ............................................ 160
Adjusting the Sound ........................ 167, 189
Auxiliary Input Jack .................................. 162 Error Messages ........................................ 211
General Information ................................ 217
Internet Radio ................................. 177, 200
iPod ........................................................ 197
MP3/WMA/AAC ...................... 179, 202, 207
Reactivating ............................................ 163
Recommended CDs ................................. 217
Recommended Devices............................ 219
Remote Controls ..................................... 164
Security Code .......................................... 163
Theft Protection ...................................... 163
USB Adapter Cable.......................... 161, 162
USB Flash Drives ...................................... 219
USB/HDMI
® Port ...................................... 161
Authorized Manuals ................................ 429
Auto Door Locking/Unlocking ................. 112
Customize ................................................. 94
Automatic Lighting .................................. 128
Automatic Transmission
Creeping ................................................. 304
Kickdown ................................................ 304
Shift Lever Does Not Move ...................... 406
Automatic Transmission (CVT) ................. 304
Fluid ........................................................ 357
Operating the Shift Lever........... 16, 306, 308
Shifting ........................................... 305, 307
Auxiliary Input Jack .................................. 162
Average Fuel Economy .............................. 85
Average Speed ........................................... 85
14 CIVIC 2D_SI-31TS86210.book 431 ページ ２０１４年１月２９日　水曜日　午後８時９分

432
Index
B
Battery....................................................... 381
Charging System Indicator ................. 67, 409
Jump Starting .......................................... 403
Maintenance (Checking the Battery) ........ 381
Maintenance (Replacing).......................... 382
Belts (Seat) .................................................. 30
Beverage Holders ...................................... 149
Bluetooth ® Audio ............................. 182, 205
Bluetooth ® HandsFreeLink ®............. 233, 264
Booster Seats (For Children) ....................... 61
Brake System ............................................. 326
Anti-lock Brake System (ABS) ................... 328
Brake Assist System ................................. 329
Fluid ........................................................ 358
Foot Brake ............................................... 327
Indicator .................................................... 66
Indicator (Amber)....................................... 66
Indicator (Red) ......................................... 411
Parking Brake .......................................... 326
Brake System Indicator (Amber) ................ 66
Brightness Control (Instrument Panel) .... 132
Bulb Replacement ..................................... 360
Brake Lights, Taillights, Re ar Side Marker lights,
Back-Up Lights and Rear Turn Signal
Lights..................................................... 367
Fog Lights ................................................ 364
Front Turn Signal/Par king/Side Marker
Lights..................................................... 365
Headlights ............................................... 360
High-Mount Brake Light .......................... 369 Rear License Plate Light ........................... 368
Bulb Specifications ........................... 418, 420
C
Carbon Monoxide Gas ............................... 62
Carrying Cargo ................................. 293, 295
CD Player ........................................... 171, 194
Center Pocket ........................................... 148
Certification Label .................................... 422
Changing Bulbs ........................................ 360
Charging System Indicator ................. 67, 409
Child Safety ................................................. 50
Emergency Trunk Opener ........................ 115
Child Seat .................................................... 50
Booster Seats ............................................ 61
Child Seat for Infants................................. 52
Child Seat for Small Children ..................... 53
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 57
Larger Children ......................................... 60
Rear-facing Child Seat ............................... 52
Selecting a Child Seat ................................ 54
Using a Tether ........................................... 59
Cleaning the Exterior ............................... 387
Cleaning the Interior ................................ 385
Climate Control System ............................ 155
Changing the Mode ................................ 155
Defrosting the Windshield and Windows ............................................... 156
Dust and Pollen Filter............................... 384 Recirculation/Fresh Air Mode................... 156
Sensors ................................................... 157
Using Automatic Climate Control............ 155
Clock ......................................................... 100
Clutch Fluid .............................................. 358
Coat Hook ................................................ 150
Compact Spare Tire .................. 393, 419, 421
Console Compartment ............................. 147
Controls ...................................................... 99
Coolant (Engine) ...................................... 355
Adding to the Radiator ........................... 356
Adding to the Reserve Tank .................... 355
High Temperature Indicator ...................... 70
Low Temperature Indicator ....................... 70
Overheating ............................................ 407
Creeping (Automatic Transmission) ........ 304
Cruise Control .......................................... 315
Indicator ................................................... 75
Cup Holders .............................................. 149
Customer Service Information ................ 430
Customized Features ......................... 87, 220
D
Daytime Running Lights .......................... 130
Dead Battery ............................................ 403
Defrosting the Windshield and
Windows ......................................... 154, 156
Devices that Emit Radio Waves ............... 423
Dimming
Headlights .............................................. 127
14 CIVIC 2D_SI-31TS86210.book 432 ページ ２０１４年１月２９日　水曜日　午後８時９分

433
Index
Rearview Mirror ...................................... 135
Dipstick (Engine Oil) ................................ 349
Directional Signals (Turn Signal) ............. 127
Display Button .......................................... 185
Display/Information Button ...................... 83
Door Mirrors ............................................. 135
Doors ........................................................ 102
Auto Door Locking.................................. 112
Auto Door Unlocking .............................. 112
Door Open Indicator ........................... 29, 71
Keys........................................................ 102
Locking/Unlocking the Doors from the Inside .............................................. 110
Locking/Unlocking the Doors from
the Outside ........................................... 105
Lockout Prevention System ..................... 109
DOT Tire Quality Grading ........................ 375
Driving ...................................................... 291
Automatic Transmission (CVT)................. 304
Braking ................................................... 326
Cruise Control ........................................ 315
Shifting Gear .......................................... 311
Shifting Position .............................. 305, 307
Starting the Engine ......................... 298, 300
Dust and Pollen Filter .............................. 384
E
Eco Assist System.......................................... 7
ECON Button ............................................ 314
Elapsed Time .............................................. 85 Electric Power Steering (EPS) System
Indicator ............................................ 72, 411
Electronic Stability Control (ESC) ............. 318
Emergency Engine Stop ........................... 402
Emergency Towing ................................... 416
Emergency Trunk Opener ........................ 115
Emissions Testing (Readiness Codes) ....... 425
Engine ....................................................... 422
Coolant ................................................... 355
Jump Starting .......................................... 403
Oil ........................................................... 348
Starting ........................................... 298, 300
Switch Buzzer .......................................... 122
Engine Coolant ......................................... 355
Adding to the Radiator ............................ 356
Adding to the Reserve Tank ..................... 355
High Temperature Indicator ....................... 70
Low Temperature Indicator ........................ 70
Overheating ............................................ 407
Engine Oil ................................................. 348
Adding .................................................... 351
Checking ................................................. 349
Displaying Oil Life .................................... 341
Low Oil Pressure Indicator .................. 67, 409
Recommended Engine Oil ........................ 348
ENGINE START/STOP Button .................... 123
Exhaust Gas Hazard (Carbon Monoxide) ................................................. 62
Expanded View Driver’s Mirror ............... 136
Exterior Care (Cleaning) ........................... 387
Exterior Mirrors ........................................ 135
F
Features.................................................... 159
Filters Dust and Pollen ....................................... 384
Oil ........................................................... 352
Flat Tire ..................................................... 393
Floor Mats ................................................. 386
Fluids
Brake/Clutch ........................................... 358
Continuously Variable Transmission (CVT) ..................................................... 357
Engine Coolant ....................................... 355
Manual Transmission ............................... 357
Windshield Washer ................................. 359
Fog Light Indicator ..................................... 73
Folding Down the Rear Seats .................. 143
Foot Brake ................................................ 327
Front Airbags (SRS) ..................................... 40
Front Seats ................................................ 137
Adjusting ................................................ 137
Fuel ...................................................... 17, 332
Economy ................................................. 335
Gauge ....................................................... 81
Instant Fuel Economy .......................... 81, 86
Low Fuel Indicator ..................................... 69
Range ....................................................... 85
Recommendation .................................... 332
Refueling................................................. 332
Fuel Economy ........................................... 335
Fuel Fill Cap ........................................ 17, 334
Message.................................................. 410
14 CIVIC 2D_SI-31TS86210.book 433 ページ ２０１４年１月２９日　水曜日　午後８時９分
