Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 392
If a Tire Goes Flat Changing a Flat Tire ......................... 393
Engine Does Not Start Checking the Engine ........................ 400
If the Smart Entry Remote Battery is Weak ... 401
Emergency Engine Stop ................... 402
Jump Starting .................................... 403
Shift Lever Does Not Move .............. 406
Overheating How to Handle Overheating ............. 407 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On .. 409
If the Charging System Indicator Comes
On ................................................. 409
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 410
If the Brake System Indicator (Red) Comes On ................................................. 411
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 411
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks........................ 412 Fuses
Fuse Locations ................................. 413
Inspecting and Changing Fuses ........ 415
Emergency Towing ........................... 416
14 CIVIC 2D_SI-31TS86210.book 391 ページ ２０１４年１月２９日　水曜日　午後８時９分

392
Handling the Unexpected
Tools
Types of Tools

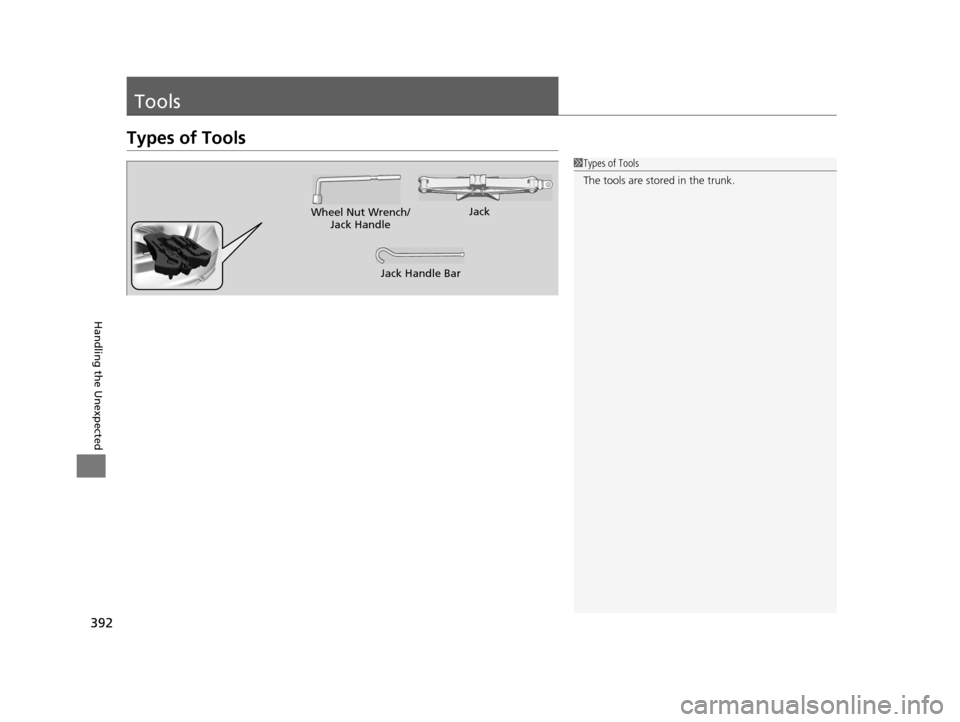

1Types of Tools
The tools are stored in the trunk.
Wheel Nut Wrench/
Jack Handle Jack
Jack Handle Bar
14 CIVIC 2D_SI-31TS86210.book 392 ページ ２０１４年１月２９日　水曜日　午後８時９分

393Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, and non-slippery surface, and apply the parking
brake.
2. Put the shift lever in
(P.
2. Put the shift lever in
(R.
3. Turn on the hazard warning lights an d turn the ignition switch to LOCK
(0*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Changing a Flat Tire
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Automatic transmission (CVT) models
Manual transmission models
All models
