display HONDA CIVIC COUPE 2014 9.G Navigation Manual

202
uuAudio System Basic Operation uPlaying a USB Flash Drive
Features

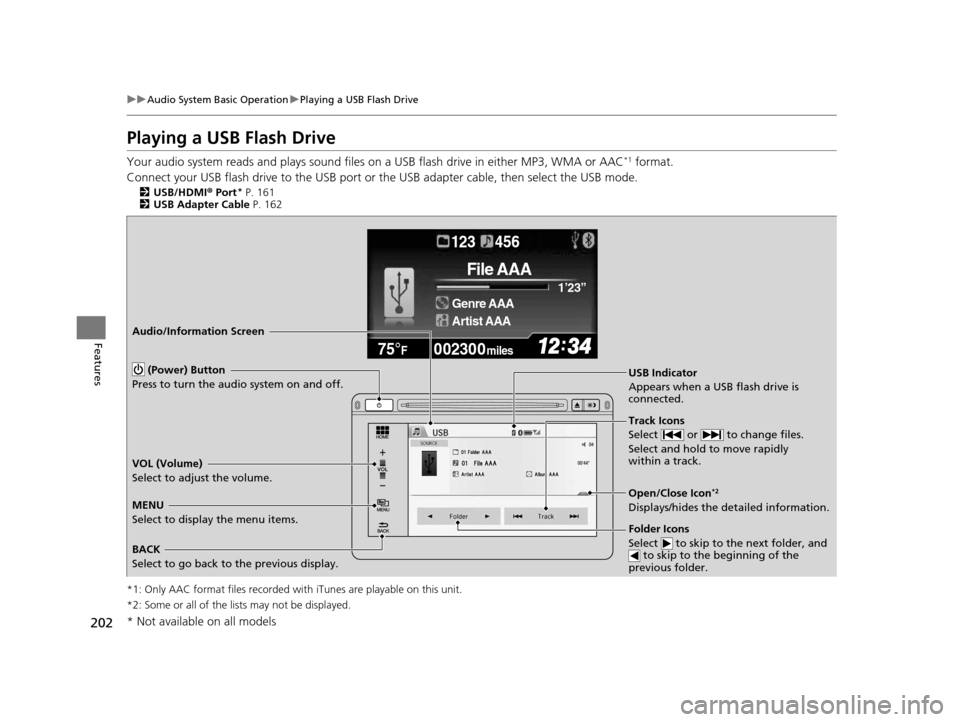

Playing a USB Flash Drive
Your audio system reads and plays sound files on a USB flash drive in either MP3, WMA or AAC*1 format.
Connect your USB flash drive to the USB port or the USB adapter cable, then select the USB mode.
2USB/HDMI ® Port* P. 161
2 USB Adapter Cable P. 162
*1: Only AAC format files recorded with iTunes are playable on this unit.
*2: Some or all of the lists may not be displayed.
002300
75°F miles
Genre AAA 1’23’’
File AAA
Artist AAA
123 456
Audio/Information Screen
BACK
Select to go back to the previous display. (Power) Button
Press to turn the audi o system on and off.
Track Icons
Select or to change files.
Select and hold to move rapidly
within a track.
MENU
Select to display the menu items. USB Indicator
Appears when a USB flash drive is
connected.
Folder Icons
Select to skip to the next folder, and
to skip to the beginning of the
previous folder.
VOL (Volume)
Select to adjust the volume.
Open/Close Icon*2
Displays/hides the detailed information.
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 202 ページ ２０１４年１月２９日　水曜日　午後８時９分

Continued203
uuAudio System Basic Operation uPlaying a USB Flash Drive
Features

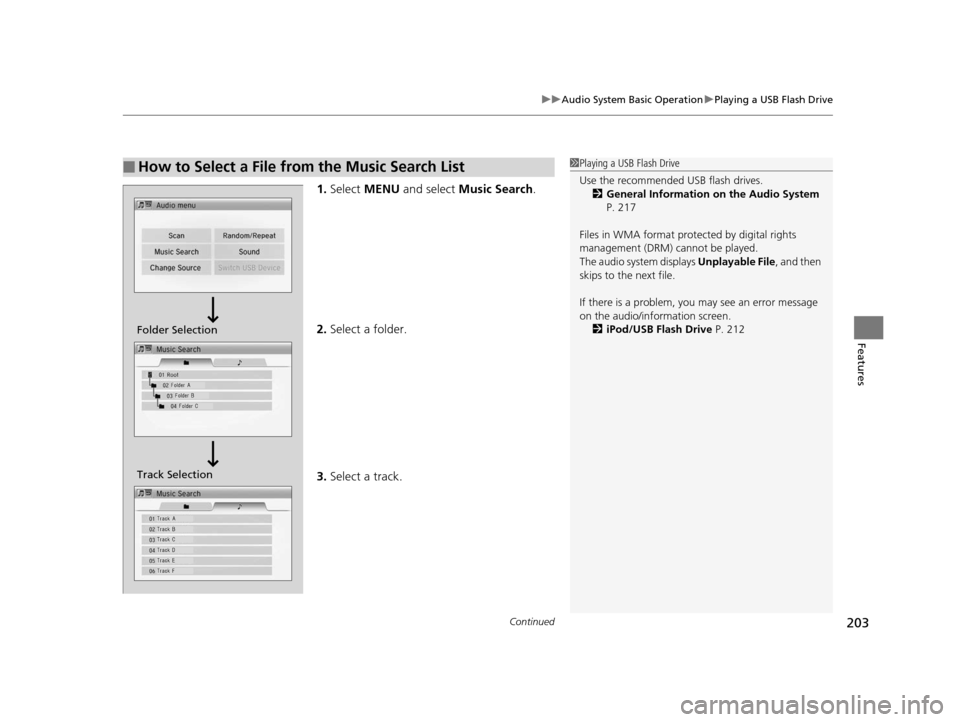

1. Select MENU and select Music Search .
2. Select a folder.
3. Select a track.
■How to Select a File from the Music Search List1Playing a USB Flash Drive
Use the recommended USB flash drives.
2 General Information on the Audio System
P. 217
Files in WMA format prot ected by digital rights
management (DRM) cannot be played.
The audio system displays Unplayable File, and then
skips to the next file.
If there is a problem, you may see an error message
on the audio/information screen.
2 iPod/USB Flash Drive P. 212
Folder Selection
Track Selection
14 CIVIC 2D_SI-31TS86210.book 203 ページ ２０１４年１月２９日　水曜日　午後８時９分

205
uuAudio System Basic Operation uPlaying Bluetooth ® Audio
Continued
Features

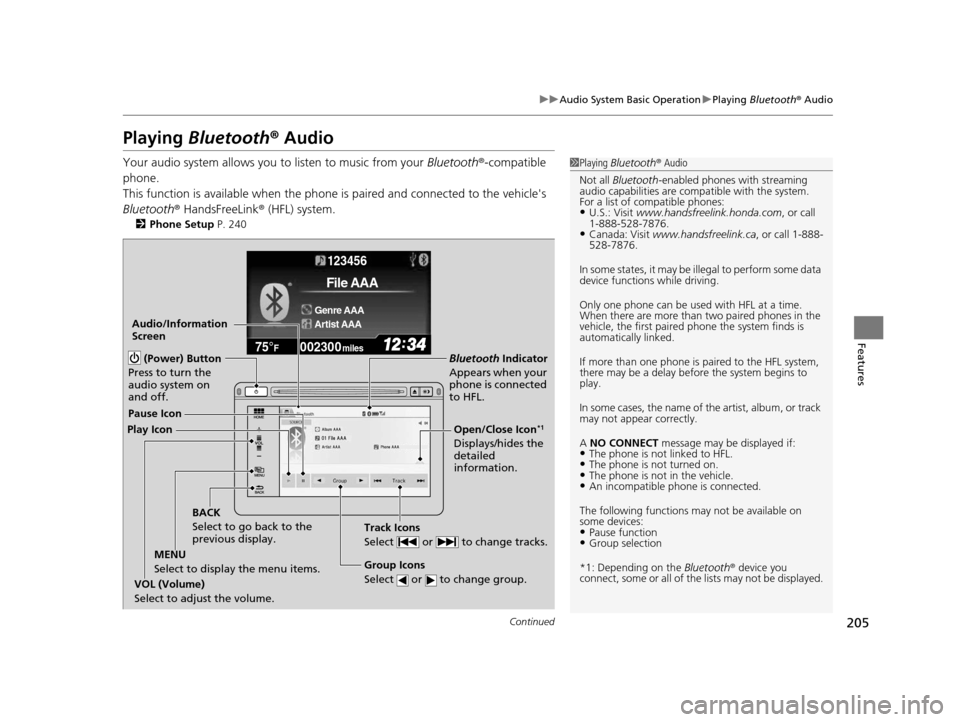

Playing Bluetooth ® Audio
Your audio system allows you to listen to music from your Bluetooth®-compatible
phone.
This function is available when the phone is paired and connected to the vehicle's
Bluetooth ® HandsFreeLink ® (HFL) system.
2Phone Setup P. 240
1Playing Bluetooth ® Audio
Not all Bluetooth -enabled phones with streaming
audio capabilities are comp atible with the system.
For a list of compatible phones:
•U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
In some states, it may be il legal to perform some data
device functions while driving.
Only one phone can be used with HFL at a time.
When there are more than two paired phones in the
vehicle, the first paired phone the system finds is
automatically linked.
If more than one phone is paired to the HFL system,
there may be a delay before the system begins to
play.
In some cases, the name of the artist, album, or track
may not appear correctly.
A NO CONNECT message may be displayed if:
•The phone is not linked to HFL.•The phone is not turned on.•The phone is not in the vehicle.•An incompatible phone is connected.
The following functions may not be available on
some devices:
•Pause function•Group selection
*1: Depending on the Bluetooth® device you
connect, some or al l of the lists may not be displayed.
_ _Š€“‹>___NO>d‡Šƒ>___n†
ÛÛ
002300
75°F miles
123456
Genre AAA
File AAA
Artist AAA
Track Icons
Select or to change tracks.
Bluetooth Indicator
Appears when your
phone is connected
to HFL.
(Power) Button
Press to turn the
audio system on
and off.
Audio/Information
Screen
Play Icon Pause Icon
BACK
Select to go back to the
previous display.
MENU
Select to display the menu items. Group Icons
Select or to change group.
VOL (Volume)
Select to adjust the volume.
Open/Close Icon*1
Displays/hides the
detailed
information.
14 CIVIC 2D_SI-31TS86210.book 205 ページ ２０１４年１月２９日　水曜日　午後８時９分

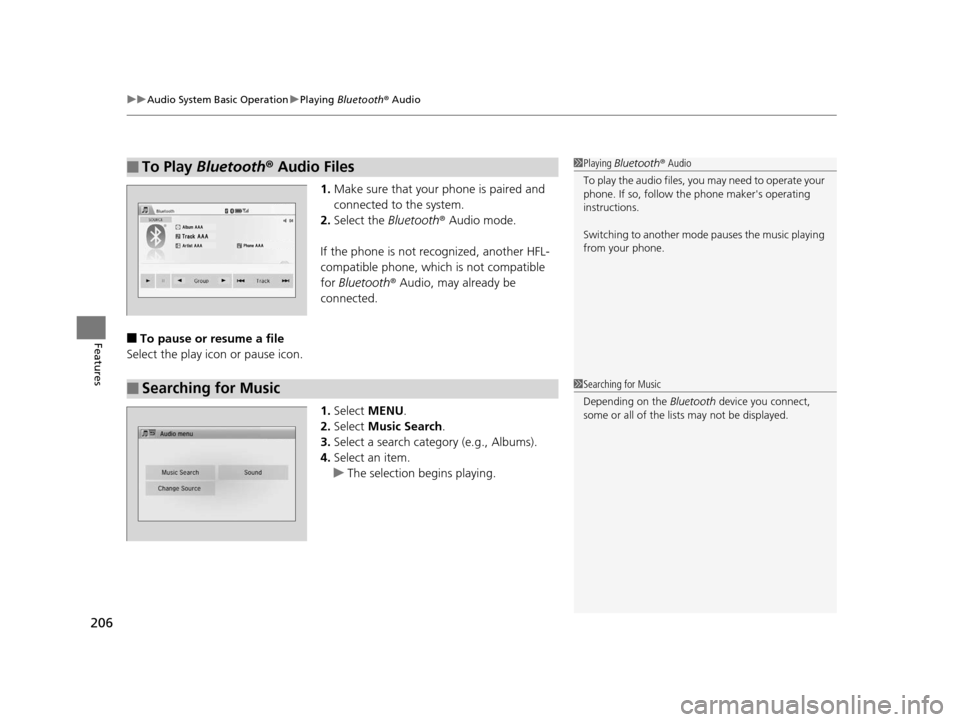

uuAudio System Basic Operation uPlaying Bluetooth ® Audio
206
Features
1. Make sure that your phone is paired and
connected to the system.
2. Select the Bluetooth® Audio mode.
If the phone is not recognized, another HFL-
compatible phone, which is not compatible
for Bluetooth ® Audio, may already be
connected.
■To pause or resume a file
Select the play icon or pause icon.
1.Select MENU .
2. Select Music Search.
3. Select a search category (e.g., Albums).
4. Select an item.
u The selection begins playing.
■To Play Bluetooth® Audio Files1Playing Bluetooth ® Audio
To play the audio files, y ou may need to operate your
phone. If so, follow the phone maker's operating
instructions.
Switching to another mode pauses the music playing
from your phone.
ÛÛ
■Searching for Music1 Searching for Music
Depending on the Bluetooth device you connect,
some or all of the list s may not be displayed.
14 CIVIC 2D_SI-31TS86210.book 206 ページ ２０１４年１月２９日　水曜日　午後８時９分

207
uuAudio System Basic Operation uPlaying a Video Using the HDMI ®
Continued
Features

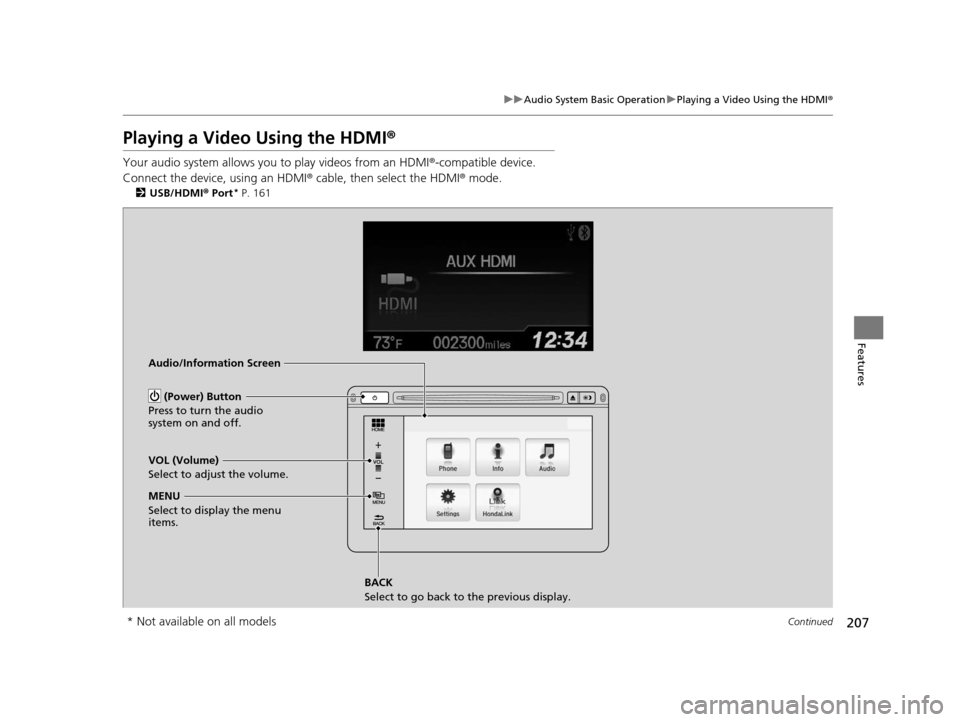

Playing a Video Using the HDMI ®
Your audio system allows you to play videos from an HDMI ®-compatible device.
Connect the device, using an HDMI ® cable, then select the HDMI® mode.
2USB/HDMI® Port* P. 161
Audio/Information Screen
BACK
Select to go back to the previous display.
VOL (Volume)
Select to adjust the volume.
MENU
Select to display the menu
items.
(Power) Button
Press to turn the audio
system on and off.
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 207 ページ ２０１４年１月２９日　水曜日　午後８時９分

209
uuAudio System Basic Operation uSmartphone Apps
Features

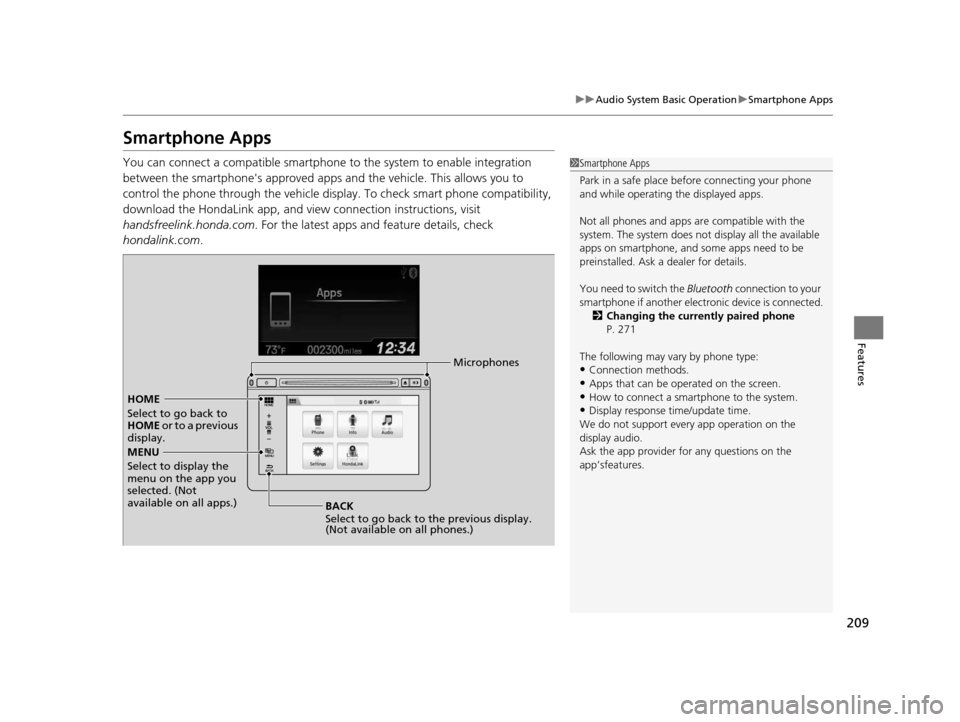

Smartphone Apps
You can connect a compatible smartphone to the system to enable integration
between the smartphone's appr oved apps and the vehicle. This allows you to
control the phone through the vehicle display. To check smart phone compatibility,
download the HondaLink app, and view connection instructions, visit
handsfreelink.honda.com . For the latest apps and feature details, check
hondalink.com .1Smartphone Apps
Park in a safe place be fore connecting your phone
and while operating the displayed apps.
Not all phones and apps ar e compatible with the
system. The system does not display all the available
apps on smartphone, and so me apps need to be
preinstalled. Ask a dealer for details.
You need to switch the Bluetooth connection to your
smartphone if another electr onic device is connected.
2 Changing the currently paired phone
P. 271
The following may vary by phone type:
•Connection methods.
•Apps that can be operated on the screen.•How to connect a smartphone to the system.
•Display response ti me/update time.
We do not support every app operation on the
display audio.
Ask the app provider fo r any questions on the
app’sfeatures.
MENU
Select to display the
menu on the app you
selected. (Not
available on all apps.) BACK
Select to go back to the previous display.
(Not available on all phones.)
HOME
Select to go back to
HOME
or to a previous
display. Microphones
14 CIVIC 2D_SI-31TS86210.book 209 ページ ２０１４年１月２９日　水曜日　午後８時９分

210

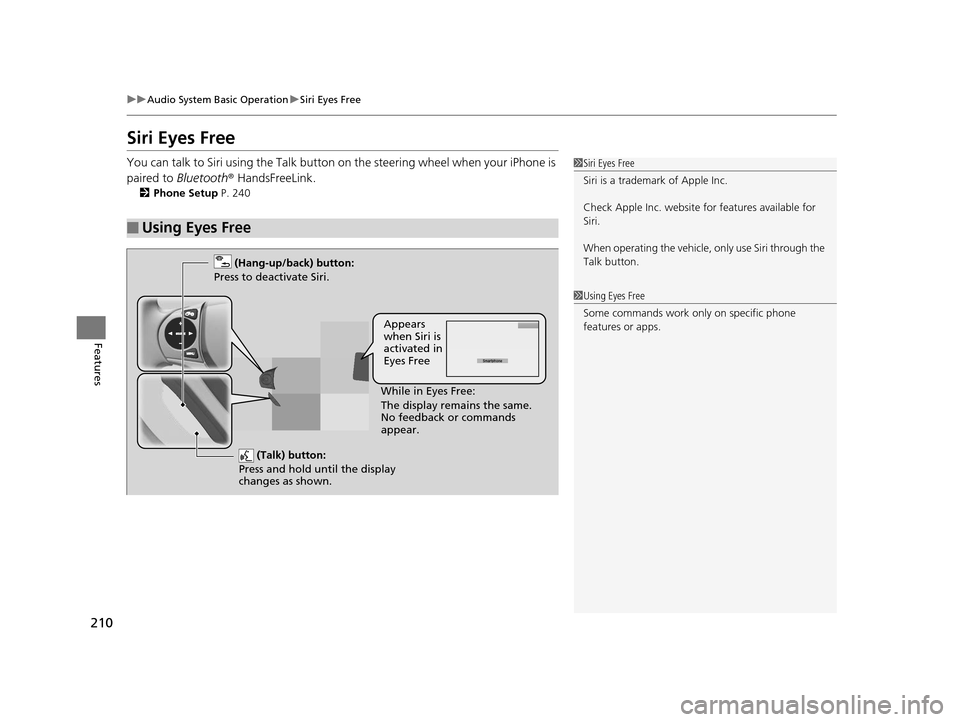

uuAudio System Basic Operation uSiri Eyes Free
Features
Siri Eyes Free
You can talk to Siri using the Talk button on the steering wheel when your iPhone is
paired to Bluetooth ® HandsFreeLink.
2Phone Setup P. 240
■Using Eyes Free
1Siri Eyes Free
Siri is a trademark of Apple Inc.
Check Apple Inc. website for features available for
Siri.
When operating the vehicle, only use Siri through the
Talk button.
1 Using Eyes Free
Some commands work only on specific phone
features or apps.
(Talk) button:
Press and hold until the display
changes as shown.
(Hang-up/back) button:
Press to deactivate Siri.
While in Eyes Free:
The display remains the same.
No feedback or commands
appear.
Appears
when Siri is
activated in
Eyes Free
14 CIVIC 2D_SI-31TS86210.book 210 ページ ２０１４年１月２９日　水曜日　午後８時９分

211
Features

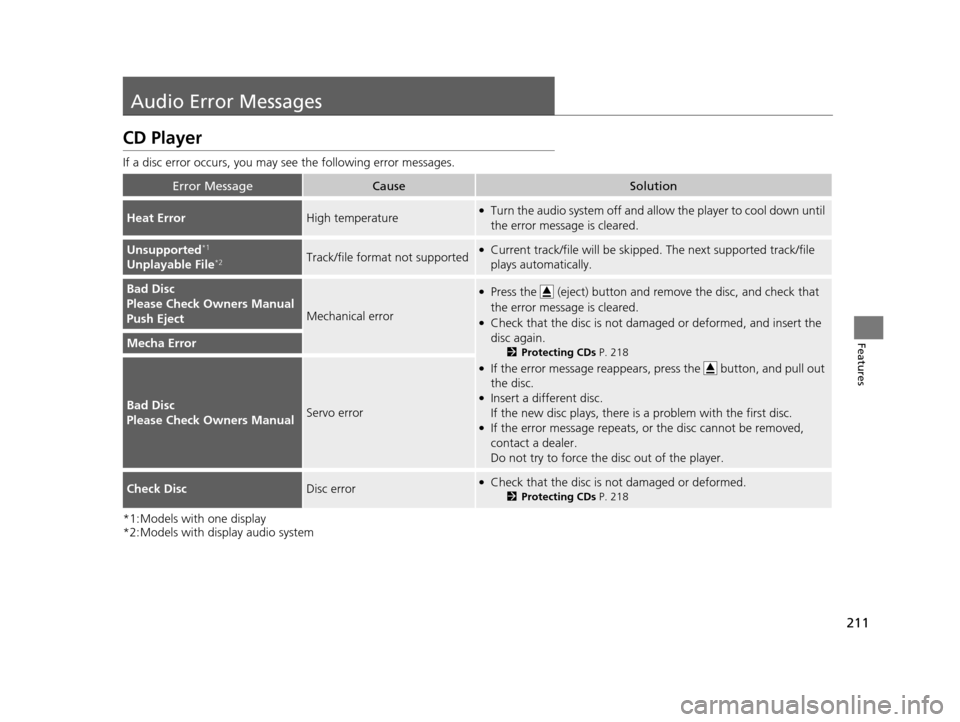

Audio Error Messages
CD Player
If a disc error occurs, you may see the following error messages.
*1:Models with one display
*2:Models with display audio system
Error MessageCauseSolution
Heat ErrorHigh temperature●Turn the audio system off and allow the player to cool down until
the error message is cleared.
Unsupported*1
Unplayable File*2Track/file format not supported●Current track/file will be skipped. The next supported track/file
plays automatically.
Bad Disc
Please Check Owners Manual
Push Eject
Mechanical error
●Press the (eject) button and re move the disc, and check that
the error message is cleared.
●Check that the disc is not damaged or deformed, and insert the
disc again.
2 Protecting CDs P. 218
●If the error message reappears, press the button, and pull out
the disc.
●Insert a different disc.
If the new disc plays, there is a problem with the first disc.
●If the error message repeats, or the disc cannot be removed,
contact a dealer.
Do not try to force the disc out of the player.
Mecha Error
Bad Disc
Please Check Owners ManualServo error
Check DiscDisc error●Check that the disc is not damaged or deformed.
2Protecting CDs P. 218
14 CIVIC 2D_SI-31TS86210.book 211 ページ ２０１４年１月２９日　水曜日　午後８時９分

212
uuAudio Error Messages uiPod/USB Flash Drive
Features

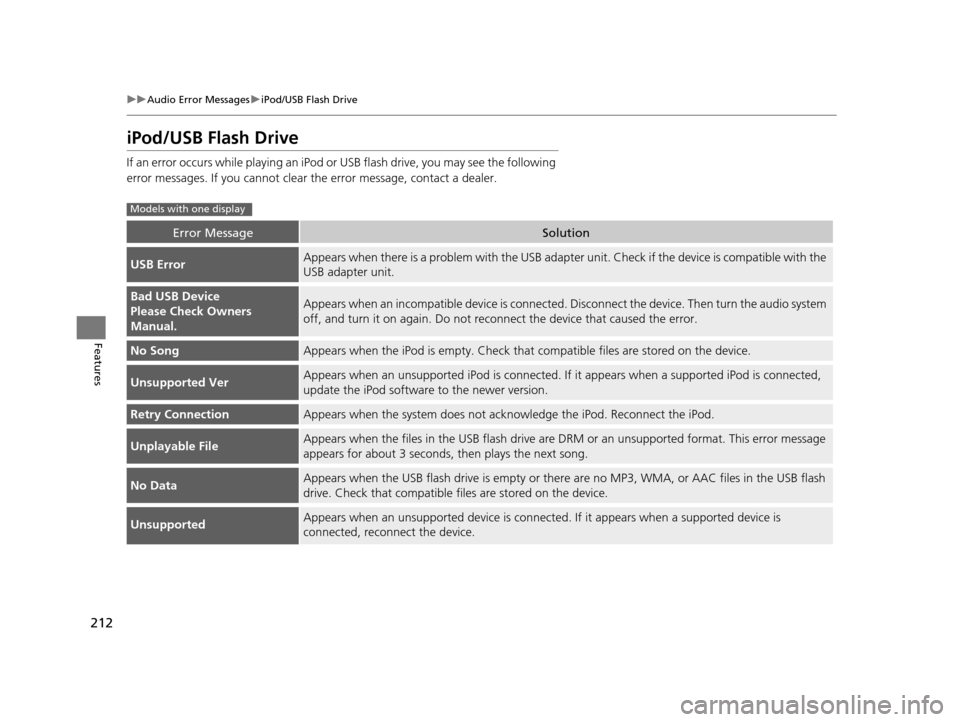

iPod/USB Flash Drive
If an error occurs while playing an iPod or USB flash drive, you may see the following
error messages. If you cannot clear the error message, contact a dealer.
Error MessageSolution
USB ErrorAppears when there is a problem with the USB adapter unit. Check if the device is compatible with the
USB adapter unit.
Bad USB Device
Please Check Owners
Manual.Appears when an incompatible device is connected. Disconnect the device. Then turn the audio system
off, and turn it on again. Do not reco nnect the device that caused the error.
No SongAppears when the iPod is empty. Check that compatible files are stored on the device.
Unsupported VerAppears when an unsupported iPod is connected. If it appears when a supported iPod is connected,
update the iPod software to the newer version.
Retry ConnectionAppears when the system does not acknowledge the iPod. Reconnect the iPod.
Unplayable FileAppears when the files in the USB flash drive are DRM or an unsupported format. This error message
appears for about 3 seconds, then plays the next song.
No DataAppears when the USB flash drive is empty or ther e are no MP3, WMA, or AAC files in the USB flash
drive. Check that compatible fi les are stored on the device.
UnsupportedAppears when an unsupported device is connect ed. If it appears when a supported device is
connected, reconnect the device.
Models with one display
14 CIVIC 2D_SI-31TS86210.book 212 ページ ２０１４年１月２９日　水曜日　午後８時９分

213
uuAudio Error Messages uiPod/USB Flash Drive
Continued
Features

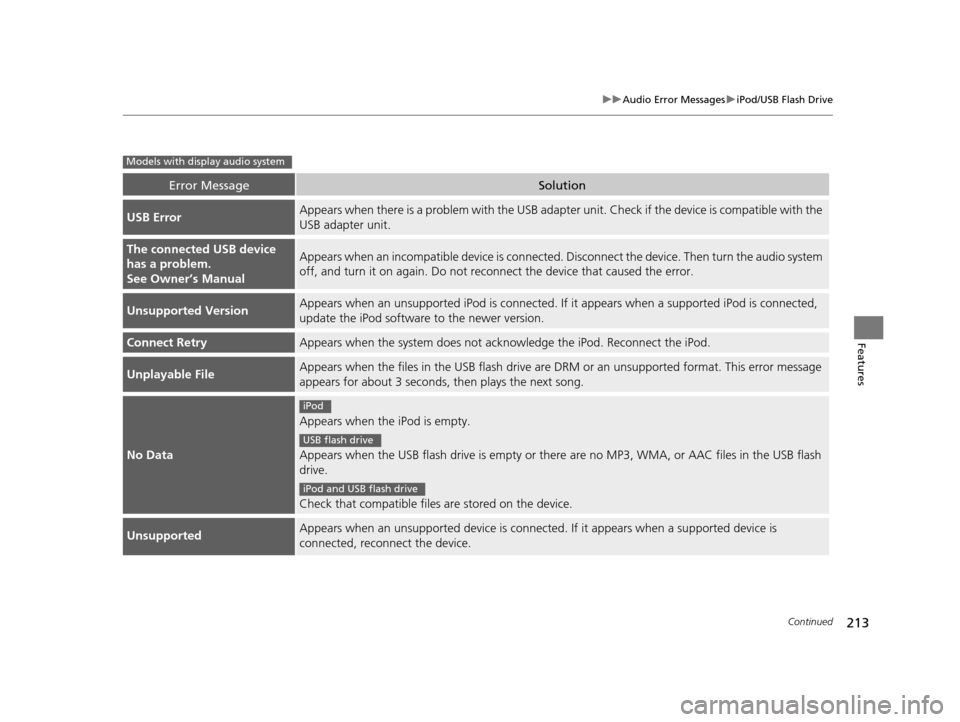

Error MessageSolution
USB ErrorAppears when there is a problem with the USB adapter unit. Check if the device is compatible with the
USB adapter unit.
The connected USB device
has a problem.
See Owner’s ManualAppears when an incompatib le device is connected. Disconnect th e device. Then turn the audio system
off, and turn it on again. Do not reco nnect the device that caused the error.
Unsupported VersionAppears when an unsupported iPod is connected. If it appears when a supported iPod is connected,
update the iPod software to the newer version.
Connect RetryAppears when the system does not acknowledge the iPod. Reconnect the iPod.
Unplayable FileAppears when the files in the USB flash drive are DRM or an unsupported format. This error message
appears for about 3 seconds, then plays the next song.
No Data
Appears when the iPod is empty.
Appears when the USB flash drive is empty or there are no MP3, WMA, or AAC files in the USB flash
drive.
Check that compatible files are stored on the device.
UnsupportedAppears when an unsupported device is connected. If it appears when a supported device is
connected, reconnect the device.
Models with display audio system
iPod
USB flash drive
iPod and USB flash drive
14 CIVIC 2D_SI-31TS86210.book 213 ページ ２０１４年１月２９日　水曜日　午後８時９分
