keyless HONDA CIVIC COUPE 2014 9.G Navigation Manual

89
uuGauges and Multi-Information Display uintelligent Multi-Information Display (i-MID)
Continued
Instrument Panel
Display Setup
Trip Computer Setup
Select Wallpaper*
Import Wallpaper*
Delete Wallpaper*
Language Selection
Adjust Outside Temp. Display
Trip A reset trigger
Display km/miles
Trip Meter Item to Display
Welcome Screen
Color Theme
Fuel Efficiency Backlight*
Customize Settings
Turn by Turn Display*
Trip B reset trigger
TPMS Calibration*
Keyless Start Guidance Screens*
Keyless Access Setup*
Door Unlock Mode
Keyless Access Beep
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 89 ページ ２０１４年１月２９日　水曜日　午後８時９分

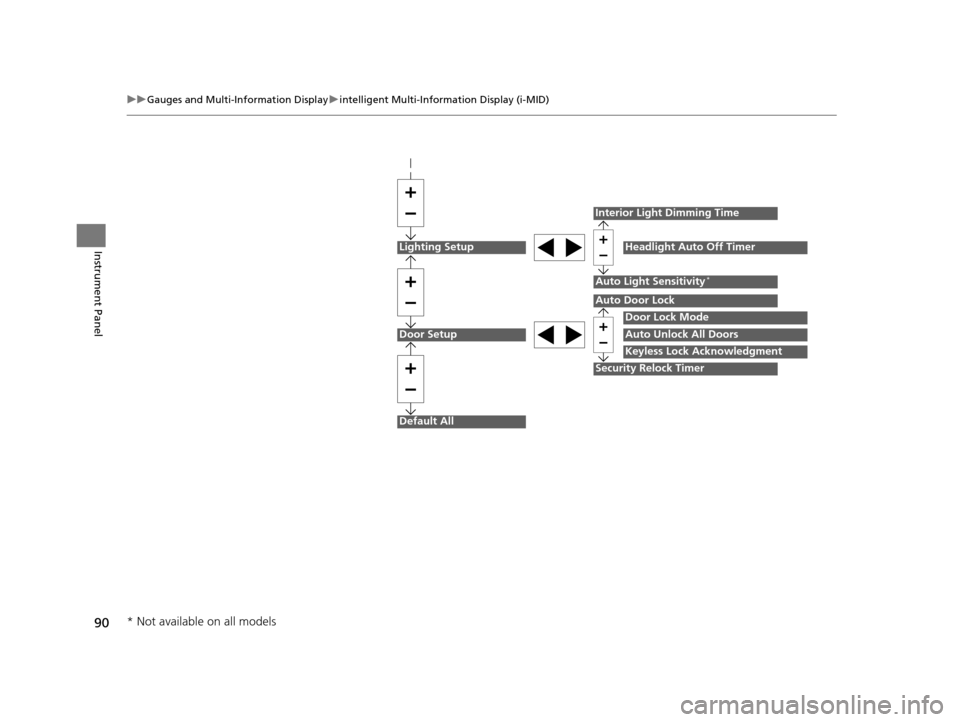

90
uuGauges and Multi-Information Display uintelligent Mult i-Information Display (i-MID)
Instrument PanelLighting Setup
Door Setup
Default All
Auto Light Sensitivity*
Door Lock Mode
Auto Unlock All Doors
Keyless Lock Acknowledgment
Auto Door Lock
Security Relock Timer
Interior Light Dimming Time
Headlight Auto Off Timer
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 90 ページ ２０１４年１月２９日　水曜日　午後８時９分

92
uuGauges and Multi-Information Display uintelligent Mult i-Information Display (i-MID)
Instrument Panel
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2: Default Setting
*3: Default Setting for 1.8 ℓ engine models
*4: Default Setting for 2.4 ℓ engine models
*5: Refer to the Navigation System Manual for complete details. Setup Group Customizable Features
Description Selectable settings
Customize
SettingsDisplay
SetupTrip Meter
Item to
Display
Selects an item to be di
splayed along with average
fuel economy. Range
*2/
Elapsed time /
Average speed
Selects an item to be displayed along with the
instant fuel economy. Average Fuel
*2/
Range /
Elapsed time /Average speed
Welcome
Screen Selects whether the welcome screen comes on
when you turn the ignition switch to ON
(w*1.
On*2/
Off
Color Theme Changes the color of the screen. Blue
*3/Red*4/Amber /Gray
Keyless Start
Guidance
Screens
*
Displays the push button start guidance when
conditions are met to change power mode. On*2/
Off
Turn by Turn
Display
*, *5Selects whether the turn-b y-turn display comes on
during the route guidance. On*2/
Off
Language
Selection Changes the displayed language.
English
*2/French /Spanish
1.8 ℓ engine models
2.4 ℓ engine models
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 92 ページ ２０１４年１月２９日　水曜日　午後８時９分

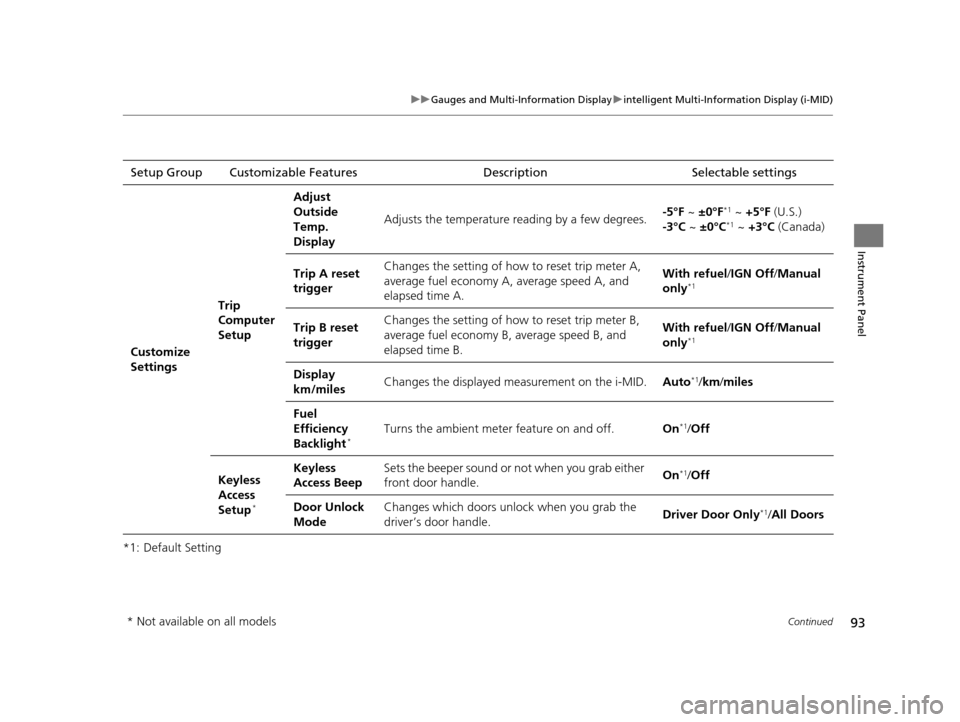

93
uuGauges and Multi-Information Display uintelligent Multi-Information Display (i-MID)
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable settings
Customize
Settings Trip
Computer
SetupAdjust
Outside
Temp.
Display
Adjusts the temperature reading by a few degrees.
-5°F
~ ±0°F
*1 ~ +5°F (U.S.)
-3°C ~ ±0°C*1 ~ +3°C (Canada)
Trip A reset
trigger Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A. With refuel
/IGN Off /Manual
only
*1
Trip B reset
trigger Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B. With refuel
/IGN Off /Manual
only*1
Display
km/miles Changes the displayed measurement on the i-MID.
Auto*1/km /miles
Fuel
Efficiency
Backlight
*Turns the ambient meter feature on and off. On*1/Off
Keyless
Access
Setup
*
Keyless
Access Beep Sets the beeper sound or not when you grab either
front door handle.
On*1/
Off
Door Unlock
Mode Changes which doors unlock when you grab the
driver’s door handle.
Driver Door Only
*1/
All Doors
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 93 ページ ２０１４年１月２９日　水曜日　午後８時９分

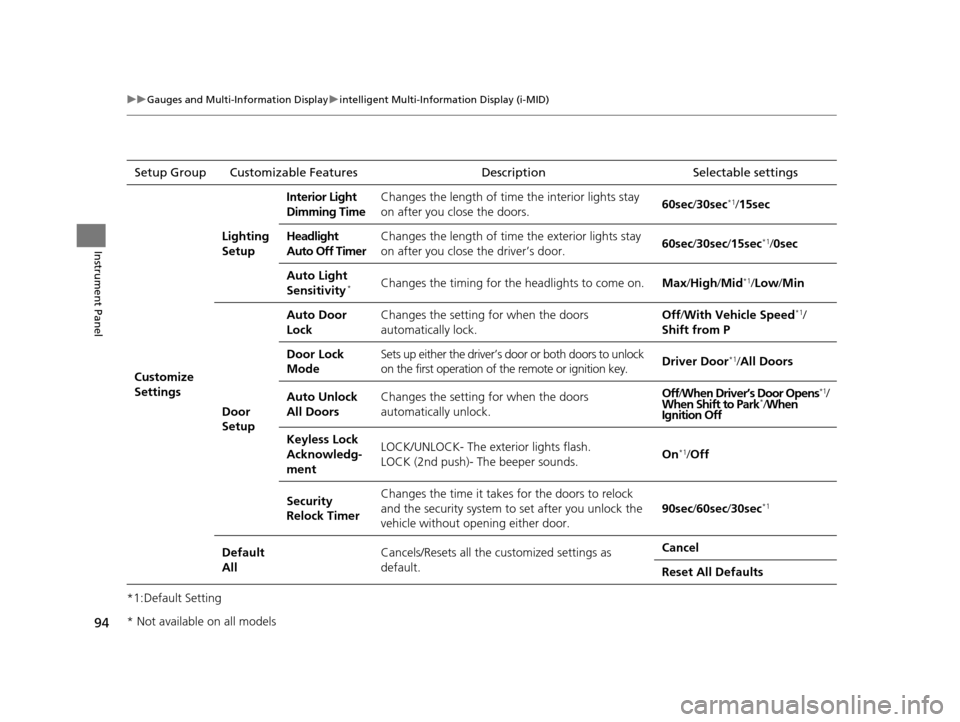

94
uuGauges and Multi-Information Display uintelligent Mult i-Information Display (i-MID)
Instrument Panel
*1:Default SettingSetup Group Customizable Features
DescriptionSelectable settings
Customize
SettingsLighting
Setup
Interior Light
Dimming Time
Changes the length of time the interior lights stay
on after you close the doors.
60sec
/30sec
*1/15sec
Headlight
Auto Off Timer Changes the length of time
the exterior lights stay
on after you close the driver’s door. 60sec
/30sec /15sec
*1/0sec
Auto Light
Sensitivity
*Changes the timing for the headlights to come on.Max/High /Mid*1/Low/ Min
Door
Setup Auto Door
Lock
Changes the setting for when the doors
automatically lock. Off
/With Vehicle Speed
*1/
Shift from P
Door Lock
Mode Sets up either the driver’s door or both doors to unlock
on the first operation of the remote or ignition key.
Driver Door
*1/
All Doors
Auto Unlock
All Doors Changes the setting for when the doors
automatically unlock. Off
/When Driver’s Door Opens
*1/
When Shift to Park*/ When
Ignition Off
Keyless Lock
Acknowledg-
ment LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.
On
*1/
Off
Security
Relock Timer Changes the time it takes for the doors to relock
and the security system to
set after you unlock the
vehicle without opening either door. 90sec
/60sec /30sec
*1
Default
All Cancels/Resets all the customized settings as
default. Cancel
Reset All Defaults
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 94 ページ ２０１４年１月２９日　水曜日　午後８時９分

Continued107
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
When you carry the sm art entry remote, you
can lock/unlock the doors and open the trunk.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the trunk within about
32 inches (80 cm) radius from the trunk
release button.
■Locking the doors and the trunk Press the door lock button on either door.u Some exterior lights flash; the beeper
sounds; both doors and the trunk lock;
and the security system sets.
■Using the Smart Entry with Push Button Start System*
Door Lock Button
1Using the Smart Entry with Push Button Start System*
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can lock/unlock the doors while someone else
with the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the smart entry remote is within range.
•If you grip either door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.
•You cannot unlock the door by gripping the handle
after two seconds of locking it.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors with the smart
entry remote if it is a bove or below the outside
handle.
•The smart entry remote may not operate if it is too
close to the door and door glass.
If the distance at which it works varies, the battery is
probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 382
You can customize the door lock mode and keyless
lock acknowledge ment setting.
2 Customized Features P. 87
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 107 ページ ２０１４年１月２９日　水曜日　午後８時９分

435
Index
Low Fuel ................................................... 69
Low Oil Pressure ............................... 67, 409
Low Temperature...................................... 70
Low Tire Pressure/TPMS ............ 72, 322, 324
Maintenance Minder............................... 341
Malfunction Indicator Lamp .............. 67, 410
Parking Brake and Brake System (Red) ............................................... 66, 411
REV..................................................... 75, 82
Seat Belt Reminder.............................. 31, 69
Security System Alarm............................... 74
Shift Lever Position.................................... 68
Smart Entry System ................................... 74
Supplemental Restraint System ........... 47, 70
System Message ....................................... 73
Transmission ............................................. 68
Trunk Open .............................................. 71
Turn Signal and Hazard Warning............... 73
Vehicle Stability Assist (VSA® )
System ............................................ 71, 318
VSA ® OFF.......................................... 71, 319
Information .............................................. 417
Instant Fuel Economy .......................... 81, 86
Instrument Panel ........................................ 65
Brightness Control .................................. 132
intelligent Multi-Information Display (i-MID) ....................................................... 83
Interior Lights ........................................... 145
Interior Rearview Mirror ......................... 135
i-VTEC and REV Indicators ......................... 82J
Jack (Wheel Nut Wrench)........................ 396
Jump Starting ........................................... 403
K
Key Number Tag ....................................... 103
Keyless Lockout Prevention ..................... 109
Keys ........................................................... 102
Lockout Prevention .................................. 109
Master Keys ............................................. 102
Number Tag ............................................ 103
Remote Transmitter ................................. 105
Types and Functions ................................ 102
Valet Key ................................................. 103
Won’t Turn ................................................ 20
Kickdown (Automatic Transmission) ....... 304
L
LaneWatchTM............................................. 320
Language (HFL) ................................. 234, 265
LATCH (Child Seats) .................................... 55
Lights ................................................. 127, 360
Automatic ............................................... 128
Bulb Replacement .................................... 360
Daytime Running Lights ........................... 130
Fog Lights ................................................ 130
High Beam Indicator .................................. 73 Interior .................................................... 145
Light Switches ......................................... 127
Lights On Indicator .................................... 73
Turn Signals ............................................ 127
Load Limits ................................................ 295
Locking/Unlocking the Doors .................. 102
Auto Door Locking/Unlocking.................. 112
From Inside ............................................. 110
From Outside .......................................... 105
Keys ........................................................ 102
Using a Key ............................................. 109
Lockout Prevention System ..................... 109
Low Battery Charge ................................. 409
Low Fuel Indicator ...................................... 69
Low Oil Pressure Indicator ................. 67, 409
Low Smart Entry Remote Signal Strength .................................................. 104
Lower Anchors ............................................ 55
Lubricant Specifications Chart ......... 419, 421
Luggage (Maximum Load Limit) ............. 295
M
Maintenance............................................. 337
Battery .................................................... 381
Brake/Clutch Fluid ................................... 358
Cleaning ................................................. 385
Climate Control System ........................... 384
Coolant ................................................... 355
14 CIVIC 2D_SI-31TS86210.book 435 ページ ２０１４年１月２９日　水曜日　午後８時９分
