rear view mirror HONDA CIVIC COUPE 2014 9.G Navigation Manual

Visual Index
4
Quick Reference Guide
❙Passenger's Front Airbag
(P40)
❙Glove Box (P147)
❙Shift Lever
Automatic Transmission
(CVT)
(P305, 307)
Manual Transmission
(P311)❙Hood Release Handle (P347)
❙Fuel Fill Door Release Handle (P333)
❙Driver’s Pocket
❙Trunk Release (P113)
❙Driver's Front Airbag (P40)
❙Door Mirror Controls (P135)
❙Power Door Lock Master Switch (P111)
❙Power Window Switches (P119)
❙Parking Brake (P326)
❙Interior Fuse Box (P414)
❙Rearview Mirror (P135)
❙Accessory Power Socket
(P150)
❙Auxiliary Input Jack* (P162)
❙USB/HDMI® Port* (P161)
14 CIVIC 2D_SI-31TS86210.book 4 ページ ２０１４年１月２９日　水曜日　午後８時９分

Visual Index
6
Quick Reference Guide❙Maintenance Under the Hood (P345)
❙Windshield Wipers (P131, 370)
❙Tires (P372, 393)
❙Fog Lights* (P130, 364)
❙Door Lock/Unlock Control (P105)
❙Power Door Mirrors (P135)
❙Headlights (P127, 360)
❙Emergency Trunk Release Lever
(P115)
❙Opening/Closing the Trunk (P113)
❙How to Refuel (P333)
❙High-Mount Brake Light* (P369)
❙Front Turn Signal/Parking/Side Marker Lights (P127, 365)
❙Back-Up Lights (P367)
❙Rear Turn Signal Lights (P367)
❙Brake/Taillights/Rear Side Marker
Lights
(P367)
❙Rearview Camera* (P331)
❙Trunk Release Button* (P114)
14 CIVIC 2D_SI-31TS86210.book 6 ページ ２０１４年１月２９日　水曜日　午後８時９分

99
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 100
Locking and Unlocking the Doors
Key Types and Functions .................. 102
Low Smart Entry Remote Signal Strength*..... 104Locking/Unlocking the Doors from the Outside .......................................... 105
Locking/Unlocking the Doors from the Inside ............................................. 110
Auto Door Locking/Unlocking .......... 112
Opening and Closing the Trunk ....... 113
Security System
Immobilizer System .......................... 116
Security System Alarm ...................... 116
Opening and Closing the Windows ..... 119
Opening and Closing the Moonroof*...... 121Operating the Switches Around the
Steering Wheel Ignition Switch
*............................... 122
ENGINE START/STOP Button*........... 123
Ignition Switch and Power Mode Comparison ................................... 126
Turn Signals ..................................... 127
Light Switches.................................. 127
Fog Lights
*...................................... 130
Daytime Running Lights ................... 130
Wipers and Washers ........................ 131
Brightness Control ........................... 132
Rear Defogger/Heated Door Mirror* Button .... 133
Adjusting the Steering Wheel .......... 134
Adjusting the Mirrors
Interior Rearview Mirror ................... 135
Power Door Mirrors ......................... 135
Adjusting the Seats .......................... 137
Interior Lights/Interior Convenience ItemsInterior Lights .................................. 145
Interior Convenience Items .............. 147
Heating and Cooling
*
Using Vents, Heating and A/C.......... 152
Climate Control System*
Using Automatic Climate Control .... 155Automatic Climate Control Sensors..... 157
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 99 ページ ２０１４年１月２９日　水曜日　午後８時９分

135Continued
Controls

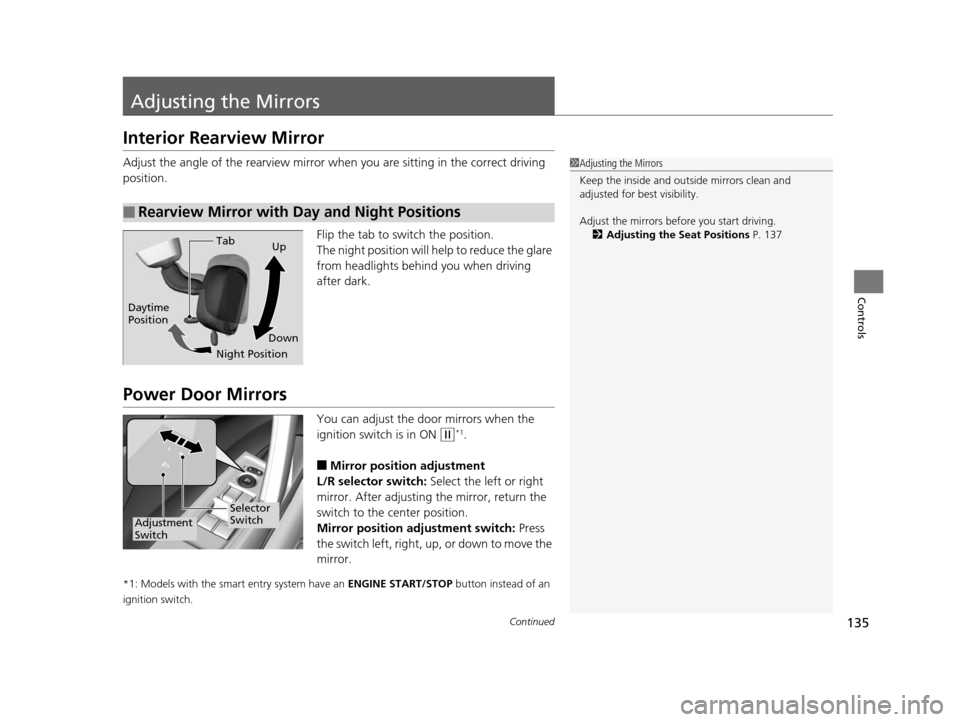

Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
Power Door Mirrors
You can adjust the door mirrors when the
ignition switch is in ON
(w*1.
■Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror positi on adjustment switch: Press
the switch left, right, up, or down to move the
mirror.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Rearview Mirror with Day and Night Positions
1 Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving. 2 Adjusting the Seat Positions P. 137
Tab
Daytime
Position
Night PositionUp
Down
Selector
Switch
Adjustment
Switch
14 CIVIC 2D_SI-31TS86210.book 135 ページ ２０１４年１月２９日　水曜日　午後８時９分

320
uuWhen Driving uLaneWatchTM*
Driving
LaneWatchTM*
Is an assistance system that allows y ou to check the passenger side rear areas
displayed on the audio/information screen when the turn signal is activated to the
passenger’s side. A camera in the passenger side door mirror monitors these areas
and allows you to check for vehicles, in addition to your visual check and use of the
passenger door mirror. You can also keep th e system on for your convenience while
driving.1 LaneWatchTM*
Important Safety Reminder
Like all assistance systems, LaneWatch has
limitations. Over reliance on LaneWatch may result in
a collision.
The LaneWatch function can be affected by weather,
lighting (including headli ghts and low sun angle),
ambient darkness, camera condition, and loading.
The LaneWatch may not prov ide the intended display
of traffic to the side and rear under the following
conditions:
•Your vehicle’s suspensi on has been altered,
changing the height of the vehicle.
•Your tires are over or under inflated.
•Your tires or wheels are of varied size or
construction.
3WARNING
Failure to visually confirm that it is safe to
change lanes before doing so may result in
a crash and serious injury or death.
Do not rely only on LaneWatch while
driving.
Always look in your mi rrors, to either side
of your vehicle, and behind you for other
vehicles before changing lanes.
12
Camera
Audio/Information Screen
Move the turn signal
lever to the passenger
side.
Press the LaneWatch
button.
Pull the turn signal
lever back. Press the LaneWatch
button again. The passenger side view
display appears on the
audio/information screen.
The system activates when you:
The system deactivates when you:
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 320 ページ ２０１４年１月２９日　水曜日　午後８時９分

321
uuWhen Driving uLaneWatchTM*
Driving
■Customizing the La neWatch settings
You can customize the following items using the audio/information screen.
• Show with Turn Signal : Selects whether LaneWatch monitor comes on when
you operate the turn signal light lever.
• Display Time after Turn Signal Off : Changes the length of time the LaneWatch
display stays on after you pull the turn signal lever back.
• Reference Lines : Selects whether the reference lines appear on the LaneWatch
monitor.
• Next Maneuver Pop up
*: Selects whether a turn direction screen of the
navigation system interr upts the LaneWatch display.
• Display : Allows for display adjustments of items, such as brightness, and tint.
This setting is part of the Audio setup group.
2Customized Features* P. 220
■Reference Lines
Three lines that appear on the screen can give
an idea of how far the vehicles or objects on
the screen are from your vehicle, respectively.
If an object is near line 1 (in red), it indicates
that it is close to your vehicle whereas an
object near line 3 farther away.
1LaneWatchTM*
The LaneWatch camera view is restricted. Its unique
lens makes objects on the screen look slightly
different from what they are.
LaneWatch display does not come on when the shift
lever is in
( R.
For proper LaneWatch operation:
•The camera is located in the passenger side door
mirror. Always keep this area clean. If the camera
lens is covered with dirt or moisture, use a soft,
moist cloth to keep the lens clean and free of debris.
•Do not cover the camera lens with labels or stickers
of any kind.
•Do not touch the camera lens.
23
1
1Reference Lines
The area around the reference lin e 1 (red) is very close to
your vehicle. As always, m ake sure to visually confirm
the safety of a lane chan ge before changing lanes.
The distance betwee n your vehicle and lines 1, 2 and
3 on the screen vary depending road conditions and
vehicle loading. For example, the reference lines on
the screen may seem to appear closer than the actual
distances when the rear of your vehicle is more
heavily loaded.
Consult a dealer if:
•The passenger side door mirr or, or area around it is
severely impacted, resulting in changing the
camera angle.
•The LaneWatch display doe s not come on at all.
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 321 ページ ２０１４年１月２９日　水曜日　午後８時９分

433
Index
Rearview Mirror ...................................... 135
Dipstick (Engine Oil) ................................ 349
Directional Signals (Turn Signal) ............. 127
Display Button .......................................... 185
Display/Information Button ...................... 83
Door Mirrors ............................................. 135
Doors ........................................................ 102
Auto Door Locking.................................. 112
Auto Door Unlocking .............................. 112
Door Open Indicator ........................... 29, 71
Keys........................................................ 102
Locking/Unlocking the Doors from the Inside .............................................. 110
Locking/Unlocking the Doors from
the Outside ........................................... 105
Lockout Prevention System ..................... 109
DOT Tire Quality Grading ........................ 375
Driving ...................................................... 291
Automatic Transmission (CVT)................. 304
Braking ................................................... 326
Cruise Control ........................................ 315
Shifting Gear .......................................... 311
Shifting Position .............................. 305, 307
Starting the Engine ......................... 298, 300
Dust and Pollen Filter .............................. 384
E
Eco Assist System.......................................... 7
ECON Button ............................................ 314
Elapsed Time .............................................. 85 Electric Power Steering (EPS) System
Indicator ............................................ 72, 411
Electronic Stability Control (ESC) ............. 318
Emergency Engine Stop ........................... 402
Emergency Towing ................................... 416
Emergency Trunk Opener ........................ 115
Emissions Testing (Readiness Codes) ....... 425
Engine ....................................................... 422
Coolant ................................................... 355
Jump Starting .......................................... 403
Oil ........................................................... 348
Starting ........................................... 298, 300
Switch Buzzer .......................................... 122
Engine Coolant ......................................... 355
Adding to the Radiator ............................ 356
Adding to the Reserve Tank ..................... 355
High Temperature Indicator ....................... 70
Low Temperature Indicator ........................ 70
Overheating ............................................ 407
Engine Oil ................................................. 348
Adding .................................................... 351
Checking ................................................. 349
Displaying Oil Life .................................... 341
Low Oil Pressure Indicator .................. 67, 409
Recommended Engine Oil ........................ 348
ENGINE START/STOP Button .................... 123
Exhaust Gas Hazard (Carbon Monoxide) ................................................. 62
Expanded View Driver’s Mirror ............... 136
Exterior Care (Cleaning) ........................... 387
Exterior Mirrors ........................................ 135
F
Features.................................................... 159
Filters Dust and Pollen ....................................... 384
Oil ........................................................... 352
Flat Tire ..................................................... 393
Floor Mats ................................................. 386
Fluids
Brake/Clutch ........................................... 358
Continuously Variable Transmission (CVT) ..................................................... 357
Engine Coolant ....................................... 355
Manual Transmission ............................... 357
Windshield Washer ................................. 359
Fog Light Indicator ..................................... 73
Folding Down the Rear Seats .................. 143
Foot Brake ................................................ 327
Front Airbags (SRS) ..................................... 40
Front Seats ................................................ 137
Adjusting ................................................ 137
Fuel ...................................................... 17, 332
Economy ................................................. 335
Gauge ....................................................... 81
Instant Fuel Economy .......................... 81, 86
Low Fuel Indicator ..................................... 69
Range ....................................................... 85
Recommendation .................................... 332
Refueling................................................. 332
Fuel Economy ........................................... 335
Fuel Fill Cap ........................................ 17, 334
Message.................................................. 410
14 CIVIC 2D_SI-31TS86210.book 433 ページ ２０１４年１月２９日　水曜日　午後８時９分

435
Index
Low Fuel ................................................... 69
Low Oil Pressure ............................... 67, 409
Low Temperature...................................... 70
Low Tire Pressure/TPMS ............ 72, 322, 324
Maintenance Minder............................... 341
Malfunction Indicator Lamp .............. 67, 410
Parking Brake and Brake System (Red) ............................................... 66, 411
REV..................................................... 75, 82
Seat Belt Reminder.............................. 31, 69
Security System Alarm............................... 74
Shift Lever Position.................................... 68
Smart Entry System ................................... 74
Supplemental Restraint System ........... 47, 70
System Message ....................................... 73
Transmission ............................................. 68
Trunk Open .............................................. 71
Turn Signal and Hazard Warning............... 73
Vehicle Stability Assist (VSA® )
System ............................................ 71, 318
VSA ® OFF.......................................... 71, 319
Information .............................................. 417
Instant Fuel Economy .......................... 81, 86
Instrument Panel ........................................ 65
Brightness Control .................................. 132
intelligent Multi-Information Display (i-MID) ....................................................... 83
Interior Lights ........................................... 145
Interior Rearview Mirror ......................... 135
i-VTEC and REV Indicators ......................... 82J
Jack (Wheel Nut Wrench)........................ 396
Jump Starting ........................................... 403
K
Key Number Tag ....................................... 103
Keyless Lockout Prevention ..................... 109
Keys ........................................................... 102
Lockout Prevention .................................. 109
Master Keys ............................................. 102
Number Tag ............................................ 103
Remote Transmitter ................................. 105
Types and Functions ................................ 102
Valet Key ................................................. 103
Won’t Turn ................................................ 20
Kickdown (Automatic Transmission) ....... 304
L
LaneWatchTM............................................. 320
Language (HFL) ................................. 234, 265
LATCH (Child Seats) .................................... 55
Lights ................................................. 127, 360
Automatic ............................................... 128
Bulb Replacement .................................... 360
Daytime Running Lights ........................... 130
Fog Lights ................................................ 130
High Beam Indicator .................................. 73 Interior .................................................... 145
Light Switches ......................................... 127
Lights On Indicator .................................... 73
Turn Signals ............................................ 127
Load Limits ................................................ 295
Locking/Unlocking the Doors .................. 102
Auto Door Locking/Unlocking.................. 112
From Inside ............................................. 110
From Outside .......................................... 105
Keys ........................................................ 102
Using a Key ............................................. 109
Lockout Prevention System ..................... 109
Low Battery Charge ................................. 409
Low Fuel Indicator ...................................... 69
Low Oil Pressure Indicator ................. 67, 409
Low Smart Entry Remote Signal Strength .................................................. 104
Lower Anchors ............................................ 55
Lubricant Specifications Chart ......... 419, 421
Luggage (Maximum Load Limit) ............. 295
M
Maintenance............................................. 337
Battery .................................................... 381
Brake/Clutch Fluid ................................... 358
Cleaning ................................................. 385
Climate Control System ........................... 384
Coolant ................................................... 355
14 CIVIC 2D_SI-31TS86210.book 435 ページ ２０１４年１月２９日　水曜日　午後８時９分

436
Index
Heating and Cooling System .................... 384
Maintenance MinderTM............................ 341
Oil ........................................................... 349
Precautions .............................................. 338
Radiator................................................... 356
Remote Transmitter ................................. 382
Replacing Light Bulbs ............................... 360
Safety ...................................................... 339
Service Items............................................ 343
Tires ........................................................ 372
Transmission Fluid.................................... 357
Under the Hood....................................... 345
Malfunction Indicator Lamp .............. 67, 410
Manual Transmission ................................ 311
Map Lights ................................................ 146
Maximum Load Limit ................................ 295
Meters, Gauges ........................................... 81
Mirrors ....................................................... 135
Adjusting ................................................. 135
Door ........................................................ 135
Exterior .................................................... 135
Interior Rearview...................................... 135
Modifications (and Accessories) ............... 336
Moonroof .................................................. 121
MP3 ............................ 171, 179, 194, 202, 207
Multi-Information Display .......................... 83
N
Numbers (Identification).......................... 422
O
Odometer................................................... 84
Oil (Engine) ............................................... 348
Adding .................................................... 351
Checking................................................. 349
Displaying Oil Life .................................... 341
Low Oil Pressure Indicator ................. 67, 409
Recommended Engine Oil ....................... 348
Viscosity .................................................. 348
Opening/Closing Hood....................................................... 347
Moonroof ............................................... 121
Power Windows ...................................... 119
Trunk ...................................................... 113
Outside Temperature Display .................... 86
Overheating .............................................. 407
P
Paddle Shifters (7-Speed Manual Shift
Mode) ...................................................... 309
Pandora® ........................................... 178, 201
Panic Mode ............................................... 118
Parking ...................................................... 330
Parking Brake ........................................... 326
Parking Brake and Brake System Indicator (Red) .................................................. 66, 411
Passenger Airbag Off Indicator ................. 48
Passing Indicators ..................................... 127
Power Windows ....................................... 119 Precautions While Driving
....................... 303
Rain ........................................................ 303
Pregnant Women ....................................... 35
Puncture (Tire) ......................................... 393
R
Radiator.................................................... 356
Radio (AM/FM) ................................. 168, 191
Radio Data System (RDS) ................. 170, 192
Range .......................................................... 85
RDS (Radio Data System) ................. 170, 192
Readiness Codes (Emissions Testing) ...... 425
Rear Defogger/Heated Door Mirror Button ..................................................... 133
Rear Seat Access ....................................... 142
Rear Seats (Folding Down) ...................... 143
Rearview Camera ..................................... 331
Rearview Mirror ....................................... 135
Refueling .................................................. 332
Fuel Gauge ............................................... 81
Gasoline ................................. 332, 418, 420
Low Fuel Indicator ..................................... 69
Regulations .............................. 324, 375, 423
Remote Transmitter ................................. 105
Replacement Battery .................................................... 382
Bulbs ...................................................... 360
Fuses .............................................. 413, 414
Tires........................................................ 378
Wiper Blade Rubber ................................ 370
14 CIVIC 2D_SI-31TS86210.book 436 ページ ２０１４年１月２９日　水曜日　午後８時９分
